◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11549 - FRR AUST/NZ EURO5 SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#124063) — 142 parça

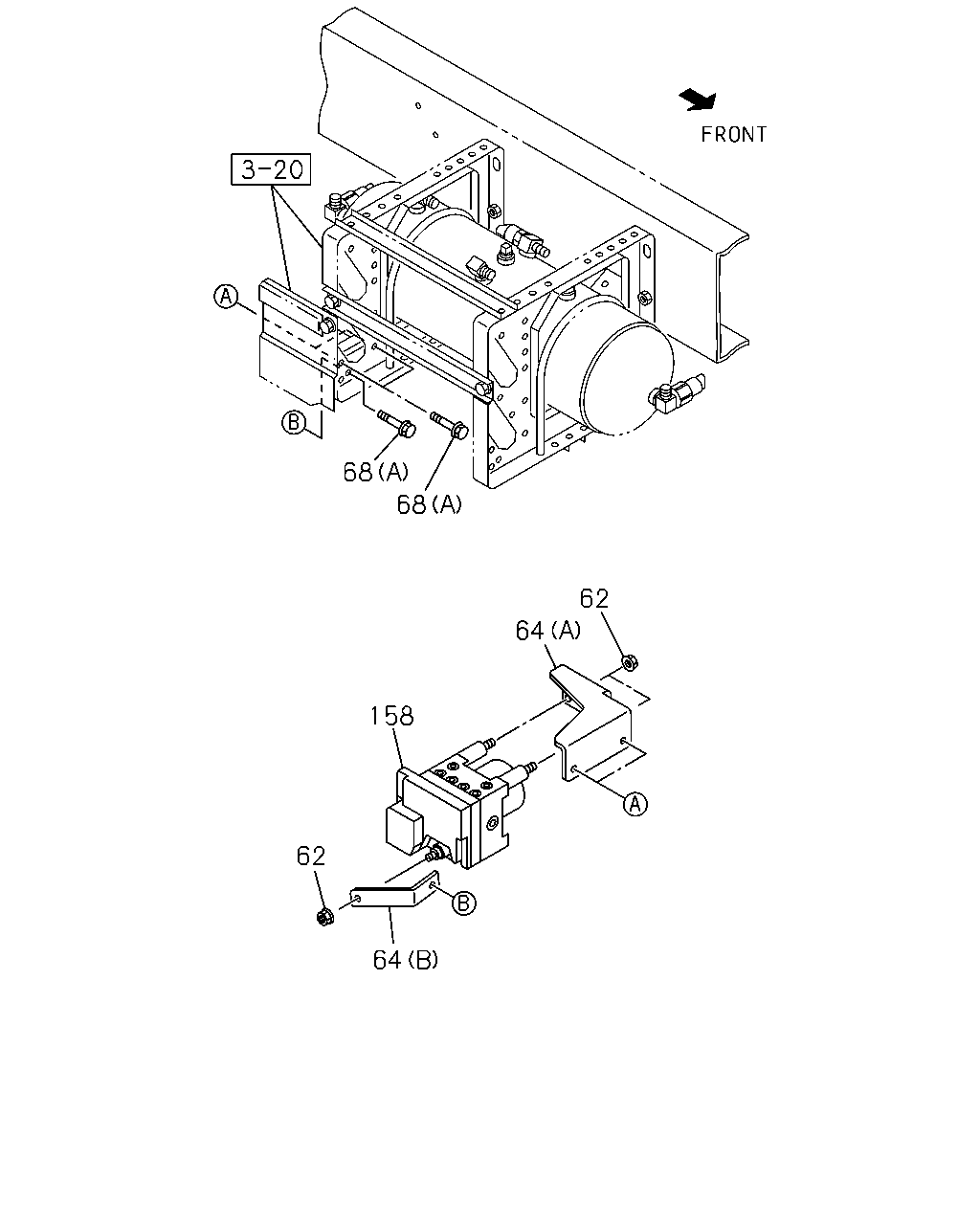

çizim 363794
68 68 62 64 158 64 62
BalonParca AdiParca NoAdetTipApplied Date A B
62 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1307-1312 ●
62 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1401- ● ●
64 BRACKET; CONTROLLER
(A) 		8-98044-238-2 01 1 1307-1312 ●
64 BRACKET; CONTROLLER
(A) 		8-98044-238-2 01 1 1401- ● ●
64 BRACKET; CONTROLLER
(B) 		8-98044-239-1 01 1 1307-1312 ●
64 BRACKET; CONTROLLER
(B) 		8-98044-239-1 01 1 1401- ● ●
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 1307-1312 ●
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 1401- ● ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1307-1312 ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1401- ● ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1307-1312 ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1401- ● ●
158 CONTROLLER; ABS
TIRE 235/75R17.5-132/130M EXP RIB(5J9),TIRE 235/75R17.5-132/130M EXP RIB BS BRAND(5P0) THROTTLE CONTROL SYSTEM(6XH) 		8-98157-998-1 01 1 1412- ● ●
158 CONTROLLER; ABS
TIRE 235/75R17.5-132/130M EXP RIB(5J9),TIRE 235/75R17.5-132/130M EXP RIB BS BRAND(5P0) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98157-992-1 01 1 1412- ● ●
158 CONTROLLER; ABS
TIRE 9.5R 17.5-129/127L FRT RIB RR TRACTION(5J6), TIRE 9.5R 17.5-129/127(83N) THROTTLE CONTROL SYSTEM(6XH) 		8-98157-999-1 01 1 1307-1312 ●
158 CONTROLLER; ABS
TIRE 9.5R 17.5-129/127L FRT RIB RR TRACTION(5J6), TIRE 9.5R 17.5-129/127(83N) THROTTLE CONTROL SYSTEM(6XH) 		8-98157-999-1 01 1 1401-1411 ●
158 CONTROLLER; ABS
THROTTLE CONTROL SYSTEM(6XH) 		8-98157-999-1 01 1 1401-1411 ●
158 CONTROLLER; ABS
TIRE 9.5R 17.5-129/127L FRT RIB RR TRACTION(5J6), TIRE 9.5R 17.5-129/127(83N) THROTTLE CONTROL SYSTEM(6XH) 		8-98157-999-1 01 1 1412- ●
158 CONTROLLER; ABS
TIRE 9.5R 17.5-129/127(83N) THROTTLE CONTROL SYSTEM(6XH) 		8-98157-999-1 01 1 1412- ●
158 CONTROLLER; ABS
TIRE 9.5R 17.5-129/127L FRT RIB RR TRACTION(5J6), TIRE 9.5R 17.5-129/127(83N) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98157-993-1 01 1 1307-1312 ●
158 CONTROLLER; ABS
TIRE 9.5R 17.5-129/127L FRT RIB RR TRACTION(5J6), TIRE 9.5R 17.5-129/127(83N) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98157-993-1 01 1 1401-1411 ●
158 CONTROLLER; ABS
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98157-993-1 01 1 1401-1411 ●
158 CONTROLLER; ABS
TIRE 9.5R 17.5-129/127L FRT RIB RR TRACTION(5J6), TIRE 9.5R 17.5-129/127(83N) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98157-993-1 01 1 1412- ●
158 CONTROLLER; ABS
TIRE 9.5R 17.5-129/127(83N) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98157-993-1 01 1 1412- ●

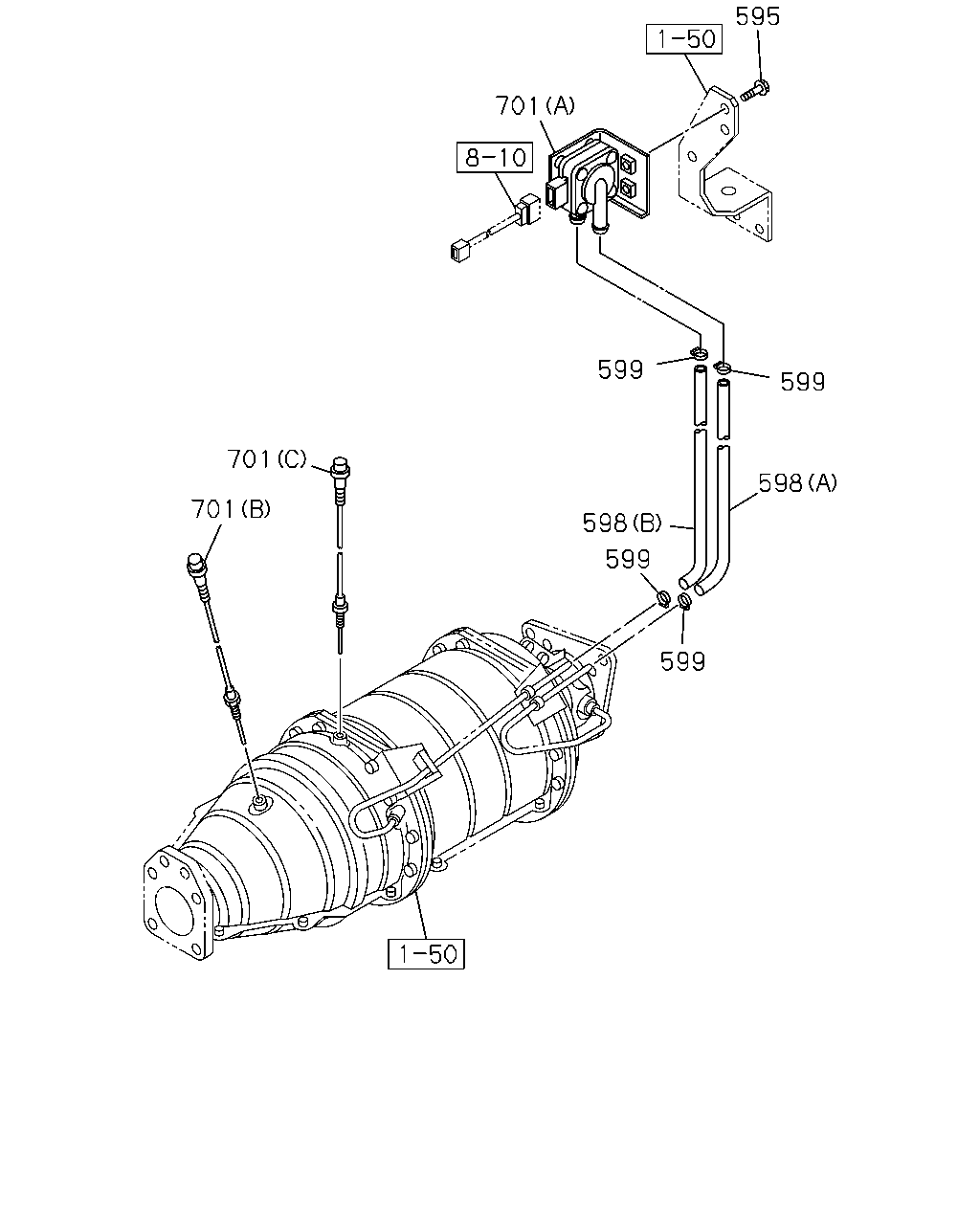

çizim 363830
595 599 598 599 599 598 599 701 701 701
BalonParca AdiParca NoAdetTipApplied Date A B
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ●
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ●
598 HOSE; RUBBER,SENSOR
(B) 		8-98060-174-1 01 1 1307-1312 ●
598 HOSE; RUBBER,SENSOR
(B) 		8-98060-174-1 01 1 1401- ● ●
598 HOSE; RUBBER,SENSOR
(A) 		8-98077-342-0 01 1 1307-1312 ●
598 HOSE; RUBBER,SENSOR
(A) 		8-98077-342-0 01 1 1401- ● ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 1307-1312 ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 1401- ● ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 1307-1312 ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 1401- ● ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 1307-1312 ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 1401- ● ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 1307-1312 ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 1401- ● ●

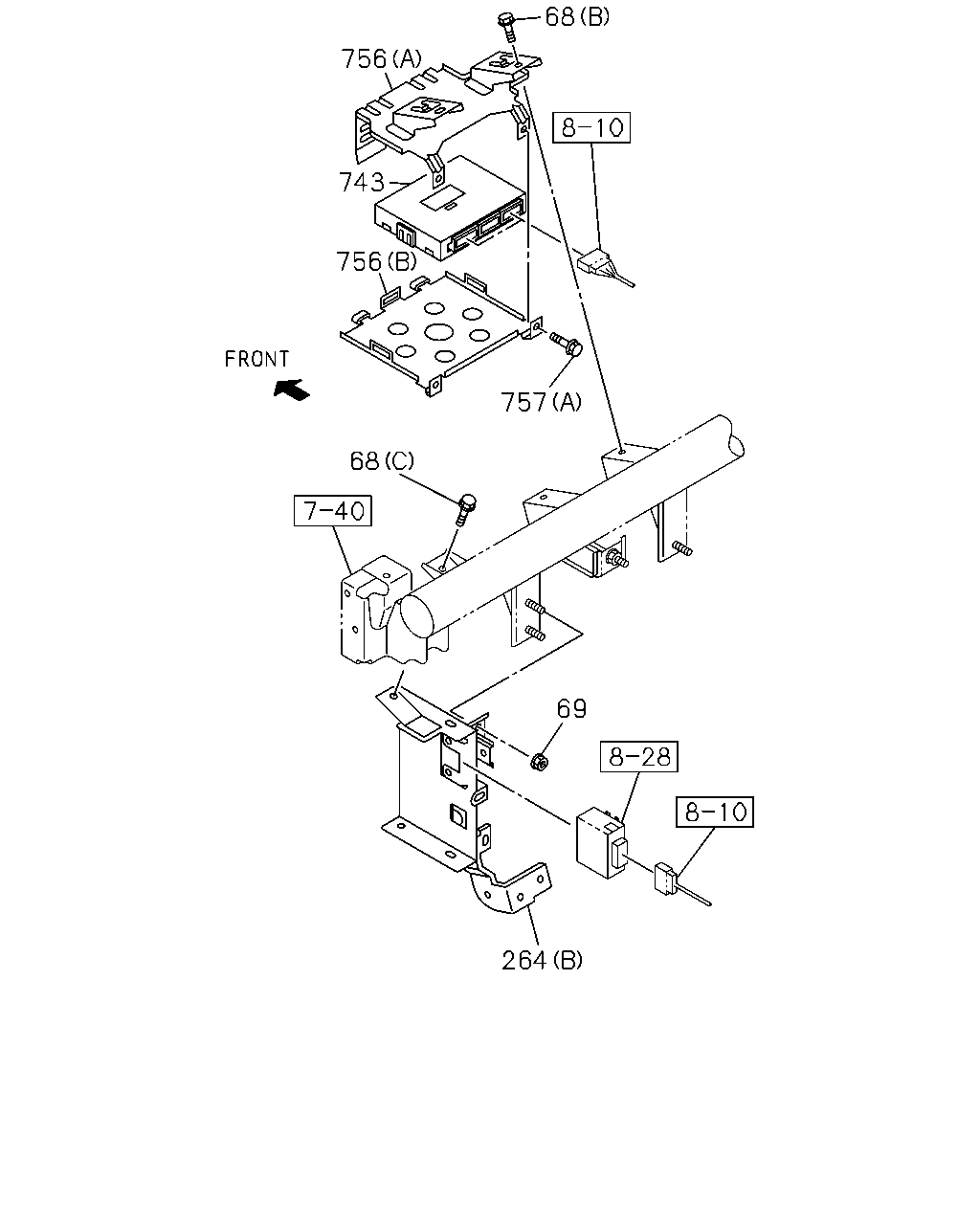

çizim 363865
68 757 756 743 756 68 69 264
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 1307-1312 ●
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 1401- ● ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1307-1312 ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1401- ● ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1307-1312 ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1401- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1307-1312 ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1401- ● ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 1307-1312 ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 1401- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98064-901-0 01 1 1307-1312 ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98064-901-0 01 1 1401- ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1307-1312 ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1401- ● ●
756 BRACKET; ECU,BCM
(C) 		8-98222-208-0 01 1 1307-1312 ●
756 BRACKET; ECU,BCM
(C) 		8-98222-208-0 01 1 1401-1507 ● ●
756 BRACKET; ECU,BCM
(C) 		8-98203-991-0 01 1 1508- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (A) 		8-98056-411-3 01 1 1307-1312 ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (A) 		8-98056-411-3 01 1 1401- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1307-1312 ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1401- ● ●
757 BOLT; BRKT,BCM
(B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1307-1312 ●
757 BOLT; BRKT,BCM
(B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1401- ● ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> (A) M6X16 FLANGE 		0-28650-616-0 02 1 1307-1312 ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> (A) M6X16 FLANGE 		0-28650-616-0 02 1 1401- ● ●

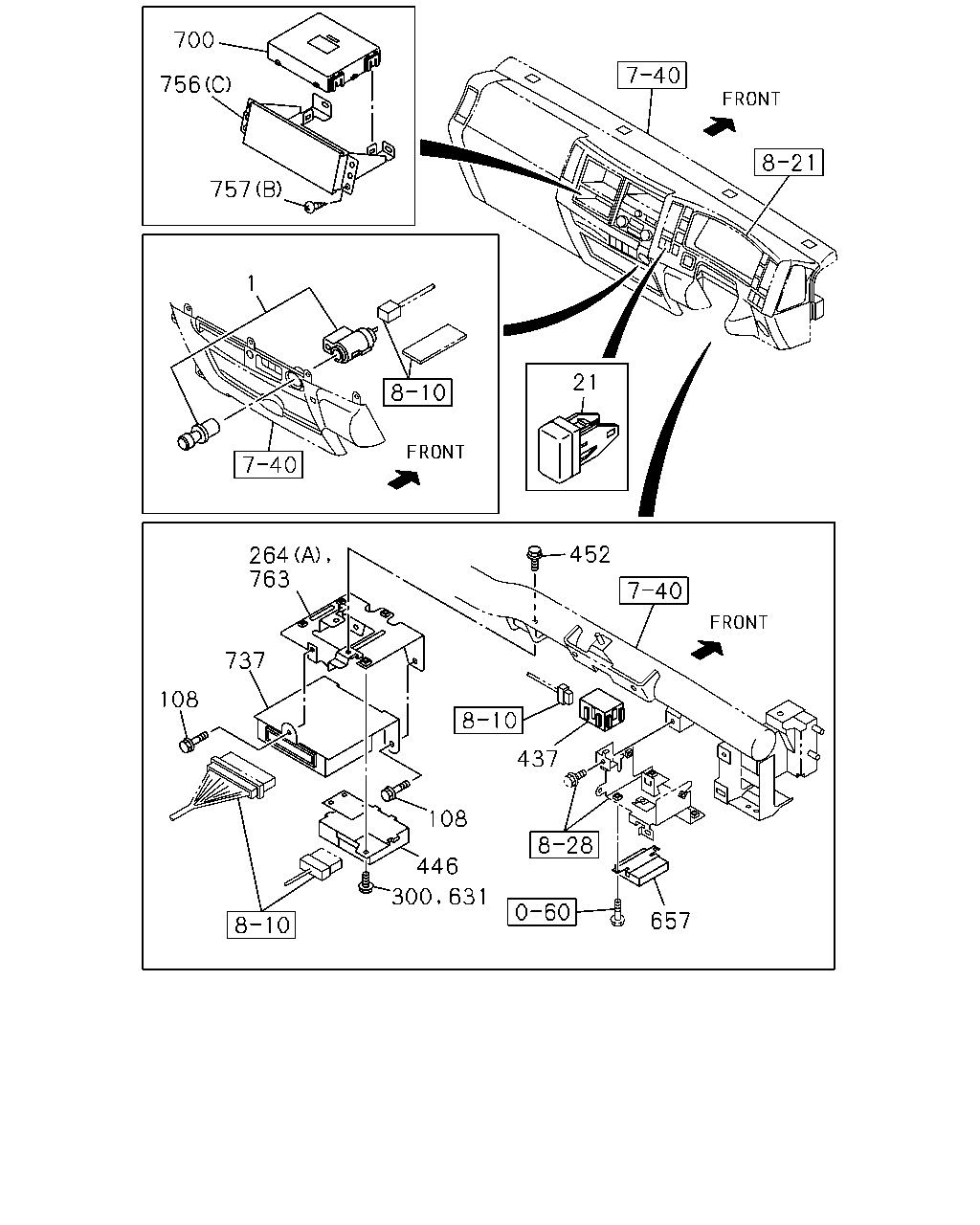

çizim 365186
700 756 757 1 21 452 264 763 737 108 108 446 300 631 437 657
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX> 		8-98142-962-0 01 1 1307-1312 ●
1 LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX> 		8-98142-962-0 01 1 1401- ● ●
21 COVER; HOLE
POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97101-974-0 01 1 1307- ●
21 COVER; HOLE 8-98025-954-1 01 1 1307- ● ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 03 1 1307-1312 ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 03 1 1401- ● ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 1307-1312 ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 1401- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98064-901-0 01 1 1307-1312 ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98064-901-0 01 1 1401- ● ●
300 BOLT; CONT UNIT BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 1307-1312 ●
300 BOLT; CONT UNIT BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 1401- ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1307- ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98136-318-1 01 1 1307-1312 ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98136-318-1 01 1 1401- ● ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 FLANGE 		0-28650-616-0 02 1 1307-1312 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 FLANGE 		0-28650-616-0 02 1 1401- ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 FLANGE 		0-28650-616-0 02 1 1307-1312 ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6X16 FLANGE 		0-28650-616-0 02 1 1401- ● ●
657 CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98013-144-8 01 1 1307-1312 ●
657 CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98013-144-8 01 1 1401-1401 ● ●
657 CONTROL UNIT; MIMAMORI
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98260-912-1 01 1 1402- ● ●
700 CONTROL UNIT; CAN CONVERTER 8-98219-812-1 01 1 1307-1312 ●
700 CONTROL UNIT; CAN CONVERTER 8-98219-812-1 01 1 1401- ● ●
737 CONTROL UNIT; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-633-0 01 1 1307-1312 ●
737 CONTROL UNIT; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98232-633-0 01 1 1401-1404 ● ●
737 CONTROL UNIT; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98272-172-0 01 1 1405-1411 ● ●
737 CONTROL UNIT; TRANSMISSION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98282-913-0 01 1 1412- ● ●
756 BRACKET; ECU,BCM
(C) 		8-98222-208-0 01 1 1307-1312 ●
756 BRACKET; ECU,BCM
(C) 		8-98222-208-0 01 1 1401-1507 ● ●
756 BRACKET; ECU,BCM
(C) 		8-98203-991-0 01 1 1508- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (A) 		8-98056-411-3 01 1 1307-1312 ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (A) 		8-98056-411-3 01 1 1401- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1307-1312 ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1401- ● ●
757 BOLT; BRKT,BCM
(B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1307-1312 ●
757 BOLT; BRKT,BCM
(B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1401- ● ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> (A) M6X16 FLANGE 		0-28650-616-0 02 1 1307-1312 ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> (A) M6X16 FLANGE 		0-28650-616-0 02 1 1401- ● ●
763 BRACKET; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-901-0 01 1 1307-1312 ●
763 BRACKET; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98064-901-0 01 1 1401- ● ●

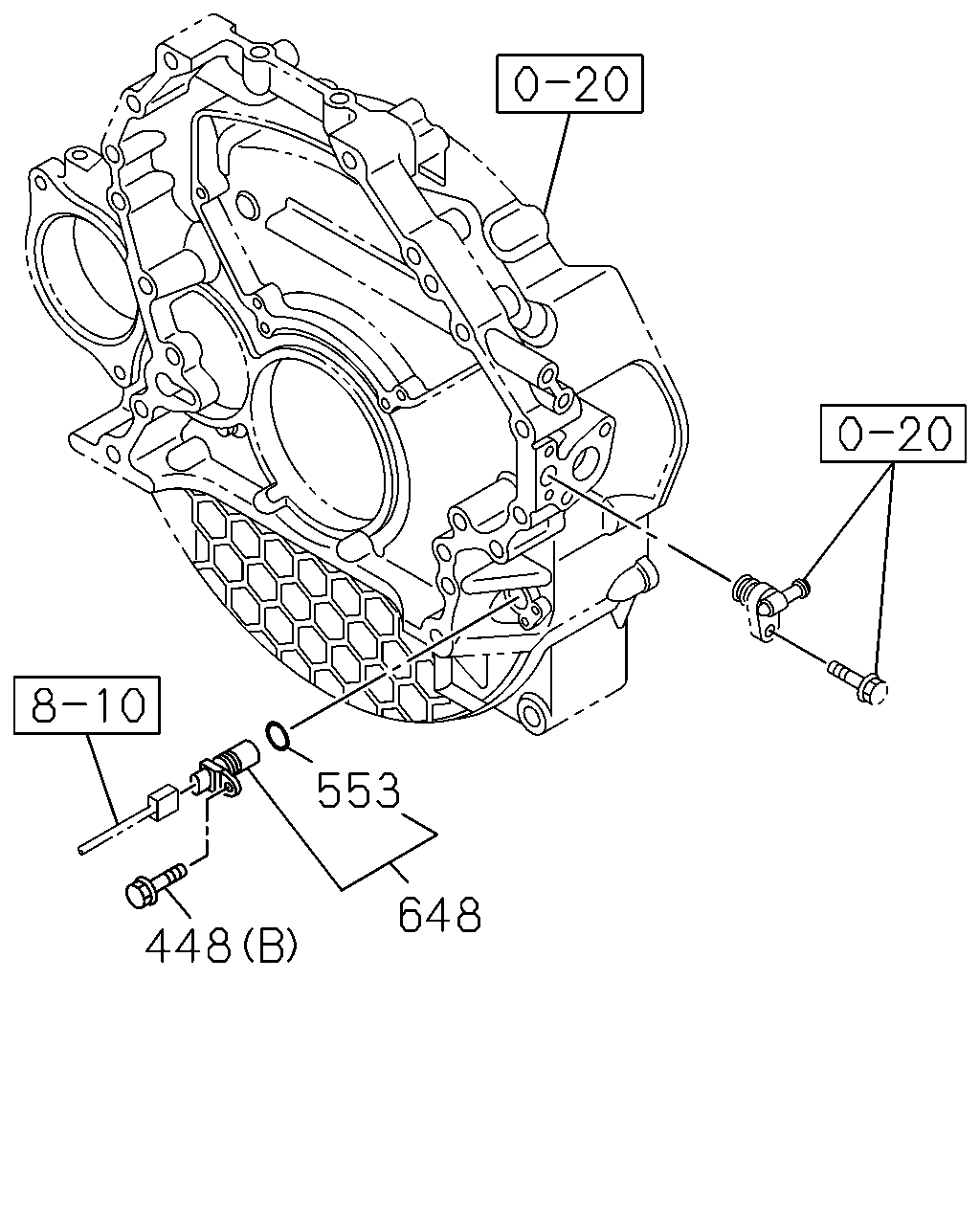

çizim 366865
553 648 448
BalonParca AdiParca NoAdetTipApplied Date A B
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1307-1312 ●
448 BOLT; SENSOR
POWER TAKE OFF-FLYWHEEL<6SZ> (B) M6X16 FLANGE 		0-28050-616-0 01 1 1307-1312 ●
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1401- ● ●
448 BOLT; SENSOR
POWER TAKE OFF-FLYWHEEL<6SZ> (B) M6X16 FLANGE 		0-28050-616-0 01 1 1401- ●
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1401- ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1307-1312 ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1401- ● ●
553 GASKET
ID=14.2 OD=18.8 		8-97369-404-0 01 1 1307-1312 ●
553 GASKET
ID=14.2 OD=18.8 		8-97369-404-0 01 1 1401- ● ●
648 SENSOR; CRANK ANGLE 8-97606-943-0 01 1 1307-1312 ●
648 SENSOR; CRANK ANGLE 8-97606-943-0 01 1 1401- ● ●

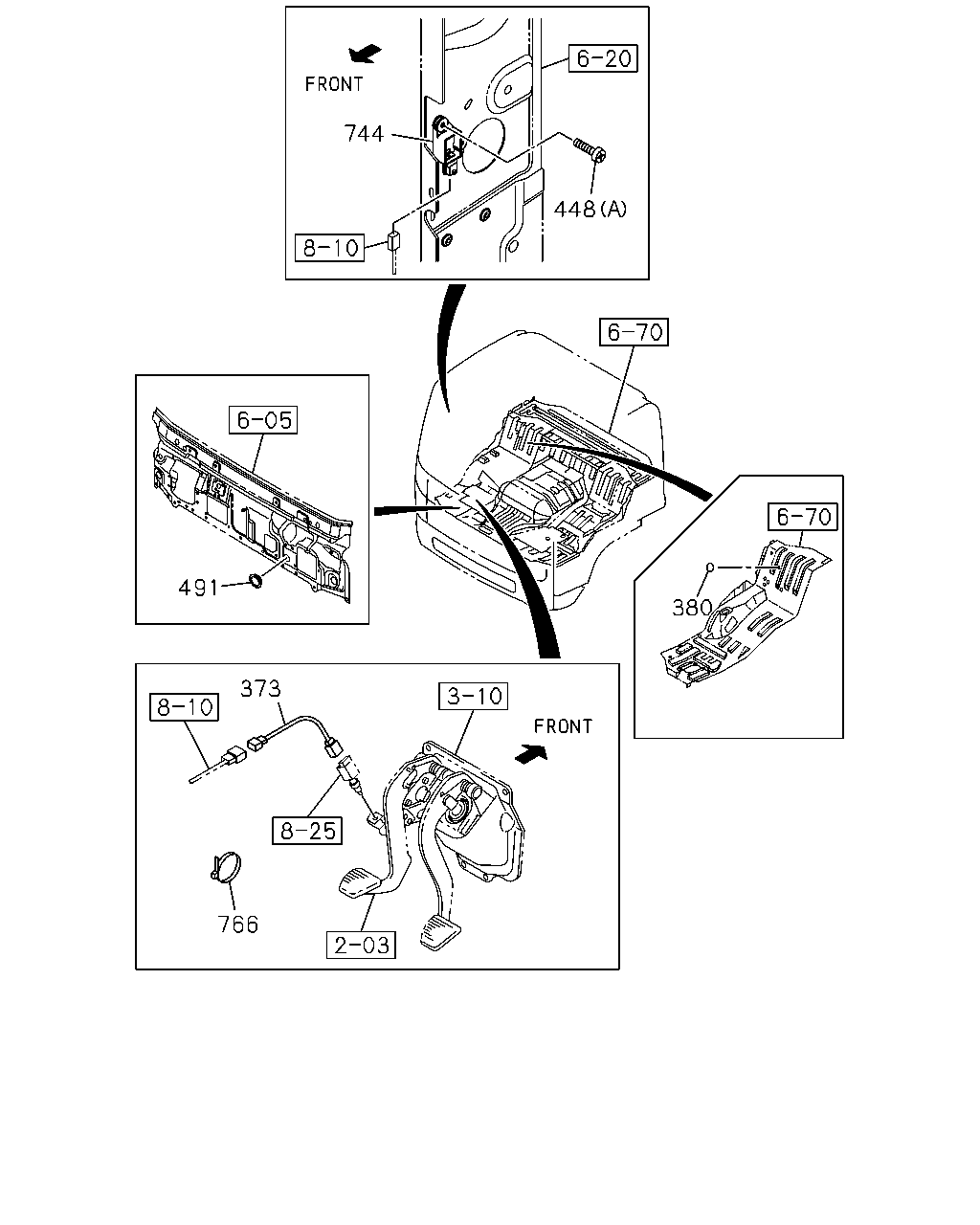

çizim 366990
744 448 380 491 766 373
BalonParca AdiParca NoAdetTipApplied Date A B
373 HARNESS; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98059-419-2 01 1 1307-1312 ●
373 HARNESS; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98059-419-2 01 1 1401- ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1307-1312 ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1401- ● ●
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1307-1312 ●
448 BOLT; SENSOR
POWER TAKE OFF-FLYWHEEL<6SZ> (B) M6X16 FLANGE 		0-28050-616-0 01 1 1307-1312 ●
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1401- ● ●
448 BOLT; SENSOR
POWER TAKE OFF-FLYWHEEL<6SZ> (B) M6X16 FLANGE 		0-28050-616-0 01 1 1401- ●
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1401- ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1307-1312 ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1401- ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1307-1312 ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1401- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 1307-1312 ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 1401- ● ●
766 BAND; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 1307-1312 ●
766 BAND; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 1401- ● ●

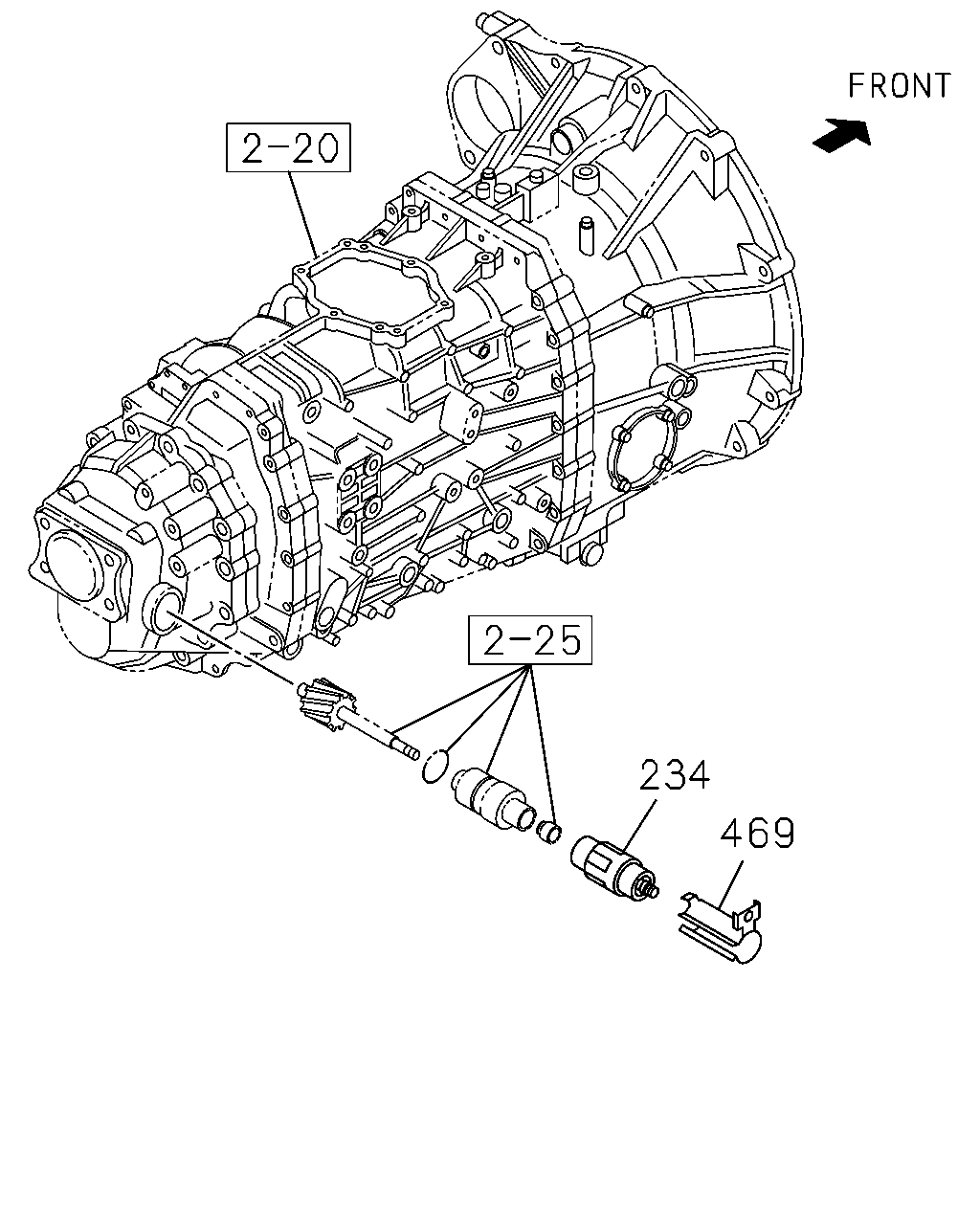

çizim 367006
234 469
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1307-1312 ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1401- ● ●
469 PROTECTOR; SPEED SENSOR 8-98119-901-0 01 1 1307-1312 ●
469 PROTECTOR; SPEED SENSOR 8-98119-901-0 01 1 1401- ● ●

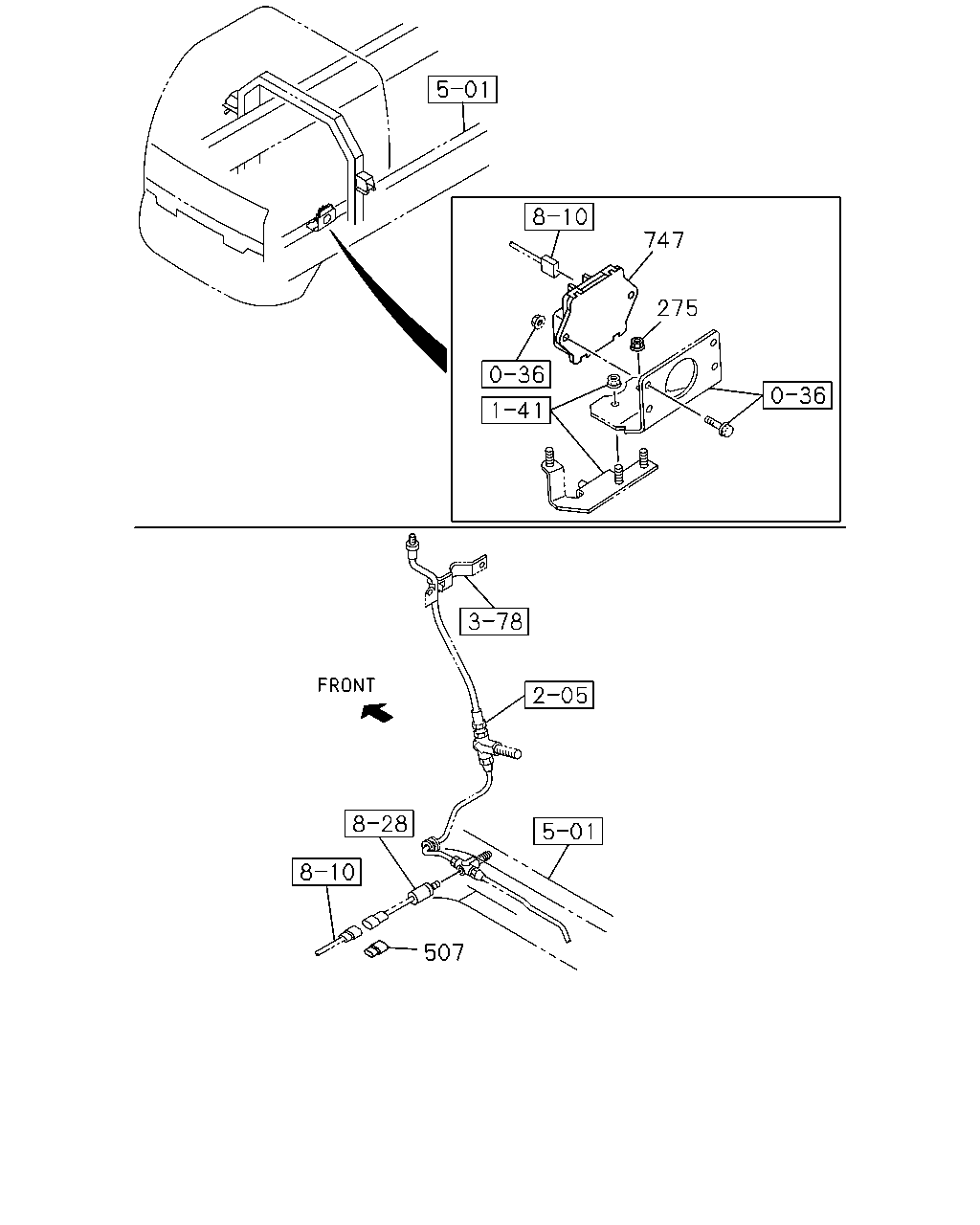

çizim 367097
747 275 507
BalonParca AdiParca NoAdetTipApplied Date A B
275 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
275 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
507 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1307-1312 ●
507 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1401- ● ●
747 CONTROL UNIT; TURBOCHARGER 8-98162-807-0 01 1 1307-1312 ●
747 CONTROL UNIT; TURBOCHARGER 8-98162-807-0 01 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
