◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11549 - FRR AUST/NZ EURO5 SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#124060) — 18 parça

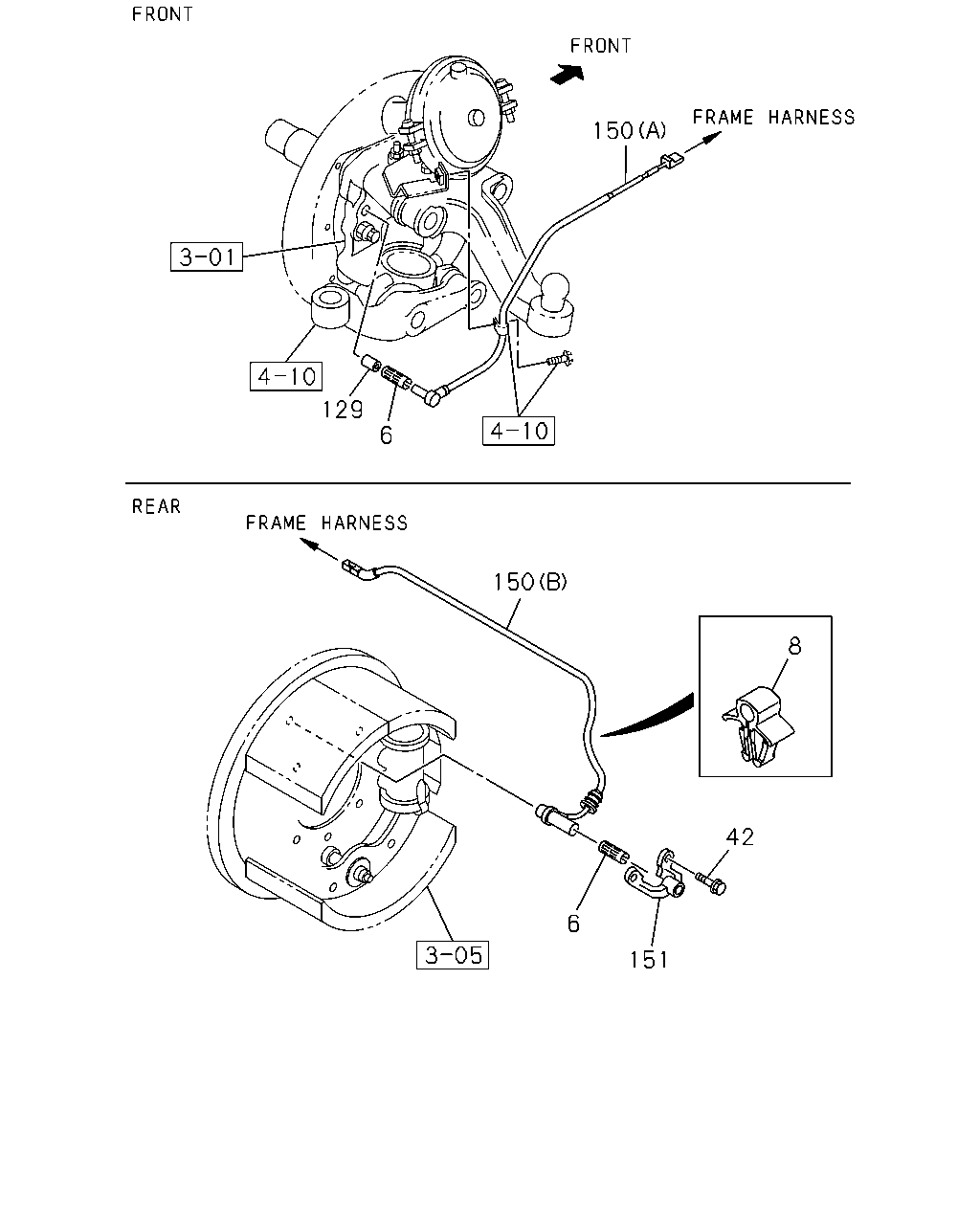

çizim 363749
150 6 129 150 42 8 6 151
BalonParca AdiParca NoAdetTipApplied Date A B
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 1307-1312 ●
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 1307-1312 ●
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 1401- ● ●
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 1401- ● ●
8 CLIP; HARNESS
ID=4.8 		1-09701-218-0 02 1 1307-1312 ●
8 CLIP; HARNESS
ID=4.8 		1-09701-218-0 02 1 1401- ● ●
42 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1307-1312 ●
42 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1401- ● ●
129 COLLAR 1-83129-471-0 02 1 1307-1312 ●
129 COLLAR 1-83129-471-0 02 1 1401- ● ●
150 SENSOR; SPEED,ABS
(A) 		1-83227-019-1 02 1 1307-1312 ●
150 SENSOR; SPEED,ABS
(A) 		1-83227-019-1 02 1 1401- ● ●
150 SENSOR; SPEED,ABS
(B) 		8-98012-782-4 02 1 1307-1312 ●
150 SENSOR; SPEED,ABS
(B) 		8-98012-782-4 02 1 1401- ● ●
151 BRACKET; SPD SENSOR 8-98064-696-0 01 1 1307-1312 ●
151 BRACKET; SPD SENSOR 8-98064-696-0 01 1 1401- ● ●
151 BRACKET; SPD SENSOR 8-98064-697-0 01 1 1307-1312 ●
151 BRACKET; SPD SENSOR 8-98064-697-0 01 1 1401- ● ●
