◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11549 - FRR AUST/NZ EURO5 SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#124059) — 244 parça

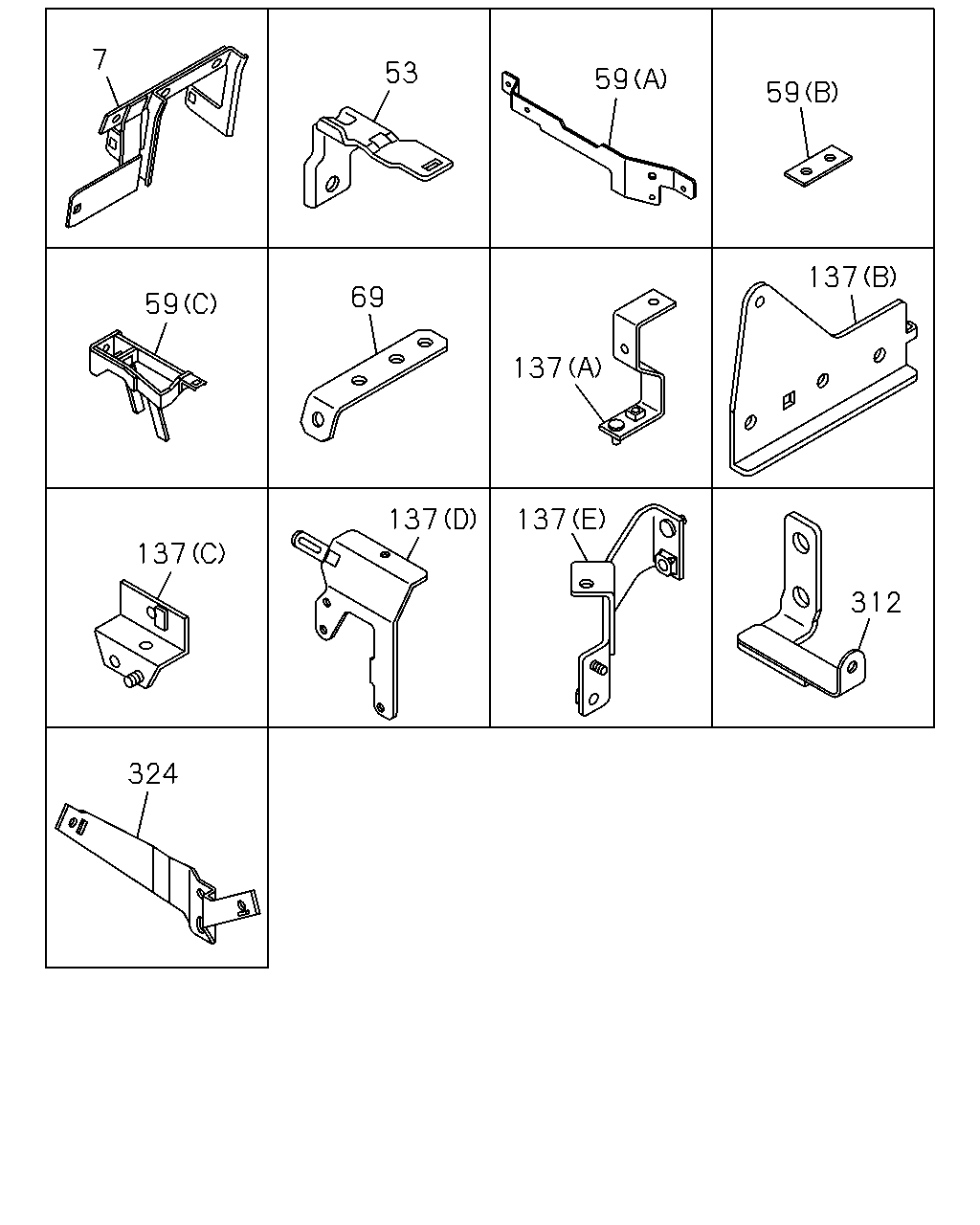

çizim 363856
312 137 59 137 137 137 59 53 69 137 59 7 324
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1307-1312 ●
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1401- ● ●
53 BRACKET; HARNESS 8-98052-458-0 01 1 1307-1312 ●
53 BRACKET; HARNESS 8-98052-458-0 01 1 1401- ● ●
59 BRACKET; FRAME HARNESS
(C) 		8-98099-963-0 01 1 1309-1312 ●
59 BRACKET; FRAME HARNESS
(C) 		8-98099-963-0 01 1 1401- ● ●
59 BRACKET; FRAME HARNESS
(A) 		8-97614-738-0 01 1 1307-1312 ●
59 BRACKET; FRAME HARNESS
(A) 		8-97614-738-0 01 1 1401- ● ●
59 BRACKET; FRAME HARNESS
(B) L=85 		8-98044-743-0 01 1 1307-1312 ●
59 BRACKET; FRAME HARNESS
(B) L=85 		8-98044-743-0 01 1 1401- ● ●
69 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-82698-167-0 01 1 1307-1312 ●
69 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-82698-167-0 01 1 1401- ● ●
137 BRACKET; HARNESS CLAMP
(E) 		8-98249-803-1 01 1 1401- ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-016-0 01 1 1307-1312 ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-016-0 01 1 1401- ● ●
137 BRACKET; HARNESS CLAMP
(A) 		8-98065-904-0 01 1 1307- ● ●
137 BRACKET; HARNESS CLAMP
(C) 		8-98058-354-1 01 1 1307-1312 ●
137 BRACKET; HARNESS CLAMP
(C) 		8-98058-354-1 01 1 1401- ● ●
137 BRACKET; HARNESS CLAMP
(D) 		8-97618-098-2 01 1 1307-1312 ●
137 BRACKET; HARNESS CLAMP
(D) 		8-97618-098-2 01 1 1401- ● ●
312 BRACKET; CLIP HARNESS 8-98094-804-0 01 1 1307-1312 ●
312 BRACKET; CLIP HARNESS 8-98094-804-0 01 1 1401- ● ●
324 BRACKET; CLIP 8-98061-654-2 01 1 1307-1312 ●
324 BRACKET; CLIP 8-98061-654-2 01 1 1401- ● ●
324 BRACKET; CLIP 8-98061-653-2 01 1 1307-1312 ●
324 BRACKET; CLIP 8-98061-653-2 01 1 1401- ● ●

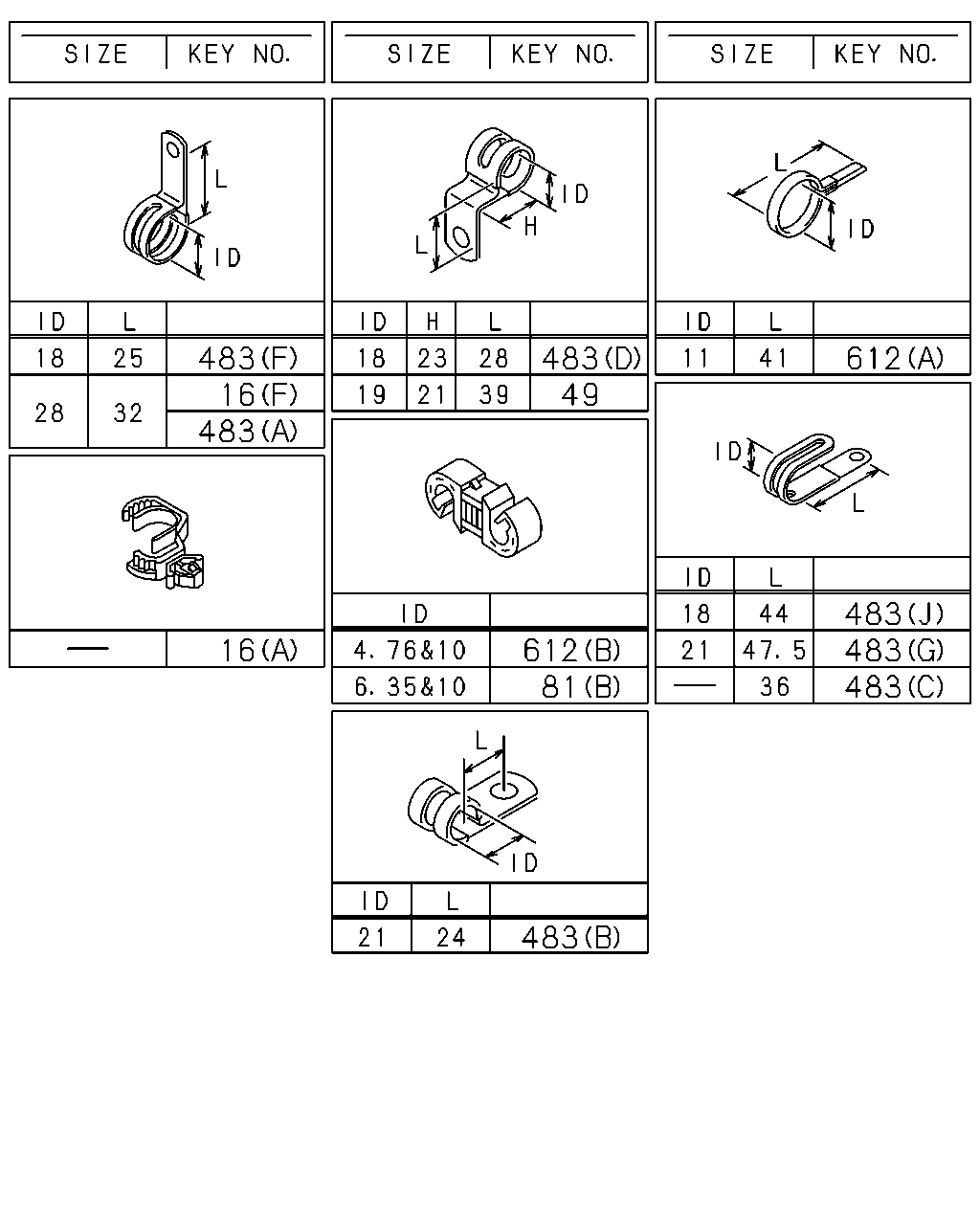

çizim 365137
483 16 483 16 483 49 612 81 483 612 483 483 483
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(H) ID=11 L=16 		0-95235-025-0 02 1 1307-1312 ●
16 CLIP; HARNESS
(H) ID=11 L=16 		0-95235-025-0 02 1 1401- ● ●
16 CLIP; HARNESS
(G) ID=11X2 L=16 		1-09700-734-0 01 1 1307-1312 ●
16 CLIP; HARNESS
(G) ID=11X2 L=16 		1-09700-734-0 01 1 1401- ● ●
16 CLIP; HARNESS
(F) ID=28 L=32 		1-09701-107-1 02 1 1307-1312 ●
16 CLIP; HARNESS
(F) ID=28 L=32 		1-09701-107-1 02 1 1401- ● ●
16 CLIP; HARNESS
(I) L=350 		1-09707-183-0 01 1 1307-1312 ●
16 CLIP; HARNESS
(I) L=350 		1-09707-183-0 01 1 1401- ● ●
16 CLIP; HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 03 1 1307-1312 ●
16 CLIP; HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 03 1 1401- ● ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 1307-1312 ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 1401- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1307-1312 ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1401- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1307-1312 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1401- ● ●
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1307-1312 ●
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1401- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1307-1312 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1401- ● ●
49 CLIP; GEN HARNESS
ID=19 L=39 H=21 		1-09700-972-1 01 1 1307-1312 ●
49 CLIP; GEN HARNESS
ID=19 L=39 H=21 		1-09700-972-1 01 1 1401- ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1307-1312 ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1401- ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 1307-1312 ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 1401- ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL<6SZ> (C) L=36 		8-94224-891-1 02 1 1307- ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL<6SZ> (I) 		8-97101-436-0 01 1 1307- ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL<6SZ> (J) ID=18 L=44 		8-97367-985-1 02 1 1307- ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1307-1312 ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1401- ● ●
483 CLIP; ENG HARNESS
(A) ID=28 L=32 		1-09701-107-1 01 1 1307-1312 ●
483 CLIP; ENG HARNESS
(A) ID=28 L=32 		1-09701-107-1 01 1 1401- ● ●
483 CLIP; ENG HARNESS
(B) ID=21 L=24 		1-09701-201-0 01 1 1307-1312 ●
483 CLIP; ENG HARNESS
(B) ID=21 L=24 		1-09701-201-0 01 1 1401- ● ●
483 CLIP; ENG HARNESS
(H) 		1-09987-281-0 01 1 1307-1312 ●
483 CLIP; ENG HARNESS
(H) 		1-09987-281-0 01 1 1401- ● ●
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1307-1312 ●
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1401- ● ●
483 CLIP; ENG HARNESS
(F) ID=18 L=25 		8-94121-004-1 01 1 1307-1312 ●
483 CLIP; ENG HARNESS
(F) ID=18 L=25 		8-94121-004-1 01 1 1401- ● ●
483 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1307-1312 ●
483 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1401- ● ●
483 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (C) L=36 		8-94224-891-1 01 1 1307-1312 ●
483 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (C) L=36 		8-94224-891-1 01 1 1401- ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 01 1 1401- ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 1307-1312 ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 1401- ● ●
612 CLIP; HARNESS DPD
(B) ID=4.76 & 10.0 		1-09709-305-0 03 1 1307-1312 ●
612 CLIP; HARNESS DPD
(B) ID=4.76 & 10.0 		1-09709-305-0 03 1 1401- ● ●
çizim 365160
524 294 219 515 525 524 184 47 386 38 377 139 139 38 150 139 150 150 93 139 139 139 38 84
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 03 1 1307-1312 ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 03 1 1401- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1307- ●
38 BOLT; CLIP,HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1307-1312 ●
38 BOLT; CLIP,HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1401- ● ●
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409- ● ●
84 WASHER; LK BRKT,HARNESS
ID=14.2 		0-91510-814-0 02 1 1307-1312 ●
84 WASHER; LK BRKT,HARNESS
ID=14.2 		0-91510-814-0 02 1 1401- ● ●
93 BOLT; ECM HARNESS CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1307-1312 ●
93 BOLT; ECM HARNESS CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1401- ● ●
139 BOLT; BRKT
(F) M10X30 FLANGE 		0-28651-030-0 01 1 1309-1312 ●
139 BOLT; BRKT
(F) M10X30 FLANGE 		0-28651-030-0 01 1 1401- ● ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1307-1312 ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1401- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1307-1312 ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1307-1312 ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1401- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1401- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1307-1312 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1401- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1307-1312 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1401- ● ●
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 1307-1312 ●
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 1401- ● ●
139 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) M8X65 FLANGE 		1-09044-072-1 01 1 1307-1312 ●
139 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) M8X65 FLANGE 		1-09044-072-1 01 1 1401- ● ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1307-1312 ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1401- ● ●
150 BOLT; CLIP
(B) M6X20 FLANGE 		0-28050-620-0 02 1 1307-1312 ●
150 BOLT; CLIP
(B) M6X20 FLANGE 		0-28050-620-0 02 1 1401- ● ●
150 BOLT; CLIP
(C) M8X12 FLANGE 		0-28050-812-0 01 1 1307-1312 ●
150 BOLT; CLIP
POWER TAKE OFF-FLYWHEEL<6SZ> (C) M8X12 FLANGE 		0-28050-812-0 01 1 1307-1312 ●
150 BOLT; CLIP
(C) M8X12 FLANGE 		0-28050-812-0 01 1 1401- ● ●
150 BOLT; CLIP
POWER TAKE OFF-FLYWHEEL<6SZ> (C) M8X12 FLANGE 		0-28050-812-0 01 1 1401- ●
150 BOLT; CLIP
(C) M8X12 FLANGE 		0-28050-812-0 01 1 1401- ●
150 BOLT; CLIP
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1307-1312 ●
150 BOLT; CLIP
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1401- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1307-1312 ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1401- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1401- ●
294 NUT
M8 FLANGE 		0-91180-108-0 04 1 1307-1312 ●
294 NUT
M8 FLANGE 		0-91180-108-0 04 1 1401- ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ●
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ●
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1307-1312 ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1401- ● ●
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1307-1312 ●
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1401- ● ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ●
524 NUT; HARNESS
(B) M6 FLANGE 		0-91180-106-0 04 1 1307-1312 ●
524 NUT; HARNESS
(B) M6 FLANGE 		0-91180-106-0 04 1 1401- ● ●
524 NUT; HARNESS
(A) M10 FLANGE 		0-91180-110-0 01 1 1307-1312 ●
524 NUT; HARNESS
(A) M10 FLANGE 		0-91180-110-0 01 1 1401- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ●
çizim 365204
14 22 305 14 305 530 538 305 16 14 14 185 178
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
POWER TAKE OFF-FLYWHEEL<6SZ> (B) L=140 		5-09707-031-1 05 1 1307- ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (C) L=250 		5-09707-030-1 01 1 1307-1312 ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (C) L=250 		5-09707-030-1 01 1 1401- ●
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 01 1 1401- ●
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 02 1 1307- ● ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (B) L=140 		5-09707-031-1 02 1 1307- ●
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 02 1 1307- ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) L=150 		8-97355-273-0 02 1 1307-1312 ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) L=150 		8-97355-273-0 02 1 1401- ●
14 CLIP; BAND,HARNESS
(A) L=150 		8-97355-273-0 02 1 1401- ●
14 CLIP; BAND,HARNESS
(D) L=251 		8-97619-917-0 01 1 1307-1312 ●
14 CLIP; BAND,HARNESS
(D) L=251 		8-97619-917-0 01 1 1401- ● ●
16 CLIP; HARNESS
(H) ID=11 L=16 		0-95235-025-0 02 1 1307-1312 ●
16 CLIP; HARNESS
(H) ID=11 L=16 		0-95235-025-0 02 1 1401- ● ●
16 CLIP; HARNESS
(G) ID=11X2 L=16 		1-09700-734-0 01 1 1307-1312 ●
16 CLIP; HARNESS
(G) ID=11X2 L=16 		1-09700-734-0 01 1 1401- ● ●
16 CLIP; HARNESS
(F) ID=28 L=32 		1-09701-107-1 02 1 1307-1312 ●
16 CLIP; HARNESS
(F) ID=28 L=32 		1-09701-107-1 02 1 1401- ● ●
16 CLIP; HARNESS
(I) L=350 		1-09707-183-0 01 1 1307-1312 ●
16 CLIP; HARNESS
(I) L=350 		1-09707-183-0 01 1 1401- ● ●
16 CLIP; HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 03 1 1307-1312 ●
16 CLIP; HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 03 1 1401- ● ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 1307-1312 ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 1401- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1307-1312 ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1401- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1307-1312 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1401- ● ●
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1307-1312 ●
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1401- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1307-1312 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1401- ● ●
22 CLIP; ENG HARNESS
L=140 		5-09707-031-1 02 1 1307-1312 ●
22 CLIP; ENG HARNESS
L=140 		5-09707-031-1 02 1 1401- ● ●
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1307-1312 ●
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 02 1 1401- ● ●
185 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 01 1 1307-1312 ●
185 SLEEVE; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 01 1 1401- ● ●
305 CLIP; ENG HARNESS
(C) L=300 		1-09707-001-1 01 1 1307-1312 ●
305 CLIP; ENG HARNESS
(C) L=300 		1-09707-001-1 01 1 1401- ● ●
305 CLIP; ENG HARNESS
(A) L=250 		5-09707-030-1 01 1 1307-1312 ●
305 CLIP; ENG HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250 		5-09707-030-1 01 1 1307-1312 ●
305 CLIP; ENG HARNESS
(A) L=250 		5-09707-030-1 01 1 1401- ● ●
305 CLIP; ENG HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250 		5-09707-030-1 01 1 1401- ● ●
305 CLIP; ENG HARNESS
(B) L=140 		5-09707-031-1 02 1 1307-1312 ●
305 CLIP; ENG HARNESS
(B) L=140 		5-09707-031-1 02 1 1401- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 15 1 1307-1312 ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 15 1 1401- ● ●
530 SEAL; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40 		1-72498-019-1 01 1 1307-1312 ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1307-1312 ●
530 SEAL; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40 		1-72498-019-1 01 1 1401- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1401- ● ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1307-1312 ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1401- ● ●

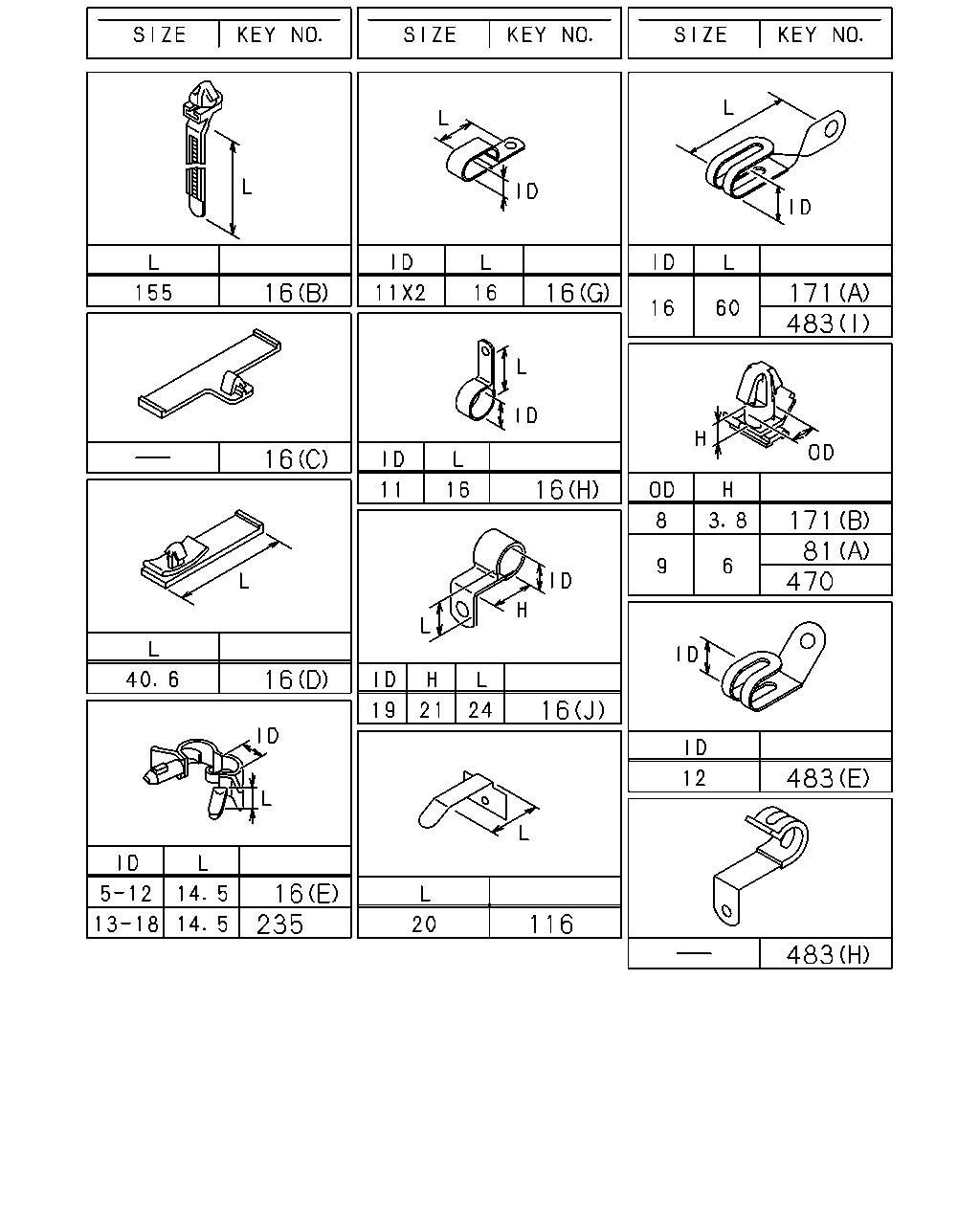

çizim 365338
16 16 16 16 235 16 16 16 116 171 483 171 81 470 483 483
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(H) ID=11 L=16 		0-95235-025-0 02 1 1307-1312 ●
16 CLIP; HARNESS
(H) ID=11 L=16 		0-95235-025-0 02 1 1401- ● ●
16 CLIP; HARNESS
(G) ID=11X2 L=16 		1-09700-734-0 01 1 1307-1312 ●
16 CLIP; HARNESS
(G) ID=11X2 L=16 		1-09700-734-0 01 1 1401- ● ●
16 CLIP; HARNESS
(F) ID=28 L=32 		1-09701-107-1 02 1 1307-1312 ●
16 CLIP; HARNESS
(F) ID=28 L=32 		1-09701-107-1 02 1 1401- ● ●
16 CLIP; HARNESS
(I) L=350 		1-09707-183-0 01 1 1307-1312 ●
16 CLIP; HARNESS
(I) L=350 		1-09707-183-0 01 1 1401- ● ●
16 CLIP; HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 03 1 1307-1312 ●
16 CLIP; HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 03 1 1401- ● ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 1307-1312 ●
16 CLIP; HARNESS
(J) ID=19 H=21 L=24 		5-09700-360-0 01 1 1401- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1307-1312 ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1401- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1307-1312 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1401- ● ●
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1307-1312 ●
16 CLIP; HARNESS
(D) L=40.6 		8-97229-357-0 02 1 1401- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1307-1312 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1401- ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1307-1312 ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) OD=9 H=6 		1-09709-178-0 01 1 1401- ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 1307-1312 ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 1401- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 1307-1312 ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 1401- ● ●
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 1307-1312 ●
171 CLIP; STARTER HARNESS
(A) 		8-97101-436-0 01 1 1401- ● ●
171 CLIP; STARTER HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 1307-1312 ●
171 CLIP; STARTER HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 1401- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=13-18 L=14.5 		1-09709-290-0 01 1 1307-1312 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=13-18 L=14.5 		1-09709-290-0 01 1 1401- ● ●
470 CLIP; HARNESS,LICENSE LAMP
COUNTRY NEW ZEALAND(CX6) OD=9 H=6 		1-09709-178-0 01 1 1307-1312 ●
470 CLIP; HARNESS,LICENSE LAMP
COUNTRY NEW ZEALAND(CX6) OD=9 H=6 		1-09709-178-0 01 1 1401- ● ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL<6SZ> (C) L=36 		8-94224-891-1 02 1 1307- ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL<6SZ> (I) 		8-97101-436-0 01 1 1307- ●
483 CLIP; ENG HARNESS
POWER TAKE OFF-FLYWHEEL<6SZ> (J) ID=18 L=44 		8-97367-985-1 02 1 1307- ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1307-1312 ●
483 CLIP; ENG HARNESS
(D) ID=18 H=23 L=28 		1-09700-860-0 01 1 1401- ● ●
483 CLIP; ENG HARNESS
(A) ID=28 L=32 		1-09701-107-1 01 1 1307-1312 ●
483 CLIP; ENG HARNESS
(A) ID=28 L=32 		1-09701-107-1 01 1 1401- ● ●
483 CLIP; ENG HARNESS
(B) ID=21 L=24 		1-09701-201-0 01 1 1307-1312 ●
483 CLIP; ENG HARNESS
(B) ID=21 L=24 		1-09701-201-0 01 1 1401- ● ●
483 CLIP; ENG HARNESS
(H) 		1-09987-281-0 01 1 1307-1312 ●
483 CLIP; ENG HARNESS
(H) 		1-09987-281-0 01 1 1401- ● ●
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1307-1312 ●
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1401- ● ●
483 CLIP; ENG HARNESS
(F) ID=18 L=25 		8-94121-004-1 01 1 1307-1312 ●
483 CLIP; ENG HARNESS
(F) ID=18 L=25 		8-94121-004-1 01 1 1401- ● ●
483 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1307-1312 ●
483 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1401- ● ●
483 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (C) L=36 		8-94224-891-1 01 1 1307-1312 ●
483 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (C) L=36 		8-94224-891-1 01 1 1401- ●
483 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 01 1 1401- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
