Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#124058) — 571 parça

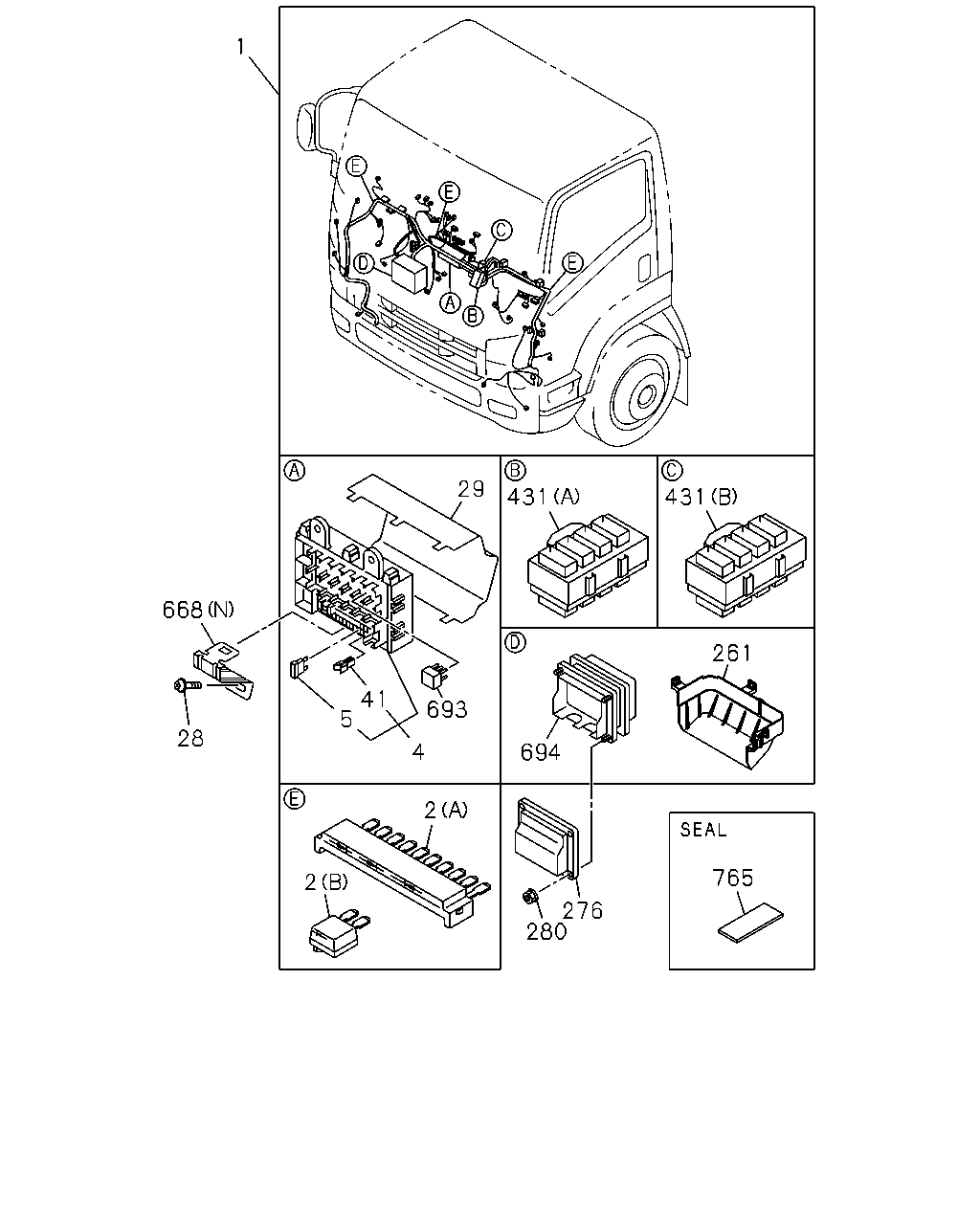

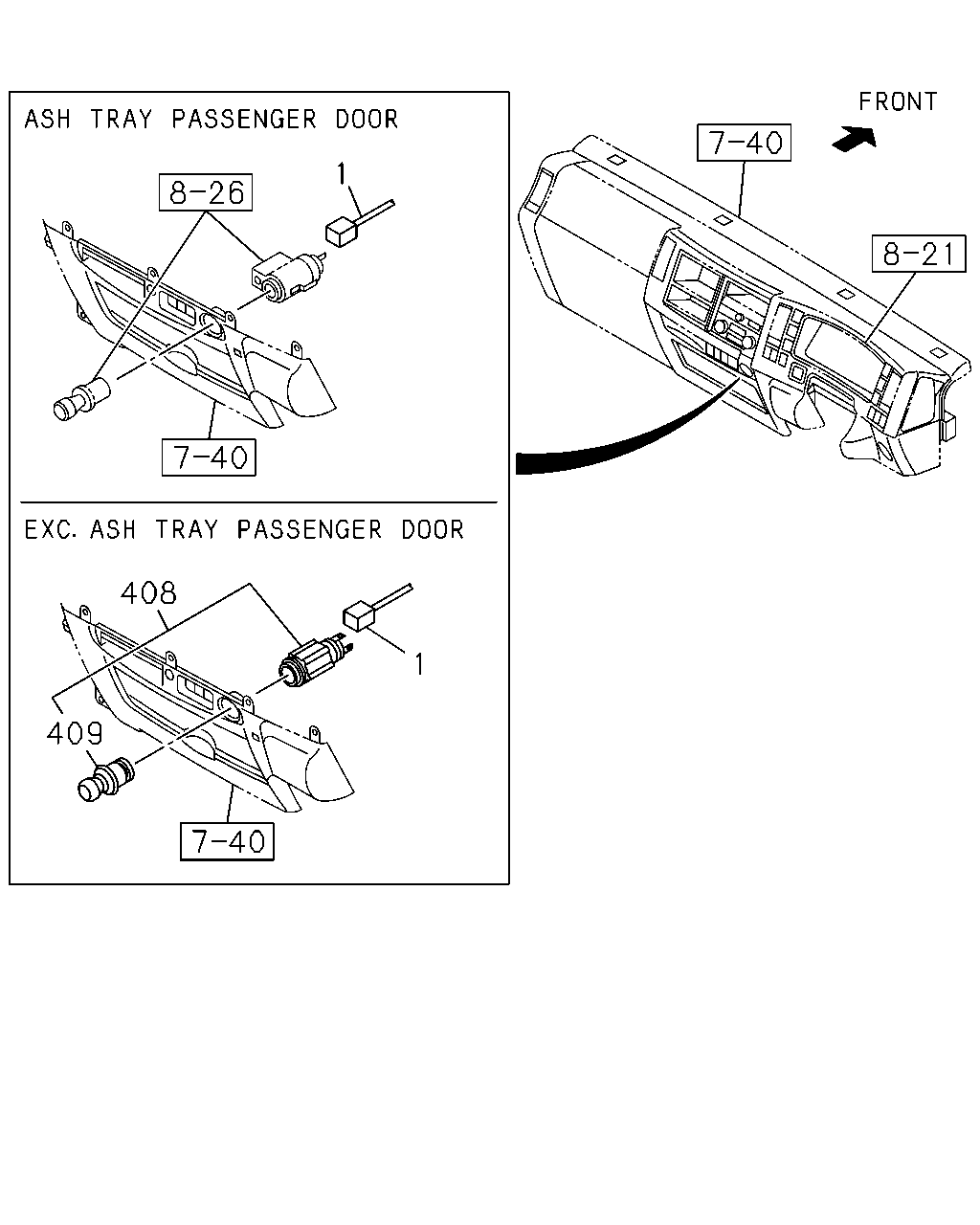

409 408 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-931-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-931-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-945-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-945-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-927-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-927-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-941-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-941-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-930-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-930-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-944-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-944-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-926-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-926-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-940-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-940-1	01	1	1401-	●	●
408	SOCKET ASM; ACCESSORY EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98169-757-0	01	1	1307-1312	●
408	SOCKET ASM; ACCESSORY EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98169-757-0	01	1	1401-	●	●
409	CAP; ACCESSORY SOCKET EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98183-771-0	01	1	1307-1312	●
409	CAP; ACCESSORY SOCKET EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98183-771-0	01	1	1401-	●	●

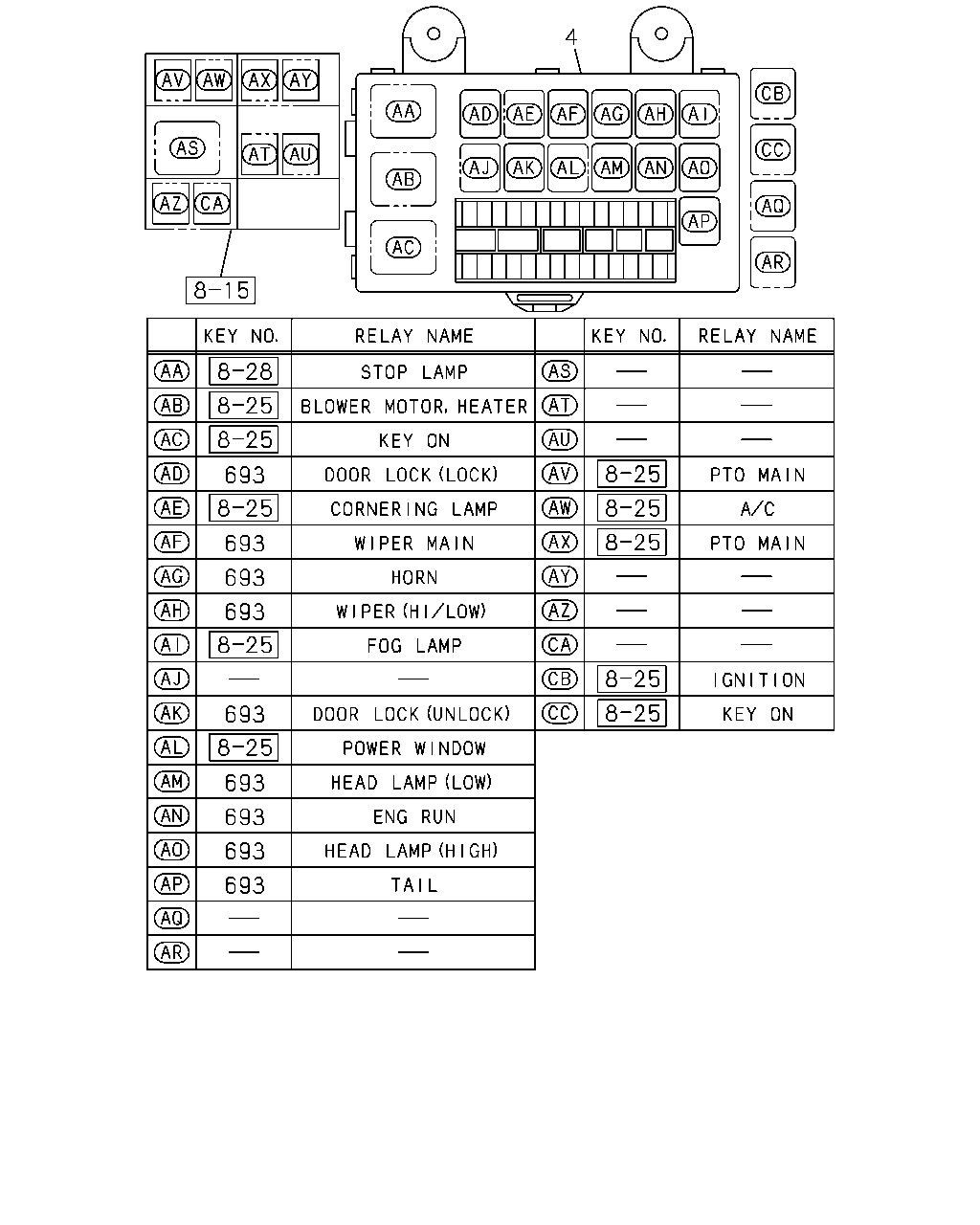

4 693 693 693 693 693 693 3 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1307-1312	●
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1401-	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1307-1312	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1401-	●	●

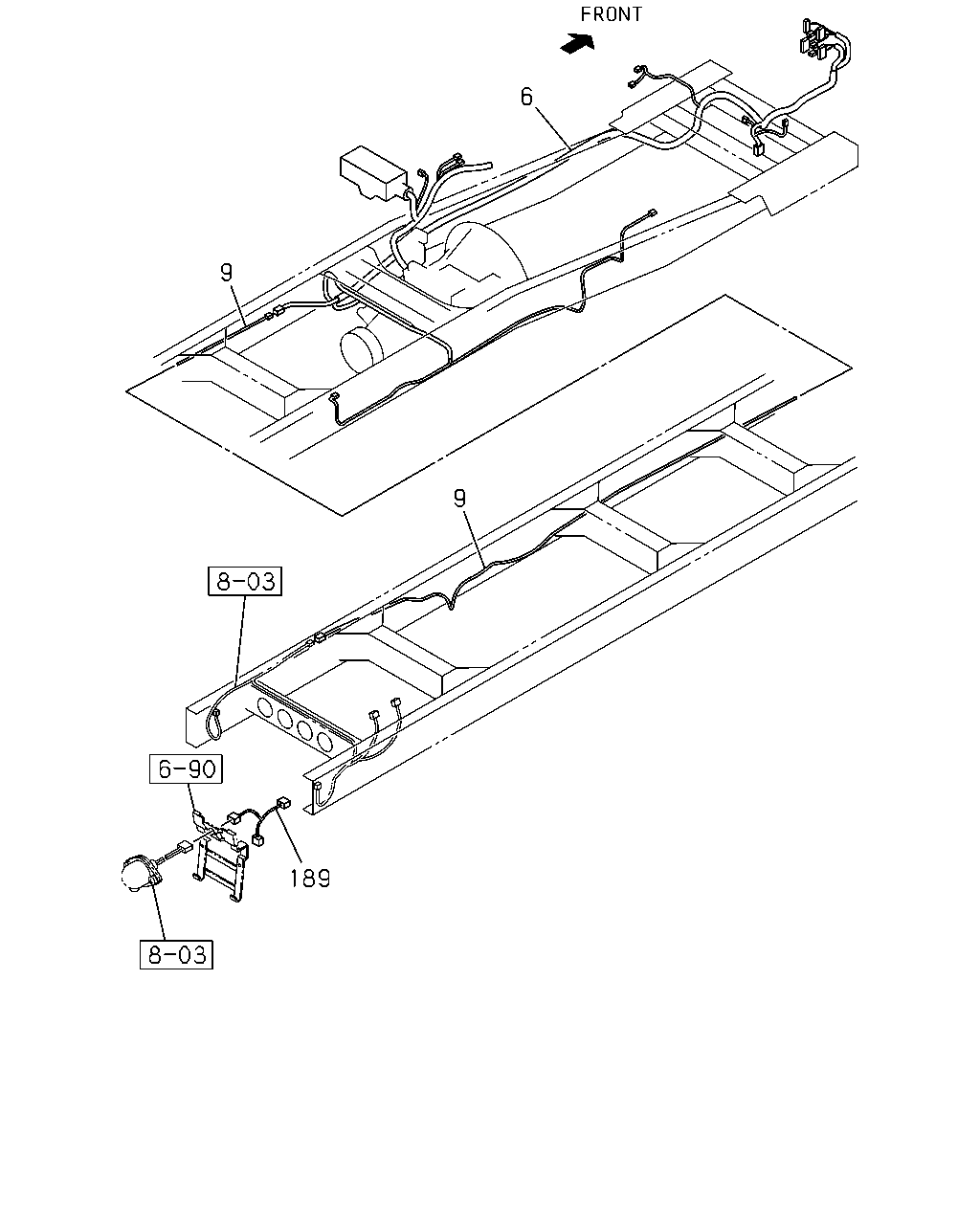

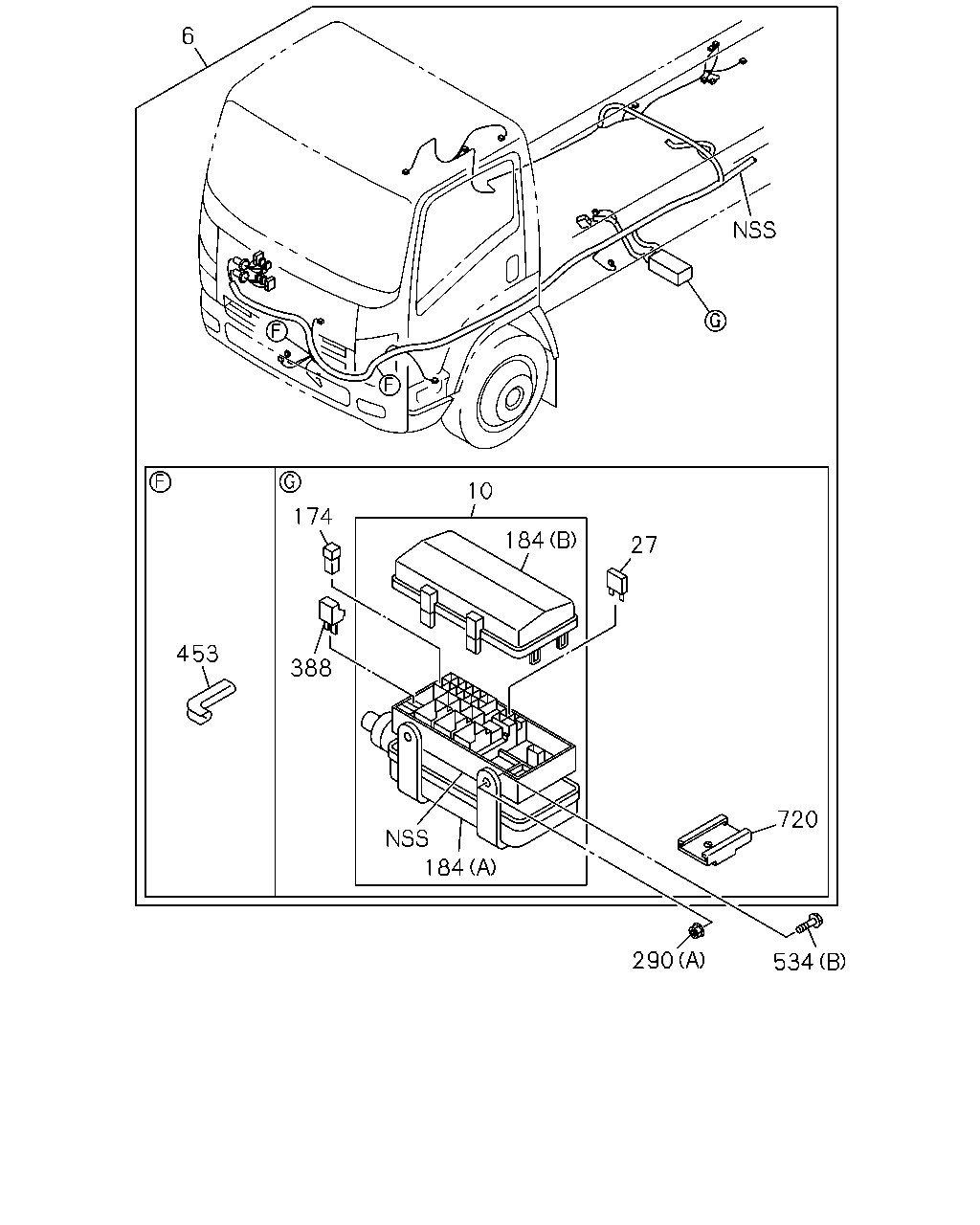

6 10 27 184 174 453 388 184 290 534 720

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-559-1	01	1	1307-	●
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98233-557-1	01	1	1307-	●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-560-1	01	1	1307-1312	●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-560-1	01	1	1401-	●
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-560-1	01	1	1401-		●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98233-558-1	01	1	1307-1312	●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98233-558-1	01	1	1401-	●
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98233-558-1	01	1	1401-		●
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1307-1312	●
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1401-	●	●
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	1307-1312	●
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	1401-	●	●
27	FUSE UNIT 15A BLUE	8-98054-258-0	01	1	1307-1312	●
27	FUSE UNIT 15A BLUE	8-98054-258-0	01	1	1401-	●	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1307-1312	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1401-	●	●
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	02	1	1307-1312	●
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	02	1	1401-	●	●
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	02	1	1307-1312	●
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	02	1	1401-	●	●
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	1307-1312	●
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	1401-	●	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	02	1	1307-1312	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	02	1	1401-	●	●
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1307-1312	●
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1401-	●	●
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	1307-1312	●
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	1401-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	07	1	1307-1312	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	07	1	1401-	●	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1307-1312	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1401-	●	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1401-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	01	1	1307-1312	●
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	01	1	1401-	●	●
453	PROTECTOR; HARNESS	1-82699-709-0	02	1	1307-1312	●
453	PROTECTOR; HARNESS	1-82699-709-0	02	1	1401-	●	●
534	BOLT (A) M8X25 FLANGE	0-28650-825-0	01	1	1307-1312	●
534	BOLT (A) M8X25 FLANGE	0-28650-825-0	01	1	1401-	●	●
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1307-1312	●
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1401-	●	●
534	BOLT (C) M10X55 FLANGE	8-97365-449-0	03	1	1307-1312	●
534	BOLT (C) M10X55 FLANGE	8-97365-449-0	03	1	1401-	●	●
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1307-1312	●
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1401-	●	●

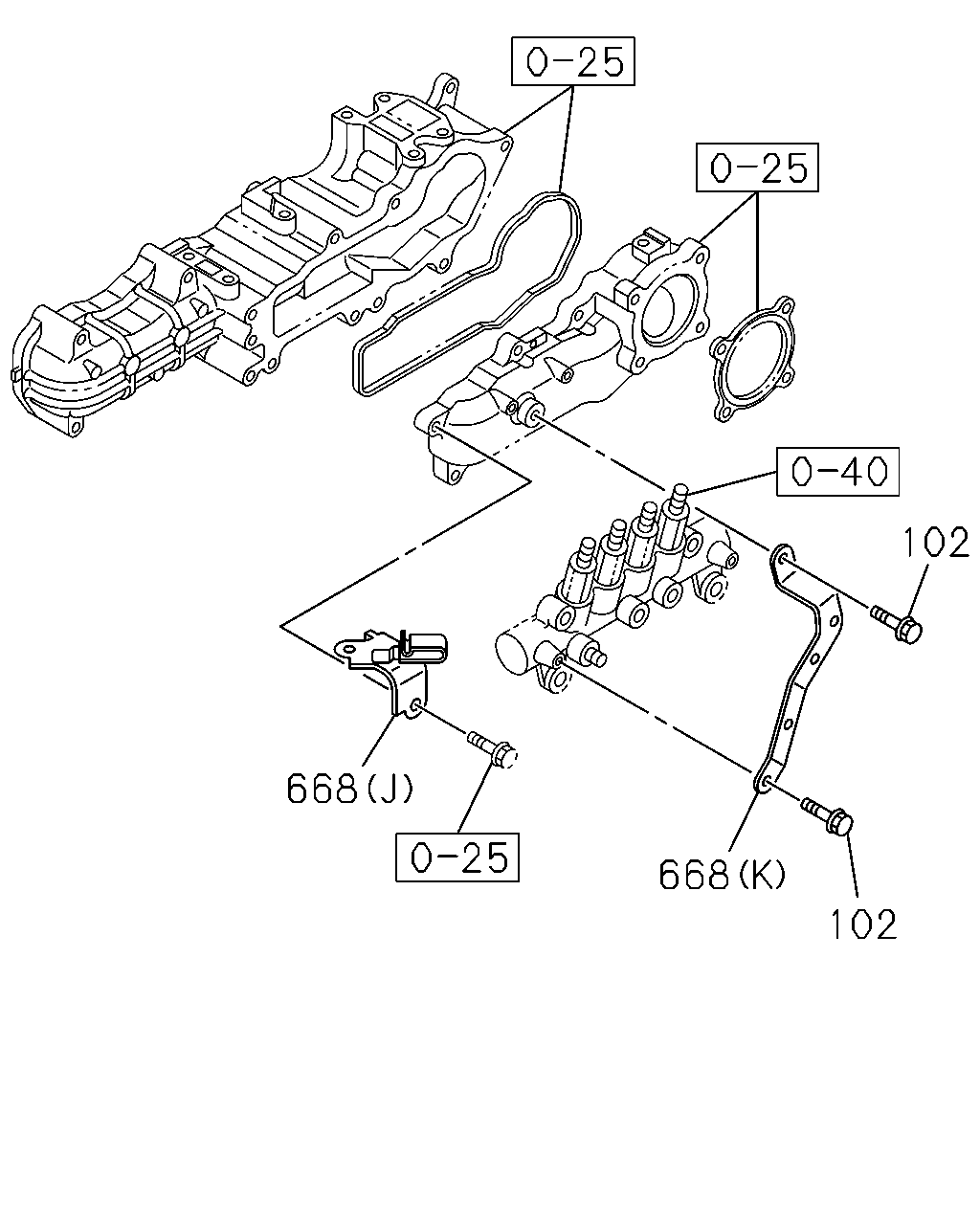

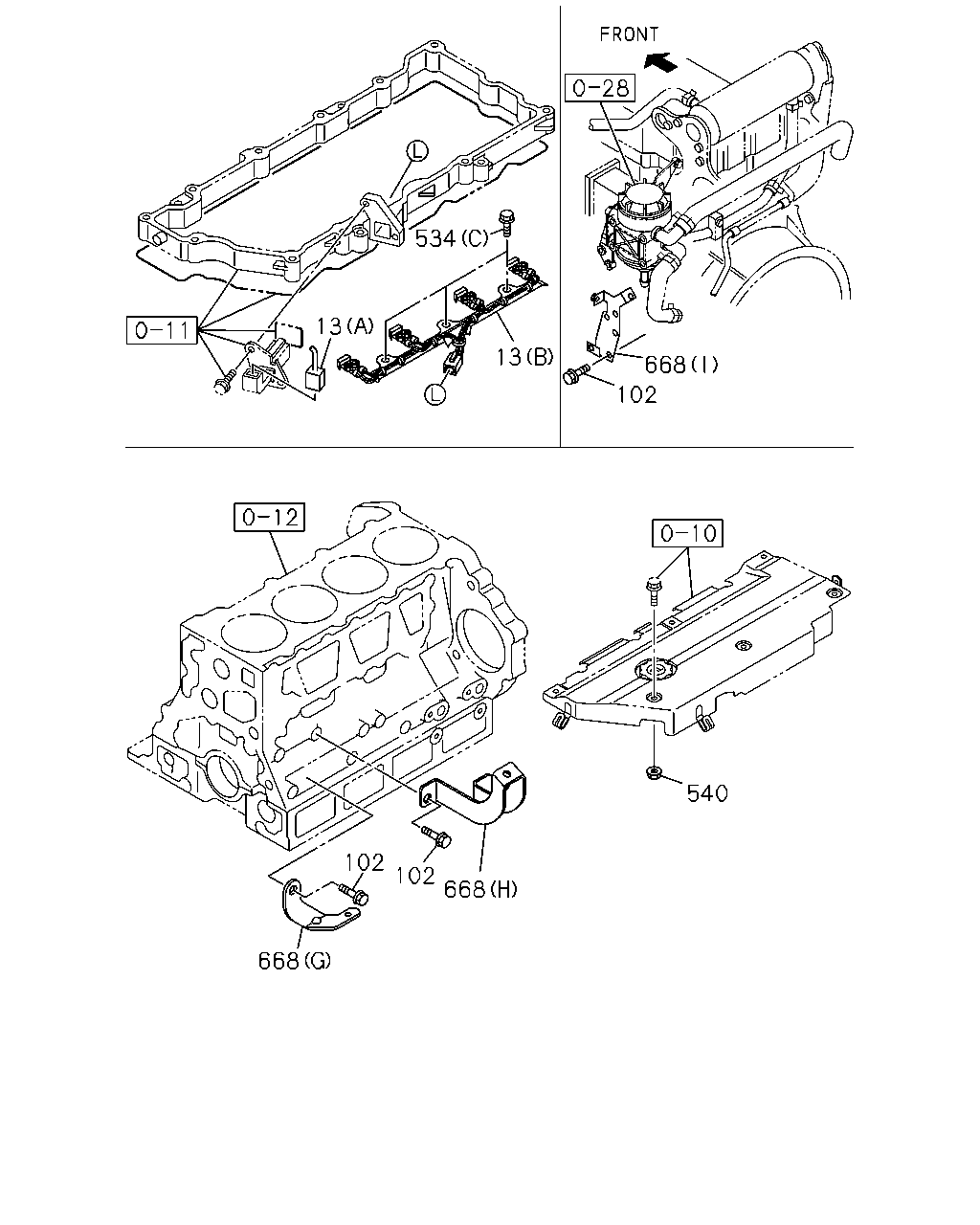

668 102 102 668 540 668 102 13 534 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

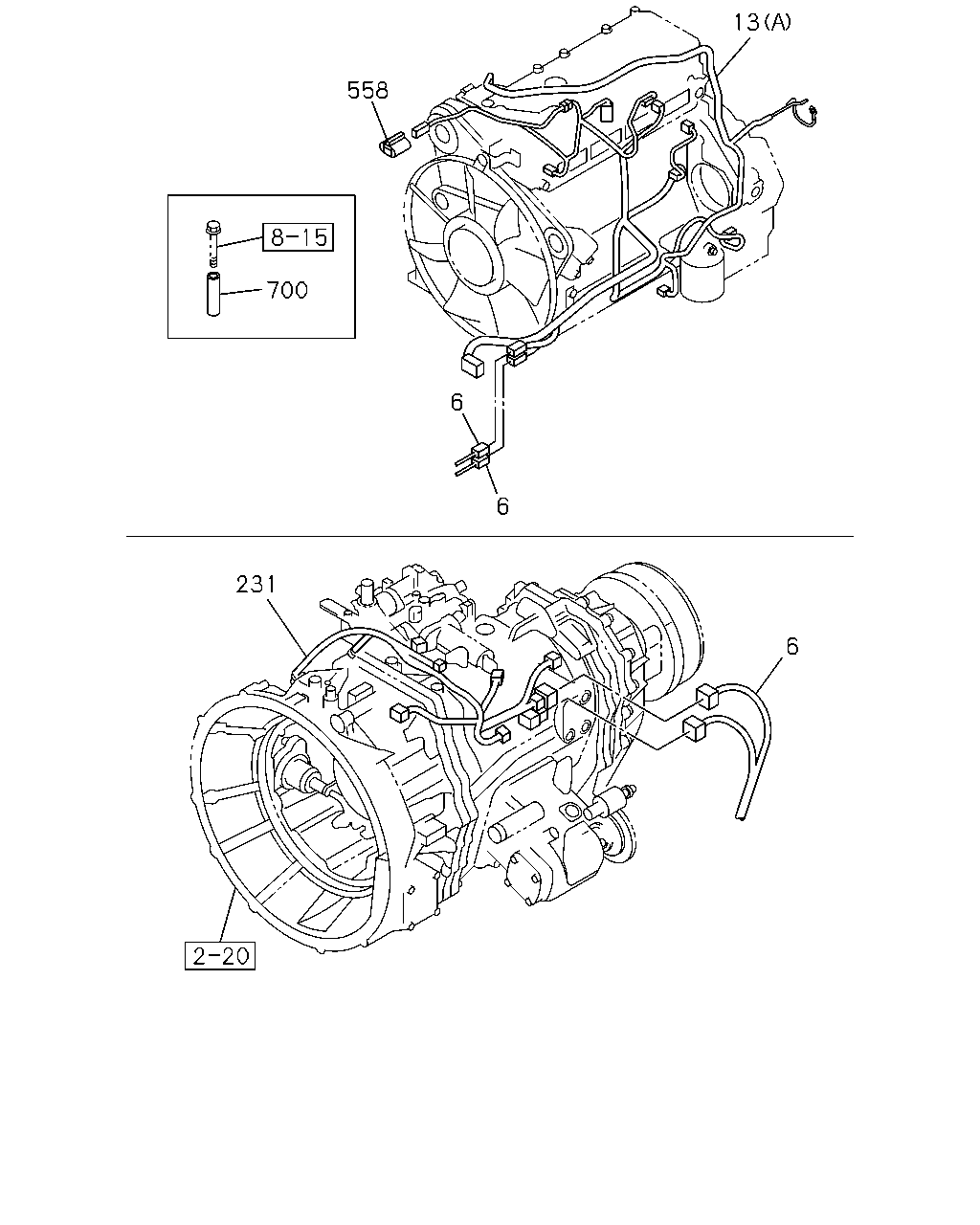

13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98191-059-0	01	1	1307-1406	●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98274-052-0	01	1	1407-	●
13	HARNESS; ENG GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98191-058-0	01	1	1307-1406	●
13	HARNESS; ENG GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98274-051-0	01	1	1407-	●
13	HARNESS; ENG (B)	8-98171-638-0	01	1	1307-1312	●
13	HARNESS; ENG (B)	8-98171-638-0	01	1	1401-	●	●
13	HARNESS; ENG GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A)	8-98162-659-1	01	1	1307-1405	●
13	HARNESS; ENG GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A)	8-98274-039-0	01	1	1406-	●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A)	8-98162-660-1	01	1	1307-1312	●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A)	8-98162-660-1	01	1	1401-1405	●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98162-660-1	01	1	1401-1405		●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A)	8-98274-040-0	01	1	1406-	●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98274-040-0	01	1	1406-		●
102	BOLT; BRKT,HARNESS CONNECTOR M8X16 FLANGE	0-28050-816-0	03	1	1307-1312	●
102	BOLT; BRKT,HARNESS CONNECTOR M8X16 FLANGE	0-28050-816-0	03	1	1401-	●	●
102	BOLT; BRKT,HARNESS CONNECTOR M10X16 FLANGE	0-28151-016-0	03	1	1307-1312	●
102	BOLT; BRKT,HARNESS CONNECTOR M10X16 FLANGE	0-28151-016-0	03	1	1401-	●	●
534	BOLT (A) M8X25 FLANGE	0-28650-825-0	01	1	1307-1312	●
534	BOLT (A) M8X25 FLANGE	0-28650-825-0	01	1	1401-	●	●
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1307-1312	●
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1401-	●	●
534	BOLT (C) M10X55 FLANGE	8-97365-449-0	03	1	1307-1312	●
534	BOLT (C) M10X55 FLANGE	8-97365-449-0	03	1	1401-	●	●
540	NUT; BRKT FIX M6 FLANGE	0-91180-106-0	01	1	1307-1312	●
540	NUT; BRKT FIX M6 FLANGE	0-91180-106-0	01	1	1401-	●	●

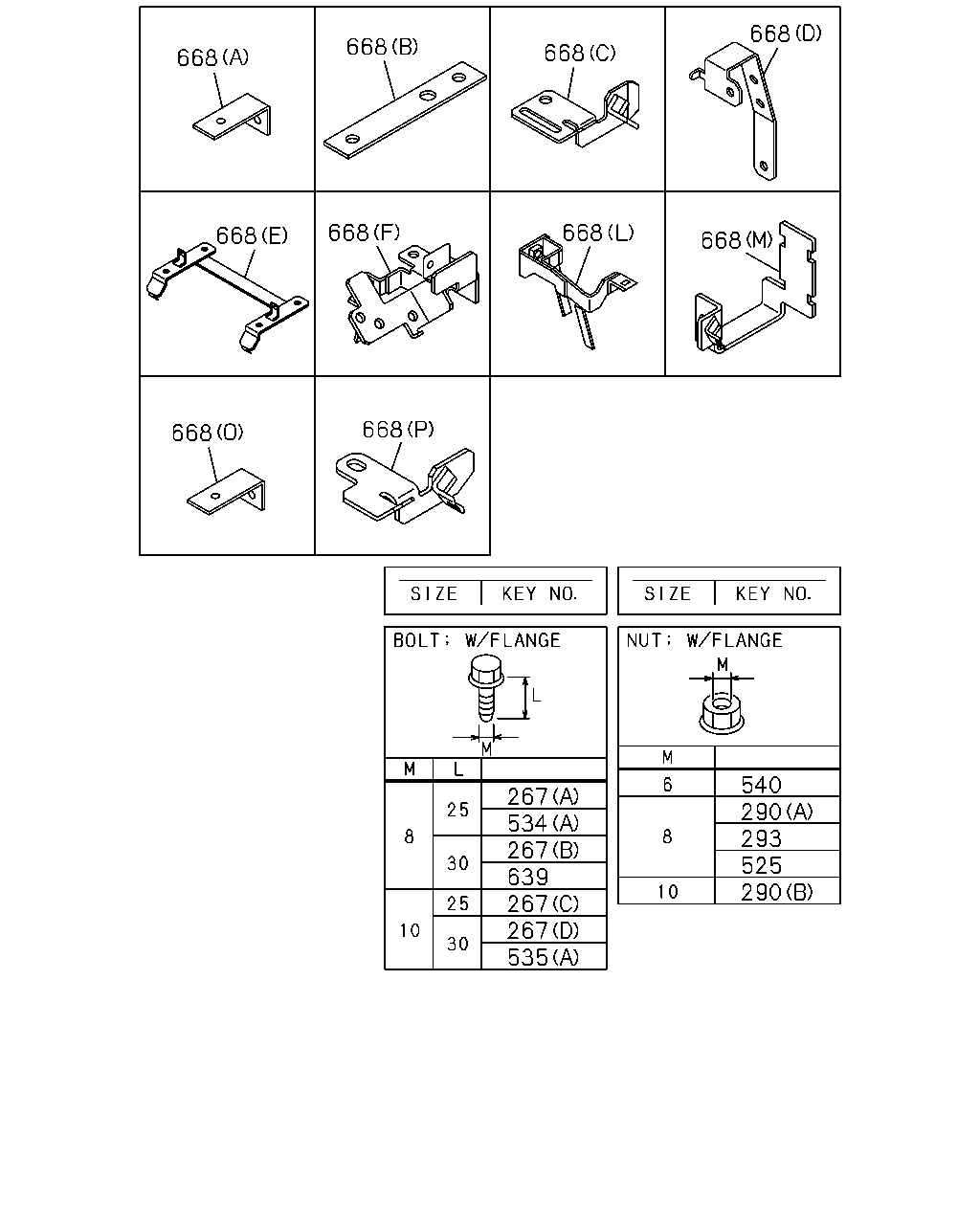

668	BRACKET; HARNESS POWER TAKE OFF-FLYWHEEL<6SZ> (O)	8-98175-550-0	01	1	1307-	●
668	BRACKET; HARNESS (A) L=55	1-47475-304-0	01	1	1307-1312	●
668	BRACKET; HARNESS (A) L=55	1-47475-304-0	01	1	1401-	●	●
668	BRACKET; HARNESS (B) L=170	1-47479-380-0	01	1	1307-1312	●
668	BRACKET; HARNESS (B) L=170	1-47479-380-0	01	1	1401-	●	●
668	BRACKET; HARNESS (C)	8-97616-305-0	01	1	1307-1312	●
668	BRACKET; HARNESS (C)	8-97616-305-0	01	1	1401-1502	●	●
668	BRACKET; HARNESS (P)	8-98254-592-0	01	1	1503-	●	●
668	BRACKET; HARNESS (D)	8-97619-097-1	01	1	1307-	●	●
668	BRACKET; HARNESS (E)	8-97619-533-0	01	1	1307-1312	●
668	BRACKET; HARNESS (E)	8-97619-533-0	01	1	1401-	●	●
668	BRACKET; HARNESS (F)	8-97619-535-0	01	1	1307-1312	●
668	BRACKET; HARNESS (F)	8-97619-535-0	01	1	1401-	●	●
668	BRACKET; HARNESS (G)	8-98009-245-0	01	1	1307-1312	●
668	BRACKET; HARNESS (G)	8-98009-245-0	01	1	1401-1408	●	●
668	BRACKET; HARNESS (G)	8-98273-295-0	01	1	1409-	●	●
668	BRACKET; HARNESS (H)	8-98011-484-0	01	1	1307-1312	●
668	BRACKET; HARNESS (H)	8-98011-484-0	01	1	1401-	●	●
668	BRACKET; HARNESS (I)	8-98024-765-0	01	1	1307-1312	●
668	BRACKET; HARNESS (I)	8-98024-765-0	01	1	1401-	●	●
668	BRACKET; HARNESS (J)	8-98061-780-0	01	1	1307-1312	●
668	BRACKET; HARNESS (J)	8-98061-780-0	01	1	1401-	●	●
668	BRACKET; HARNESS (K)	8-98097-674-0	01	1	1307-1312	●
668	BRACKET; HARNESS (K)	8-98097-674-0	01	1	1401-	●	●
668	BRACKET; HARNESS (L)	8-98099-963-0	01	1	1307-1308	●
668	BRACKET; HARNESS (M)	8-98116-461-0	01	1	1307-1312	●
668	BRACKET; HARNESS (M)	8-98116-461-0	01	1	1401-	●	●
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (N)	8-98095-653-2	01	1	1307-1312	●
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (N)	8-98095-653-2	01	1	1401-	●	●

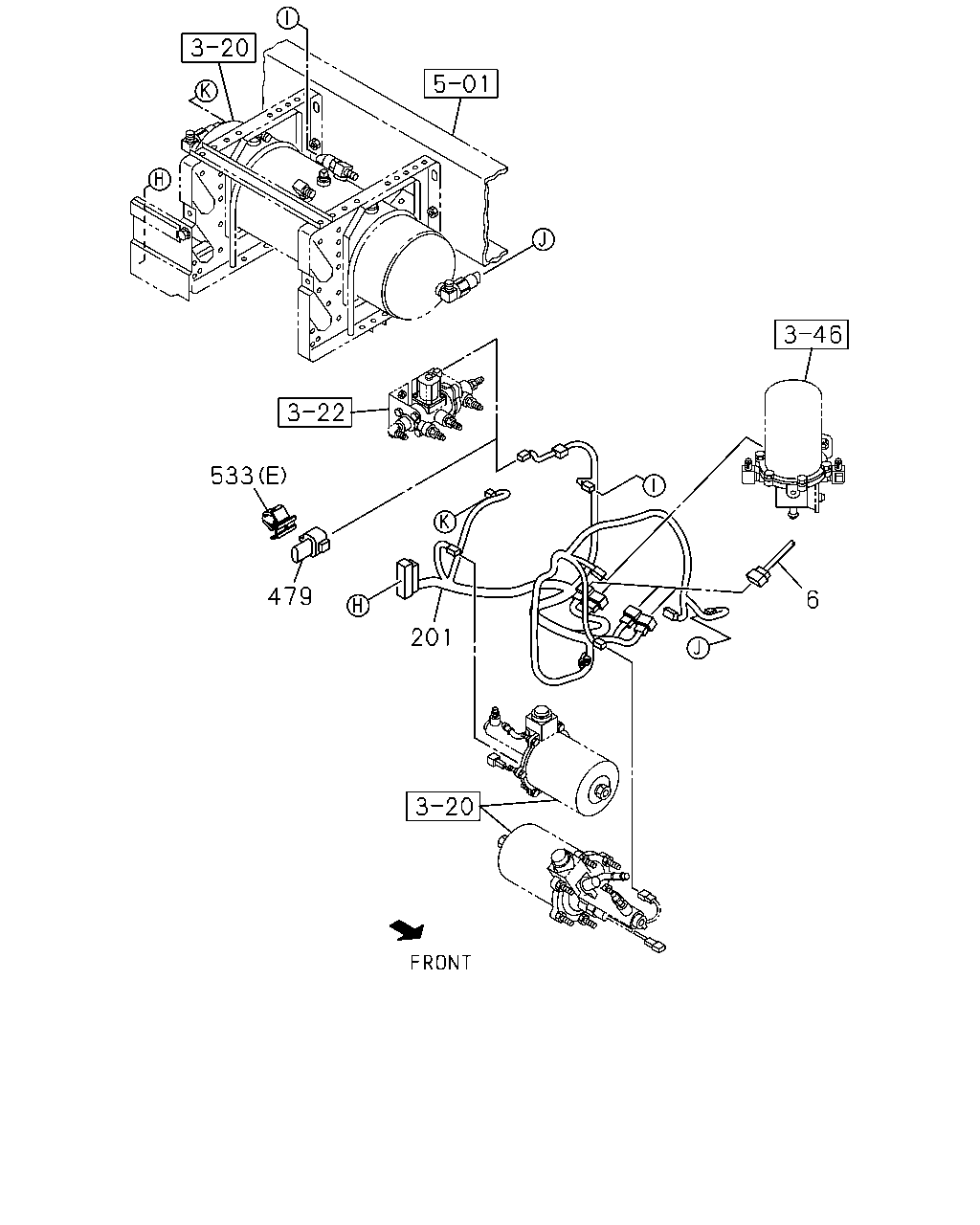

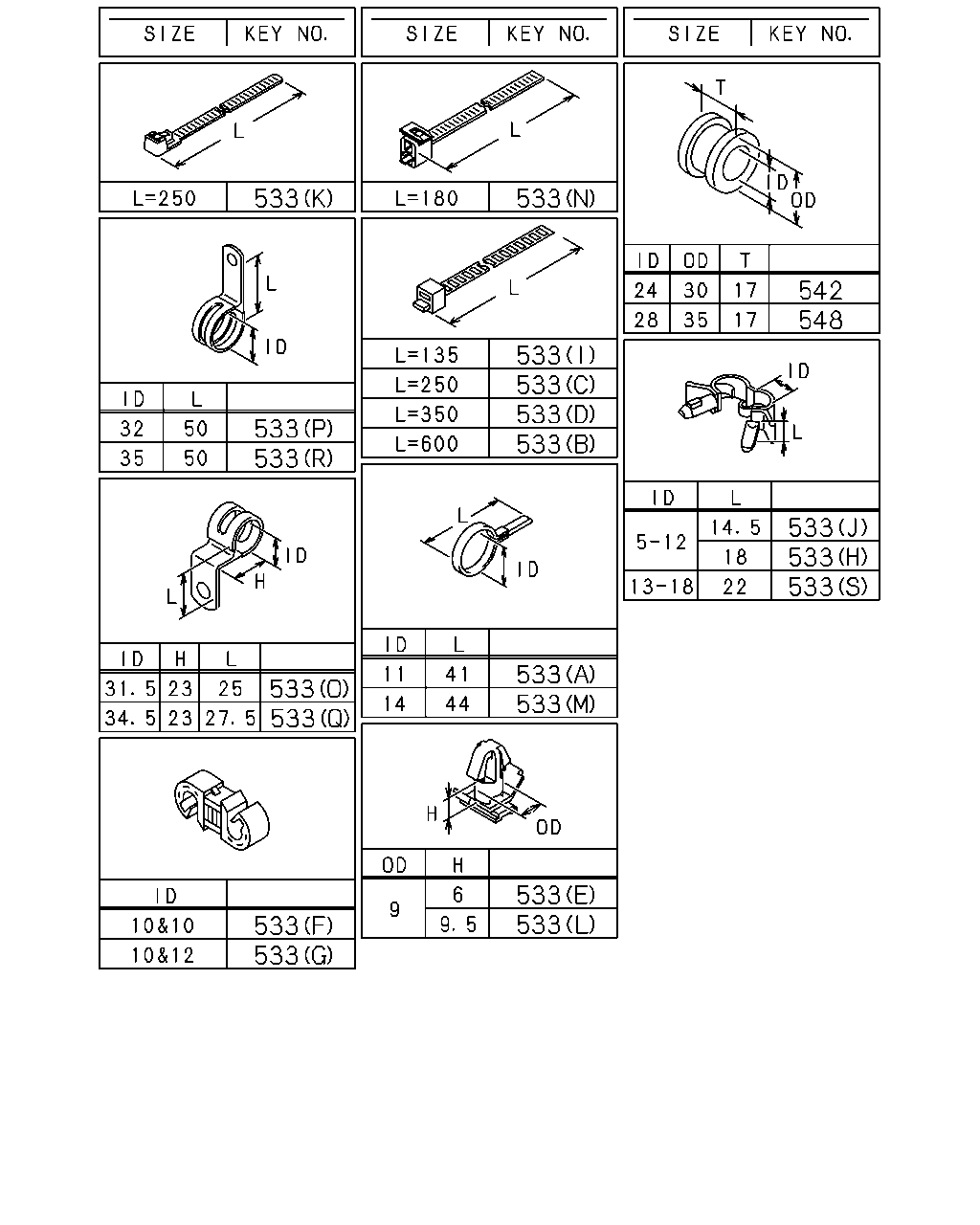

533 533 542 548 50 50 533 533 533 533 533 533 533 533 533 533 533 533 533 533 533 533 533

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
533	CLIP WHEEL BASE 4600MM(46W) (M) ID=14 L=44	9-09917-427-0	16	1	1401-		●
533	CLIP WHEEL BASE 5300MM(53W) (M) ID=14 L=44	9-09917-427-0	19	1	1401-		●
533	CLIP (A) ID=11 L=41	1-09700-403-0	01	1	1307-1312	●
533	CLIP (A) ID=11 L=41	1-09700-403-0	01	1	1401-	●	●
533	CLIP (B) L=600	1-09707-107-1	01	1	1307-1312	●
533	CLIP (B) L=600	1-09707-107-1	01	1	1401-	●	●
533	CLIP (C) L=250	1-09707-126-0	02	1	1307-1312	●
533	CLIP (C) L=250	1-09707-126-0	02	1	1401-	●	●
533	CLIP (D) L=350	1-09707-183-0	01	1	1307-1312	●
533	CLIP (D) L=350	1-09707-183-0	01	1	1401-	●	●
533	CLIP (E) OD=9 H=6	1-09709-178-0	02	1	1307-1312	●
533	CLIP (E) OD=9 H=6	1-09709-178-0	02	1	1401-	●	●
533	CLIP (F) ID=10 & 10	1-09709-277-1	04	1	1307-1312	●
533	CLIP (F) ID=10 & 10	1-09709-277-1	04	1	1401-	●	●
533	CLIP (G) ID=10 & 12	1-09709-278-1	01	1	1307-1312	●
533	CLIP (G) ID=10 & 12	1-09709-278-1	01	1	1401-	●	●
533	CLIP (H) ID=5-12 L=18	1-09709-287-0	01	1	1307-1312	●
533	CLIP (H) ID=5-12 L=18	1-09709-287-0	01	1	1401-	●	●
533	CLIP (I) L=135	1-09987-143-1	01	1	1307-1312	●
533	CLIP (I) L=135	1-09987-143-1	01	1	1401-	●	●
533	CLIP (J) ID=5-12 L=14.5	1-09987-221-0	03	1	1307-1312	●
533	CLIP (J) ID=5-12 L=14.5	1-09987-221-0	03	1	1401-	●	●
533	CLIP (K) L=250	5-09707-030-1	02	1	1307-1312	●
533	CLIP (K) L=250	5-09707-030-1	02	1	1401-	●	●
533	CLIP (K) L=250	5-09707-030-1	07	1	1307-1312	●
533	CLIP (K) L=250	5-09707-030-1	07	1	1401-	●	●
533	CLIP (K) L=250	5-09707-030-1	01	1	1307-1312	●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (K) L=250	5-09707-030-1	01	1	1307-1312	●
533	CLIP (K) L=250	5-09707-030-1	01	1	1401-	●	●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (K) L=250	5-09707-030-1	01	1	1401-	●	●
533	CLIP (K) L=250	5-09707-030-1	01	1	1401-		●
533	CLIP (L) OD=9 H=9.5	1-09709-179-0	01	1	1307-1312	●
533	CLIP (L) OD=9 H=9.5	1-09709-179-0	01	1	1401-	●	●
533	CLIP (M) ID=14 L=44	9-09917-427-0	02	1	1307-1312	●
533	CLIP (M) ID=14 L=44	9-09917-427-0	02	1	1401-	●	●
533	CLIP (M) ID=14 L=44	9-09917-427-0	04	1	1307-	●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (N) L=180	1-09707-162-1	01	1	1307-1312	●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (N) L=180	1-09707-162-1	01	1	1401-	●	●
533	CLIP (E) OD=9 H=6	1-09709-178-0	01	1	1307-1312	●
533	CLIP EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1307-1312	●
533	CLIP (E) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
533	CLIP EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1307-1312	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1401-	●	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=32 L=50	1-09701-055-1	01	1	1307-1312	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=32 L=50	1-09701-055-1	01	1	1401-	●	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1307-1312	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1401-	●	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (R) ID=35 L=50	1-09701-214-0	01	1	1307-1312	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (R) ID=35 L=50	1-09701-214-0	01	1	1401-	●	●
533	CLIP WHEEL BASE 3700MM(37W) (M) ID=14 L=44	9-09917-427-0	06	1	1307-	●
533	CLIP WHEEL BASE 4000MM(40W) (M) ID=14 L=44	9-09917-427-0	07	1	1307-	●
533	CLIP WHEEL BASE 4600MM(46W) (M) ID=14 L=44	9-09917-427-0	10	1	1307-	●
533	CLIP WHEEL BASE 5300MM(53W) (M) ID=14 L=44	9-09917-427-0	13	1	1307-	●
533	CLIP WHEEL BASE 5300MM(53W) (S) ID=13-18 L=22	1-09709-292-0	01	1	1307-1312	●
533	CLIP WHEEL BASE 5300MM(53W) (S) ID=13-18 L=22	1-09709-292-0	01	1	1401-	●	●
533	CLIP (S) ID=13-18 L=22	1-09709-292-0	01	1	1401-		●
542	GROMMET; HARNESS ID=24 OD=30 T=17	9-09956-092-1	01	1	1307-1312	●
542	GROMMET; HARNESS ID=24 OD=30 T=17	9-09956-092-1	01	1	1401-	●	●
542	GROMMET; HARNESS ID=24 OD=30 T=17	9-09956-092-1	02	1	1307-1312	●
542	GROMMET; HARNESS ID=24 OD=30 T=17	9-09956-092-1	02	1	1401-	●	●
548	GROMMET ID=28 OD=35 T=17	9-09956-256-2	01	1	1307-1312	●
548	GROMMET ID=28 OD=35 T=17	9-09956-256-2	01	1	1401-	●	●

765 276 280 2 2 41 4 693 5 28 668 694 261 431 431 29 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-931-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-931-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-945-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-945-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-927-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-927-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-941-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-941-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-930-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-930-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-944-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-944-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-926-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-926-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-940-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-940-1	01	1	1401-	●	●
2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	AR	1	1307-1312	●
2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	AR	1	1401-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1307-1312	●
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1401-	●	●
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1307-1312	●
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1401-	●	●
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1307-1312	●
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1401-	●	●
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1307-1312	●
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1401-	●	●
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1307-1312	●
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1401-	●	●
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	AR	1	1307-1312	●
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	AR	1	1401-	●	●
28	SCREW; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	1307-1312	●
28	SCREW; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	1401-	●	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	1307-1312	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	1401-	●	●
41	PULLER; FUSE	8-98054-260-0	01	1	1307-1312	●
41	PULLER; FUSE	8-98054-260-0	01	1	1401-	●	●
261	COVER; CONNECTOR BOX	8-98065-986-1	01	1	1307-1312	●
261	COVER; CONNECTOR BOX	8-98065-986-1	01	1	1401-	●	●
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1307-1312	●
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1401-	●	●
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	1307-1312	●
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	1401-	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1307-1312	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1401-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1307-1312	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1401-	●	●
668	BRACKET; HARNESS POWER TAKE OFF-FLYWHEEL<6SZ> (O)	8-98175-550-0	01	1	1307-	●
668	BRACKET; HARNESS (A) L=55	1-47475-304-0	01	1	1307-1312	●
668	BRACKET; HARNESS (A) L=55	1-47475-304-0	01	1	1401-	●	●
668	BRACKET; HARNESS (B) L=170	1-47479-380-0	01	1	1307-1312	●
668	BRACKET; HARNESS (B) L=170	1-47479-380-0	01	1	1401-	●	●
668	BRACKET; HARNESS (C)	8-97616-305-0	01	1	1307-1312	●
668	BRACKET; HARNESS (C)	8-97616-305-0	01	1	1401-1502	●	●
668	BRACKET; HARNESS (P)	8-98254-592-0	01	1	1503-	●	●
668	BRACKET; HARNESS (D)	8-97619-097-1	01	1	1307-	●	●
668	BRACKET; HARNESS (E)	8-97619-533-0	01	1	1307-1312	●
668	BRACKET; HARNESS (E)	8-97619-533-0	01	1	1401-	●	●
668	BRACKET; HARNESS (F)	8-97619-535-0	01	1	1307-1312	●
668	BRACKET; HARNESS (F)	8-97619-535-0	01	1	1401-	●	●
668	BRACKET; HARNESS (G)	8-98009-245-0	01	1	1307-1312	●
668	BRACKET; HARNESS (G)	8-98009-245-0	01	1	1401-1408	●	●
668	BRACKET; HARNESS (G)	8-98273-295-0	01	1	1409-	●	●
668	BRACKET; HARNESS (H)	8-98011-484-0	01	1	1307-1312	●
668	BRACKET; HARNESS (H)	8-98011-484-0	01	1	1401-	●	●
668	BRACKET; HARNESS (I)	8-98024-765-0	01	1	1307-1312	●
668	BRACKET; HARNESS (I)	8-98024-765-0	01	1	1401-	●	●
668	BRACKET; HARNESS (J)	8-98061-780-0	01	1	1307-1312	●
668	BRACKET; HARNESS (J)	8-98061-780-0	01	1	1401-	●	●
668	BRACKET; HARNESS (K)	8-98097-674-0	01	1	1307-1312	●
668	BRACKET; HARNESS (K)	8-98097-674-0	01	1	1401-	●	●
668	BRACKET; HARNESS (L)	8-98099-963-0	01	1	1307-1308	●
668	BRACKET; HARNESS (M)	8-98116-461-0	01	1	1307-1312	●
668	BRACKET; HARNESS (M)	8-98116-461-0	01	1	1401-	●	●
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (N)	8-98095-653-2	01	1	1307-1312	●
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (N)	8-98095-653-2	01	1	1401-	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1307-1312	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1401-	●	●
694	BOX ASM; CONNECTOR	8-98057-771-0	01	1	1307-1312	●
694	BOX ASM; CONNECTOR	8-98057-771-0	01	1	1401-	●	●
765	TAPE 100X40	1-72498-022-1	01	1	1409-	●	●

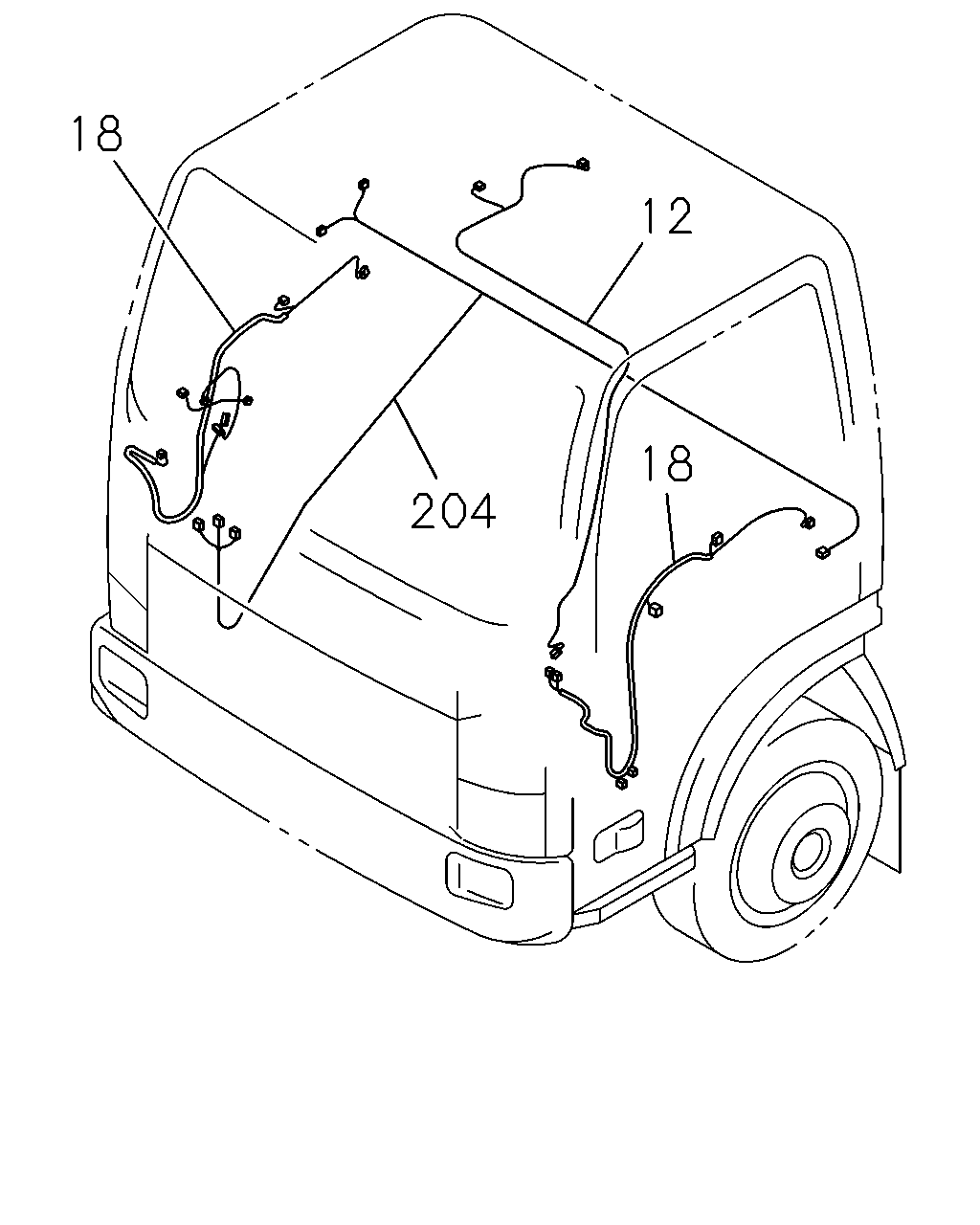

18 12 204 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	HARNESS; ROOF	8-98079-071-1	01	1	1307-1312	●
12	HARNESS; ROOF	8-98079-071-1	01	1	1401-	●	●
18	HARNESS; DOOR CORNERING LAMP<T87>	8-98225-379-0	01	1	1307-1312	●
18	HARNESS; DOOR CORNERING LAMP<T87>	8-98225-379-0	01	1	1401-	●	●
18	HARNESS; DOOR CORNERING LAMP<T87>	8-98225-378-0	01	1	1307-1312	●
18	HARNESS; DOOR CORNERING LAMP<T87>	8-98225-378-0	01	1	1401-	●	●
18	HARNESS; DOOR EXC. CORNERING LAMP<T87>	8-98079-079-5	01	1	1307-1312	●
18	HARNESS; DOOR EXC. CORNERING LAMP<T87>	8-98079-079-5	01	1	1401-	●	●
18	HARNESS; DOOR EXC. CORNERING LAMP<T87>	8-98079-076-5	01	1	1307-1312	●
18	HARNESS; DOOR EXC. CORNERING LAMP<T87>	8-98079-076-5	01	1	1401-	●	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-201-1	01	1	1307-1312	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-201-1	01	1	1401-	●	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-214-1	01	1	1307-1312	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-214-1	01	1	1401-	●	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-196-2	01	1	1307-1312	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-196-2	01	1	1401-	●	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-210-2	01	1	1307-1312	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98084-210-2	01	1	1401-	●	●

668 668 668 668 668 668 668 668 668 668 267 534 267 639 267 267 535 540 290 293 525 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
267	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	1307-1312	●
267	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	1401-	●	●
267	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1307-1312	●
267	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1401-	●	●
267	BOLT; BRKT (D) M10X30 FLANGE	0-28651-030-0	01	1	1307-1308	●
267	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1307-1312	●
267	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1401-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	07	1	1307-1312	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	07	1	1401-	●	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1307-1312	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1401-	●	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1401-	●	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
293	NUT M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
293	NUT M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
534	BOLT (A) M8X25 FLANGE	0-28650-825-0	01	1	1307-1312	●
534	BOLT (A) M8X25 FLANGE	0-28650-825-0	01	1	1401-	●	●
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1307-1312	●
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1401-	●	●
534	BOLT (C) M10X55 FLANGE	8-97365-449-0	03	1	1307-1312	●
534	BOLT (C) M10X55 FLANGE	8-97365-449-0	03	1	1401-	●	●
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1307-1312	●
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1307-1312	●
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1401-	●	●
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1401-	●	●
535	BOLT; BRKT FIX (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1307-1312	●
535	BOLT; BRKT FIX (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1401-	●	●
540	NUT; BRKT FIX M6 FLANGE	0-91180-106-0	01	1	1307-1312	●
540	NUT; BRKT FIX M6 FLANGE	0-91180-106-0	01	1	1401-	●	●
639	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	1307-1312	●
639	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	1401-	●	●
668	BRACKET; HARNESS POWER TAKE OFF-FLYWHEEL<6SZ> (O)	8-98175-550-0	01	1	1307-	●
668	BRACKET; HARNESS (A) L=55	1-47475-304-0	01	1	1307-1312	●
668	BRACKET; HARNESS (A) L=55	1-47475-304-0	01	1	1401-	●	●
668	BRACKET; HARNESS (B) L=170	1-47479-380-0	01	1	1307-1312	●
668	BRACKET; HARNESS (B) L=170	1-47479-380-0	01	1	1401-	●	●
668	BRACKET; HARNESS (C)	8-97616-305-0	01	1	1307-1312	●
668	BRACKET; HARNESS (C)	8-97616-305-0	01	1	1401-1502	●	●
668	BRACKET; HARNESS (P)	8-98254-592-0	01	1	1503-	●	●
668	BRACKET; HARNESS (D)	8-97619-097-1	01	1	1307-	●	●
668	BRACKET; HARNESS (E)	8-97619-533-0	01	1	1307-1312	●
668	BRACKET; HARNESS (E)	8-97619-533-0	01	1	1401-	●	●
668	BRACKET; HARNESS (F)	8-97619-535-0	01	1	1307-1312	●
668	BRACKET; HARNESS (F)	8-97619-535-0	01	1	1401-	●	●
668	BRACKET; HARNESS (G)	8-98009-245-0	01	1	1307-1312	●
668	BRACKET; HARNESS (G)	8-98009-245-0	01	1	1401-1408	●	●
668	BRACKET; HARNESS (G)	8-98273-295-0	01	1	1409-	●	●
668	BRACKET; HARNESS (H)	8-98011-484-0	01	1	1307-1312	●
668	BRACKET; HARNESS (H)	8-98011-484-0	01	1	1401-	●	●
668	BRACKET; HARNESS (I)	8-98024-765-0	01	1	1307-1312	●
668	BRACKET; HARNESS (I)	8-98024-765-0	01	1	1401-	●	●
668	BRACKET; HARNESS (J)	8-98061-780-0	01	1	1307-1312	●
668	BRACKET; HARNESS (J)	8-98061-780-0	01	1	1401-	●	●
668	BRACKET; HARNESS (K)	8-98097-674-0	01	1	1307-1312	●
668	BRACKET; HARNESS (K)	8-98097-674-0	01	1	1401-	●	●
668	BRACKET; HARNESS (L)	8-98099-963-0	01	1	1307-1308	●
668	BRACKET; HARNESS (M)	8-98116-461-0	01	1	1307-1312	●
668	BRACKET; HARNESS (M)	8-98116-461-0	01	1	1401-	●	●
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (N)	8-98095-653-2	01	1	1307-1312	●
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (N)	8-98095-653-2	01	1	1401-	●	●

102 102 668 668

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
102	BOLT; BRKT,HARNESS CONNECTOR M8X16 FLANGE	0-28050-816-0	03	1	1307-1312	●
102	BOLT; BRKT,HARNESS CONNECTOR M8X16 FLANGE	0-28050-816-0	03	1	1401-	●	●
102	BOLT; BRKT,HARNESS CONNECTOR M10X16 FLANGE	0-28151-016-0	03	1	1307-1312	●
102	BOLT; BRKT,HARNESS CONNECTOR M10X16 FLANGE	0-28151-016-0	03	1	1401-	●	●
668	BRACKET; HARNESS POWER TAKE OFF-FLYWHEEL<6SZ> (O)	8-98175-550-0	01	1	1307-	●
668	BRACKET; HARNESS (A) L=55	1-47475-304-0	01	1	1307-1312	●
668	BRACKET; HARNESS (A) L=55	1-47475-304-0	01	1	1401-	●	●
668	BRACKET; HARNESS (B) L=170	1-47479-380-0	01	1	1307-1312	●
668	BRACKET; HARNESS (B) L=170	1-47479-380-0	01	1	1401-	●	●
668	BRACKET; HARNESS (C)	8-97616-305-0	01	1	1307-1312	●
668	BRACKET; HARNESS (C)	8-97616-305-0	01	1	1401-1502	●	●
668	BRACKET; HARNESS (P)	8-98254-592-0	01	1	1503-	●	●
668	BRACKET; HARNESS (D)	8-97619-097-1	01	1	1307-	●	●
668	BRACKET; HARNESS (E)	8-97619-533-0	01	1	1307-1312	●
668	BRACKET; HARNESS (E)	8-97619-533-0	01	1	1401-	●	●
668	BRACKET; HARNESS (F)	8-97619-535-0	01	1	1307-1312	●
668	BRACKET; HARNESS (F)	8-97619-535-0	01	1	1401-	●	●
668	BRACKET; HARNESS (G)	8-98009-245-0	01	1	1307-1312	●
668	BRACKET; HARNESS (G)	8-98009-245-0	01	1	1401-1408	●	●
668	BRACKET; HARNESS (G)	8-98273-295-0	01	1	1409-	●	●
668	BRACKET; HARNESS (H)	8-98011-484-0	01	1	1307-1312	●
668	BRACKET; HARNESS (H)	8-98011-484-0	01	1	1401-	●	●
668	BRACKET; HARNESS (I)	8-98024-765-0	01	1	1307-1312	●
668	BRACKET; HARNESS (I)	8-98024-765-0	01	1	1401-	●	●
668	BRACKET; HARNESS (J)	8-98061-780-0	01	1	1307-1312	●
668	BRACKET; HARNESS (J)	8-98061-780-0	01	1	1401-	●	●
668	BRACKET; HARNESS (K)	8-98097-674-0	01	1	1307-1312	●
668	BRACKET; HARNESS (K)	8-98097-674-0	01	1	1401-	●	●
668	BRACKET; HARNESS (L)	8-98099-963-0	01	1	1307-1308	●
668	BRACKET; HARNESS (M)	8-98116-461-0	01	1	1307-1312	●
668	BRACKET; HARNESS (M)	8-98116-461-0	01	1	1401-	●	●
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (N)	8-98095-653-2	01	1	1307-1312	●
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (N)	8-98095-653-2	01	1	1401-	●	●

339 253 1 486 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-931-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-931-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-945-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-945-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-927-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-927-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-941-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-941-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-930-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-930-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-944-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-944-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-926-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-926-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-940-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-940-1	01	1	1401-	●	●
253	HARNESS; EXT,HORN	8-98074-081-2	01	1	1307-1312	●
253	HARNESS; EXT,HORN	8-98074-081-2	01	1	1401-	●	●
339	HARNESS; EXT,FUEL WHEEL BASE 4000MM(40W)	8-98247-533-0	01	1	1307-	●
339	HARNESS; EXT,FUEL WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W)	8-98247-534-0	01	1	1307-1312	●
339	HARNESS; EXT,FUEL WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W)	8-98247-534-0	01	1	1401-	●
339	HARNESS; EXT,FUEL	8-98247-534-0	01	1	1401-		●
486	HARNESS; ALL SPEED ACCEL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4>	1-82675-898-0	01	1	1307-1312	●
486	HARNESS; ALL SPEED ACCEL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4>	1-82675-898-0	01	1	1401-	●	●

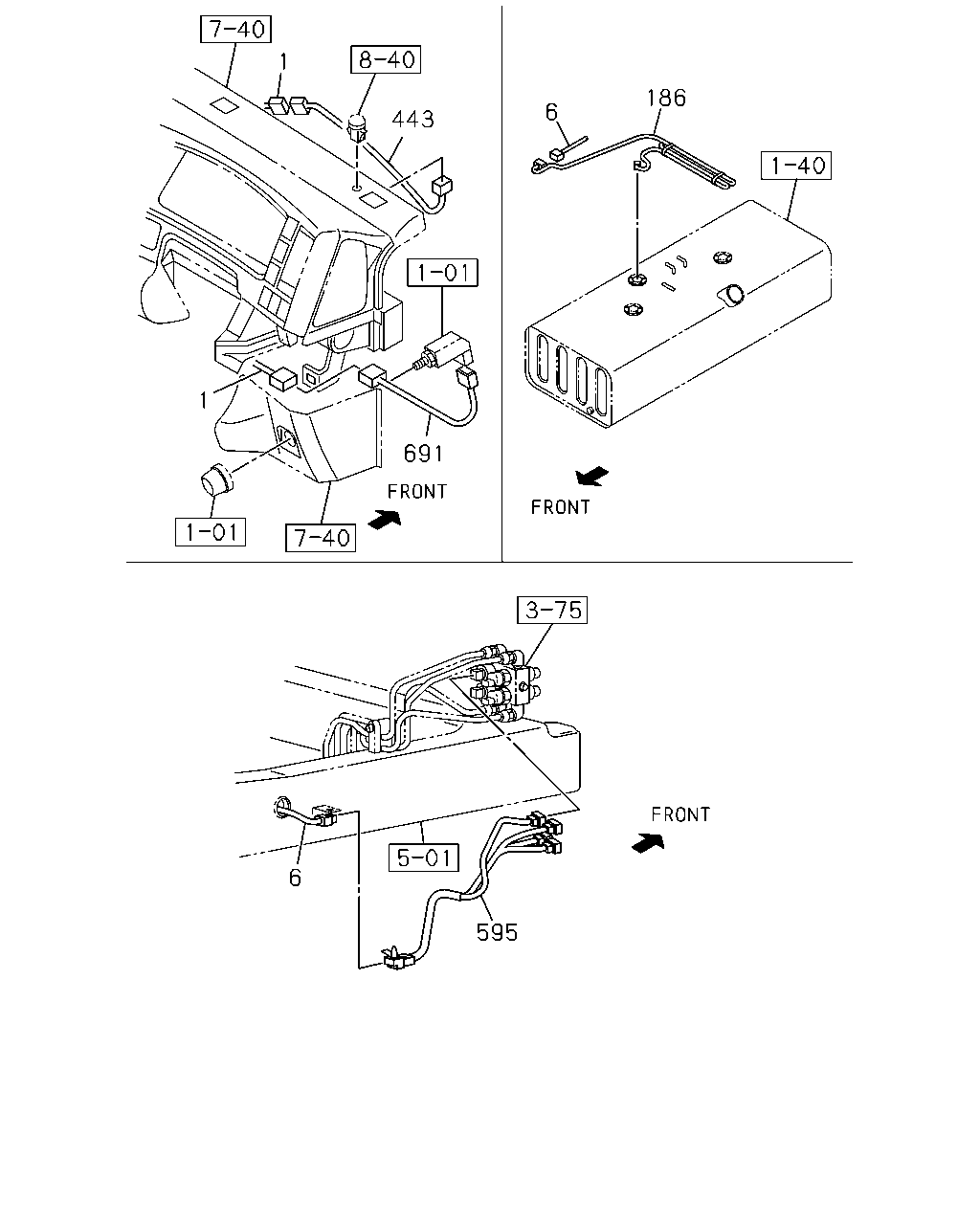

1 443 6 186 691 1 6 595

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-931-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-931-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-945-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-945-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-927-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-927-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-941-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-941-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-930-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98224-930-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-944-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98224-944-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-926-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-926-1	01	1	1401-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-940-1	01	1	1307-1312	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98224-940-1	01	1	1401-	●	●
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-559-1	01	1	1307-	●
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98233-557-1	01	1	1307-	●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-560-1	01	1	1307-1312	●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-560-1	01	1	1401-	●
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-560-1	01	1	1401-		●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98233-558-1	01	1	1307-1312	●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98233-558-1	01	1	1401-	●
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98233-558-1	01	1	1401-		●
186	HARNESS; FUEL TANK WHEEL BASE 3700MM(37W)	8-97619-079-0	01	1	1307-1404	●
443	HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98096-565-0	01	1	1307-1312	●
443	HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98096-565-0	01	1	1401-	●	●
595	HARNESS; WARNING,BRK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97621-003-3	01	1	1307-1312	●
595	HARNESS; WARNING,BRK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97621-003-3	01	1	1401-	●	●
595	HARNESS; WARNING,BRK TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97621-005-3	01	1	1307-1312	●
595	HARNESS; WARNING,BRK TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97621-005-3	01	1	1401-	●	●
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	1307-1312	●
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	1401-	●	●

201 479 533 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-559-1	01	1	1307-	●
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98233-557-1	01	1	1307-	●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-560-1	01	1	1307-1312	●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-560-1	01	1	1401-	●
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-560-1	01	1	1401-		●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98233-558-1	01	1	1307-1312	●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98233-558-1	01	1	1401-	●
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98233-558-1	01	1	1401-		●
201	HARNESS; AIR TANK THROTTLE CONTROL SYSTEM(6XH)	8-98156-702-2	01	1	1307-1312	●
201	HARNESS; AIR TANK THROTTLE CONTROL SYSTEM(6XH)	8-98156-702-2	01	1	1401-	●	●
201	HARNESS; AIR TANK EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98156-703-2	01	1	1307-1312	●
201	HARNESS; AIR TANK EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98156-703-2	01	1	1401-	●	●
479	CAP; CONNECTOR EXC. H.S.A SYSTEM<6EP>	1-82691-191-0	01	1	1307-1312	●
479	CAP; CONNECTOR EXC. H.S.A SYSTEM<6EP>	1-82691-191-0	01	1	1401-	●	●
533	CLIP WHEEL BASE 4600MM(46W) (M) ID=14 L=44	9-09917-427-0	16	1	1401-		●
533	CLIP WHEEL BASE 5300MM(53W) (M) ID=14 L=44	9-09917-427-0	19	1	1401-		●
533	CLIP (A) ID=11 L=41	1-09700-403-0	01	1	1307-1312	●
533	CLIP (A) ID=11 L=41	1-09700-403-0	01	1	1401-	●	●
533	CLIP (B) L=600	1-09707-107-1	01	1	1307-1312	●
533	CLIP (B) L=600	1-09707-107-1	01	1	1401-	●	●
533	CLIP (C) L=250	1-09707-126-0	02	1	1307-1312	●
533	CLIP (C) L=250	1-09707-126-0	02	1	1401-	●	●
533	CLIP (D) L=350	1-09707-183-0	01	1	1307-1312	●
533	CLIP (D) L=350	1-09707-183-0	01	1	1401-	●	●
533	CLIP (E) OD=9 H=6	1-09709-178-0	02	1	1307-1312	●
533	CLIP (E) OD=9 H=6	1-09709-178-0	02	1	1401-	●	●
533	CLIP (F) ID=10 & 10	1-09709-277-1	04	1	1307-1312	●
533	CLIP (F) ID=10 & 10	1-09709-277-1	04	1	1401-	●	●
533	CLIP (G) ID=10 & 12	1-09709-278-1	01	1	1307-1312	●
533	CLIP (G) ID=10 & 12	1-09709-278-1	01	1	1401-	●	●
533	CLIP (H) ID=5-12 L=18	1-09709-287-0	01	1	1307-1312	●
533	CLIP (H) ID=5-12 L=18	1-09709-287-0	01	1	1401-	●	●
533	CLIP (I) L=135	1-09987-143-1	01	1	1307-1312	●
533	CLIP (I) L=135	1-09987-143-1	01	1	1401-	●	●
533	CLIP (J) ID=5-12 L=14.5	1-09987-221-0	03	1	1307-1312	●
533	CLIP (J) ID=5-12 L=14.5	1-09987-221-0	03	1	1401-	●	●
533	CLIP (K) L=250	5-09707-030-1	02	1	1307-1312	●
533	CLIP (K) L=250	5-09707-030-1	02	1	1401-	●	●
533	CLIP (K) L=250	5-09707-030-1	07	1	1307-1312	●
533	CLIP (K) L=250	5-09707-030-1	07	1	1401-	●	●
533	CLIP (K) L=250	5-09707-030-1	01	1	1307-1312	●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (K) L=250	5-09707-030-1	01	1	1307-1312	●
533	CLIP (K) L=250	5-09707-030-1	01	1	1401-	●	●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (K) L=250	5-09707-030-1	01	1	1401-	●	●
533	CLIP (K) L=250	5-09707-030-1	01	1	1401-		●
533	CLIP (L) OD=9 H=9.5	1-09709-179-0	01	1	1307-1312	●
533	CLIP (L) OD=9 H=9.5	1-09709-179-0	01	1	1401-	●	●
533	CLIP (M) ID=14 L=44	9-09917-427-0	02	1	1307-1312	●
533	CLIP (M) ID=14 L=44	9-09917-427-0	02	1	1401-	●	●
533	CLIP (M) ID=14 L=44	9-09917-427-0	04	1	1307-	●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (N) L=180	1-09707-162-1	01	1	1307-1312	●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) (N) L=180	1-09707-162-1	01	1	1401-	●	●
533	CLIP (E) OD=9 H=6	1-09709-178-0	01	1	1307-1312	●
533	CLIP EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1307-1312	●
533	CLIP (E) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
533	CLIP EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1401-	●	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1307-1312	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1401-	●	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=32 L=50	1-09701-055-1	01	1	1307-1312	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=32 L=50	1-09701-055-1	01	1	1401-	●	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1307-1312	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1401-	●	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (R) ID=35 L=50	1-09701-214-0	01	1	1307-1312	●
533	CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) (R) ID=35 L=50	1-09701-214-0	01	1	1401-	●	●
533	CLIP WHEEL BASE 3700MM(37W) (M) ID=14 L=44	9-09917-427-0	06	1	1307-	●
533	CLIP WHEEL BASE 4000MM(40W) (M) ID=14 L=44	9-09917-427-0	07	1	1307-	●
533	CLIP WHEEL BASE 4600MM(46W) (M) ID=14 L=44	9-09917-427-0	10	1	1307-	●
533	CLIP WHEEL BASE 5300MM(53W) (M) ID=14 L=44	9-09917-427-0	13	1	1307-	●
533	CLIP WHEEL BASE 5300MM(53W) (S) ID=13-18 L=22	1-09709-292-0	01	1	1307-1312	●
533	CLIP WHEEL BASE 5300MM(53W) (S) ID=13-18 L=22	1-09709-292-0	01	1	1401-	●	●
533	CLIP (S) ID=13-18 L=22	1-09709-292-0	01	1	1401-		●

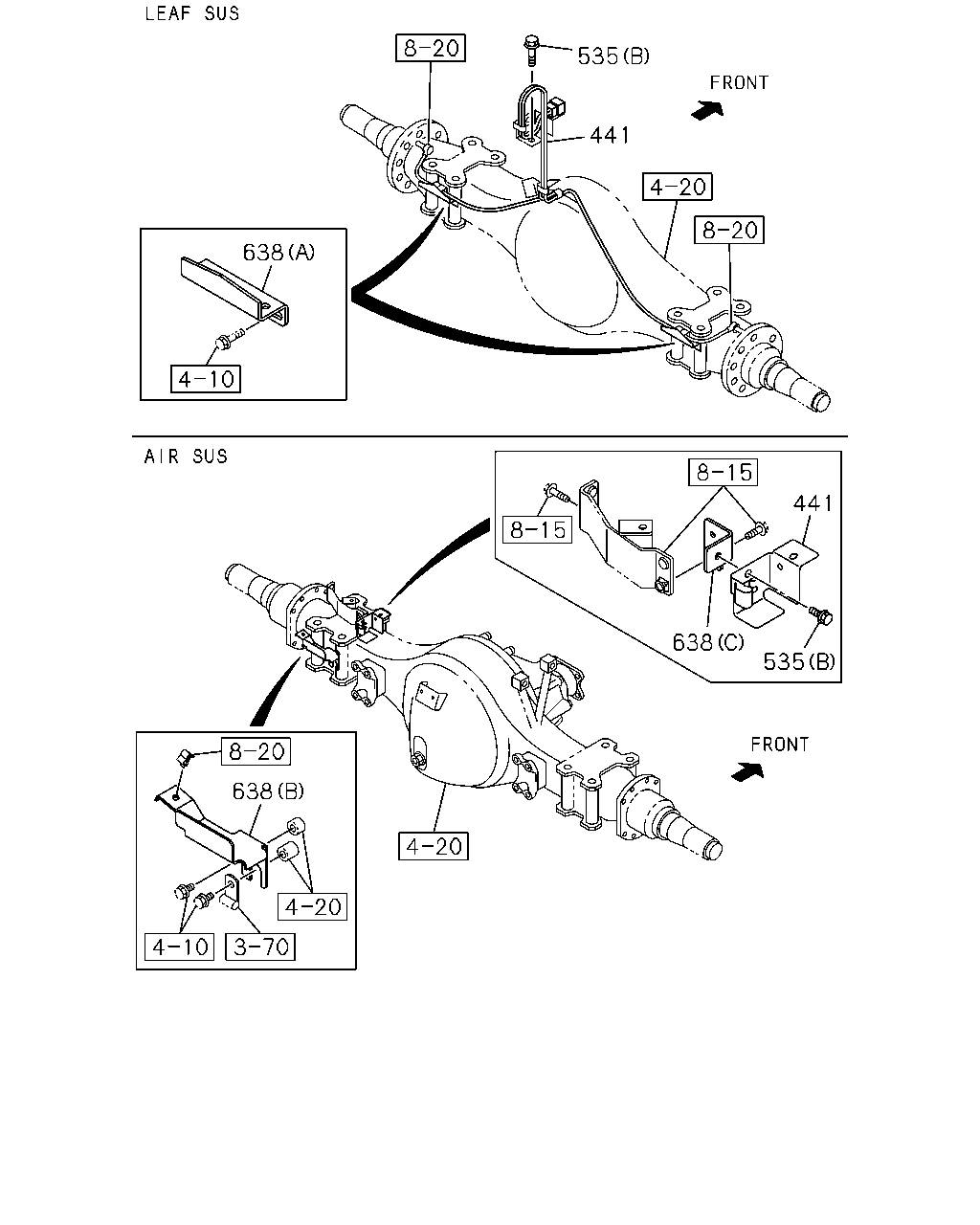

638 638 535 441 638 441 535

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
441	HARNESS; CABLE,SPEED SENSOR	8-98061-652-0	01	1	1307-1312	●
441	HARNESS; CABLE,SPEED SENSOR	8-98061-652-0	01	1	1401-	●	●
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1307-1312	●
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1307-1312	●
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1401-	●	●
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1401-	●	●
535	BOLT; BRKT FIX (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1307-1312	●
535	BOLT; BRKT FIX (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1401-	●	●
638	BRACKET; SPD SENSOR (B)	8-98236-731-0	01	1	1401-		●
638	BRACKET; SPD SENSOR (B)	8-98236-732-0	01	1	1401-		●
638	BRACKET; SPD SENSOR (C)	8-98249-802-0	01	1	1401-		●
638	BRACKET; SPD SENSOR (A)	8-98012-580-1	02	1	1307-	●

9 6 9 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-559-1	01	1	1307-	●
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98233-557-1	01	1	1307-	●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-560-1	01	1	1307-1312	●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-560-1	01	1	1401-	●
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-560-1	01	1	1401-		●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98233-558-1	01	1	1307-1312	●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98233-558-1	01	1	1401-	●
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98233-558-1	01	1	1401-		●
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W)	8-98233-635-1	01	1	1401-		●
9	HARNESS; FRAME,RR WHEEL BASE 5300MM(53W)	8-98233-636-1	01	1	1401-		●
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W)	8-98168-590-0	01	1	1307-	●
9	HARNESS; FRAME,RR WHEEL BASE 4000MM(40W)	8-98168-591-0	01	1	1307-	●
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W)	8-98168-592-0	01	1	1307-	●
9	HARNESS; FRAME,RR WHEEL BASE 5300MM(53W)	8-98168-593-0	01	1	1307-	●
189	HARNESS; EXT EXC. COUNTRY NEW ZEALAND(CX6)	8-98131-066-0	01	1	1307-1312	●
189	HARNESS; EXT EXC. COUNTRY NEW ZEALAND(CX6)	8-98131-066-0	01	1	1401-	●	●

6 6 6 700 558 13 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-559-1	01	1	1307-	●
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98233-557-1	01	1	1307-	●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-560-1	01	1	1307-1312	●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-560-1	01	1	1401-	●
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98233-560-1	01	1	1401-		●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98233-558-1	01	1	1307-1312	●
6	HARNESS; FRAME WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98233-558-1	01	1	1401-	●
6	HARNESS; FRAME TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98233-558-1	01	1	1401-		●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98191-059-0	01	1	1307-1406	●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98274-052-0	01	1	1407-	●
13	HARNESS; ENG GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98191-058-0	01	1	1307-1406	●
13	HARNESS; ENG GENERATOR 24V50A(K89) POWER TAKE OFF-FLYWHEEL<6SZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98274-051-0	01	1	1407-	●
13	HARNESS; ENG (B)	8-98171-638-0	01	1	1307-1312	●
13	HARNESS; ENG (B)	8-98171-638-0	01	1	1401-	●	●
13	HARNESS; ENG GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A)	8-98162-659-1	01	1	1307-1405	●
13	HARNESS; ENG GENERATOR 24V50A(K89) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A)	8-98274-039-0	01	1	1406-	●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A)	8-98162-660-1	01	1	1307-1312	●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A)	8-98162-660-1	01	1	1401-1405	●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98162-660-1	01	1	1401-1405		●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A)	8-98274-040-0	01	1	1406-	●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) (A)	8-98274-040-0	01	1	1406-		●
231	HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98234-230-1	01	1	1307-1312	●
231	HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98234-230-1	01	1	1401-	●	●
231	HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98234-229-1	01	1	1307-1312	●
231	HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98234-229-1	01	1	1401-	●	●
558	CONNECTOR; HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-82690-668-0	01	1	1307-1312	●
558	CONNECTOR; HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-82690-668-0	01	1	1401-	●	●
700	TUBE; DISTANCE EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=51	1-11369-157-0	01	1	1307-1312	●
700	TUBE; DISTANCE EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=51	1-11369-157-0	01	1	1401-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
