8-01 — LAMP; FRONT AND FRONT SIDE (#124055) — 147 parça

1 4 338 339 408 420 20 23 457 382 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-320-0	01	1	1307-	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-319-0	01	1	1307-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-326-0	01	1	1307-1312	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-326-0	01	1	1401-	●
1	LAMP ASM; HEAD	8-98241-326-0	01	1	1401-		●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-325-0	01	1	1307-1312	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-325-0	01	1	1401-	●
1	LAMP ASM; HEAD	8-98241-325-0	01	1	1401-		●
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98226-181-0	01	1	1307-	●
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98226-180-0	01	1	1307-	●
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98226-183-0	01	1	1307-1312	●
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98226-183-0	01	1	1401-	●
4	HEADLAMP UNIT	8-98226-183-0	01	1	1401-		●
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98226-182-0	01	1	1307-1312	●
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98226-182-0	01	1	1401-	●
4	HEADLAMP UNIT	8-98226-182-0	01	1	1401-		●
5	BULB; HEADLAMP (B) 24V 5W	1-82194-042-0	02	1	1307-1312	●
5	BULB; HEADLAMP (B) 24V 5W	1-82194-042-0	02	1	1401-	●	●
5	BULB; HEADLAMP (A) 24V 75/70W	1-82194-063-0	02	1	1307-1312	●
5	BULB; HEADLAMP (A) 24V 75/70W	1-82194-063-0	02	1	1401-	●	●
20	SCREW; HEADLAMP	8-97378-871-0	06	1	1307-1312	●
20	SCREW; HEADLAMP	8-97378-871-0	06	1	1401-	●	●
23	COVER; BULB,HEADLAMP	8-97232-491-0	02	1	1307-1312	●
23	COVER; BULB,HEADLAMP	8-97232-491-0	02	1	1401-	●	●
338	LEVELING; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98010-256-0	02	1	1307-	●
339	GASKET; LEVELING HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	1-86830-158-0	02	1	1307-	●
382	PLUG; SOCKET,HEADLAMP	8-98225-685-0	02	1	1307-1312	●
382	PLUG; SOCKET,HEADLAMP	8-98225-685-0	02	1	1401-	●	●
408	CAP; BREATHER,HEADLAMP	8-97378-874-0	02	1	1307-1312	●
408	CAP; BREATHER,HEADLAMP	8-97378-874-0	02	1	1401-	●	●
420	SPRING; BULB,HEADLAMP	8-98218-601-0	02	1	1307-1312	●
420	SPRING; BULB,HEADLAMP	8-98218-601-0	02	1	1401-	●	●
457	GRIP; HEADLAMP	8-98241-354-0	02	1	1307-1312	●
457	GRIP; HEADLAMP	8-98241-354-0	02	1	1401-	●	●

36 32 44 49 47 15 448 432 355 399 357 431 331

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	BULB; FOG LAMP FOG LAMP<T96> 24V 70W	1-82194-106-0	02	1	1307-1312	●
15	BULB; FOG LAMP FOG LAMP<T96> 24V 70W	1-82194-106-0	02	1	1401-	●	●
32	LAMP ASM; FOG FOG LAMP<T96>	8-98232-059-1	01	1	1307-1312	●
32	LAMP ASM; FOG FOG LAMP<T96>	8-98232-059-1	01	1	1401-	●	●
32	LAMP ASM; FOG FOG LAMP<T96>	8-98232-058-1	01	1	1307-1312	●
32	LAMP ASM; FOG FOG LAMP<T96>	8-98232-058-1	01	1	1401-	●	●
36	CORD; FOG LAMP FOG LAMP<T96>	1-82118-016-0	01	1	1307-1312	●
36	CORD; FOG LAMP FOG LAMP<T96>	1-82118-016-0	01	1	1401-	●	●
36	CORD; FOG LAMP FOG LAMP<T96>	1-82118-015-0	01	1	1307-1312	●
36	CORD; FOG LAMP FOG LAMP<T96>	1-82118-015-0	01	1	1401-	●	●
44	NUT; FOG LAMP FOG LAMP<T96> M6	8-98217-430-0	02	1	1307-1312	●
44	NUT; FOG LAMP FOG LAMP<T96> M6	8-98217-430-0	02	1	1401-	●	●
47	WASHER; PL,FOG LAMP FOG LAMP<T96>	8-98217-429-0	02	1	1307-1312	●
47	WASHER; PL,FOG LAMP FOG LAMP<T96>	8-98217-429-0	02	1	1401-	●	●
49	BRACKET; LAMP FOG LAMP<T96>	8-98051-435-0	01	1	1307-1312	●
49	BRACKET; LAMP FOG LAMP<T96>	8-98051-435-0	01	1	1401-	●	●
49	BRACKET; LAMP FOG LAMP<T96>	8-98051-436-0	01	1	1307-1312	●
49	BRACKET; LAMP FOG LAMP<T96>	8-98051-436-0	01	1	1401-	●	●
331	LAMP; TURN SIGNAL	8-98155-459-0	01	1	1307-1312	●
331	LAMP; TURN SIGNAL	8-98155-459-0	01	1	1401-	●	●
331	LAMP; TURN SIGNAL	8-98155-458-0	01	1	1307-1312	●
331	LAMP; TURN SIGNAL	8-98155-458-0	01	1	1401-	●	●
355	SCREW; TURN SIGNAL	8-98051-428-0	04	1	1307-1312	●
355	SCREW; TURN SIGNAL	8-98051-428-0	04	1	1401-	●	●
357	BULB; TURN SIGNAL 24V 21W AMBER	8-97323-806-0	02	1	1307-1312	●
357	BULB; TURN SIGNAL 24V 21W AMBER	8-97323-806-0	02	1	1401-	●	●
399	SOCKET; TURN SIGNAL	8-98051-387-0	02	1	1307-1312	●
399	SOCKET; TURN SIGNAL	8-98051-387-0	02	1	1401-	●	●
431	CAP; TURN SIGNAL,LAMP	8-97378-874-0	02	1	1307-1312	●
431	CAP; TURN SIGNAL,LAMP	8-97378-874-0	02	1	1401-	●	●
432	FASTENER; TURN SIGNAL,LAMP	8-98051-431-0	04	1	1307-1312	●
432	FASTENER; TURN SIGNAL,LAMP	8-98051-431-0	04	1	1401-	●	●
448	CAP ASM; LAMP FOG LAMP<T96>	8-97378-874-0	02	1	1307-1312	●
448	CAP ASM; LAMP FOG LAMP<T96>	8-97378-874-0	02	1	1401-	●	●

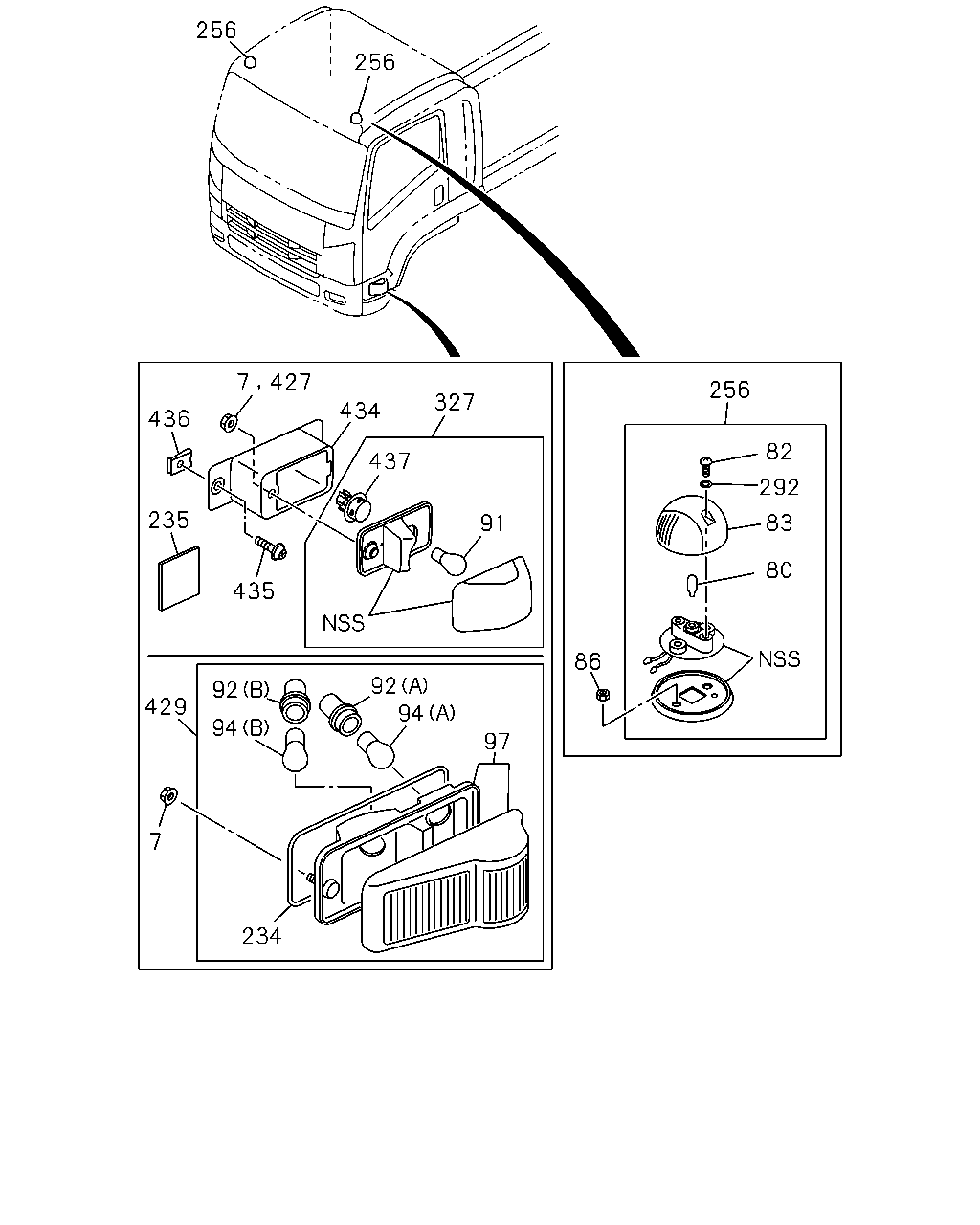

80 83 292 82 256 91 327 437 434 427 7 436 235 435 92 94 429 7 234 92 94 97 86 256 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	NUT; FRT COMB LAMP CORNERING LAMP<T87> M6 FLANGE	0-91180-106-0	02	1	1307-1312	●
7	NUT; FRT COMB LAMP CORNERING LAMP<T87> M6 FLANGE	0-91180-106-0	02	1	1401-	●	●
80	BULB; MARKER LAMP 24V 5W	8-94135-397-0	02	1	1307-	●	●
82	SCREW; MARKER LAMP	1-82219-011-0	04	1	1307-	●	●
83	LENS; MARKER LAMP	8-98057-958-0	02	1	1307-	●	●
86	NUT; MARKER LAMP M6 FLANGE	0-91180-106-0	04	1	1307-	●	●
91	BULB; SIDE TURN SIGNAL 24V 21W	8-98051-495-0	02	1	1307-1312	●
91	BULB; SIDE TURN SIGNAL 24V 21W	8-98051-495-0	02	1	1401-	●	●
92	SOCKET ASM; SIDE COMB LAMP CORNERING LAMP<T87> (B)	8-97172-959-0	02	1	1307-1312	●
92	SOCKET ASM; SIDE COMB LAMP CORNERING LAMP<T87> (B)	8-97172-959-0	02	1	1401-	●	●
92	SOCKET ASM; SIDE COMB LAMP CORNERING LAMP<T87> (A)	8-98051-390-0	02	1	1307-1312	●
92	SOCKET ASM; SIDE COMB LAMP CORNERING LAMP<T87> (A)	8-98051-390-0	02	1	1401-	●	●
94	BULB; SIDE COMB LAMP CORNERING LAMP<T87> (A) 24V 21W	8-98051-495-0	02	1	1307-1312	●
94	BULB; SIDE COMB LAMP CORNERING LAMP<T87> (A) 24V 21W	8-98051-495-0	02	1	1401-	●	●
94	BULB; SIDE COMB LAMP CORNERING LAMP<T87> (B) 24V 21W	8-98051-496-0	02	1	1307-1312	●
94	BULB; SIDE COMB LAMP CORNERING LAMP<T87> (B) 24V 21W	8-98051-496-0	02	1	1401-	●	●
97	LAMP UNIT; COMB CORNERING LAMP<T87>	8-98051-420-0	01	1	1307-1312	●
97	LAMP UNIT; COMB CORNERING LAMP<T87>	8-98051-420-0	01	1	1401-	●	●
97	LAMP UNIT; COMB CORNERING LAMP<T87>	8-98051-419-0	01	1	1307-1312	●
97	LAMP UNIT; COMB CORNERING LAMP<T87>	8-98051-419-0	01	1	1401-	●	●
234	GASKET; SIDE COMB LAMP CORNERING LAMP<T87>	8-98051-432-0	02	1	1307-1312	●
234	GASKET; SIDE COMB LAMP CORNERING LAMP<T87>	8-98051-432-0	02	1	1401-	●	●
235	PROTECTOR; CORNERING LAMP CORNERING LAMP<T87>	1-82699-922-0	02	1	1307-1312	●
235	PROTECTOR; CORNERING LAMP CORNERING LAMP<T87>	1-82699-922-0	02	1	1401-	●	●
256	LAMP; MARKER	8-98097-467-3	01	1	1307-	●	●
256	LAMP; MARKER	8-98097-466-3	01	1	1307-	●	●
292	WASHER; MARKER LAMP	1-82219-012-0	04	1	1307-	●	●
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-181-3	01	1	1307-1312	●
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-181-3	01	1	1401-	●	●
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-180-4	01	1	1307-1312	●
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-180-4	01	1	1401-	●	●
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	1307-1312	●
427	NUT; TURN SIGNAL LAMP EXC. CORNERING LAMP<T87> M6 FLANGE	0-91180-106-0	02	1	1307-1312	●
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	1401-	●	●
427	NUT; TURN SIGNAL LAMP EXC. CORNERING LAMP<T87> M6 FLANGE	0-91180-106-0	02	1	1401-	●	●
429	LAMP ASM; SIDE COMB CORNERING LAMP<T87>	8-98039-777-2	01	1	1307-1312	●
429	LAMP ASM; SIDE COMB CORNERING LAMP<T87>	8-98039-777-2	01	1	1401-	●	●
429	LAMP ASM; SIDE COMB CORNERING LAMP<T87>	8-98039-776-2	01	1	1307-1312	●
429	LAMP ASM; SIDE COMB CORNERING LAMP<T87>	8-98039-776-2	01	1	1401-	●	●
434	BASE; LAMP,SIDE TURN SIGNAL	8-98063-727-1	01	1	1307-1312	●
434	BASE; LAMP,SIDE TURN SIGNAL	8-98063-727-1	01	1	1401-	●	●
434	BASE; LAMP,SIDE TURN SIGNAL	8-98063-726-1	01	1	1307-1312	●
434	BASE; LAMP,SIDE TURN SIGNAL	8-98063-726-1	01	1	1401-	●	●
435	SCREW; BASE,SIDE TURN CORNERING LAMP<T87> M6X20 W/PL WASHER	0-36210-620-0	02	1	1307-1312	●
435	SCREW; BASE,SIDE TURN CORNERING LAMP<T87> M6X20 W/PL WASHER	0-36210-620-0	02	1	1401-	●	●
436	NUT; SPIRE,BASE SIDE TURN CORNERING LAMP<T87>	8-94279-501-0	02	1	1307-1312	●
436	NUT; SPIRE,BASE SIDE TURN CORNERING LAMP<T87>	8-94279-501-0	02	1	1401-	●	●
437	SOCKET; SIDE,TURN	8-98051-390-0	02	1	1307-1312	●
437	SOCKET; SIDE,TURN	8-98051-390-0	02	1	1401-	●	●

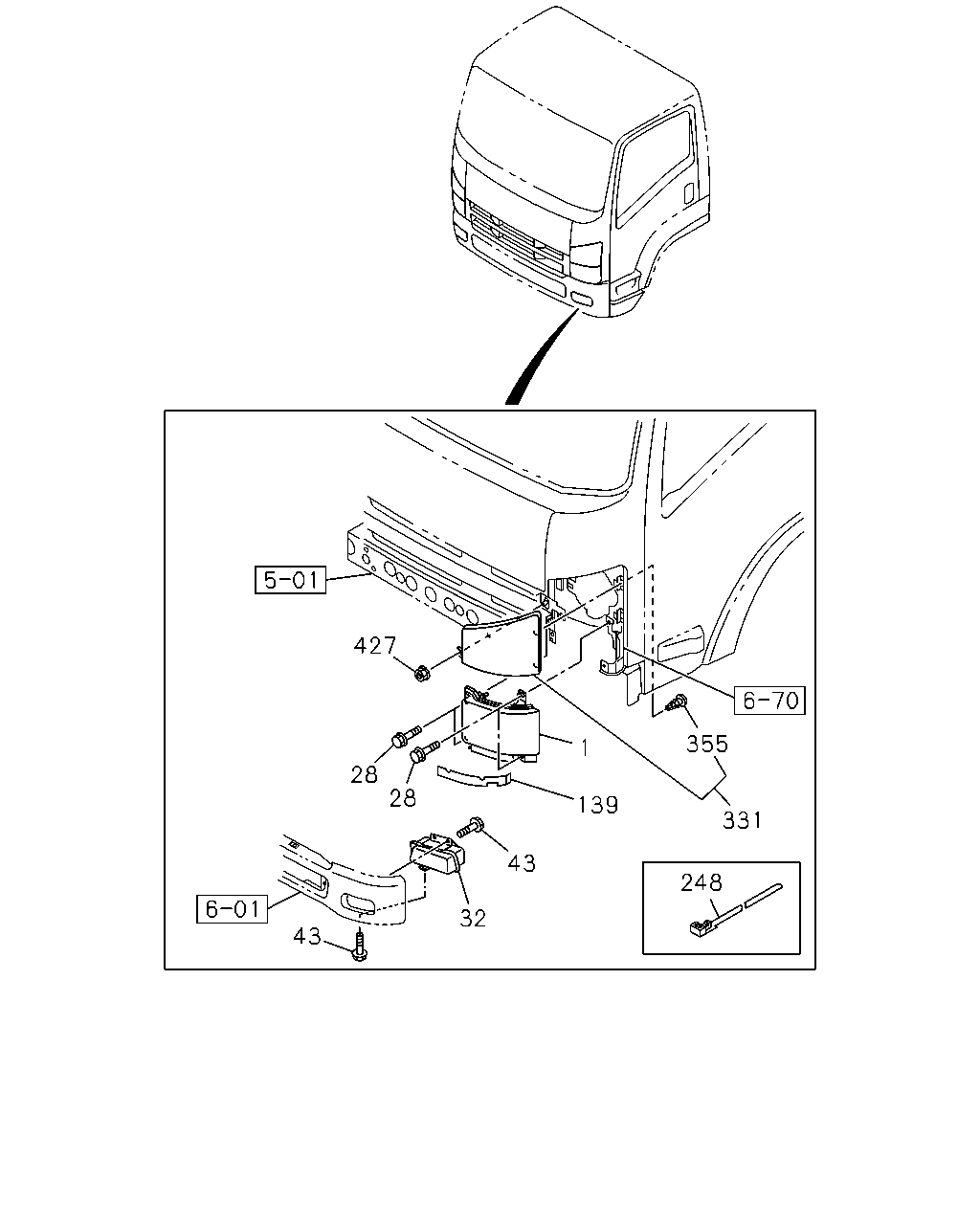

331 1 139 43 32 28 28 427 43 355 248

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-320-0	01	1	1307-	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-319-0	01	1	1307-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-326-0	01	1	1307-1312	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-326-0	01	1	1401-	●
1	LAMP ASM; HEAD	8-98241-326-0	01	1	1401-		●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-325-0	01	1	1307-1312	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-325-0	01	1	1401-	●
1	LAMP ASM; HEAD	8-98241-325-0	01	1	1401-		●
28	BOLT; HEADLAMP M6X23.5 W/LK&PL WASHER	8-98164-723-0	08	1	1307-1312	●
28	BOLT; HEADLAMP M6X23.5 W/LK&PL WASHER	8-98164-723-0	08	1	1401-	●	●
32	LAMP ASM; FOG FOG LAMP<T96>	8-98232-059-1	01	1	1307-1312	●
32	LAMP ASM; FOG FOG LAMP<T96>	8-98232-059-1	01	1	1401-	●	●
32	LAMP ASM; FOG FOG LAMP<T96>	8-98232-058-1	01	1	1307-1312	●
32	LAMP ASM; FOG FOG LAMP<T96>	8-98232-058-1	01	1	1401-	●	●
43	BOLT; FOG LAMP FOG LAMP<T96> M6X19.5 W/LK&PL WASHER	8-97360-226-0	06	1	1307-1312	●
43	BOLT; FOG LAMP FOG LAMP<T96> M6X19.5 W/LK&PL WASHER	8-97360-226-0	06	1	1401-	●	●
139	COVER; HEADLAMP	8-98054-342-0	02	1	1307-1312	●
139	COVER; HEADLAMP	8-98054-342-0	02	1	1401-	●	●
248	CLIP; HARNESS EXC. FOG LAMP<T96> L=140	5-09707-031-1	02	1	1307-1312	●
248	CLIP; HARNESS EXC. FOG LAMP<T96> L=140	5-09707-031-1	02	1	1401-	●	●
331	LAMP; TURN SIGNAL	8-98155-459-0	01	1	1307-1312	●
331	LAMP; TURN SIGNAL	8-98155-459-0	01	1	1401-	●	●
331	LAMP; TURN SIGNAL	8-98155-458-0	01	1	1307-1312	●
331	LAMP; TURN SIGNAL	8-98155-458-0	01	1	1401-	●	●
355	SCREW; TURN SIGNAL	8-98051-428-0	04	1	1307-1312	●
355	SCREW; TURN SIGNAL	8-98051-428-0	04	1	1401-	●	●
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	1307-1312	●
427	NUT; TURN SIGNAL LAMP EXC. CORNERING LAMP<T87> M6 FLANGE	0-91180-106-0	02	1	1307-1312	●
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	1401-	●	●
427	NUT; TURN SIGNAL LAMP EXC. CORNERING LAMP<T87> M6 FLANGE	0-91180-106-0	02	1	1401-	●	●
