◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11549 - FRR AUST/NZ EURO5 SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#124052) — 216 parça

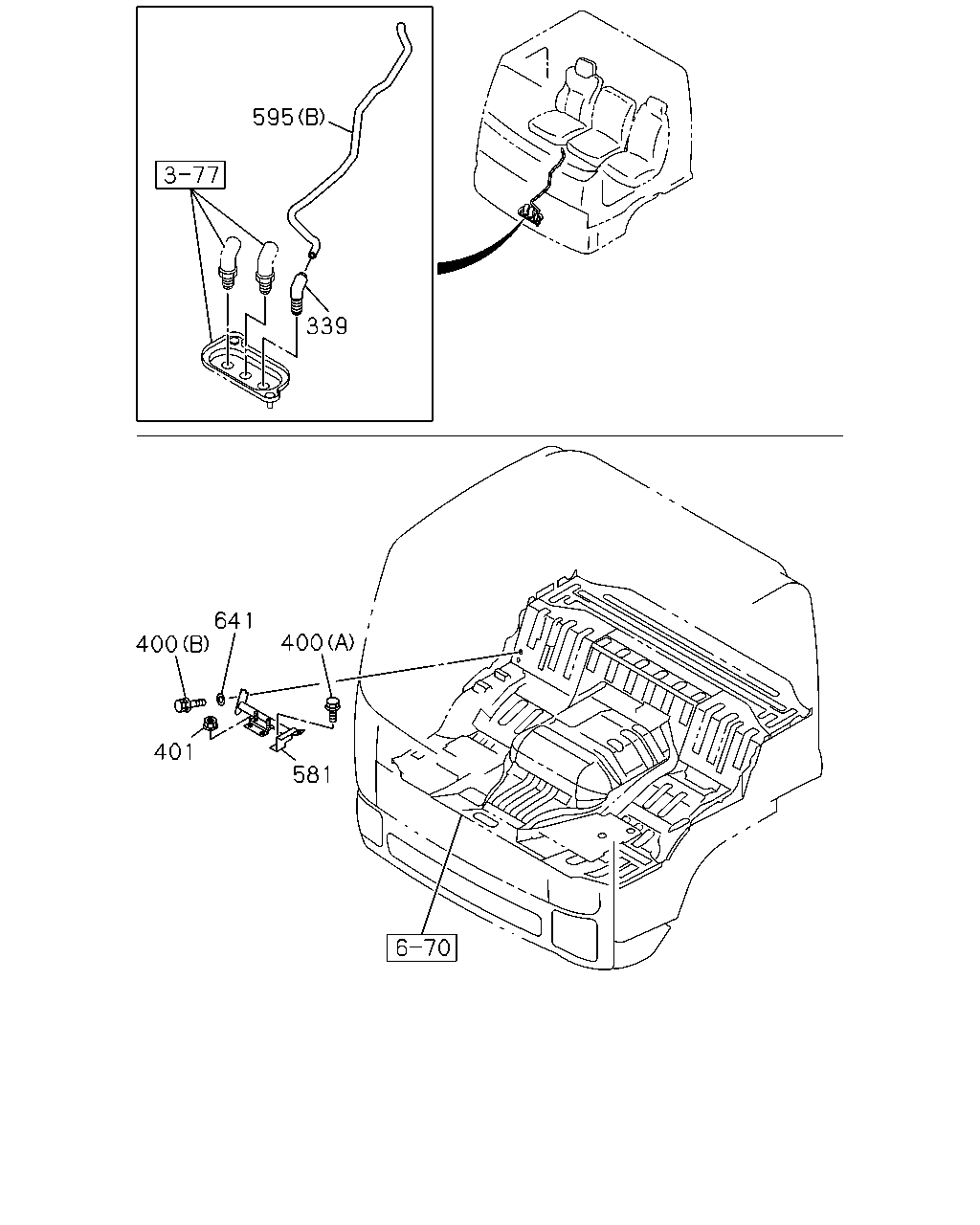

çizim 363763
339 595 400 641 400 401 581
BalonParca AdiParca NoAdetTipApplied Date A B
339 UNION; DRIVER SEAT 8-98014-971-0 01 1 1307-1312 ●
339 UNION; DRIVER SEAT 8-98014-971-0 01 1 1401- ● ●
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1307-1312 ●
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1401- ● ●
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 1307-1312 ●
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 1401- ● ●
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 1307-1312 ●
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 1401- ● ●
581 PIPE; SEAT 8-97589-692-3 01 1 1307-1312 ●
581 PIPE; SEAT 8-97589-692-3 01 1 1401- ● ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1307-1312 ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1401- ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1307-1312 ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1401- ● ●
641 WASHER; SUPPORT 8-98099-007-0 02 1 1307-1312 ●
641 WASHER; SUPPORT 8-98099-007-0 02 1 1401- ● ●

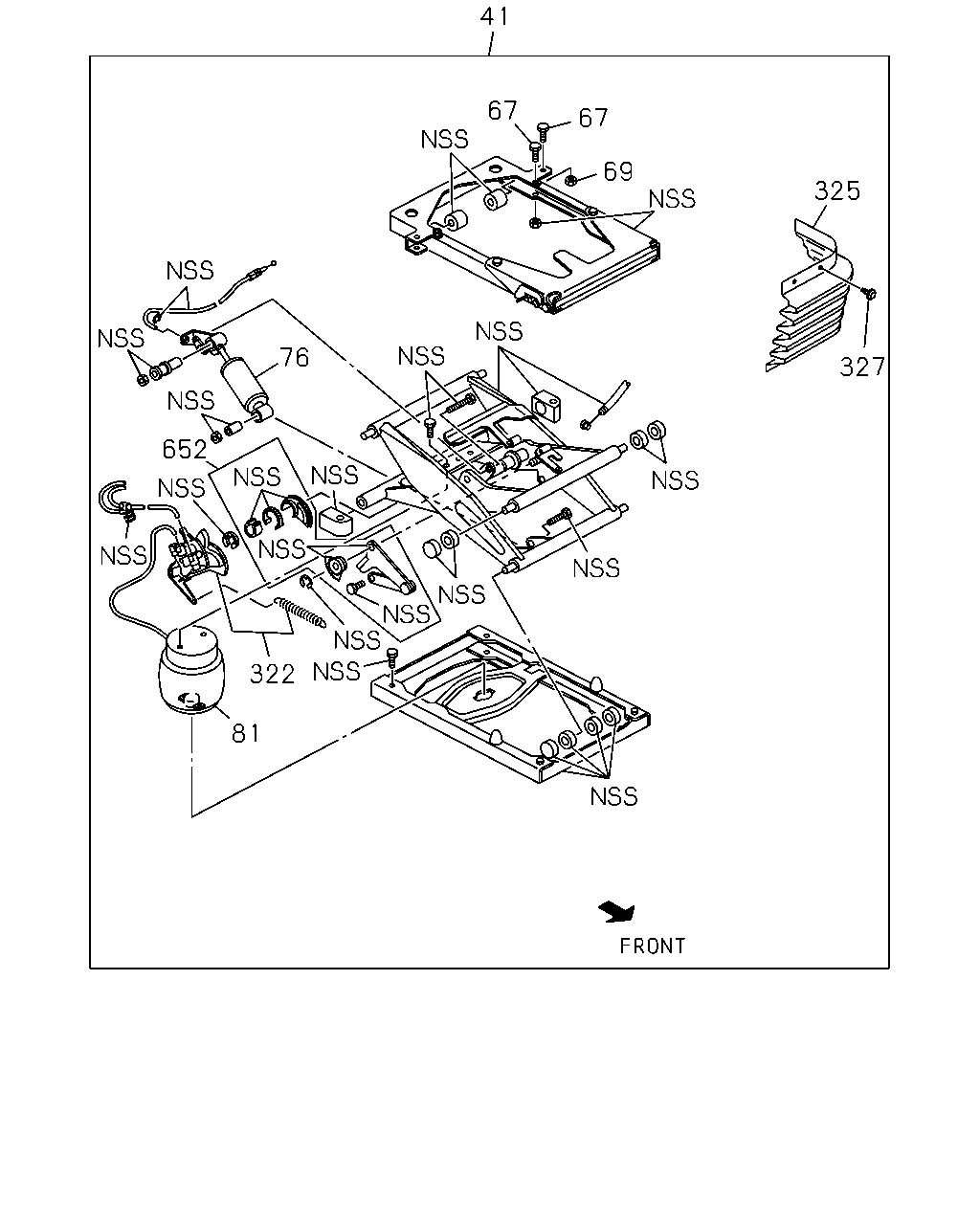

çizim 363966
41 67 67 69 76 652 322 81 327 325
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1307-1312 ●
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1401- ● ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1307-1312 ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 1401- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1307-1312 ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 1401- ● ●
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 1307-1312 ●
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 1401- ● ●
81 SPRING; AIR 8-98098-000-0 01 1 1307-1312 ●
81 SPRING; AIR 8-98098-000-0 01 1 1401- ● ●
322 VALVE; AIR SPRING 8-98098-001-0 01 1 1307-1312 ●
322 VALVE; AIR SPRING
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98098-001-0 01 1 1401-1508 ● ●
322 VALVE; AIR SPRING 8-98331-314-0 01 1 1509- ● ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 1307-1312 ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 1401- ● ●
327 CLIP; COVER 8-98098-004-0 01 1 1307-1312 ●
327 CLIP; COVER 8-98098-004-0 01 1 1401- ● ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 1307-1312 ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 1401- ● ●

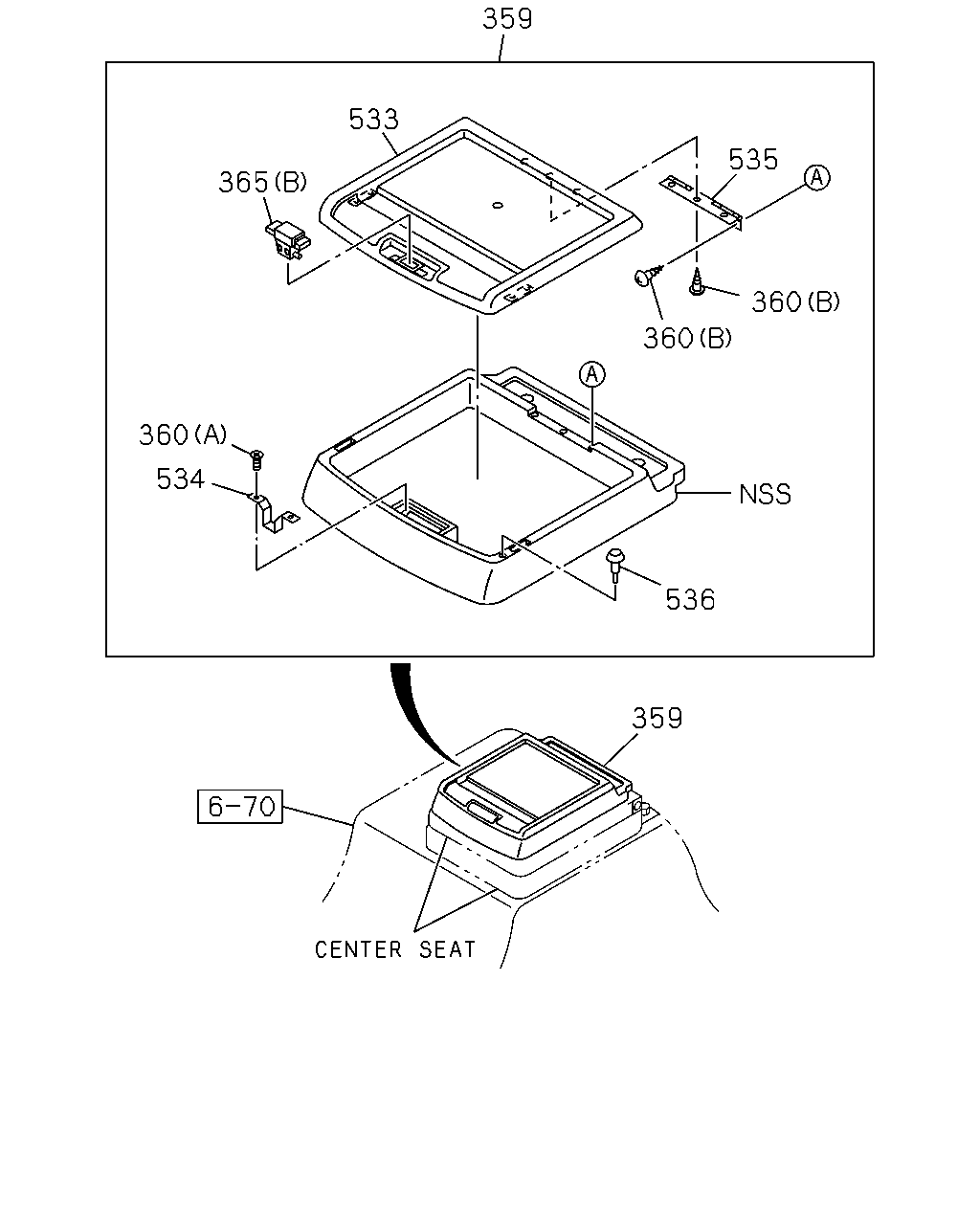

çizim 364002
359 535 360 536 360 365 533 534 359 360
BalonParca AdiParca NoAdetTipApplied Date A B
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1307-1312 ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1401- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1307-1312 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1401- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1307-1312 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1401- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1307-1312 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1401- ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1307-1312 ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1401- ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1307-1312 ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1401- ● ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1307-1312 ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1401- ● ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-190-0 01 1 1307-1312 ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-190-0 01 1 1401- ● ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1307-1312 ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1401- ● ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-187-0 02 1 1307-1312 ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-187-0 02 1 1401- ● ●

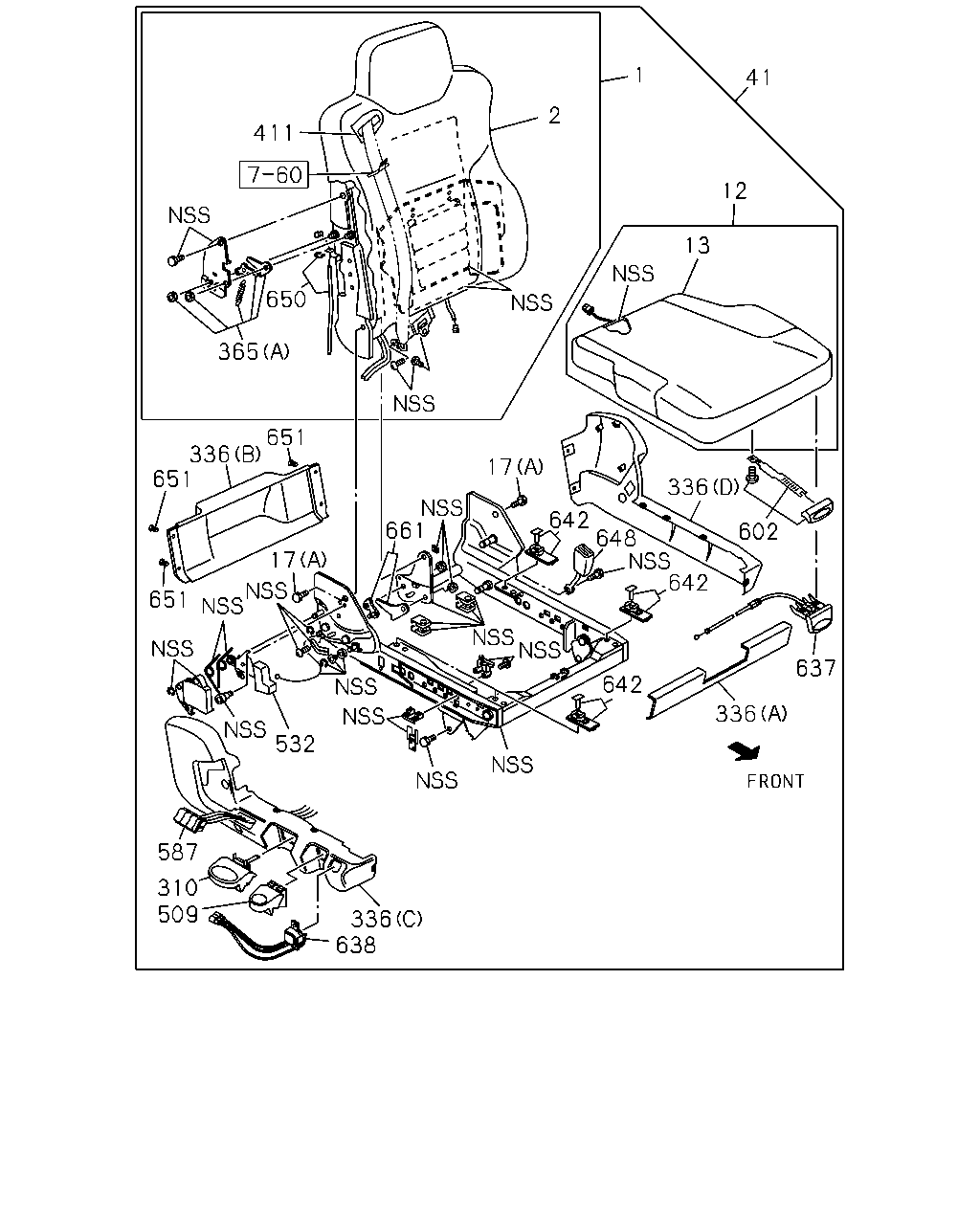

çizim 364578
41 1 2 13 12 411 650 365 651 336 651 17 651 661 17 642 642 602 336 637 336 642 532 587 310 509 638 336 648
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT 8-98097-964-0 01 1 1307-1312 ●
1 BACK ASM; SEAT 8-98097-964-0 01 1 1401- ● ●
2 COVER; TRIM,FRT SEAT,BACK 8-98232-353-0 01 1 1307-1312 ●
2 COVER; TRIM,FRT SEAT,BACK 8-98232-353-0 01 1 1401- ● ●
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 1307-1312 ●
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 1401- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 1307-1312 ●
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 1401- ● ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1307-1312 ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1401- ● ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1307-1312 ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1401- ● ●
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1307-1312 ●
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1401- ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 1307-1312 ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 1401- ● ●
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 1307-1312 ●
336 COVER; DRIVER SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (D) 		8-98097-978-0 01 1 1401-1508 ● ●
336 COVER; DRIVER SEAT
(D) 		8-98331-313-0 01 1 1509- ● ●
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 1307-1312 ●
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 1401- ● ●
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 1307-1312 ●
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 1401- ● ●
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 1307-1312 ●
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 1401- ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1307-1312 ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 1401- ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1307-1312 ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1401- ● ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 1307-1312 ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 1401- ● ●
509 LEVER; DAMPER 8-98097-988-0 01 1 1307-1312 ●
509 LEVER; DAMPER 8-98097-988-0 01 1 1401- ● ●
532 LEVER ASM; TILT 8-98097-982-0 01 1 1307-1312 ●
532 LEVER ASM; TILT 8-98097-982-0 01 1 1401- ● ●
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 1307-1312 ●
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 1401- ● ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 1307-1312 ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 1401- ● ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 1307-1312 ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 1401- ● ●
638 VALVE; LOWERING 8-98097-994-0 01 1 1307-1312 ●
638 VALVE; LOWERING 8-98097-994-0 01 1 1401- ● ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 1307-1312 ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 1401- ● ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 1307-1312 ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 1401- ● ●
650 CABLE 8-98232-354-0 01 1 1307-1312 ●
650 CABLE 8-98232-354-0 01 1 1401- ● ●
651 RIVET 8-98194-075-0 04 1 1307-1312 ●
651 RIVET 8-98194-075-0 04 1 1401- ● ●
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 1307-1312 ●
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 1401- ● ●

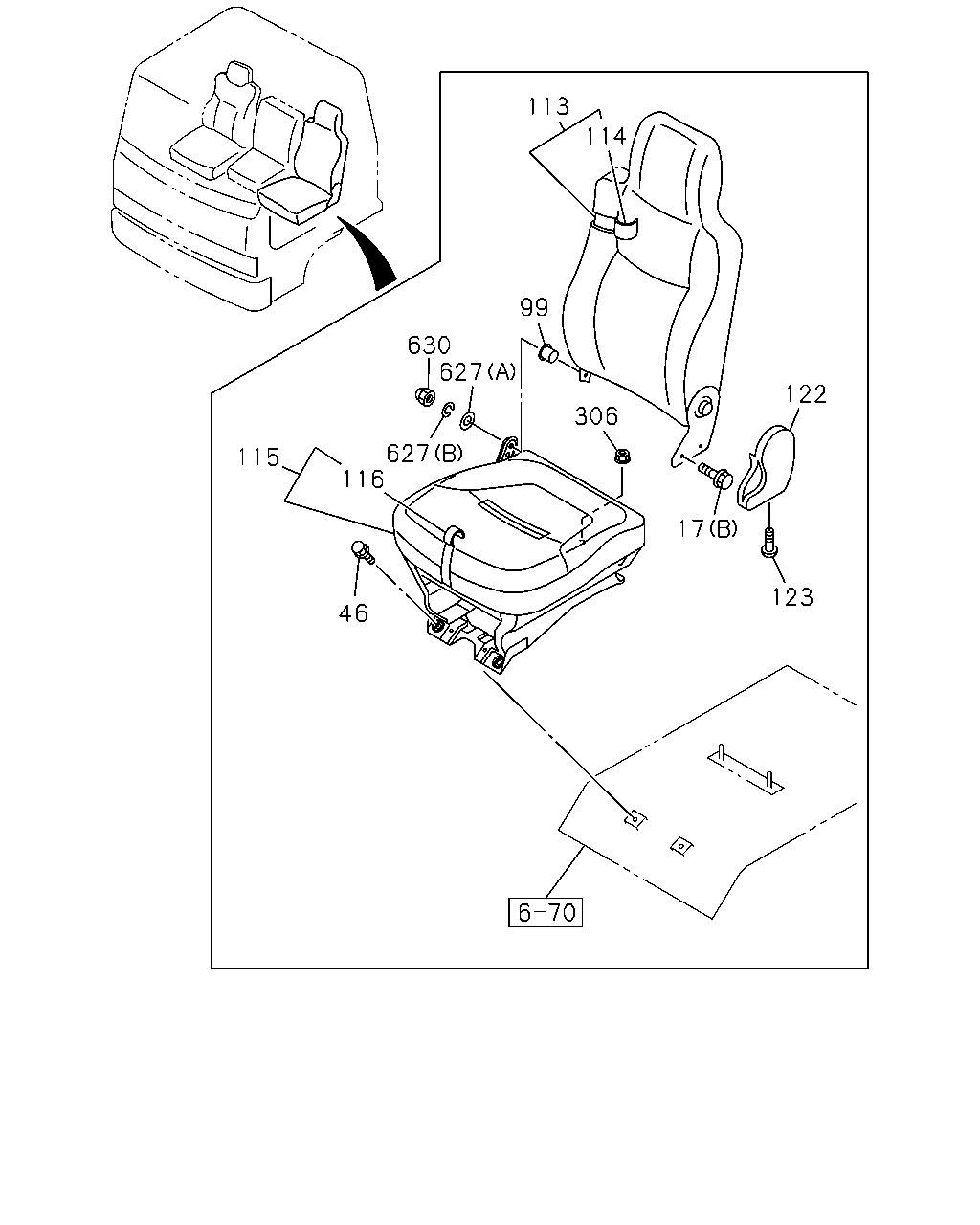

çizim 365191
113 114 99 630 627 627 116 115 46 123 17 122 306
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1307-1312 ●
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 1401- ● ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1307-1312 ●
17 BOLT; RECLINING
(A) 		8-98097-974-0 02 1 1401- ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1307-1312 ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 1401- ● ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1307-1312 ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1401- ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97421-422-0 01 1 1307-1312 ●
113 BACK ASM; SEAT
DARK GRAY 		8-97421-422-0 01 1 1401- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-424-0 01 1 1307-1312 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-424-0 01 1 1401- ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-418-1 01 1 1307-1312 ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-418-1 01 1 1401- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-420-0 01 1 1307-1312 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-420-0 01 1 1401- ● ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1307-1312 ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 1401- ● ●
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 1307-1312 ●
123 SCREW; COVER,RECLINING
M5 		8-98070-026-0 01 1 1401- ● ●
306 NUT; SEAT ADJ
M10 FLANGE 		0-91180-110-0 02 1 1307-1312 ●
306 NUT; SEAT ADJ
M10 FLANGE 		0-91180-110-0 02 1 1401- ● ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1307-1312 ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1401- ● ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1307-1312 ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1401- ● ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 1307-1312 ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 1401- ● ●

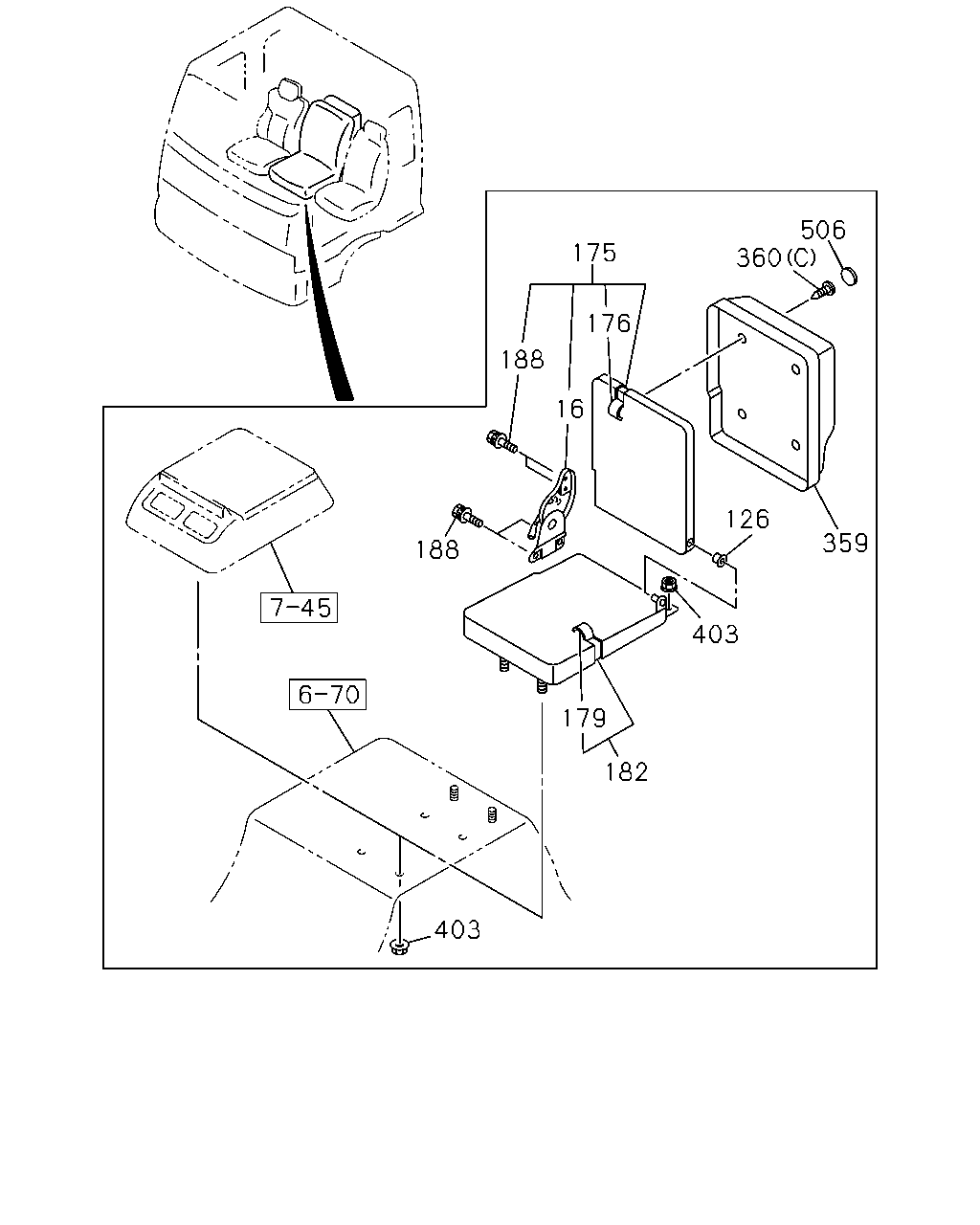

çizim 365306
175 176 506 360 359 403 182 179 403 188 188 16 126
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1307-1312 ●
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1401- ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		8-97854-900-0 01 1 1307-1312 ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		8-97854-900-0 01 1 1401- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-434-1 01 1 1307-1312 ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-434-1 01 1 1401- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-435-1 01 1 1307-1312 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-435-1 01 1 1401- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-432-1 01 1 1307-1312 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-432-1 01 1 1401- ● ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-430-3 01 1 1307-1312 ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97421-430-3 01 1 1401- ● ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1307-1312 ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1401- ● ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1307-1312 ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1401- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1307-1312 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1401- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1307-1312 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1401- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1307-1312 ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1401- ● ●
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 1307-1312 ●
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 1401- ● ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1307-1312 ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1401- ● ●

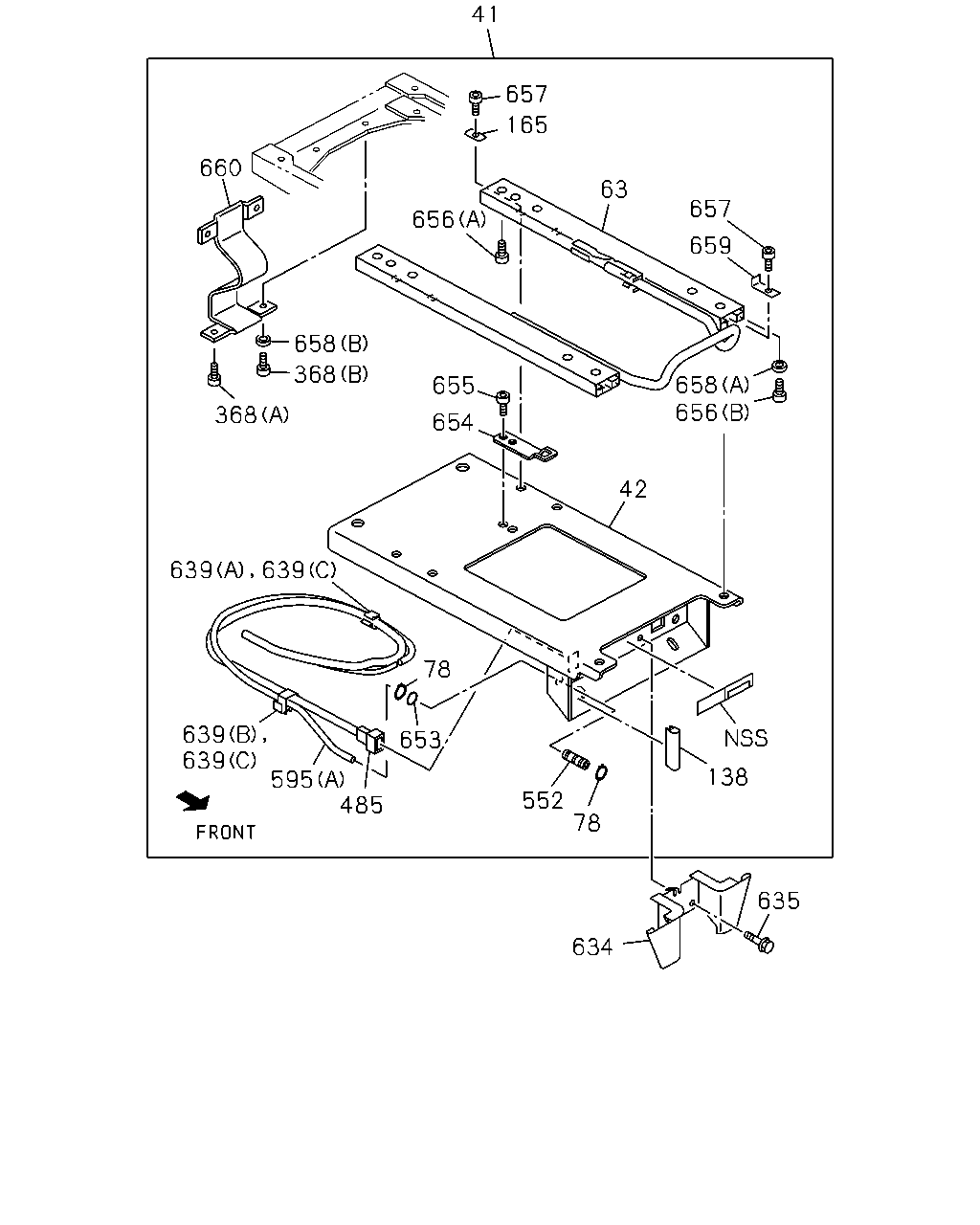

çizim 365346
41 657 63 165 657 659 656 658 655 656 654 658 368 368 660 42 138 635 634 78 552 78 653 485 595 639 639 639 639
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1307-1312 ●
41 SEAT ASM; DRIVER 8-98195-063-1 01 1 1401- ● ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 1307-1312 ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 1401- ● ●
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 1307-1312 ●
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 1401- ● ●
78 RING; SNAP 8-98101-900-0 02 1 1307-1312 ●
78 RING; SNAP 8-98101-900-0 02 1 1401- ● ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 1307-1312 ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 1401- ● ●
165 WASHER; PL 1-75590-086-0 04 1 1307-1312 ●
165 WASHER; PL 1-75590-086-0 04 1 1401- ● ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 1307-1312 ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 1401- ● ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 1307-1312 ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 1401- ● ●
485 HARNESS; FRT SEAT 8-98106-360-0 01 1 1307-1312 ●
485 HARNESS; FRT SEAT 8-98106-360-0 01 1 1401- ● ●
552 CONNECTOR 8-98101-902-0 01 1 1307-1312 ●
552 CONNECTOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98101-902-0 01 1 1401-1508 ● ●
552 CONNECTOR 8-98308-101-0 01 1 1509- ● ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1307-1312 ●
595 TUBE; NYLON
(B) 		8-98067-762-0 01 1 1401- ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1307-1312 ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 1401- ● ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 1307-1312 ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 1401- ● ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 1307-1312 ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 1401- ● ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 1307-1312 ●
639 CLIP; SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98106-349-0 01 1 1401-1508 ● ●
639 CLIP; SEAT
(C) 		8-98308-100-0 02 1 1509- ● ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 1307-1312 ●
639 CLIP; SEAT
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98106-350-0 01 1 1401-1508 ● ●
653 GASKET 8-98101-901-0 01 1 1307-1312 ●
653 GASKET 8-98101-901-0 01 1 1401- ● ●
654 HOOK; STOPPER 8-98106-352-0 01 1 1307-1312 ●
654 HOOK; STOPPER 8-98106-352-0 01 1 1401- ● ●
655 BOLT; HOOK 8-98106-353-0 02 1 1307-1312 ●
655 BOLT; HOOK 8-98106-353-0 02 1 1401- ● ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 1307-1312 ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 1401- ● ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 1307-1312 ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 1401- ● ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 1307-1312 ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 1401- ● ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 1307-1312 ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 1401- ● ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 1307-1312 ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 1401- ● ●
659 STOPPER 8-98106-356-0 02 1 1307-1312 ●
659 STOPPER 8-98106-356-0 02 1 1401- ● ●
660 BELT; TETHER 8-98106-357-0 01 1 1307-1312 ●
660 BELT; TETHER 8-98106-357-0 01 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
