◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11549 - FRR AUST/NZ EURO5 SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#124047) — 20 parça

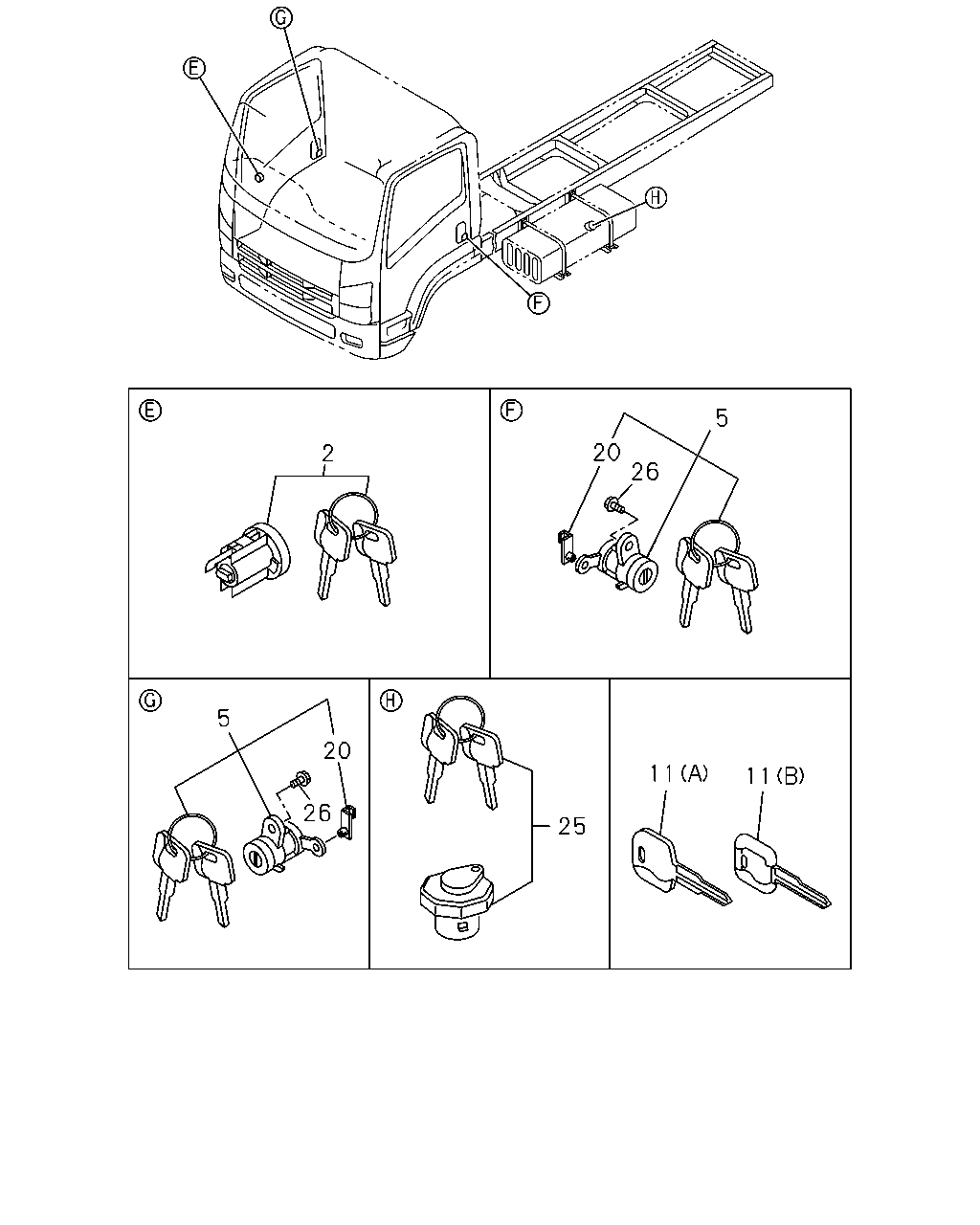

çizim 363417
2 5 20 26 25 20 5 26 11 11
BalonParca AdiParca NoAdetTipApplied Date A B
2 BARREL ASM; W/KEY,STRG LOCK 8-98201-341-0 01 1 1307-1312 ●
2 BARREL ASM; W/KEY,STRG LOCK 8-98201-341-0 01 1 1401- ● ●
5 CYLINDER ASM; DOOR LOCK 8-98055-149-0 01 1 1307-1312 ●
5 CYLINDER ASM; DOOR LOCK 8-98055-149-0 01 1 1401- ● ●
5 CYLINDER ASM; DOOR LOCK 8-98055-150-0 01 1 1307-1312 ●
5 CYLINDER ASM; DOOR LOCK 8-98055-150-0 01 1 1401- ● ●
11 KEY; BLANK
(B) IMMOBILIZER 		8-98055-168-0 AR 1 1307-1312 ●
11 KEY; BLANK
(B) IMMOBILIZER 		8-98055-168-0 AR 1 1401- ● ●
11 KEY; BLANK
(A) 		8-98055-170-0 AR 1 1307-1312 ●
11 KEY; BLANK
(A) 		8-98055-170-0 AR 1 1401- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1307-1312 ●
20 SNAP; DOOR LOCK CYL 8-98055-181-0 01 1 1401- ● ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1307-1312 ●
20 SNAP; DOOR LOCK CYL 8-98055-182-0 01 1 1401- ● ●
25 CAP; FUEL TANK,W/KEY 8-98146-010-0 01 1 1307-1312 ●
25 CAP; FUEL TANK,W/KEY 8-98146-010-0 01 1 1401- ● ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 1307-1312 ●
26 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-98031-839-0 02 1 1401- ● ●

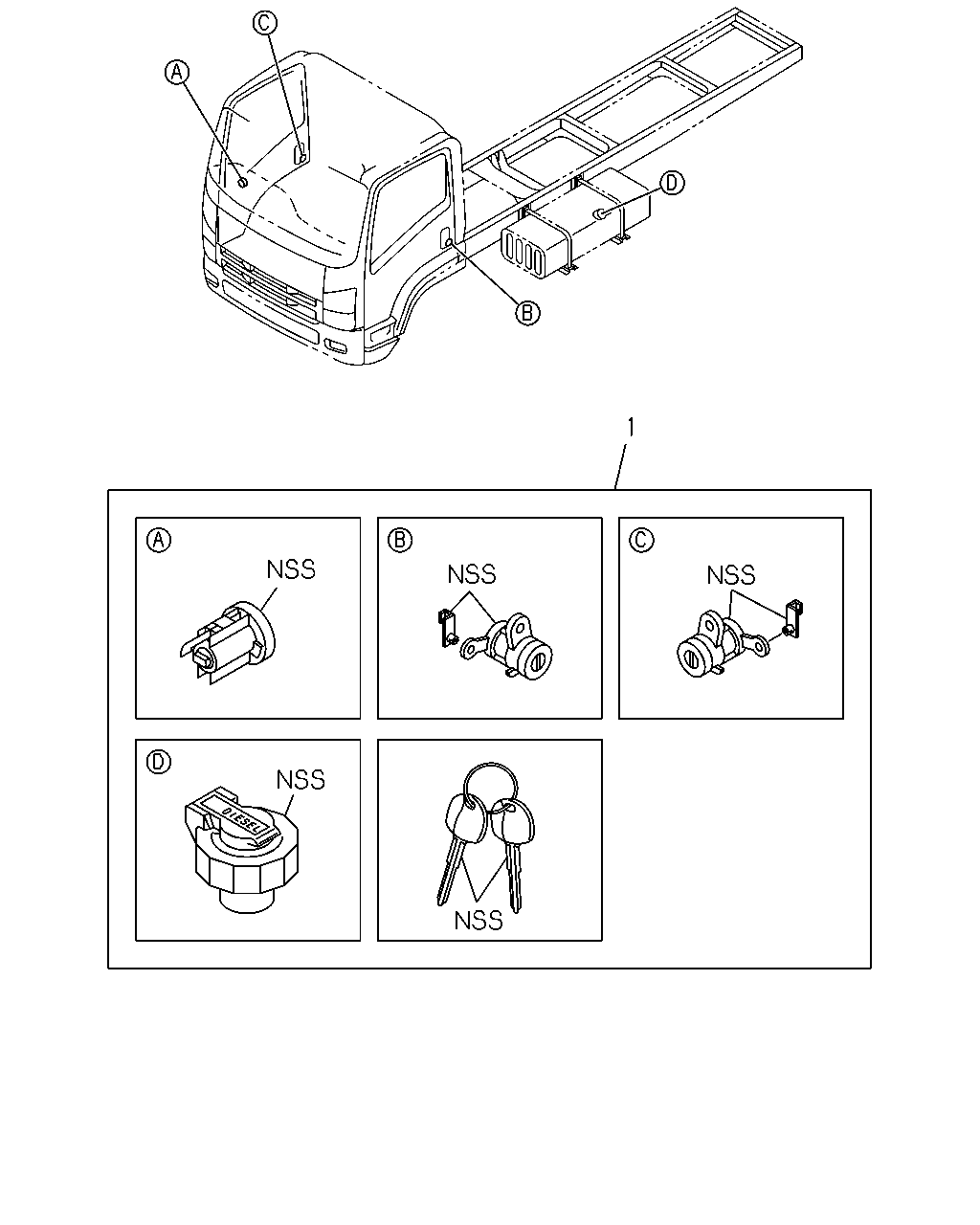

çizim 366410
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER SET; CAR LOCK 8-98201-214-0 01 1 1307-1312 ●
1 CYLINDER SET; CAR LOCK 8-98201-214-0 01 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
