Isuzu WW
▶
TRUCKS
▶
FRR
▶
11549 - FRR AUST/NZ EURO5 SPACECAB
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶

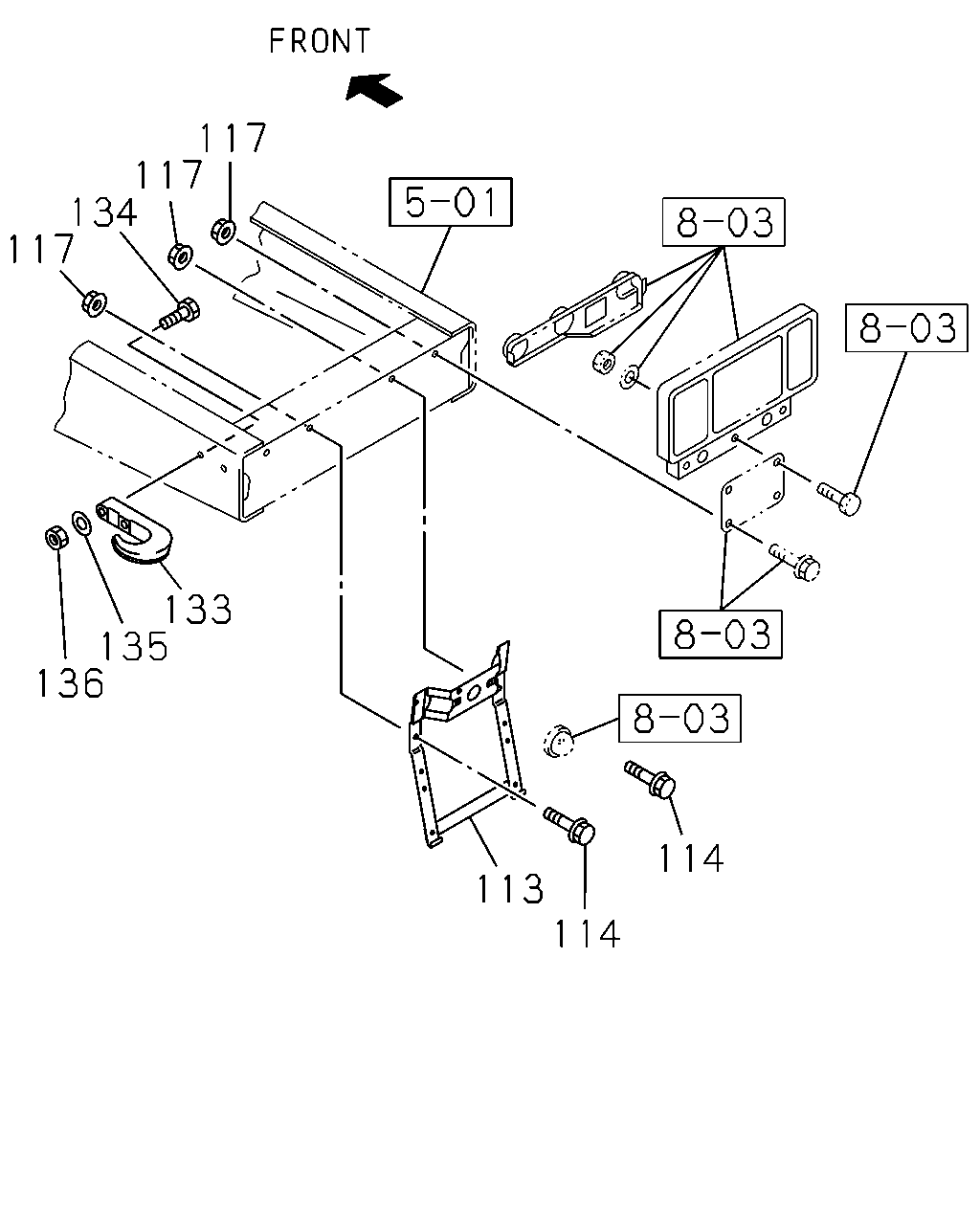

6-90 — REAR BUMPER
(#124043) — 16 parça
Tümü
A - FCR5CS
B - FCD5CS
117
117
134
117
136
133
135
113
114
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
113
BRACKET; LICENSE PLATE
COUNTRY NEW ZEALAND(CX6)
1-53485-074-0
01
1
1307-1312
●
113
BRACKET; LICENSE PLATE
COUNTRY NEW ZEALAND(CX6)
1-53485-074-0
01
1
1401-
●
●
114
BOLT; BRKT,LICENSE PLATE
COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE
0-28650-825-0
02
1
1307-1312
●
114
BOLT; BRKT,LICENSE PLATE
COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE
0-28650-825-0
02
1
1401-
●
●
117
NUT; BRKT
COUNTRY NEW ZEALAND(CX6) M8 FLANGE
0-91180-108-0
02
1
1307-1312
●
117
NUT; BRKT
REVERSING WARNING BUZZER<YM9> M8 FLANGE
0-91180-108-0
02
1
1307-1312
●
117
NUT; BRKT
COUNTRY NEW ZEALAND(CX6) M8 FLANGE
0-91180-108-0
02
1
1401-
●
●
117
NUT; BRKT
REVERSING WARNING BUZZER<YM9> M8 FLANGE
0-91180-108-0
02
1
1401-
●
●
133
HOOK
TOW HOOK<V76>
1-57181-003-5
01
1
1307-1312
●
133
HOOK
TOW HOOK<V76>
1-57181-003-5
01
1
1401-
●
●
134
BOLT; HOOK
TOW HOOK<V76> M14X50
0-10861-450-0
02
1
1307-1312
●
134
BOLT; HOOK
TOW HOOK<V76> M14X50
0-10861-450-0
02
1
1401-
●
●
135
WASHER; LK,HOOK
TOW HOOK<V76> ID=14.2
0-91510-814-0
02
1
1307-1312
●
135
WASHER; LK,HOOK
TOW HOOK<V76> ID=14.2
0-91510-814-0
02
1
1401-
●
●
136
NUT; HOOK
TOW HOOK<V76> M14
0-91110-514-0
02
1
1307-1312
●
136
NUT; HOOK
TOW HOOK<V76> M14
0-91110-514-0
02
1
1401-
●
●
