6-84 — BACK TRIM (#124042) — 16 parça

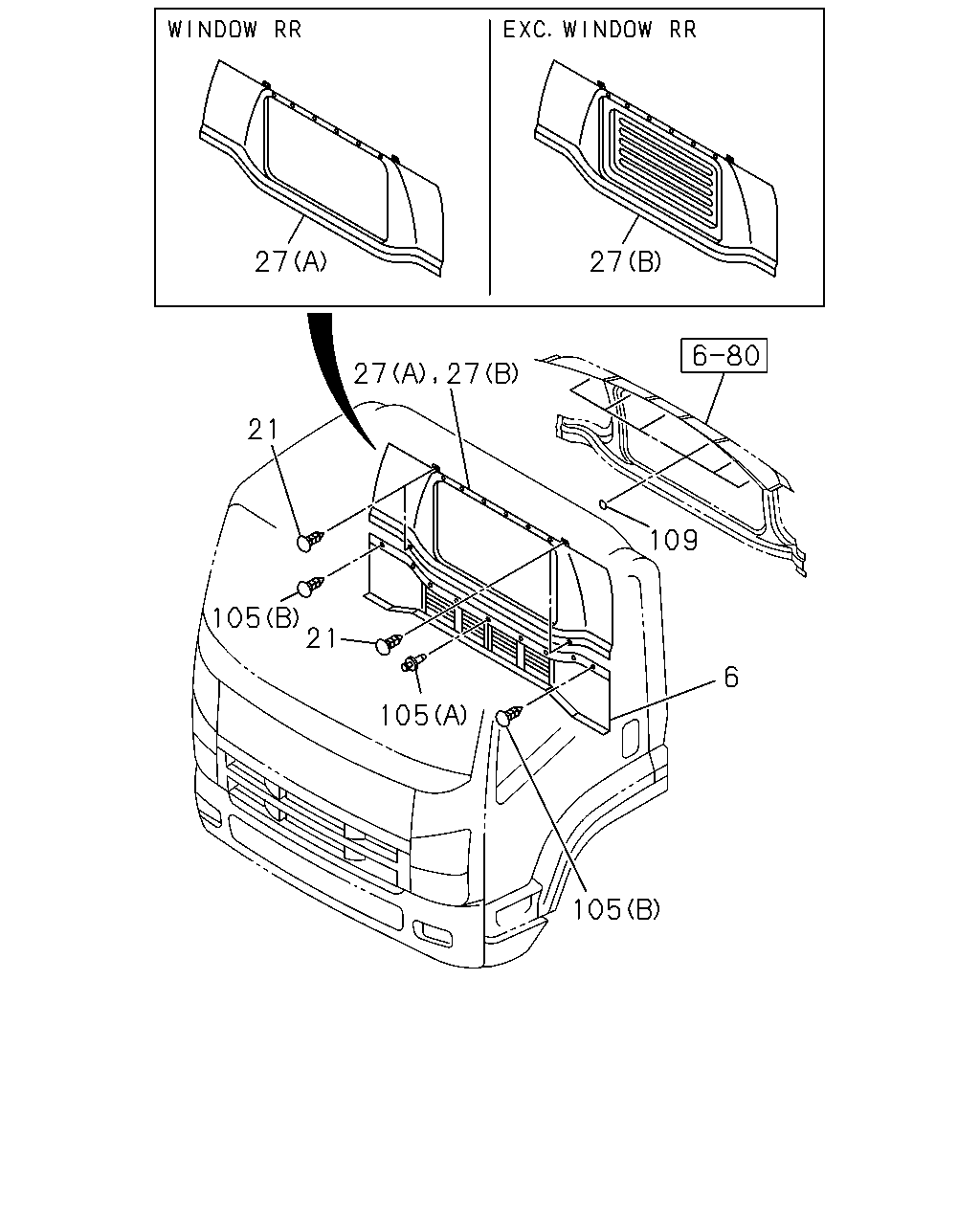

çizim 363504
27 27 27 27 21 105 21 105 6 109 105
BalonParca AdiParca NoAdetTipApplied Date A B
6 MAT; SILENCER,CAB BACK
GRAY 		8-97407-457-1 01 1 1307-1312 ●
6 MAT; SILENCER,CAB BACK
GRAY 		8-97407-457-1 01 1 1401- ● ●
21 RETAINER; TRIM,BED ROOM
INTERIOR FULL TRIM<WM3> GRAY 		8-97407-467-0 04 1 1307-1312 ●
21 RETAINER; TRIM,BED ROOM
INTERIOR FULL TRIM<WM3> GRAY 		8-97407-467-0 04 1 1401- ● ●
27 COVER; TRIM,BACK
INTERIOR FULL TRIM<WM3> WINDOW RR<8LF> (A) DARK GRAY 		8-97407-463-2 01 1 1307-1312 ●
27 COVER; TRIM,BACK
INTERIOR FULL TRIM<WM3> WINDOW RR<8LF> (A) DARK GRAY 		8-97407-463-2 01 1 1401- ● ●
27 COVER; TRIM,BACK
INTERIOR FULL TRIM<WM3> EXC. WINDOW RR<8LF> (B) DARK GRAY 		8-97407-541-3 01 1 1307-1312 ●
27 COVER; TRIM,BACK
INTERIOR FULL TRIM<WM3> EXC. WINDOW RR<8LF> (B) DARK GRAY 		8-97407-541-3 01 1 1401- ● ●
105 CLIP; BACK TRIM
(B) GRAY 		8-97407-467-0 02 1 1307-1312 ●
105 CLIP; BACK TRIM
(B) GRAY 		8-97407-467-0 02 1 1401- ● ●
105 CLIP; BACK TRIM
(A) GRAY 		8-97408-022-0 07 1 1307-1312 ●
105 CLIP; BACK TRIM
(A) GRAY 		8-97408-022-0 07 1 1401- ● ●
109 SEAL; HOLE
BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BOD Y COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989), BODY COLOR TRANS BLUE(999) EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 1307-1312 ●
109 SEAL; HOLE
BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TOLL GREEN(543),BODY COLOR HANSON BLUE(551),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),B ODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLANDYELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904), BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 1401- ● ●
109 SEAL; HOLE
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 1307-1312 ●
109 SEAL; HOLE
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 1401- ● ●
