7-70 — SEPARATER AND BED (#12404) — 142 parça

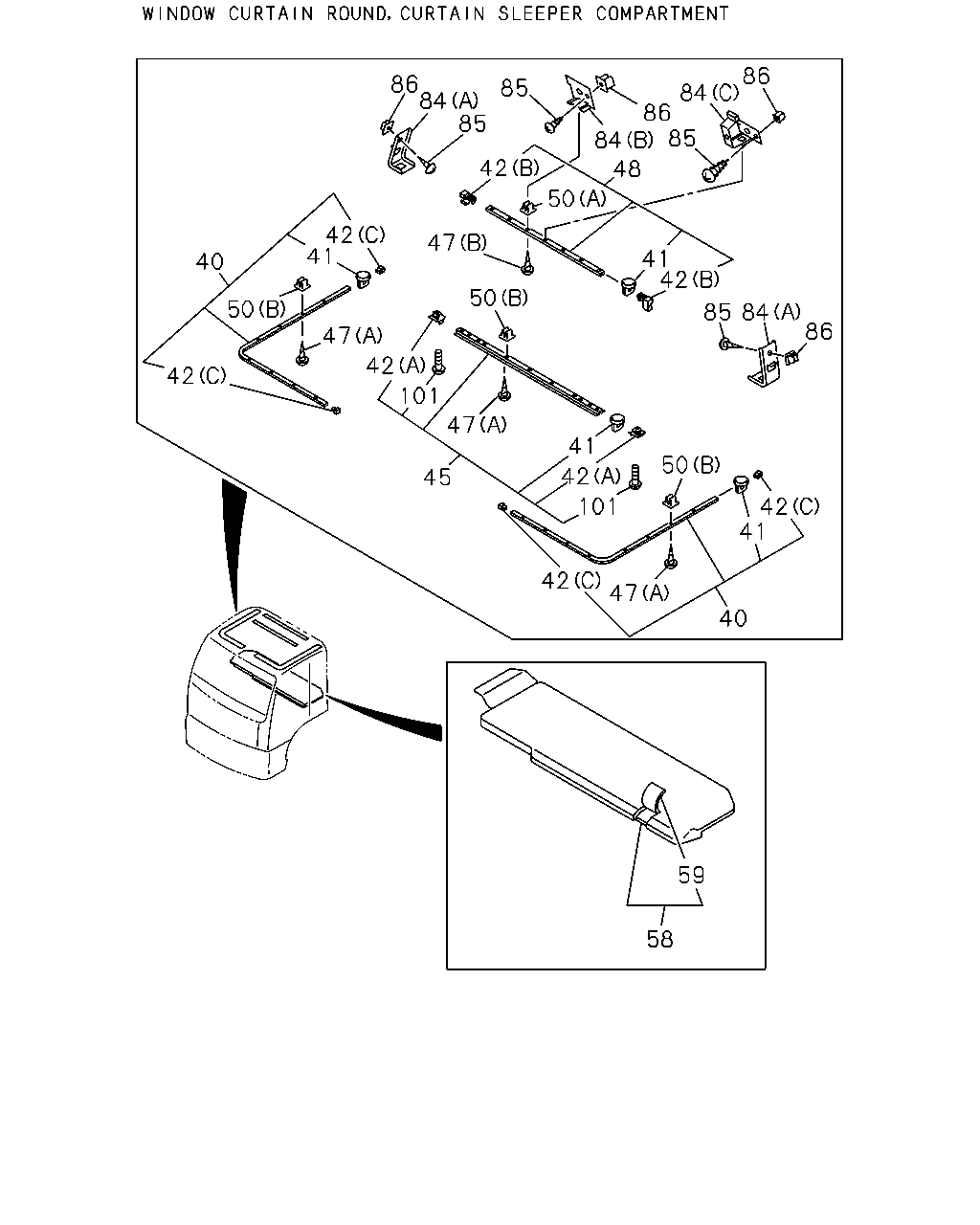

86 84 86 85 84 48 50 41 42 85 84 86 42 41 40 59 58 47 42 101 50 42 41 45 47 101 42 47 42 50 40 41 42 50 47 42 85 85 84 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	0105-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	0105-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	0105-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	0105-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	42	1	0302-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	35	1	0105-0301
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	14	1	0105-0301
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0302-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	16	1	0105-0301
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (A)	1-73907-657-0	02	1	0105-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	04	1	0105-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0105-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	02	1	0105-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0105-
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-591-2	01	1	0105-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-592-2	01	1	0105-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F>	1-73907-546-3	01	1	0105-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>	1-73907-545-2	01	1	0105-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0105-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0105-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	0105-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	0105-
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	0105-
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	0105-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-018-2	01	1	0105-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-132-1	01	1	0105-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0105-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (C)	1-73907-661-0	01	1	0105-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (B)	1-73998-987-4	06	1	0105-
84	BRACKET; CURTAIN RAIL EXC. HIGH ROOF<S2F> (B)	1-73998-987-4	07	1	0105-
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	0105-
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	0105-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0105-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	0105-
101	SCREW; STOPPER HIGH ROOF<S2F>	1-73907-400-0	02	1	0105-

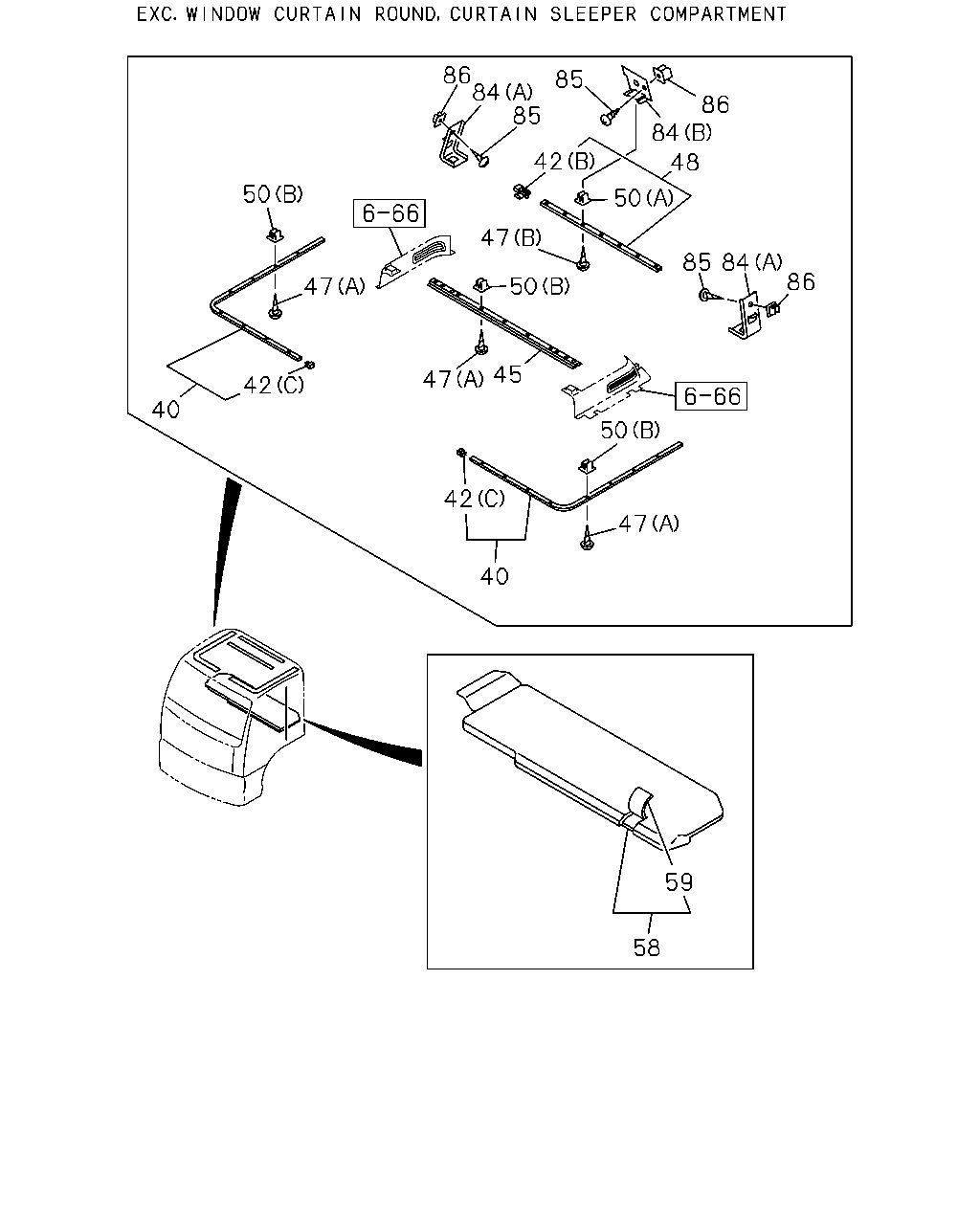

50 50 47 42 101 40 42 47 45 42 40 58 59 47 50 101 42 50 47 42 85 84 86 85 84 86 84 86 48 85 50 85 84 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	0105-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	0105-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	0105-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	0105-
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (A)	1-73907-657-0	02	1	0105-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	04	1	0105-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0105-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	02	1	0105-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0105-
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-591-2	01	1	0105-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-592-2	01	1	0105-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F>	1-73907-546-3	01	1	0105-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>	1-73907-545-2	01	1	0105-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0105-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0105-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	0105-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	0105-
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	0105-
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	0105-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-018-2	01	1	0105-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-132-1	01	1	0105-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0105-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (C)	1-73907-661-0	01	1	0105-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (B)	1-73998-987-4	06	1	0105-
84	BRACKET; CURTAIN RAIL EXC. HIGH ROOF<S2F> (B)	1-73998-987-4	07	1	0105-
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	0105-
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	0105-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0105-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	0105-
101	SCREW; STOPPER HIGH ROOF<S2F>	1-73907-400-0	02	1	0105-

64 51 51 92 46 92 44 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A)	1-73907-505-1	01	1	0105-
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (B)	1-73907-504-1	01	1	0105-
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> (A)	1-73907-481-1	01	1	0105-
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> (B)	1-73907-480-1	01	1	0105-
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F>	1-73907-426-0	01	1	0105-0301
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-494-0	01	1	0302-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73907-483-1	01	1	0105-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4> (B)	1-73907-482-1	01	1	0105-
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F>	1-73907-578-0	01	1	0105-0301
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F>	1-73907-502-1	01	1	0302-
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F>	1-73907-479-0	01	1	0105-0301
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F>	1-73907-492-1	01	1	0302-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> (A)	1-73907-485-1	01	1	0105-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4> (B)	1-73907-484-1	01	1	0105-

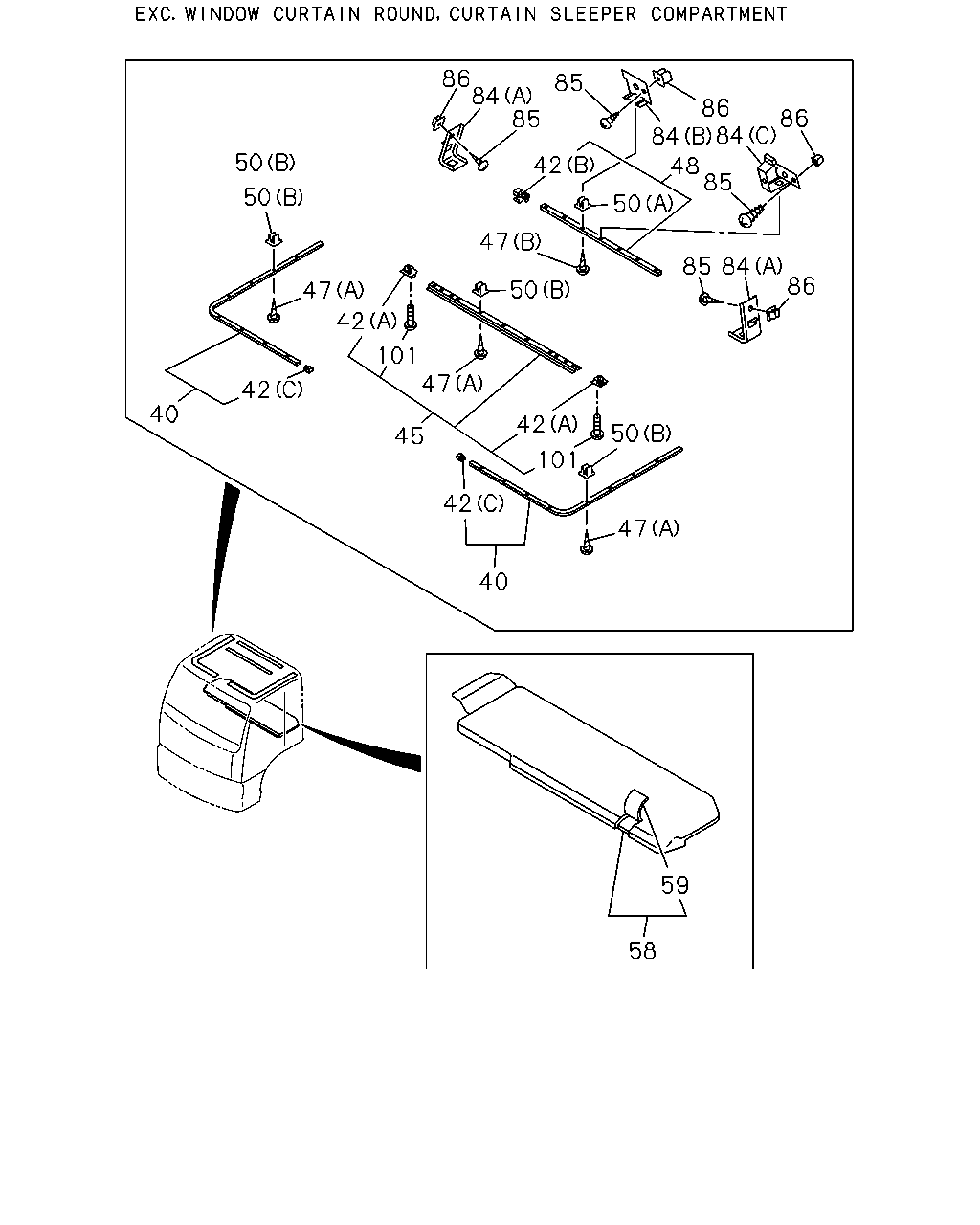

50 86 84 85 85 86 84 48 50 85 84 86 50 47 59 58 40 42 47 45 50 47 42 47 42 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	0105-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	0105-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	0105-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	0105-
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (A)	1-73907-657-0	02	1	0105-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	04	1	0105-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0105-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	02	1	0105-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0105-
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-591-2	01	1	0105-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-592-2	01	1	0105-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F>	1-73907-546-3	01	1	0105-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>	1-73907-545-2	01	1	0105-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0105-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0105-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	0105-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	0105-
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	0105-
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	0105-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-018-2	01	1	0105-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-132-1	01	1	0105-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0105-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (C)	1-73907-661-0	01	1	0105-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (B)	1-73998-987-4	06	1	0105-
84	BRACKET; CURTAIN RAIL EXC. HIGH ROOF<S2F> (B)	1-73998-987-4	07	1	0105-
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	0105-
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	0105-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0105-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	0105-

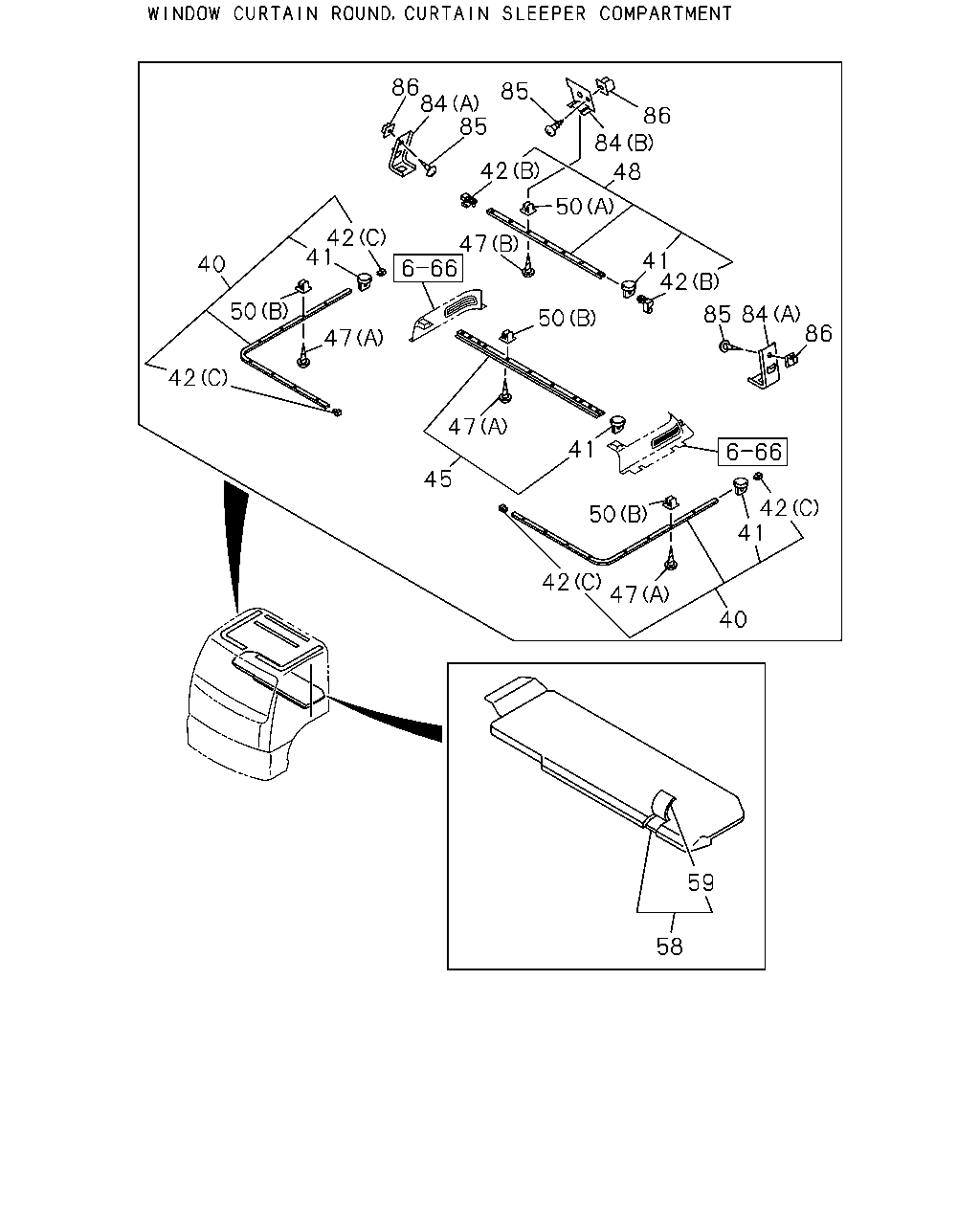

86 84 85 85 86 84 48 50 41 42 85 84 86 42 41 40 59 58 47 42 50 41 45 47 50 42 47 42 41 40 50 42 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	0105-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	0105-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	0105-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	0105-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	42	1	0302-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	35	1	0105-0301
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	14	1	0105-0301
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0302-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> H=14.5 WHITE	1-73996-398-0	16	1	0105-0301
42	STOPPER; CURTAIN RAIL HIGH ROOF<S2F> (A)	1-73907-657-0	02	1	0105-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	04	1	0105-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0105-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (C)	1-73996-393-0	02	1	0105-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0105-
45	RAIL; CURTAIN,FRT HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-591-2	01	1	0105-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F>	1-73907-592-2	01	1	0105-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F>	1-73907-546-3	01	1	0105-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>	1-73907-545-2	01	1	0105-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0105-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0105-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	0105-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	0105-
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	0105-
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	0105-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-018-2	01	1	0105-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-132-1	01	1	0105-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0105-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (C)	1-73907-661-0	01	1	0105-
84	BRACKET; CURTAIN RAIL HIGH ROOF<S2F> (B)	1-73998-987-4	06	1	0105-
84	BRACKET; CURTAIN RAIL EXC. HIGH ROOF<S2F> (B)	1-73998-987-4	07	1	0105-
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	0105-
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	0105-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0105-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	0105-
