◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11549 - FRR AUST/NZ EURO5 SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#124036) — 113 parça

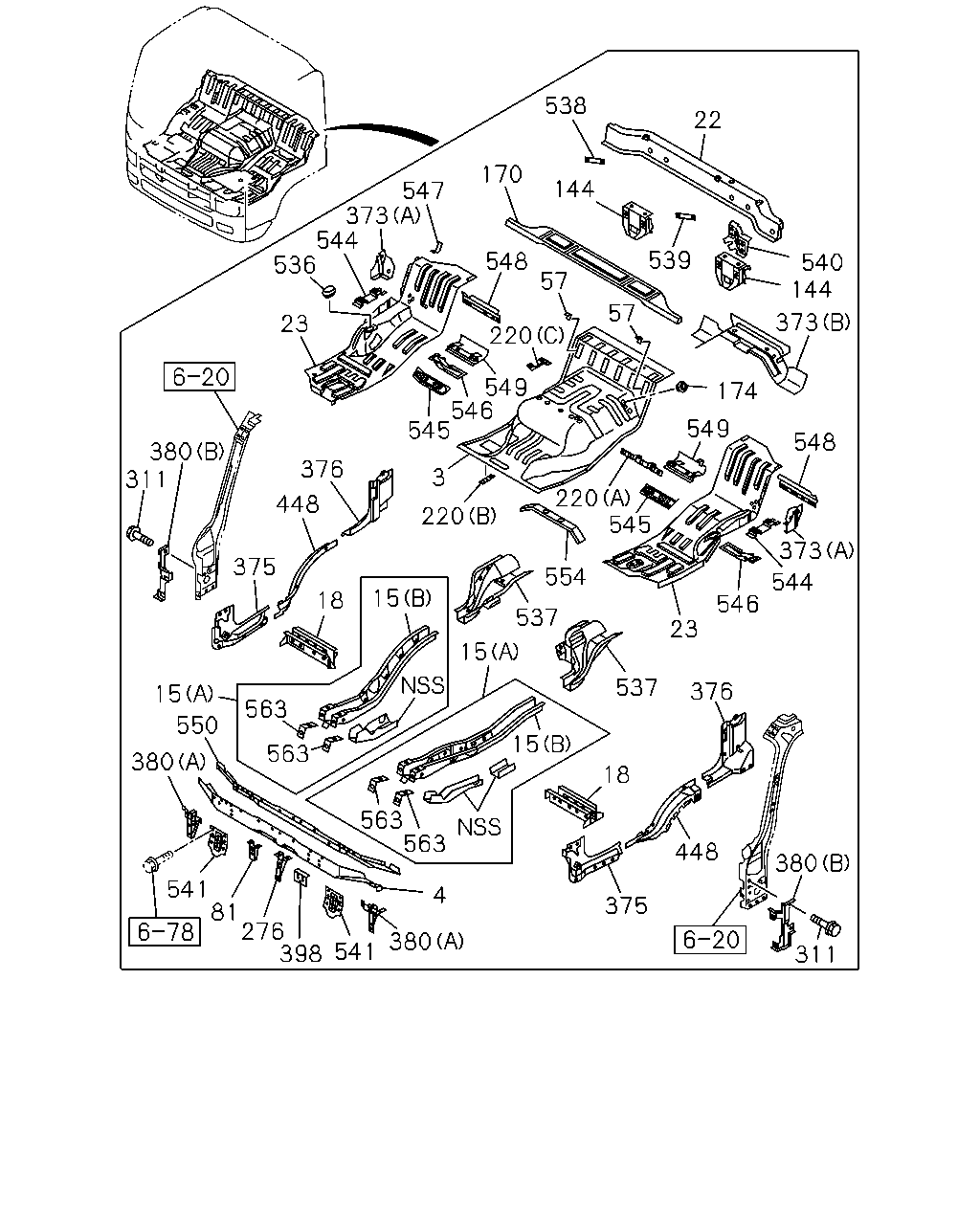

çizim 365807
380 541 398 276 81 541 4 380 550 15 563 563 563 563 311 375 380 448 18 376 15 15 15 18 375 311 380 448 376 220 537 537 23 554 3 23 536 544 373 547 170 538 22 144 548 539 57 57 220 549 546 545 220 545 549 174 373 144 540 548 373 544 546
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-356-4 01 1 1307-1312 ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-356-4 01 1 1401- ● ●
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1307-1312 ●
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1401- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1307-1312 ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1401- ● ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1307-1312 ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1401- ● ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1307-1312 ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1401- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1307-1312 ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1401- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-397-5 01 1 1307-1312 ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-397-5 01 1 1401- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 1307-1312 ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 1401- ● ●
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 1307-1312 ●
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 1401- ● ●
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 1307-1312 ●
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 1401- ● ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1307-1312 ●
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 1401- ● ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1307-1312 ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1401- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1307-1312 ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1401- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1307-1312 ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1401- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1307-1312 ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1401- ● ●
170 EXTENSION; RR FLOOR 8-97589-204-3 01 1 1307-1312 ●
170 EXTENSION; RR FLOOR 8-97589-204-3 01 1 1401- ● ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1307-1312 ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1401- ● ●
220 PATCH
(A) 		8-97588-840-4 01 1 1307-1312 ●
220 PATCH
(A) 		8-97588-840-4 01 1 1401- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 1307-1312 ●
220 PATCH
(B) 		8-97589-603-3 01 1 1401- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1307-1312 ●
220 PATCH
(C) 		8-97589-627-2 01 1 1401- ● ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1307-1312 ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1401- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1307-1312 ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1401- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1307-1312 ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1401- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1307-1312 ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1401- ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98081-349-3 01 1 1307-1312 ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98081-349-3 01 1 1401-1507 ● ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98228-266-0 01 1 1508- ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1307-1312 ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1401- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1307-1312 ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1401- ● ●
376 CLOSING; PILLAR,LWR 8-97589-553-1 01 1 1307-1312 ●
376 CLOSING; PILLAR,LWR 8-97589-553-1 01 1 1401- ● ●
376 CLOSING; PILLAR,LWR 8-97589-555-1 01 1 1307-1312 ●
376 CLOSING; PILLAR,LWR 8-97589-555-1 01 1 1401- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1307-1312 ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1401- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1307-1312 ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1401- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1307-1312 ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1401- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1307-1312 ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1401- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1307-1312 ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1401- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1307-1312 ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 1401- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1307-1312 ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 1401- ● ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1307-1312 ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1401- ● ●
537 SUPPORT ASM; MTG RR 8-97584-390-4 01 1 1307-1312 ●
537 SUPPORT ASM; MTG RR 8-97584-390-4 01 1 1401- ● ●
537 SUPPORT ASM; MTG RR 8-97584-416-4 01 1 1307-1312 ●
537 SUPPORT ASM; MTG RR 8-97584-416-4 01 1 1401- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1307-1312 ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1401- ● ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1307-1312 ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1401- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1307-1312 ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1401- ● ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1307-1312 ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1401- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1307-1312 ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1401- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1307-1312 ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1401- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1307-1312 ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1401- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1307-1312 ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1401- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1307-1312 ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1401- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1307-1312 ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1401- ● ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1307-1312 ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1401- ● ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1307-1312 ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1401- ● ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1307-1312 ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1401- ● ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 1307-1312 ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 1401- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1307-1312 ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1401- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1307-1312 ●
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1401- ● ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1307-1312 ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
