Isuzu WW
▶
TRUCKS
▶
FRR
▶
11549 - FRR AUST/NZ EURO5 SPACECAB
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

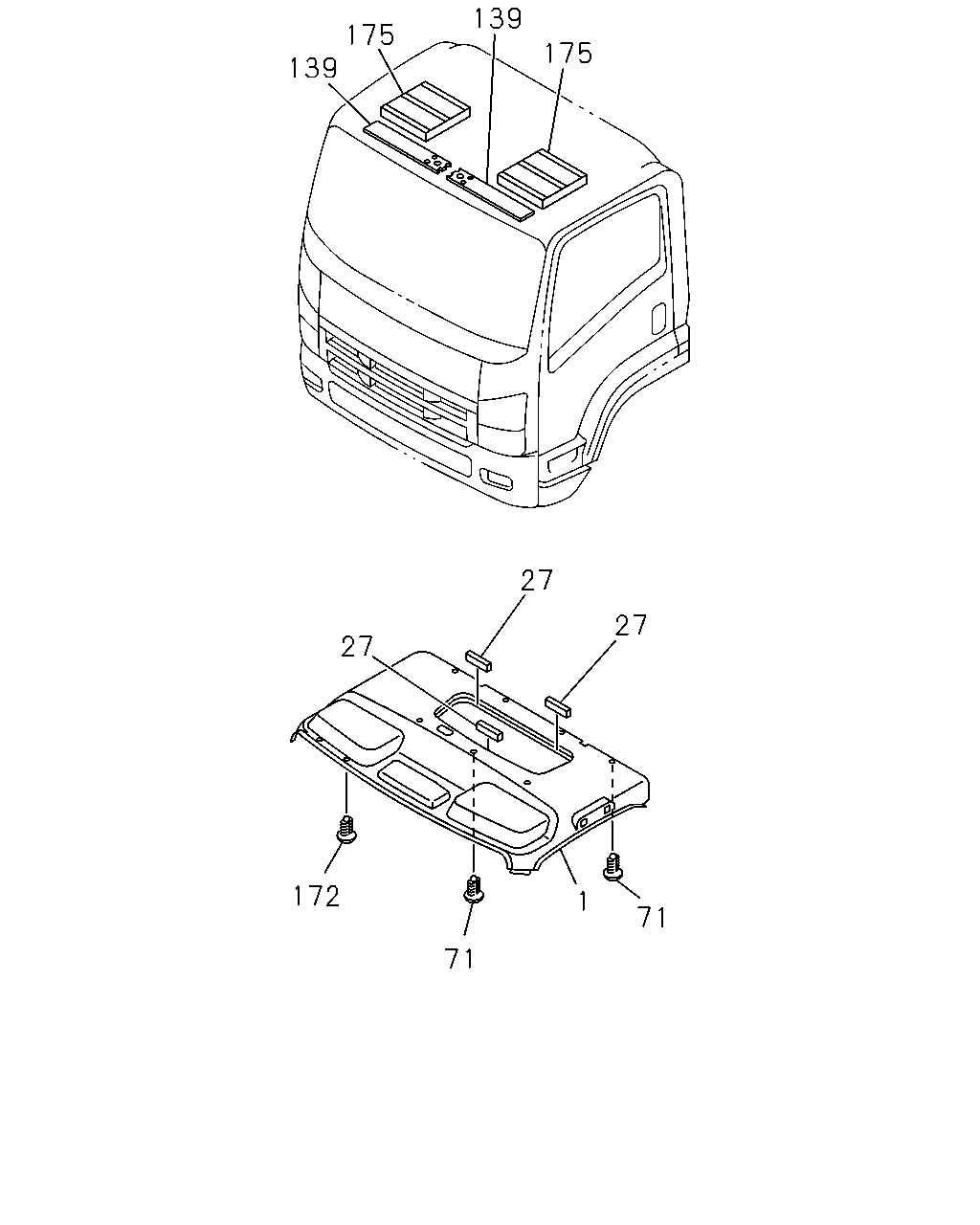

6-66 — HEAD LINING AND TRIM
(#124035) — 17 parça
Tümü
A - FCR5CS
B - FCD5CS
71
1
71
172
27
27
27
175
139
175
139
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LINING; HD
RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY
8-97426-677-0
01
1
1307-1308
●
1
LINING; HD
RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. 3-SPEAKER SYSTEM FRT<NNR> DARK GRAY
8-97426-672-0
01
1
1307-1308
●
1
LINING; HD
RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97426-672-0
01
1
1309-1312
●
1
LINING; HD
RR VIEW MIRROR<D31> HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97426-672-0
01
1
1401-
●
●
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. RR VIEW MIRROR<D31>,3-SPEAKER SYSTEM FRT<NNR> DARK GRAY
8-97426-674-0
01
1
1307-1308
●
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. RR VIEW MIRROR<D31> DARK GRAY
8-97426-674-0
01
1
1309-1312
●
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. RR VIEW MIRROR<D31> DARK GRAY
8-97426-674-0
01
1
1401-
●
●
27
INSULATION; ROOF
8-98046-638-2
03
1
1307-1312
●
27
INSULATION; ROOF
8-98046-638-2
03
1
1401-
●
●
71
FASTENER; HD LINING
DARK GRAY
8-97405-282-0
07
1
1307-1312
●
71
FASTENER; HD LINING
DARK GRAY
8-97405-282-0
07
1
1401-
●
●
139
SEAL; ROOF
8-98169-116-0
02
1
1307-1312
●
139
SEAL; ROOF
8-98169-116-0
02
1
1401-
●
●
172
RETAINER; HEAD LINING
DARK GRAY
8-97411-875-0
14
1
1307-1312
●
172
RETAINER; HEAD LINING
DARK GRAY
8-97411-875-0
14
1
1401-
●
●
175
CUSHION; HEAD LINING
8-98030-965-2
02
1
1307-1312
●
175
CUSHION; HEAD LINING
8-98030-965-2
02
1
1401-
●
●
