◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11549 - FRR AUST/NZ EURO5 SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#124034) — 18 parça

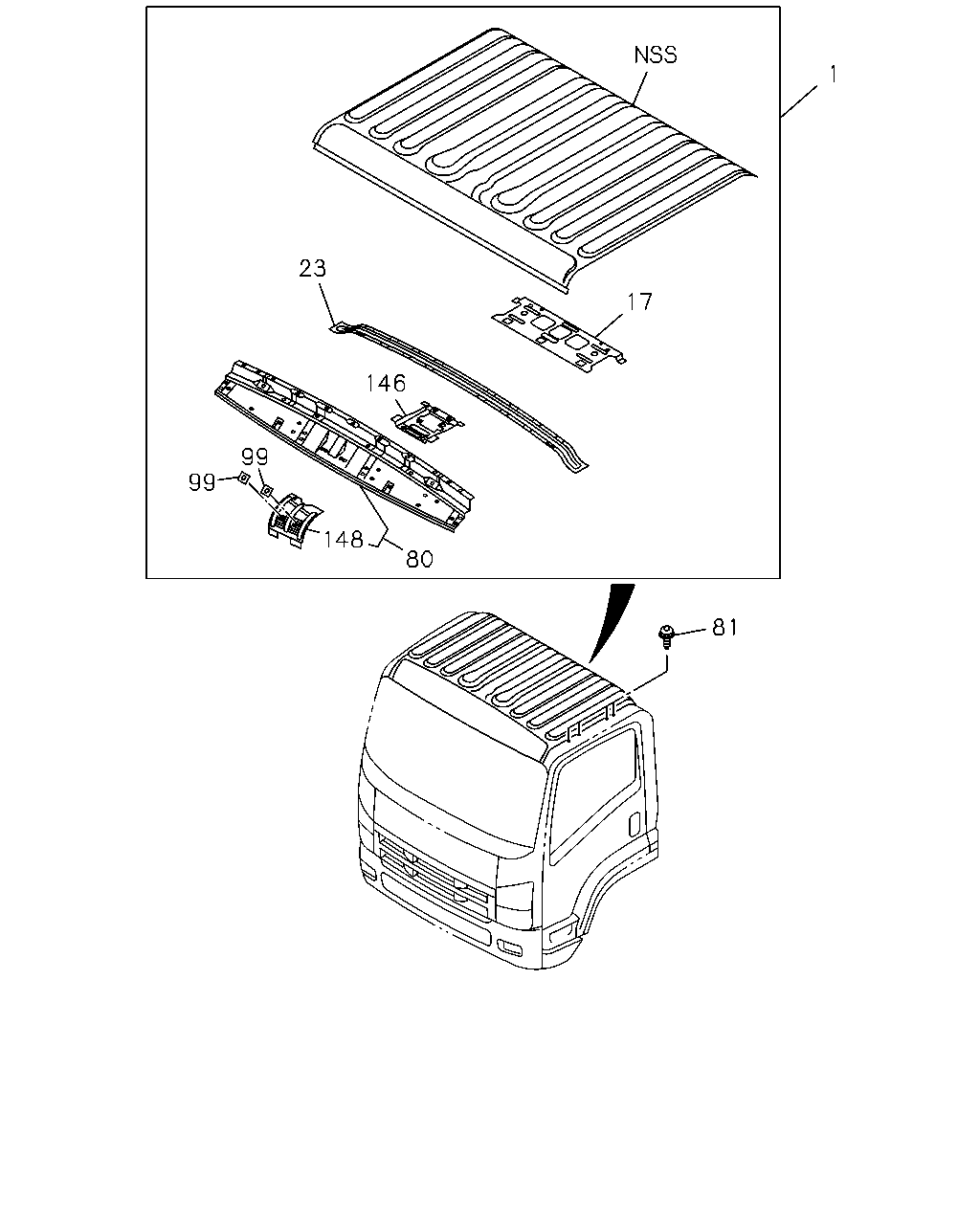

çizim 363407
1 81 17 146 23 99 99 148 80
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-167-6 01 1 1307-1312 ●
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-167-6 01 1 1401- ● ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98031-835-5 01 1 1307-1312 ●
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98031-835-5 01 1 1401- ● ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 1307-1312 ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 1401- ● ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-310-0 01 1 1307-1312 ●
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-310-0 01 1 1401- ● ●
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-191-4 01 1 1307-1312 ●
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-97584-191-4 01 1 1401- ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1307-1312 ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1401- ● ●
99 SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1307-1312 ●
99 SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1401- ● ●
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 1307-1312 ●
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 1401- ● ●
148 REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-97411-015-1 01 1 1307-1312 ●
148 REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-97411-015-1 01 1 1401- ● ●
