◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11549 - FRR AUST/NZ EURO5 SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#124032) — 28 parça

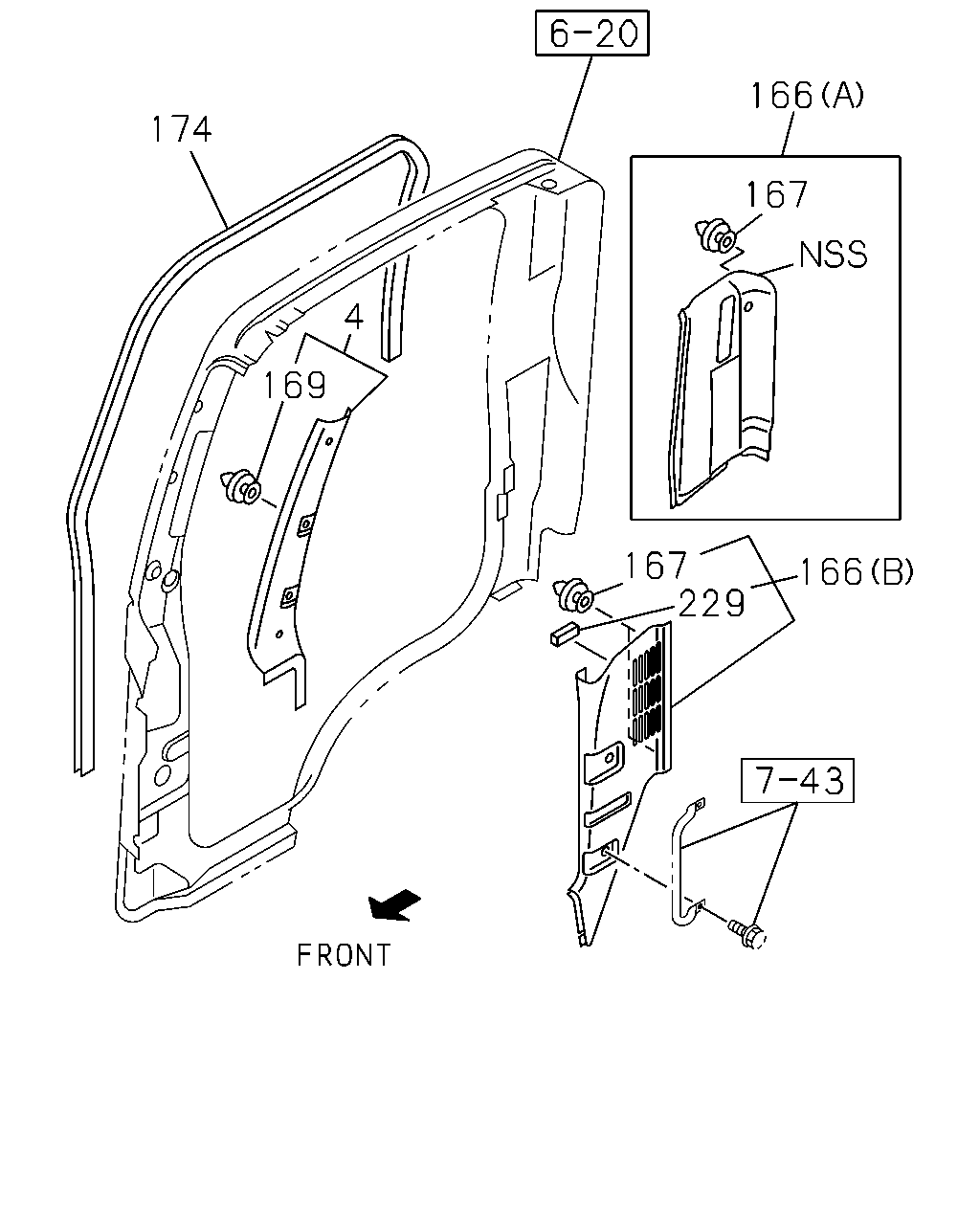

çizim 363531
229 167 166 166 167 174 4 169
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 1307-1312 ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 1401- ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 1307-1312 ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 1401- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97406-796-1 01 1 1307-1312 ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97406-796-1 01 1 1401- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-540-0 01 1 1307-1312 ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-540-0 01 1 1401- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97407-900-0 01 1 1307-1312 ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97407-900-0 01 1 1401- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97414-301-0 01 1 1307-1312 ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97414-301-0 01 1 1401- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 1307-1312 ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 1401- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 02 1 1307-1312 ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 02 1 1307-1312 ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 02 1 1401- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 02 1 1401- ● ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 1307-1312 ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 1401- ● ●
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1307-1312 ●
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1401-1509 ● ●
174 FINISHER; BODY SIDE 8-98249-514-0 01 1 1510- ● ●
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1307-1312 ●
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1401-1509 ● ●
174 FINISHER; BODY SIDE 8-98249-513-0 01 1 1510- ● ●
229 SEAL 8-98092-662-0 01 1 1307-1312 ●
229 SEAL 8-98092-662-0 01 1 1401- ● ●
