7-60 — SEAT BELT (#12403) — 11 parça

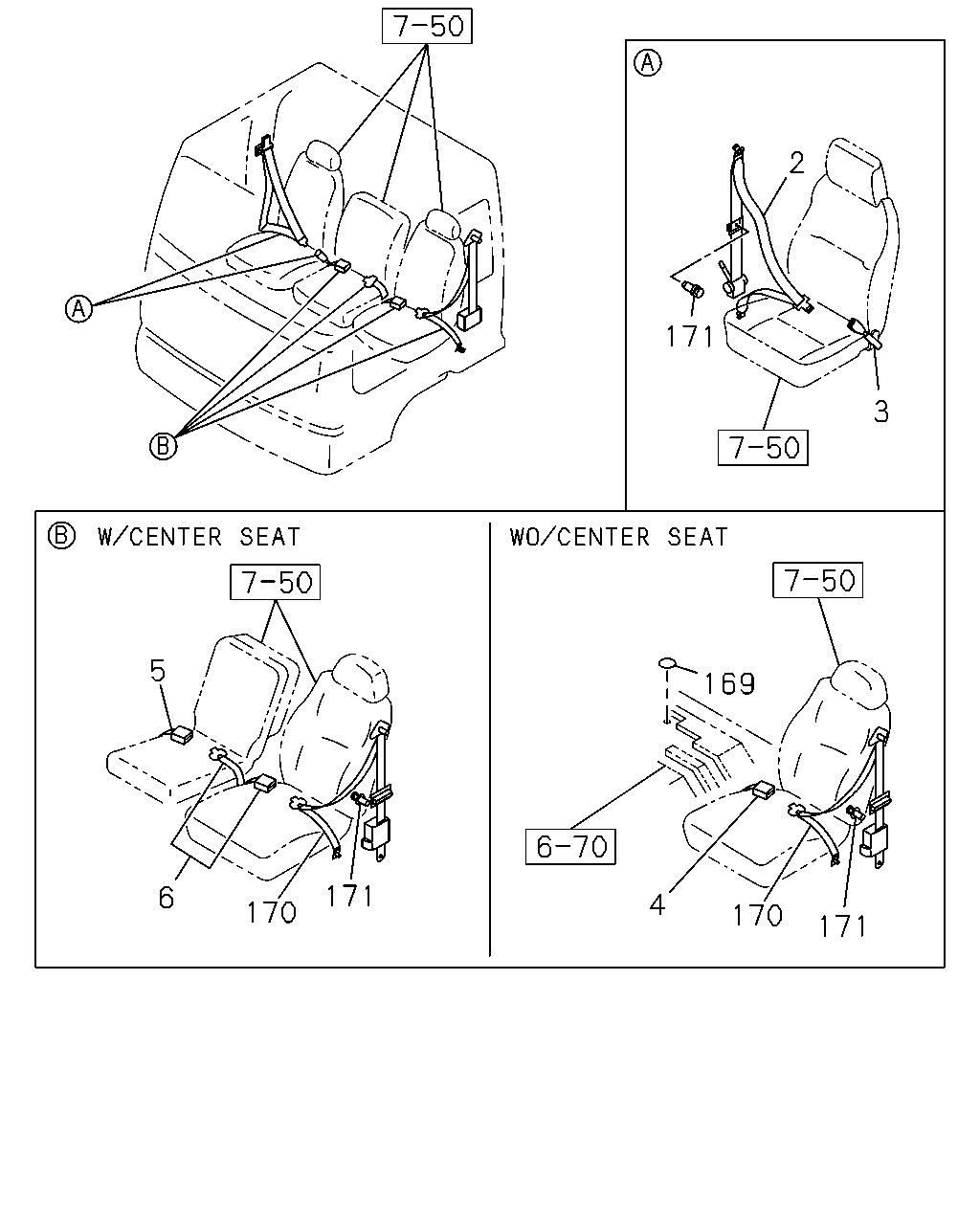

çizim 77941
2 171 3 169 171 170 4 171 170 6 5
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE 1-75618-923-1 01 1 0105-0301
2 BELT; SEAT,TONGUE SIDE 1-75617-604-1 01 1 0302-
3 BELT; SEAT,BUCKLE SIDE 1-75618-925-1 01 1 0105-0301
3 BELT; SEAT,BUCKLE SIDE 1-75617-606-0 01 1 0302-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75617-546-1 01 1 0105-
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75617-553-1 01 1 0105-
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75618-926-3 01 1 0105-
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 0105-
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75618-924-1 01 1 0105-0301
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-605-1 01 1 0302-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0105-
