5-01 — FRAME AND OTHER PARTS (#124017) — 152 parça

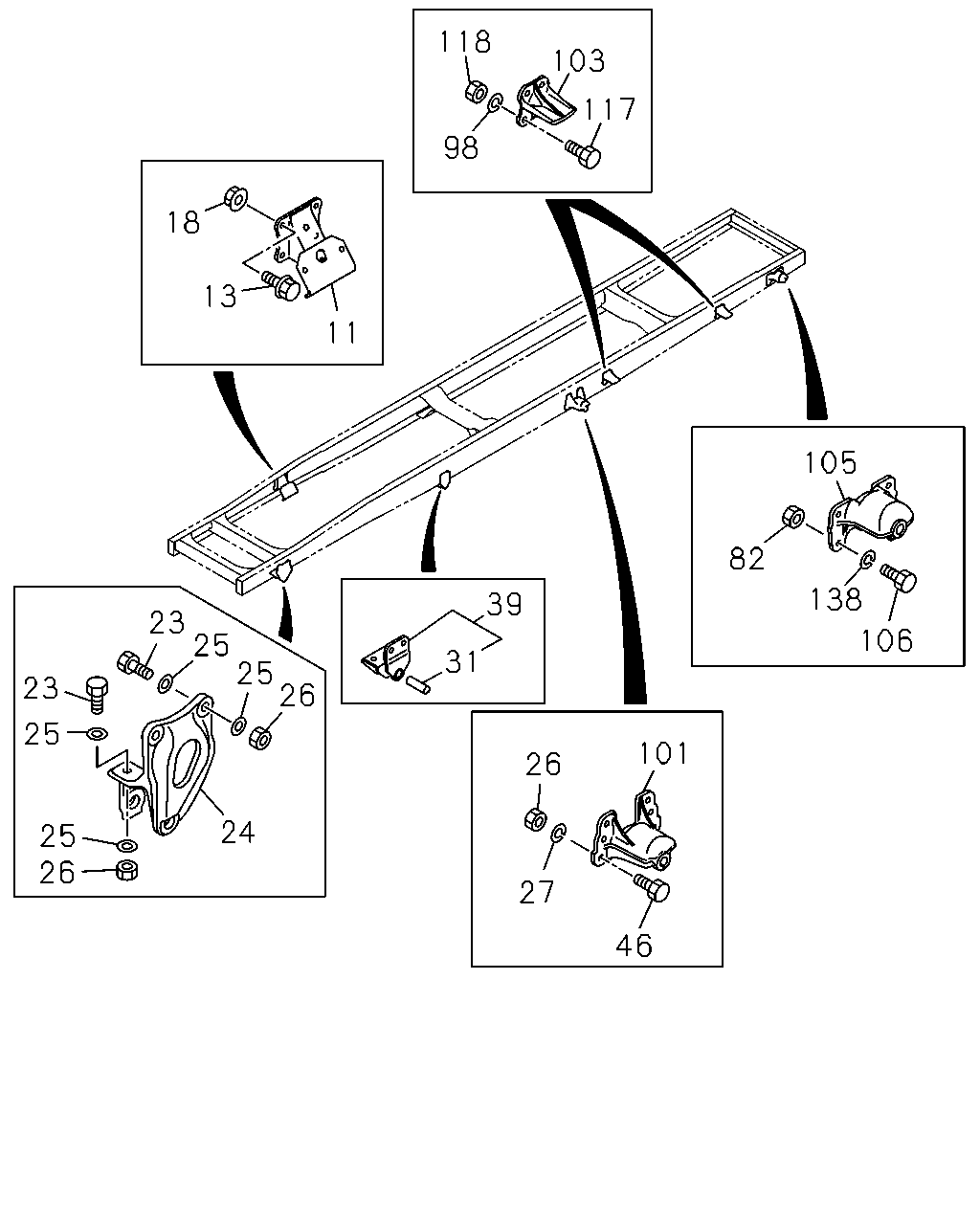

çizim 364692
26 27 46 101 82 106 138 105 117 103 118 98 13 11 18 39 31 24 26 25 25 23 23 25 25 26
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 BRACKET; ENG MTG 8-97604-129-0 02 1 1307- ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1307- ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1307- ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1307- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 1307- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 1307- ● ● ● ●
25 WASHER; PL,BRKT
AIR SUS(FCD***) ID=20 		1-09503-315-0 08 1 1401- ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1307- ● ● ● ●
26 NUT; BRKT,SPR
AIR SUS(FCD***) M14 		0-91110-514-0 08 1 1401- ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1307-1312 ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1401- ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 1401- ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1307-1312 ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 1401- ● ●
27 WASHER; LK,BRKT,FRT SPR
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 12 1 1401- ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1307- ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 1307- ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1307-1312 ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 1401- ● ●
46 BOLT; BRKT FIX
LEAF SUS(FCR***) M14X50 		0-20951-450-0 12 1 1401- ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 1307-1312 ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 1401- ● ●
82 NUT; BRKT
LEAF SUS(FCR***) M14 		0-91110-514-0 10 1 1401- ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1307-1312 ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 1401- ● ●
98 WASHER; LK,STOPPER
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 16 1 1401- ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1307-1312 ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1401- ● ●
101 BRACKET; RR SPR,FRT
LEAF SUS(FCR***) 		1-53353-090-4 02 1 1401- ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1307-1312 ● ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1401- ● ●
103 STOPPER; SUB SPR
LEAF SUS(FCR***) 		1-53356-059-1 04 1 1401- ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1307-1312 ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1401- ● ●
105 BRACKET; RR SPR,RR
LEAF SUS(FCR***) 		1-53354-074-0 02 1 1401- ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 1307-1312 ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 1401- ● ●
106 BOLT; BRKT
LEAF SUS(FCR***) M14X50 		0-20951-450-0 10 1 1401- ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1307-1312 ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1401- ● ●
117 BOLT; STOPPER
LEAF SUS(FCR***) M14X50 		0-20951-450-0 16 1 1401- ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1307-1312 ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1401- ● ●
118 NUT; STOPPER
LEAF SUS(FCR***) M14 		0-91110-514-0 16 1 1401- ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1307-1312 ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 1401- ● ●
138 WASHER; LK,BRKT
LEAF SUS(FCR***) ID=14.2 		0-91510-614-0 10 1 1401- ● ●

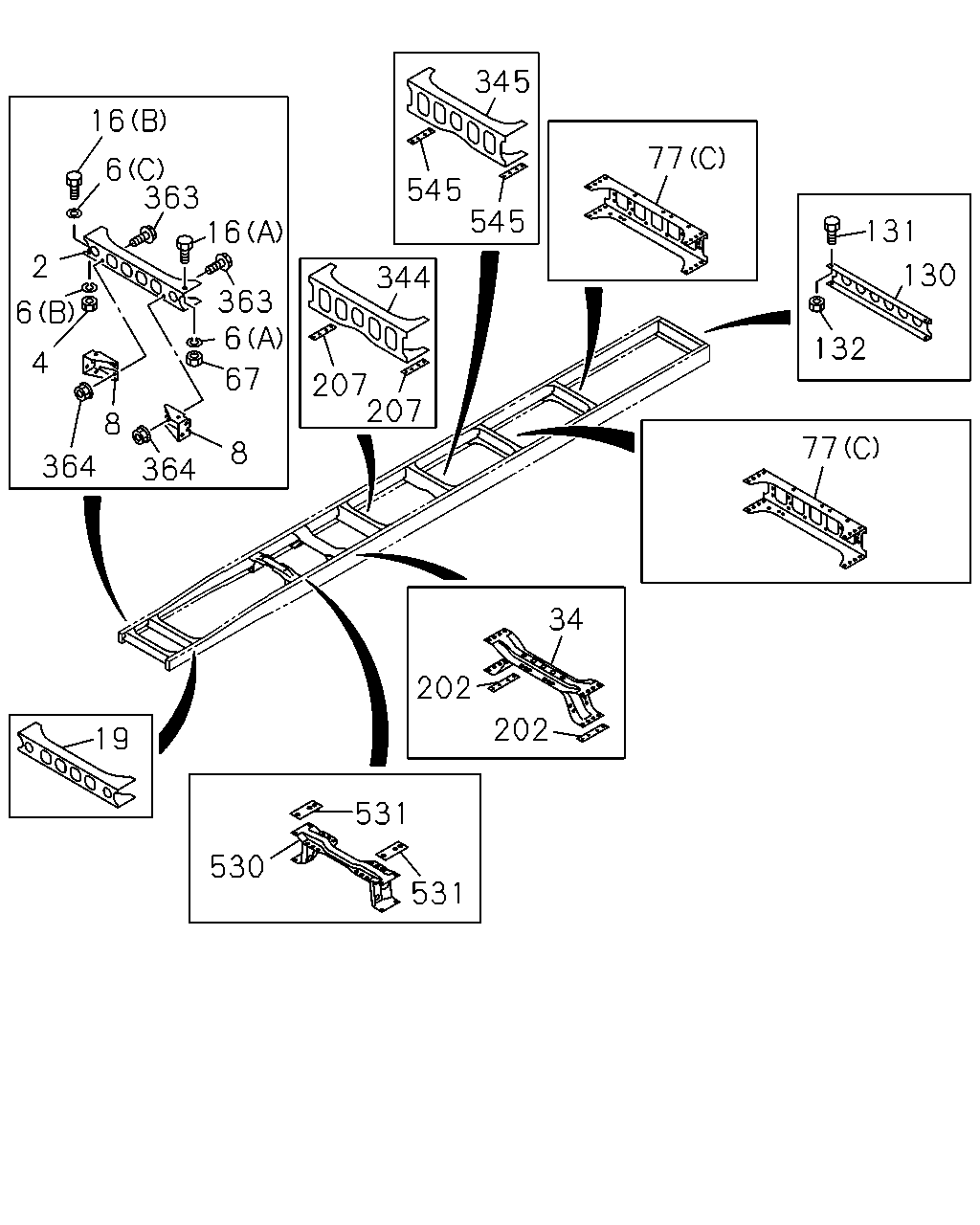

çizim 364764
77 132 131 130 77 545 545 345 344 207 207 16 6 363 16 363 6 67 8 364 8 364 4 6 2 202 202 34 531 530 531 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1307- ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1307- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1307- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1307- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1307- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-578-2 01 1 1307- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-579-3 01 1 1307- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1307- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1307- ● ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-4 01 1 1307- ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 1307- ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1307- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) (C) 		8-97609-481-4 02 1 1401- ● ●
77 MEMBER; CROSS,TRUNNION RR
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (B) 		8-97609-475-2 01 1 1307- ●
77 MEMBER; CROSS,TRUNNION RR
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) 		8-97609-478-4 01 1 1307- ●
77 MEMBER; CROSS,TRUNNION RR
POWER TAKE OFF-FLYWHEEL<6SZ> (C) 		8-97610-935-1 02 1 1307-1312 ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-1 02 1 1307-1312 ● ● ●
77 MEMBER; CROSS,TRUNNION RR
POWER TAKE OFF-FLYWHEEL<6SZ> (C) 		8-97610-935-1 02 1 1401- ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-1 02 1 1401- ●
77 MEMBER; CROSS,TRUNNION RR
LEAF SUS(FCR***) (C) 		8-97610-935-1 02 1 1401- ● ●
130 MEMBER; CROSS,END
POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97609-470-0 01 1 1307- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1307- ● ● ●
130 MEMBER; CROSS,END
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97609-469-0 01 1 1307- ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1307- ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1307- ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1307- ● ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1307-1312 ●
207 SPACER; 4TH C/MBR
AIR SUS(FCD***) 		8-97609-758-0 02 1 1401- ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1401- ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1307-1312 ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1401- ●
344 MEMBER; CROSS,4TH
LEAF SUS(FCR***) 		8-97609-472-2 01 1 1401- ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1307-1312 ●
344 MEMBER; CROSS,4TH
AIR SUS(FCD***) 		8-97609-473-2 01 1 1401- ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1401- ●
345 MEMBER; CROSS,5TH 8-97609-473-2 01 1 1307- ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1307- ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1307- ● ● ● ●
530 MEMBER; CROSS,T/M
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97609-809-3 01 1 1307- ●
530 MEMBER; CROSS,T/M 8-97609-809-3 01 1 1307- ● ● ●
530 MEMBER; CROSS,T/M
POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97615-671-2 01 1 1307- ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 1307- ● ● ● ●
545 SPACER; 5TH C/MBR 8-97609-758-0 02 1 1307- ●

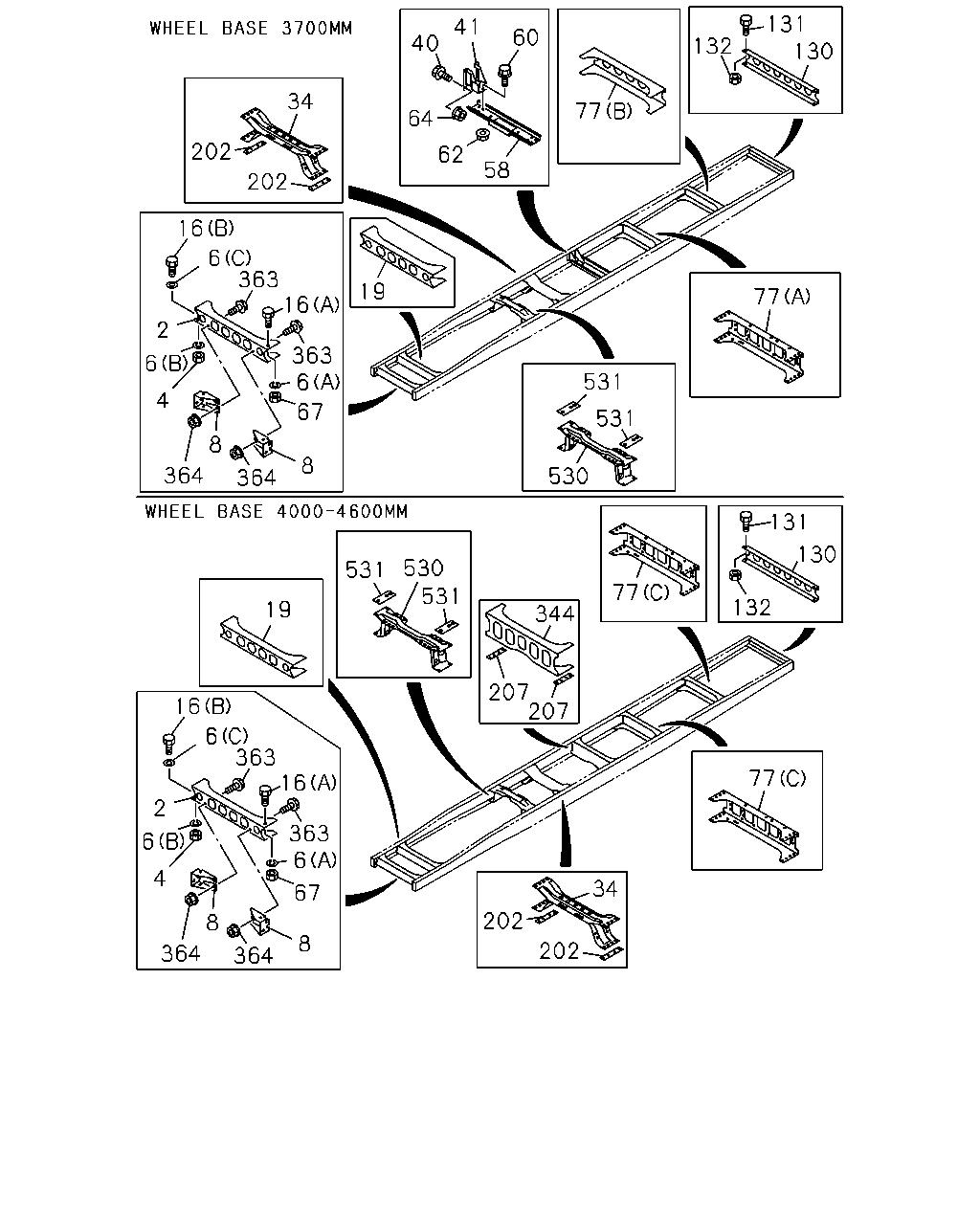

çizim 367223
202 34 202 64 62 40 41 58 60 77 132 131 130 77 531 531 530 19 363 6 16 2 6 4 364 364 8 8 67 6 16 363 531 19 530 531 344 207 207 77 132 131 130 77 34 202 202 67 6 16 363 363 6 16 2 6 4 8 8 364 364
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 1307- ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1307- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 1307- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 1307- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 1307- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-578-2 01 1 1307- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97609-579-3 01 1 1307- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 1307- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 1307- ● ● ● ●
19 MEMBER; CROSS,2ND 8-97615-670-4 01 1 1307- ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-501-2 01 1 1307- ● ● ● ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 08 1 1307- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 1307- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 1307- ●
58 MEMBER; CENTER BRG 8-97638-924-0 01 1 1307- ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 1307- ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 1307- ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 1307- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1307- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
AIR SUS(FCD***) (C) 		8-97609-481-4 02 1 1401- ● ●
77 MEMBER; CROSS,TRUNNION RR
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (B) 		8-97609-475-2 01 1 1307- ●
77 MEMBER; CROSS,TRUNNION RR
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) 		8-97609-478-4 01 1 1307- ●
77 MEMBER; CROSS,TRUNNION RR
POWER TAKE OFF-FLYWHEEL<6SZ> (C) 		8-97610-935-1 02 1 1307-1312 ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-1 02 1 1307-1312 ● ● ●
77 MEMBER; CROSS,TRUNNION RR
POWER TAKE OFF-FLYWHEEL<6SZ> (C) 		8-97610-935-1 02 1 1401- ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-1 02 1 1401- ●
77 MEMBER; CROSS,TRUNNION RR
LEAF SUS(FCR***) (C) 		8-97610-935-1 02 1 1401- ● ●
130 MEMBER; CROSS,END
POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97609-470-0 01 1 1307- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1307- ● ● ●
130 MEMBER; CROSS,END
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97609-469-0 01 1 1307- ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1307- ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1307- ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-756-1 02 1 1307- ● ● ● ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1307-1312 ●
207 SPACER; 4TH C/MBR
AIR SUS(FCD***) 		8-97609-758-0 02 1 1401- ●
207 SPACER; 4TH C/MBR 8-97609-758-0 02 1 1401- ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1307-1312 ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1401- ●
344 MEMBER; CROSS,4TH
LEAF SUS(FCR***) 		8-97609-472-2 01 1 1401- ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1307-1312 ●
344 MEMBER; CROSS,4TH
AIR SUS(FCD***) 		8-97609-473-2 01 1 1401- ●
344 MEMBER; CROSS,4TH 8-97609-473-2 01 1 1401- ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1307- ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 1307- ● ● ● ●
530 MEMBER; CROSS,T/M
EXC. POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97609-809-3 01 1 1307- ●
530 MEMBER; CROSS,T/M 8-97609-809-3 01 1 1307- ● ● ●
530 MEMBER; CROSS,T/M
POWER TAKE OFF-FLYWHEEL<6SZ> 		8-97615-671-2 01 1 1307- ●
531 SPACER; C/MBR,T/M 8-97616-461-1 02 1 1307- ● ● ● ●

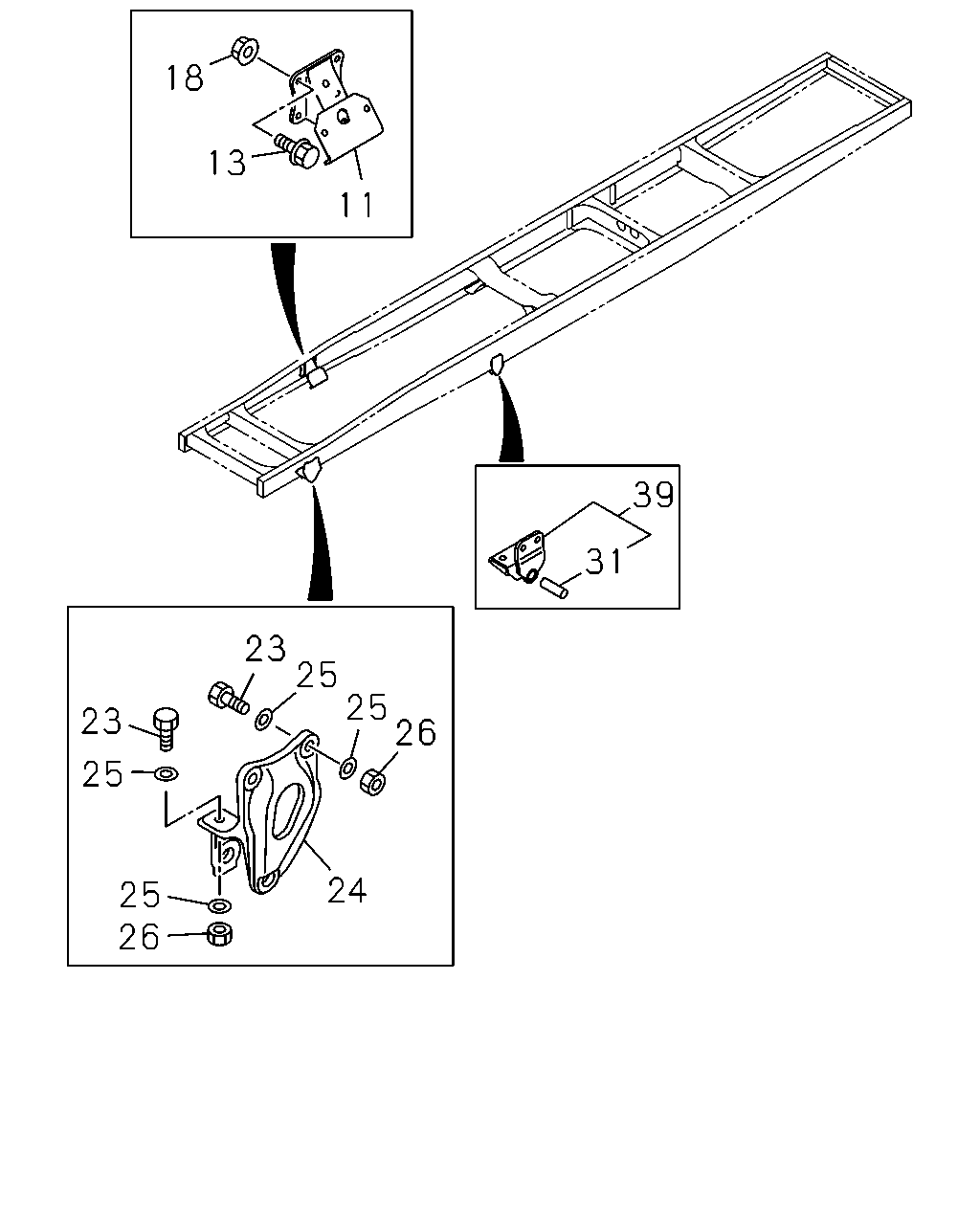

çizim 402185
18 13 11 39 31 23 25 23 25 26 25 25 26 24
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 BRACKET; ENG MTG 8-97604-129-0 02 1 1307- ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1307- ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1307- ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 1307- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 1307- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 1307- ● ● ● ●
25 WASHER; PL,BRKT
AIR SUS(FCD***) ID=20 		1-09503-315-0 08 1 1401- ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1307- ● ● ● ●
26 NUT; BRKT,SPR
AIR SUS(FCD***) M14 		0-91110-514-0 08 1 1401- ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1307-1312 ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 1401- ● ●
26 NUT; BRKT,SPR
LEAF SUS(FCR***) M14 		0-91110-514-0 20 1 1401- ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1307- ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 1307- ● ● ● ●
