◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 10869 - CXY(51) RHD AUSTRALIA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#12401) — 91 parça

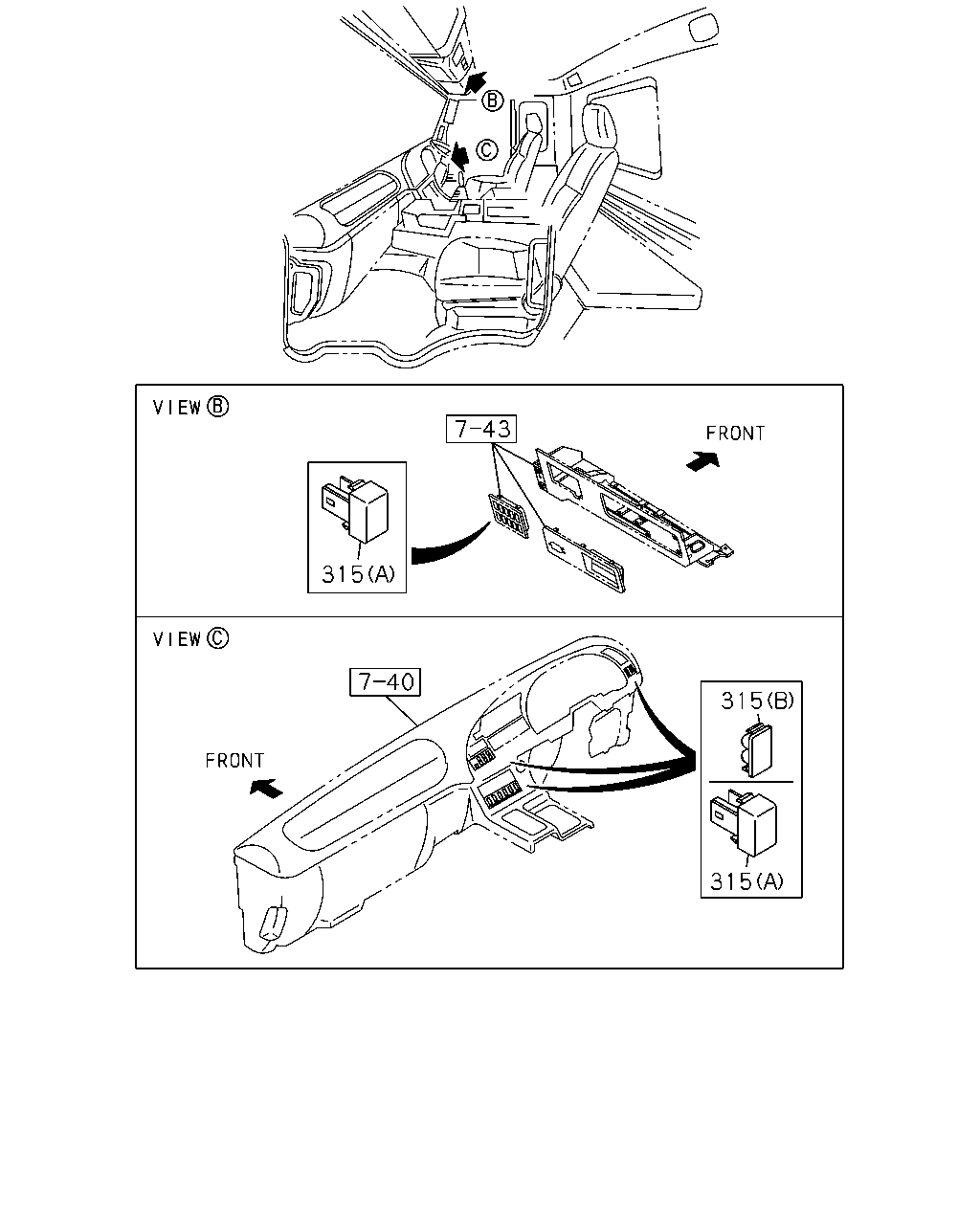

çizim 21400
315 315 315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW
(A) 		1-82359-069-2 15 1 0105-
315 COVER; HOLE,SW
(A) 		1-82359-069-2 02 1 0302-
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0105-0301
315 COVER; HOLE,SW
EXC. PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-82359-069-2 01 1 0105-0301
315 COVER; HOLE,SW
(A) 		1-82359-069-2 01 1 0105-0301
315 COVER; HOLE,SW
EXC. DIFF LOCK<C3N> (A) 		1-82359-069-2 01 1 0105-0301
315 COVER; HOLE,SW
(B) 		8-97043-732-1 04 1 0105-
315 COVER; HOLE,SW
EXC. PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-82359-069-2 01 1 0302-

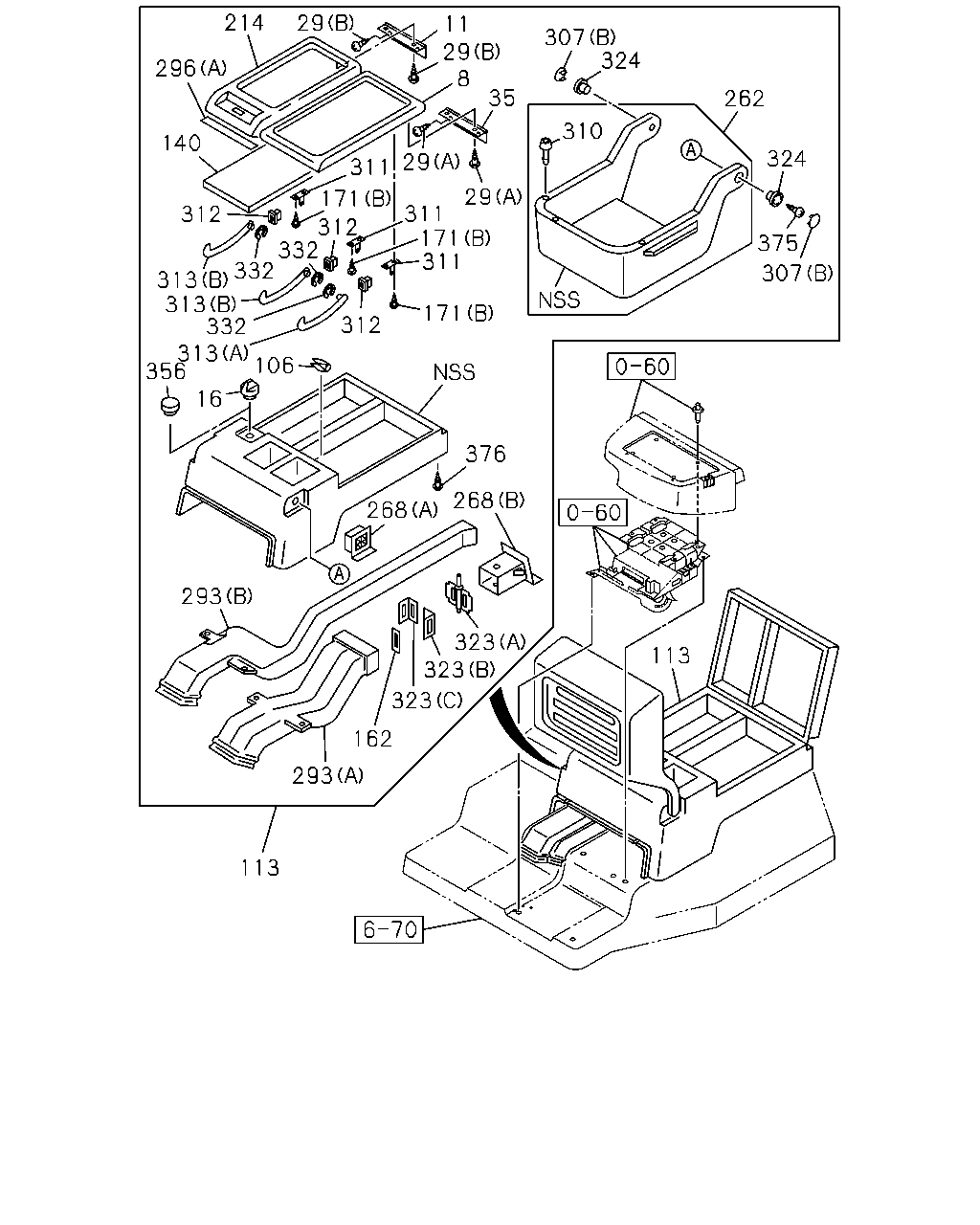

çizim 21763
307 375 324 262 324 307 310 35 8 29 11 29 214 296 140 312 313 313 332 332 312 171 311 29 29 311 171 311 171 312 332 106 313 356 16 293 113 293 162 323 323 323 113 268 268 376
BalonParca AdiParca NoAdetTipApplied Date
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-185-0 01 1 0105-
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-185-0 01 1 0105-
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-070-2 01 1 0105-
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-070-2 01 1 0105-
16 KNOB ASM
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-189-0 01 1 0105-
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (A) M5X14 BINDING HEAD 		1-72537-168-0 08 1 0105-
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) M5X14 BINDING HEAD 		1-72537-168-0 08 1 0105-
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0105-
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72538-182-1 01 1 0105-
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72538-182-1 01 1 0105-
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-079-0 02 1 0105-
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-079-0 02 1 0105-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-180-0 01 1 0105-0404
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-240-3 01 1 0405-0507
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-285-3 01 1 0508-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-220-0 01 1 0105-0404
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-252-2 01 1 0405-0507
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-291-3 01 1 0508-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-181-0 01 1 0105-0404
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-251-2 01 1 0405-0507
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-294-2 01 1 0508-
140 SHEET
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-093-1 01 1 0105-
162 CUSHION; PARCEL BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-128-0 03 1 0105-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0105-0301
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0302-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0105-
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-186-0 01 1 0105-
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-186-0 01 1 0105-
262 TABLE ASM
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-187-1 01 1 0105-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (B) 		1-72537-183-0 01 1 0105-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) 		1-72537-183-0 01 1 0105-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (A) 		1-72537-184-0 01 1 0105-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72537-184-0 01 1 0105-
293 DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-081-3 01 1 0105-
293 DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-083-2 01 1 0105-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 0105-0303
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0304-
296 SEAL
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72537-094-1 01 1 0105-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-76337-461-0 04 1 0105-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) 		1-72537-188-0 02 1 0105-
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72538-187-0 02 1 0105-
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72538-187-0 02 1 0105-
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72538-188-2 03 1 0105-
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72538-188-2 03 1 0105-
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72538-186-1 03 1 0105-
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72538-186-1 03 1 0105-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (A) 		1-72538-184-3 01 1 0105-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72538-184-3 01 1 0105-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> (B) 		1-72538-185-3 02 1 0105-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) 		1-72538-185-3 02 1 0105-
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) 		1-72537-126-0 01 1 0105-
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-084-1 01 1 0105-
323 SHUTTER
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (C) 		1-72537-127-0 01 1 0105-
324 BUSHING
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-116-0 02 1 0105-
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-170-0 03 1 0105-
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> 		1-72537-170-0 03 1 0105-
356 COVER; KNOB
CENTER SEAT DELETE(SP9) EXC. COOL & HOT BOX<TMU> 		1-72537-155-0 01 1 0105-
375 SCREW; TAP BUSHING
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> M6X20 		1-72537-319-0 02 1 0105-
376 SCREW; TAP DUCT
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> M4X14 		1-72537-320-0 03 1 0105-

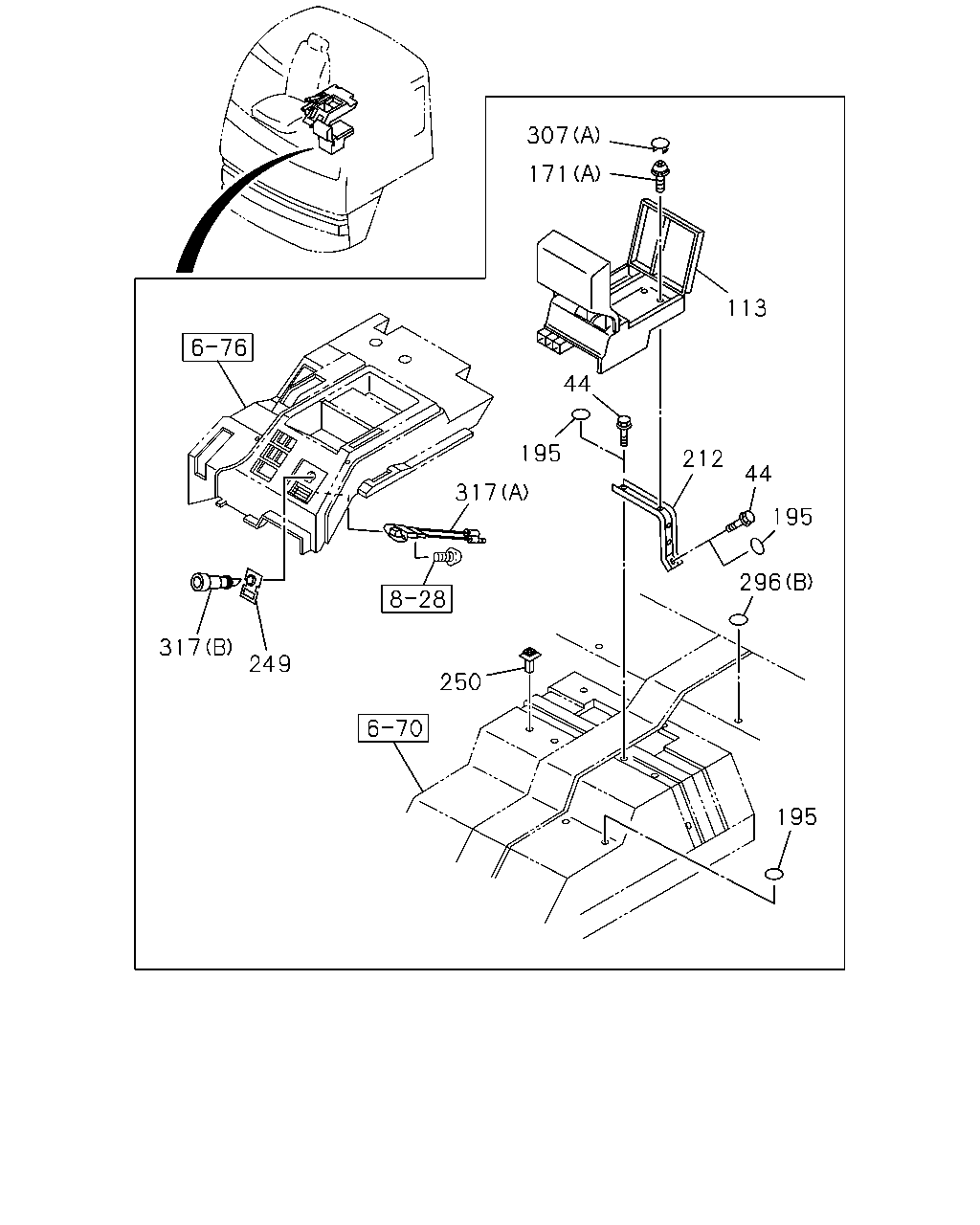

çizim 78892
307 171 113 212 44 195 296 195 250 249 317 317 195 44
BalonParca AdiParca NoAdetTipApplied Date
44 BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0105-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-180-0 01 1 0105-0404
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-240-3 01 1 0405-0507
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-285-3 01 1 0508-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-220-0 01 1 0105-0404
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-252-2 01 1 0405-0507
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> EXC. COOL & HOT BOX<TMU> 		1-72537-291-3 01 1 0508-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-181-0 01 1 0105-0404
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-251-2 01 1 0405-0507
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) EXC. TABLE CONSOLE BOX<TDL>,COOL & HOT BOX<TMU> 		1-72537-294-2 01 1 0508-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0105-0301
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0302-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0105-
195 SEAL; CENTER CONSOLE
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 05 1 0105-
212 SUPPORT; CONSOLE TO COMPT
CENTER SEAT DELETE(SP9) 		1-72537-095-1 01 1 0105-
249 COVER 1-82529-001-0 01 1 0105-
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0105-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 0105-0303
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0304-
296 SEAL
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (A) 		1-72537-094-1 01 1 0105-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-76337-461-0 04 1 0105-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) TABLE CONSOLE BOX<TDL> (B) 		1-72537-188-0 02 1 0105-
317 CONSENT
(A) 		1-82523-020-2 01 1 0105-
317 CONSENT
(B) 		8-94382-451-1 01 1 0105-
