4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#124008) — 141 parça

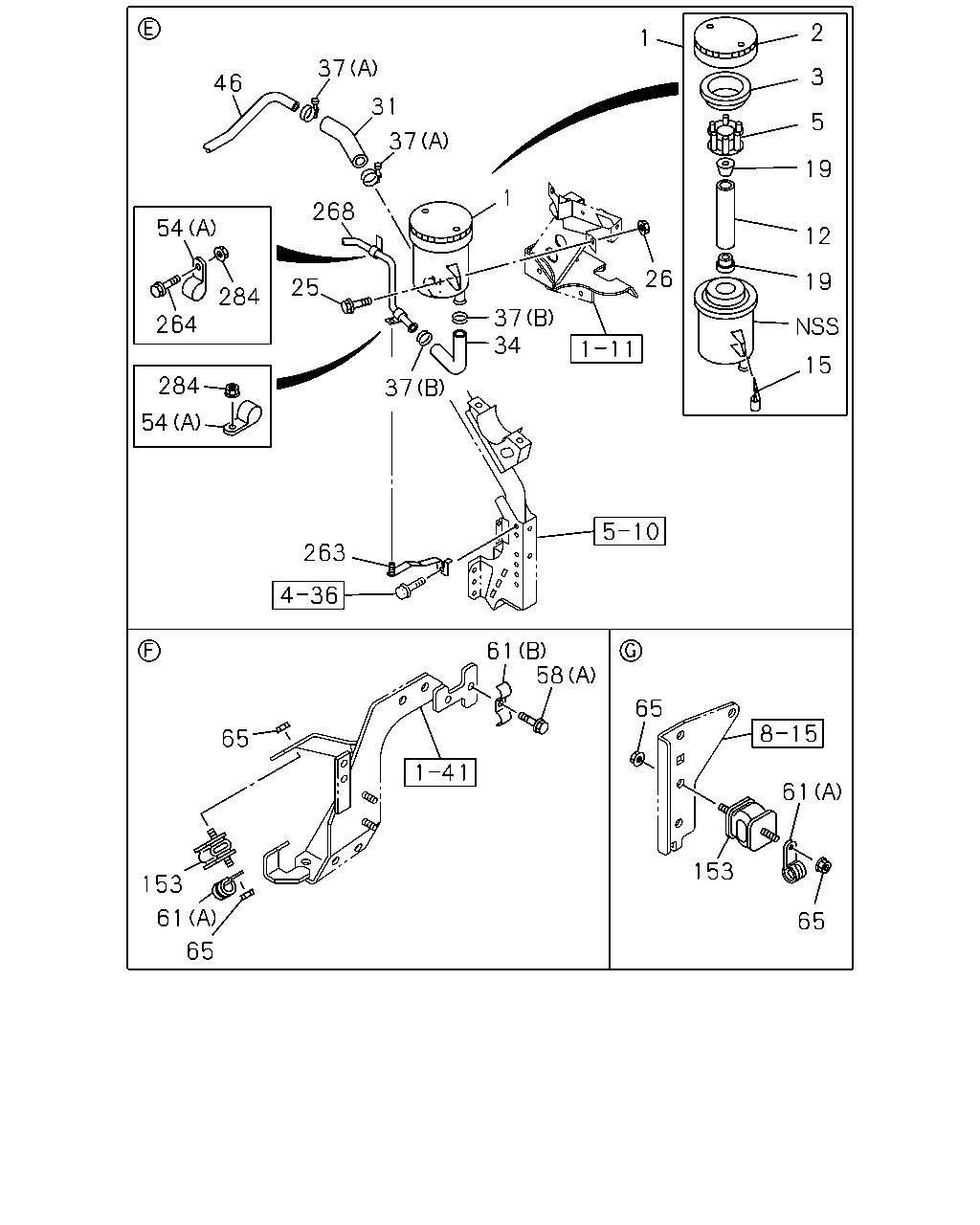

1 2 3 5 19 12 19 15 26 1 37 37 34 31 37 46 268 25 54 284 284 264 54 37 61 61 58 65 153 61 65 263 65 153 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1307-1312	●
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1401-	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1307-1312	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1401-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1307-1312	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1401-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1307-1312	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1401-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1307-1312	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1401-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1307-1312	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1401-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1307-1312	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1401-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1307-1312	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1401-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1307-1312	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1401-	●	●
31	HOSE; P/S OIL TANK,INL POWER TAKE OFF-FLYWHEEL<6SZ>	8-98174-239-0	01	1	1307-	●
31	HOSE; P/S OIL TANK,INL EXC. POWER TAKE OFF-FLYWHEEL<6SZ>	8-98131-108-0	01	1	1307-1312	●
31	HOSE; P/S OIL TANK,INL EXC. POWER TAKE OFF-FLYWHEEL<6SZ>	8-98131-108-0	01	1	1401-	●
31	HOSE; P/S OIL TANK,INL	8-98131-108-0	01	1	1401-		●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1307-1312	●
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1401-	●	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1307-1312	●
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1401-	●	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1307-1312	●
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1401-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2493	8-98126-594-0	01	1	1307-1312	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2493	8-98126-594-0	01	1	1401-	●	●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (B) ID=17 L=17	1-09701-284-0	06	1	1307-	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (B) ID=17 L=17	1-09701-284-0	02	1	1307-1312	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (B) ID=17 L=17	1-09701-284-0	02	1	1401-	●
54	CLIP; OIL PIPE (B) ID=17 L=17	1-09701-284-0	02	1	1401-		●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1307-1312	●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1401-	●	●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (A) ID=19 L=20	0-95235-836-0	01	1	1307-	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) ID=19 L=20	0-95235-836-0	02	1	1307-1312	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) ID=19 L=20	0-95235-836-0	02	1	1401-	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	1401-		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1307-1312	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1401-	●	●
58	BOLT; CLIP (B) M8X45 FLANGE	0-28050-845-0	01	1	1307-1312	●
58	BOLT; CLIP (B) M8X45 FLANGE	0-28050-845-0	01	1	1401-	●	●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	1307-1312	●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	1401-	●	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1307-1312	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1401-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	1307-1312	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	1401-	●	●
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	1307-1312	●
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	1401-	●	●
263	BRACKET; P/S PIPE	8-98130-274-0	01	1	1307-1312	●
263	BRACKET; P/S PIPE	8-98130-274-0	01	1	1401-	●	●
264	BOLT; PIPE BRKT EXC. POWER TAKE OFF-FLYWHEEL<6SZ> M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●
264	BOLT; PIPE BRKT EXC. POWER TAKE OFF-FLYWHEEL<6SZ> M8X20 FLANGE	0-28650-820-0	01	1	1401-	●
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1401-		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE POWER TAKE OFF-FLYWHEEL<6SZ>	8-98090-786-0	01	1	1307-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER TAKE OFF-FLYWHEEL<6SZ>	8-98077-739-2	01	1	1307-1312	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER TAKE OFF-FLYWHEEL<6SZ>	8-98077-739-2	01	1	1401-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98077-739-2	01	1	1401-		●
284	NUT; PIPE POWER TAKE OFF-FLYWHEEL<6SZ> M8 FLANGE	0-91180-108-0	01	1	1307-	●
284	NUT; PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> M8 FLANGE	0-91180-108-0	02	1	1307-1312	●
284	NUT; PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> M8 FLANGE	0-91180-108-0	02	1	1401-	●
284	NUT; PIPE M8 FLANGE	0-91180-108-0	02	1	1401-		●

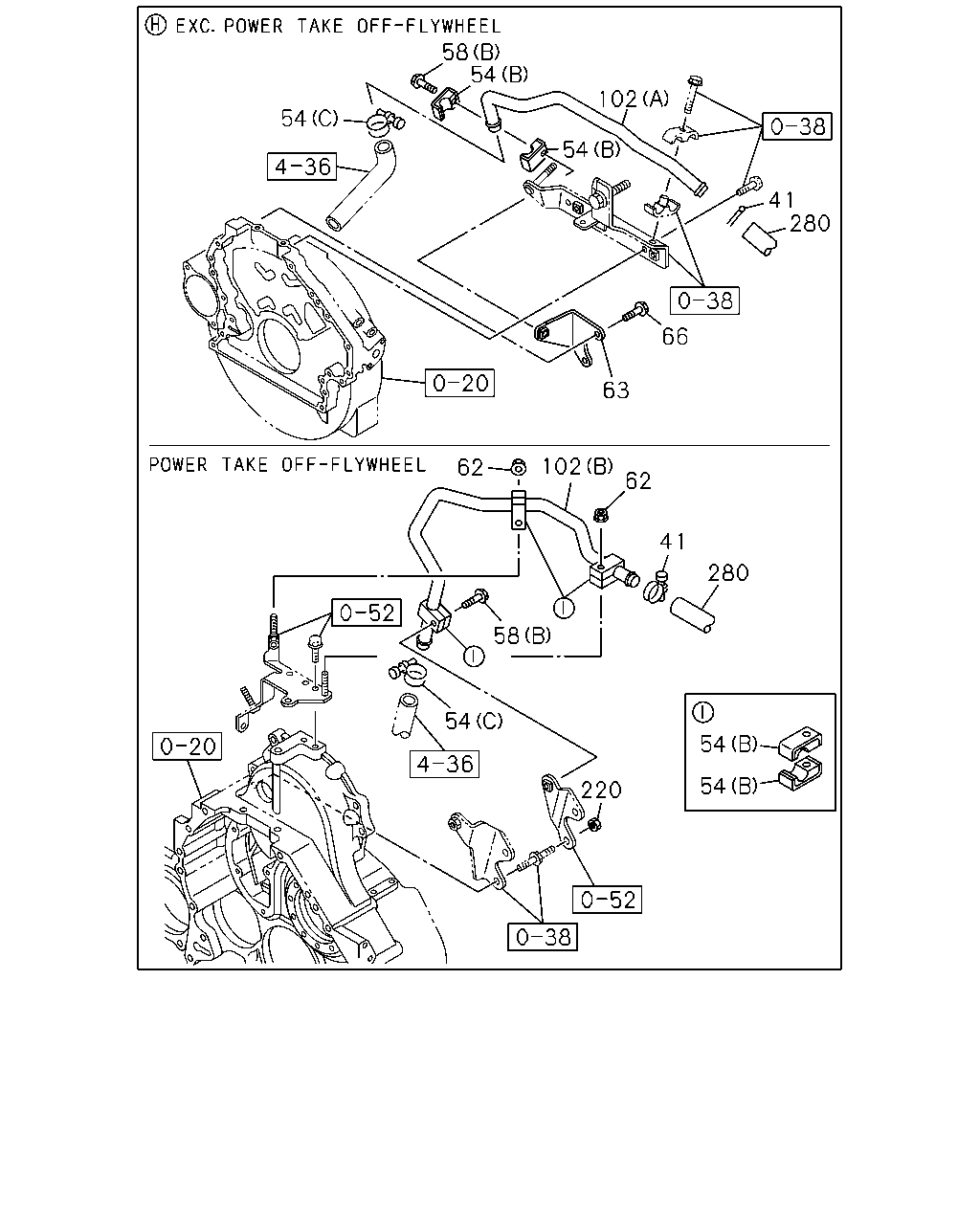

54 54 220 54 58 41 62 280 102 62 63 66 41 102 280 54 54 58 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1307-1312	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1401-	●	●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (B) ID=17 L=17	1-09701-284-0	06	1	1307-	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (B) ID=17 L=17	1-09701-284-0	02	1	1307-1312	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (B) ID=17 L=17	1-09701-284-0	02	1	1401-	●
54	CLIP; OIL PIPE (B) ID=17 L=17	1-09701-284-0	02	1	1401-		●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1307-1312	●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1401-	●	●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (A) ID=19 L=20	0-95235-836-0	01	1	1307-	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) ID=19 L=20	0-95235-836-0	02	1	1307-1312	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) ID=19 L=20	0-95235-836-0	02	1	1401-	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	1401-		●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1307-1312	●
58	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1401-	●	●
58	BOLT; CLIP (B) M8X45 FLANGE	0-28050-845-0	01	1	1307-1312	●
58	BOLT; CLIP (B) M8X45 FLANGE	0-28050-845-0	01	1	1401-	●	●
62	NUT; CLIP FIX POWER TAKE OFF-FLYWHEEL<6SZ> M8 FLANGE	0-91180-108-0	02	1	1307-	●
63	BRACKET; CLIP,P/S EXC. POWER TAKE OFF-FLYWHEEL<6SZ>	8-98075-954-0	01	1	1307-1312	●
63	BRACKET; CLIP,P/S EXC. POWER TAKE OFF-FLYWHEEL<6SZ>	8-98075-954-0	01	1	1401-	●
63	BRACKET; CLIP,P/S	8-98075-954-0	01	1	1401-		●
66	BOLT; BRKT,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> M8X16 FLANGE	0-28050-816-0	02	1	1307-1312	●
66	BOLT; BRKT,OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> M8X16 FLANGE	0-28050-816-0	02	1	1401-	●
66	BOLT; BRKT,OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1401-		●
102	PIPE; SUCTION,P/S POWER TAKE OFF-FLYWHEEL<6SZ> (B)	8-98077-916-2	01	1	1307-	●
102	PIPE; SUCTION,P/S EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A)	8-98057-017-4	01	1	1307-1312	●
102	PIPE; SUCTION,P/S EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A)	8-98057-017-4	01	1	1401-	●
102	PIPE; SUCTION,P/S (A)	8-98057-017-4	01	1	1401-		●
220	NUT; BRKT,OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> M8 FLANGE	0-91180-108-0	02	1	1307-	●
280	HOSE; P/S OIL PUMP,INL POWER TAKE OFF-FLYWHEEL<6SZ>	8-98080-020-0	01	1	1307-	●
280	HOSE; P/S OIL PUMP,INL EXC. POWER TAKE OFF-FLYWHEEL<6SZ>	8-98053-040-1	01	1	1307-1312	●
280	HOSE; P/S OIL PUMP,INL EXC. POWER TAKE OFF-FLYWHEEL<6SZ>	8-98053-040-1	01	1	1401-	●
280	HOSE; P/S OIL PUMP,INL	8-98053-040-1	01	1	1401-		●

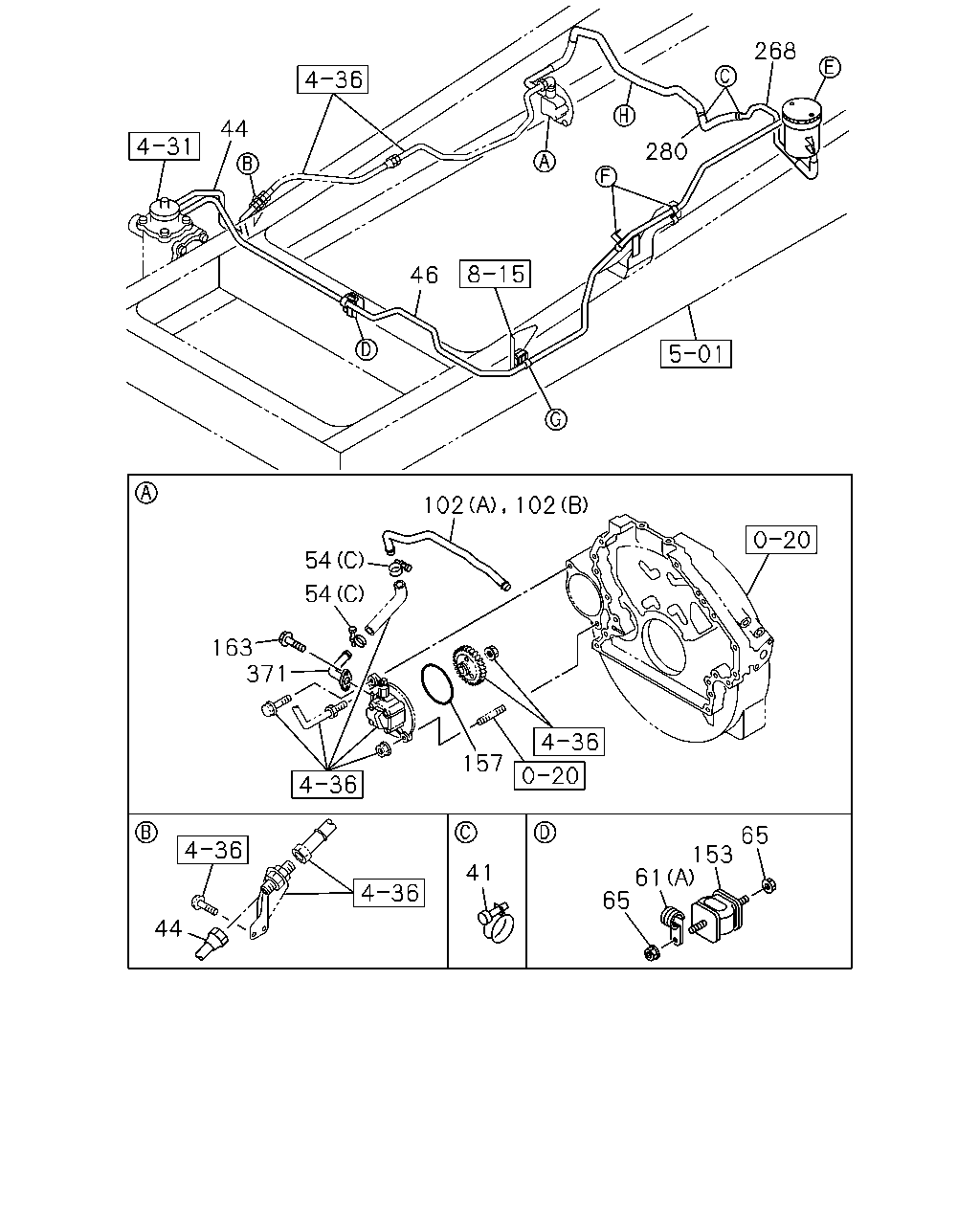

44 46 54 54 163 371 157 41 44 65 153 65 268 280 61 102 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1307-1312	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1401-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)	8-98077-661-0	01	1	1307-1312	●
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)	8-98077-661-0	01	1	1401-	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V90A(K44)	8-98079-094-0	01	1	1307-1312	●
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V90A(K44)	8-98079-094-0	01	1	1401-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2493	8-98126-594-0	01	1	1307-1312	●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2493	8-98126-594-0	01	1	1401-	●	●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (B) ID=17 L=17	1-09701-284-0	06	1	1307-	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (B) ID=17 L=17	1-09701-284-0	02	1	1307-1312	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (B) ID=17 L=17	1-09701-284-0	02	1	1401-	●
54	CLIP; OIL PIPE (B) ID=17 L=17	1-09701-284-0	02	1	1401-		●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1307-1312	●
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	1401-	●	●
54	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL<6SZ> (A) ID=19 L=20	0-95235-836-0	01	1	1307-	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) ID=19 L=20	0-95235-836-0	02	1	1307-1312	●
54	CLIP; OIL PIPE EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A) ID=19 L=20	0-95235-836-0	02	1	1401-	●
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	1401-		●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	1307-1312	●
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	1401-	●	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1307-1312	●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1401-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	1307-1312	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	1401-	●	●
102	PIPE; SUCTION,P/S POWER TAKE OFF-FLYWHEEL<6SZ> (B)	8-98077-916-2	01	1	1307-	●
102	PIPE; SUCTION,P/S EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A)	8-98057-017-4	01	1	1307-1312	●
102	PIPE; SUCTION,P/S EXC. POWER TAKE OFF-FLYWHEEL<6SZ> (A)	8-98057-017-4	01	1	1401-	●
102	PIPE; SUCTION,P/S (A)	8-98057-017-4	01	1	1401-		●
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	1307-1312	●
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	1401-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	8-97386-295-0	01	1	1307-1312	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	8-97386-295-0	01	1	1401-	●	●
163	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1307-1312	●
163	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1401-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE POWER TAKE OFF-FLYWHEEL<6SZ>	8-98090-786-0	01	1	1307-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER TAKE OFF-FLYWHEEL<6SZ>	8-98077-739-2	01	1	1307-1312	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. POWER TAKE OFF-FLYWHEEL<6SZ>	8-98077-739-2	01	1	1401-	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98077-739-2	01	1	1401-		●
280	HOSE; P/S OIL PUMP,INL POWER TAKE OFF-FLYWHEEL<6SZ>	8-98080-020-0	01	1	1307-	●
280	HOSE; P/S OIL PUMP,INL EXC. POWER TAKE OFF-FLYWHEEL<6SZ>	8-98053-040-1	01	1	1307-1312	●
280	HOSE; P/S OIL PUMP,INL EXC. POWER TAKE OFF-FLYWHEEL<6SZ>	8-98053-040-1	01	1	1401-	●
280	HOSE; P/S OIL PUMP,INL	8-98053-040-1	01	1	1401-		●
371	PIPE; OIL,INLET	8-98072-089-1	01	1	1307-1312	●
371	PIPE; OIL,INLET	8-98072-089-1	01	1	1401-	●	●
