4-30 — STEERING WHEEL AND COWL (#124005) — 42 parça
çizim 363435
44 5 20 81 26 6 106 30 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 WHEEL; STRG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97423-998-0 01 1 1307-1312 ●
1 WHEEL; STRG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97423-998-0 01 1 1401- ● ●
1 WHEEL; STRG
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97412-555-1 01 1 1307-1312 ●
1 WHEEL; STRG
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97412-555-1 01 1 1401- ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1307-1312 ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1401- ● ●
6 SCREW; HORN SPR CONTACT
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M4X12 		8-97167-588-0 04 1 1307-1312 ●
6 SCREW; HORN SPR CONTACT
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M4X12 		8-97167-588-0 04 1 1401- ● ●
20 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY 		8-97405-985-1 01 1 1307-1312 ●
20 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY 		8-97405-985-1 01 1 1401- ● ●
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97421-978-0 01 1 1307-1312 ●
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97421-978-0 01 1 1401- ● ●
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97409-275-2 01 1 1307-1312 ●
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97409-275-2 01 1 1401- ● ●
30 COWL; STEERING
DARK GRAY 		8-97411-503-1 01 1 1307-1312 ●
30 COWL; STEERING
DARK GRAY 		8-97411-503-1 01 1 1401- ● ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1307-1312 ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1401- ● ●
81 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY 		8-97405-986-0 01 1 1307-1312 ●
81 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY 		8-97405-986-0 01 1 1401- ● ●
106 BOLT; TORX 8-98231-397-0 02 1 1307-1312 ●
106 BOLT; TORX 8-98231-397-0 02 1 1401- ● ●

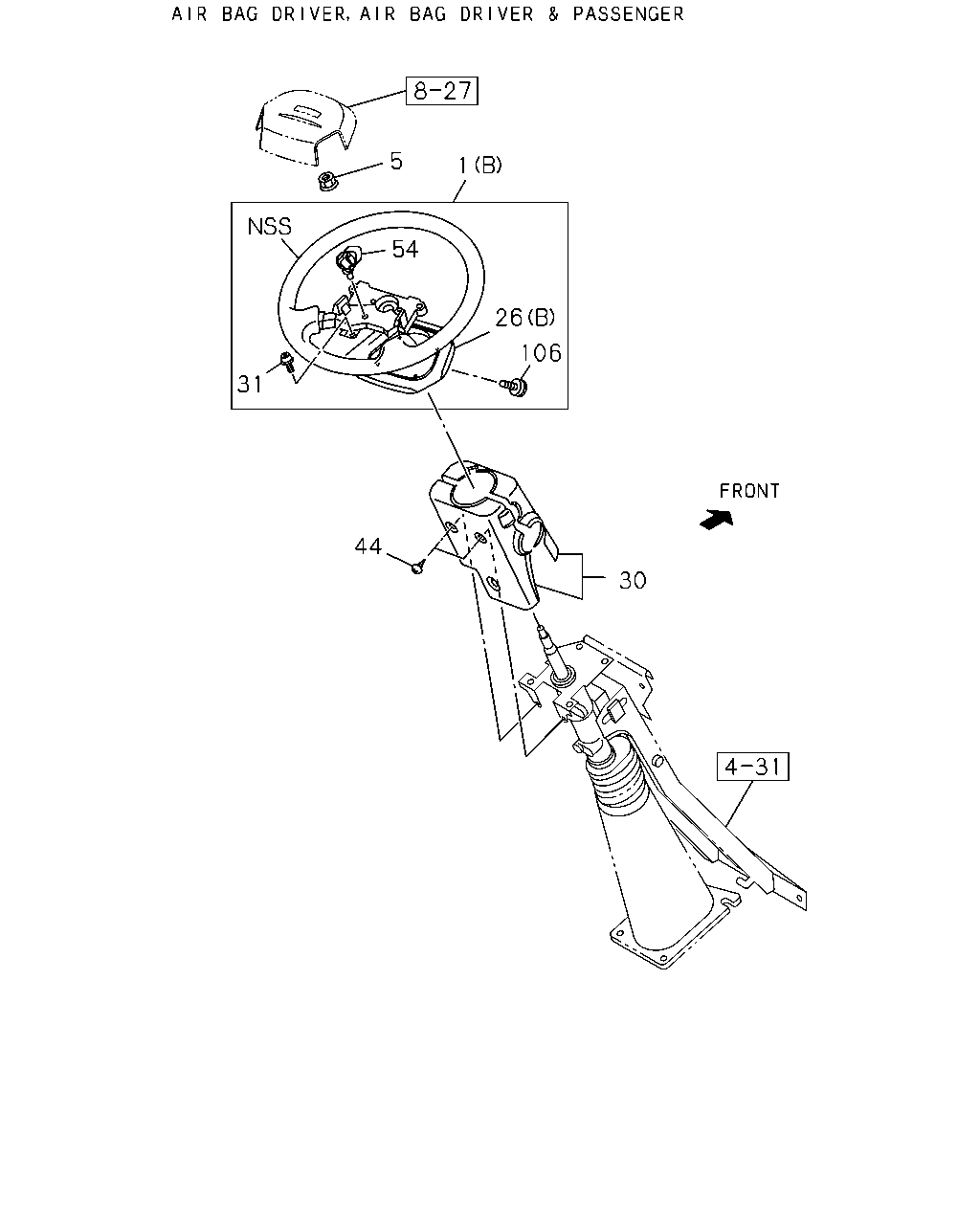

çizim 366018
30 44 31 54 5 26 106 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 WHEEL; STRG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97423-998-0 01 1 1307-1312 ●
1 WHEEL; STRG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97423-998-0 01 1 1401- ● ●
1 WHEEL; STRG
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97412-555-1 01 1 1307-1312 ●
1 WHEEL; STRG
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97412-555-1 01 1 1401- ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1307-1312 ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1401- ● ●
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97421-978-0 01 1 1307-1312 ●
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97421-978-0 01 1 1401- ● ●
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97409-275-2 01 1 1307-1312 ●
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97409-275-2 01 1 1401- ● ●
30 COWL; STEERING
DARK GRAY 		8-97411-503-1 01 1 1307-1312 ●
30 COWL; STEERING
DARK GRAY 		8-97411-503-1 01 1 1401- ● ●
31 SCREW; BOSS TO COVER
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M4X12 		8-97167-588-0 04 1 1307-1312 ●
31 SCREW; BOSS TO COVER
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M4X12 		8-97167-588-0 04 1 1401- ● ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1307-1312 ●
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1401- ● ●
54 CLIP; HARNESS
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98165-703-0 01 1 1307-1312 ●
54 CLIP; HARNESS
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98165-703-0 01 1 1401- ● ●
106 BOLT; TORX 8-98231-397-0 02 1 1307-1312 ●
106 BOLT; TORX 8-98231-397-0 02 1 1401- ● ●
