4-10 — FRONT AXLE (#124001) — 197 parça

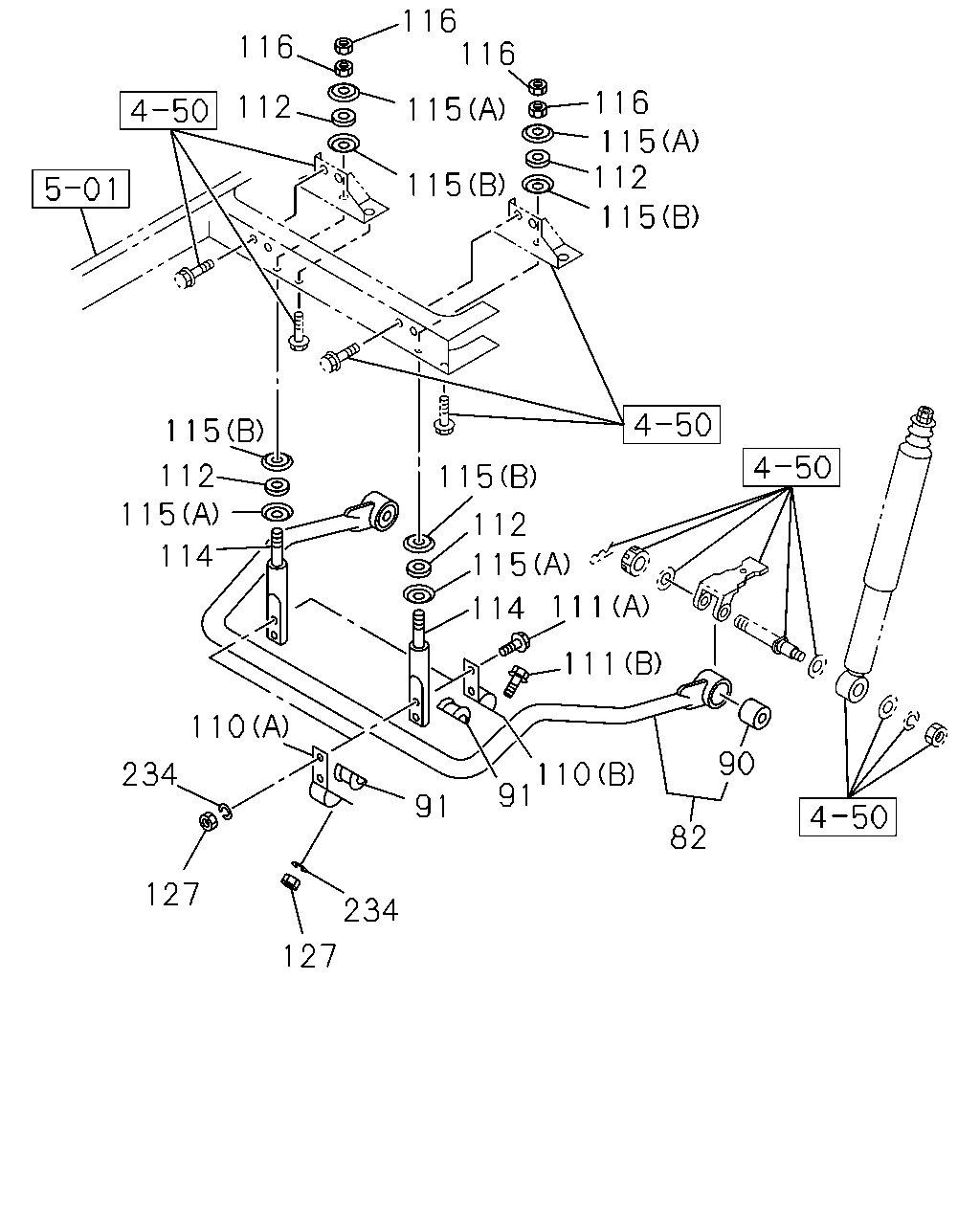

çizim 364515
116 116 116 115 112 115 116 115 112 115 115 115 112 112 115 115 114 114 111 111 110 234 127 127 234 91 91 110 82 90
BalonParca AdiParca NoAdetTipApplied Date A B
82 BAR; STAB,FRT SUSP 1-51770-114-0 01 1 1307-1312 ●
82 BAR; STAB,FRT SUSP 1-51770-114-0 01 1 1401- ● ●
90 BUSHING; RUBBER,STAB BAR 1-51779-066-0 02 1 1307-1312 ●
90 BUSHING; RUBBER,STAB BAR 1-51779-066-0 02 1 1401- ● ●
91 BUSHING; RUBBER,STAB BAR 1-51779-079-1 04 1 1307-1312 ●
91 BUSHING; RUBBER,STAB BAR 1-51779-079-1 04 1 1401- ● ●
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 1307-1312 ●
110 CLAMP; STAB TO ROD
(A) 		1-51789-027-2 02 1 1401- ● ●
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 1307-1312 ●
110 CLAMP; STAB TO ROD
(B) 		1-51789-028-1 02 1 1401- ● ●
111 BOLT; CLAMP TO ROD
(B) M12X30 FLANGE 		0-28051-230-0 02 1 1307-1312 ●
111 BOLT; CLAMP TO ROD
(B) M12X30 FLANGE 		0-28051-230-0 02 1 1401- ● ●
111 BOLT; CLAMP TO ROD
(A) M12X50 FLANGE 		0-28051-250-0 04 1 1307-1312 ●
111 BOLT; CLAMP TO ROD
(A) M12X50 FLANGE 		0-28051-250-0 04 1 1401- ● ●
112 BUSHING; ROD 9-51631-050-0 04 1 1307-1312 ●
112 BUSHING; ROD 9-51631-050-0 04 1 1401- ● ●
114 ROD; STAB BAR 1-51773-082-0 02 1 1307-1312 ●
114 ROD; STAB BAR 1-51773-082-0 02 1 1401- ● ●
115 WASHER; CENTER,STAB TO FRAME
(B) ID=16.8 		1-51631-022-0 04 1 1307-1312 ●
115 WASHER; CENTER,STAB TO FRAME
(B) ID=16.8 		1-51631-022-0 04 1 1401- ● ●
115 WASHER; CENTER,STAB TO FRAME
(A) ID=14.5 		9-51631-051-0 04 1 1307-1312 ●
115 WASHER; CENTER,STAB TO FRAME
(A) ID=14.5 		9-51631-051-0 04 1 1401- ● ●
116 NUT; LK,STAB TO FRAME
M14 		0-91111-514-0 04 1 1307-1312 ●
116 NUT; LK,STAB TO FRAME
M14 		0-91111-514-0 04 1 1401- ● ●
127 NUT; CLAMP
M12 		0-91110-512-0 06 1 1307-1312 ●
127 NUT; CLAMP
M12 		0-91110-512-0 06 1 1401- ● ●
234 WASHER; STAB
ID=12.2 		0-91510-812-0 06 1 1307-1312 ●
234 WASHER; STAB
ID=12.2 		0-91510-812-0 06 1 1401- ● ●
çizim 365919
105
BalonParca AdiParca NoAdetTipApplied Date A B
105 BOLT; BRKT FIX
M8X12 FLANGE 		0-28050-812-0 02 1 1401- ●
105 BOLT; BRKT FIX
M8X16 FLANGE 		0-28050-816-0 01 1 1401- ●
105 BOLT; BRKT FIX
M8X12 FLANGE 		0-28050-812-0 04 1 1307- ●

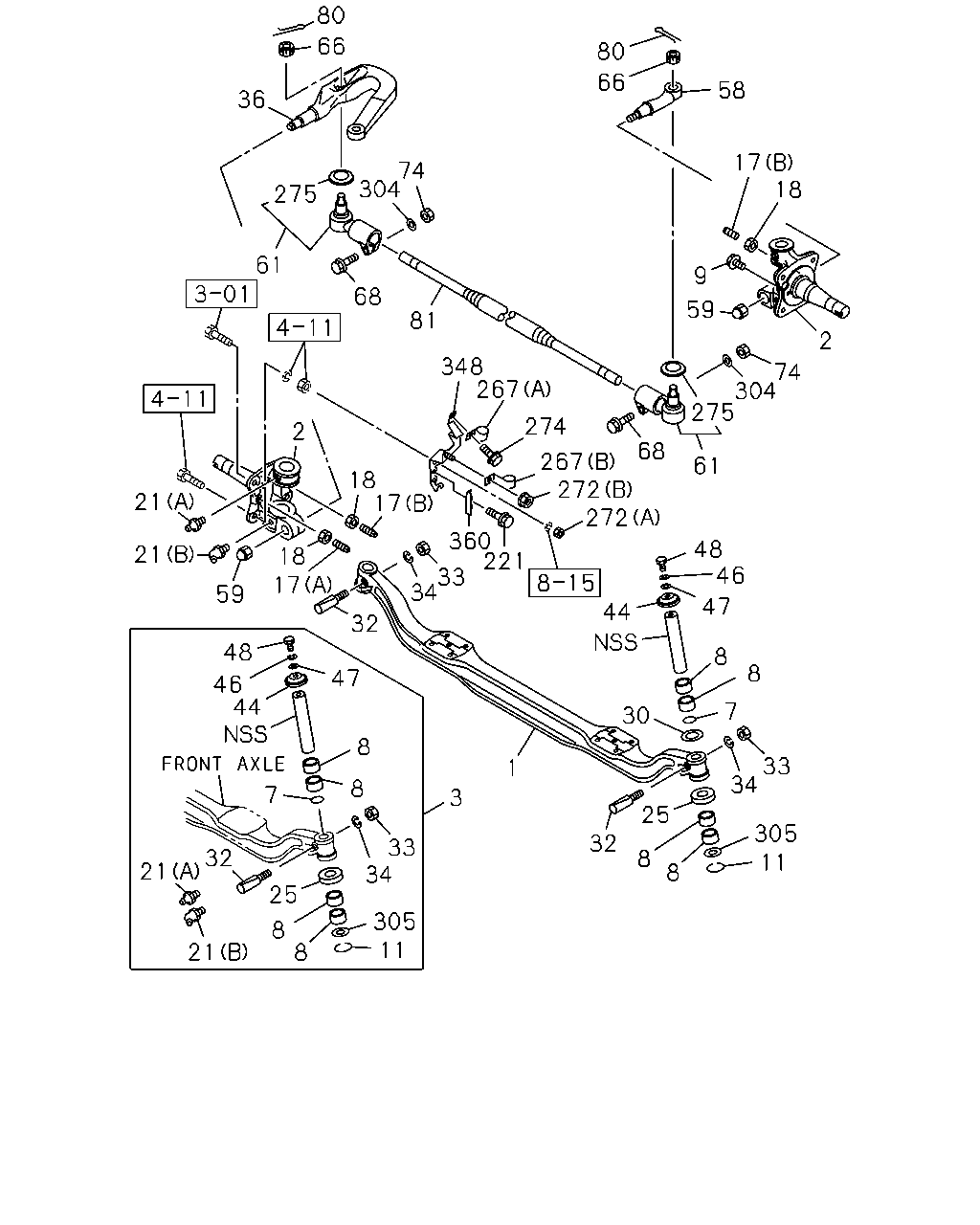

çizim 366852
80 58 66 17 2 18 9 74 59 304 275 61 68 48 46 47 8 8 7 33 305 11 34 25 32 8 8 30 44 80 74 66 36 275 304 61 68 348 81 267 274 267 272 272 21 21 59 32 17 2 18 18 34 17 33 360 221 3 1 47 8 8 33 34 305 11 48 46 44 21 7 32 25 8 8 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 AXLE; FRT 8-98057-479-2 01 1 1307-1312 ●
1 AXLE; FRT 8-98057-479-2 01 1 1401- ● ●
2 KNUCKLE; FRT AXLE 1-43131-127-1 01 1 1307-1312 ●
2 KNUCKLE; FRT AXLE 1-43131-127-1 01 1 1401- ● ●
2 KNUCKLE; FRT AXLE 1-43132-127-1 01 1 1307-1312 ●
2 KNUCKLE; FRT AXLE 1-43132-127-1 01 1 1401- ● ●
3 KING PIN SET 1-87831-295-2 01 1 1307-1312 ●
3 KING PIN SET 1-87831-295-2 01 1 1401- ● ●
3 KING PIN SET 1-87831-296-2 01 1 1307-1312 ●
3 KING PIN SET 1-87831-296-2 01 1 1401- ● ●
7 SEAL; OIL,KING PIN 1-09625-005-1 02 1 1307-1312 ●
7 SEAL; OIL,KING PIN 1-09625-005-1 02 1 1401- ● ●
8 BEARING; NEEDLE,KING PIN
NSK 		1-09811-339-0 08 1 1307-1312 ●
8 BEARING; NEEDLE,KING PIN
NSK 		1-09811-339-0 08 1 1401- ● ●
9 PLUG; KNUCKLE
M14X14 		8-97329-621-0 01 1 1307-1312 ●
9 PLUG; KNUCKLE
M14X14 		8-97329-621-0 01 1 1401- ● ●
11 RING; SNAP,KNUCKLE PLUG 1-09589-017-1 02 1 1307-1312 ●
11 RING; SNAP,KNUCKLE PLUG 1-09589-017-1 02 1 1401- ● ●
17 BOLT; STOPPER KNUCKLE
(A) M14X47 		1-09009-191-0 01 1 1307-1312 ●
17 BOLT; STOPPER KNUCKLE
(A) M14X47 		1-09009-191-0 01 1 1401- ● ●
17 BOLT; STOPPER KNUCKLE
(B) M14X53 		8-98065-261-0 02 1 1307-1312 ●
17 BOLT; STOPPER KNUCKLE
(B) M14X53 		8-98065-261-0 02 1 1401- ● ●
18 NUT; STOPPER BOLT,KNUCKLE
M14 		0-91112-814-0 03 1 1307-1312 ●
18 NUT; STOPPER BOLT,KNUCKLE
M14 		0-91112-814-0 03 1 1401- ● ●
21 NIPPLE; GREASE,KING PIN
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1307-1312 ●
21 NIPPLE; GREASE,KING PIN
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1401- ● ●
21 NIPPLE; GREASE,KING PIN
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1307-1312 ●
21 NIPPLE; GREASE,KING PIN
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1401- ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-031-0 01 1 1307-1312 ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-031-0 01 1 1401- ● ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-033-1 01 1 1307-1312 ●
25 BEARING; THRUST,KING PIN
NSK 		1-09829-033-1 01 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=3.900 		1-43171-261-1 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=3.900 		1-43171-261-1 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=3.912 		1-43171-262-1 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=3.912 		1-43171-262-1 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=3.925 		1-43171-263-1 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=3.925 		1-43171-263-1 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=3.937 		1-43171-264-1 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=3.937 		1-43171-264-1 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=3.950 		1-43171-265-1 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=3.950 		1-43171-265-1 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=3.962 		1-43171-266-1 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=3.962 		1-43171-266-1 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=3.975 		1-43171-267-1 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=3.975 		1-43171-267-1 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=3.987 		1-43171-268-1 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=3.987 		1-43171-268-1 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.000 		1-43171-269-1 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.000 		1-43171-269-1 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.012 		1-43171-270-1 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.012 		1-43171-270-1 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.025 		1-43171-271-1 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.025 		1-43171-271-1 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.037 		1-43171-272-1 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.037 		1-43171-272-1 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.050 		1-43171-273-1 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.050 		1-43171-273-1 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.062 		1-43171-274-1 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.062 		1-43171-274-1 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.075 		1-43171-275-1 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.075 		1-43171-275-1 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.087 		1-43171-276-1 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.087 		1-43171-276-1 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.100 		1-43171-277-1 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.100 		1-43171-277-1 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.112 		1-43171-278-1 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.112 		1-43171-278-1 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.125 		1-43171-279-1 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.125 		1-43171-279-1 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.137 		1-43171-280-1 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.137 		1-43171-280-1 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.150 		1-43171-281-1 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.150 		1-43171-281-1 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.162 		1-43171-311-0 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.162 		1-43171-311-0 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.175 		1-43171-312-0 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.175 		1-43171-312-0 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.187 		1-43171-313-0 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.187 		1-43171-313-0 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.200 		1-43171-314-0 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.200 		1-43171-314-0 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.212 		1-43171-315-0 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.212 		1-43171-315-0 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.225 		1-43171-316-0 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.225 		1-43171-316-0 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.237 		1-43171-317-0 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.237 		1-43171-317-0 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.250 		1-43171-318-0 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.250 		1-43171-318-0 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.262 		1-43171-319-0 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.262 		1-43171-319-0 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.275 		1-43171-320-0 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.275 		1-43171-320-0 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.287 		1-43171-321-0 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.287 		1-43171-321-0 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.300 		1-43171-322-0 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.300 		1-43171-322-0 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.312 		1-43171-323-0 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.312 		1-43171-323-0 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.325 		1-43171-324-0 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.325 		1-43171-324-0 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.337 		1-43171-325-0 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.337 		1-43171-325-0 AR 1 1401- ● ●
30 WASHER; THRUST,KING PIN
T=4.350 		1-43171-326-0 AR 1 1307-1312 ●
30 WASHER; THRUST,KING PIN
T=4.350 		1-43171-326-0 AR 1 1401- ● ●
32 BOLT; KEY,KING PIN 1-43116-013-1 02 1 1307-1312 ●
32 BOLT; KEY,KING PIN 1-43116-013-1 02 1 1401- ● ●
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1307-1312 ●
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1401- ● ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1307-1312 ●
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1401- ● ●
36 ARM; KNUCKLE 8-98037-304-1 01 1 1307-1312 ●
36 ARM; KNUCKLE 8-98037-304-1 01 1 1401- ● ●
44 COVER; KING PIN 1-43175-031-0 02 1 1307-1312 ●
44 COVER; KING PIN 1-43175-031-0 02 1 1401- ● ●
46 WASHER; LK,COVER
ID=12.2 		0-91510-812-0 02 1 1307-1312 ●
46 WASHER; LK,COVER
ID=12.2 		0-91510-812-0 02 1 1401- ● ●
47 WASHER; PL,COVER,KING PIN
ID=12.5 OD=32 		0-91614-712-0 02 1 1307-1312 ●
47 WASHER; PL,COVER,KING PIN
ID=12.5 OD=32 		0-91614-712-0 02 1 1401- ● ●
48 BOLT; COVER
M12X25 		1-09009-081-0 02 1 1307-1312 ●
48 BOLT; COVER
M12X25 		1-09009-081-0 02 1 1401- ● ●
58 ARM; TIE ROD 8-98037-296-2 01 1 1307-1312 ●
58 ARM; TIE ROD 8-98037-296-2 01 1 1401- ● ●
59 NUT; TIE ROD ARM
M27 FLANGE 		1-09449-082-0 02 1 1307-1312 ●
59 NUT; TIE ROD ARM
M27 FLANGE 		1-09449-082-0 02 1 1401- ● ●
61 ROD END; TIE ROD 1-43150-748-1 01 1 1307-1312 ●
61 ROD END; TIE ROD 1-43150-748-1 01 1 1401- ● ●
61 ROD END; TIE ROD 1-43150-749-1 01 1 1307-1312 ●
61 ROD END; TIE ROD 1-43150-749-1 01 1 1401- ● ●
66 NUT; TIE ROD END
M16 SLOTTED 		1-09442-031-0 02 1 1307-1312 ●
66 NUT; TIE ROD END
M16 SLOTTED 		1-09442-031-0 02 1 1401- ● ●
68 BOLT; TIE ROD END
M12X45 FLANGE 		0-28061-245-0 02 1 1307-1312 ●
68 BOLT; TIE ROD END
M12X45 FLANGE 		0-28061-245-0 02 1 1401- ● ●
74 NUT; TIE ROD END
M12 		0-91110-512-0 02 1 1307-1312 ●
74 NUT; TIE ROD END
M12 		0-91110-512-0 02 1 1401- ● ●
80 PIN; SPLIT,ROD END
OD=3.7 L=22 		0-81124-022-0 02 1 1307-1312 ●
80 PIN; SPLIT,ROD END
OD=3.7 L=22 		0-81124-022-0 02 1 1401- ● ●
81 ROD; TIE 8-98038-703-1 01 1 1307-1312 ●
81 ROD; TIE 8-98038-703-1 01 1 1401- ● ●
221 BOLT; BRKT,SENSOR
M8X16 FLANGE 		0-28050-816-0 04 1 1307-1312 ●
221 BOLT; BRKT,SENSOR
M8X16 FLANGE 		0-28050-816-0 04 1 1401- ● ●
267 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 1307-1312 ●
267 CLIP; HARNESS
(A) ID=11 L=16 		0-95235-025-0 02 1 1401- ● ●
267 CLIP; HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 02 1 1307-1312 ●
267 CLIP; HARNESS
(B) ID=11 H=20 L=20 		8-98033-780-0 02 1 1401- ● ●
272 NUT; CLIP
(A) M14 		0-91110-514-0 02 1 1307-1312 ●
272 NUT; CLIP
(A) M14 		0-91110-514-0 02 1 1401- ● ●
272 NUT; CLIP
(B) M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
272 NUT; CLIP
(B) M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
274 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 1307-1312 ●
274 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 1401- ● ●
275 BOOT; ROD END,TIE 1-85574-046-0 02 1 1307-1312 ●
275 BOOT; ROD END,TIE 1-85574-046-0 02 1 1401- ● ●
304 WASHER; PL
ID=12.5 		0-91614-512-0 02 1 1307-1312 ●
304 WASHER; PL
ID=12.5 		0-91614-512-0 02 1 1401- ● ●
305 COVER; KNUCKLE 1-43175-030-0 02 1 1307-1312 ●
305 COVER; KNUCKLE 1-43175-030-0 02 1 1401- ● ●
348 BRACKET; CLIP 8-98055-138-1 01 1 1307-1312 ●
348 BRACKET; CLIP 8-98055-138-1 01 1 1401- ● ●
348 BRACKET; CLIP 8-98055-137-1 01 1 1307-1312 ●
348 BRACKET; CLIP 8-98055-137-1 01 1 1401- ● ●
360 COVER; SENSOR 8-98018-401-0 01 1 1307-1312 ●
360 COVER; SENSOR 8-98018-401-0 01 1 1401- ● ●
360 COVER; SENSOR 8-98018-400-0 01 1 1307-1312 ●
360 COVER; SENSOR 8-98018-400-0 01 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
