◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 10869 - CXY(51) RHD AUSTRALIA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#12400) — 136 parça

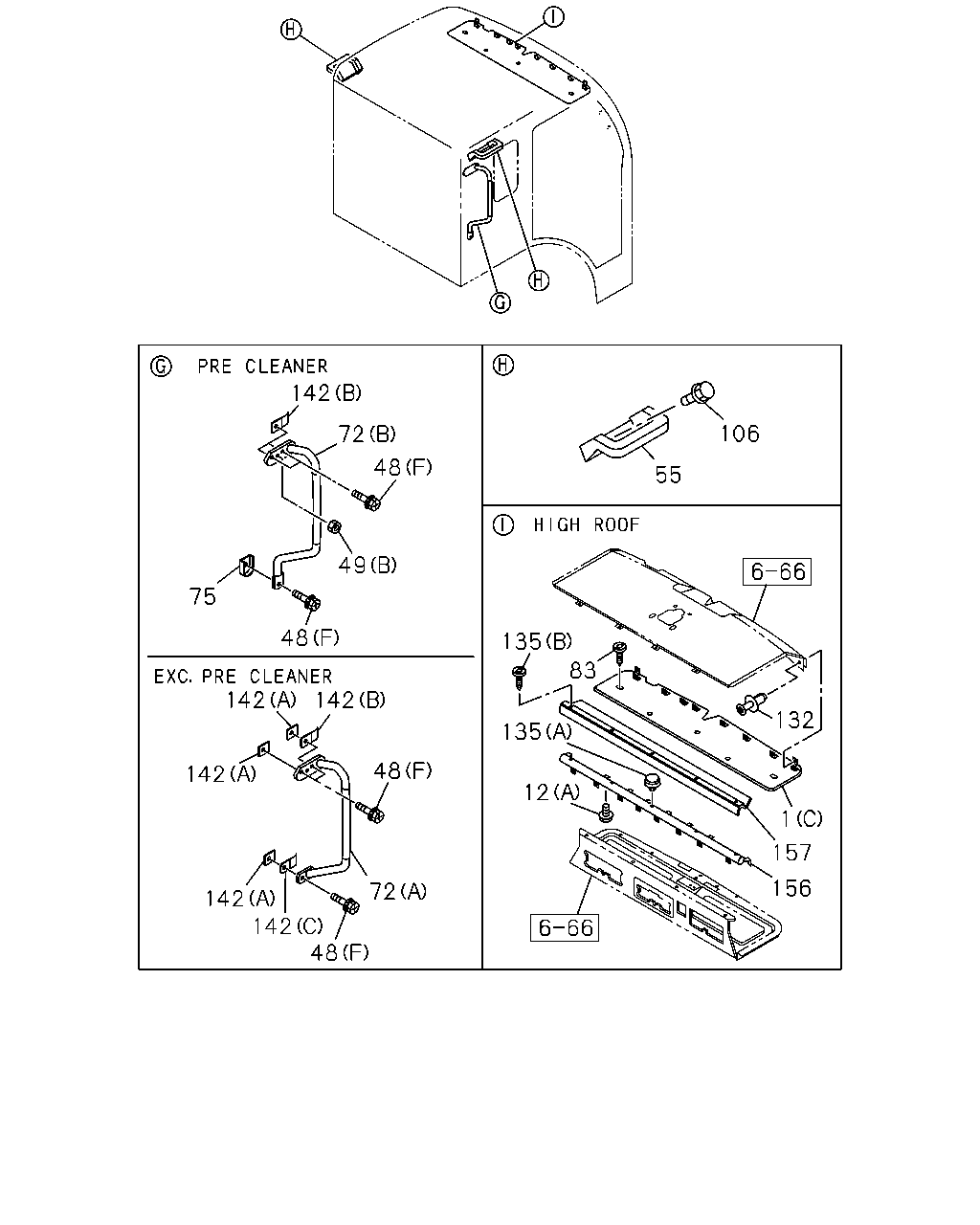

çizim 76045
142 72 48 49 48 75 142 142 142 142 48 72 48 142 135 83 135 12 156 157 1 132 55 106
BalonParca AdiParca NoAdetTipApplied Date
1 BOARD; HEADER SHELF
(B) CENTER 		1-72447-758-3 01 1 0105-
1 BOARD; HEADER SHELF
(A) 		1-72447-761-6 01 1 0105-
1 BOARD; HEADER SHELF
(A) 		1-72447-876-4 01 1 0105-
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (C) 		1-72447-886-7 01 1 0105-
12 SCREW; HEADER SHELF
(B) M6X24 W/LK&PL WASHER 		8-94279-404-0 08 1 0302-
12 SCREW; HEADER SHELF
(B) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0105-0301
12 SCREW; HEADER SHELF
(B) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0105-0301
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> (C) M5X20 		5-09981-059-0 04 1 0105-
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0105-
48 BOLT; ASSIST GRIP
(D) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 0105-
48 BOLT; ASSIST GRIP
(A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 0105-
48 BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0105-
48 BOLT; ASSIST GRIP
(E) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0105-
48 BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 0105-
48 BOLT; ASSIST GRIP
GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER 		8-94279-218-0 03 1 0105-
49 NUT; ASSIST GRIP
(A) M6 FLANGE 		0-91150-106-0 01 1 0105-
49 NUT; ASSIST GRIP
PRE CLEANER<W17> GRIP OUT SIDE<W52> (B) M8 FLANGE 		1-09984-126-0 01 1 0105-0110
55 GRIP; ASSIST,CAB SIDE UPR
GRIP OUT SIDE<W52> 		1-73618-169-1 02 1 0105-
72 GRIP; ASSIST,CAB ENTRY,BACK
GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (A) 		1-71907-608-1 01 1 0105-0110
72 GRIP; ASSIST,CAB ENTRY,BACK
PRE CLEANER<W17> GRIP OUT SIDE<W52> (B) 		1-71907-544-0 01 1 0105-0110
75 SHEET; ASSIST GRIP,CAB ENTRY
PRE CLEANER<W17> GRIP OUT SIDE<W52> 		1-71997-548-0 01 1 0105-0110
83 PLUG
HIGH ROOF<S2F> D6X23 LIGHT GRAY 		1-73318-629-0 03 1 0105-
106 SCREW; ASSIST GRIP
GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 0105-
132 FASTENER; BOARD,HEADER SHELF
HIGH ROOF<S2F> D8X13.5 		1-09987-276-0 08 1 0105-
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (A) D8X13.5 		1-09987-248-1 01 1 0105-
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY 		1-73318-629-0 05 1 0105-
142 SEAL; ASSIST GRIP
GRIP OUT SIDE<W52> (B) 		1-71997-691-0 02 1 0105-0110
142 SEAL; ASSIST GRIP
GRIP OUT SIDE<W52> (A) 25X25 		8-94272-533-0 04 1 0105-
142 SEAL; ASSIST GRIP
GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (C) 		1-71907-604-0 01 1 0105-0110
156 PIPE; HEADER SHELF
HIGH ROOF<S2F> 		1-72447-864-2 01 1 0105-
157 FINISHER; PIPE
HIGH ROOF<S2F> 		1-72447-885-4 01 1 0105-

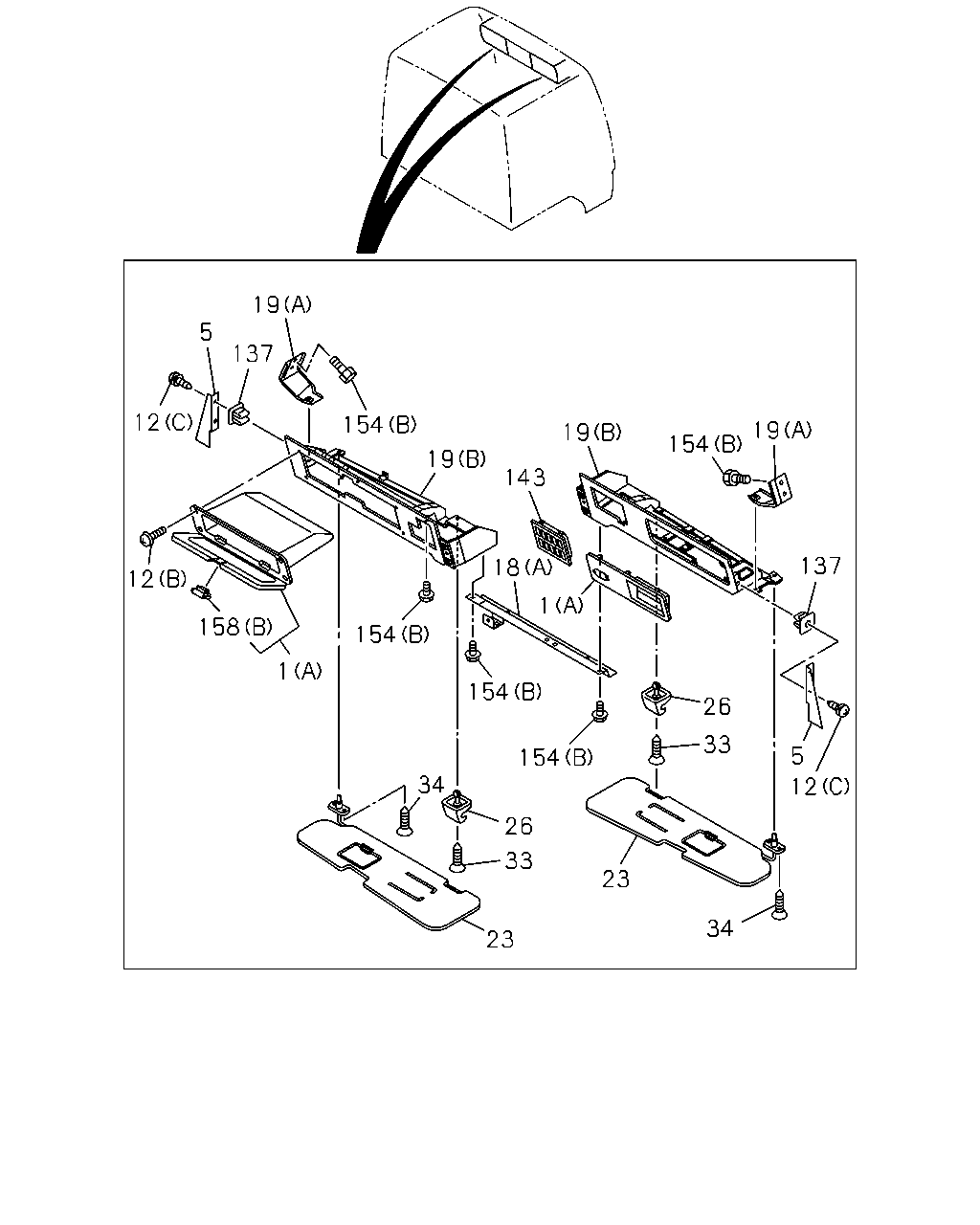

çizim 77359
19 5 137 154 19 143 19 154 19 137 5 12 26 33 34 23 23 33 26 154 34 154 1 18 154 1 158 12 12
BalonParca AdiParca NoAdetTipApplied Date
1 BOARD; HEADER SHELF
(B) CENTER 		1-72447-758-3 01 1 0105-
1 BOARD; HEADER SHELF
(A) 		1-72447-761-6 01 1 0105-
1 BOARD; HEADER SHELF
(A) 		1-72447-876-4 01 1 0105-
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (C) 		1-72447-886-7 01 1 0105-
5 BRACKET; HEADER SHELF FRAME
HIGH ROOF<S2F> 		1-72447-933-0 01 1 0105-
5 BRACKET; HEADER SHELF FRAME
HIGH ROOF<S2F> 		1-72447-932-0 01 1 0105-
12 SCREW; HEADER SHELF
(B) M6X24 W/LK&PL WASHER 		8-94279-404-0 08 1 0302-
12 SCREW; HEADER SHELF
(B) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0105-0301
12 SCREW; HEADER SHELF
(B) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0105-0301
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> (C) M5X20 		5-09981-059-0 04 1 0105-
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0105-
18 SUPPORT; HEADER SHELF CENTER
(B) 		1-72447-824-2 01 1 0105-
18 SUPPORT; HEADER SHELF CENTER
(A) 		1-72447-877-2 01 1 0105-
19 SUPPORT ASM; HEADER SHELF
(B) 		1-72447-879-7 01 1 0105-
19 SUPPORT ASM; HEADER SHELF
(A) 		1-72448-324-1 01 1 0105-
19 SUPPORT ASM; HEADER SHELF
(B) 		1-72447-878-4 01 1 0105-
19 SUPPORT ASM; HEADER SHELF
(A) 		1-72448-323-1 01 1 0105-
23 SUN VISOR 1-73138-157-1 01 1 0105-
23 SUN VISOR 1-73138-156-1 01 1 0105-
26 HOLDER; SUN VISOR 1-73137-175-0 01 1 0105-
26 HOLDER; SUN VISOR 1-73137-175-0 01 1 0105-
33 SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD 		0-70580-420-0 01 1 0105-
33 SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD 		0-70580-420-0 01 1 0105-
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 04 1 0105-
137 GROMMET; SCREW,HEADER SHELF
HIGH ROOF<S2F> D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 0105-
143 BEZEL 1-72447-768-2 01 1 0105-
154 BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 18 1 0105-
154 BOLT; SUPPORT
GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER 		1-79198-003-2 04 1 0105-
154 BOLT; SUPPORT
HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 08 1 0105-
154 BOLT; SUPPORT
EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 08 1 0105-
154 BOLT; SUPPORT
HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 12 1 0105-
158 LOCK; HEADER SHELF
(A) 		1-72538-180-0 01 1 0105-
158 LOCK; HEADER SHELF
(B) 		1-72448-376-0 01 1 0105-

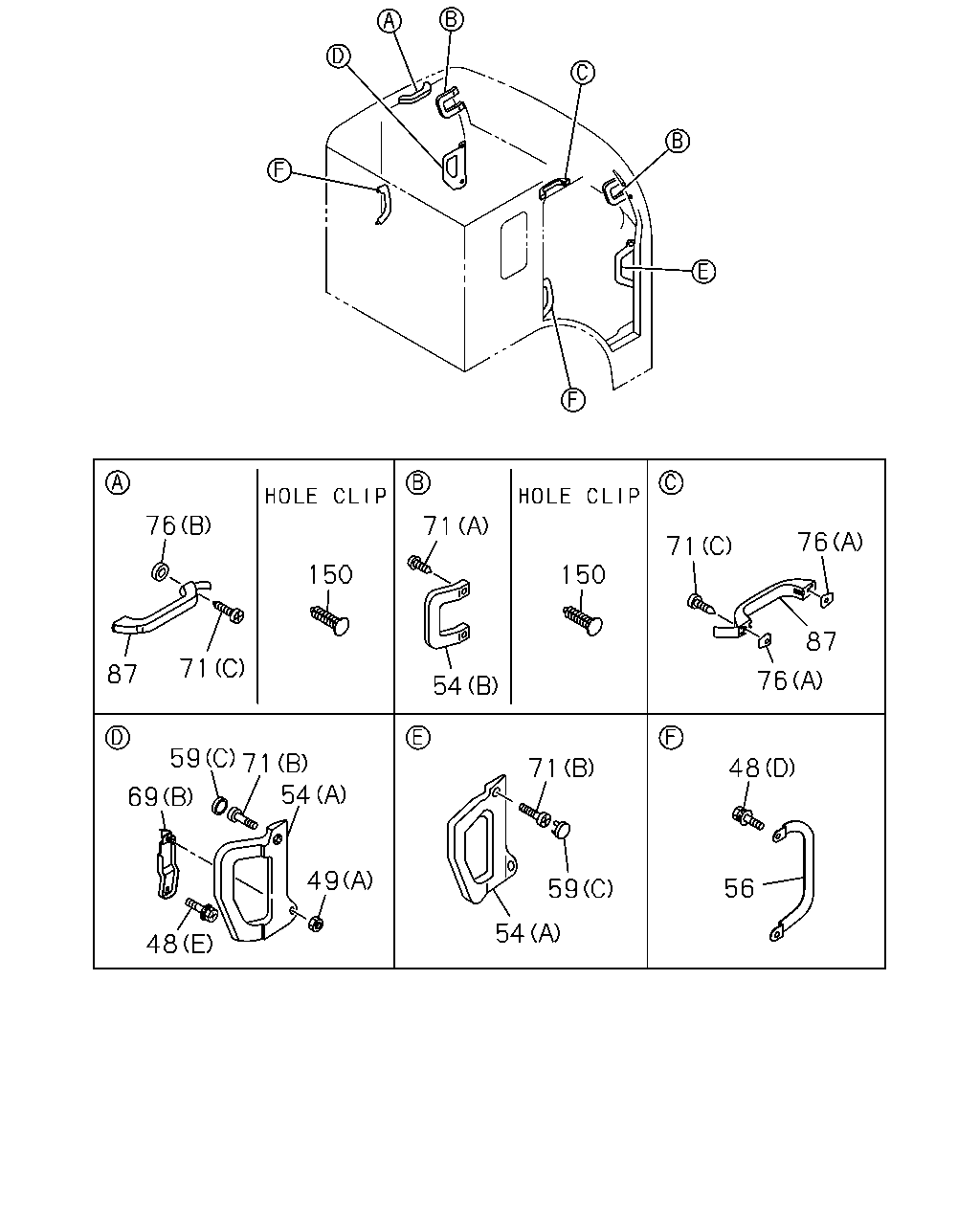

çizim 78547
76 87 71 150 71 54 150 71 76 87 76 48 56 71 59 54 49 48 69 59 71 54
BalonParca AdiParca NoAdetTipApplied Date
48 BOLT; ASSIST GRIP
(D) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 0105-
48 BOLT; ASSIST GRIP
(A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 0105-
48 BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0105-
48 BOLT; ASSIST GRIP
(E) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0105-
48 BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 0105-
48 BOLT; ASSIST GRIP
GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER 		8-94279-218-0 03 1 0105-
49 NUT; ASSIST GRIP
(A) M6 FLANGE 		0-91150-106-0 01 1 0105-
49 NUT; ASSIST GRIP
PRE CLEANER<W17> GRIP OUT SIDE<W52> (B) M8 FLANGE 		1-09984-126-0 01 1 0105-0110
54 GRIP; ASSIST,QUARTER SIDE
(A) 		1-73617-564-1 01 1 0105-
54 GRIP; ASSIST,QUARTER SIDE
(A) 		1-73617-563-1 01 1 0105-
54 GRIP; ASSIST,QUARTER SIDE
ASSIST GRIP A POST<NBK> (B) 		1-73618-185-1 02 1 0105-
54 GRIP; ASSIST,QUARTER SIDE
EXC. ASSIST GRIP A POST<NBK> (B) 		1-73618-185-1 01 1 0105-
56 GRIP; ASSIST,SIDE SILL 1-73617-062-5 02 1 0105-0402
56 GRIP; ASSIST,SIDE SILL 1-73617-570-0 02 1 0403-
59 COVER; ASSIST GRIP
(B) OUTER 		1-71998-789-2 02 1 0105-
59 COVER; ASSIST GRIP
(A) INNER 		1-71998-790-2 02 1 0105-
59 COVER; ASSIST GRIP
(C) 		1-73617-565-0 02 1 0105-
69 BRACKET; ASSIST GRIP
(A) 		1-65570-243-0 01 1 0105-
69 BRACKET; ASSIST GRIP
(B) 		1-73618-178-2 01 1 0105-
69 BRACKET; ASSIST GRIP
(A) 		1-65570-242-0 01 1 0105-
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-073-0 03 1 0105-
71 SCREW
ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER 		1-09981-422-0 04 1 0105-0310
71 SCREW
ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER 		5-09981-064-0 04 1 0311-
71 SCREW
ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0105-
71 SCREW
EXC. ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER 		1-09981-422-0 02 1 0105-0310
71 SCREW
EXC. ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER 		5-09981-064-0 02 1 0311-
71 SCREW
EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER 		8-94279-411-0 02 1 0105-
76 SPACER; ASSIST GRIP
ASSIST GRIP A POST<NBK> EXC. HIGH ROOF<S2F> (B) OD=13 T=4.5 		8-94230-464-1 02 1 0105-
76 SPACER; ASSIST GRIP
EXC. HIGH ROOF<S2F> (A) 		1-73618-180-0 02 1 0105-
87 GRIP; ASSIST,CANT RAIL SIDE
ASSIST GRIP A POST<NBK> DARK GRAY 		8-97098-476-2 02 1 0105-
87 GRIP; ASSIST,CANT RAIL SIDE
EXC. ASSIST GRIP A POST<NBK> DARK GRAY 		8-97098-476-2 01 1 0105-
150 CLIP; ASSIST GRIP HOLE
EXC. ASSIST GRIP A POST<NBK> OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0105-

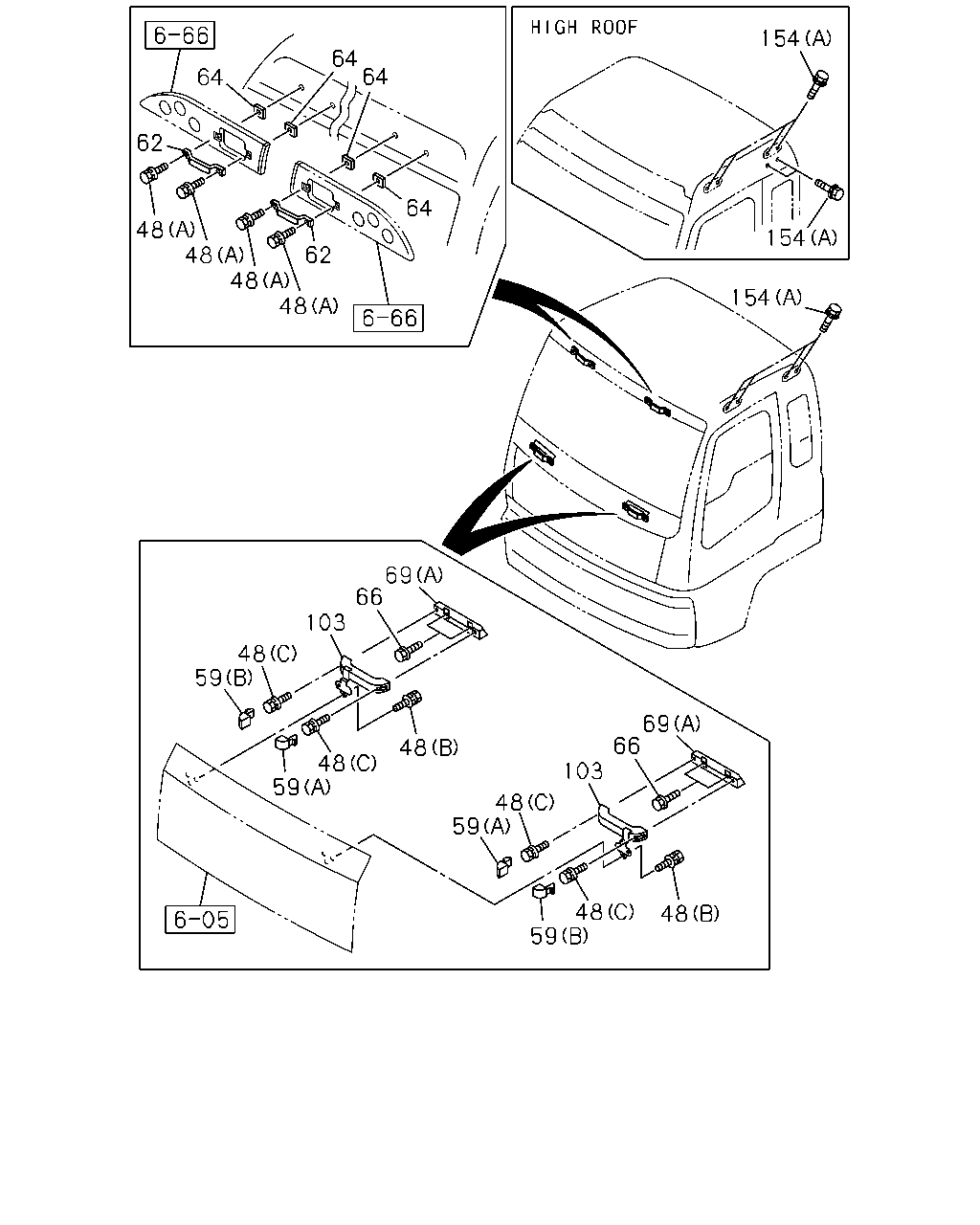

çizim 78693
64 64 64 62 48 48 48 48 62 64 154 154 154 69 66 103 48 59 59 48 48 69 66 103 48 59 59 48 48
BalonParca AdiParca NoAdetTipApplied Date
48 BOLT; ASSIST GRIP
(D) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 0105-
48 BOLT; ASSIST GRIP
(A) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 0105-
48 BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0105-
48 BOLT; ASSIST GRIP
(E) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0105-
48 BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 0105-
48 BOLT; ASSIST GRIP
GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER 		8-94279-218-0 03 1 0105-
59 COVER; ASSIST GRIP
(B) OUTER 		1-71998-789-2 02 1 0105-
59 COVER; ASSIST GRIP
(A) INNER 		1-71998-790-2 02 1 0105-
59 COVER; ASSIST GRIP
(C) 		1-73617-565-0 02 1 0105-
62 GRIP; ASSIST,ROOF PANEL 1-71907-492-0 02 1 0105-
64 SHEET; ASSIST GRIP
25X25 		8-94272-533-0 04 1 0105-
66 BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0105-
69 BRACKET; ASSIST GRIP
(A) 		1-65570-243-0 01 1 0105-
69 BRACKET; ASSIST GRIP
(B) 		1-73618-178-2 01 1 0105-
69 BRACKET; ASSIST GRIP
(A) 		1-65570-242-0 01 1 0105-
103 GRIP; ASSIST,FRT PNL 1-71998-940-3 01 1 0105-
103 GRIP; ASSIST,FRT PNL 1-71998-939-3 01 1 0105-
154 BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 18 1 0105-
154 BOLT; SUPPORT
GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER 		1-79198-003-2 04 1 0105-
154 BOLT; SUPPORT
HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 08 1 0105-
154 BOLT; SUPPORT
EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 08 1 0105-
154 BOLT; SUPPORT
HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 12 1 0105-
çizim 80735
12 1 158 18 154
BalonParca AdiParca NoAdetTipApplied Date
1 BOARD; HEADER SHELF
(B) CENTER 		1-72447-758-3 01 1 0105-
1 BOARD; HEADER SHELF
(A) 		1-72447-761-6 01 1 0105-
1 BOARD; HEADER SHELF
(A) 		1-72447-876-4 01 1 0105-
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (C) 		1-72447-886-7 01 1 0105-
12 SCREW; HEADER SHELF
(B) M6X24 W/LK&PL WASHER 		8-94279-404-0 08 1 0302-
12 SCREW; HEADER SHELF
(B) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0105-0301
12 SCREW; HEADER SHELF
(B) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0105-0301
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> (C) M5X20 		5-09981-059-0 04 1 0105-
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0105-
18 SUPPORT; HEADER SHELF CENTER
(B) 		1-72447-824-2 01 1 0105-
18 SUPPORT; HEADER SHELF CENTER
(A) 		1-72447-877-2 01 1 0105-
154 BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 18 1 0105-
154 BOLT; SUPPORT
GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER 		1-79198-003-2 04 1 0105-
154 BOLT; SUPPORT
HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 08 1 0105-
154 BOLT; SUPPORT
EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 08 1 0105-
154 BOLT; SUPPORT
HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 12 1 0105-
158 LOCK; HEADER SHELF
(A) 		1-72538-180-0 01 1 0105-
158 LOCK; HEADER SHELF
(B) 		1-72448-376-0 01 1 0105-
