3-77 — BRAKE PIPING; AIR,REAR (#123998) — 117 parça
çizim 363429
318 97 144 98 37 223 192
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 1307-1312 ●
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 1401- ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 1307-1312 ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 1401- ● ●
97 UNION; AIR PIPE
M16 STRAIGHT L=42 		0-92123-010-0 01 1 1307-1312 ●
97 UNION; AIR PIPE
M16 STRAIGHT L=42 		0-92123-010-0 01 1 1401- ● ●
98 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1307-1312 ●
98 NUT; PIPE UNION
M16 		0-91111-516-0 01 1 1401- ● ●
144 PIPE; AIR,UNION TO UNION
L=1204 SERVICED BY L=1250 		1-47428-876-0 01 1 1307-1312 ●
144 PIPE; AIR,UNION TO UNION
L=1204 SERVICED BY L=1250 		1-47428-876-0 01 1 1401- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1307- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1307- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1307- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1307- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1307- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1307- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=6000 ID=15 		1-87411-037-0 AR 1 1307- ● ●
223 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1307- ● ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4600MM(46W) L=1469 SERVICED BY L=1550 		1-47428-879-0 01 1 1401- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 5300MM(53W) L=2211 SERVICED BY L=2500 		1-47428-883-0 01 1 1401- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 3700MM(37W) L=593 SERVICED BY L=600 		1-47428-868-0 01 1 1307- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4000MM(40W) L=858 SERVICED BY L=900 		1-47428-873-0 01 1 1307- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 4600MM(46W) L=1458 SERVICED BY L=1550 		1-47428-879-0 01 1 1307- ●
318 PIPE; AIR,UNION TO AIR TANK
WHEEL BASE 5300MM(53W) L=2118 SERVICED BY L=2500 		1-47428-883-0 01 1 1307- ●

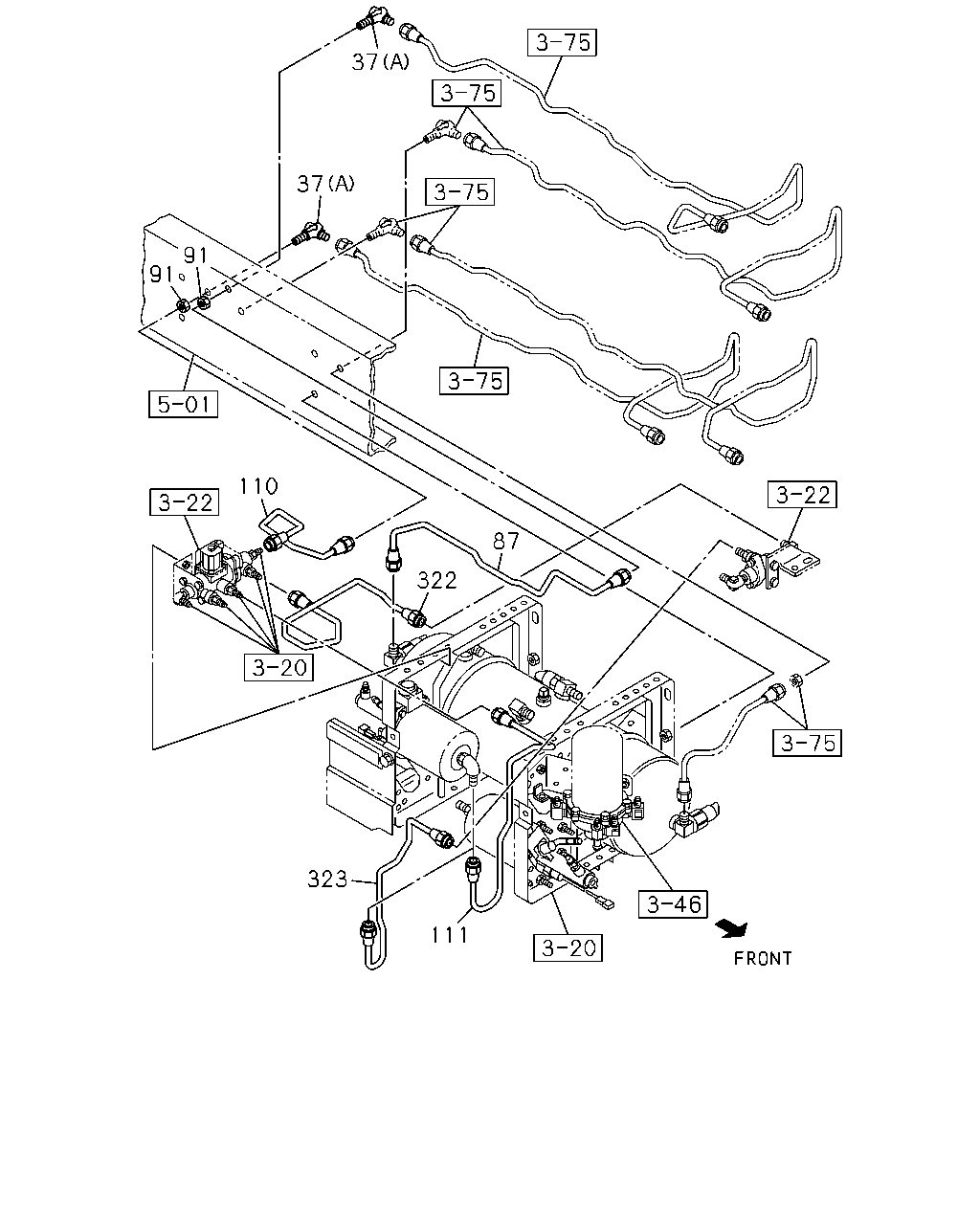

çizim 363670
37 37 91 91 110 111 323 87 322
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 1307-1312 ●
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 1401- ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 1307-1312 ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 1401- ● ●
87 PIPE; AIR,AIR TANK TO UNION
L=670 SERVICED BY L=700 		1-47428-870-0 01 1 1307-1312 ●
87 PIPE; AIR,AIR TANK TO UNION
L=670 SERVICED BY L=700 		1-47428-870-0 01 1 1401- ● ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 1307-1312 ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 1401- ● ●
110 PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> L=473 		8-98067-756-0 01 1 1307-1312 ●
110 PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> L=473 		8-98067-756-0 01 1 1401- ● ●
111 PIPE; AIR,VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) L=586 SERVICED BY L=600 		1-47428-868-0 01 1 1307-1312 ●
111 PIPE; AIR,VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) L=586 SERVICED BY L=600 		1-47428-868-0 01 1 1401- ● ●
322 PIPE; AIR,HSA VLV TO DBL CHK VLV
THROTTLE CONTROL SYSTEM(6XH) L=673 SERVICED BY L=700 		1-47428-870-0 01 1 1307-1312 ●
322 PIPE; AIR,HSA VLV TO DBL CHK VLV
THROTTLE CONTROL SYSTEM(6XH) L=673 SERVICED BY L=700 		1-47428-870-0 01 1 1401- ● ●
323 PIPE; AIR,DBL CHK VLV
THROTTLE CONTROL SYSTEM(6XH) L=614 SERVICED BY L=660 		1-47428-869-0 01 1 1307-1312 ●
323 PIPE; AIR,DBL CHK VLV
THROTTLE CONTROL SYSTEM(6XH) L=614 SERVICED BY L=660 		1-47428-869-0 01 1 1401- ● ●

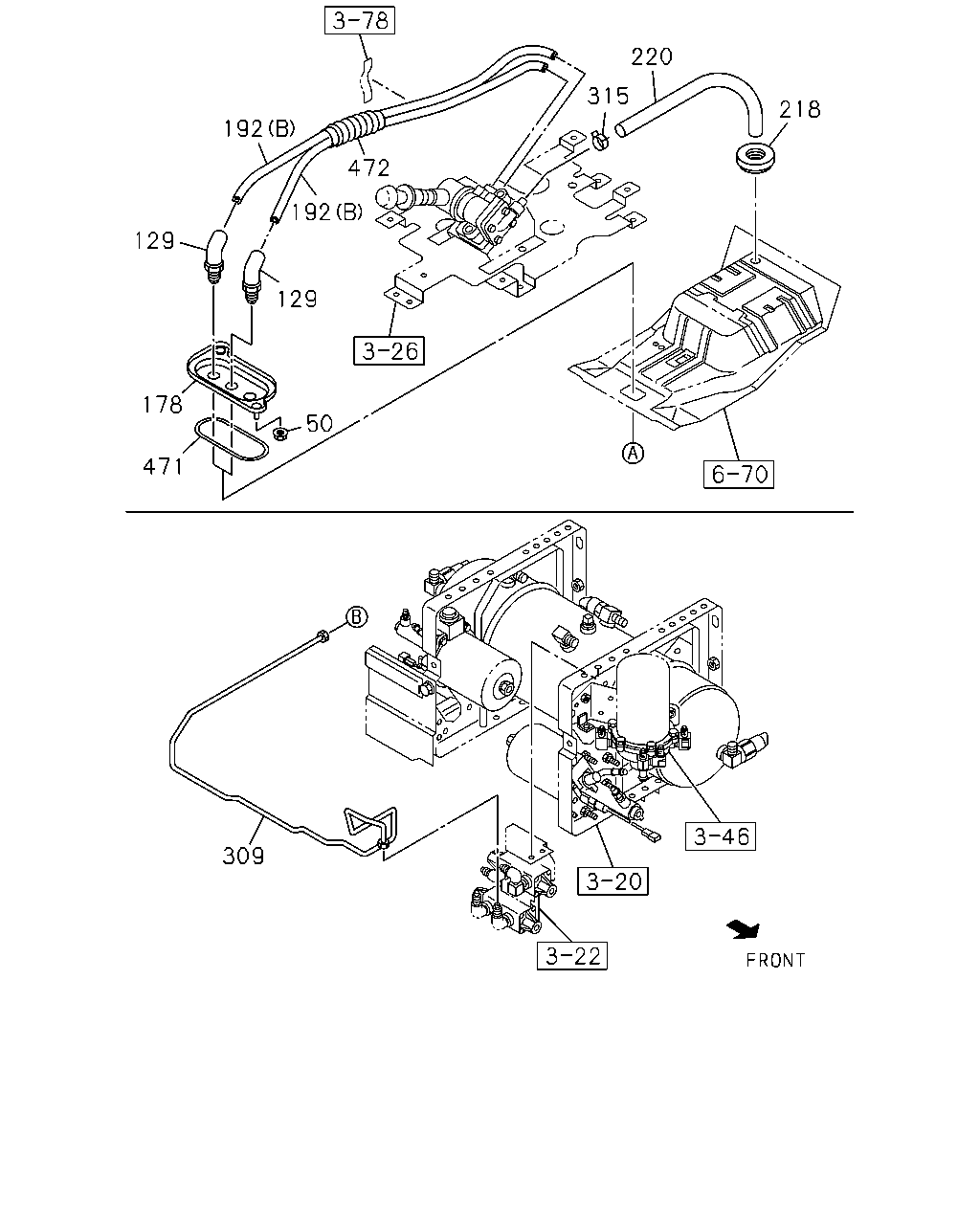

çizim 364363
472 315 220 218 129 192 129 178 471 309 192 50
BalonParca AdiParca NoAdetTipApplied Date A B
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1307-1312 ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1401- ● ●
178 BRACKET; UNION 8-98017-054-1 01 1 1307-1312 ●
178 BRACKET; UNION 8-98017-054-1 01 1 1401- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1307- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1307- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1307- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1307- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1307- ● ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 1307-1312 ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 1401- ● ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1307-1312 ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1401- ● ●
309 PIPE; AIR,MPV TO UNION
L=1336 SERVICED BY L=1400 		1-47428-878-0 01 1 1307-1312 ●
309 PIPE; AIR,MPV TO UNION
L=1336 SERVICED BY L=1400 		1-47428-878-0 01 1 1401- ● ●
315 CLIP
ID=14 		8-94238-572-0 01 1 1307-1312 ●
315 CLIP
ID=14 		8-94238-572-0 01 1 1401- ● ●
471 SEAL; BRKT 1-79738-832-0 01 1 1307-1312 ●
471 SEAL; BRKT 1-79738-832-0 01 1 1401- ● ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 1307-1312 ●
472 TUBE; SPUTTER 8-98067-708-0 01 1 1401- ● ●

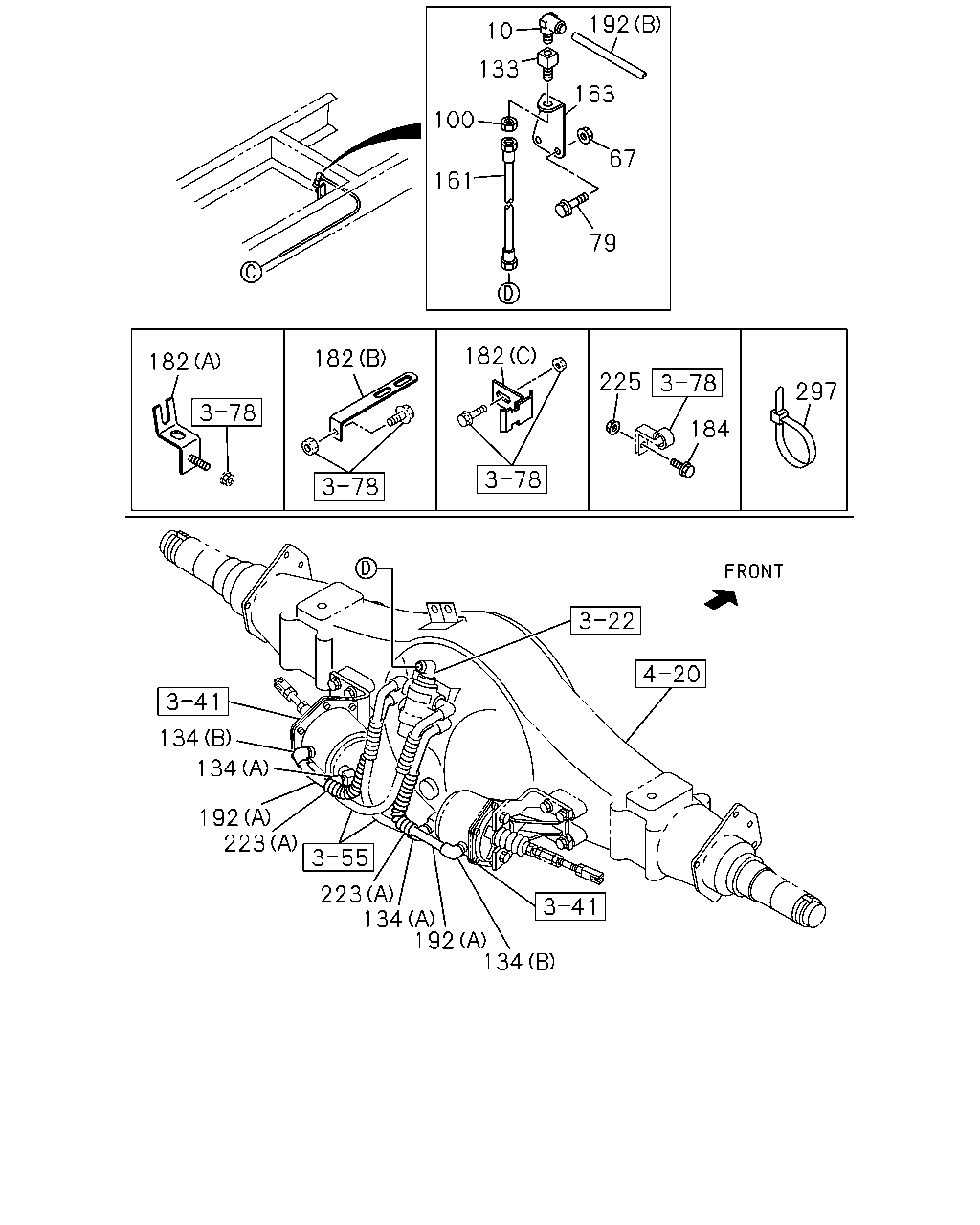

çizim 364473
10 133 100 161 192 163 67 79 182 182 182 225 184 297 134 134 192 223 223 134 192 134
BalonParca AdiParca NoAdetTipApplied Date A B
10 CONNECTOR; FLEX HOSE
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1307-1312 ●
10 CONNECTOR; FLEX HOSE
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1401- ● ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1307-1312 ●
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1401- ● ●
100 NUT; UNION
M16 		0-91111-516-0 01 1 1307-1312 ●
100 NUT; UNION
M16 		0-91111-516-0 01 1 1401- ● ●
133 UNION; NIPPLE
PT3/8 & M16 STRAIGHT 		8-98202-001-0 01 1 1307-1312 ●
133 UNION; NIPPLE
PT3/8 & M16 STRAIGHT 		8-98202-001-0 01 1 1401- ● ●
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1307-1312 ●
134 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1401- ● ●
134 CONNECTOR
(B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 1307-1312 ●
134 CONNECTOR
(B) DIN6 & R3/8 ELBOW 		1-09661-234-0 02 1 1401- ● ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=420 		1-09363-805-0 01 1 1401- ●
161 HOSE; FLEX,QUICK RELEASE VLV
L=460 		1-09363-963-0 01 1 1307- ●
163 BRACKET; FLEX HOSE 8-98241-571-0 01 1 1401- ●
163 BRACKET; FLEX HOSE 8-98044-842-0 01 1 1307- ●
182 BRACKET; TUBE CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 1401- ●
182 BRACKET; TUBE CLIP
(C) 		1-47479-693-0 01 1 1401- ●
182 BRACKET; TUBE CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (A) 		8-98096-272-0 01 1 1307-1312 ●
182 BRACKET; TUBE CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 5300MM(53W) (A) 		8-98096-272-0 01 1 1401- ●
182 BRACKET; TUBE CLIP
(A) 		8-98096-272-0 01 1 1401- ●
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1307-1312 ●
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1401- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1307- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1307- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1307- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1307- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1307- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1307- ● ●
223 TUBE; CORRUGATE
(B) SERVICED BY L=6000 ID=15 		1-87411-037-0 AR 1 1307- ● ●
223 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1307- ● ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1307-1312 ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1401- ● ●
297 CLIP; BAND
WHEEL BASE 4600MM(46W) L=350 		1-09707-183-0 08 1 1401- ●
297 CLIP; BAND
WHEEL BASE 5300MM(53W) L=350 		1-09707-183-0 10 1 1401- ●
297 CLIP; BAND
WHEEL BASE 3700MM(37W) L=350 		1-09707-183-0 04 1 1307- ●
297 CLIP; BAND
WHEEL BASE 4000MM(40W) L=350 		1-09707-183-0 05 1 1307-1312 ●
297 CLIP; BAND
L=350 		1-09707-183-0 05 1 1307-1312 ●
297 CLIP; BAND
L=350 		1-09707-183-0 05 1 1401- ● ●
297 CLIP; BAND
WHEEL BASE 4000MM(40W) L=350 		1-09707-183-0 05 1 1401- ●
297 CLIP; BAND
WHEEL BASE 4600MM(46W) L=350 		1-09707-183-0 07 1 1307- ●
297 CLIP; BAND
WHEEL BASE 5300MM(53W) L=350 		1-09707-183-0 09 1 1307- ●

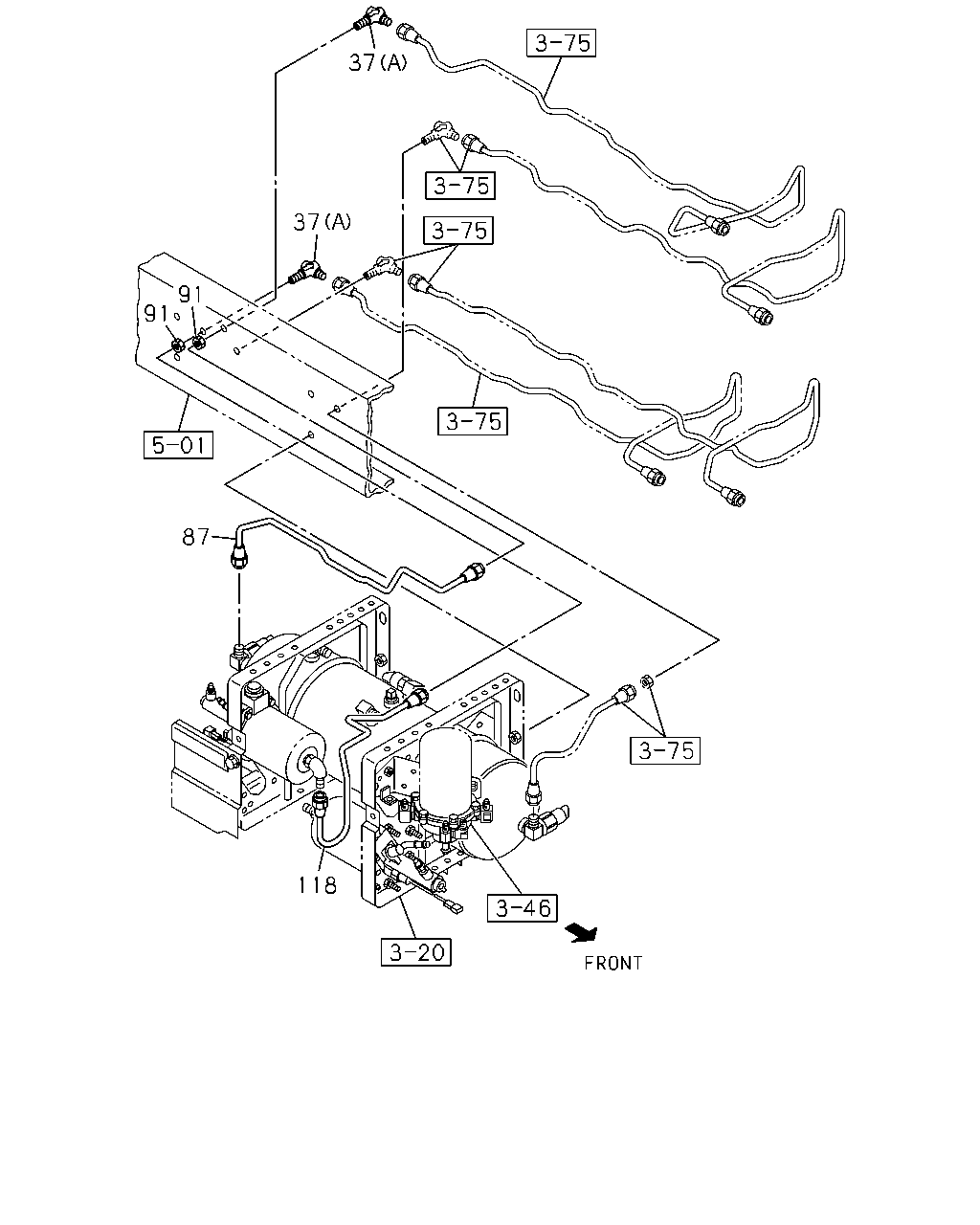

çizim 366287
37 37 91 91 87 118
BalonParca AdiParca NoAdetTipApplied Date A B
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 1307-1312 ●
37 UNION; AIR PIPE
(B) M16 L=74 		0-92123-310-0 01 1 1401- ● ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 1307-1312 ●
37 UNION; AIR PIPE
(A) M16 ELBOW 		0-92135-210-0 02 1 1401- ● ●
87 PIPE; AIR,AIR TANK TO UNION
L=670 SERVICED BY L=700 		1-47428-870-0 01 1 1307-1312 ●
87 PIPE; AIR,AIR TANK TO UNION
L=670 SERVICED BY L=700 		1-47428-870-0 01 1 1401- ● ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 1307-1312 ●
91 NUT; PIPE UNION
M16 		0-91111-516-0 02 1 1401- ● ●
118 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=745 SERVICED BY L=800 		1-47428-872-0 01 1 1307-1312 ●
118 PIPE; AIR,UNION TO AIR MASTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) L=745 SERVICED BY L=800 		1-47428-872-0 01 1 1401- ● ●
