3-70 — BRAKE PIPING; AIR,AIR MASTER (#123996) — 176 parça

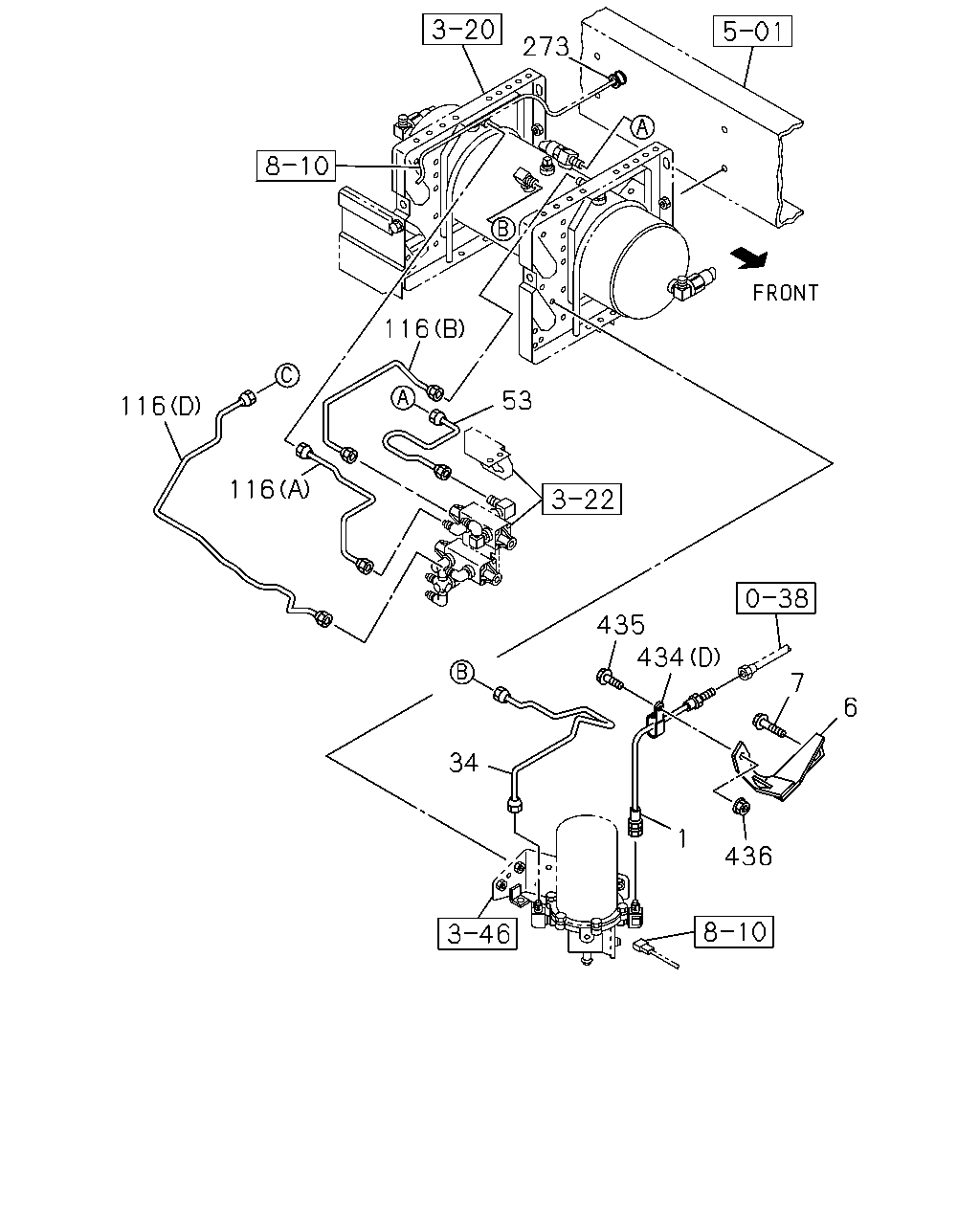

273 116 116 116 53 436 435 34 7 6 1 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK POWER TAKE OFF-FLYWHEEL<6SZ>	8-98080-163-1	01	1	1307-	●
1	HOSE; FLEX,AIR TANK EXC. POWER TAKE OFF-FLYWHEEL<6SZ>	8-98066-976-1	01	1	1307-1312	●
1	HOSE; FLEX,AIR TANK EXC. POWER TAKE OFF-FLYWHEEL<6SZ>	8-98066-976-1	01	1	1401-	●
1	HOSE; FLEX,AIR TANK	8-98066-976-1	01	1	1401-		●
6	BRACKET; FLEX HOSE,AIR TANK	8-98214-081-1	01	1	1307-1312	●
6	BRACKET; FLEX HOSE,AIR TANK	8-98214-081-1	01	1	1401-	●	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	1307-1312	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	1401-	●	●
34	PIPE; AIR L=673 SERVICED BY L=700	1-49115-481-0	01	1	1307-1312	●
34	PIPE; AIR L=673 SERVICED BY L=700	1-49115-481-0	01	1	1401-	●	●
53	PIPE; AIR,AIR TANK TO VALVE	8-98213-331-0	01	1	1307-1312	●
53	PIPE; AIR,AIR TANK TO VALVE	8-98213-331-0	01	1	1401-	●	●
116	PIPE; AIR,PROTECTION VLV (A) L=1072 SERVICED BY L=1100	1-47428-815-0	01	1	1307-1312	●
116	PIPE; AIR,PROTECTION VLV (A) L=1072 SERVICED BY L=1100	1-47428-815-0	01	1	1401-	●	●
116	PIPE; AIR,PROTECTION VLV (B) L=382	8-98077-880-0	01	1	1307-1312	●
116	PIPE; AIR,PROTECTION VLV (B) L=382	8-98077-880-0	01	1	1401-	●	●
116	PIPE; AIR,PROTECTION VLV (D) L=480	8-98213-332-0	01	1	1307-1312	●
116	PIPE; AIR,PROTECTION VLV (D) L=480	8-98213-332-0	01	1	1401-	●	●
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=585 SERVICED BY L=600	1-47428-809-0	01	1	1307-1312	●
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=585 SERVICED BY L=600	1-47428-809-0	01	1	1401-	●	●
273	GROMMET ID=28 OD=35 T=17	9-09956-256-2	02	1	1307-1312	●
273	GROMMET ID=28 OD=35 T=17	9-09956-256-2	02	1	1401-	●	●
434	CLIP (E) ID=18-24 L=14.5	1-09709-298-0	02	1	1307-1312	●
434	CLIP (E) ID=18-24 L=14.5	1-09709-298-0	02	1	1401-	●	●
434	CLIP (C) ID=7 L=20	0-95234-635-0	01	1	1307-1312	●
434	CLIP (C) ID=7 L=20	0-95234-635-0	01	1	1401-	●	●
434	CLIP (D) ID=35 L=33	1-09700-945-0	01	1	1307-1312	●
434	CLIP (D) ID=35 L=33	1-09700-945-0	01	1	1401-	●	●
434	CLIP (A) L=350	1-09707-183-0	01	1	1307-1312	●
434	CLIP (A) L=350	1-09707-183-0	01	1	1401-	●	●
434	CLIP (A) L=350	1-09707-183-0	08	1	1307-1312	●
434	CLIP (A) L=350	1-09707-183-0	08	1	1401-	●	●
434	CLIP (B) ID=10 & 15	1-09709-279-1	01	1	1307-1312	●
434	CLIP (B) ID=10 & 15	1-09709-279-1	01	1	1401-	●	●
434	CLIP WHEEL BASE 3700MM(37W) (C) ID=22 L=32	1-09700-126-1	01	1	1307-	●
434	CLIP WHEEL BASE 3700MM(37W) (A) L=350	1-09707-183-0	02	1	1307-	●
434	CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (A) L=350	1-09707-183-0	04	1	1307-1312	●
434	CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (A) L=350	1-09707-183-0	04	1	1401-	●
434	CLIP WHEEL BASE 4600MM(46W) (A) L=350	1-09707-183-0	04	1	1401-		●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	05	1	1307-1312	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	05	1	1401-	●
434	CLIP (A) L=350	1-09707-183-0	05	1	1401-		●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	03	1	1307-1312	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	03	1	1401-	●
434	CLIP WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	03	1	1401-		●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●
435	BOLT; CLIP WHEEL BASE 3700MM(37W) M8X25 FLANGE	0-28650-825-0	01	1	1307-1312	●
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1307-1312	●
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1401-	●	●
435	BOLT; CLIP WHEEL BASE 3700MM(37W) M8X25 FLANGE	0-28650-825-0	01	1	1401-	●
436	NUT; CLIP WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
436	NUT; CLIP WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	01	1	1401-	●

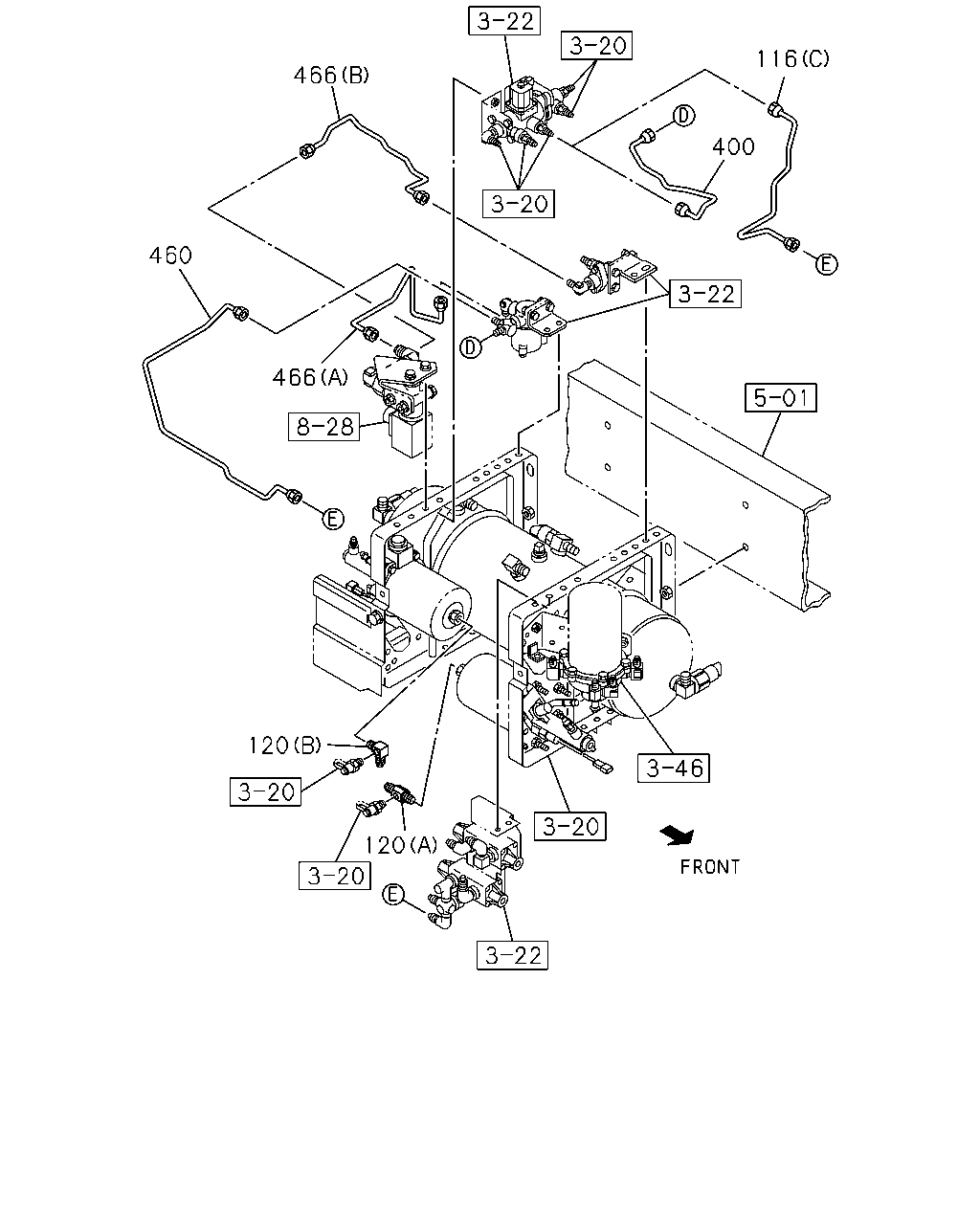

466 460 466 400 116 120 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
116	PIPE; AIR,PROTECTION VLV (A) L=1072 SERVICED BY L=1100	1-47428-815-0	01	1	1307-1312	●
116	PIPE; AIR,PROTECTION VLV (A) L=1072 SERVICED BY L=1100	1-47428-815-0	01	1	1401-	●	●
116	PIPE; AIR,PROTECTION VLV (B) L=382	8-98077-880-0	01	1	1307-1312	●
116	PIPE; AIR,PROTECTION VLV (B) L=382	8-98077-880-0	01	1	1401-	●	●
116	PIPE; AIR,PROTECTION VLV (D) L=480	8-98213-332-0	01	1	1307-1312	●
116	PIPE; AIR,PROTECTION VLV (D) L=480	8-98213-332-0	01	1	1401-	●	●
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=585 SERVICED BY L=600	1-47428-809-0	01	1	1307-1312	●
116	PIPE; AIR,PROTECTION VLV H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=585 SERVICED BY L=600	1-47428-809-0	01	1	1401-	●	●
120	CONNECTOR; AIR PIPE (A) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	1307-1312	●
120	CONNECTOR; AIR PIPE (A) M16 & PT3/8 STRAIGHT	1-09656-643-1	01	1	1401-	●	●
120	CONNECTOR; AIR PIPE (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1307-1312	●
120	CONNECTOR; AIR PIPE (B) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	1401-	●	●
400	PIPE; AIR,HSA VLV THROTTLE CONTROL SYSTEM(6XH) L=467	8-98066-848-0	01	1	1307-1312	●
400	PIPE; AIR,HSA VLV THROTTLE CONTROL SYSTEM(6XH) L=467	8-98066-848-0	01	1	1401-	●	●
460	PIPE; AIR,PROTECTION VALVE THROTTLE CONTROL SYSTEM(6XH) L=1036	8-98225-793-0	01	1	1307-1312	●
460	PIPE; AIR,PROTECTION VALVE THROTTLE CONTROL SYSTEM(6XH) L=1036	8-98225-793-0	01	1	1401-	●	●
466	PIPE; AIR,ASR THROTTLE CONTROL SYSTEM(6XH) (B) L=682 SERVICED BY L=700	1-47428-870-0	01	1	1307-1312	●
466	PIPE; AIR,ASR THROTTLE CONTROL SYSTEM(6XH) (B) L=682 SERVICED BY L=700	1-47428-870-0	01	1	1401-	●	●
466	PIPE; AIR,ASR THROTTLE CONTROL SYSTEM(6XH) (A) L=492	8-98077-879-0	01	1	1307-1312	●
466	PIPE; AIR,ASR THROTTLE CONTROL SYSTEM(6XH) (A) L=492	8-98077-879-0	01	1	1401-	●	●

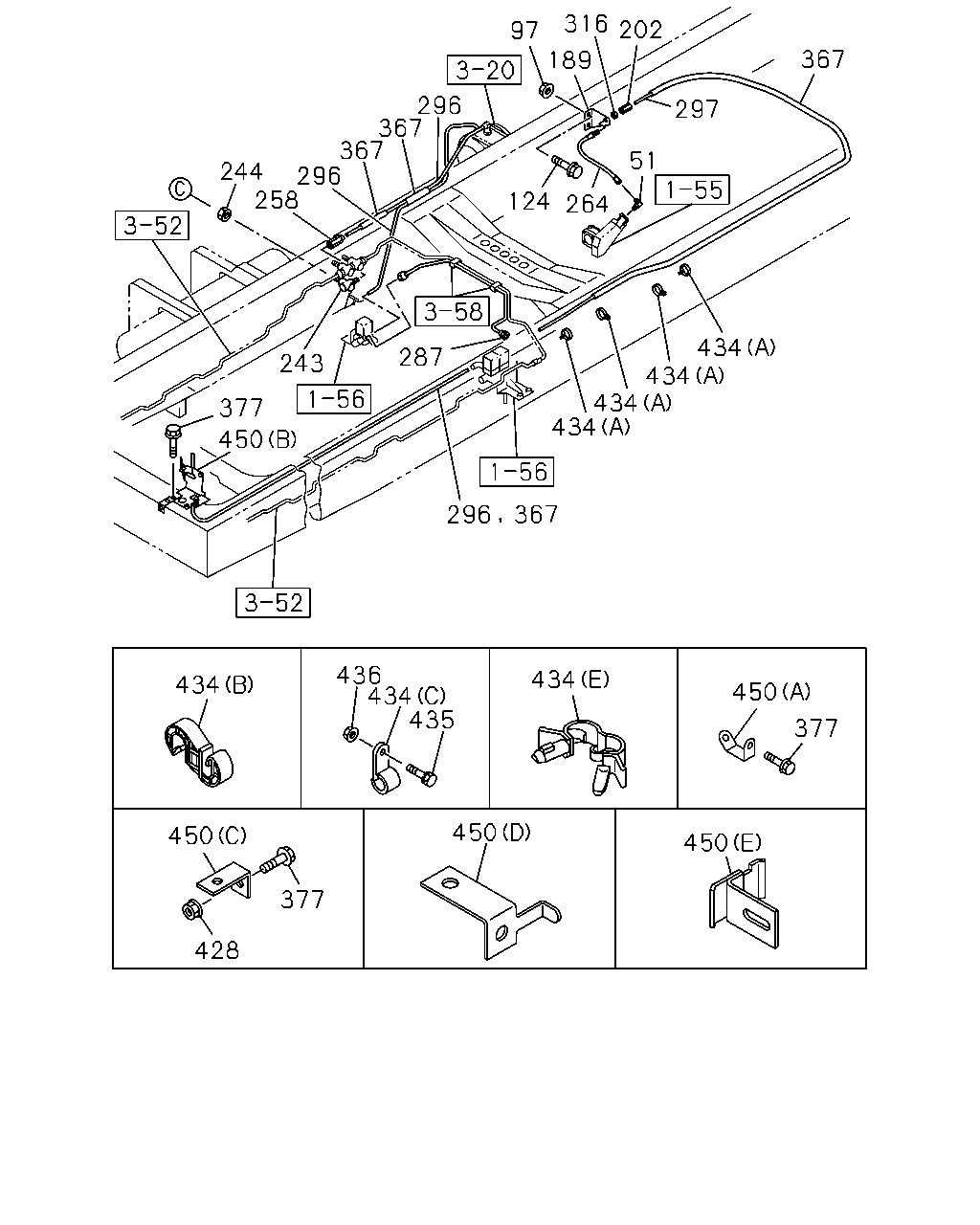

244 258 296 367 367 296 97 189 316 202 367 297 51 124 264 287 243 377 450 296 367 434 434 434 434 434 436 434 435 434 450 377 450 450 450 377 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	UNION M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1307-1312	●
51	UNION M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1401-	●	●
97	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1307-1312	●
97	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1401-	●	●
124	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	1307-1312	●
124	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	1401-	●	●
189	BRACKET; FLEX HOSE	8-98054-640-0	01	1	1307-1312	●
189	BRACKET; FLEX HOSE	8-98054-640-0	01	1	1401-	●	●
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1307-1312	●
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1401-	●	●
243	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	1307-1312	●
243	UNION; AIR PIPE M12 ELBOW	0-92125-206-0	01	1	1401-	●	●
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1307-1312	●
244	NUT; UNION,AIR PIPE M12	9-09840-280-0	01	1	1401-	●	●
258	CONNECTOR; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1307-1312	●
258	CONNECTOR; NYLON TUBE DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1401-	●	●
264	HOSE; FLEX L=220	1-09363-627-0	01	1	1307-1312	●
264	HOSE; FLEX L=220	1-09363-627-0	01	1	1401-	●	●
287	PIPE; AIR,MAG VLV L=816 SERVICED BY L=900	1-47428-813-0	01	1	1307-1312	●
287	PIPE; AIR,MAG VLV L=816 SERVICED BY L=900	1-47428-813-0	01	1	1401-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1307-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1307-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1307-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1307-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1307-	●	●
316	NUT; FLEX HOSE M12	9-09840-280-0	01	1	1307-1312	●
316	NUT; FLEX HOSE M12	9-09840-280-0	01	1	1401-	●	●
367	TUBE; CORRUGATE SERVICED BY L=4000 ID=7	1-87411-017-0	AR	1	1307-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1307-	●	●
367	TUBE; CORRUGATE SERVICED BY L=4000 ID=10	1-87411-020-0	AR	1	1307-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	1307-	●	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	03	1	1307-1312	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	03	1	1401-	●	●
377	BOLT; BRKT FIX M10X30 FLANGE	0-28651-030-0	02	1	1307-1312	●
377	BOLT; BRKT FIX M10X30 FLANGE	0-28651-030-0	02	1	1401-	●	●
377	BOLT; BRKT FIX WHEEL BASE 3700MM(37W) M10X30 FLANGE	0-28651-030-0	01	1	1307-	●
377	BOLT; BRKT FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M8X25 FLANGE	0-28650-825-0	01	1	1307-1312	●
377	BOLT; BRKT FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M8X25 FLANGE	0-28650-825-0	01	1	1401-	●
377	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	01	1	1401-		●
377	BOLT; BRKT FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	03	1	1307-1312	●
377	BOLT; BRKT FIX WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M10X30 FLANGE	0-28651-030-0	03	1	1401-	●
377	BOLT; BRKT FIX M10X30 FLANGE	0-28651-030-0	03	1	1401-		●
428	NUT; BRKT WHEEL BASE 3700MM(37W) M10 FLANGE	0-91180-210-0	01	1	1307-	●
428	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
428	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	1401-	●
428	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1401-		●
428	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	03	1	1307-1312	●
428	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) M10 FLANGE	0-91180-210-0	03	1	1401-	●
428	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1401-		●
434	CLIP (E) ID=18-24 L=14.5	1-09709-298-0	02	1	1307-1312	●
434	CLIP (E) ID=18-24 L=14.5	1-09709-298-0	02	1	1401-	●	●
434	CLIP (C) ID=7 L=20	0-95234-635-0	01	1	1307-1312	●
434	CLIP (C) ID=7 L=20	0-95234-635-0	01	1	1401-	●	●
434	CLIP (D) ID=35 L=33	1-09700-945-0	01	1	1307-1312	●
434	CLIP (D) ID=35 L=33	1-09700-945-0	01	1	1401-	●	●
434	CLIP (A) L=350	1-09707-183-0	01	1	1307-1312	●
434	CLIP (A) L=350	1-09707-183-0	01	1	1401-	●	●
434	CLIP (A) L=350	1-09707-183-0	08	1	1307-1312	●
434	CLIP (A) L=350	1-09707-183-0	08	1	1401-	●	●
434	CLIP (B) ID=10 & 15	1-09709-279-1	01	1	1307-1312	●
434	CLIP (B) ID=10 & 15	1-09709-279-1	01	1	1401-	●	●
434	CLIP WHEEL BASE 3700MM(37W) (C) ID=22 L=32	1-09700-126-1	01	1	1307-	●
434	CLIP WHEEL BASE 3700MM(37W) (A) L=350	1-09707-183-0	02	1	1307-	●
434	CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (A) L=350	1-09707-183-0	04	1	1307-1312	●
434	CLIP WHEEL BASE 3700MM(37W),WHEEL BASE 4600MM(46W) (A) L=350	1-09707-183-0	04	1	1401-	●
434	CLIP WHEEL BASE 4600MM(46W) (A) L=350	1-09707-183-0	04	1	1401-		●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	05	1	1307-1312	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	05	1	1401-	●
434	CLIP (A) L=350	1-09707-183-0	05	1	1401-		●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	03	1	1307-1312	●
434	CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	03	1	1401-	●
434	CLIP WHEEL BASE 5300MM(53W) (A) L=350	1-09707-183-0	03	1	1401-		●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1307-1312	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1401-	●	●
435	BOLT; CLIP WHEEL BASE 3700MM(37W) M8X25 FLANGE	0-28650-825-0	01	1	1307-1312	●
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1307-1312	●
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1401-	●	●
435	BOLT; CLIP WHEEL BASE 3700MM(37W) M8X25 FLANGE	0-28650-825-0	01	1	1401-	●
436	NUT; CLIP WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1307-1312	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1401-	●	●
436	NUT; CLIP WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	01	1	1401-	●
450	BRACKET; CLIP (C)	1-47477-694-0	01	1	1307-1312	●
450	BRACKET; CLIP (C)	1-47477-694-0	01	1	1401-	●	●
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	1307-1312	●	●
450	BRACKET; CLIP (B)	8-98070-479-0	01	1	1401-	●	●
450	BRACKET; CLIP (A)	8-98117-686-0	02	1	1307-1312	●
450	BRACKET; CLIP (A)	8-98117-686-0	02	1	1401-	●	●
450	BRACKET; CLIP WHEEL BASE 3700MM(37W) (D)	8-98100-216-1	01	1	1307-	●
450	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (E)	1-47479-693-0	01	1	1307-1312	●
450	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (E)	1-47479-693-0	01	1	1401-	●
450	BRACKET; CLIP (E)	1-47479-693-0	01	1	1401-		●
450	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (D)	8-98100-216-1	03	1	1307-1312	●
450	BRACKET; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) (D)	8-98100-216-1	03	1	1401-	●
450	BRACKET; CLIP (D)	8-98100-216-1	03	1	1401-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
