◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11549 - FRR AUST/NZ EURO5 SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#123994) — 69 parça
çizim 363426
33 46 46 138 138 138 75 75 33
BalonParca AdiParca NoAdetTipApplied Date A B
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (A) LH LINE L=1366 		8-98183-306-0 01 1 1307- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (B) RH LINE L=1324 		8-98183-307-0 01 1 1307- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1665 		8-98183-296-0 01 1 1307- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (B) RH LINE L=1605 		8-98183-297-0 01 1 1307- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2263 		8-98183-300-0 01 1 1307-1312 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2263 		8-98183-300-0 01 1 1401- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (B) RH LINE L=2203 		8-98183-301-0 01 1 1307-1312 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (B) RH LINE L=2203 		8-98183-301-0 01 1 1401- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (A) LH LINE L=2923 		8-98183-304-0 01 1 1307-1312 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (A) LH LINE L=2923 		8-98183-304-0 01 1 1401- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (B) RH LINE L=2863 		8-98183-305-0 01 1 1307-1312 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (B) RH LINE L=2863 		8-98183-305-0 01 1 1401- ● ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 1307-1312 ●
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 1401- ● ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 1307-1312 ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 1401- ● ●
138 PIPE; HYDRAULIC UNIT
(A) L=657 		8-98012-129-0 01 1 1307-1312 ●
138 PIPE; HYDRAULIC UNIT
(A) L=657 		8-98012-129-0 01 1 1401- ● ●
138 PIPE; HYDRAULIC UNIT
(B) L=703 		8-98012-146-0 01 1 1307-1312 ●
138 PIPE; HYDRAULIC UNIT
(B) L=703 		8-98012-146-0 01 1 1401- ● ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 1307-1312 ●
138 PIPE; HYDRAULIC UNIT
(C) L=296 		8-98066-107-0 01 1 1401- ● ●

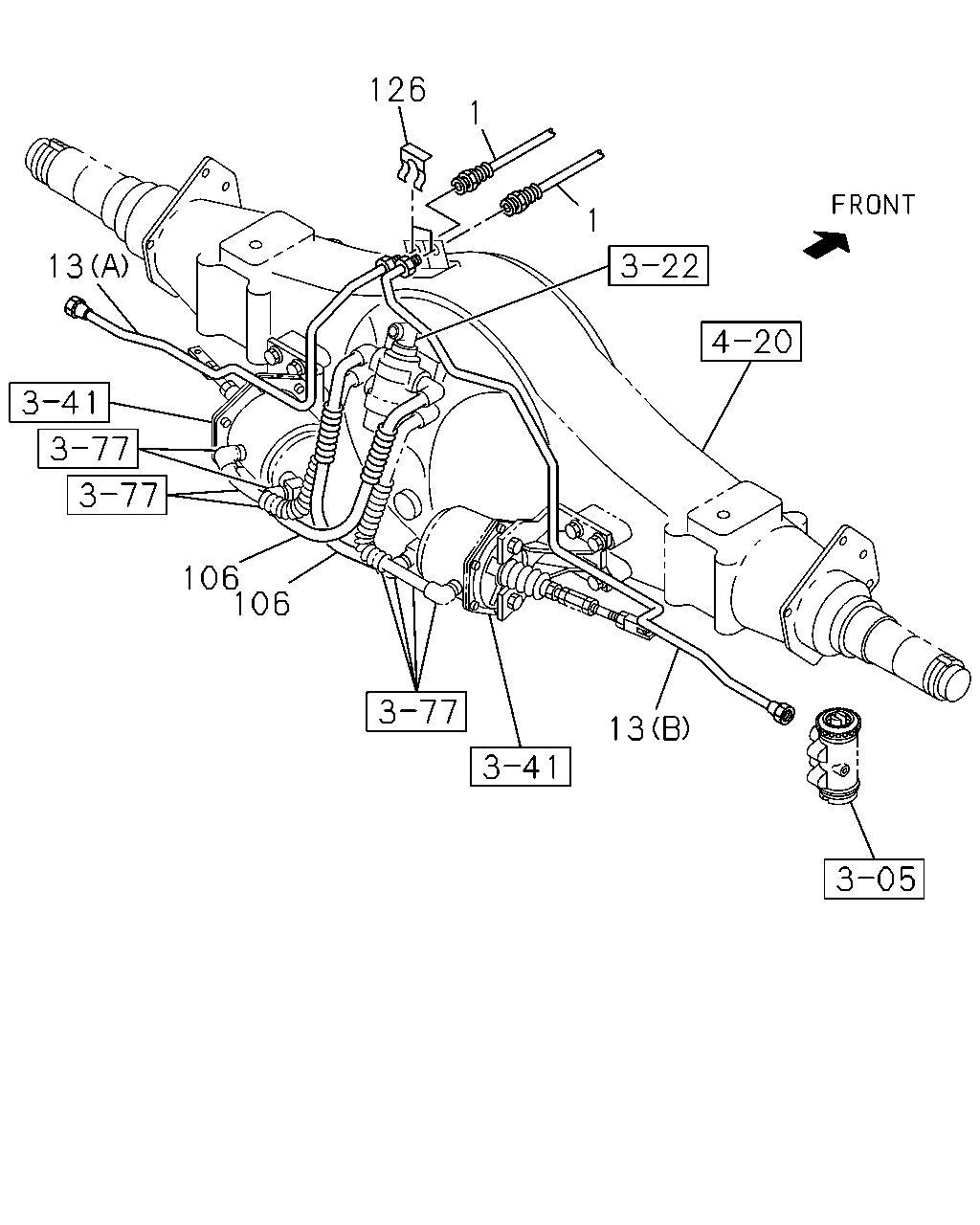

çizim 364262
1 1 126 13 106 106 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
L=310 		8-98023-168-0 02 1 1401- ●
1 HOSE; FLEX,RR BRK
POWER TAKE OFF-FLYWHEEL<6SZ> L=350 		8-97138-885-0 02 1 1307- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=350 		8-97138-885-0 02 1 1307- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=320 		8-98067-397-0 02 1 1307- ●
13 PIPE; BRK,RR AXLE
(B) 		8-98107-928-0 01 1 1307-1312 ●
13 PIPE; BRK,RR AXLE
(B) 		8-98107-928-0 01 1 1401-1409 ● ●
13 PIPE; BRK,RR AXLE
(B) 		8-98281-557-0 01 1 1410- ● ●
13 PIPE; BRK,RR AXLE
(A) 		8-98107-929-0 01 1 1307-1312 ●
13 PIPE; BRK,RR AXLE
(A) 		8-98107-929-0 01 1 1401-1409 ● ●
13 PIPE; BRK,RR AXLE
(A) 		8-98281-558-0 01 1 1410- ● ●
106 TUBE; NYLON 8-98061-971-0 02 1 1307- ● ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 1307-1312 ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 1401- ● ●

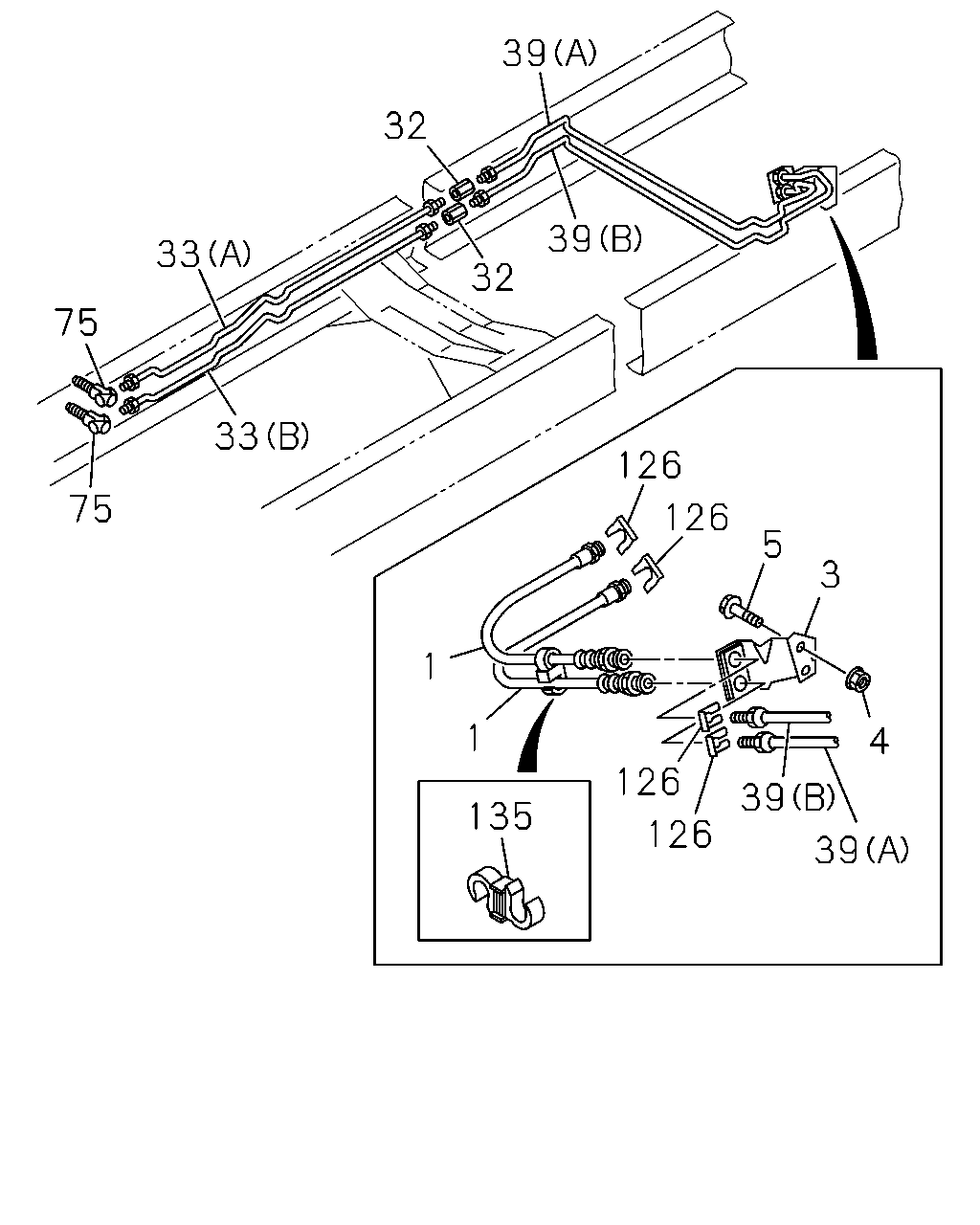

çizim 364316
39 32 32 39 33 33 75 75 126 126 5 3 4 1 1 126 126 39 39 135
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
L=310 		8-98023-168-0 02 1 1401- ●
1 HOSE; FLEX,RR BRK
POWER TAKE OFF-FLYWHEEL<6SZ> L=350 		8-97138-885-0 02 1 1307- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEEL BASE 5300MM(53W) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=350 		8-97138-885-0 02 1 1307- ●
1 HOSE; FLEX,RR BRK
WHEEL BASE 3700MM(37W) EXC. POWER TAKE OFF-FLYWHEEL<6SZ> L=320 		8-98067-397-0 02 1 1307- ●
3 BRACKET; FLEX HOSE,RR BRK 8-98065-999-2 01 1 1307-1312 ●
3 BRACKET; FLEX HOSE,RR BRK 8-98065-999-2 01 1 1401- ● ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 1307-1312 ●
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 1401- ● ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 1307-1312 ●
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 1401- ● ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 1307-1312 ●
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 1401- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (A) LH LINE L=1366 		8-98183-306-0 01 1 1307- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (B) RH LINE L=1324 		8-98183-307-0 01 1 1307- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1665 		8-98183-296-0 01 1 1307- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (B) RH LINE L=1605 		8-98183-297-0 01 1 1307- ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2263 		8-98183-300-0 01 1 1307-1312 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2263 		8-98183-300-0 01 1 1401- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (B) RH LINE L=2203 		8-98183-301-0 01 1 1307-1312 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (B) RH LINE L=2203 		8-98183-301-0 01 1 1401- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (A) LH LINE L=2923 		8-98183-304-0 01 1 1307-1312 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (A) LH LINE L=2923 		8-98183-304-0 01 1 1401- ● ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (B) RH LINE L=2863 		8-98183-305-0 01 1 1307-1312 ●
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (B) RH LINE L=2863 		8-98183-305-0 01 1 1401- ● ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1612 		8-98241-576-0 01 1 1401- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1676 		8-98241-577-0 01 1 1401- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1710 		8-98106-485-0 01 1 1307- ●
39 PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1772 		8-98106-486-0 01 1 1307- ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 1307-1312 ●
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 1401- ● ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 1307-1312 ●
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 1401- ● ●
135 CLIP; FLEX HOSE
ID=10 & 10 		1-09709-277-1 01 1 1307-1312 ●
135 CLIP; FLEX HOSE
ID=10 & 10 		1-09709-277-1 01 1 1401- ● ●
