Isuzu WW
▶
TRUCKS
▶
CYH
▶
11524 - CYH RHD EURO2
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

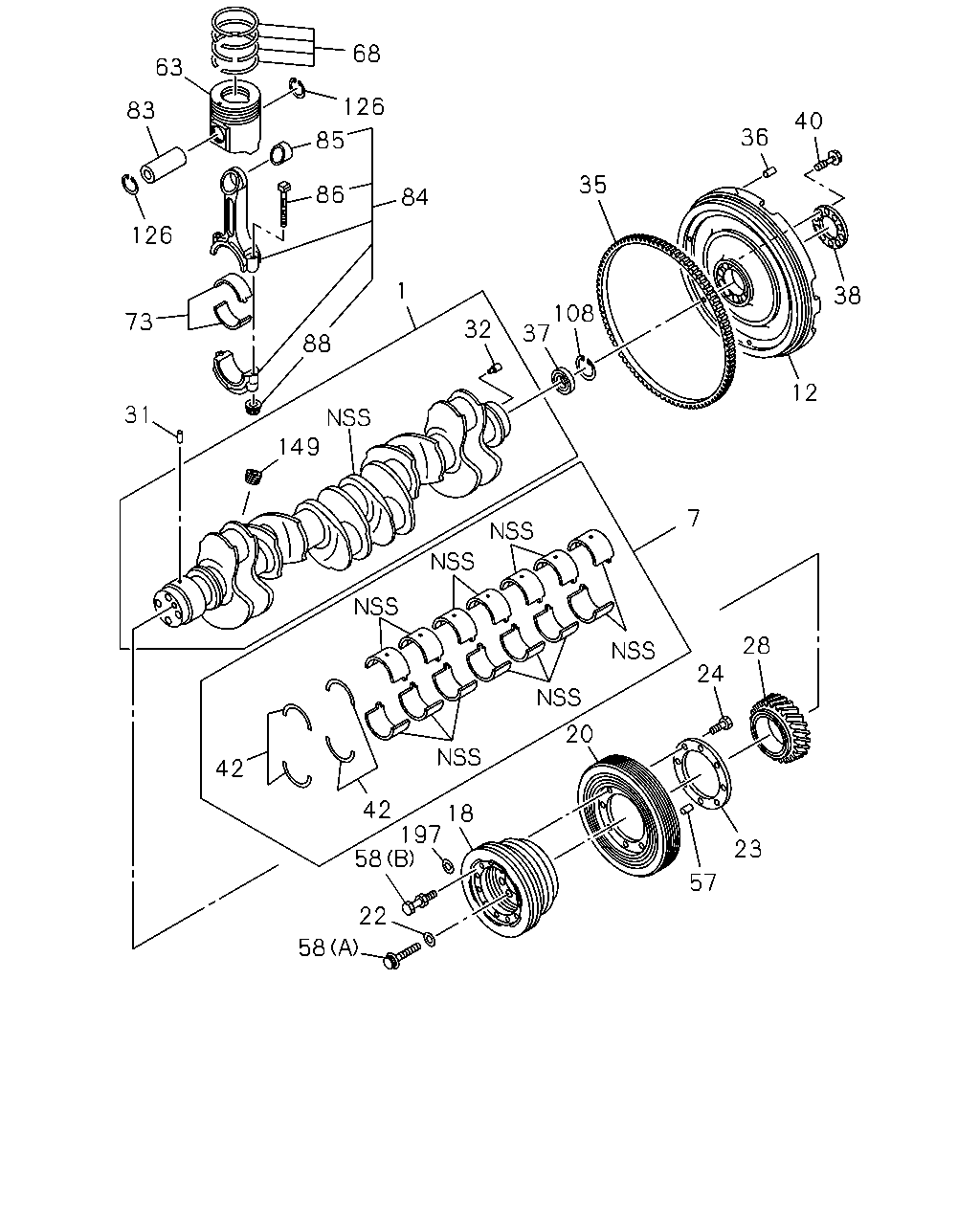

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#123980) — 34 parça
40
36
38
12
35
108
37
7
32
1
84
126
68
63
83
126
86
85
73
31
88
149
42
42
18
20
24
23
28
57
197
58
22
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
1-12310-682-2
01
1
1306-
7
METAL KIT; CRANKSHAFT,STANDARD
8-98151-849-1
01
1
1306-
12
FLYWHEEL
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)
1-12331-418-1
01
1
1306-
12
FLYWHEEL
CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)
1-12331-410-0
01
1
1306-
18
PULLEY; CR/SHF
3-GROOVE
8-98181-816-0
01
1
1306-
20
DAMPER; CR/SHF
1-12375-214-2
01
1
1306-
22
PLATE; PULLEY
ID=18
9-09851-862-0
08
1
1306-
23
WASHER; DAMPER
1-12379-039-1
01
1
1306-
24
BOLT; DAMPER
M12X30 FLANGE
0-28761-230-0
08
1
1306-
28
GEAR; CR/SHF
Z=48
1-12521-061-2
01
1
1306-
31
KEY; FEATHER,CR/SHF
OD=5 L=6
9-09878-626-0
01
1
1306-
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
01
1
1306-
35
GEAR; RING
Z=139
1-12333-013-1
01
1
1306-
36
PIN; FLYWHEEL
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) OD=10 L=22
9-08151-022-0
02
1
1306-
37
BEARING; PILOT,TOP GEAR SHAFT
1-09800-257-0
01
1
1306-
37
BEARING; PILOT,TOP GEAR SHAFT
BEST VALUE PARTS
1-87610-158-0
01
1
1306-
38
WASHER; FLYWHEEL
1-12336-011-0
01
1
1306-
40
BOLT; FLYWHEEL
1-09070-017-1
10
1
1306-
42
WASHER; THRUST,CR/SHF
8-98151-850-0
02
1
1306-
57
PIN; PULLEY
OD=8 L=20
9-08160-820-0
01
1
1306-
58
BOLT; CR/SHF PULLEY
(A)
1-09070-017-1
08
1
1306-
58
BOLT; CR/SHF PULLEY
(B) M10X24 FLANGE
8-97603-593-0
06
1
1306-
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
1-12112-009-1
06
1
1306-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
1-12121-154-1
06
1
1306-
73
METAL SET; CONN ROD,STANDARD
1-12271-096-0
06
1
1306-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
1-12211-029-1
06
1
1306-
84
ROD ASM; CONN
1-12230-185-2
06
1
1306-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
8-98115-959-0
06
1
1306-
86
BOLT; CONNROD
1-12235-036-3
12
1
1306-
88
NUT; CONNROD
1-12239-005-1
12
1
1306-
108
RING; SNAP,BRG SET
OD=67.2
9-09180-163-0
01
1
1306-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
1-09587-082-0
12
1
1306-
149
PLUG
PT1
1-09605-021-1
06
1
1306-
197
WASHER; PL,FAN DRIVE
ID=10.5
9-09164-510-0
06
1
1306-
