◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXY ▶ 10869 - CXY(51) RHD AUSTRALIA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#12398) — 106 parça
çizim 20353
18 296 554
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-0301
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 0302-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105-0301
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105-0301
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0105-
296 SEAL; INST CENTER BEZEL
EXC. CENTER SEAT DELETE(SP9) 		8-97856-616-0 01 1 0105-
554 BRACKET; CENTER BEZEL 1-65671-535-2 01 1 0105-

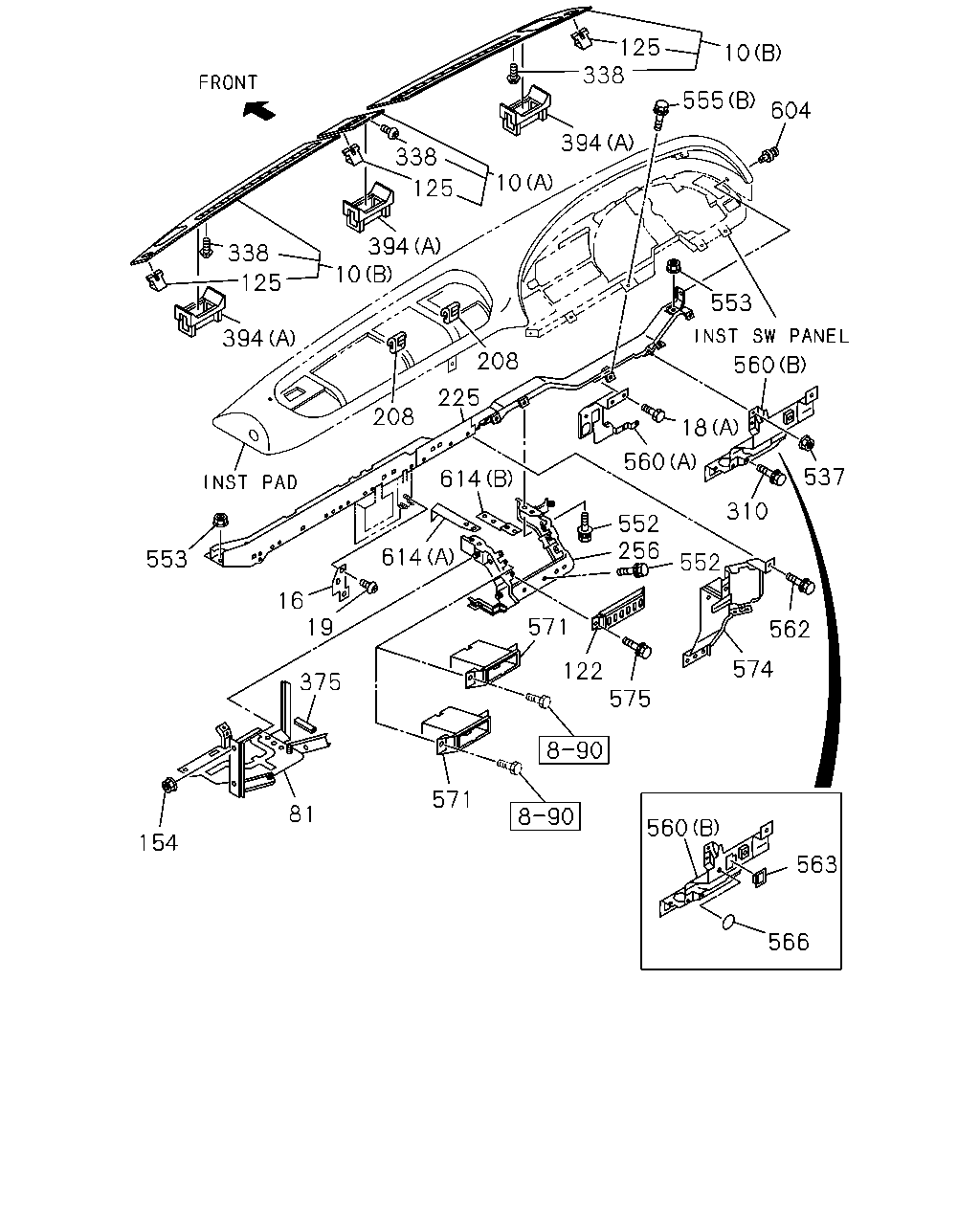

çizim 20354
10 125 338 555 604 553 560 18 560 537 310 552 256 552 562 574 563 566 560 575 122 571 571 81 154 375 19 16 614 614 208 225 208 553 394 125 338 10 394 125 338 10 394
BalonParca AdiParca NoAdetTipApplied Date
10 PANEL ASM; GARNISH
(A) CENTER 		1-72437-540-6 01 1 0105-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 0105-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-600-7 01 1 0105-
16 BRACKET; INST PNL 1-73908-023-2 01 1 0105-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-0301
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 0302-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105-0301
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105-0301
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0105-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0105-
81 BRACKET; ELEC CONT UNIT 1-73907-649-2 01 1 0105-0110
81 BRACKET; ELEC CONT UNIT 1-73907-548-7 01 1 0111-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 0105-
125 CLIP; INST PANEL 8-97217-066-0 01 1 0105-0301
125 CLIP; INST PANEL 8-97217-066-0 11 1 0302-
125 CLIP; INST PANEL 8-97217-066-0 10 1 0105-0301
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 0105-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0105-
225 FRAME; FACIA 1-65671-725-8 01 1 0105-
256 BEZEL ASM; CENTER
COOL & HOT BOX<TMU> 		1-65671-523-8 01 1 0105-0210
256 BEZEL ASM; CENTER 1-65671-523-9 01 1 0211-
256 BEZEL ASM; CENTER
EXC. COOL & HOT BOX<TMU> 		1-65671-765-1 01 1 0105-0210
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105-
338 SCREW; COVER
TAPPING M5X14 		8-94279-325-0 12 1 0105-0208
338 SCREW; COVER
M5X14 		8-94148-576-1 12 1 0209-0309
338 SCREW; COVER
TAPPING M5X14 		8-94279-325-0 12 1 0310-
375 FINISHER; BRKT,CONT UNIT
L=80 		5-71997-133-0 01 1 0403-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0105-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0105-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0105-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0105-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0105-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0105-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-
560 BRACKET
(A) 		1-65680-976-3 01 1 0105-
560 BRACKET
(B) 		1-65671-760-4 01 1 0105-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-
563 BEZEL; BRKT 1-72448-410-3 01 1 0105-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0105-
571 BEZEL; POCKET 1-72438-151-3 01 1 0105-
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-3 01 1 0105-
574 PANEL; RELAY BOX 1-73907-365-9 01 1 0105-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
604 CLIP; INST PAD 1-09983-123-0 01 1 0105-
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 0105-
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 0105-

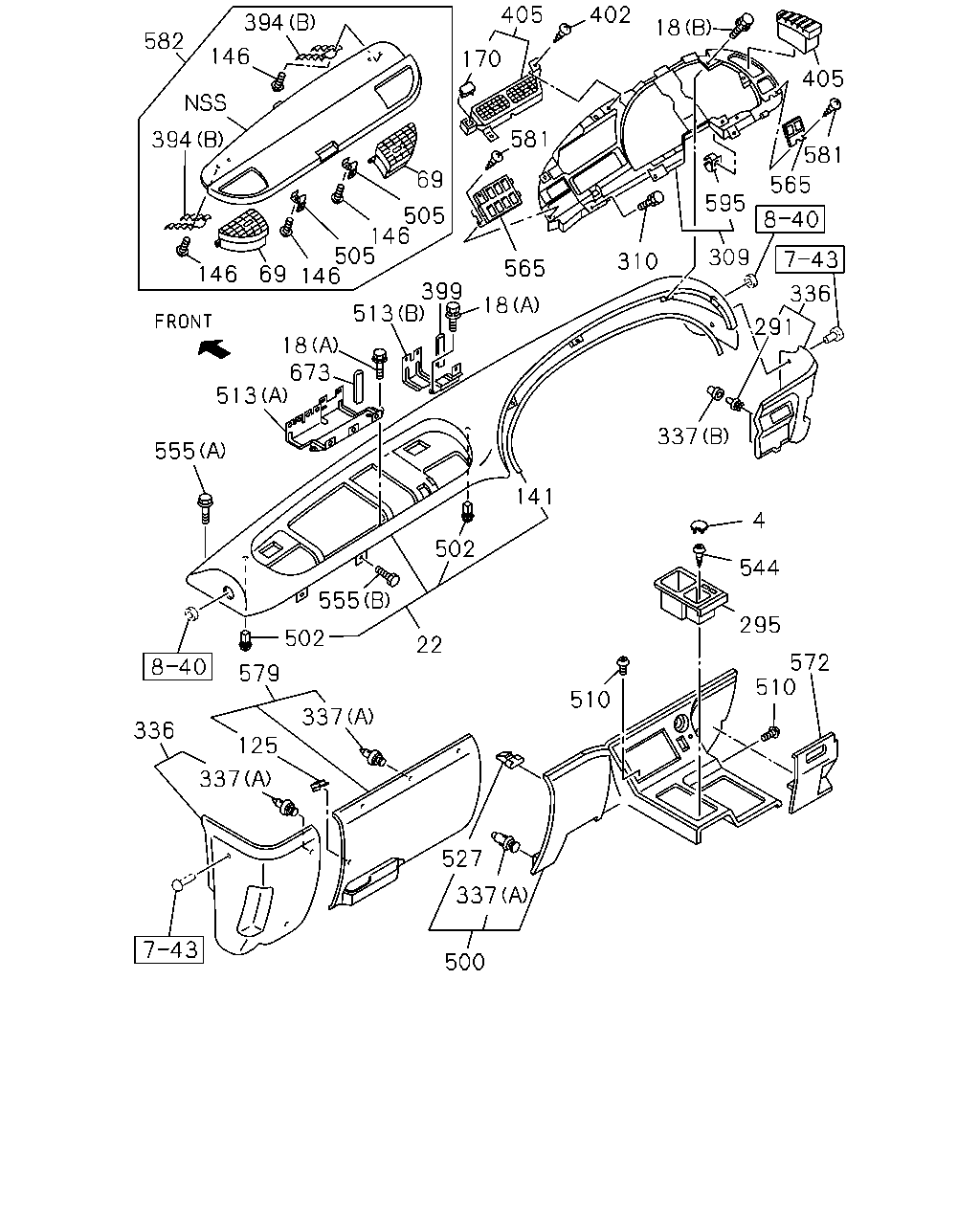

çizim 21432
582 394 146 394 146 69 146 505 146 505 69 170 405 402 18 405 581 565 595 309 336 291 337 4 544 295 572 510 510 500 337 527 337 125 337 22 141 502 555 502 579 336 555 513 673 18 513 399 18 565 310 581
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 0105-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-0301
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 0302-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0105-0301
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105-0301
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0105-
22 PAD; INST 1-72317-347-2 01 1 0105-
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0105-
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0105-
125 CLIP; INST PANEL 8-97217-066-0 01 1 0105-0301
125 CLIP; INST PANEL 8-97217-066-0 11 1 0302-
125 CLIP; INST PANEL 8-97217-066-0 10 1 0105-0301
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0105-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0105-
170 COVER; HOLE 1-76367-068-0 01 1 0105-
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 0105-
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 0105-
309 PANEL; SW,INST 1-72418-009-6 01 1 0105-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0105-
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0105-
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0105-
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 0302-
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 0105-
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 0105-0301
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0105-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0105-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0105-
399 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 0105-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0105-
405 GRILLE ASM; METER VENT 1-76367-062-2 01 1 0105-
405 GRILLE ASM; METER VENT 1-76367-059-3 01 1 0105-
500 CLUSTER; INST CENTER
CENTER SEAT DELETE(SP9) 		1-72437-619-0 01 1 0105-
500 CLUSTER; INST CENTER
EXC. CENTER SEAT DELETE(SP9) 		1-72437-648-0 01 1 0105-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0105-
505 LOCK; LID 1-72558-024-2 02 1 0105-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0105-
513 BRACKET; RELAY
(B) 		1-73907-327-3 01 1 0105-
513 BRACKET; RELAY
(A) 		1-73908-009-9 01 1 0105-0205
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0206-
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0105-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0105-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0105-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0105-
565 BEZEL; SW PANEL 1-72418-010-2 01 1 0105-
565 BEZEL; SW PANEL 1-72418-011-3 01 1 0105-
572 COVER; INSPECTION 1-72437-634-0 01 1 0105-
579 COVER; INST PNL 1-72437-626-0 01 1 0105-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0105-
582 LID; FUSE & RELAY 1-72547-124-0 01 1 0105-
595 NUT; HOOK 1-72418-013-0 11 1 0105-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0105-
