0-13 — OIL PAN AND LEVEL GAUGE
(#123978) — 28 parça
◀

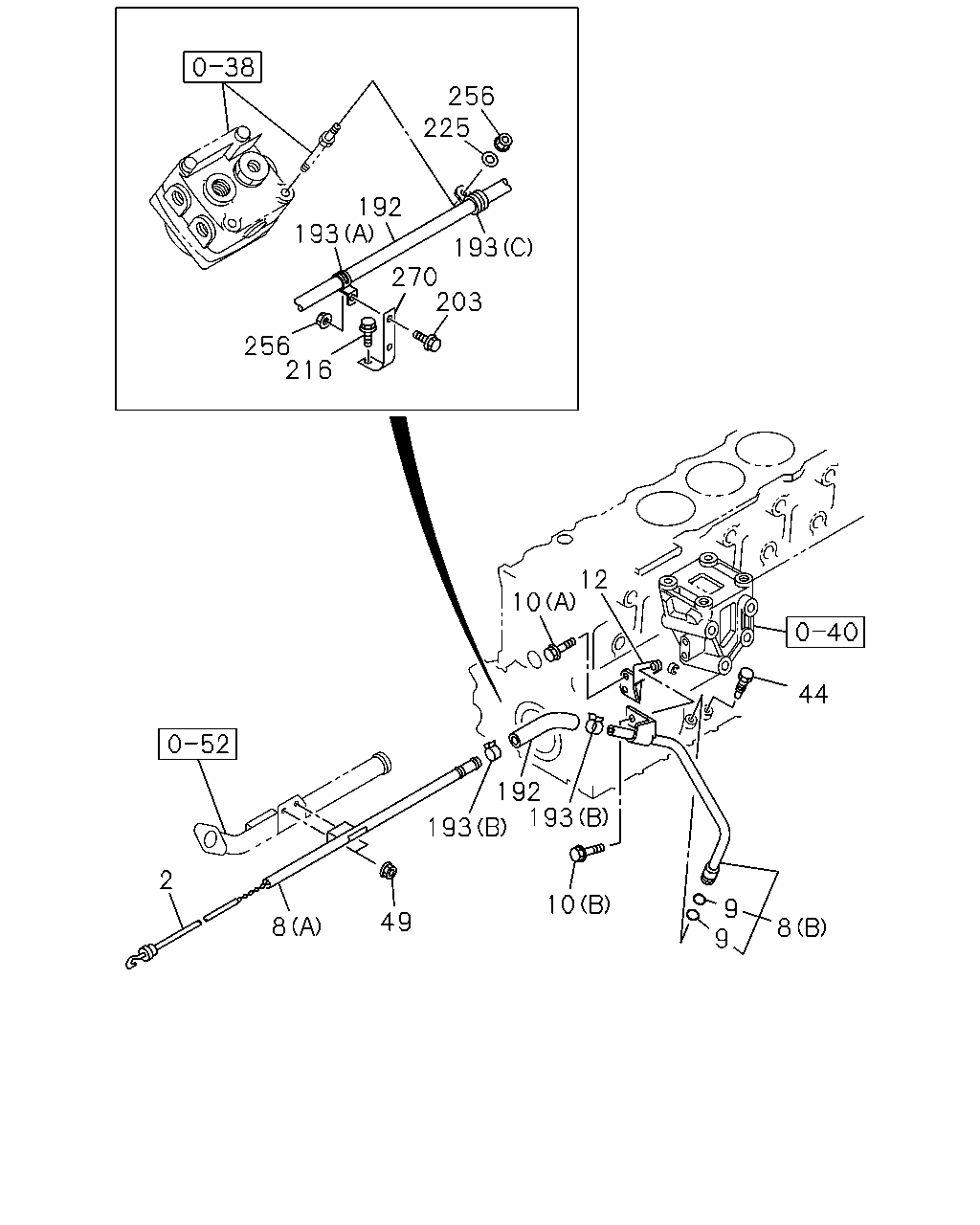

[013A] LEVEL GAUGE AND GUIDE TUBE (19 parça)

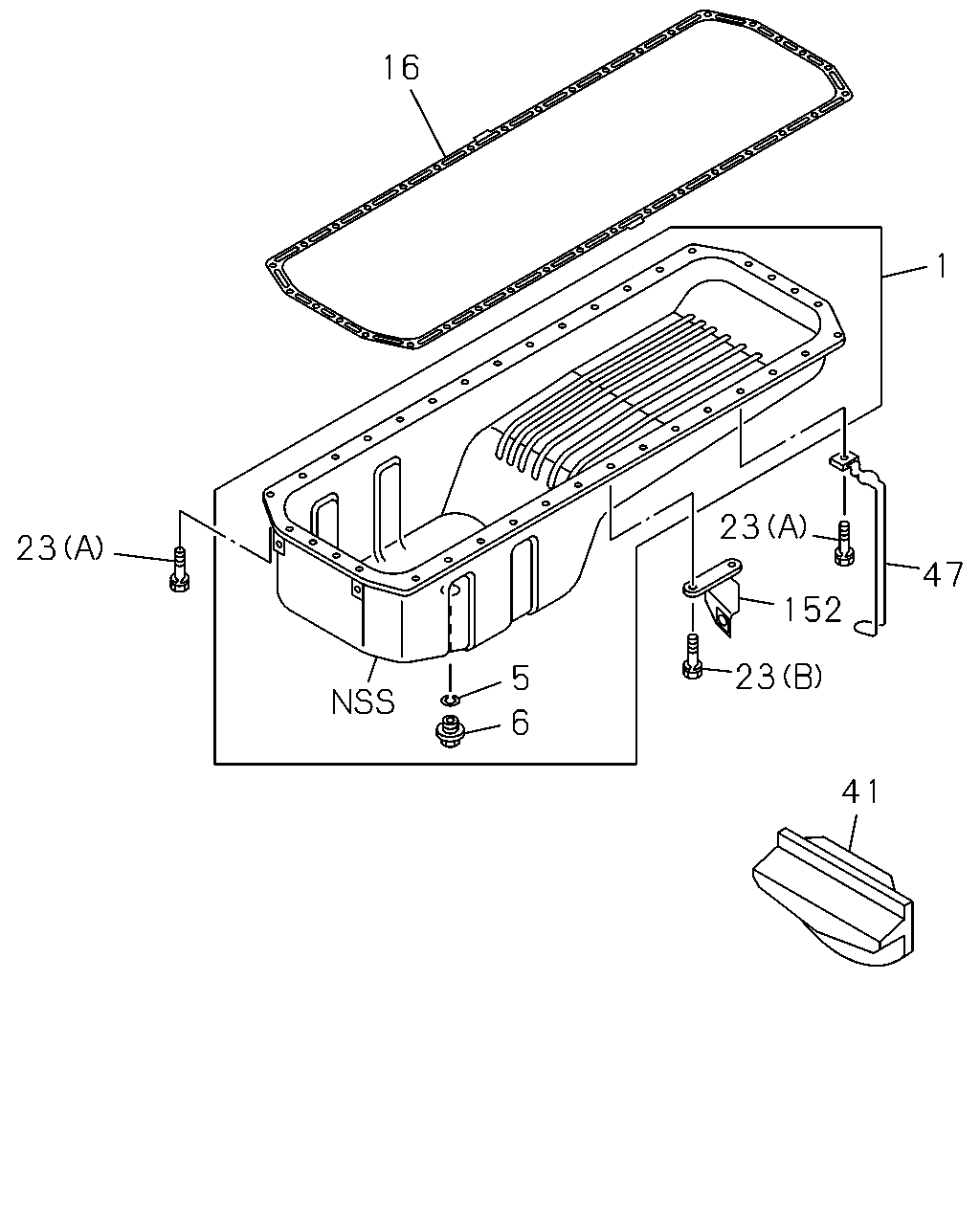

[013A] OIL PAN AND GASKET (9 parça)
▶
44
12
10
192
193
10
9
9
8
193
49
8
2
216
256
270
193
203
193
192
225
256
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GAUGE; OIL LEVEL
8-98225-391-0
01
1
1306-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
1-11766-608-0
01
1
1306-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-97629-368-0
01
1
1306-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1306-
10
BOLT; GUIDE TUBE
(B) M10X20 FLANGE
0-28051-020-0
01
1
1306-
10
BOLT; GUIDE TUBE
(A) M10X20 FLANGE
0-28151-020-0
02
1
1306-
12
BRACKET; TUBE,OIL LEVEL GAUGE
1-11769-204-1
01
1
1306-
44
PLUG
M22X41
1-09604-098-0
01
1
1306-
49
NUT; GUIDE TUBE
M8 FLANGE
0-91180-108-0
02
1
1306-
192
HOSE; GUIDE TUBE
L=620 L=430
0-02361-300-0
01
1
1306-
193
CLIP; HOSE,GUIDE TUBE
(C) ID=19 L=28
0-95235-856-0
01
1
1306-
193
CLIP; HOSE,GUIDE TUBE
(A) ID=19 L=39 H=21
1-09700-972-1
01
1
1306-
193
CLIP; HOSE,GUIDE TUBE
(B) ID=17
1-09707-158-0
02
1
1306-
203
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1306-
216
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
01
1
1306-
225
WASHER; PL
ID=8.4 OD=22
0-91610-708-0
01
1
1306-
256
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1306-
256
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1306-
270
BRACKET ASM; TUBE,OIL LEVEL GAUGE
1-47479-855-0
01
1
1306-
41
47
1
23
23
152
6
5
23
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
1-11360-912-0
01
1
1306-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
1306-
6
PLUG; OIL DRAIN
M20X16.5
9-09662-012-0
01
1
1306-
16
GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-11367-130-0
01
1
1306-
23
BOLT; OIL PAN
(A) M10X20 FLANGE
0-28151-020-0
34
1
1306-
23
BOLT; OIL PAN
(B) M10X30 FLANGE
0-28151-030-0
02
1
1306-
41
RUBBER; SPACE
1-19389-209-0
01
1
1306-
47
CLIP; HOSE,AIR BREATHER
1-11369-147-1
01
1
1306-
152
BRACKET; CLIP POWER STRG PIPE
1-21119-130-1
01
1
1306-
