1 |

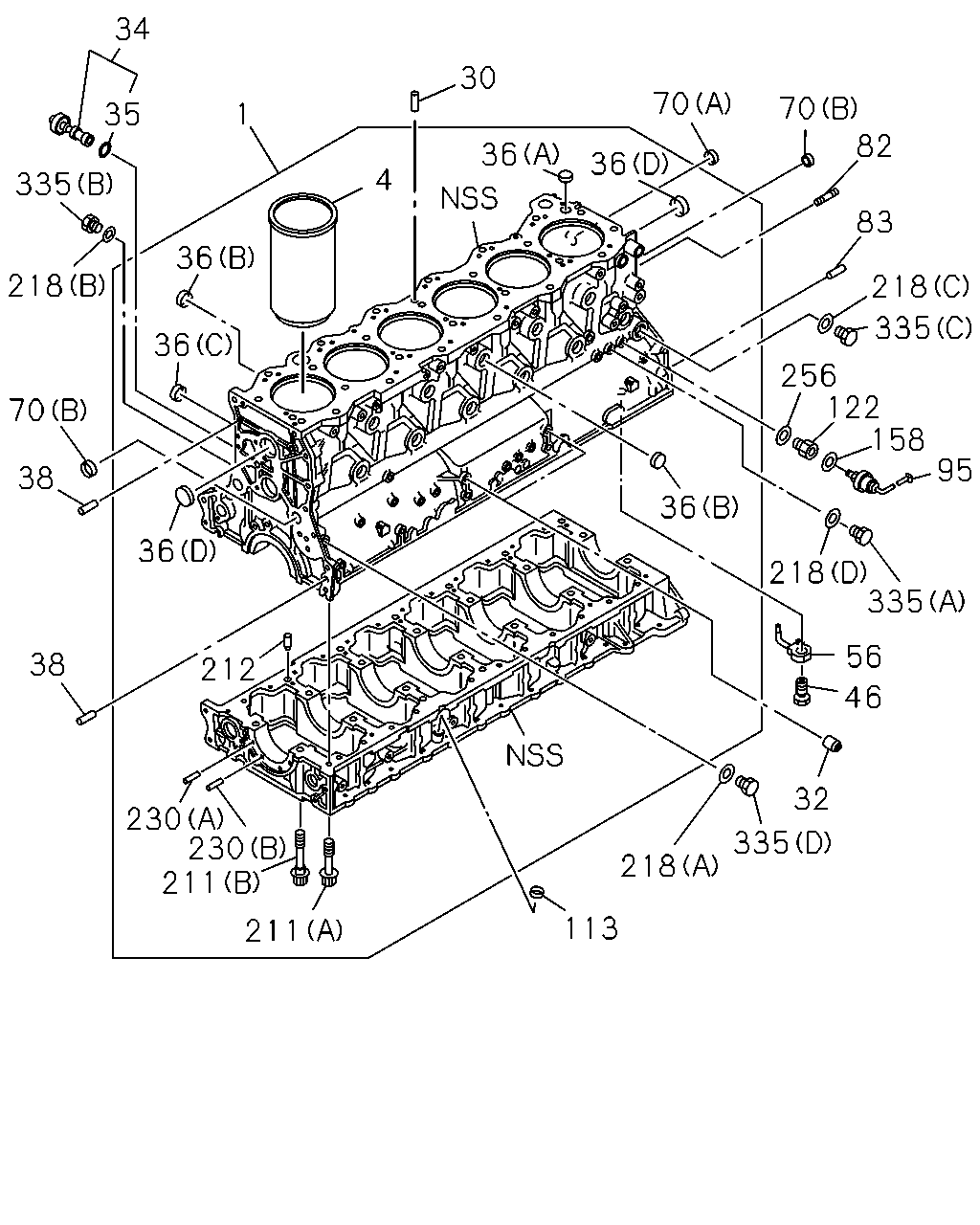

BLOCK ASM; CYL
|
8-98180-452-1 |
01 |
1 |
1306- |
| |
4 |

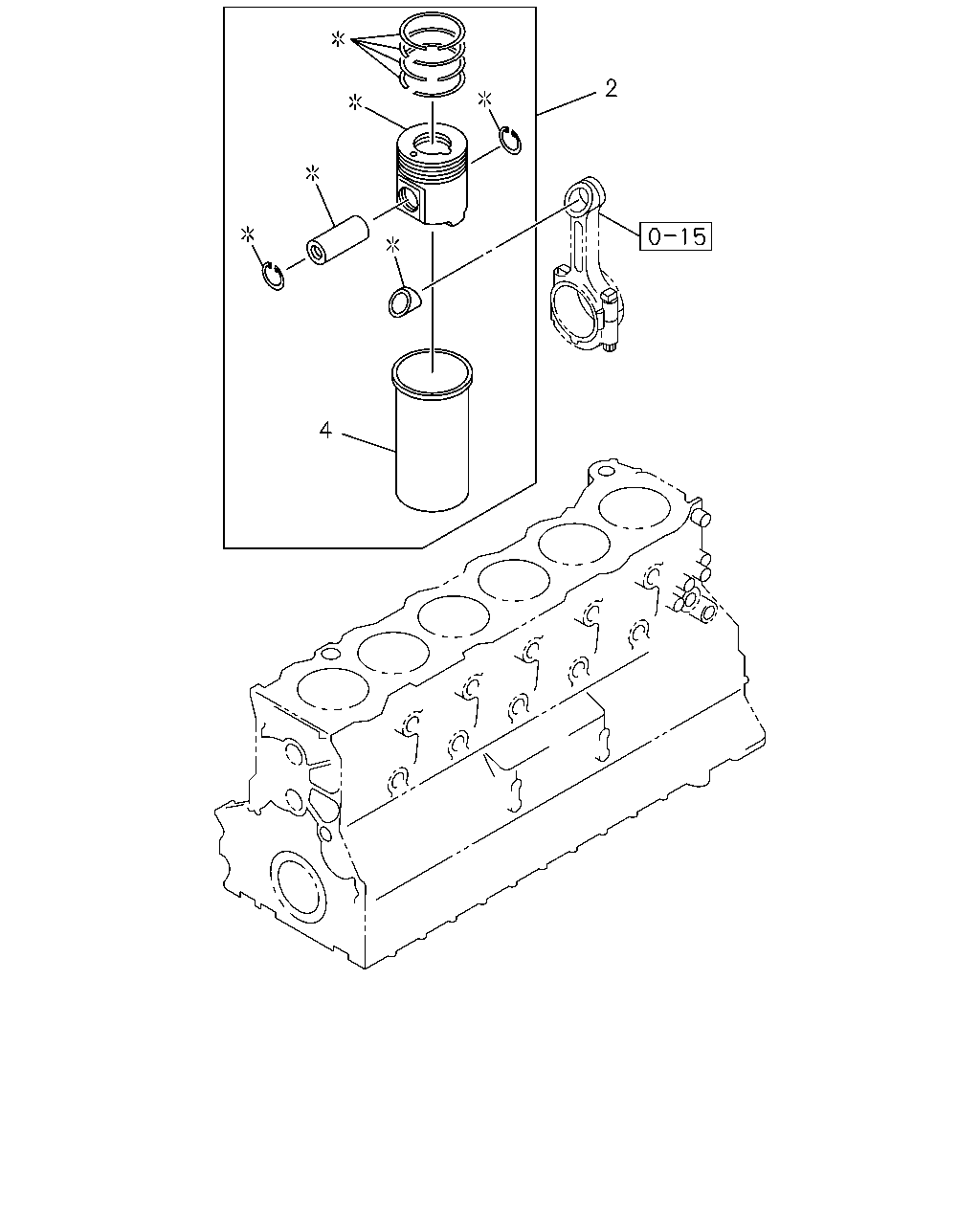

LINER; C/BL
ALSO INCLUDED IN LINER SET.
OD GRADE=1X,ID GRADE=NON
|
1-11261-379-2 |
06 |
1 |
1306- |
| |
4 |
LINER; C/BL
ALSO INCLUDED IN LINER SET.
OD GRADE=3X,ID GRADE=NON
|
1-11261-380-2 |
06 |
1 |
1306- |
| |
30 |
PIN; CYL HD GASKET SETTING
OD=10 L=18
|
9-08151-018-0 |
02 |
1 |
1306- |
| |
32 |
PIN; INJ PUMP BRKT
|
8-94325-506-1 |
02 |
1 |
1306- |
| |
34 |
VALVE; OIL RELIEF
|
1-13160-030-3 |
01 |
1 |
1306- |
| |
35 |
GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=35.2
|
1-09623-297-0 |
01 |
1 |
1306- |
| |
36 |
CUP; SEALING,WATER JACKET
(A)
OD=25
|
1-09600-016-0 |
01 |
1 |
1306- |
| |
36 |
CUP; SEALING,WATER JACKET
(B)
OD=40
|
1-09600-065-1 |
02 |
1 |
1306- |
| |
36 |
CUP; SEALING,WATER JACKET
(C)
OD=40
|
8-94241-637-0 |
13 |
1 |
1306- |
| |
36 |
CUP; SEALING,WATER JACKET
(D)
OD=45
|
8-97351-451-0 |
04 |
1 |
1306- |
| |
38 |
PIN; TIMING GEAR CASE
OD=10 L=18
|
9-08151-018-0 |
02 |
1 |
1306- |
| |
46 |
BOLT; JOINT,OIL JET,PISTON COOLING
|
1-13349-014-0 |
06 |
1 |
1306- |
| |
56 |
JET; OIL,PISTON COOLING
|
1-13342-125-5 |
06 |
1 |
1306- |
| |
70 |
CUP; SEALING,FRT & RR
(A)
OD=32
|
1-09600-012-2 |
01 |
1 |
1306- |
| |
70 |
CUP; SEALING,FRT & RR
(B)
OD=25
|
1-09600-016-0 |
04 |
1 |
1306- |
| |
82 |
STUD; FLYWHEEL HSG
M14X35 L=56
|
0-44011-435-0 |
01 |
1 |
1306- |
| |
83 |
PIN; FLYWHEEL HSG
|
9-08151-428-0 |
02 |
1 |
1306- |
| |
95 |
PRESSURE UNIT; OIL
|
1-83151-042-0 |
01 |
1 |
1306- |
| |
113 |
CUP; SEALING
OD=15.6
|
5-11129-003-0 |
01 |
1 |
1306- |
| |
122 |
ADAPTER; OIL PRESSURE SWITCH
|
8-94390-391-0 |
01 |
1 |
1306- |
| |
158 |
GASKET; OIL PRESS UNIT
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=10.2 OD=15.2
|
1-09630-083-0 |
01 |
1 |
1306- |
| |
211 |
BOLT; CRANKCASE
(A)
M12X114
|
1-09070-087-3 |
28 |
1 |
1306- |
| |
211 |
BOLT; CRANKCASE
(B)
M18X150
|
1-09070-151-0 |
14 |
1 |
1306- |
| |
212 |
PIN; CRANKCASE
|
1-09740-068-1 |
02 |
1 |
1306- |
| |
218 |
GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE).
(A)
ID=10.2 OD=15.2
|
1-09630-083-0 |
01 |
1 |
1306- |
| |
218 |
GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE).
(B)
ID=12.2
|
1-09630-084-0 |
01 |
1 |
1306-1312 |
| |
218 |
GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE).
(B)
ID=12.2
|
8-98251-344-0 |
01 |
1 |
1401- |
| |
218 |
GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE).
(C)
ID=22
|
1-09630-089-0 |
01 |
1 |
1306- |
| |
218 |
GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE).
(D)
ID=14.2 OD=25
|
1-09630-141-0 |
01 |
1 |
1306- |
| |
230 |
PIN; THRUST METAL,CR/SHF
(A)
L=25
|
1-09749-025-1 |
02 |
1 |
1306- |
| |
230 |
PIN; THRUST METAL,CR/SHF
(B)
OD=5 L=10
|
9-08160-510-0 |
02 |
1 |
1306- |
| |
256 |
GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE).
ID=14.2 OD=25
|
1-09630-141-0 |
01 |
1 |
1306- |
| |
335 |
PLUG; C/BL,SIDE
(C)
M22X12
|
1-09604-035-0 |
01 |
1 |
1306- |
| |
335 |
PLUG; C/BL,SIDE
(D)
M10X7
|
1-09604-094-0 |
01 |
1 |
1306- |
| |
335 |
PLUG; C/BL,SIDE
(A)
M14X9
|
8-98042-944-0 |
01 |
1 |
1306- |
| |
335 |
PLUG; C/BL,SIDE
(B)
M12X9
|
8-98047-054-0 |
01 |
1 |
1306- |
