◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11523 - LV152/452(LHD) EURO4 ▶ 9 - Tools ▶ 9-01 - TOOLS ▶

9-01 — TOOLS (#123972) — 176 parça

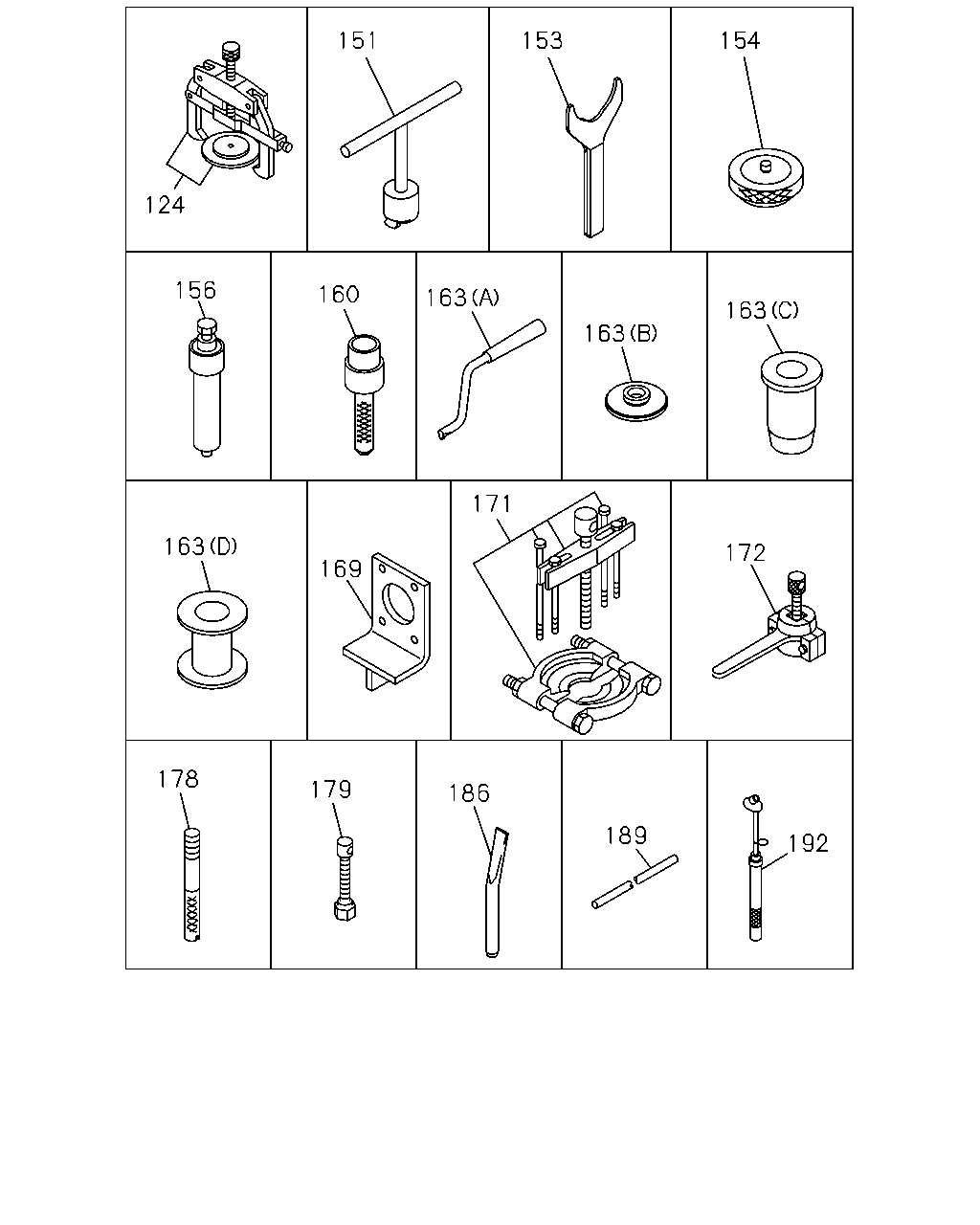

124 151 153 154 163 163 163 160 156 163 169 171 172 178 179 186 189 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	1307-1311	●
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	1312-	●	●
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	1307-1311	●
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	1312-	●	●
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	1307-1311	●
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	1312-	●	●
154	SLEEPER; KING PIN	1-85238-003-0	01	1	1307-1311	●
154	SLEEPER; KING PIN	1-85238-003-0	01	1	1312-	●	●
156	PULLER; ANCHOR PIN	1-85210-025-0	01	1	1307-1311	●
156	PULLER; ANCHOR PIN	1-85210-025-0	01	1	1312-	●	●
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	1307-1311	●
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	1312-	●	●
163	TOOL; SETTING (C) L=195	1-85221-162-1	01	1	1307-1311	●
163	TOOL; SETTING (C) L=195	1-85221-162-1	01	1	1312-	●	●
163	TOOL; SETTING (D) L=150	1-85221-163-0	01	1	1307-1311	●
163	TOOL; SETTING (D) L=150	1-85221-163-0	01	1	1312-	●	●
163	TOOL; SETTING (B) OD=150	1-85221-167-0	01	1	1307-1311	●
163	TOOL; SETTING (B) OD=150	1-85221-167-0	01	1	1312-	●	●
163	TOOL; SETTING (A)	9-85221-231-0	01	1	1307-1311	●
163	TOOL; SETTING (A)	9-85221-231-0	01	1	1312-	●	●
169	BRACKET; SPLINE YOKE	1-85221-317-0	01	1	1307-1311	●
169	BRACKET; SPLINE YOKE	1-85221-317-0	01	1	1312-1402	●	●
169	BRACKET; SPLINE YOKE P115 PROP SHAFT<C5X>	1-85221-317-0	01	1	1403-	●
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	1307-1311	●
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	1312-	●	●
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	1307-1311	●
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	1312-	●	●
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	1307-1311	●
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	1312-	●	●
179	PULLER; SPD METER GEAR	9-85210-091-0	01	1	1307-1311	●
179	PULLER; SPD METER GEAR	9-85210-091-0	01	1	1312-	●	●
186	ADJUSTER; BRAKE	1-85269-008-0	01	1	1307-1311	●
186	ADJUSTER; BRAKE	1-85269-008-0	01	1	1312-	●	●
189	TUBE; AIR BREATHER TOOL B KIT(SL1) L=460	9-85291-414-0	01	1	1307-1311	●
189	TUBE; AIR BREATHER TOOL B KIT(SL1) L=460	9-85291-414-0	01	1	1312-	●	●
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	1307-1311	●
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	1312-	●	●

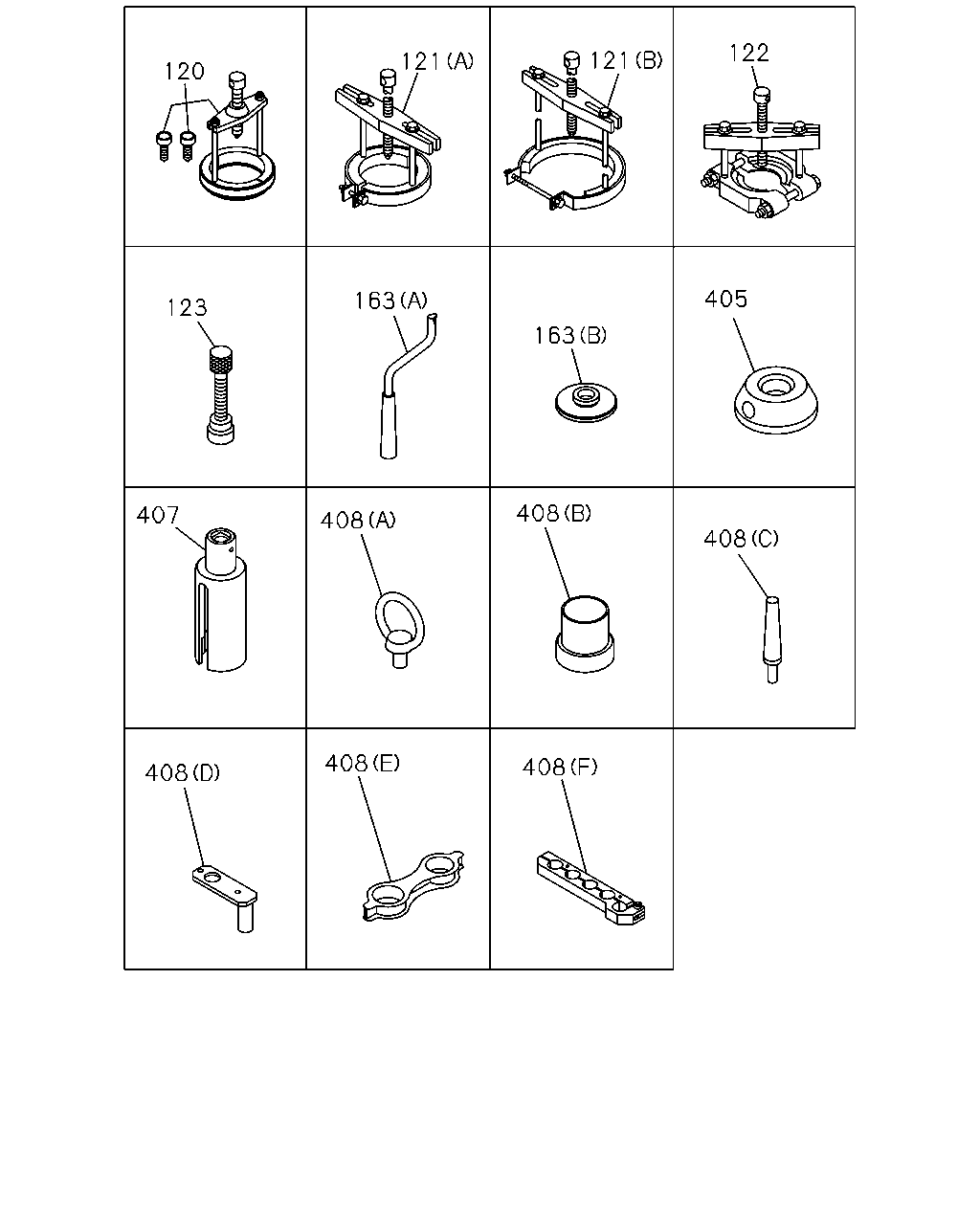

120 121 121 122 123 163 163 405 407 408 408 408 408 408 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
120	PULLER ASM; MAIN REAR BRG L=285	9-85210-184-0	01	1	1307-1311	●
120	PULLER ASM; MAIN REAR BRG L=285	9-85210-184-0	01	1	1312-	●	●
121	PULLER ASM; COUNTER REAR (B)	1-85210-069-0	01	1	1307-1311	●
121	PULLER ASM; COUNTER REAR (B)	1-85210-069-0	01	1	1312-	●	●
121	PULLER ASM; COUNTER REAR (A) OD=146	1-85210-074-0	01	1	1307-1311	●
121	PULLER ASM; COUNTER REAR (A) OD=146	1-85210-074-0	01	1	1312-	●	●
122	PULLER ASM; COUNTER FRT	9-85210-195-0	01	1	1307-1311	●
122	PULLER ASM; COUNTER FRT	9-85210-195-0	01	1	1312-	●	●
123	PULLER; SPEEDOMETER BUSHING	9-85210-091-0	01	1	1307-1311	●
123	PULLER; SPEEDOMETER BUSHING	9-85210-091-0	01	1	1312-	●	●
163	TOOL; SETTING (C) L=195	1-85221-162-1	01	1	1307-1311	●
163	TOOL; SETTING (C) L=195	1-85221-162-1	01	1	1312-	●	●
163	TOOL; SETTING (D) L=150	1-85221-163-0	01	1	1307-1311	●
163	TOOL; SETTING (D) L=150	1-85221-163-0	01	1	1312-	●	●
163	TOOL; SETTING (B) OD=150	1-85221-167-0	01	1	1307-1311	●
163	TOOL; SETTING (B) OD=150	1-85221-167-0	01	1	1312-	●	●
163	TOOL; SETTING (A)	9-85221-231-0	01	1	1307-1311	●
163	TOOL; SETTING (A)	9-85221-231-0	01	1	1312-	●	●
405	GUIDE; COUNTER	1-85221-264-0	01	1	1307-1311	●
405	GUIDE; COUNTER	1-85221-264-0	01	1	1312-	●	●
407	SOCKET; SW	1-85221-267-1	01	1	1307-1311	●
407	SOCKET; SW	1-85221-267-1	01	1	1312-	●	●
408	TOOL; SETTING,SHIFT ASSISTER (D)	1-85221-257-0	01	1	1307-1311	●
408	TOOL; SETTING,SHIFT ASSISTER (D)	1-85221-257-0	01	1	1312-	●	●
408	TOOL; SETTING,SHIFT ASSISTER (E)	1-85221-259-0	01	1	1307-1311	●
408	TOOL; SETTING,SHIFT ASSISTER (E)	1-85221-259-0	01	1	1312-	●	●
408	TOOL; SETTING,SHIFT ASSISTER (F)	1-85221-260-0	01	1	1307-1311	●
408	TOOL; SETTING,SHIFT ASSISTER (F)	1-85221-260-0	01	1	1312-	●	●
408	TOOL; SETTING,SHIFT ASSISTER (A)	1-85221-262-0	02	1	1307-1311	●
408	TOOL; SETTING,SHIFT ASSISTER (A)	1-85221-262-0	02	1	1312-	●	●
408	TOOL; SETTING,SHIFT ASSISTER (B)	1-85221-268-0	01	1	1307-1311	●
408	TOOL; SETTING,SHIFT ASSISTER (B)	1-85221-268-0	01	1	1312-	●	●
408	TOOL; SETTING,SHIFT ASSISTER (C)	1-85221-269-0	01	1	1307-1311	●
408	TOOL; SETTING,SHIFT ASSISTER (C)	1-85221-269-0	01	1	1312-	●	●

193 208 227 229 230 237 242 246 247 248 249 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
193	JACK ASM TOOL B KIT(SL1) 15TON	1-85510-019-2	01	1	1307-1311	●
193	JACK ASM TOOL B KIT(SL1) 15TON	1-85510-019-2	01	1	1312-	●	●
208	HANDLE; JACK TOOL B KIT(SL1) L=600	8-98181-437-0	01	1	1307-1311	●
208	HANDLE; JACK TOOL B KIT(SL1) L=600	8-98181-437-0	01	1	1312-	●	●
227	PUMP ASM; TIRE	9-85521-132-0	01	1	1307-1311	●
227	PUMP ASM; TIRE	9-85521-132-0	01	1	1312-	●	●
229	FUNNEL; RAD TOOL B KIT(SL1)	9-85531-110-1	01	1	1307-1311	●
229	FUNNEL; RAD TOOL B KIT(SL1)	9-85531-110-1	01	1	1312-	●	●
230	PUMP; GREASE TOOL B KIT(SL1)	1-85556-007-5	01	1	1307-1311	●
230	PUMP; GREASE TOOL B KIT(SL1)	1-85556-007-5	01	1	1312-	●	●
237	BAG; TOOL TOOL B KIT(SL1)	8-97130-902-1	01	1	1307-1311	●
237	BAG; TOOL TOOL B KIT(SL1)	8-97130-902-1	01	1	1312-	●	●
242	DRAWER ASM; ENG TRANS & DIFF 9.00-20 SINGLE TYPE	9-85591-254-0	AR	1	1307-1311	●
242	DRAWER ASM; ENG TRANS & DIFF 9.00-20 SINGLE TYPE	9-85591-254-0	AR	1	1312-	●	●
246	CHAIN; TIRE,1000-20,SINGLE 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	1307-1311	●
246	CHAIN; TIRE,1000-20,SINGLE 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	1312-	●	●
246	CHAIN; TIRE,1000-20,SINGLE 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	1307-1311	●
246	CHAIN; TIRE,1000-20,SINGLE 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	1312-	●	●
247	CHAIN; TIRE,750-20,DOUBLE 9.00-20 DOUBLE TYPE	9-85591-255-0	AR	1	1307-1311	●
247	CHAIN; TIRE,750-20,DOUBLE 9.00-20 DOUBLE TYPE	9-85591-255-0	AR	1	1312-	●	●
248	CHAIN; TIRE,1000-20,DOUBLE 10.00-20 DOUBLE TYPE	9-85591-240-0	AR	1	1307-1311	●
248	CHAIN; TIRE,1000-20,DOUBLE 10.00-20 DOUBLE TYPE	9-85591-240-0	AR	1	1312-	●	●
248	CHAIN; TIRE,1000-20,DOUBLE 11.00-20 DOUBLE TYPE	9-85591-260-0	AR	1	1307-1311	●
248	CHAIN; TIRE,1000-20,DOUBLE 11.00-20 DOUBLE TYPE	9-85591-260-0	AR	1	1312-	●	●
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	AR	1	1307-1311	●
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	AR	1	1312-	●	●
250	CHAIN; TIRE,1000-20,TRIPLE 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	1307-1311	●
250	CHAIN; TIRE,1000-20,TRIPLE 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	1312-	●	●
250	CHAIN; TIRE,1000-20,TRIPLE 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	1307-1311	●
250	CHAIN; TIRE,1000-20,TRIPLE 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	1312-	●	●

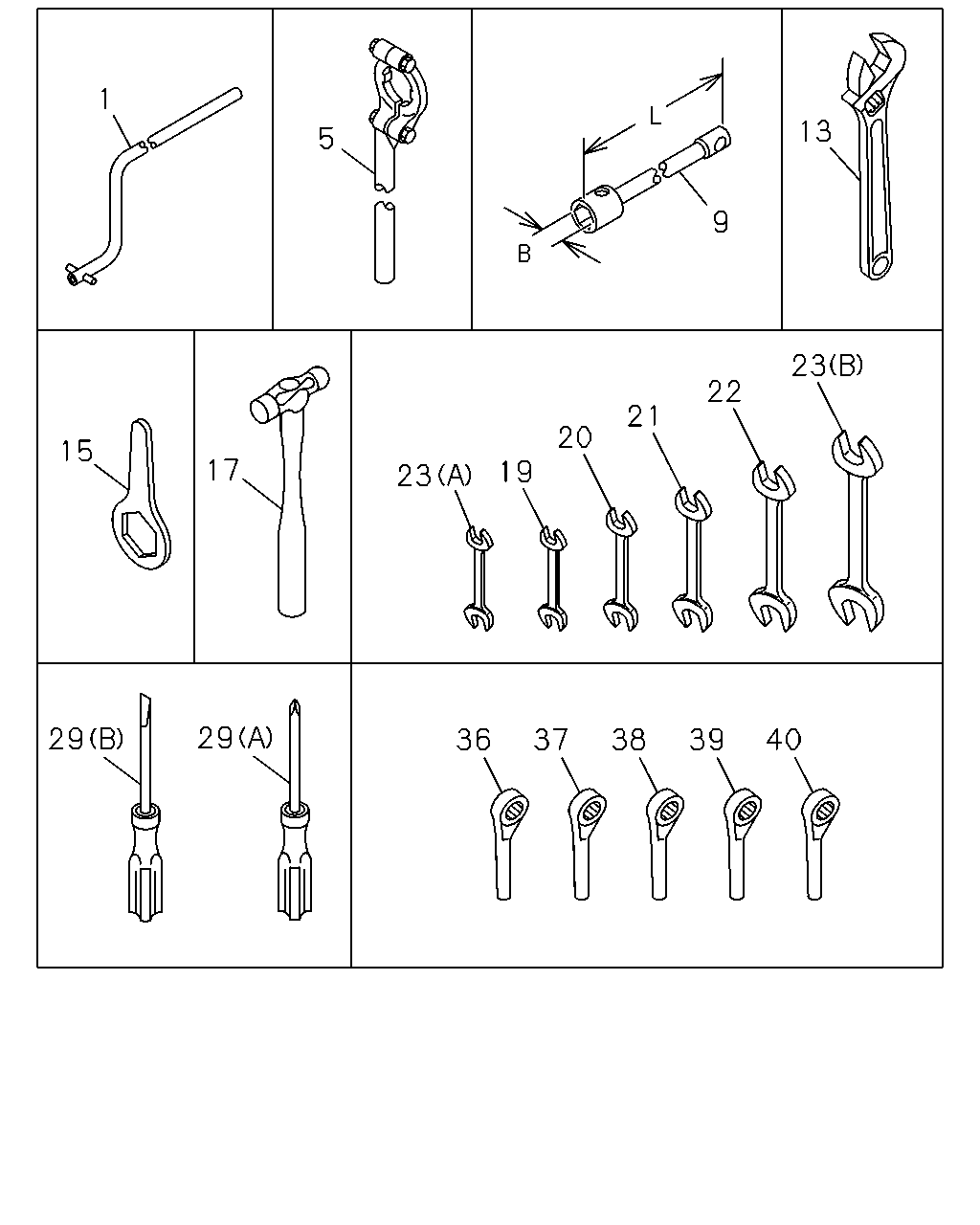

23 22 13 9 5 1 15 17 23 19 20 21 40 39 38 37 36 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; SPARE TIRE CARRIER	1-23111-004-0	01	1	1307-1311	●
1	HANDLE; SPARE TIRE CARRIER	1-23111-004-0	01	1	1312-	●	●
5	WRENCH ASM; NUT,MAINSHAFT	1-85110-010-0	01	1	1307-1311	●
5	WRENCH ASM; NUT,MAINSHAFT	1-85110-010-0	01	1	1312-	●	●
9	WRENCH; WHEEL PIN TOOL B KIT(SL1) B=33X30 L=450	1-85111-033-1	01	1	1307-1311	●
9	WRENCH; WHEEL PIN TOOL B KIT(SL1) B=33X30 L=450	1-85111-033-1	01	1	1312-1601	●	●
9	WRENCH; WHEEL PIN TOOL B KIT(SL1) B=33X30 L=450	1-85111-033-1	01	1	1307-1311	●
9	WRENCH; WHEEL PIN TOOL B KIT(SL1) B=33X30 L=450	1-85111-033-1	01	1	1312-1601	●	●
9	WRENCH; WHEEL PIN TOOL B KIT(SL1) B=33X30 L=450	8-98316-700-0	01	1	1602-	●	●
13	WRENCH; MONKEY TOOL B KIT(SL1) L=247	1-85117-006-0	01	1	1307-1311	●
13	WRENCH; MONKEY TOOL B KIT(SL1) L=247	1-85117-006-0	01	1	1312-1407	●	●
13	WRENCH; MONKEY TOOL B KIT(SL1) L=255	8-98270-303-0	01	1	1408-	●	●
15	WRENCH; TOP GEAR NUT	9-85111-330-0	01	1	1307-1311	●
15	WRENCH; TOP GEAR NUT	9-85111-330-0	01	1	1312-	●	●
17	HAMMER TOOL B KIT(SL1)	9-85121-406-0	01	1	1307-1311	●
17	HAMMER TOOL B KIT(SL1)	9-85121-406-0	01	1	1312-	●	●
19	WRENCH; 7X8 TOOL B KIT(SL1) 7X8	9-09592-107-0	01	1	1307-1311	●
19	WRENCH; 7X8 TOOL B KIT(SL1) 7X8	9-09592-107-0	01	1	1312-	●	●
20	WRENCH; 10X12 TOOL B KIT(SL1) 10X12	0-95902-510-0	01	1	1307-1311	●
20	WRENCH; 10X12 TOOL B KIT(SL1) 10X12	0-95902-510-0	01	1	1312-	●	●
21	WRENCH; 14X17 TOOL B KIT(SL1) 14X17	0-95902-514-0	01	1	1307-1311	●
21	WRENCH; 14X17 TOOL B KIT(SL1) 14X17	0-95902-514-0	01	1	1312-	●	●
22	WRENCH; 19X22 TOOL B KIT(SL1) 19X22	0-95902-519-0	01	1	1307-1311	●
22	WRENCH; 19X22 TOOL B KIT(SL1) 19X22	0-95902-519-0	01	1	1312-	●	●
23	WRENCH; 24X27 TOOL B KIT(SL1) (B) 24X27	0-95902-524-0	01	1	1307-1311	●
23	WRENCH; 24X27 TOOL B KIT(SL1) (B) 24X27	0-95902-524-0	01	1	1312-	●	●
23	WRENCH; 24X27 TOOL B KIT(SL1) (A) 5.5X7	9-09592-105-0	01	1	1307-1311	●
23	WRENCH; 24X27 TOOL B KIT(SL1) (A) 5.5X7	9-09592-105-0	01	1	1312-	●	●
29	DRIVER; SCREW TOOL B KIT(SL1) (A) <+> L=205	9-09595-022-0	01	1	1307-1311	●
29	DRIVER; SCREW TOOL B KIT(SL1) (A) <+> L=205	9-09595-022-0	01	1	1312-	●	●
29	DRIVER; SCREW TOOL B KIT(SL1) (A) <+> L=275	9-09595-023-0	01	1	1307-1311	●
29	DRIVER; SCREW TOOL B KIT(SL1) (A) <+> L=275	9-09595-023-0	01	1	1312-	●	●
29	DRIVER; SCREW TOOL B KIT(SL1) (B) <-> L=205	9-09595-126-0	01	1	1307-1311	●
29	DRIVER; SCREW TOOL B KIT(SL1) (B) <-> L=205	9-09595-126-0	01	1	1312-	●	●
29	DRIVER; SCREW TOOL B KIT(SL1) (B) <-> L=325	9-09595-129-0	01	1	1307-1311	●
29	DRIVER; SCREW TOOL B KIT(SL1) (B) <-> L=325	9-09595-129-0	01	1	1312-	●	●
36	WRENCH; 24	9-85111-377-0	01	1	1307-1311	●
36	WRENCH; 24	9-85111-377-0	01	1	1312-	●	●
37	WRENCH; 27	9-85111-375-0	01	1	1307-1311	●
37	WRENCH; 27	9-85111-375-0	01	1	1312-	●	●
38	WRENCH; 32	9-85111-358-0	01	1	1307-1311	●
38	WRENCH; 32	9-85111-358-0	01	1	1312-	●	●
39	WRENCH; 36	9-85111-374-0	01	1	1307-1311	●
39	WRENCH; 36	9-85111-374-0	01	1	1312-	●	●
40	WRENCH; 41	9-85111-356-0	01	1	1307-1311	●
40	WRENCH; 41	9-85111-356-0	01	1	1312-	●	●

129 142 125 115 128 141 43 12 127 130 135 148 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT(SL1) OD=25 L=480	1-85116-011-0	01	1	1307-1311	●
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT(SL1) OD=25 L=480	1-85116-011-0	01	1	1312-1501	●	●
12	HANDLE; WRENCH,WHEEL PIN TOOL B KIT(SL1) OD=25 L=480	8-98257-407-0	01	1	1502-	●	●
43	BAR; EXTENSION,SOCKET WRENCH OD=25 L=480	1-85116-011-0	01	1	1307-1311	●
43	BAR; EXTENSION,SOCKET WRENCH OD=25 L=480	1-85116-011-0	01	1	1312-1501	●	●
43	BAR; EXTENSION,SOCKET WRENCH OD=25 L=480	8-98257-407-0	01	1	1502-	●	●
115	PLIER TOOL B KIT(SL1)	5-85171-002-0	01	1	1307-1311	●
115	PLIER TOOL B KIT(SL1)	5-85171-002-0	01	1	1312-1410	●	●
115	PLIER TOOL B KIT(SL1)	8-98282-845-0	01	1	1411-	●	●
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	1307-1311	●
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	1312-	●	●
127	WRENCH ASM; HUB BRG NUT L=400 B=116	8-98119-000-1	01	1	1307-1311	●
127	WRENCH ASM; HUB BRG NUT L=400 B=116	8-98119-000-1	01	1	1312-	●	●
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	1307-1311	●
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	1312-	●	●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	1307-1311	●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	1312-	●	●
130	WRENCH; BOX B=63	9-85111-368-0	01	1	1307-1311	●
130	WRENCH; BOX B=63	9-85111-368-0	01	1	1312-	●	●
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	1307-1311	●
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	1312-	●	●
141	HANDLE; WRENCH OD=16 L=200	9-85111-934-0	01	1	1307-1311	●
141	HANDLE; WRENCH OD=16 L=200	9-85111-934-0	01	1	1312-	●	●
142	PULLER ASM; TRANS BRG	9-85210-148-0	01	1	1307-1311	●
142	PULLER ASM; TRANS BRG	9-85210-148-0	01	1	1312-	●	●
146	REPLACER KIT; LEAF SPR	9-85231-556-0	01	1	1307-1311	●
146	REPLACER KIT; LEAF SPR	9-85231-556-0	01	1	1312-	●	●
148	PULLER; COUNTER SHAFT BRG	9-85210-195-0	01	1	1307-1311	●
148	PULLER; COUNTER SHAFT BRG	9-85210-195-0	01	1	1312-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
