8-80 — WINDSHIELD WIPER AND WASHER (#123971) — 56 parça

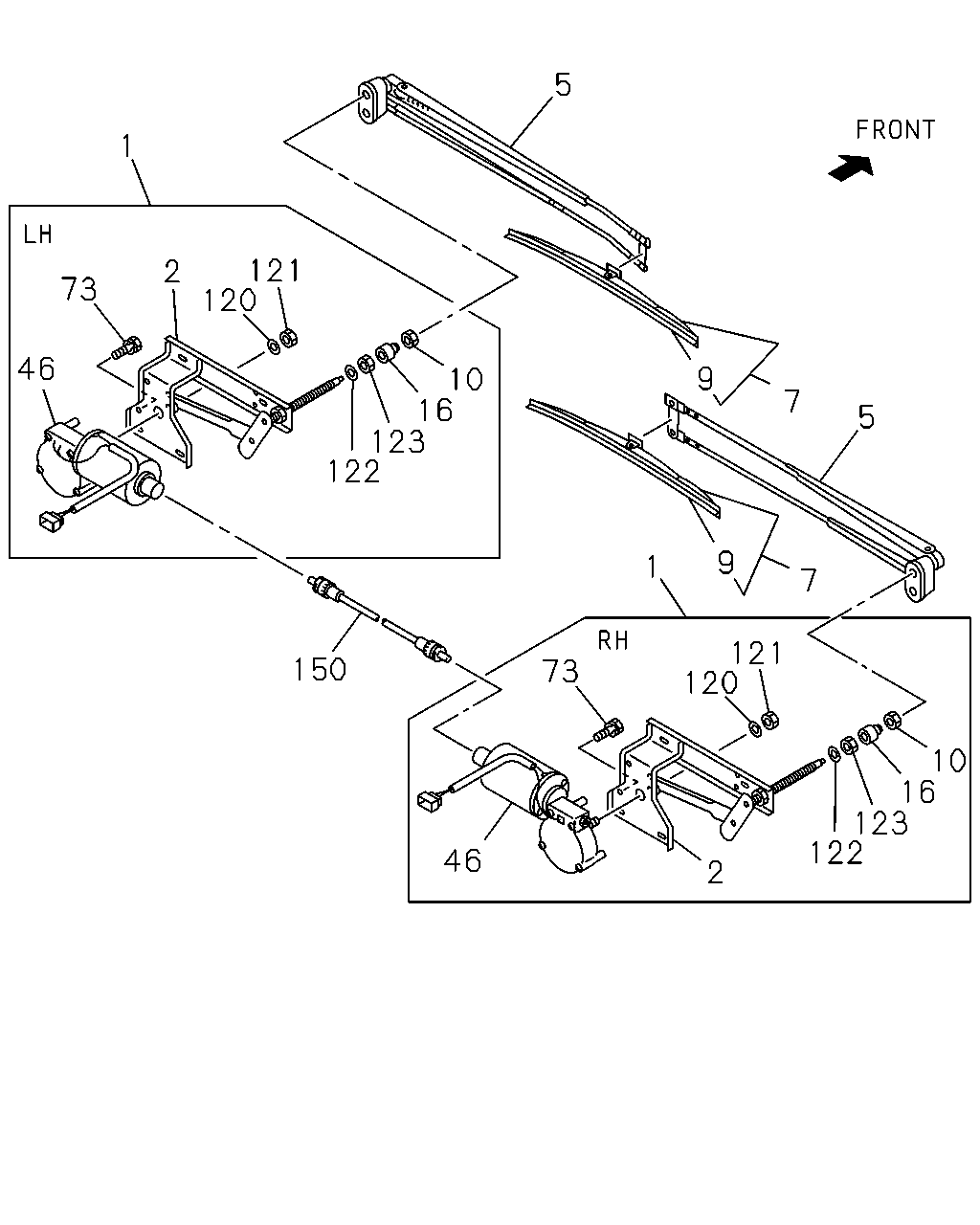

çizim 364134
10 16 123 122 2 46 73 120 1 7 9 121 7 5 9 10 16 123 122 150 5 1 121 120 2 73 46
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINK ASM; FRT WIPER
WIPER MOTOR KIT<ST7> 		1-83310-071-0 01 1 1307-1311 ●
1 LINK ASM; FRT WIPER
WIPER MOTOR KIT<ST7> 		1-83310-071-0 01 1 1312- ● ●
1 LINK ASM; FRT WIPER
WIPER MOTOR KIT<ST7> 		1-83310-114-0 01 1 1307-1311 ●
1 LINK ASM; FRT WIPER
WIPER MOTOR KIT<ST7> 		1-83310-114-0 01 1 1312- ● ●
2 LINK; FRT WIPER
WIPER MOTOR KIT<ST7> 		1-83314-117-0 01 1 1307-1311 ●
2 LINK; FRT WIPER
WIPER MOTOR KIT<ST7> 		1-83314-117-0 01 1 1312- ● ●
2 LINK; FRT WIPER
WIPER MOTOR KIT<ST7> 		1-83312-082-0 01 1 1307-1311 ●
2 LINK; FRT WIPER
WIPER MOTOR KIT<ST7> 		1-83312-082-0 01 1 1312- ● ●
5 ARM; WIPER
PARALLEL WIPER<SBT> 		1-83314-120-0 01 1 1307-1311 ●
5 ARM; WIPER
PARALLEL WIPER<SBT> 		1-83314-120-0 01 1 1312- ● ●
5 ARM; WIPER
PARALLEL WIPER<SBT> 		1-83314-121-0 01 1 1307-1311 ●
5 ARM; WIPER
PARALLEL WIPER<SBT> 		1-83314-121-0 01 1 1312- ● ●
7 BLADE; WIPER
PARALLEL WIPER<SBT> 		1-83315-039-0 02 1 1307-1311 ●
7 BLADE; WIPER
PARALLEL WIPER<SBT> 		1-83315-039-0 02 1 1312- ● ●
9 RUBBER; FRT WIPER BLADE
PARALLEL WIPER<SBT> L=563 		1-83355-009-0 02 1 1307-1311 ●
9 RUBBER; FRT WIPER BLADE
PARALLEL WIPER<SBT> L=563 		1-83355-009-0 02 1 1312- ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
WIPER MOTOR KIT<ST7> 		1-83318-049-0 02 1 1307-1311 ●
10 NUT; WIPER ARM TO WIPER PIVOT
WIPER MOTOR KIT<ST7> 		1-83318-049-0 02 1 1312- ● ●
16 SEAL; BALL JOINT
WIPER MOTOR KIT<ST7> 		1-83318-048-0 02 1 1307-1311 ●
16 SEAL; BALL JOINT
WIPER MOTOR KIT<ST7> 		1-83318-048-0 02 1 1312- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER
WIPER MOTOR KIT<ST7> 		1-83311-059-0 01 1 1307-1311 ●
46 MOTOR ASM; FRT WINDSHIELD WIPER
WIPER MOTOR KIT<ST7> 		1-83311-059-0 01 1 1312- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER
WIPER MOTOR KIT<ST7> 		1-83311-065-0 01 1 1307-1311 ●
46 MOTOR ASM; FRT WINDSHIELD WIPER
WIPER MOTOR KIT<ST7> 		1-83311-065-0 01 1 1312- ● ●
73 BOLT
WIPER MOTOR KIT<ST7> 		1-83318-079-0 06 1 1307-1311 ●
73 BOLT
WIPER MOTOR KIT<ST7> 		1-83318-079-0 06 1 1312- ● ●
120 WASHER; ARM TO BRKT
WIPER MOTOR KIT<ST7> 		1-83318-045-0 01 1 1307-1311 ●
120 WASHER; ARM TO BRKT
WIPER MOTOR KIT<ST7> 		1-83318-045-0 01 1 1312- ● ●
120 WASHER; ARM TO BRKT
WIPER MOTOR KIT<ST7> 		1-83318-077-0 01 1 1307-1311 ●
120 WASHER; ARM TO BRKT
WIPER MOTOR KIT<ST7> 		1-83318-077-0 01 1 1312- ● ●
121 NUT; ARM TO BRKT
WIPER MOTOR KIT<ST7> 		1-83318-044-0 01 1 1307-1311 ●
121 NUT; ARM TO BRKT
WIPER MOTOR KIT<ST7> 		1-83318-044-0 01 1 1312- ● ●
121 NUT; ARM TO BRKT
WIPER MOTOR KIT<ST7> 		1-83318-078-0 01 1 1307-1311 ●
121 NUT; ARM TO BRKT
WIPER MOTOR KIT<ST7> 		1-83318-078-0 01 1 1312- ● ●
122 WASHER; PIVOT FIX,FRT WIPER
WIPER MOTOR KIT<ST7> 		1-83318-046-0 02 1 1307-1311 ●
122 WASHER; PIVOT FIX,FRT WIPER
WIPER MOTOR KIT<ST7> 		1-83318-046-0 02 1 1312- ● ●
123 NUT; PIVOT FIX,FRT WIPER
WIPER MOTOR KIT<ST7> 		1-83318-050-0 02 1 1307-1311 ●
123 NUT; PIVOT FIX,FRT WIPER
WIPER MOTOR KIT<ST7> 		1-83318-050-0 02 1 1312- ● ●
150 SHAFT; FLEX,WIPER MOTOR TO WIPER
WIPER MOTOR KIT<ST7> 		1-83124-080-0 01 1 1307-1311 ●
150 SHAFT; FLEX,WIPER MOTOR TO WIPER
WIPER MOTOR KIT<ST7> 		1-83124-080-0 01 1 1312- ● ●
çizim 364175
39 36 36 40 36 39 36 30 24 127 26 25
BalonParca AdiParca NoAdetTipApplied Date A B
24 TANK ASM; WASHER
WINDSHIELD WASHER<C11> 		1-83330-033-0 01 1 1307-1311 ●
24 TANK ASM; WASHER
WINDSHIELD WASHER<C11> 		1-83330-033-0 01 1 1312- ● ●
25 BRACKET; WASHER TANK
WINDSHIELD WASHER<C11> 		9-83561-926-0 01 1 1307-1311 ●
25 BRACKET; WASHER TANK
WINDSHIELD WASHER<C11> 		9-83561-926-0 01 1 1312- ● ●
26 HANGER; WASHER TANK
WINDSHIELD WASHER<C11> 		9-83561-925-0 01 1 1307-1311 ●
26 HANGER; WASHER TANK
WINDSHIELD WASHER<C11> 		9-83561-925-0 01 1 1312- ● ●
30 MOTOR ASM; FRT WASHER TANK
WINDSHIELD WASHER<C11> 		9-83561-208-0 01 1 1307-1311 ●
30 MOTOR ASM; FRT WASHER TANK
WINDSHIELD WASHER<C11> 		9-83561-208-0 01 1 1312- ● ●
36 HOSE; WASHER
WINDSHIELD WASHER<C11> SERVICED BY L=10000 		9-09914-906-0 01 1 1307-1311 ●
36 HOSE; WASHER
WINDSHIELD WASHER<C11> SERVICED BY L=10000 		9-09914-906-0 01 1 1312- ● ●
39 NOZZLE; WINDSHIELD WASHER
WINDSHIELD WASHER<C11> 		1-83334-012-0 02 1 1307-1311 ●
39 NOZZLE; WINDSHIELD WASHER
WINDSHIELD WASHER<C11> 		1-83334-012-0 02 1 1312- ● ●
40 JOINT; WASHER HOSE
WINDSHIELD WASHER<C11> 		9-83565-006-0 01 1 1307-1311 ●
40 JOINT; WASHER HOSE
WINDSHIELD WASHER<C11> 		9-83565-006-0 01 1 1312- ● ●
127 BAND; WASHER TANK
WINDSHIELD WASHER<C11> 		9-83561-928-0 01 1 1307-1311 ●
127 BAND; WASHER TANK
WINDSHIELD WASHER<C11> 		9-83561-928-0 01 1 1312- ● ●
