8-28 — CHASSIS ELECTRICAL (#123969) — 83 parça

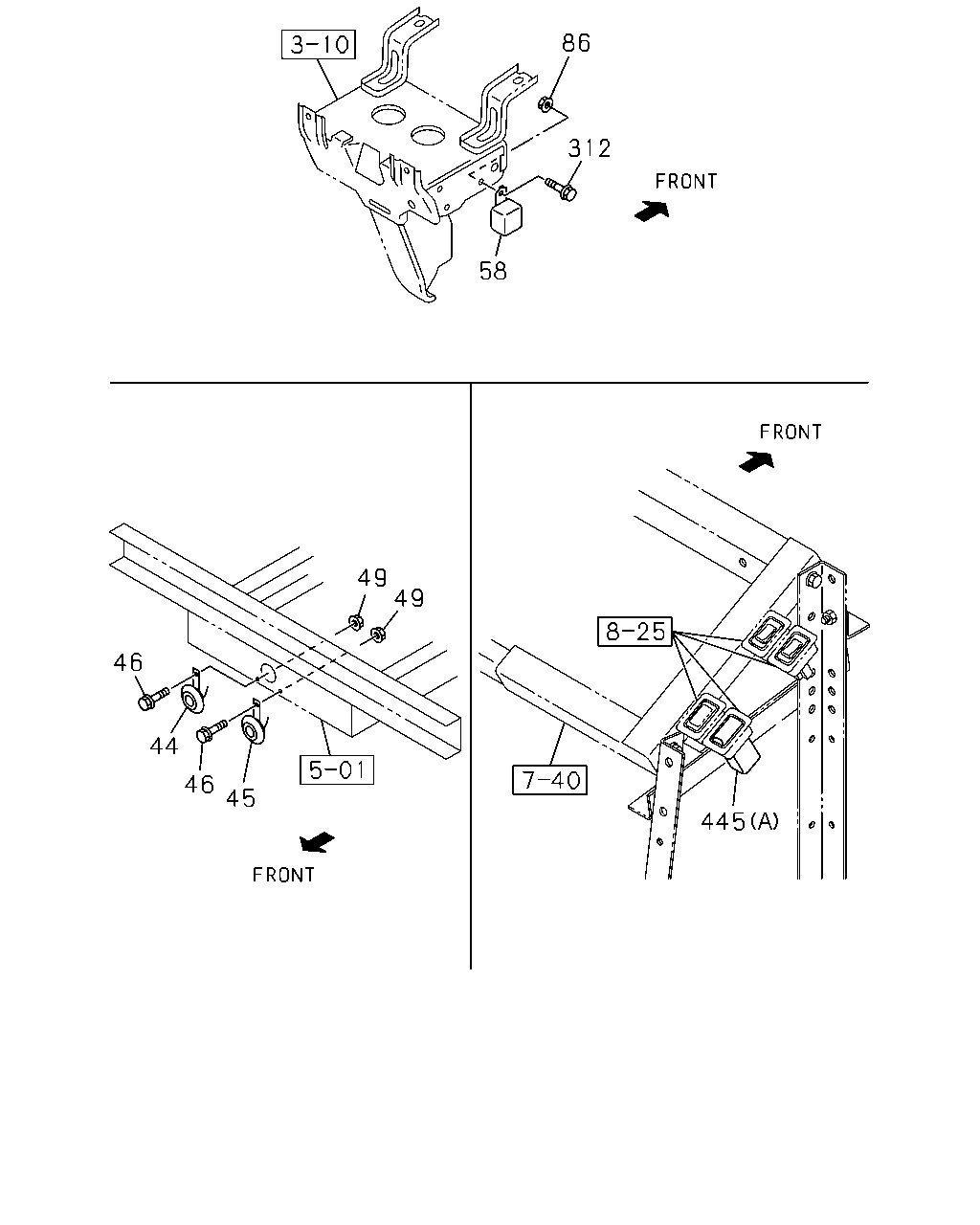

çizim 363736
86 312 58 49 49 46 44 46 45 445
BalonParca AdiParca NoAdetTipApplied Date A B
44 HORN; HIGH NOTE 1-83410-065-1 01 1 1307-1311 ●
44 HORN; HIGH NOTE 1-83410-065-1 01 1 1312- ● ●
45 HORN; LOW NOTE 1-83410-064-1 01 1 1307-1311 ●
45 HORN; LOW NOTE 1-83410-064-1 01 1 1312- ● ●
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28650-825-0 02 1 1307-1311 ●
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28650-825-0 02 1 1312- ● ●
49 NUT; HORN TO BODY
M8 FLANGE 		0-91180-108-0 02 1 1307-1311 ●
49 NUT; HORN TO BODY
M8 FLANGE 		0-91180-108-0 02 1 1312- ● ●
58 BUZZER; AIR PRESSURE WARNING 1-83460-106-0 01 1 1307-1311 ●
58 BUZZER; AIR PRESSURE WARNING 1-83460-106-0 01 1 1312- ● ●
86 NUT; BUZZER
M6 FLANGE 		0-91180-106-0 01 1 1307-1311 ●
86 NUT; BUZZER
M6 FLANGE 		0-91180-106-0 01 1 1312- ● ●
312 BOLT; BUZZER
M6X16 FLANGE 		0-28650-616-0 01 1 1307-1311 ●
312 BOLT; BUZZER
M6X16 FLANGE 		0-28650-616-0 01 1 1312- ● ●
445 SWITCH; ENG STOP
AUTO ENG SHUT DOWN(Q3G) (A) 		8-98138-305-0 01 1 1307-1311 ●
445 SWITCH; ENG STOP
AUTO ENG SHUT DOWN(Q3G) (A) 		8-98138-305-0 01 1 1312- ● ●
445 SWITCH; ENG STOP
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) 		1-82380-107-1 01 1 1307-1311 ●
445 SWITCH; ENG STOP
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) 		1-82380-107-1 01 1 1312- ● ●

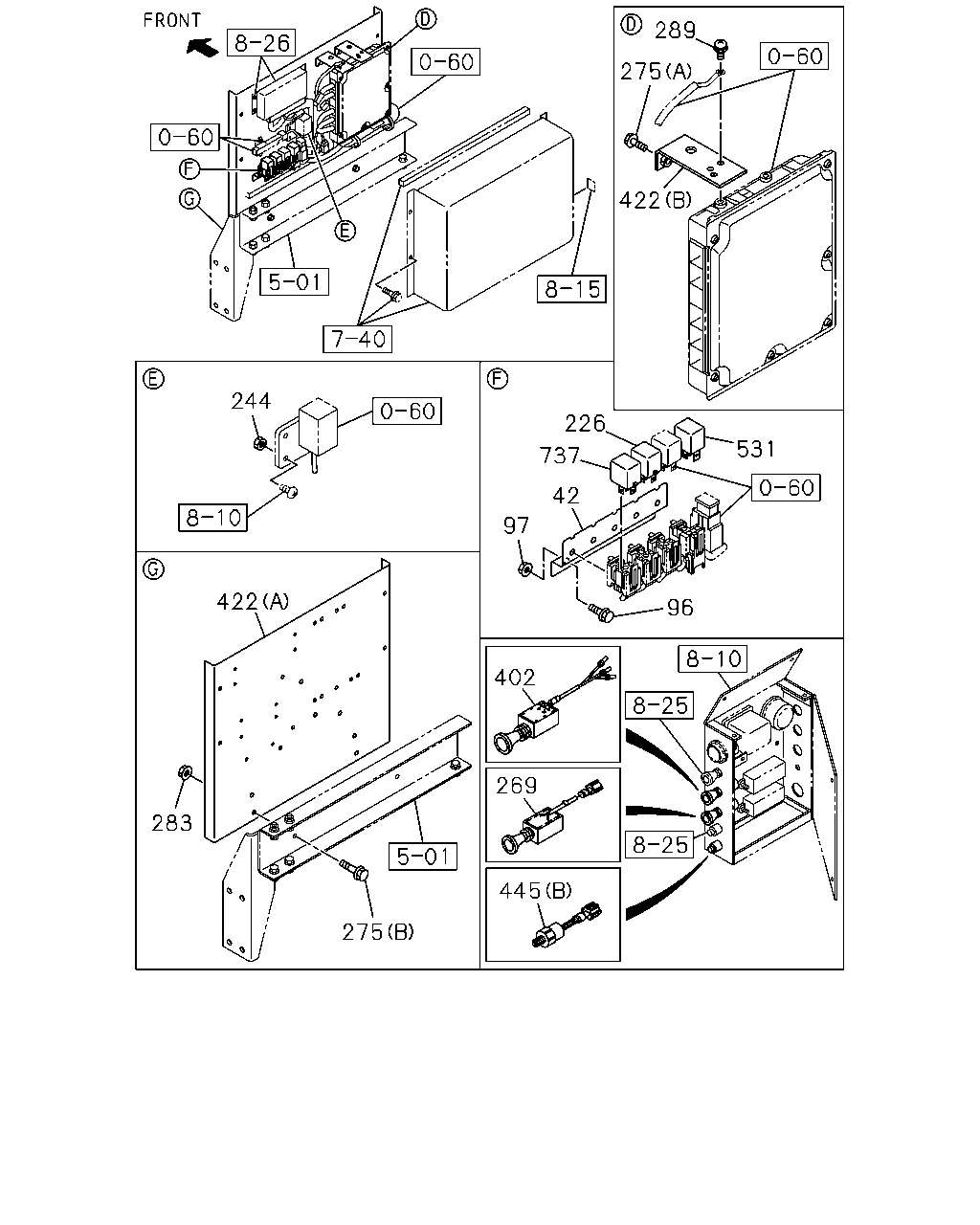

çizim 365430
275 283 422 244 289 275 422 531 226 737 42 97 96 402 269 445
BalonParca AdiParca NoAdetTipApplied Date A B
42 BRACKET; RELAY 1-82698-594-0 01 1 1307-1311 ●
42 BRACKET; RELAY 1-82698-594-0 01 1 1312- ● ●
96 BOLT; BRKT FIX
M6X16 FLANGE 		0-28650-616-0 02 1 1307-1311 ●
96 BOLT; BRKT FIX
M6X16 FLANGE 		0-28650-616-0 02 1 1312- ● ●
97 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 02 1 1307-1311 ●
97 NUT; BRKT FIX
M6 FLANGE 		0-91180-106-0 02 1 1312- ● ●
226 RELAY; EXH BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1307-1311 ●
226 RELAY; EXH BRK
ANTILOCK BRAKE SYSTEM<BFA> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1307-1311 ●
226 RELAY; EXH BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1312- ● ●
226 RELAY; EXH BRK
ANTILOCK BRAKE SYSTEM<BFA> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1312- ● ●
244 NUT; FUSE BOX
M5 		1-09984-124-0 02 1 1307-1311 ●
244 NUT; FUSE BOX
M5 		1-09984-124-0 02 1 1312- ● ●
269 SWITCH; BATTERY,ENG ROOM
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		8-97621-398-0 01 1 1307-1311 ●
269 SWITCH; BATTERY,ENG ROOM
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		8-97621-398-0 01 1 1312- ● ●
275 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 08 1 1307-1311 ●
275 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 08 1 1312- ● ●
275 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 04 1 1307-1311 ●
275 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 04 1 1312- ● ●
283 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1307-1311 ●
283 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1312- ● ●
289 BOLT
M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 1307-1311 ●
289 BOLT
M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 1312-1411 ● ●
289 BOLT
M5X12 W/LK&PL WASHER 		0-36230-512-0 04 1 1412- ● ●
402 SWITCH; IGNITION SAFETY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		8-97621-399-0 01 1 1307-1311 ●
402 SWITCH; IGNITION SAFETY
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		8-97621-399-0 01 1 1312- ● ●
422 BRACKET; CONT UNIT
(A) 		8-98191-593-0 01 1 1307-1311 ●
422 BRACKET; CONT UNIT
(A) 		8-98191-593-0 01 1 1312- ● ●
422 BRACKET; CONT UNIT
(B) 		8-98191-594-0 04 1 1307-1311 ●
422 BRACKET; CONT UNIT
(B) 		8-98191-594-0 04 1 1312- ● ●
445 SWITCH; ENG STOP
AUTO ENG SHUT DOWN(Q3G) (A) 		8-98138-305-0 01 1 1307-1311 ●
445 SWITCH; ENG STOP
AUTO ENG SHUT DOWN(Q3G) (A) 		8-98138-305-0 01 1 1312- ● ●
445 SWITCH; ENG STOP
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) 		1-82380-107-1 01 1 1307-1311 ●
445 SWITCH; ENG STOP
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) 		1-82380-107-1 01 1 1312- ● ●
531 RELAY; MAIN
24V 		8-98167-175-0 01 1 1307-1311 ●
531 RELAY; MAIN
24V 		8-98167-175-0 01 1 1312- ● ●
737 RELAY; VGS
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1307-1311 ●
737 RELAY; VGS
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1312- ● ●

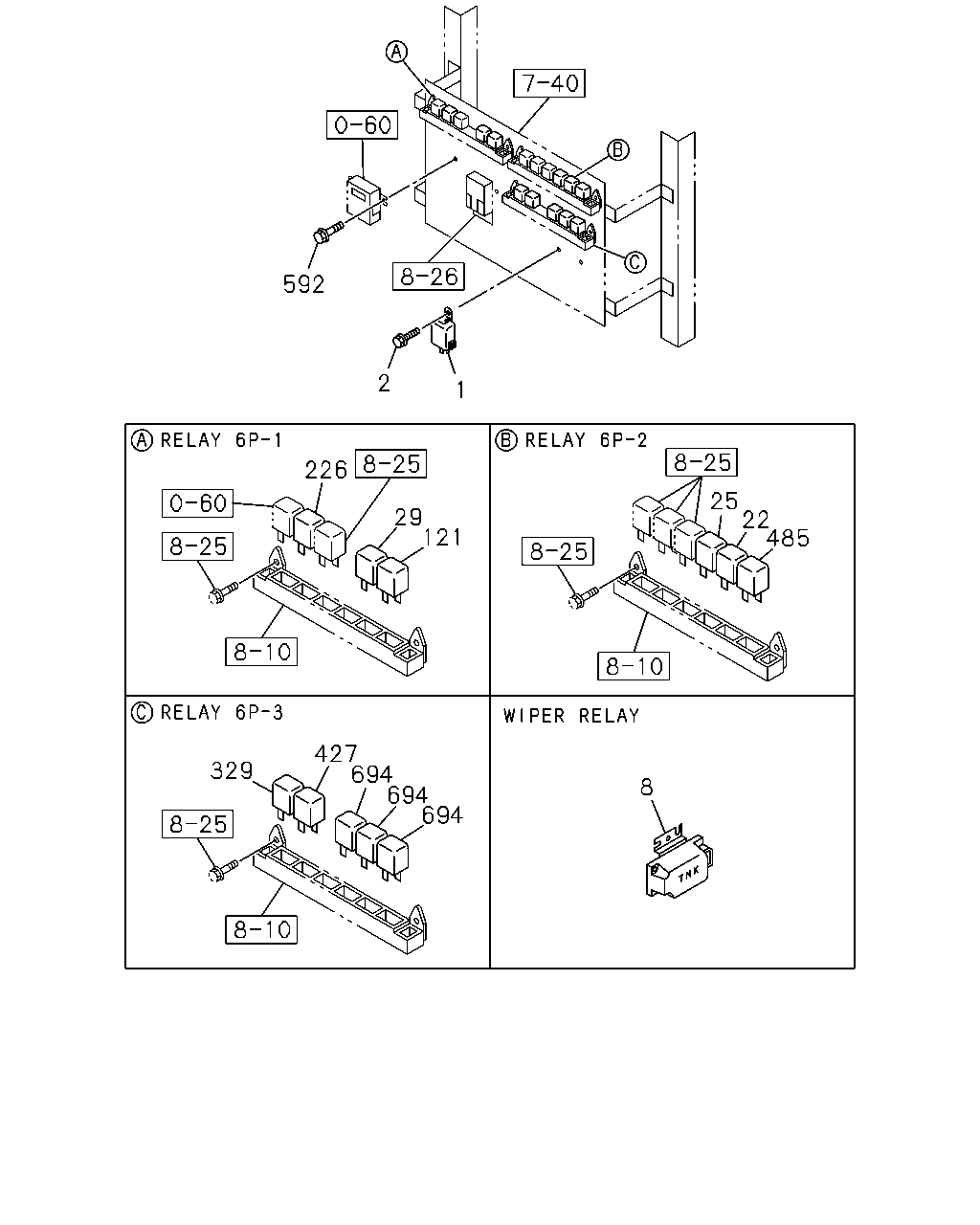

çizim 365485
592 2 1 226 29 121 25 22 485 427 694 694 694 8 329
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 1-83470-060-1 01 1 1307-1311 ●
1 UNIT; FLASHER 1-83470-060-1 01 1 1312- ● ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 01 1 1307-1311 ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 01 1 1312- ● ●
8 RELAY; WIPER
WIPER MOTOR KIT<ST7> ASMO 		1-82550-169-0 01 1 1307-1311 ●
8 RELAY; WIPER
WIPER MOTOR KIT<ST7> ASMO 		1-82550-169-0 01 1 1312- ● ●
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1307-1311 ●
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1312- ● ●
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1307-1311 ●
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1312- ● ●
29 RELAY; HORN
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1307-1311 ●
29 RELAY; HORN
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1312- ● ●
121 RELAY; PARKING BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1307-1311 ●
121 RELAY; PARKING BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1312- ● ●
226 RELAY; EXH BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1307-1311 ●
226 RELAY; EXH BRK
ANTILOCK BRAKE SYSTEM<BFA> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1307-1311 ●
226 RELAY; EXH BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1312- ● ●
226 RELAY; EXH BRK
ANTILOCK BRAKE SYSTEM<BFA> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1312- ● ●
329 RELAY; BACK LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1307-1311 ●
329 RELAY; BACK LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1312- ● ●
427 RELAY; RETARDER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1307-1311 ●
427 RELAY; RETARDER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1312- ● ●
485 RELAY; ABS
ANTILOCK BRAKE SYSTEM<BFA> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1307-1311 ●
485 RELAY; ABS
ANTILOCK BRAKE SYSTEM<BFA> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1312- ● ●
592 BOLT; SENSOR
M6X16 FLANGE 		0-28650-616-0 02 1 1307-1311 ●
592 BOLT; SENSOR
M6X16 FLANGE 		0-28650-616-0 02 1 1312- ● ●
694 RELAY; RR FOG LAMP
FOG LAMP<T96> 24V 12.5A PANASONIC 		8-97262-933-0 03 1 1307-1311 ●
694 RELAY; RR FOG LAMP
FOG LAMP<T96> 24V 12.5A PANASONIC 		8-97262-933-0 03 1 1312- ● ●
