11523 - LV152/452(LHD) EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶

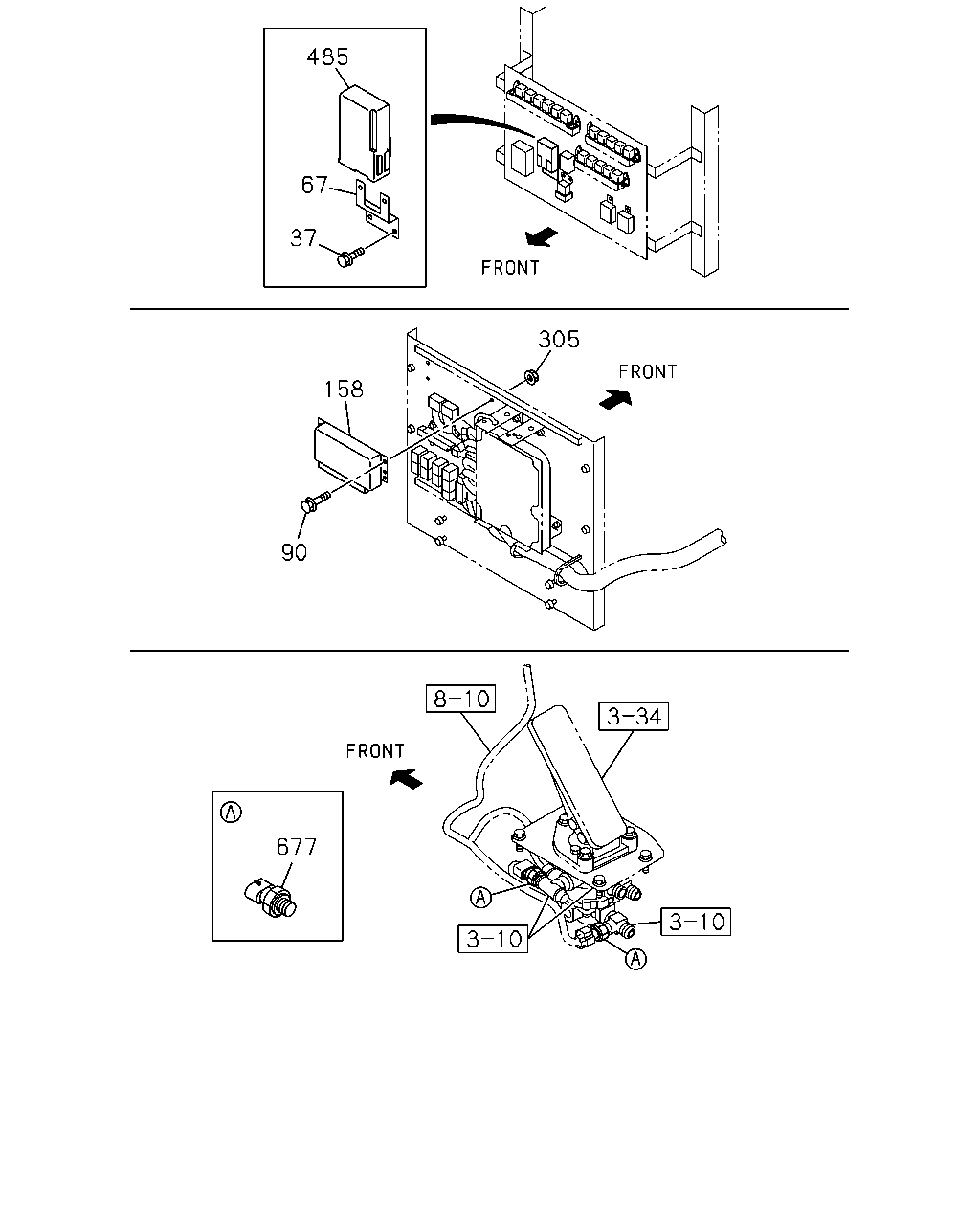

8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#123968) — 14 parça
Tümü
A - LVR6FB
B - LVD6FB
485
67
37
305
158
90
677
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
37
BOLT; BRKT FIX
M6X16 FLANGE
0-28650-616-0
02
1
1307-1311
●
37
BOLT; BRKT FIX
M6X16 FLANGE
0-28650-616-0
02
1
1312-
●
●
67
BRACKET; CONT UNIT
1-82699-720-0
01
1
1307-1311
●
67
BRACKET; CONT UNIT
1-82699-720-0
01
1
1312-
●
●
90
BOLT; QOS CONTROLLER
ANTILOCK BRAKE SYSTEM<BFA> M6X16 FLANGE
0-28650-616-0
04
1
1307-1311
●
90
BOLT; QOS CONTROLLER
ANTILOCK BRAKE SYSTEM<BFA> M6X16 FLANGE
0-28650-616-0
04
1
1312-
●
●
158
CONTROLLER; ABS
ANTILOCK BRAKE SYSTEM<BFA>
8-98220-159-0
01
1
1307-1311
●
158
CONTROLLER; ABS
ANTILOCK BRAKE SYSTEM<BFA>
8-98220-159-0
01
1
1312-
●
●
305
NUT; CONT UNIT
ANTILOCK BRAKE SYSTEM<BFA> M6 FLANGE
0-91180-106-0
04
1
1307-1311
●
305
NUT; CONT UNIT
ANTILOCK BRAKE SYSTEM<BFA> M6 FLANGE
0-91180-106-0
04
1
1312-
●
●
485
CONTROL UNIT; SPEED SENSOR
1-80190-059-1
01
1
1307-1311
●
485
CONTROL UNIT; SPEED SENSOR
1-80190-059-1
01
1
1312-
●
●
677
SENSOR; AIR METER
THREAD R1/4
1-80220-023-1
02
1
1307-1311
●
677
SENSOR; AIR METER
THREAD R1/4
1-80220-023-1
02
1
1312-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
