Isuzu WW
▶
BUSES
▶
LV
▶
11523 - LV152/452(LHD) EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#123967) — 44 parça
Tümü
A - LVR6FB
B - LVD6FB
◀
[825A] NO.2 (16 parça)
[825A] NO.3 (8 parça)
[825A] NO.1 (16 parça)
[825A] NO.4 (4 parça)
▶

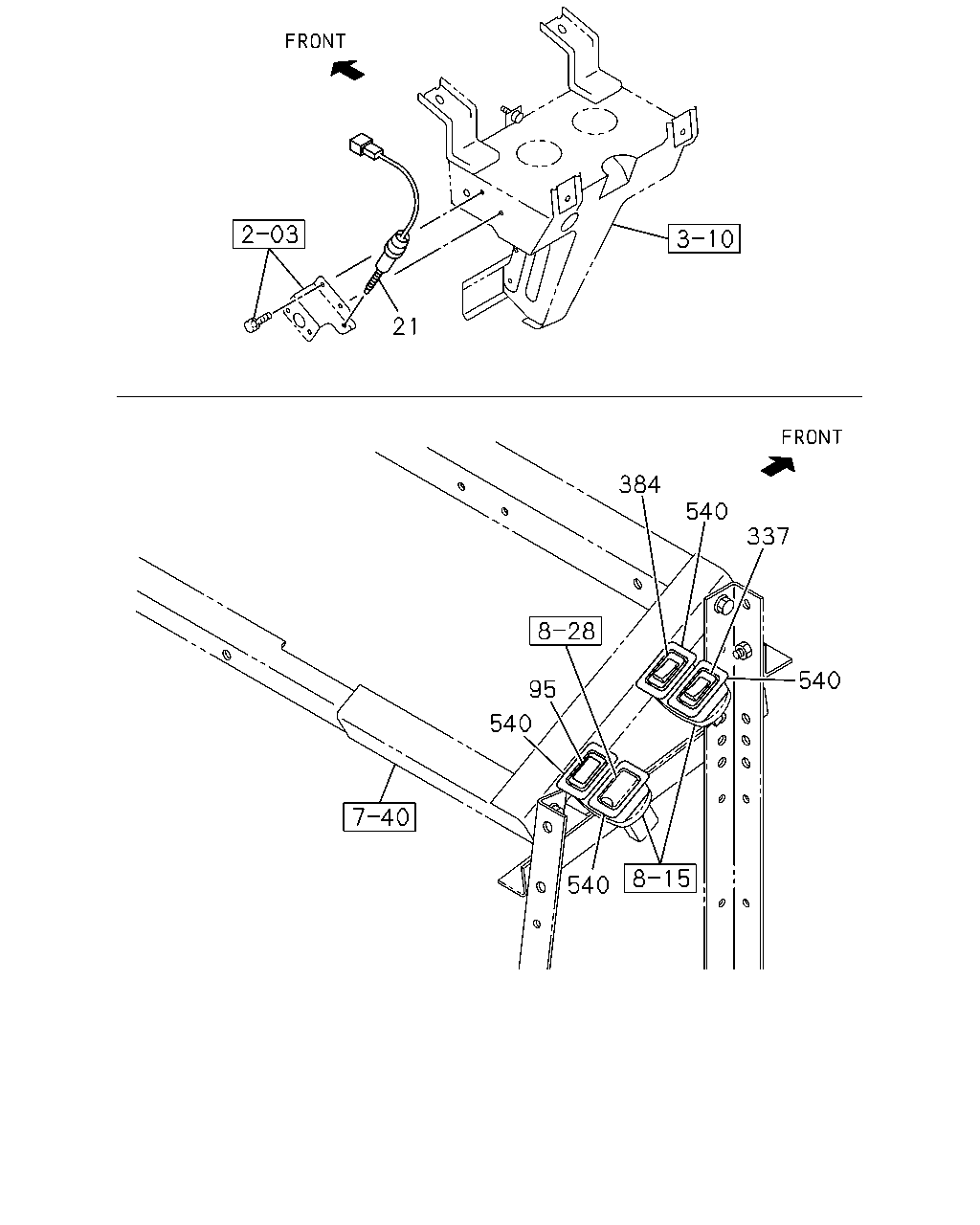

21
384
540
337
540
95
540
540
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
21
SWITCH; CLU
1-82380-114-3
01
1
1307-1311
●
21
SWITCH; CLU
1-82380-114-3
01
1
1312-
●
●
95
SWITCH; RR FOG LAMP
FOG LAMP<T96>
1-82340-628-0
01
1
1307-1311
●
95
SWITCH; RR FOG LAMP
FOG LAMP<T96>
1-82340-628-0
01
1
1312-
●
●
337
SWITCH; EXH
1-82350-220-2
01
1
1307-1311
●
337
SWITCH; EXH
1-82350-220-2
01
1
1312-
●
●
384
SWITCH; IDLING CONT,ELEC
1-82350-213-1
01
1
1307-1311
●
384
SWITCH; IDLING CONT,ELEC
1-82350-213-1
01
1
1312-
●
●
540
BEZEL; SW
1-82490-017-0
01
1
1307-1311
●
540
BEZEL; SW
1-82490-017-0
01
1
1307-1311
●
540
BEZEL; SW
FOG LAMP<T96>
1-82490-017-0
01
1
1307-1311
●
540
BEZEL; SW
AUTO ENG SHUT DOWN(Q3G)
1-82490-017-0
01
1
1307-1311
●
540
BEZEL; SW
1-82490-017-0
01
1
1312-
●
●
540
BEZEL; SW
1-82490-017-0
01
1
1312-
●
●
540
BEZEL; SW
FOG LAMP<T96>
1-82490-017-0
01
1
1312-
●
●
540
BEZEL; SW
AUTO ENG SHUT DOWN(Q3G)
1-82490-017-0
01
1
1312-
●
●

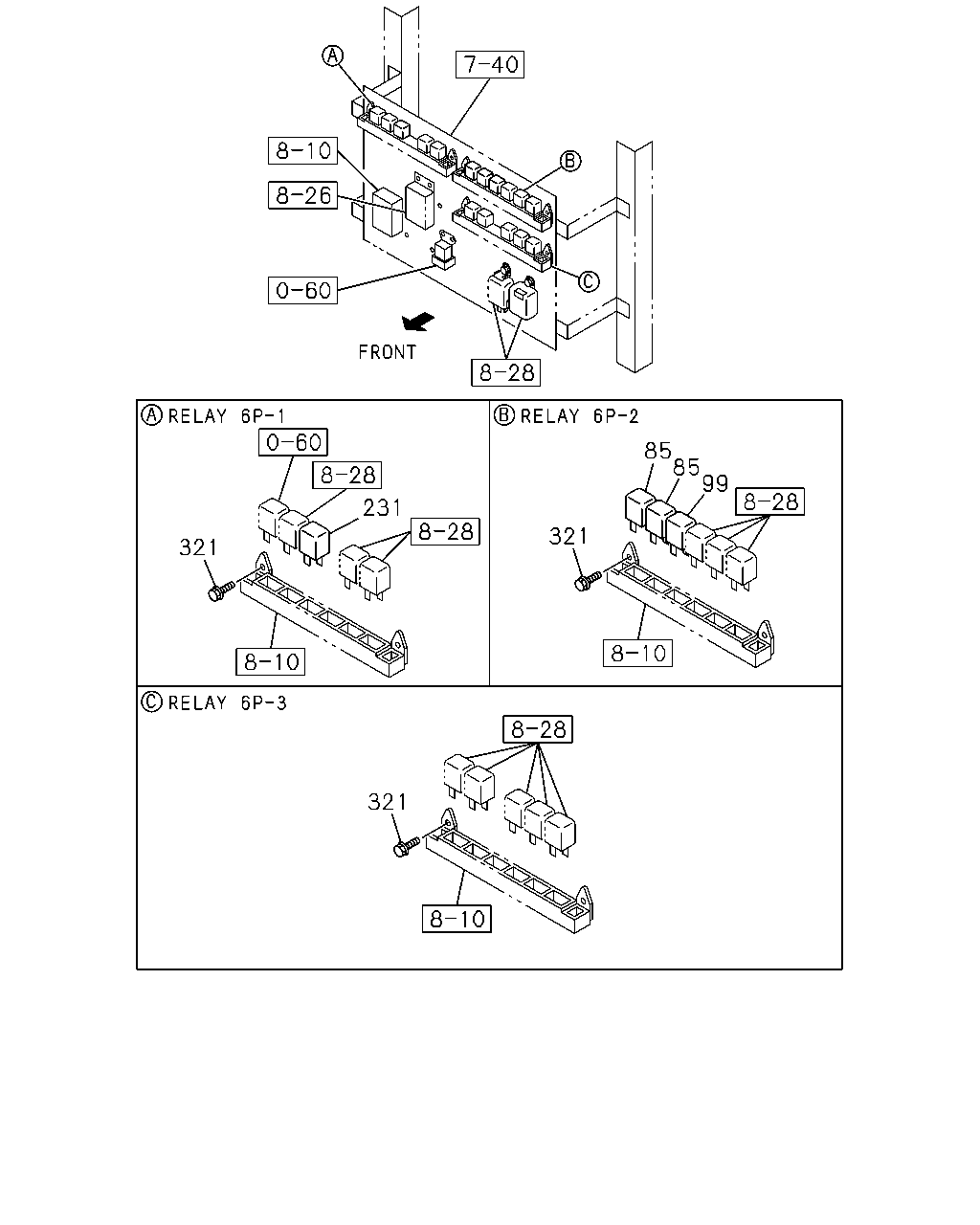

85
321
99
85
231
321
321
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
85
RELAY; HEADLAMP
24V 12.5A PANASONIC
8-97262-933-0
02
1
1307-1311
●
85
RELAY; HEADLAMP
24V 12.5A PANASONIC
8-97262-933-0
02
1
1312-
●
●
99
RELAY; FOG LAMP
FOG LAMP<T96> 24V 12.5A PANASONIC
8-97262-933-0
01
1
1307-1311
●
99
RELAY; FOG LAMP
FOG LAMP<T96> 24V 12.5A PANASONIC
8-97262-933-0
01
1
1312-
●
●
231
RELAY; NEUTRAL
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 24V 12.5A PANASONIC
8-97262-933-0
01
1
1307-1311
●
231
RELAY; NEUTRAL
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 24V 12.5A PANASONIC
8-97262-933-0
01
1
1312-
●
●
321
BOLT; RELAY
M6X16 FLANGE
0-28650-616-0
06
1
1307-1311
●
321
BOLT; RELAY
M6X16 FLANGE
0-28650-616-0
06
1
1312-
●
●

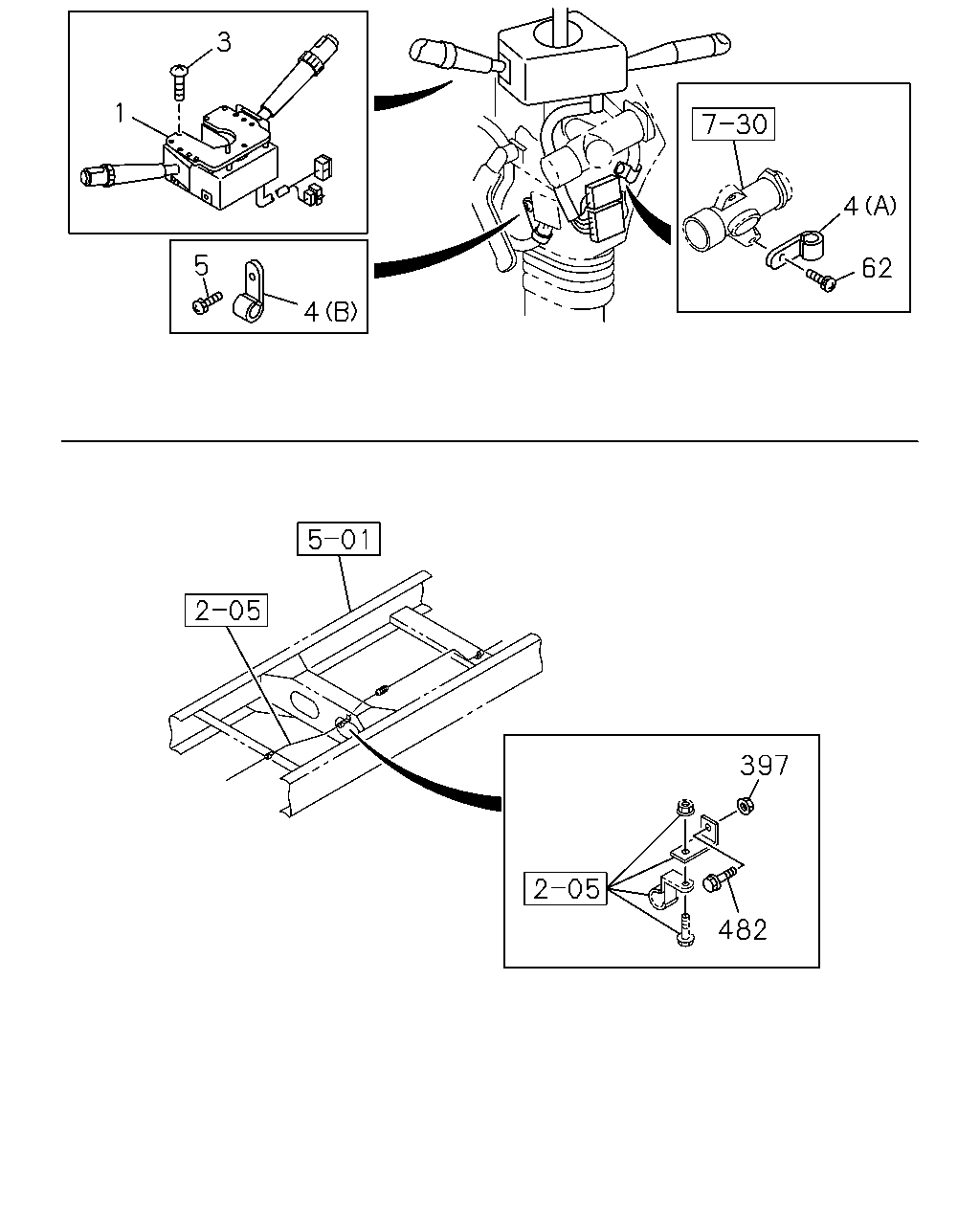

1
3
5
4
4
62
397
482
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SWITCH; COMB
1-82360-767-0
01
1
1307-1311
●
1
SWITCH; COMB
1-82360-767-0
01
1
1312-
●
●
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
1307-1311
●
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
1312-
●
●
4
CLIP; COMB SW
(A) ID=16 L=20
0-95235-535-0
01
1
1307-1311
●
4
CLIP; COMB SW
(A) ID=16 L=20
0-95235-535-0
01
1
1312-
●
●
4
CLIP; COMB SW
(B) ID=14.5 L=30
9-09916-893-1
01
1
1307-1311
●
4
CLIP; COMB SW
(B) ID=14.5 L=30
9-09916-893-1
01
1
1312-
●
●
5
SCREW; COMB SW CABLE
M6X12 W/PL WASHER
8-97806-950-0
01
1
1307-1311
●
5
SCREW; COMB SW CABLE
M6X12 W/PL WASHER
8-97806-950-0
01
1
1312-
●
●
62
BOLT; STARTER SW
M8X30 TORQUE SHEAR BOLT
1-09980-621-1
02
1
1307-1311
●
62
BOLT; STARTER SW
M8X30 TORQUE SHEAR BOLT
1-09980-621-1
02
1
1312-
●
●
397
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
01
1
1307-1311
●
397
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
01
1
1312-
●
●
482
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
1307-1311
●
482
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
1312-
●
●

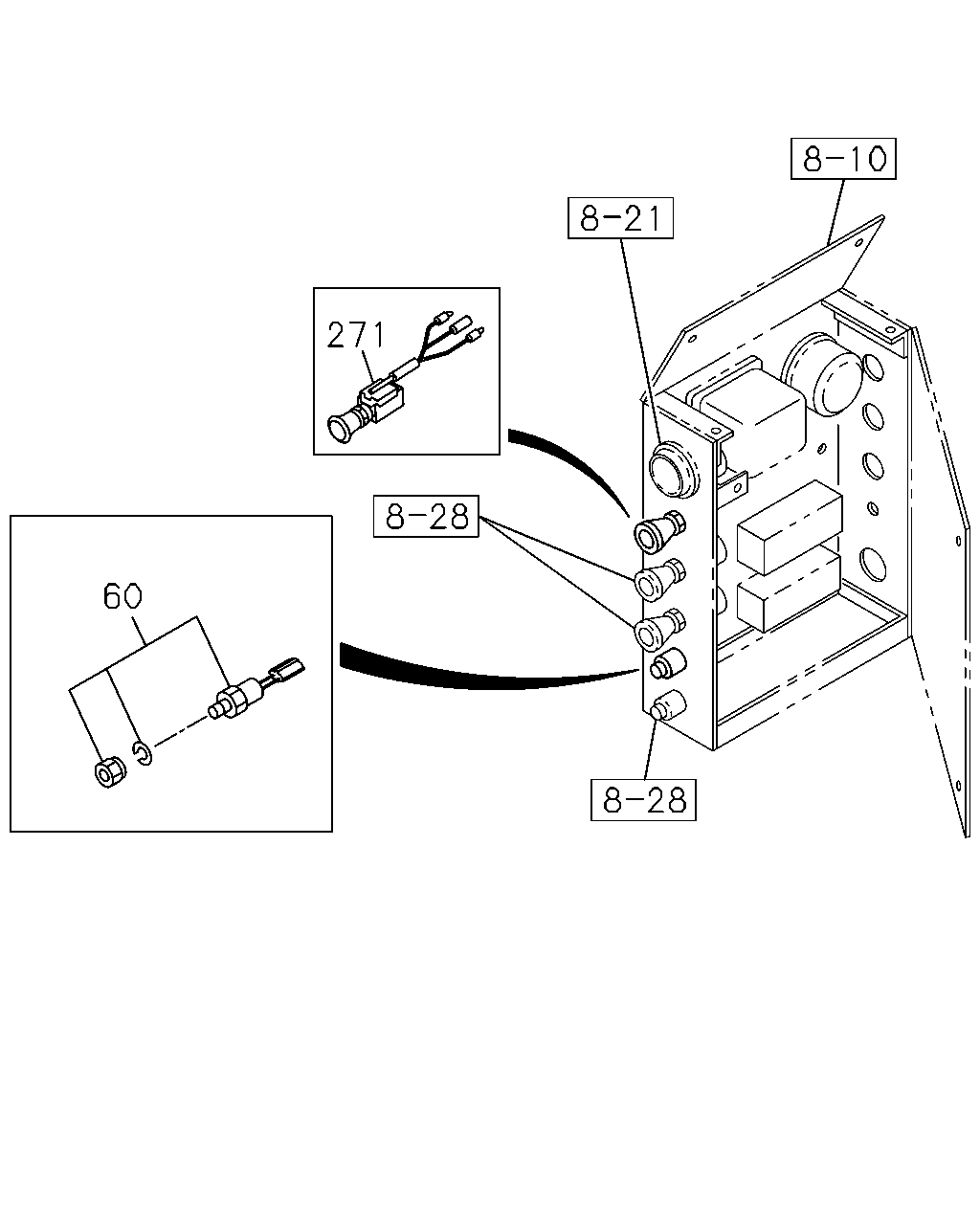

271
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
60
SWITCH; STARTER SUB
ELECTRIC SWITCH BOX ENGINE ROOM<TEK>
1-82380-107-1
01
1
1307-1311
●
60
SWITCH; STARTER SUB
ELECTRIC SWITCH BOX ENGINE ROOM<TEK>
1-82380-107-1
01
1
1312-
●
●
271
SWITCH; OIL PRESS METER
ELECTRIC SWITCH BOX ENGINE ROOM<TEK>
8-97621-401-0
01
1
1307-1311
●
271
SWITCH; OIL PRESS METER
ELECTRIC SWITCH BOX ENGINE ROOM<TEK>
8-97621-401-0
01
1
1312-
●
●
