8-21 — METER ASM (#123966) — 36 parça

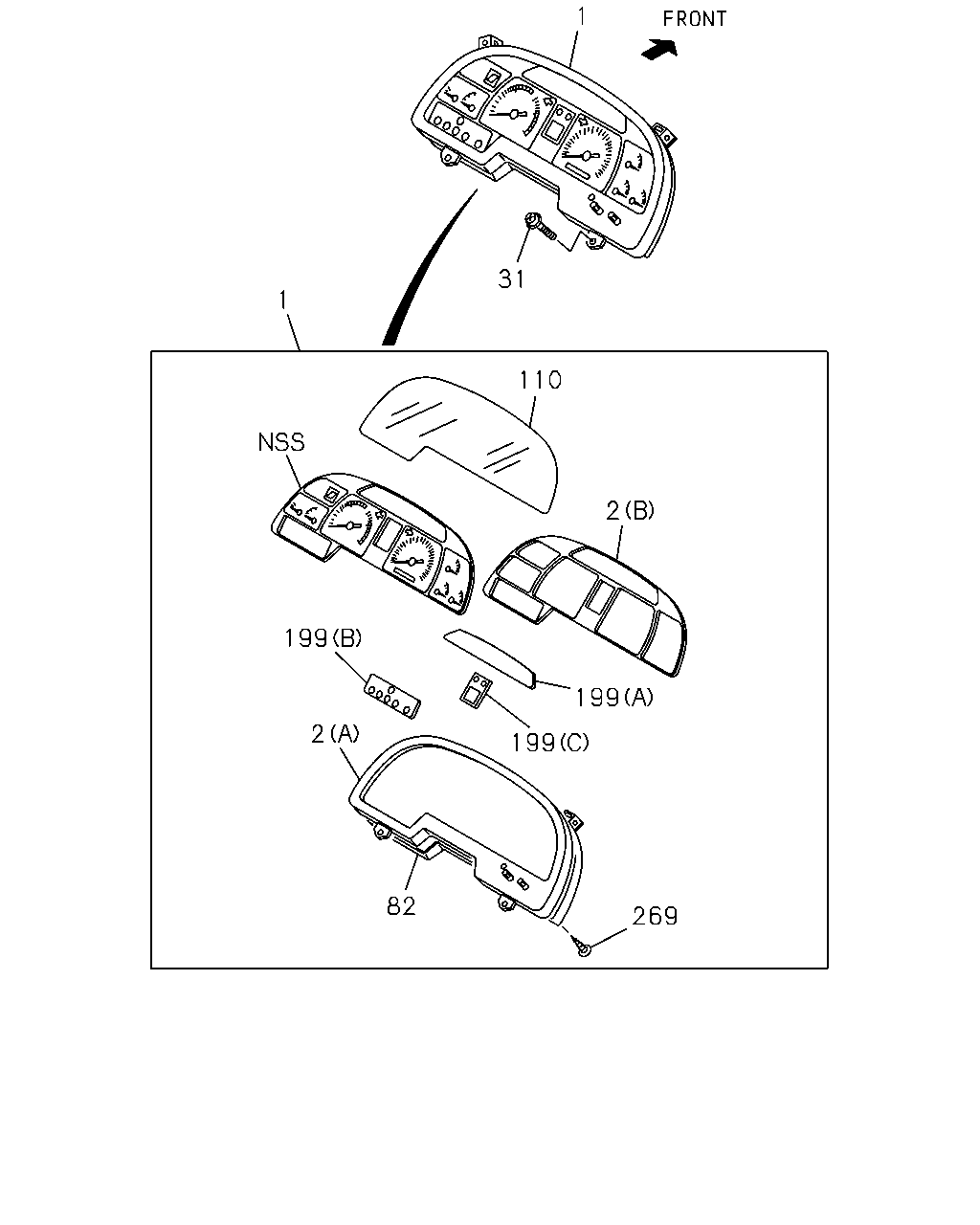

çizim 363857
1 31 1 199 2 82 199 269 199 2 110
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
ANTILOCK BRAKE SYSTEM<BFA> 		8-98225-549-0 01 1 1307-1311 ●
1 METER COMPL; CLUSTER
ANTILOCK BRAKE SYSTEM<BFA> 		8-98225-549-0 01 1 1312- ● ●
1 METER COMPL; CLUSTER
EXC. ANTILOCK BRAKE SYSTEM<BFA> 		8-98226-238-0 01 1 1307-1311 ●
1 METER COMPL; CLUSTER
EXC. ANTILOCK BRAKE SYSTEM<BFA> 		8-98226-238-0 01 1 1312- ● ●
2 PANEL; CLUSTER
(B) 		1-83119-885-0 01 1 1307-1311 ●
2 PANEL; CLUSTER
(B) 		1-83119-885-0 01 1 1312- ● ●
2 PANEL; CLUSTER
(A) 		1-83119-887-0 01 1 1307-1311 ●
2 PANEL; CLUSTER
(A) 		1-83119-887-0 01 1 1312- ● ●
31 SCREW; METER,INST PANEL
M6X20 W/LK&PL WASHER 		0-36230-620-0 04 1 1307-1311 ●
31 SCREW; METER,INST PANEL
M6X20 W/LK&PL WASHER 		0-36230-620-0 04 1 1312- ● ●
31 SCREW; METER,INST PANEL
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M4X16 TAPPING 		0-71040-416-0 01 1 1307-1311 ●
31 SCREW; METER,INST PANEL
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M4X16 TAPPING 		0-71040-416-0 01 1 1312- ● ●
82 CASE ASM; CLUSTER METER 1-83119-892-0 01 1 1307-1311 ●
82 CASE ASM; CLUSTER METER 1-83119-892-0 01 1 1312- ● ●
110 GLASS; CLUSTER METER 1-83119-886-0 01 1 1307-1311 ●
110 GLASS; CLUSTER METER 1-83119-886-0 01 1 1312- ● ●
199 LENS; WARNING LAMP
(C) 		1-83119-891-0 01 1 1307-1311 ●
199 LENS; WARNING LAMP
(C) 		1-83119-891-0 01 1 1312- ● ●
199 LENS; WARNING LAMP
(B) 		1-83119-928-1 01 1 1307-1311 ●
199 LENS; WARNING LAMP
(B) 		1-83119-928-1 01 1 1312- ● ●
199 LENS; WARNING LAMP
(A) 		8-98162-668-0 01 1 1307-1311 ●
199 LENS; WARNING LAMP
(A) 		8-98162-668-0 01 1 1312- ● ●
269 SCREW; METER CLUSTER 1-83119-893-0 09 1 1307-1311 ●
269 SCREW; METER CLUSTER 1-83119-893-0 09 1 1312- ● ●

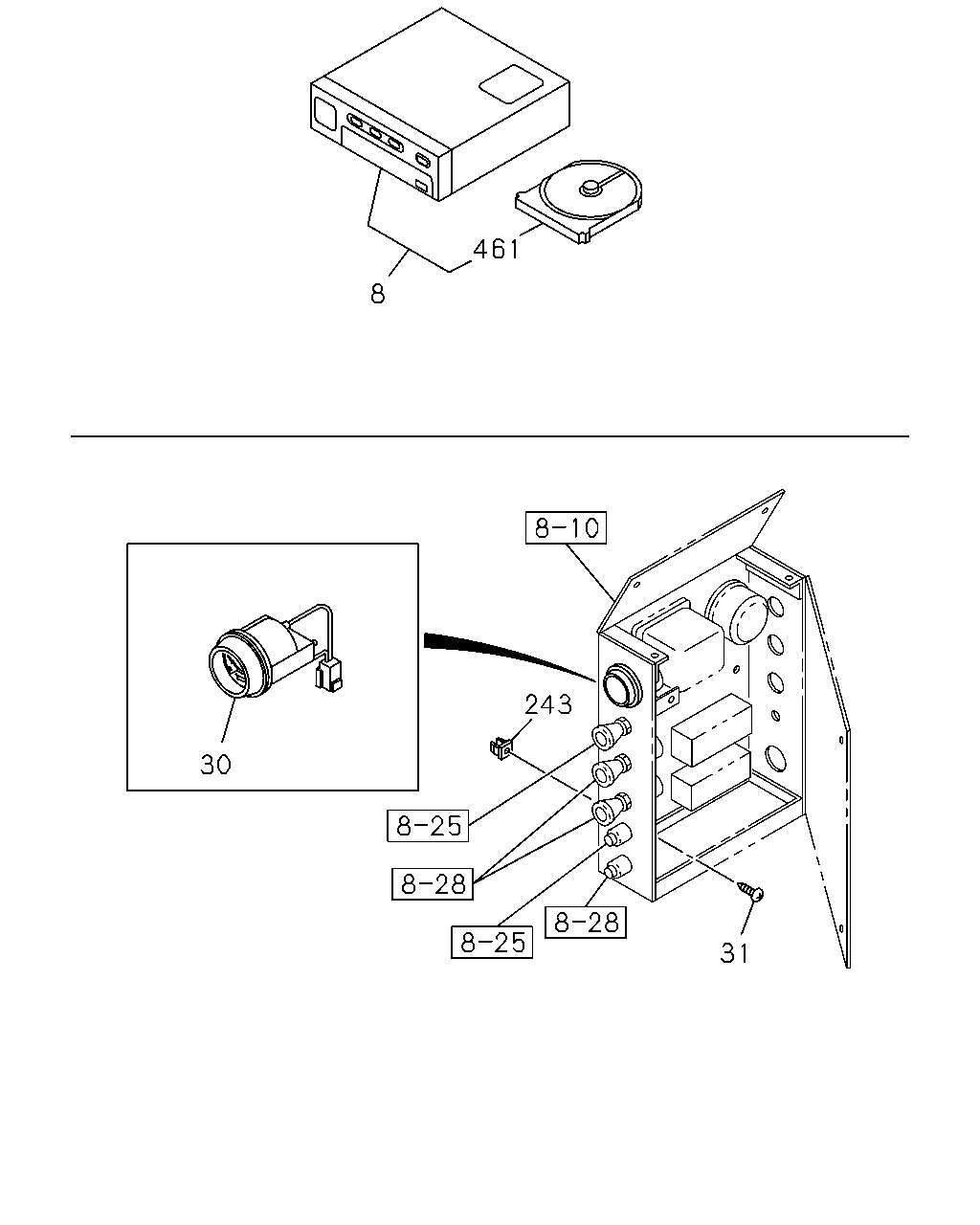

çizim 365771
31 243 30 8 461
BalonParca AdiParca NoAdetTipApplied Date A B
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H(WC7) 		1-83120-840-3 01 1 1307-1311 ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H(WC7) 		1-83120-840-3 01 1 1312- ● ●
30 GAUGE; OIL PRESSURE
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-83150-232-0 01 1 1307-1311 ●
30 GAUGE; OIL PRESSURE
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-83150-232-0 01 1 1312- ● ●
31 SCREW; METER,INST PANEL
M6X20 W/LK&PL WASHER 		0-36230-620-0 04 1 1307-1311 ●
31 SCREW; METER,INST PANEL
M6X20 W/LK&PL WASHER 		0-36230-620-0 04 1 1312- ● ●
31 SCREW; METER,INST PANEL
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M4X16 TAPPING 		0-71040-416-0 01 1 1307-1311 ●
31 SCREW; METER,INST PANEL
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> M4X16 TAPPING 		0-71040-416-0 01 1 1312- ● ●
243 GROMMET; SCREW
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> D=7.5X7.5 L=7 		8-94430-147-0 01 1 1307-1311 ●
243 GROMMET; SCREW
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> D=7.5X7.5 L=7 		8-94430-147-0 01 1 1312- ● ●
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H(WC7) 		1-83129-433-0 01 1 1307-1311 ●
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H(WC7) 		1-83129-433-0 01 1 1312- ● ●
