◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11523 - LV152/452(LHD) EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#123965) — 39 parça
çizim 366200
129 150 6 6 150 62 151
BalonParca AdiParca NoAdetTipApplied Date A B
6 HOLDER; SPD SENSOR
ANTILOCK BRAKE SYSTEM<BFA> 		1-83129-260-1 02 1 1307-1311 ●
6 HOLDER; SPD SENSOR
ANTILOCK BRAKE SYSTEM<BFA> 		1-83129-260-1 02 1 1307-1311 ●
6 HOLDER; SPD SENSOR
ANTILOCK BRAKE SYSTEM<BFA> 		1-83129-260-1 02 1 1312-1402 ● ●
6 HOLDER; SPD SENSOR
ANTILOCK BRAKE SYSTEM<BFA> 		1-83129-260-1 02 1 1312-1402 ● ●
6 HOLDER; SPD SENSOR
ANTILOCK BRAKE SYSTEM<BFA> 		1-83129-260-1 02 1 1403- ● ●
6 HOLDER; SPD SENSOR
ANTILOCK BRAKE SYSTEM<BFA> 		1-83129-260-1 02 1 1403- ● ●
62 BOLT; SENSOR
ANTILOCK BRAKE SYSTEM<BFA> M8X16 HEX SOCKET 		0-58330-816-0 02 1 1307-1311 ●
62 BOLT; SENSOR
ANTILOCK BRAKE SYSTEM<BFA> M8X16 HEX SOCKET 		0-58330-816-0 02 1 1312-1402 ● ●
62 BOLT; SENSOR
ANTILOCK BRAKE SYSTEM<BFA> M8X16 HEX SOCKET 		0-58330-816-0 02 1 1403-1403 ●
62 BOLT; SENSOR
ANTILOCK BRAKE SYSTEM<BFA> M8X16 HEX SOCKET 		0-58330-816-0 02 1 1404- ● ●
129 COLLAR
ANTILOCK BRAKE SYSTEM<BFA> 		1-83129-471-0 02 1 1307-1311 ●
129 COLLAR
ANTILOCK BRAKE SYSTEM<BFA> 		1-83129-471-0 02 1 1312-1402 ● ●
129 COLLAR
ANTILOCK BRAKE SYSTEM<BFA> 		1-83129-471-0 02 1 1403-1403 ●
129 COLLAR
ANTILOCK BRAKE SYSTEM<BFA> 		1-83129-471-0 02 1 1404- ● ●
150 SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM<BFA> KNUCKLE ANGLE IN 47 OUT 36 DEGREE<BKE> 		8-98271-072-0 02 1 1404- ● ●
150 SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM<BFA> 		8-98199-011-1 01 1 1404- ●
150 SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM<BFA> 		8-98199-012-1 01 1 1404- ●
150 SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM<BFA> REAR 		8-98199-011-1 01 1 1312-1402 ●
150 SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM<BFA> REAR 		8-98199-012-1 01 1 1312-1402 ●
150 SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM<BFA> REAR 		8-98191-931-1 01 1 1307-1402 ●
150 SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM<BFA> 		8-98191-931-1 01 1 1403- ●
150 SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM<BFA> REAR 		8-98191-932-1 01 1 1307-1402 ●
150 SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM<BFA> 		8-98191-932-1 01 1 1403- ●
150 SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM<BFA> FRONT 		8-98197-037-0 02 1 1307-1311 ●
150 SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM<BFA> FRONT 		8-98197-037-0 02 1 1312- ● ●
151 BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM<BFA> 		1-83129-405-0 01 1 1307-1311 ●
151 BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM<BFA> 		1-83129-405-0 01 1 1312-1402 ● ●
151 BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM<BFA> 		1-83129-405-0 01 1 1403-1403 ●
151 BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM<BFA> 		1-83129-405-0 01 1 1404-1504 ● ●
151 BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM<BFA> 		8-98299-398-0 01 1 1505- ● ●
151 BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM<BFA> 		1-83129-406-0 01 1 1307-1311 ●
151 BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM<BFA> 		1-83129-406-0 01 1 1312-1402 ● ●
151 BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM<BFA> 		1-83129-406-0 01 1 1403-1403 ●
151 BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM<BFA> 		1-83129-406-0 01 1 1404-1504 ● ●
151 BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM<BFA> 		8-98299-399-0 01 1 1505- ● ●

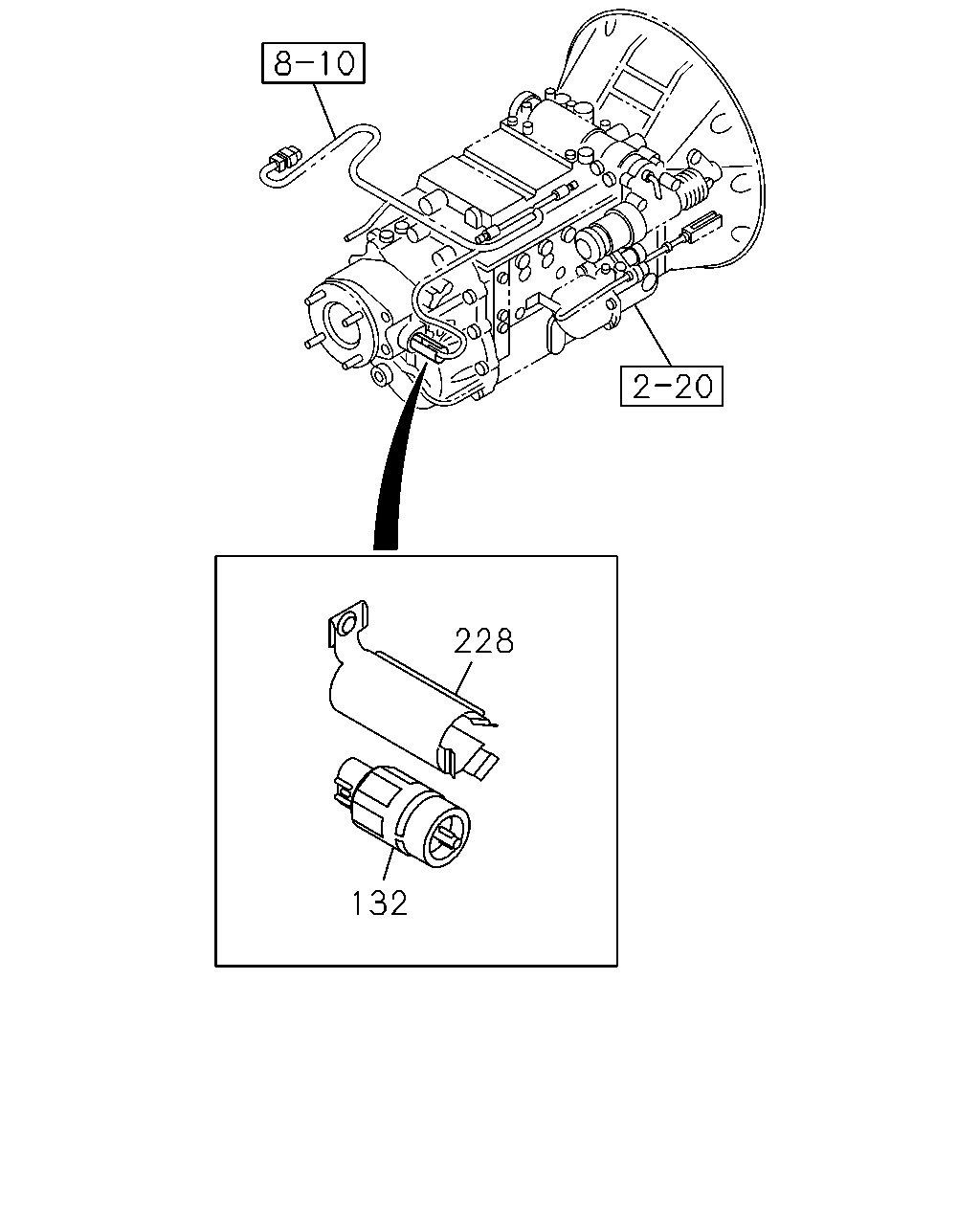

çizim 367292
132 228
BalonParca AdiParca NoAdetTipApplied Date A B
132 SENSOR; SPD,SPEEDOMETER
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1307-1311 ●
132 SENSOR; SPD,SPEEDOMETER
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1312- ● ●
228 PROTECTOR; SENSOR 8-98119-901-0 01 1 1307-1311 ●
228 PROTECTOR; SENSOR 8-98119-901-0 01 1 1312- ● ●
