◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11523 - LV152/452(LHD) EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#123964) — 850 parça
çizim 363887
69 137 137 334 334 279 334 334
BalonParca AdiParca NoAdetTipApplied Date A B
69 BRACKET; CLIP 8-98048-575-0 01 1 1307-1311 ●
69 BRACKET; CLIP 8-98048-575-0 01 1 1312- ● ●
137 BRACKET; HARNESS CLAMP
ANTILOCK BRAKE SYSTEM<BFA> KNUCKLE ANGLE IN 47 OUT 36 DEGREE<BKE> (B) 		8-98242-277-0 02 1 1404-1409 ● ●
137 BRACKET; HARNESS CLAMP
ANTILOCK BRAKE SYSTEM<BFA> (B) 		8-98242-277-0 02 1 1410- ● ●
137 BRACKET; HARNESS CLAMP
ANTILOCK BRAKE SYSTEM<BFA> (A) 		1-47479-430-0 02 1 1307-1311 ●
137 BRACKET; HARNESS CLAMP
ANTILOCK BRAKE SYSTEM<BFA> (A) 		1-47479-430-0 02 1 1312-1403 ● ●
137 BRACKET; HARNESS CLAMP
KNUCKLE ANGLE IN 44 OUT 35 DEGREE<BDS> ANTILOCK BRAKE SYSTEM<BFA> (A) 		1-47479-430-0 02 1 1404-1409 ●
279 STAY; HARNESS 1-82699-873-0 02 1 1307-1311 ●
279 STAY; HARNESS 1-82699-873-0 02 1 1312- ● ●
334 BRACKET
(A) 		1-47476-658-0 02 1 1307-1311 ●
334 BRACKET
(A) 		1-47476-658-0 02 1 1312- ● ●
334 BRACKET
(B) 		1-47477-648-0 02 1 1307-1311 ●
334 BRACKET
(B) 		1-47477-648-0 02 1 1312- ● ●
334 BRACKET
(C) 		1-47478-919-0 01 1 1307-1311 ●
334 BRACKET
(C) 		1-47478-919-0 01 1 1312- ● ●
334 BRACKET
(D) L=120 H=35 		1-82698-088-0 01 1 1307-1311 ●
334 BRACKET
(D) L=120 H=35 		1-82698-088-0 01 1 1312- ● ●
334 BRACKET
(E) 		1-82698-495-2 04 1 1307-1311 ●
334 BRACKET
(E) 		1-82698-495-2 04 1 1312- ● ●
334 BRACKET
(F) 		8-98124-778-0 01 1 1307-1311 ●
334 BRACKET
(F) 		8-98124-778-0 01 1 1312- ● ●
334 BRACKET
ANTILOCK BRAKE SYSTEM<BFA> (G) 		8-98216-370-0 01 1 1307-1311 ●
334 BRACKET
ANTILOCK BRAKE SYSTEM<BFA> (G) 		8-98216-370-0 01 1 1312- ● ●

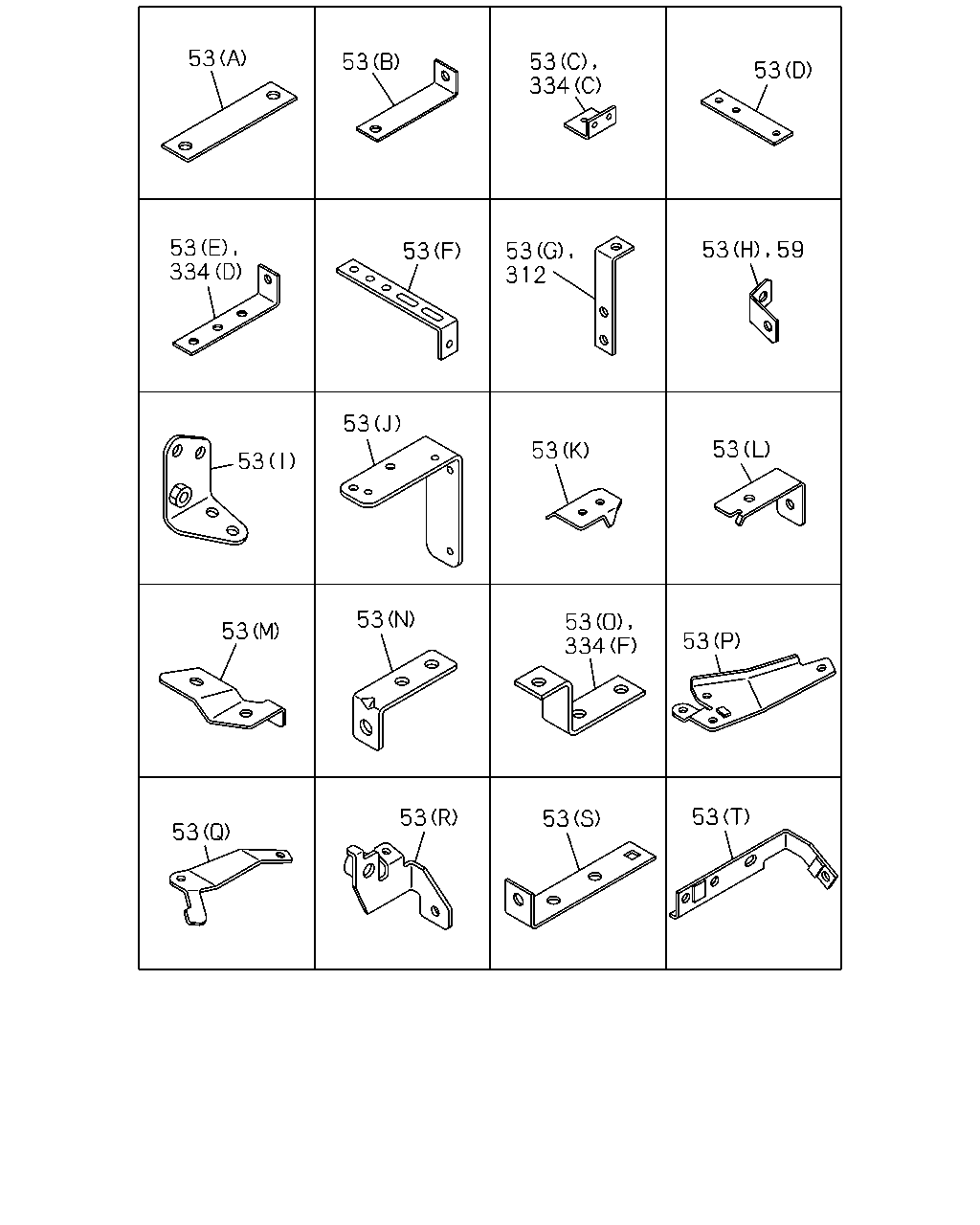

çizim 365229
53 53 53 334 53 53 334 53 53 312 53 59 53 53 53 53 53 53 53 334 53 53 53 53 53
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS
(B) L=75 		1-47477-119-0 01 1 1312- ●
53 BRACKET; HARNESS
(A) 		1-47475-648-0 01 1 1307-1311 ●
53 BRACKET; HARNESS
(A) 		1-47475-648-0 01 1 1307-1311 ●
53 BRACKET; HARNESS
(A) 		1-47475-648-0 01 1 1312- ● ●
53 BRACKET; HARNESS
(A) 		1-47475-648-0 01 1 1312- ●
53 BRACKET; HARNESS
(B) L=145 		1-47475-655-0 02 1 1307-1311 ●
53 BRACKET; HARNESS
(B) L=145 		1-47475-655-0 02 1 1312- ● ●
53 BRACKET; HARNESS
(C) 		1-47478-919-0 02 1 1307-1311 ●
53 BRACKET; HARNESS
(C) 		1-47478-919-0 02 1 1312- ● ●
53 BRACKET; HARNESS
(D) L=229 		1-47478-993-0 03 1 1307-1311 ●
53 BRACKET; HARNESS
(D) L=229 		1-47478-993-0 03 1 1312- ● ●
53 BRACKET; HARNESS
(E) 		1-47479-630-1 01 1 1307-1311 ●
53 BRACKET; HARNESS
(E) 		1-47479-630-1 01 1 1312- ● ●
53 BRACKET; HARNESS
(F) L=160 H=30 		1-47479-759-0 02 1 1307-1311 ●
53 BRACKET; HARNESS
(F) L=160 H=30 		1-47479-759-0 02 1 1312- ● ●
53 BRACKET; HARNESS
(E) L=120 H=35 		1-82698-088-0 01 1 1307-1311 ●
53 BRACKET; HARNESS
(E) L=120 H=35 		1-82698-088-0 01 1 1312- ● ●
53 BRACKET; HARNESS
(G) 		1-82698-588-0 01 1 1307-1311 ●
53 BRACKET; HARNESS
(G) 		1-82698-588-0 01 1 1312- ● ●
53 BRACKET; HARNESS
(H) 		1-82699-199-0 01 1 1307-1311 ●
53 BRACKET; HARNESS
(H) 		1-82699-199-0 01 1 1312- ● ●
53 BRACKET; HARNESS
(I) 		8-97610-339-1 01 1 1307-1311 ●
53 BRACKET; HARNESS
(I) 		8-97610-339-1 01 1 1312-1402 ● ●
53 BRACKET; HARNESS
(I) 		8-97610-339-1 01 1 1403- ● ●
53 BRACKET; HARNESS
(J) 		8-97610-340-1 01 1 1307-1311 ●
53 BRACKET; HARNESS
(J) 		8-97610-340-1 01 1 1312-1402 ● ●
53 BRACKET; HARNESS
(J) 		8-97610-340-1 01 1 1403- ● ●
53 BRACKET; HARNESS
(K) 		8-97625-412-0 02 1 1307-1311 ●
53 BRACKET; HARNESS
(K) 		8-97625-412-0 02 1 1312-1402 ● ●
53 BRACKET; HARNESS
(K) 		8-97625-412-0 02 1 1403- ● ●
53 BRACKET; HARNESS
(L) 		8-97625-794-0 01 1 1307-1311 ●
53 BRACKET; HARNESS
(L) 		8-97625-794-0 01 1 1312-1402 ● ●
53 BRACKET; HARNESS
(L) 		8-97625-794-0 01 1 1403- ● ●
53 BRACKET; HARNESS
(M) 		8-97630-437-0 01 1 1307-1311 ●
53 BRACKET; HARNESS
(M) 		8-97630-437-0 01 1 1312-1402 ● ●
53 BRACKET; HARNESS
(M) 		8-97630-437-0 01 1 1403- ● ●
53 BRACKET; HARNESS
(N) 		8-98021-694-1 01 1 1307-1311 ●
53 BRACKET; HARNESS
(N) 		8-98021-694-1 01 1 1312-1402 ● ●
53 BRACKET; HARNESS
(N) 		8-98021-694-1 01 1 1403- ● ●
53 BRACKET; HARNESS
(O) 		8-98124-778-0 01 1 1307-1311 ●
53 BRACKET; HARNESS
(O) 		8-98124-778-0 01 1 1312- ● ●
53 BRACKET; HARNESS
(P) 		8-98190-688-0 01 1 1307-1311 ●
53 BRACKET; HARNESS
(P) 		8-98190-688-0 01 1 1312-1402 ● ●
53 BRACKET; HARNESS
(P) 		8-98190-688-0 01 1 1403- ● ●
53 BRACKET; HARNESS
(Q) 		8-98190-689-0 01 1 1307-1311 ●
53 BRACKET; HARNESS
(Q) 		8-98190-689-0 01 1 1312-1402 ● ●
53 BRACKET; HARNESS
(Q) 		8-98190-689-0 01 1 1403- ● ●
53 BRACKET; HARNESS
(R) 		8-98194-068-0 01 1 1307-1311 ●
53 BRACKET; HARNESS
(R) 		8-98194-068-0 01 1 1312-1402 ● ●
53 BRACKET; HARNESS
(R) 		8-98194-068-0 01 1 1403- ● ●
53 BRACKET; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (S) L=120 		1-82699-963-0 02 1 1307-1311 ●
53 BRACKET; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (S) L=120 		1-82699-963-0 02 1 1312- ● ●
53 BRACKET; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (T) 		8-98216-369-0 01 1 1307-1311 ●
53 BRACKET; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (T) 		8-98216-369-0 01 1 1312-1402 ● ●
53 BRACKET; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (T) 		8-98216-369-0 01 1 1403-1403 ●
53 BRACKET; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (T) 		8-98216-369-0 01 1 1404- ● ●
53 BRACKET; HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (S) L=120 		1-82699-963-0 01 1 1307-1311 ●
53 BRACKET; HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (S) L=120 		1-82699-963-0 01 1 1312- ● ●
59 BRACKET; FRAME HARNESS 1-82699-199-0 03 1 1307-1311 ●
59 BRACKET; FRAME HARNESS 1-82699-199-0 03 1 1312- ● ●
312 BRACKET; CLIP HARNESS 1-47478-937-0 01 1 1307-1311 ●
312 BRACKET; CLIP HARNESS 1-47478-937-0 01 1 1312- ● ●
334 BRACKET
(A) 		1-47476-658-0 02 1 1307-1311 ●
334 BRACKET
(A) 		1-47476-658-0 02 1 1312- ● ●
334 BRACKET
(B) 		1-47477-648-0 02 1 1307-1311 ●
334 BRACKET
(B) 		1-47477-648-0 02 1 1312- ● ●
334 BRACKET
(C) 		1-47478-919-0 01 1 1307-1311 ●
334 BRACKET
(C) 		1-47478-919-0 01 1 1312- ● ●
334 BRACKET
(D) L=120 H=35 		1-82698-088-0 01 1 1307-1311 ●
334 BRACKET
(D) L=120 H=35 		1-82698-088-0 01 1 1312- ● ●
334 BRACKET
(E) 		1-82698-495-2 04 1 1307-1311 ●
334 BRACKET
(E) 		1-82698-495-2 04 1 1312- ● ●
334 BRACKET
(F) 		8-98124-778-0 01 1 1307-1311 ●
334 BRACKET
(F) 		8-98124-778-0 01 1 1312- ● ●
334 BRACKET
ANTILOCK BRAKE SYSTEM<BFA> (G) 		8-98216-370-0 01 1 1307-1311 ●
334 BRACKET
ANTILOCK BRAKE SYSTEM<BFA> (G) 		8-98216-370-0 01 1 1312- ● ●

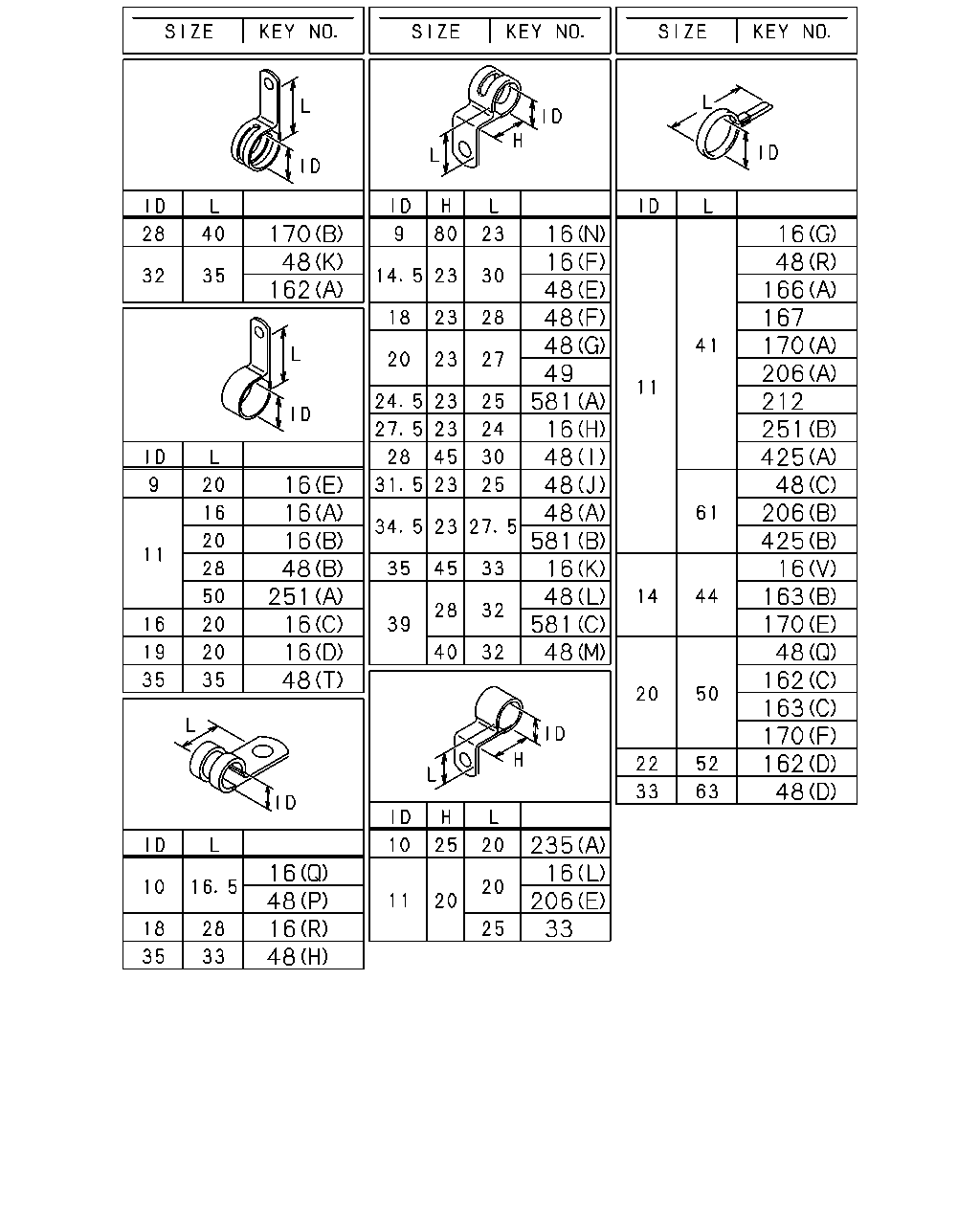

çizim 365245
581 27 16 16 16 16 16 251 235 16 235 16 170 206 208 223 235 16 48 16 48 170 170
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(E) ID=9 L=20 		0-95234-835-0 02 1 1307-1311 ●
16 CLIP; HARNESS
(E) ID=9 L=20 		0-95234-835-0 02 1 1312-1402 ● ●
16 CLIP; HARNESS
(E) ID=9 L=20 		0-95234-835-0 02 1 1403- ● ●
16 CLIP; HARNESS
(B) B=14 ID=11 L=20 		0-95235-032-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(B) B=14 ID=11 L=20 		0-95235-032-0 01 1 1312-1402 ● ●
16 CLIP; HARNESS
(B) B=14 ID=11 L=20 		0-95235-032-0 01 1 1403- ● ●
16 CLIP; HARNESS
(B) B=18 ID=11 L=20 		0-95235-035-0 03 1 1307-1311 ●
16 CLIP; HARNESS
(B) B=18 ID=11 L=20 		0-95235-035-0 03 1 1312-1402 ● ●
16 CLIP; HARNESS
(B) B=18 ID=11 L=20 		0-95235-035-0 03 1 1403- ● ●
16 CLIP; HARNESS
(B) B=18 ID=11 L=20 		0-95235-035-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(B) B=18 ID=11 L=20 		0-95235-035-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(B) B=18 ID=11 L=20 		0-95235-035-0 01 1 1312- ● ●
16 CLIP; HARNESS
(B) B=18 ID=11 L=20 		0-95235-035-0 01 1 1312- ● ●
16 CLIP; HARNESS
(C) ID=16 L=20 		0-95235-536-0 02 1 1307-1311 ●
16 CLIP; HARNESS
(C) ID=16 L=20 		0-95235-536-0 02 1 1312-1402 ● ●
16 CLIP; HARNESS
(C) ID=16 L=20 		0-95235-536-0 02 1 1403- ● ●
16 CLIP; HARNESS
(D) ID=19 L=20 		0-95235-836-0 03 1 1307-1311 ●
16 CLIP; HARNESS
(D) ID=19 L=20 		0-95235-836-0 03 1 1312-1402 ● ●
16 CLIP; HARNESS
(D) ID=19 L=20 		0-95235-836-0 03 1 1403- ● ●
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 10 1 1307-1311 ●
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 10 1 1312- ● ●
16 CLIP; HARNESS
(F) ID=14.5 H=23 L=30 		1-09700-859-0 03 1 1307-1311 ●
16 CLIP; HARNESS
(F) ID=14.5 H=23 L=30 		1-09700-859-0 03 1 1312- ● ●
16 CLIP; HARNESS
(H) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(H) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1312-1402 ● ●
16 CLIP; HARNESS
(H) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1403- ● ●
16 CLIP; HARNESS
(K) ID=35 H=45 L=33 		1-09700-947-0 01 1 1307-1311 ●
16 CLIP; HARNESS
KD ENGINE<KDA> (K) ID=35 H=45 L=33 		1-09700-947-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(K) ID=35 H=45 L=33 		1-09700-947-0 01 1 1312-1402 ● ●
16 CLIP; HARNESS
KD ENGINE<KDA> (K) ID=35 H=45 L=33 		1-09700-947-0 01 1 1312-1402 ● ●
16 CLIP; HARNESS
(K) ID=35 H=45 L=33 		1-09700-947-0 01 1 1403- ● ●
16 CLIP; HARNESS
(K) ID=35 H=45 L=33 		1-09700-947-0 01 1 1403- ● ●
16 CLIP; HARNESS
(N) ID=9 H=80 L=23 		1-09701-061-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(N) ID=9 H=80 L=23 		1-09701-061-0 01 1 1312-1402 ● ●
16 CLIP; HARNESS
(N) ID=9 H=80 L=23 		1-09701-061-0 01 1 1403- ● ●
16 CLIP; HARNESS
(R) ID=18 L=28 		1-09701-067-0 03 1 1307-1311 ●
16 CLIP; HARNESS
(R) ID=18 L=28 		1-09701-067-0 03 1 1312-1402 ● ●
16 CLIP; HARNESS
(R) ID=18 L=28 		1-09701-067-0 03 1 1403- ● ●
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 01 1 1307-1311 ●
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 01 1 1312- ● ●
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 01 1 1312-1402 ● ●
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 01 1 1403- ● ●
16 CLIP; HARNESS
(I) OD=9 H=9.5 		1-09709-179-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(I) OD=9 H=9.5 		1-09709-179-0 01 1 1312- ● ●
16 CLIP; HARNESS
(U) ID=5-12 L=18 		1-09709-287-0 06 1 1307-1311 ●
16 CLIP; HARNESS
(U) ID=5-12 L=18 		1-09709-287-0 06 1 1312- ● ●
16 CLIP; HARNESS
(T) ID=5-12 L=22 		1-09709-288-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(T) ID=5-12 L=22 		1-09709-288-0 01 1 1312- ● ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307-1311 ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1312- ● ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 03 1 1307-1311 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 03 1 1312- ● ●
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 01 1 1307-1311 ●
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 01 1 1312- ● ●
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 1307-1311 ●
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 1312-1402 ● ●
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 1403- ● ●
16 CLIP; HARNESS
(O) L=36 		8-94224-891-1 01 1 1307-1311 ●
16 CLIP; HARNESS
(O) L=36 		8-94224-891-1 01 1 1312-1402 ● ●
16 CLIP; HARNESS
(O) L=36 		8-94224-891-1 01 1 1403- ● ●
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 02 1 1307-1311 ●
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 02 1 1312-1402 ● ●
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 02 1 1403- ● ●
16 CLIP; HARNESS
(M) L=251 		8-97619-917-0 04 1 1307-1311 ●
16 CLIP; HARNESS
(M) L=251 		8-97619-917-0 04 1 1312-1402 ● ●
16 CLIP; HARNESS
(M) L=251 		8-97619-917-0 04 1 1403- ● ●
16 CLIP; HARNESS
(Q) ID=10 L=16.5 		8-98082-034-0 02 1 1307-1311 ●
16 CLIP; HARNESS
(Q) ID=10 L=16.5 		8-98082-034-0 02 1 1312-1402 ● ●
16 CLIP; HARNESS
(Q) ID=10 L=16.5 		8-98082-034-0 02 1 1403- ● ●
16 CLIP; HARNESS
(AB) L=250 		8-98216-430-0 14 1 1307-1311 ●
16 CLIP; HARNESS
(AB) L=250 		8-98216-430-0 14 1 1312-1402 ● ●
16 CLIP; HARNESS
(AB) L=250 		8-98216-430-0 14 1 1403- ● ●
16 CLIP; HARNESS
(V) ID=14 L=44 		9-09917-427-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(V) ID=14 L=44 		9-09917-427-0 01 1 1312- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=16 		0-95235-025-0 02 1 1307-1311 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=16 		0-95235-025-0 02 1 1312- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (J) ID=11X2 L=20 		0-95325-035-0 01 1 1307-1311 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (J) ID=11X2 L=20 		0-95325-035-0 01 1 1312- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (L) ID=11 H=20 L=20 		8-98033-780-0 02 1 1307- ●
27 PROTECTOR; EDGE
EXC. ANTILOCK BRAKE SYSTEM<BFA> 		1-72497-062-1 01 1 1307-1311 ●
27 PROTECTOR; EDGE
EXC. ANTILOCK BRAKE SYSTEM<BFA> 		1-72497-062-1 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
BUS BODY REAR OVERHANG<YK4> (G) ID=20 H=23 L=27 		1-09700-861-0 01 1 1404- ● ●
48 CLIP; FRAME HARNESS
EXC. BUS BODY REAR OVERHANG<YK4> (G) ID=20 H=23 L=27 		1-09700-861-0 02 1 1404- ● ●
48 CLIP; FRAME HARNESS
EXC. BUS BODY REAR OVERHANG<YK4> (M) ID=39 H=40 L=32 		1-09701-267-0 03 1 1404- ● ●
48 CLIP; FRAME HARNESS
(T) ID=35 L=35 		1-09700-684-0 03 1 1312- ●
48 CLIP; FRAME HARNESS
(A) ID=34.5 H=23 L=27.5 		1-09700-905-0 16 1 1312- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=28 		0-95235-055-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=28 		0-95235-055-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
(D) ID=33 L=63 		1-09700-807-0 02 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(D) ID=33 L=63 		1-09700-807-0 02 1 1312- ● ●
48 CLIP; FRAME HARNESS
(E) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(E) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
(F) ID=18 H=23 L=28 		1-09700-860-0 02 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(F) ID=18 H=23 L=28 		1-09700-860-0 02 1 1312- ● ●
48 CLIP; FRAME HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 05 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 05 1 1312-1403 ● ●
48 CLIP; FRAME HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 03 1 1404- ● ●
48 CLIP; FRAME HARNESS
(A) ID=34.5 H=23 L=27.5 		1-09700-905-0 18 1 1307- ●
48 CLIP; FRAME HARNESS
(H) ID=35 L=33 		1-09700-945-0 05 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(H) ID=35 L=33 		1-09700-945-0 05 1 1312- ● ●
48 CLIP; FRAME HARNESS
(I) ID=28 H=45 L=30 		1-09700-948-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(I) ID=28 H=45 L=30 		1-09700-948-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
(J) ID=31.5 H=23 L=25 		1-09701-017-0 07 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(J) ID=31.5 H=23 L=25 		1-09701-017-0 07 1 1312- ● ●
48 CLIP; FRAME HARNESS
(K) ID=32 L=35 		1-09701-244-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(K) ID=32 L=35 		1-09701-244-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
(L) ID=39 H=28 L=32 		1-09701-263-0 10 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(L) ID=39 H=28 L=32 		1-09701-263-0 10 1 1312- ● ●
48 CLIP; FRAME HARNESS
(M) ID=39 H=40 L=32 		1-09701-267-0 03 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(M) ID=39 H=40 L=32 		1-09701-267-0 03 1 1312-1403 ● ●
48 CLIP; FRAME HARNESS
BUS BODY REAR OVERHANG<YK4> (M) ID=39 H=40 L=32 		1-09701-267-0 02 1 1404- ● ●
48 CLIP; FRAME HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 06 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 06 1 1312- ● ●
48 CLIP; FRAME HARNESS
(O) ID=5-12 L=26 		1-09709-289-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(O) ID=5-12 L=26 		1-09709-289-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
(P) ID=10 L=16.5 		8-98082-034-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(P) ID=10 L=16.5 		8-98082-034-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
(Q) ID=20 L=50 		9-09917-430-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (Q) ID=20 L=50 		9-09917-430-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(Q) ID=20 L=50 		9-09917-430-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (Q) ID=20 L=50 		9-09917-430-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (R) ID=11 L=41 		1-09700-403-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (R) ID=11 L=41 		1-09700-403-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (S) L=140 		5-09707-031-1 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (S) L=140 		5-09707-031-1 01 1 1312- ● ●
170 CLIP; ELEC HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 1307-1311 ●
170 CLIP; ELEC HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 1312- ● ●
170 CLIP; ELEC HARNESS
(B) ID=28 L=40 		1-09700-995-1 01 1 1307-1311 ●
170 CLIP; ELEC HARNESS
(B) ID=28 L=40 		1-09700-995-1 01 1 1312- ● ●
170 CLIP; ELEC HARNESS
(C) L=350 		1-09707-183-0 03 1 1307-1311 ●
170 CLIP; ELEC HARNESS
(C) L=350 		1-09707-183-0 03 1 1312- ● ●
170 CLIP; ELEC HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 1307-1311 ●
170 CLIP; ELEC HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 1312- ● ●
170 CLIP; ELEC HARNESS
(E) ID=14 L=44 		9-09917-427-0 04 1 1307-1311 ●
170 CLIP; ELEC HARNESS
(E) ID=14 L=44 		9-09917-427-0 04 1 1312- ● ●
170 CLIP; ELEC HARNESS
(F) ID=20 L=50 		9-09917-430-0 02 1 1307-1311 ●
170 CLIP; ELEC HARNESS
(F) ID=20 L=50 		9-09917-430-0 02 1 1312- ● ●
170 CLIP; ELEC HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (G) ID=18-24 L=14.5 		1-09709-298-0 01 1 1307-1311 ●
170 CLIP; ELEC HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (G) ID=18-24 L=14.5 		1-09709-298-0 01 1 1312- ● ●
170 CLIP; ELEC HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (H) ID=13-18 L=14.5 		1-09709-290-0 01 1 1307-1311 ●
170 CLIP; ELEC HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (H) ID=13-18 L=14.5 		1-09709-290-0 01 1 1312- ● ●
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 1307-1311 ●
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 1312- ● ●
206 CLIP; FUEL TANK HARNESS
(B) ID=11 L=61 		1-09700-484-0 01 1 1307-1311 ●
206 CLIP; FUEL TANK HARNESS
(B) ID=11 L=61 		1-09700-484-0 01 1 1312- ● ●
206 CLIP; FUEL TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307-1311 ●
206 CLIP; FUEL TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 02 1 1312- ● ●
206 CLIP; FUEL TANK HARNESS
(D) L=250 		5-09707-030-1 02 1 1307-1311 ●
206 CLIP; FUEL TANK HARNESS
(D) L=250 		5-09707-030-1 02 1 1312- ● ●
206 CLIP; FUEL TANK HARNESS
(E) ID=11 H=20 L=20 		8-98033-780-0 01 1 1307-1311 ●
206 CLIP; FUEL TANK HARNESS
(E) ID=11 H=20 L=20 		8-98033-780-0 01 1 1312- ● ●
208 CLIP; HARNESS,MAG VLV
(A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1307-1311 ●
208 CLIP; HARNESS,MAG VLV
(A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1312- ● ●
208 CLIP; HARNESS,MAG VLV
(B) L=140 		5-09707-031-1 01 1 1307-1311 ●
208 CLIP; HARNESS,MAG VLV
(B) L=140 		5-09707-031-1 01 1 1312- ● ●
223 CLIP; AIR TANK HARNESS
ID=5-12 L=14.5 		1-09987-221-0 01 1 1307-1311 ●
223 CLIP; AIR TANK HARNESS
ID=5-12 L=14.5 		1-09987-221-0 01 1 1312- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=10 H=25 L=20 		1-09700-519-0 01 1 1307-1311 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=10 H=25 L=20 		1-09700-519-0 01 1 1312- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTILOCK BRAKE SYSTEM<BFA> (B) OD=9 H=6 		1-09709-178-0 02 1 1307-1311 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTILOCK BRAKE SYSTEM<BFA> (B) OD=9 H=6 		1-09709-178-0 02 1 1312- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTILOCK BRAKE SYSTEM<BFA> (C) OD=9 H=17.5 		1-09709-181-0 02 1 1307-1311 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTILOCK BRAKE SYSTEM<BFA> (C) OD=9 H=17.5 		1-09709-181-0 02 1 1312- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTILOCK BRAKE SYSTEM<BFA> (D) ID=5-12 L=14.5 		1-09987-221-0 03 1 1307-1311 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTILOCK BRAKE SYSTEM<BFA> (D) ID=5-12 L=14.5 		1-09987-221-0 03 1 1312- ● ●
251 CLIP; WATER LEVEL HARNESS
(A) ID=11 L=50 		0-95235-085-0 01 1 1307-1311 ●
251 CLIP; WATER LEVEL HARNESS
(A) ID=11 L=50 		0-95235-085-0 01 1 1312- ● ●
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 1307-1311 ●
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 1312- ● ●
251 CLIP; WATER LEVEL HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1307-1311 ●
251 CLIP; WATER LEVEL HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1312- ● ●
581 CLIP; HARNESS,REAR SUSP
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 1307-1311 ●
581 CLIP; HARNESS,REAR SUSP
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 1312- ● ●
581 CLIP; HARNESS,REAR SUSP
(B) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1307-1311 ●
581 CLIP; HARNESS,REAR SUSP
(B) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1312- ● ●
581 CLIP; HARNESS,REAR SUSP
(C) ID=39 H=28 L=32 		1-09701-263-0 02 1 1307-1311 ●
581 CLIP; HARNESS,REAR SUSP
(C) ID=39 H=28 L=32 		1-09701-263-0 02 1 1312- ● ●
581 CLIP; HARNESS,REAR SUSP
(D) ID=11 & 13 H=26 L=48 		1-09701-270-0 01 1 1307-1311 ●
581 CLIP; HARNESS,REAR SUSP
(D) ID=11 & 13 H=26 L=48 		1-09701-270-0 01 1 1312- ● ●
581 CLIP; HARNESS,REAR SUSP
(E) L=350 		1-09707-183-0 02 1 1307-1311 ●
581 CLIP; HARNESS,REAR SUSP
(E) L=350 		1-09707-183-0 02 1 1312- ● ●
çizim 366412
552 525 515 340 297 294 219 219 139 38 371 313 38 38 313 139 38 371 313 242 150 139 38 169 38 38 150 150 139 150 139 150 173 520 423 386 38
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28650-830-0 02 1 1404- ●
38 BOLT; CLIP,HARNESS
EXC. BUS BODY REAR OVERHANG<YK4> (F) M8X30 FLANGE 		0-28650-830-0 02 1 1404- ●
38 BOLT; CLIP,HARNESS
BUS BODY REAR OVERHANG<YK4> (E) M8X25 FLANGE 		0-28650-825-0 19 1 1404- ●
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 43 1 1312-1403 ●
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 20 1 1404- ●
38 BOLT; CLIP,HARNESS
BUS BODY REAR OVERHANG<YK4> (E) M8X25 FLANGE 		0-28650-825-0 20 1 1404- ●
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28650-830-0 02 1 1312-1403 ●
38 BOLT; CLIP,HARNESS
BUS BODY REAR OVERHANG<YK4> (F) M8X30 FLANGE 		0-28650-830-0 01 1 1404- ●
38 BOLT; CLIP,HARNESS
(A) M6X20 FLANGE 		0-28650-620-0 02 1 1307-1311 ●
38 BOLT; CLIP,HARNESS
(A) M6X20 FLANGE 		0-28650-620-0 02 1 1312- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1307-1311 ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1307-1311 ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1312- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 1312- ● ●
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 18 1 1307-1311 ●
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 18 1 1312- ● ●
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 41 1 1307-1403 ●
38 BOLT; CLIP,HARNESS
EXC. BUS BODY REAR OVERHANG<YK4> (E) M8X25 FLANGE 		0-28650-825-0 21 1 1404- ●
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 21 1 1404- ●
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28650-830-0 03 1 1307-1403 ●
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28650-830-0 03 1 1404- ●
38 BOLT; CLIP,HARNESS
BUS BODY REAR OVERHANG<YK4> (F) M8X30 FLANGE 		0-28650-830-0 03 1 1404- ●
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28650-830-0 07 1 1307-1311 ●
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28650-830-0 07 1 1312-1403 ● ●
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28650-830-0 05 1 1404- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X40 FLANGE 		0-28650-840-0 03 1 1307-1311 ●
38 BOLT; CLIP,HARNESS
(C) M8X40 FLANGE 		0-28650-840-0 03 1 1312- ● ●
38 BOLT; CLIP,HARNESS
(G) M10X20 FLANGE 		0-28751-020-0 01 1 1307-1311 ●
38 BOLT; CLIP,HARNESS
(G) M10X20 FLANGE 		0-28751-020-0 01 1 1312- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X14 W/PL WASHER 		8-98164-837-0 02 1 1307-1311 ●
38 BOLT; CLIP,HARNESS
(B) M8X14 W/PL WASHER 		8-98164-837-0 02 1 1312- ● ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (D) M8X20 FLANGE 		0-28650-820-0 03 1 1307-1311 ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (D) M8X20 FLANGE 		0-28650-820-0 03 1 1312- ● ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (H) M8X35 FLANGE 		0-28650-835-0 01 1 1307-1311 ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (H) M8X35 FLANGE 		0-28650-835-0 01 1 1312- ● ●
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 05 1 1307-1311 ●
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 05 1 1312-1402 ● ●
139 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 05 1 1403- ● ●
139 BOLT; BRKT
(C) M8X20 FLANGE 		0-28050-820-0 03 1 1307-1311 ●
139 BOLT; BRKT
(C) M8X20 FLANGE 		0-28050-820-0 03 1 1312-1402 ● ●
139 BOLT; BRKT
(C) M8X20 FLANGE 		0-28050-820-0 03 1 1403- ● ●
139 BOLT; BRKT
(D) M10X30 FLANGE 		0-28151-030-0 01 1 1307-1311 ●
139 BOLT; BRKT
(D) M10X30 FLANGE 		0-28151-030-0 01 1 1312-1402 ● ●
139 BOLT; BRKT
(D) M10X30 FLANGE 		0-28151-030-0 01 1 1403- ● ●
139 BOLT; BRKT
(E) M8X25 FLANGE 		0-28650-825-0 09 1 1307-1311 ●
139 BOLT; BRKT
(E) M8X25 FLANGE 		0-28650-825-0 09 1 1312- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1307- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1307-1311 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1312- ● ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1307-1311 ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1312-1402 ● ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1403-1403 ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1404- ● ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> (E) M8X25 FLANGE 		0-28650-825-0 02 1 1307-1311 ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> (E) M8X25 FLANGE 		0-28650-825-0 02 1 1312- ● ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> (B) M8X30 FLANGE 		0-28650-830-0 04 1 1307-1311 ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> (B) M8X30 FLANGE 		0-28650-830-0 04 1 1312- ● ●
139 BOLT; BRKT
EXC. ANTILOCK BRAKE SYSTEM<BFA> (E) M8X25 FLANGE 		0-28650-825-0 01 1 1307-1311 ●
139 BOLT; BRKT
EXC. ANTILOCK BRAKE SYSTEM<BFA> (E) M8X25 FLANGE 		0-28650-825-0 01 1 1312- ● ●
150 BOLT; CLIP
(C) M6X16 FLANGE 		0-28050-616-0 01 1 1307-1311 ●
150 BOLT; CLIP
(C) M6X16 FLANGE 		0-28050-616-0 01 1 1312-1402 ● ●
150 BOLT; CLIP
(C) M6X16 FLANGE 		0-28050-616-0 01 1 1403- ● ●
150 BOLT; CLIP
(A) M8X12 FLANGE 		0-28050-812-0 03 1 1307-1311 ●
150 BOLT; CLIP
(A) M8X12 FLANGE 		0-28050-812-0 03 1 1312-1402 ● ●
150 BOLT; CLIP
(A) M8X12 FLANGE 		0-28050-812-0 03 1 1403- ● ●
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 14 1 1307-1311 ●
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 14 1 1312-1402 ● ●
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 14 1 1403- ● ●
150 BOLT; CLIP
(D) M8X20 FLANGE 		0-28050-820-0 01 1 1307-1311 ●
150 BOLT; CLIP
(D) M8X20 FLANGE 		0-28050-820-0 01 1 1312-1402 ● ●
150 BOLT; CLIP
(D) M8X20 FLANGE 		0-28050-820-0 01 1 1403- ● ●
150 BOLT; CLIP
(E) M8X25 FLANGE 		0-28650-825-0 01 1 1307-1311 ●
150 BOLT; CLIP
(E) M8X25 FLANGE 		0-28650-825-0 01 1 1312- ● ●
169 BOLT; ELEC HARNESS
M8X20 FLANGE 		0-28650-820-0 01 1 1307-1311 ●
169 BOLT; ELEC HARNESS
M8X20 FLANGE 		0-28650-820-0 01 1 1312- ● ●
173 BOLT; STARTER EARTH
M12X16 FLANGE 		0-28051-216-0 01 1 1307-1311 ●
173 BOLT; STARTER EARTH
M12X16 FLANGE 		0-28051-216-0 01 1 1312- ● ●
219 NUT
EXC. BUS BODY REAR OVERHANG<YK4> (B) M8 FLANGE 		0-91180-108-0 22 1 1404- ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 24 1 1312-1403 ●
219 NUT
BUS BODY REAR OVERHANG<YK4> (B) M8 FLANGE 		0-91180-108-0 23 1 1404- ●
219 NUT
(A) M6 FLANGE 		0-91180-106-0 02 1 1307-1311 ●
219 NUT
(A) M6 FLANGE 		0-91180-106-0 02 1 1312- ● ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 1307-1311 ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 1312- ● ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 22 1 1307-1403 ●
219 NUT
BUS BODY REAR OVERHANG<YK4> (B) M8 FLANGE 		0-91180-108-0 21 1 1404- ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 44 1 1307-1311 ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 44 1 1312- ● ●
219 NUT
ANTILOCK BRAKE SYSTEM<BFA> (B) M8 FLANGE 		0-91180-108-0 03 1 1307-1311 ●
219 NUT
ANTILOCK BRAKE SYSTEM<BFA> (B) M8 FLANGE 		0-91180-108-0 03 1 1312- ● ●
242 BOLT; BRKT,HARNESS
M8X25 FLANGE 		0-28650-825-0 01 1 1307-1311 ●
242 BOLT; BRKT,HARNESS
M8X25 FLANGE 		0-28650-825-0 01 1 1312- ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 29 1 1307-1311 ●
294 NUT
M8 FLANGE 		0-91180-108-0 29 1 1312- ● ●
294 NUT
ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE 		0-91180-108-0 04 1 1307-1311 ●
294 NUT
ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE 		0-91180-108-0 04 1 1312- ● ●
297 NUT; HARNESS ELEC PANEL
M8 FLANGE 		0-91180-108-0 01 1 1307-1311 ●
297 NUT; HARNESS ELEC PANEL
M8 FLANGE 		0-91180-108-0 01 1 1312- ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 13 1 1312- ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1307-1311 ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1312- ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 12 1 1307- ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 1307-1311 ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 1312- ● ●
313 BOLT; BRKT
(A) M8X40 FLANGE 		0-28650-840-0 02 1 1307-1311 ●
313 BOLT; BRKT
(A) M8X40 FLANGE 		0-28650-840-0 02 1 1312- ● ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 1307-1311 ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 1312- ● ●
371 BOLT; GEN HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1307-1311 ●
371 BOLT; GEN HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1312- ● ●
371 BOLT; GEN HARNESS
(B) M8X40 FLANGE 		0-28650-840-0 01 1 1307-1311 ●
371 BOLT; GEN HARNESS
(B) M8X40 FLANGE 		0-28650-840-0 01 1 1312- ● ●
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1307-1311 ●
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1312- ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 1307-1311 ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 1312- ● ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1307-1311 ●
515 NUT; BRKT
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE 		0-91180-108-0 02 1 1312- ●
515 NUT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE 		0-91180-108-0 02 1 1312- ●
515 NUT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE 		0-91180-108-0 03 1 1307- ●
515 NUT; BRKT
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE 		0-91180-108-0 02 1 1307-1311 ●
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1312- ● ●
515 NUT; BRKT
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE 		0-91180-108-0 01 1 1312- ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 1307-1311 ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 1312- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1307-1311 ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1312- ● ●
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 1307-1311 ●
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 1312- ● ●
çizim 366914
170 162 16 16 48 16 251 16 16 48 16 48 16 48 16 16 48 48 48 49 581 16 48 48 48 581 16 48 581 48 235 16 206 33 16 48 166 167 170 206 212 251 425 48 206 425 16 163 170 48 162 163 170 162 48 48
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(E) ID=9 L=20 		0-95234-835-0 02 1 1307-1311 ●
16 CLIP; HARNESS
(E) ID=9 L=20 		0-95234-835-0 02 1 1312-1402 ● ●
16 CLIP; HARNESS
(E) ID=9 L=20 		0-95234-835-0 02 1 1403- ● ●
16 CLIP; HARNESS
(B) B=14 ID=11 L=20 		0-95235-032-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(B) B=14 ID=11 L=20 		0-95235-032-0 01 1 1312-1402 ● ●
16 CLIP; HARNESS
(B) B=14 ID=11 L=20 		0-95235-032-0 01 1 1403- ● ●
16 CLIP; HARNESS
(B) B=18 ID=11 L=20 		0-95235-035-0 03 1 1307-1311 ●
16 CLIP; HARNESS
(B) B=18 ID=11 L=20 		0-95235-035-0 03 1 1312-1402 ● ●
16 CLIP; HARNESS
(B) B=18 ID=11 L=20 		0-95235-035-0 03 1 1403- ● ●
16 CLIP; HARNESS
(B) B=18 ID=11 L=20 		0-95235-035-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(B) B=18 ID=11 L=20 		0-95235-035-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(B) B=18 ID=11 L=20 		0-95235-035-0 01 1 1312- ● ●
16 CLIP; HARNESS
(B) B=18 ID=11 L=20 		0-95235-035-0 01 1 1312- ● ●
16 CLIP; HARNESS
(C) ID=16 L=20 		0-95235-536-0 02 1 1307-1311 ●
16 CLIP; HARNESS
(C) ID=16 L=20 		0-95235-536-0 02 1 1312-1402 ● ●
16 CLIP; HARNESS
(C) ID=16 L=20 		0-95235-536-0 02 1 1403- ● ●
16 CLIP; HARNESS
(D) ID=19 L=20 		0-95235-836-0 03 1 1307-1311 ●
16 CLIP; HARNESS
(D) ID=19 L=20 		0-95235-836-0 03 1 1312-1402 ● ●
16 CLIP; HARNESS
(D) ID=19 L=20 		0-95235-836-0 03 1 1403- ● ●
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 10 1 1307-1311 ●
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 10 1 1312- ● ●
16 CLIP; HARNESS
(F) ID=14.5 H=23 L=30 		1-09700-859-0 03 1 1307-1311 ●
16 CLIP; HARNESS
(F) ID=14.5 H=23 L=30 		1-09700-859-0 03 1 1312- ● ●
16 CLIP; HARNESS
(H) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(H) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1312-1402 ● ●
16 CLIP; HARNESS
(H) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1403- ● ●
16 CLIP; HARNESS
(K) ID=35 H=45 L=33 		1-09700-947-0 01 1 1307-1311 ●
16 CLIP; HARNESS
KD ENGINE<KDA> (K) ID=35 H=45 L=33 		1-09700-947-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(K) ID=35 H=45 L=33 		1-09700-947-0 01 1 1312-1402 ● ●
16 CLIP; HARNESS
KD ENGINE<KDA> (K) ID=35 H=45 L=33 		1-09700-947-0 01 1 1312-1402 ● ●
16 CLIP; HARNESS
(K) ID=35 H=45 L=33 		1-09700-947-0 01 1 1403- ● ●
16 CLIP; HARNESS
(K) ID=35 H=45 L=33 		1-09700-947-0 01 1 1403- ● ●
16 CLIP; HARNESS
(N) ID=9 H=80 L=23 		1-09701-061-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(N) ID=9 H=80 L=23 		1-09701-061-0 01 1 1312-1402 ● ●
16 CLIP; HARNESS
(N) ID=9 H=80 L=23 		1-09701-061-0 01 1 1403- ● ●
16 CLIP; HARNESS
(R) ID=18 L=28 		1-09701-067-0 03 1 1307-1311 ●
16 CLIP; HARNESS
(R) ID=18 L=28 		1-09701-067-0 03 1 1312-1402 ● ●
16 CLIP; HARNESS
(R) ID=18 L=28 		1-09701-067-0 03 1 1403- ● ●
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 01 1 1307-1311 ●
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 01 1 1312- ● ●
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 01 1 1312-1402 ● ●
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 01 1 1403- ● ●
16 CLIP; HARNESS
(I) OD=9 H=9.5 		1-09709-179-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(I) OD=9 H=9.5 		1-09709-179-0 01 1 1312- ● ●
16 CLIP; HARNESS
(U) ID=5-12 L=18 		1-09709-287-0 06 1 1307-1311 ●
16 CLIP; HARNESS
(U) ID=5-12 L=18 		1-09709-287-0 06 1 1312- ● ●
16 CLIP; HARNESS
(T) ID=5-12 L=22 		1-09709-288-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(T) ID=5-12 L=22 		1-09709-288-0 01 1 1312- ● ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307-1311 ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1312- ● ●

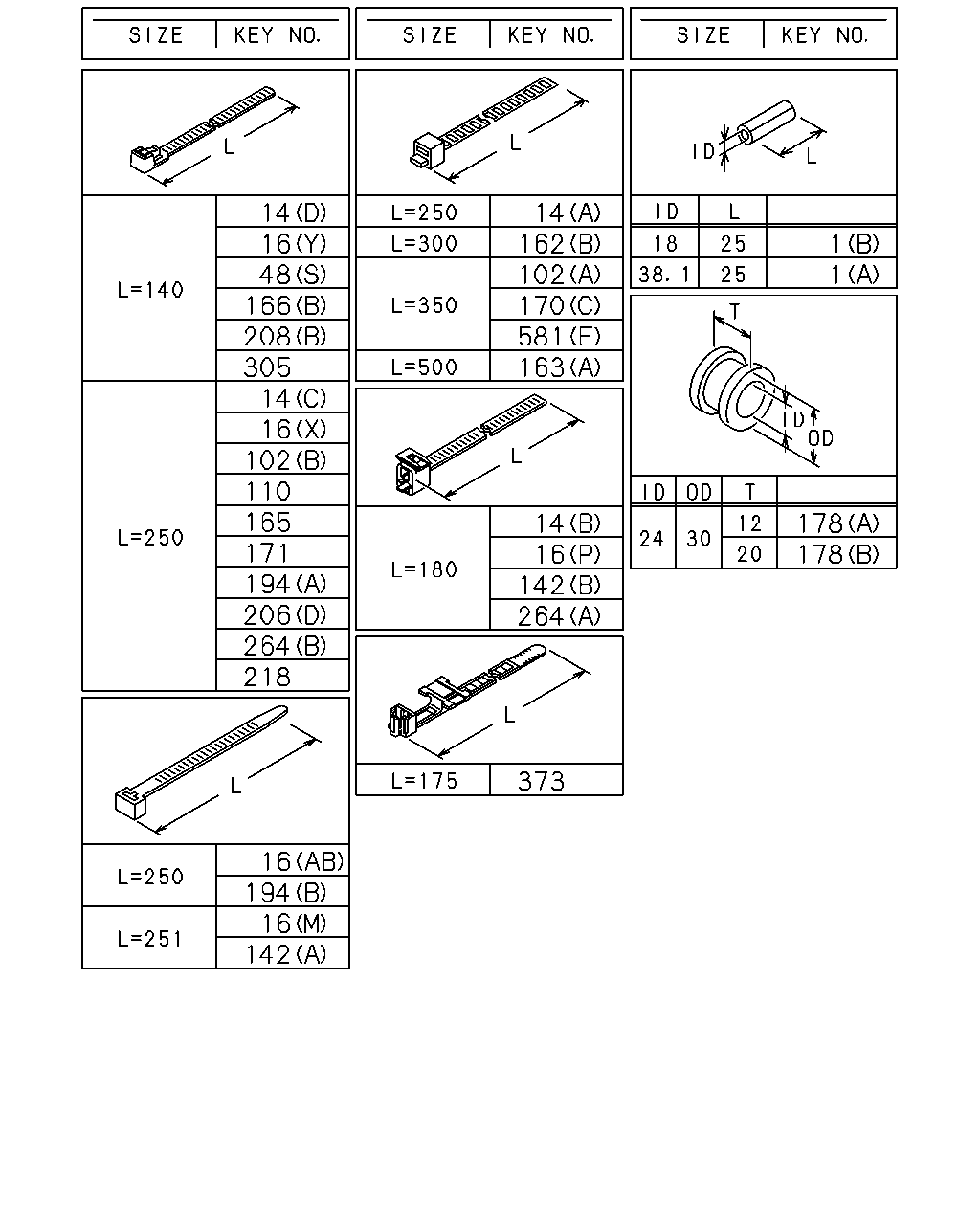

16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 03 1 1307-1311 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 03 1 1312- ● ●
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 01 1 1307-1311 ●
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 01 1 1312- ● ●
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 1307-1311 ●
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 1312-1402 ● ●
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 1403- ● ●
16 CLIP; HARNESS
(O) L=36 		8-94224-891-1 01 1 1307-1311 ●
16 CLIP; HARNESS
(O) L=36 		8-94224-891-1 01 1 1312-1402 ● ●
16 CLIP; HARNESS
(O) L=36 		8-94224-891-1 01 1 1403- ● ●
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 02 1 1307-1311 ●
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 02 1 1312-1402 ● ●
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 02 1 1403- ● ●
16 CLIP; HARNESS
(M) L=251 		8-97619-917-0 04 1 1307-1311 ●
16 CLIP; HARNESS
(M) L=251 		8-97619-917-0 04 1 1312-1402 ● ●
16 CLIP; HARNESS
(M) L=251 		8-97619-917-0 04 1 1403- ● ●
16 CLIP; HARNESS
(Q) ID=10 L=16.5 		8-98082-034-0 02 1 1307-1311 ●
16 CLIP; HARNESS
(Q) ID=10 L=16.5 		8-98082-034-0 02 1 1312-1402 ● ●
16 CLIP; HARNESS
(Q) ID=10 L=16.5 		8-98082-034-0 02 1 1403- ● ●
16 CLIP; HARNESS
(AB) L=250 		8-98216-430-0 14 1 1307-1311 ●
16 CLIP; HARNESS
(AB) L=250 		8-98216-430-0 14 1 1312-1402 ● ●
16 CLIP; HARNESS
(AB) L=250 		8-98216-430-0 14 1 1403- ● ●
16 CLIP; HARNESS
(V) ID=14 L=44 		9-09917-427-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(V) ID=14 L=44 		9-09917-427-0 01 1 1312- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=16 		0-95235-025-0 02 1 1307-1311 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=16 		0-95235-025-0 02 1 1312- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (J) ID=11X2 L=20 		0-95325-035-0 01 1 1307-1311 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (J) ID=11X2 L=20 		0-95325-035-0 01 1 1312- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (L) ID=11 H=20 L=20 		8-98033-780-0 02 1 1307- ●
33 CLIP; HARNESS,VLV
ID=11 H=20 L=25 		1-09700-848-0 01 1 1307-1311 ●
33 CLIP; HARNESS,VLV
ID=11 H=20 L=25 		1-09700-848-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
BUS BODY REAR OVERHANG<YK4> (G) ID=20 H=23 L=27 		1-09700-861-0 01 1 1404- ● ●
48 CLIP; FRAME HARNESS
EXC. BUS BODY REAR OVERHANG<YK4> (G) ID=20 H=23 L=27 		1-09700-861-0 02 1 1404- ● ●
48 CLIP; FRAME HARNESS
EXC. BUS BODY REAR OVERHANG<YK4> (M) ID=39 H=40 L=32 		1-09701-267-0 03 1 1404- ● ●
48 CLIP; FRAME HARNESS
(T) ID=35 L=35 		1-09700-684-0 03 1 1312- ●
48 CLIP; FRAME HARNESS
(A) ID=34.5 H=23 L=27.5 		1-09700-905-0 16 1 1312- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=28 		0-95235-055-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=28 		0-95235-055-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
(D) ID=33 L=63 		1-09700-807-0 02 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(D) ID=33 L=63 		1-09700-807-0 02 1 1312- ● ●
48 CLIP; FRAME HARNESS
(E) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(E) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
(F) ID=18 H=23 L=28 		1-09700-860-0 02 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(F) ID=18 H=23 L=28 		1-09700-860-0 02 1 1312- ● ●
48 CLIP; FRAME HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 05 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 05 1 1312-1403 ● ●
48 CLIP; FRAME HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 03 1 1404- ● ●
48 CLIP; FRAME HARNESS
(A) ID=34.5 H=23 L=27.5 		1-09700-905-0 18 1 1307- ●
48 CLIP; FRAME HARNESS
(H) ID=35 L=33 		1-09700-945-0 05 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(H) ID=35 L=33 		1-09700-945-0 05 1 1312- ● ●
48 CLIP; FRAME HARNESS
(I) ID=28 H=45 L=30 		1-09700-948-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(I) ID=28 H=45 L=30 		1-09700-948-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
(J) ID=31.5 H=23 L=25 		1-09701-017-0 07 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(J) ID=31.5 H=23 L=25 		1-09701-017-0 07 1 1312- ● ●
48 CLIP; FRAME HARNESS
(K) ID=32 L=35 		1-09701-244-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(K) ID=32 L=35 		1-09701-244-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
(L) ID=39 H=28 L=32 		1-09701-263-0 10 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(L) ID=39 H=28 L=32 		1-09701-263-0 10 1 1312- ● ●
48 CLIP; FRAME HARNESS
(M) ID=39 H=40 L=32 		1-09701-267-0 03 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(M) ID=39 H=40 L=32 		1-09701-267-0 03 1 1312-1403 ● ●
48 CLIP; FRAME HARNESS
BUS BODY REAR OVERHANG<YK4> (M) ID=39 H=40 L=32 		1-09701-267-0 02 1 1404- ● ●
48 CLIP; FRAME HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 06 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 06 1 1312- ● ●
48 CLIP; FRAME HARNESS
(O) ID=5-12 L=26 		1-09709-289-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(O) ID=5-12 L=26 		1-09709-289-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
(P) ID=10 L=16.5 		8-98082-034-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(P) ID=10 L=16.5 		8-98082-034-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
(Q) ID=20 L=50 		9-09917-430-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (Q) ID=20 L=50 		9-09917-430-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(Q) ID=20 L=50 		9-09917-430-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (Q) ID=20 L=50 		9-09917-430-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (R) ID=11 L=41 		1-09700-403-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (R) ID=11 L=41 		1-09700-403-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (S) L=140 		5-09707-031-1 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (S) L=140 		5-09707-031-1 01 1 1312- ● ●
49 CLIP; GEN HARNESS
ID=20 H=23 L=27 		1-09700-861-0 02 1 1307-1311 ●
49 CLIP; GEN HARNESS
ID=20 H=23 L=27 		1-09700-861-0 02 1 1312- ● ●
162 CLIP; SW HARNESS
(A) ID=32 L=35 		1-09701-244-0 01 1 1307-1311 ●
162 CLIP; SW HARNESS
(A) ID=32 L=35 		1-09701-244-0 01 1 1312- ● ●
162 CLIP; SW HARNESS
(B) L=300 		1-09707-001-1 02 1 1307-1311 ●
162 CLIP; SW HARNESS
(B) L=300 		1-09707-001-1 02 1 1312- ● ●
162 CLIP; SW HARNESS
(C) ID=20 L=50 		9-09917-430-0 03 1 1307-1311 ●
162 CLIP; SW HARNESS
(C) ID=20 L=50 		9-09917-430-0 03 1 1312- ● ●
162 CLIP; SW HARNESS
(D) ID=22 L=52 		9-09917-431-0 01 1 1307-1311 ●
162 CLIP; SW HARNESS
(D) ID=22 L=52 		9-09917-431-0 01 1 1312- ● ●
163 CLIP; METER HARNESS
(A) L=500 		1-09707-082-1 02 1 1307-1311 ●
163 CLIP; METER HARNESS
(A) L=500 		1-09707-082-1 02 1 1312- ● ●
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 01 1 1307-1311 ●
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 01 1 1312- ● ●
163 CLIP; METER HARNESS
(C) ID=20 L=50 		9-09917-430-0 01 1 1307-1311 ●
163 CLIP; METER HARNESS
(C) ID=20 L=50 		9-09917-430-0 01 1 1312- ● ●
166 CLIP; HARNESS CLU SW
(A) ID=11 L=41 		1-09700-403-0 03 1 1307-1311 ●
166 CLIP; HARNESS CLU SW
(A) ID=11 L=41 		1-09700-403-0 03 1 1312- ● ●
166 CLIP; HARNESS CLU SW
(B) L=140 		5-09707-031-1 01 1 1307-1311 ●
166 CLIP; HARNESS CLU SW
(B) L=140 		5-09707-031-1 01 1 1312- ● ●
167 CLIP; HARNESS ACCEL & STOP
ID=11 L=41 		1-09700-403-0 02 1 1307-1311 ●
167 CLIP; HARNESS ACCEL & STOP
ID=11 L=41 		1-09700-403-0 02 1 1312- ● ●
170 CLIP; ELEC HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 1307-1311 ●
170 CLIP; ELEC HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 1312- ● ●
170 CLIP; ELEC HARNESS
(B) ID=28 L=40 		1-09700-995-1 01 1 1307-1311 ●
170 CLIP; ELEC HARNESS
(B) ID=28 L=40 		1-09700-995-1 01 1 1312- ● ●
170 CLIP; ELEC HARNESS
(C) L=350 		1-09707-183-0 03 1 1307-1311 ●
170 CLIP; ELEC HARNESS
(C) L=350 		1-09707-183-0 03 1 1312- ● ●
170 CLIP; ELEC HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 1307-1311 ●
170 CLIP; ELEC HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 1312- ● ●
170 CLIP; ELEC HARNESS
(E) ID=14 L=44 		9-09917-427-0 04 1 1307-1311 ●
170 CLIP; ELEC HARNESS
(E) ID=14 L=44 		9-09917-427-0 04 1 1312- ● ●
170 CLIP; ELEC HARNESS
(F) ID=20 L=50 		9-09917-430-0 02 1 1307-1311 ●
170 CLIP; ELEC HARNESS
(F) ID=20 L=50 		9-09917-430-0 02 1 1312- ● ●
170 CLIP; ELEC HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (G) ID=18-24 L=14.5 		1-09709-298-0 01 1 1307-1311 ●
170 CLIP; ELEC HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (G) ID=18-24 L=14.5 		1-09709-298-0 01 1 1312- ● ●
170 CLIP; ELEC HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (H) ID=13-18 L=14.5 		1-09709-290-0 01 1 1307-1311 ●
170 CLIP; ELEC HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (H) ID=13-18 L=14.5 		1-09709-290-0 01 1 1312- ● ●
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 1307-1311 ●
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 1312- ● ●
206 CLIP; FUEL TANK HARNESS
(B) ID=11 L=61 		1-09700-484-0 01 1 1307-1311 ●
206 CLIP; FUEL TANK HARNESS
(B) ID=11 L=61 		1-09700-484-0 01 1 1312- ● ●
206 CLIP; FUEL TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307-1311 ●
206 CLIP; FUEL TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 02 1 1312- ● ●
206 CLIP; FUEL TANK HARNESS
(D) L=250 		5-09707-030-1 02 1 1307-1311 ●
206 CLIP; FUEL TANK HARNESS
(D) L=250 		5-09707-030-1 02 1 1312- ● ●
206 CLIP; FUEL TANK HARNESS
(E) ID=11 H=20 L=20 		8-98033-780-0 01 1 1307-1311 ●
206 CLIP; FUEL TANK HARNESS
(E) ID=11 H=20 L=20 		8-98033-780-0 01 1 1312- ● ●
212 CLIP; HORN HARNESS
ID=11 L=41 		1-09700-403-0 03 1 1307-1311 ●
212 CLIP; HORN HARNESS
ID=11 L=41 		1-09700-403-0 03 1 1312- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=10 H=25 L=20 		1-09700-519-0 01 1 1307-1311 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=10 H=25 L=20 		1-09700-519-0 01 1 1312- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTILOCK BRAKE SYSTEM<BFA> (B) OD=9 H=6 		1-09709-178-0 02 1 1307-1311 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTILOCK BRAKE SYSTEM<BFA> (B) OD=9 H=6 		1-09709-178-0 02 1 1312- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTILOCK BRAKE SYSTEM<BFA> (C) OD=9 H=17.5 		1-09709-181-0 02 1 1307-1311 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTILOCK BRAKE SYSTEM<BFA> (C) OD=9 H=17.5 		1-09709-181-0 02 1 1312- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTILOCK BRAKE SYSTEM<BFA> (D) ID=5-12 L=14.5 		1-09987-221-0 03 1 1307-1311 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTILOCK BRAKE SYSTEM<BFA> (D) ID=5-12 L=14.5 		1-09987-221-0 03 1 1312- ● ●
251 CLIP; WATER LEVEL HARNESS
(A) ID=11 L=50 		0-95235-085-0 01 1 1307-1311 ●
251 CLIP; WATER LEVEL HARNESS
(A) ID=11 L=50 		0-95235-085-0 01 1 1312- ● ●
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 1307-1311 ●
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 1312- ● ●
251 CLIP; WATER LEVEL HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1307-1311 ●
251 CLIP; WATER LEVEL HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1312- ● ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=41 		1-09700-403-0 09 1 1307-1311 ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=41 		1-09700-403-0 09 1 1312- ● ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM<BFA> (B) ID=11 L=61 		1-09700-484-0 01 1 1307-1311 ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM<BFA> (B) ID=11 L=61 		1-09700-484-0 01 1 1312- ● ●
581 CLIP; HARNESS,REAR SUSP
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 1307-1311 ●
581 CLIP; HARNESS,REAR SUSP
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 1312- ● ●
581 CLIP; HARNESS,REAR SUSP
(B) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1307-1311 ●
581 CLIP; HARNESS,REAR SUSP
(B) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1312- ● ●
581 CLIP; HARNESS,REAR SUSP
(C) ID=39 H=28 L=32 		1-09701-263-0 02 1 1307-1311 ●
581 CLIP; HARNESS,REAR SUSP
(C) ID=39 H=28 L=32 		1-09701-263-0 02 1 1312- ● ●
581 CLIP; HARNESS,REAR SUSP
(D) ID=11 & 13 H=26 L=48 		1-09701-270-0 01 1 1307-1311 ●
581 CLIP; HARNESS,REAR SUSP
(D) ID=11 & 13 H=26 L=48 		1-09701-270-0 01 1 1312- ● ●
581 CLIP; HARNESS,REAR SUSP
(E) L=350 		1-09707-183-0 02 1 1307-1311 ●
581 CLIP; HARNESS,REAR SUSP
(E) L=350 		1-09707-183-0 02 1 1312- ● ●
çizim 367023
14 48 16 166 305 208 14 102 16 110 171 194 165 206 264 218 16 194 16 142 14 162 102 581 170 163 14 142 264 16 373 178 1 1 178
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
(A) ID=38.1 OD=48.1 L=25 		1-09337-052-0 01 1 1307-1311 ●
1 SLEEVE; RUBBER
(A) ID=38.1 OD=48.1 L=25 		1-09337-052-0 01 1 1312-1402 ● ●
1 SLEEVE; RUBBER
(A) ID=38.1 OD=48.1 L=25 		1-09337-052-0 01 1 1403- ● ●
1 SLEEVE; RUBBER
(B) ID=18 OD=22 L=25 		8-94412-773-0 01 1 1307-1311 ●
1 SLEEVE; RUBBER
(B) ID=18 OD=22 L=25 		8-94412-773-0 01 1 1312-1402 ● ●
1 SLEEVE; RUBBER
(B) ID=18 OD=22 L=25 		8-94412-773-0 01 1 1403- ● ●
14 CLIP; BAND,HARNESS
(B) L=180 		1-09707-162-1 01 1 1307-1311 ●
14 CLIP; BAND,HARNESS
(B) L=180 		1-09707-162-1 01 1 1312- ● ●
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 01 1 1307-1311 ●
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 01 1 1312- ● ●
14 CLIP; BAND,HARNESS
(D) L=140 		5-09707-031-1 03 1 1307-1311 ●
14 CLIP; BAND,HARNESS
(D) L=140 		5-09707-031-1 03 1 1312- ● ●
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (A) L=250 		1-09707-126-0 04 1 1307-1307 ●
16 CLIP; HARNESS
(E) ID=9 L=20 		0-95234-835-0 02 1 1307-1311 ●
16 CLIP; HARNESS
(E) ID=9 L=20 		0-95234-835-0 02 1 1312-1402 ● ●
16 CLIP; HARNESS
(E) ID=9 L=20 		0-95234-835-0 02 1 1403- ● ●
16 CLIP; HARNESS
(B) B=14 ID=11 L=20 		0-95235-032-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(B) B=14 ID=11 L=20 		0-95235-032-0 01 1 1312-1402 ● ●
16 CLIP; HARNESS
(B) B=14 ID=11 L=20 		0-95235-032-0 01 1 1403- ● ●
16 CLIP; HARNESS
(B) B=18 ID=11 L=20 		0-95235-035-0 03 1 1307-1311 ●
16 CLIP; HARNESS
(B) B=18 ID=11 L=20 		0-95235-035-0 03 1 1312-1402 ● ●
16 CLIP; HARNESS
(B) B=18 ID=11 L=20 		0-95235-035-0 03 1 1403- ● ●
16 CLIP; HARNESS
(B) B=18 ID=11 L=20 		0-95235-035-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(B) B=18 ID=11 L=20 		0-95235-035-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(B) B=18 ID=11 L=20 		0-95235-035-0 01 1 1312- ● ●
16 CLIP; HARNESS
(B) B=18 ID=11 L=20 		0-95235-035-0 01 1 1312- ● ●
16 CLIP; HARNESS
(C) ID=16 L=20 		0-95235-536-0 02 1 1307-1311 ●
16 CLIP; HARNESS
(C) ID=16 L=20 		0-95235-536-0 02 1 1312-1402 ● ●
16 CLIP; HARNESS
(C) ID=16 L=20 		0-95235-536-0 02 1 1403- ● ●
16 CLIP; HARNESS
(D) ID=19 L=20 		0-95235-836-0 03 1 1307-1311 ●
16 CLIP; HARNESS
(D) ID=19 L=20 		0-95235-836-0 03 1 1312-1402 ● ●
16 CLIP; HARNESS
(D) ID=19 L=20 		0-95235-836-0 03 1 1403- ● ●
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 10 1 1307-1311 ●
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 10 1 1312- ● ●
16 CLIP; HARNESS
(F) ID=14.5 H=23 L=30 		1-09700-859-0 03 1 1307-1311 ●
16 CLIP; HARNESS
(F) ID=14.5 H=23 L=30 		1-09700-859-0 03 1 1312- ● ●
16 CLIP; HARNESS
(H) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(H) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1312-1402 ● ●
16 CLIP; HARNESS
(H) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 1403- ● ●
16 CLIP; HARNESS
(K) ID=35 H=45 L=33 		1-09700-947-0 01 1 1307-1311 ●
16 CLIP; HARNESS
KD ENGINE<KDA> (K) ID=35 H=45 L=33 		1-09700-947-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(K) ID=35 H=45 L=33 		1-09700-947-0 01 1 1312-1402 ● ●
16 CLIP; HARNESS
KD ENGINE<KDA> (K) ID=35 H=45 L=33 		1-09700-947-0 01 1 1312-1402 ● ●
16 CLIP; HARNESS
(K) ID=35 H=45 L=33 		1-09700-947-0 01 1 1403- ● ●
16 CLIP; HARNESS
(K) ID=35 H=45 L=33 		1-09700-947-0 01 1 1403- ● ●
16 CLIP; HARNESS
(N) ID=9 H=80 L=23 		1-09701-061-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(N) ID=9 H=80 L=23 		1-09701-061-0 01 1 1312-1402 ● ●
16 CLIP; HARNESS
(N) ID=9 H=80 L=23 		1-09701-061-0 01 1 1403- ● ●
16 CLIP; HARNESS
(R) ID=18 L=28 		1-09701-067-0 03 1 1307-1311 ●
16 CLIP; HARNESS
(R) ID=18 L=28 		1-09701-067-0 03 1 1312-1402 ● ●
16 CLIP; HARNESS
(R) ID=18 L=28 		1-09701-067-0 03 1 1403- ● ●
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 01 1 1307-1311 ●
16 CLIP; HARNESS
(P) L=180 		1-09707-162-1 01 1 1312- ● ●
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 01 1 1312-1402 ● ●
16 CLIP; HARNESS
(S) OD=9 H=6 		1-09709-178-0 01 1 1403- ● ●
16 CLIP; HARNESS
(I) OD=9 H=9.5 		1-09709-179-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(I) OD=9 H=9.5 		1-09709-179-0 01 1 1312- ● ●
16 CLIP; HARNESS
(U) ID=5-12 L=18 		1-09709-287-0 06 1 1307-1311 ●
16 CLIP; HARNESS
(U) ID=5-12 L=18 		1-09709-287-0 06 1 1312- ● ●
16 CLIP; HARNESS
(T) ID=5-12 L=22 		1-09709-288-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(T) ID=5-12 L=22 		1-09709-288-0 01 1 1312- ● ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307-1311 ●
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 02 1 1312- ● ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 03 1 1307-1311 ●
16 CLIP; HARNESS
(X) L=250 		5-09707-030-1 03 1 1312- ● ●
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 01 1 1307-1311 ●
16 CLIP; HARNESS
(Y) L=140 		5-09707-031-1 01 1 1312- ● ●
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 1307-1311 ●
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 1312-1402 ● ●
16 CLIP; HARNESS
(Z) ID=21 L=47.5 		8-94178-108-0 03 1 1403- ● ●
16 CLIP; HARNESS
(O) L=36 		8-94224-891-1 01 1 1307-1311 ●
16 CLIP; HARNESS
(O) L=36 		8-94224-891-1 01 1 1312-1402 ● ●
16 CLIP; HARNESS
(O) L=36 		8-94224-891-1 01 1 1403- ● ●
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 02 1 1307-1311 ●
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 02 1 1312-1402 ● ●
16 CLIP; HARNESS
(AA) ID=18 L=44 		8-97367-985-1 02 1 1403- ● ●
16 CLIP; HARNESS
(M) L=251 		8-97619-917-0 04 1 1307-1311 ●
16 CLIP; HARNESS
(M) L=251 		8-97619-917-0 04 1 1312-1402 ● ●
16 CLIP; HARNESS
(M) L=251 		8-97619-917-0 04 1 1403- ● ●
16 CLIP; HARNESS
(Q) ID=10 L=16.5 		8-98082-034-0 02 1 1307-1311 ●
16 CLIP; HARNESS
(Q) ID=10 L=16.5 		8-98082-034-0 02 1 1312-1402 ● ●
16 CLIP; HARNESS
(Q) ID=10 L=16.5 		8-98082-034-0 02 1 1403- ● ●
16 CLIP; HARNESS
(AB) L=250 		8-98216-430-0 14 1 1307-1311 ●
16 CLIP; HARNESS
(AB) L=250 		8-98216-430-0 14 1 1312-1402 ● ●
16 CLIP; HARNESS
(AB) L=250 		8-98216-430-0 14 1 1403- ● ●
16 CLIP; HARNESS
(V) ID=14 L=44 		9-09917-427-0 01 1 1307-1311 ●
16 CLIP; HARNESS
(V) ID=14 L=44 		9-09917-427-0 01 1 1312- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=16 		0-95235-025-0 02 1 1307-1311 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=16 		0-95235-025-0 02 1 1312- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (J) ID=11X2 L=20 		0-95325-035-0 01 1 1307-1311 ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (J) ID=11X2 L=20 		0-95325-035-0 01 1 1312- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (L) ID=11 H=20 L=20 		8-98033-780-0 02 1 1307- ●
48 CLIP; FRAME HARNESS
BUS BODY REAR OVERHANG<YK4> (G) ID=20 H=23 L=27 		1-09700-861-0 01 1 1404- ● ●
48 CLIP; FRAME HARNESS
EXC. BUS BODY REAR OVERHANG<YK4> (G) ID=20 H=23 L=27 		1-09700-861-0 02 1 1404- ● ●
48 CLIP; FRAME HARNESS
EXC. BUS BODY REAR OVERHANG<YK4> (M) ID=39 H=40 L=32 		1-09701-267-0 03 1 1404- ● ●
48 CLIP; FRAME HARNESS
(T) ID=35 L=35 		1-09700-684-0 03 1 1312- ●
48 CLIP; FRAME HARNESS
(A) ID=34.5 H=23 L=27.5 		1-09700-905-0 16 1 1312- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=28 		0-95235-055-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=28 		0-95235-055-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
(D) ID=33 L=63 		1-09700-807-0 02 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(D) ID=33 L=63 		1-09700-807-0 02 1 1312- ● ●
48 CLIP; FRAME HARNESS
(E) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(E) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
(F) ID=18 H=23 L=28 		1-09700-860-0 02 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(F) ID=18 H=23 L=28 		1-09700-860-0 02 1 1312- ● ●
48 CLIP; FRAME HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 05 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 05 1 1312-1403 ● ●
48 CLIP; FRAME HARNESS
(G) ID=20 H=23 L=27 		1-09700-861-0 03 1 1404- ● ●
48 CLIP; FRAME HARNESS
(A) ID=34.5 H=23 L=27.5 		1-09700-905-0 18 1 1307- ●
48 CLIP; FRAME HARNESS
(H) ID=35 L=33 		1-09700-945-0 05 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(H) ID=35 L=33 		1-09700-945-0 05 1 1312- ● ●
48 CLIP; FRAME HARNESS
(I) ID=28 H=45 L=30 		1-09700-948-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(I) ID=28 H=45 L=30 		1-09700-948-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
(J) ID=31.5 H=23 L=25 		1-09701-017-0 07 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(J) ID=31.5 H=23 L=25 		1-09701-017-0 07 1 1312- ● ●
48 CLIP; FRAME HARNESS
(K) ID=32 L=35 		1-09701-244-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(K) ID=32 L=35 		1-09701-244-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
(L) ID=39 H=28 L=32 		1-09701-263-0 10 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(L) ID=39 H=28 L=32 		1-09701-263-0 10 1 1312- ● ●
48 CLIP; FRAME HARNESS
(M) ID=39 H=40 L=32 		1-09701-267-0 03 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(M) ID=39 H=40 L=32 		1-09701-267-0 03 1 1312-1403 ● ●
48 CLIP; FRAME HARNESS
BUS BODY REAR OVERHANG<YK4> (M) ID=39 H=40 L=32 		1-09701-267-0 02 1 1404- ● ●
48 CLIP; FRAME HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 06 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 06 1 1312- ● ●
48 CLIP; FRAME HARNESS
(O) ID=5-12 L=26 		1-09709-289-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(O) ID=5-12 L=26 		1-09709-289-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
(P) ID=10 L=16.5 		8-98082-034-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(P) ID=10 L=16.5 		8-98082-034-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
(Q) ID=20 L=50 		9-09917-430-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (Q) ID=20 L=50 		9-09917-430-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
(Q) ID=20 L=50 		9-09917-430-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (Q) ID=20 L=50 		9-09917-430-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (R) ID=11 L=41 		1-09700-403-0 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (R) ID=11 L=41 		1-09700-403-0 01 1 1312- ● ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (S) L=140 		5-09707-031-1 01 1 1307-1311 ●
48 CLIP; FRAME HARNESS
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (S) L=140 		5-09707-031-1 01 1 1312- ● ●
102 CLIP; BAND
(A) L=350 		1-09707-183-0 03 1 1307-1311 ●
102 CLIP; BAND
(A) L=350 		1-09707-183-0 03 1 1312- ● ●
102 CLIP; BAND
(B) L=250 		5-09707-030-1 04 1 1307-1311 ●
102 CLIP; BAND
(B) L=250 		5-09707-030-1 04 1 1312- ● ●
102 CLIP; BAND
ANTILOCK BRAKE SYSTEM<BFA> (B) L=250 		5-09707-030-1 01 1 1307-1311 ●
102 CLIP; BAND
ANTILOCK BRAKE SYSTEM<BFA> (B) L=250 		5-09707-030-1 01 1 1312- ● ●
110 CLIP; BAND,DASH HARNESS
L=250 		5-09707-030-1 01 1 1307-1311 ●
110 CLIP; BAND,DASH HARNESS
L=250 		5-09707-030-1 01 1 1312- ● ●
142 CLIP; HARNESS,ENG
(A) L=251 		8-97619-917-0 01 1 1307-1311 ●
142 CLIP; HARNESS,ENG
(A) L=251 		8-97619-917-0 01 1 1312-1402 ● ●
142 CLIP; HARNESS,ENG
(A) L=251 		8-97619-917-0 01 1 1403- ● ●
142 CLIP; HARNESS,ENG
(B) L=180 		8-98216-427-0 01 1 1307-1311 ●
142 CLIP; HARNESS,ENG
(B) L=180 		8-98216-427-0 01 1 1312-1402 ● ●
142 CLIP; HARNESS,ENG
(B) L=180 		8-98216-427-0 01 1 1403- ● ●
162 CLIP; SW HARNESS
(A) ID=32 L=35 		1-09701-244-0 01 1 1307-1311 ●
162 CLIP; SW HARNESS
(A) ID=32 L=35 		1-09701-244-0 01 1 1312- ● ●
162 CLIP; SW HARNESS
(B) L=300 		1-09707-001-1 02 1 1307-1311 ●
162 CLIP; SW HARNESS
(B) L=300 		1-09707-001-1 02 1 1312- ● ●
162 CLIP; SW HARNESS
(C) ID=20 L=50 		9-09917-430-0 03 1 1307-1311 ●
162 CLIP; SW HARNESS
(C) ID=20 L=50 		9-09917-430-0 03 1 1312- ● ●
162 CLIP; SW HARNESS
(D) ID=22 L=52 		9-09917-431-0 01 1 1307-1311 ●
162 CLIP; SW HARNESS
(D) ID=22 L=52 		9-09917-431-0 01 1 1312- ● ●
163 CLIP; METER HARNESS
(A) L=500 		1-09707-082-1 02 1 1307-1311 ●
163 CLIP; METER HARNESS
(A) L=500 		1-09707-082-1 02 1 1312- ● ●
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 01 1 1307-1311 ●
163 CLIP; METER HARNESS
(B) ID=14 L=44 		9-09917-427-0 01 1 1312- ● ●
163 CLIP; METER HARNESS
(C) ID=20 L=50 		9-09917-430-0 01 1 1307-1311 ●
163 CLIP; METER HARNESS
(C) ID=20 L=50 		9-09917-430-0 01 1 1312- ● ●
165 CLIP; BAND COMB SW
L=250 		5-09707-030-1 01 1 1307-1311 ●
165 CLIP; BAND COMB SW
L=250 		5-09707-030-1 01 1 1312- ● ●
166 CLIP; HARNESS CLU SW
(A) ID=11 L=41 		1-09700-403-0 03 1 1307-1311 ●
166 CLIP; HARNESS CLU SW
(A) ID=11 L=41 		1-09700-403-0 03 1 1312- ● ●
166 CLIP; HARNESS CLU SW
(B) L=140 		5-09707-031-1 01 1 1307-1311 ●
166 CLIP; HARNESS CLU SW
(B) L=140 		5-09707-031-1 01 1 1312- ● ●
170 CLIP; ELEC HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 1307-1311 ●
170 CLIP; ELEC HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 1312- ● ●
170 CLIP; ELEC HARNESS
(B) ID=28 L=40 		1-09700-995-1 01 1 1307-1311 ●
170 CLIP; ELEC HARNESS
(B) ID=28 L=40 		1-09700-995-1 01 1 1312- ● ●
170 CLIP; ELEC HARNESS
(C) L=350 		1-09707-183-0 03 1 1307-1311 ●
170 CLIP; ELEC HARNESS
(C) L=350 		1-09707-183-0 03 1 1312- ● ●
170 CLIP; ELEC HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 1307-1311 ●
170 CLIP; ELEC HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 1312- ● ●
170 CLIP; ELEC HARNESS
(E) ID=14 L=44 		9-09917-427-0 04 1 1307-1311 ●
170 CLIP; ELEC HARNESS
(E) ID=14 L=44 		9-09917-427-0 04 1 1312- ● ●
170 CLIP; ELEC HARNESS
(F) ID=20 L=50 		9-09917-430-0 02 1 1307-1311 ●
170 CLIP; ELEC HARNESS
(F) ID=20 L=50 		9-09917-430-0 02 1 1312- ● ●
170 CLIP; ELEC HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (G) ID=18-24 L=14.5 		1-09709-298-0 01 1 1307-1311 ●
170 CLIP; ELEC HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (G) ID=18-24 L=14.5 		1-09709-298-0 01 1 1312- ● ●
170 CLIP; ELEC HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (H) ID=13-18 L=14.5 		1-09709-290-0 01 1 1307-1311 ●
170 CLIP; ELEC HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (H) ID=13-18 L=14.5 		1-09709-290-0 01 1 1312- ● ●
171 CLIP; STARTER HARNESS
L=250 		5-09707-030-1 04 1 1307-1311 ●
171 CLIP; STARTER HARNESS
L=250 		5-09707-030-1 04 1 1312- ● ●
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=12 		9-09956-093-1 01 1 1307-1311 ●
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=12 		9-09956-093-1 01 1 1312- ● ●
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (B) ID=24 OD=30 T=20 		1-09332-096-0 02 1 1307-1311 ●
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (B) ID=24 OD=30 T=20 		1-09332-096-0 02 1 1312- ● ●
194 CLIP; BAND
(A) L=250 		5-09707-030-1 07 1 1307-1311 ●
194 CLIP; BAND
(A) L=250 		5-09707-030-1 07 1 1312- ● ●
194 CLIP; BAND
ANTILOCK BRAKE SYSTEM<BFA> (B) L=250 		1-09707-126-0 02 1 1307- ●
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 1307-1311 ●
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 1312- ● ●
206 CLIP; FUEL TANK HARNESS
(B) ID=11 L=61 		1-09700-484-0 01 1 1307-1311 ●
206 CLIP; FUEL TANK HARNESS
(B) ID=11 L=61 		1-09700-484-0 01 1 1312- ● ●
206 CLIP; FUEL TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 02 1 1307-1311 ●
206 CLIP; FUEL TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 02 1 1312- ● ●
206 CLIP; FUEL TANK HARNESS
(D) L=250 		5-09707-030-1 02 1 1307-1311 ●
206 CLIP; FUEL TANK HARNESS
(D) L=250 		5-09707-030-1 02 1 1312- ● ●
206 CLIP; FUEL TANK HARNESS
(E) ID=11 H=20 L=20 		8-98033-780-0 01 1 1307-1311 ●
206 CLIP; FUEL TANK HARNESS
(E) ID=11 H=20 L=20 		8-98033-780-0 01 1 1312- ● ●
208 CLIP; HARNESS,MAG VLV
(A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1307-1311 ●
208 CLIP; HARNESS,MAG VLV
(A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1312- ● ●
208 CLIP; HARNESS,MAG VLV
(B) L=140 		5-09707-031-1 01 1 1307-1311 ●
208 CLIP; HARNESS,MAG VLV
(B) L=140 		5-09707-031-1 01 1 1312- ● ●
218 CLIP; BAND,RR COMB
L=250 		5-09707-030-1 02 1 1307-1311 ●
218 CLIP; BAND,RR COMB
L=250 		5-09707-030-1 02 1 1312- ● ●
264 CLIP; HARNESS,HEADLAMP
(A) L=180 		1-09707-162-1 02 1 1307-1311 ●
264 CLIP; HARNESS,HEADLAMP
(A) L=180 		1-09707-162-1 02 1 1312- ● ●
264 CLIP; HARNESS,HEADLAMP
(B) L=250 		5-09707-030-1 02 1 1307-1311 ●
264 CLIP; HARNESS,HEADLAMP
(B) L=250 		5-09707-030-1 02 1 1312- ● ●
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 01 1 1307-1311 ●
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 01 1 1312- ● ●
373 CLIP; BAND,GEN HARNESS
L=175 		1-09707-176-1 01 1 1307-1311 ●
373 CLIP; BAND,GEN HARNESS
L=175 		1-09707-176-1 01 1 1312- ● ●
581 CLIP; HARNESS,REAR SUSP
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 1307-1311 ●
581 CLIP; HARNESS,REAR SUSP
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 1312- ● ●
581 CLIP; HARNESS,REAR SUSP
(B) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1307-1311 ●
581 CLIP; HARNESS,REAR SUSP
(B) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1312- ● ●
581 CLIP; HARNESS,REAR SUSP
(C) ID=39 H=28 L=32 		1-09701-263-0 02 1 1307-1311 ●
581 CLIP; HARNESS,REAR SUSP
(C) ID=39 H=28 L=32 		1-09701-263-0 02 1 1312- ● ●
581 CLIP; HARNESS,REAR SUSP
(D) ID=11 & 13 H=26 L=48 		1-09701-270-0 01 1 1307-1311 ●
581 CLIP; HARNESS,REAR SUSP
(D) ID=11 & 13 H=26 L=48 		1-09701-270-0 01 1 1312- ● ●
581 CLIP; HARNESS,REAR SUSP
(E) L=350 		1-09707-183-0 02 1 1307-1311 ●
581 CLIP; HARNESS,REAR SUSP
(E) L=350 		1-09707-183-0 02 1 1312- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
