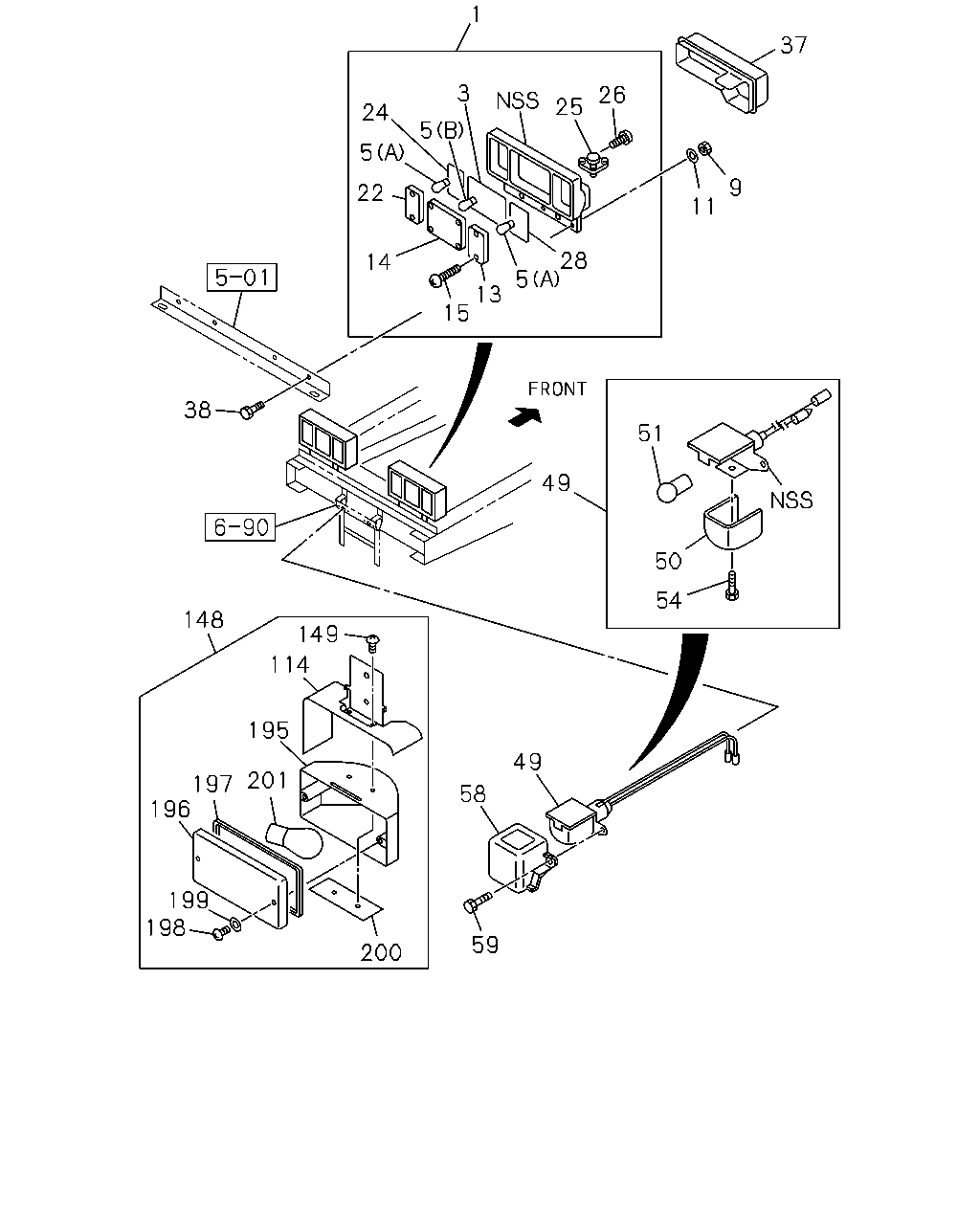

8-03 — LAMP; REAR AND REAR SIDE (#123962) — 89 parça

37 9 11 26 25 28 5 13 15 14 22 5 24 3 5 1 51 50 54 49 38 148 149 114 195 201 197 196 199 198 200 59 58 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; RR COMB	8-98034-325-0	01	1	1307-1311	●
1	LAMP ASM; RR COMB	8-98034-325-0	01	1	1312-	●	●
1	LAMP ASM; RR COMB	8-98034-328-0	01	1	1307-1311	●
1	LAMP ASM; RR COMB	8-98034-328-0	01	1	1312-	●	●
3	GASKET; RR COMB LAMP	8-94257-505-0	01	1	1307-1311	●
3	GASKET; RR COMB LAMP	8-94257-505-0	01	1	1307-1311	●
3	GASKET; RR COMB LAMP	8-94257-505-0	01	1	1312-	●	●
3	GASKET; RR COMB LAMP	8-94257-505-0	01	1	1312-	●	●
5	BULB; RR COMB LAMP (A) 24V 21W	1-82194-108-0	02	1	1307-1311	●
5	BULB; RR COMB LAMP (A) 24V 21W	1-82194-108-0	02	1	1307-1311	●
5	BULB; RR COMB LAMP (A) 24V 21W	1-82194-108-0	02	1	1312-	●	●
5	BULB; RR COMB LAMP (A) 24V 21W	1-82194-108-0	02	1	1312-	●	●
5	BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-109-0	01	1	1307-1311	●
5	BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-109-0	01	1	1307-1311	●
5	BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-109-0	01	1	1312-	●	●
5	BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-109-0	01	1	1312-	●	●
9	NUT; LAMP,RR COMB M6	0-91110-506-0	04	1	1307-1311	●
9	NUT; LAMP,RR COMB M6	0-91110-506-0	04	1	1312-	●	●
11	WASHER; PL,LAMP,RR COMB ID=6.4 OD=18	0-91610-706-0	04	1	1307-1311	●
11	WASHER; PL,LAMP,RR COMB ID=6.4 OD=18	0-91610-706-0	04	1	1312-	●	●
13	LENS; TURN SIGNAL	8-94174-638-0	01	1	1307-1311	●
13	LENS; TURN SIGNAL	8-94174-638-0	01	1	1312-	●	●
13	LENS; TURN SIGNAL	8-94174-639-0	01	1	1307-1311	●
13	LENS; TURN SIGNAL	8-94174-639-0	01	1	1312-	●	●
14	LENS; TAIL & STOP,RR COMB LAMP	8-94178-624-0	01	1	1307-1311	●
14	LENS; TAIL & STOP,RR COMB LAMP	8-94178-624-0	01	1	1312-	●	●
14	LENS; TAIL & STOP,RR COMB LAMP	8-94178-625-0	01	1	1307-1311	●
14	LENS; TAIL & STOP,RR COMB LAMP	8-94178-625-0	01	1	1312-	●	●
15	SCREW; RR COMB LAMP M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	1307-1311	●
15	SCREW; RR COMB LAMP M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	1307-1311	●
15	SCREW; RR COMB LAMP M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	1312-	●	●
15	SCREW; RR COMB LAMP M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	1312-	●	●
22	LENS; BACKUP,RR COMB LAMP CLEAR	8-94257-512-1	01	1	1307-1311	●
22	LENS; BACKUP,RR COMB LAMP CLEAR	8-94257-512-1	01	1	1307-1311	●
22	LENS; BACKUP,RR COMB LAMP CLEAR	8-94257-512-1	01	1	1312-	●	●
22	LENS; BACKUP,RR COMB LAMP CLEAR	8-94257-512-1	01	1	1312-	●	●
24	GASKET; BACK,LAMP	8-94257-506-0	01	1	1307-1311	●
24	GASKET; BACK,LAMP	8-94257-506-0	01	1	1307-1311	●
24	GASKET; BACK,LAMP	8-94257-506-0	01	1	1312-	●	●
24	GASKET; BACK,LAMP	8-94257-506-0	01	1	1312-	●	●
25	HORN ASM; BACK	8-94257-518-0	01	1	1307-1311	●
25	HORN ASM; BACK	8-94257-518-0	01	1	1312-	●	●
26	SCREW; BACK HORN M4X12 TAPPING	9-07076-412-0	02	1	1307-1311	●
26	SCREW; BACK HORN M4X12 TAPPING	9-07076-412-0	02	1	1312-	●	●
26	SCREW; BACK HORN M4X14 TAPPING	9-07076-414-0	01	1	1307-1311	●
26	SCREW; BACK HORN M4X14 TAPPING	9-07076-414-0	01	1	1312-	●	●
28	GASKET; TURN,LAMP	8-94257-507-0	01	1	1307-1311	●
28	GASKET; TURN,LAMP	8-94257-507-0	01	1	1307-1311	●
28	GASKET; TURN,LAMP	8-94257-507-0	01	1	1312-	●	●
28	GASKET; TURN,LAMP	8-94257-507-0	01	1	1312-	●	●
37	COVER; RR COMB LAMP	1-82239-007-0	01	1	1307-1311	●
37	COVER; RR COMB LAMP	1-82239-007-0	01	1	1312-	●	●
37	COVER; RR COMB LAMP	1-82239-008-0	01	1	1307-1311	●
37	COVER; RR COMB LAMP	1-82239-008-0	01	1	1312-	●	●
38	BOLT; LAMP,RR COMB M6X30 W/LK&PL WASHER	0-50640-630-0	04	1	1307-1311	●
38	BOLT; LAMP,RR COMB M6X30 W/LK&PL WASHER	0-50640-630-0	04	1	1312-	●	●
49	LAMP; LICENSE PLATE 24V 5W	8-97105-380-0	02	1	1307-1311	●
49	LAMP; LICENSE PLATE 24V 5W	8-97105-380-0	02	1	1312-1509	●	●
49	LAMP; LICENSE PLATE 24V 5W	8-98329-430-0	02	1	1510-	●	●
50	LENS; LICENSE PLATE LAMP	8-97108-212-0	02	1	1307-1311	●
50	LENS; LICENSE PLATE LAMP	8-97108-212-0	02	1	1312-	●	●
51	BULB; LICENSE PLATE LAMP 24V 5W	1-82194-039-0	02	1	1307-1311	●
51	BULB; LICENSE PLATE LAMP 24V 5W	1-82194-039-0	02	1	1312-	●	●
54	SCREW; LICENSE PLATE LAMP M4X8	8-94419-312-0	02	1	1307-1311	●
54	SCREW; LICENSE PLATE LAMP M4X8	8-94419-312-0	02	1	1312-	●	●
58	COVER; LICENSE PLATE LAMP	8-97076-590-1	02	1	1307-1311	●
58	COVER; LICENSE PLATE LAMP	8-97076-590-1	02	1	1312-	●	●
59	SCREW; TAP,LICENSE LAMP BODY M5X20	9-93490-520-0	04	1	1307-1311	●
59	SCREW; TAP,LICENSE LAMP BODY M5X20	9-93490-520-0	04	1	1312-	●	●
114	BRACKET; RR FOG LAMP FOG LAMP<T96>	8-97108-583-0	01	1	1307-1311	●
114	BRACKET; RR FOG LAMP FOG LAMP<T96>	8-97108-583-0	01	1	1312-	●	●
148	LAMP ASM; RR FOG FOG LAMP<T96>	1-82110-477-0	01	1	1307-1311	●
148	LAMP ASM; RR FOG FOG LAMP<T96>	1-82110-477-0	01	1	1312-	●	●
149	SCREW; BRKT TO LAMP BODY FOG LAMP<T96>	8-94336-372-0	02	1	1307-1311	●
149	SCREW; BRKT TO LAMP BODY FOG LAMP<T96>	8-94336-372-0	02	1	1312-	●	●
195	LAMP UNIT; RR FOG FOG LAMP<T96>	8-94336-322-0	01	1	1307-1311	●
195	LAMP UNIT; RR FOG FOG LAMP<T96>	8-94336-322-0	01	1	1312-	●	●
196	LENS; RR FOG LAMP FOG LAMP<T96>	8-94336-325-0	01	1	1307-1311	●
196	LENS; RR FOG LAMP FOG LAMP<T96>	8-94336-325-0	01	1	1312-	●	●
197	GASKET; RR FOG LAMP FOG LAMP<T96>	8-94336-324-0	01	1	1307-1311	●
197	GASKET; RR FOG LAMP FOG LAMP<T96>	8-94336-324-0	01	1	1312-	●	●
198	SCREW; LENS TO BODY FOG LAMP<T96>	0-71190-416-0	02	1	1307-1311	●
198	SCREW; LENS TO BODY FOG LAMP<T96>	0-71190-416-0	02	1	1312-	●	●
199	WASHER; LENS,RR FOG LAMP FOG LAMP<T96>	8-94336-326-0	02	1	1307-1311	●
199	WASHER; LENS,RR FOG LAMP FOG LAMP<T96>	8-94336-326-0	02	1	1312-	●	●
200	PLATE; SET,RR FOG LAMP FOG LAMP<T96>	8-94336-323-0	01	1	1307-1311	●
200	PLATE; SET,RR FOG LAMP FOG LAMP<T96>	8-94336-323-0	01	1	1312-	●	●
201	BULB; RR FOG LAMP FOG LAMP<T96> 24V 21W	1-82194-036-0	01	1	1307-1311	●
201	BULB; RR FOG LAMP FOG LAMP<T96> 24V 21W	1-82194-036-0	01	1	1312-	●	●
