8-01 — LAMP; FRONT AND FRONT SIDE (#123961) — 100 parça

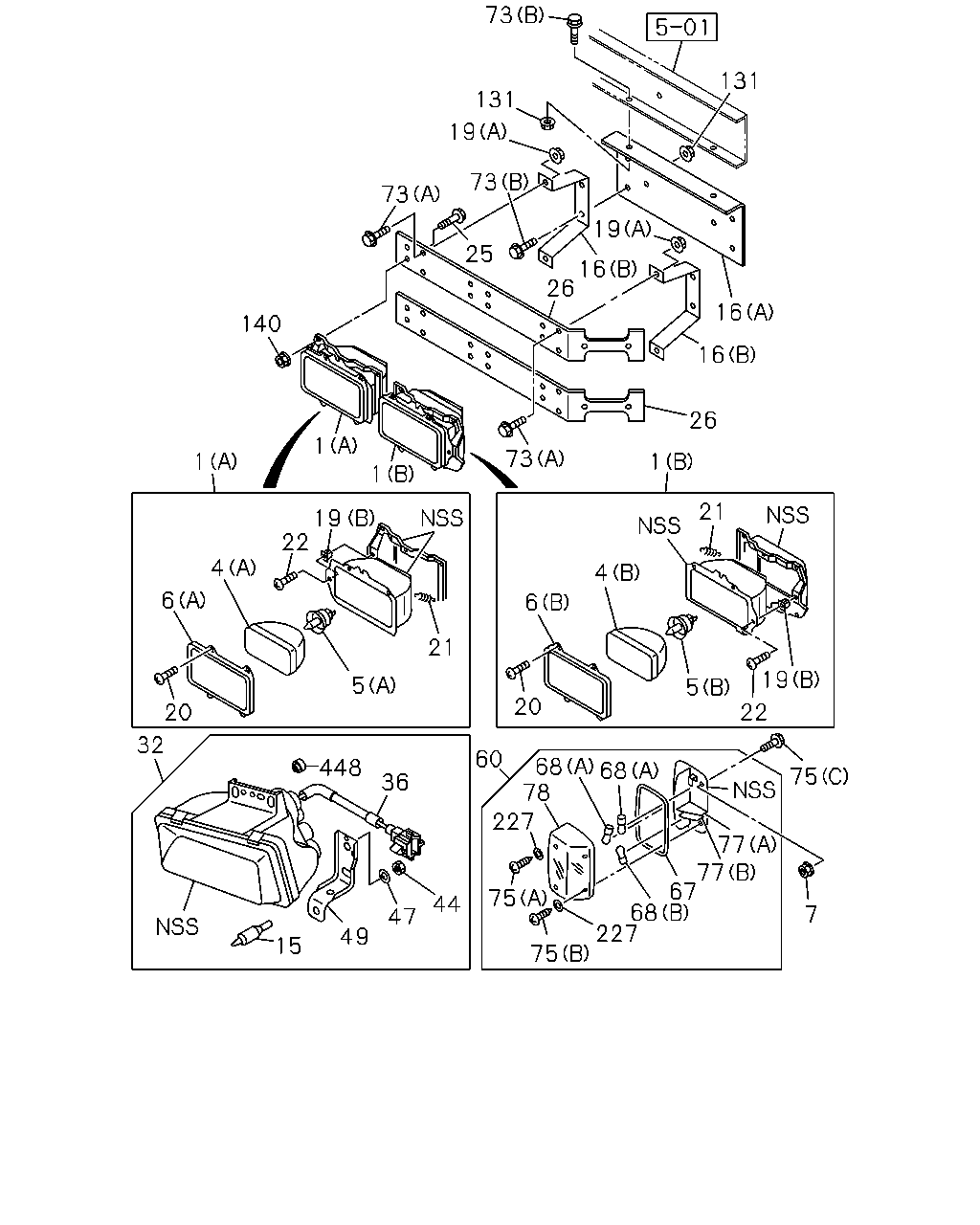

çizim 365844
75 77 77 67 68 7 227 75 75 227 68 78 68 60 36 44 47 49 448 15 32 6 5 4 21 22 19 20 6 21 4 5 22 19 1 26 16 16 16 19 131 1 1 140 73 19 131 73 25 1 73 26 73 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
(A) TYPE 1 24V 70W 		1-82110-482-0 01 1 1307-1311 ●
1 LAMP ASM; HEAD
(A) TYPE 1 24V 70W 		1-82110-482-0 01 1 1312- ● ●
1 LAMP ASM; HEAD
(B) TYPE 2 24V 75/70W 		1-82110-483-0 01 1 1307-1311 ●
1 LAMP ASM; HEAD
(B) TYPE 2 24V 75/70W 		1-82110-483-0 01 1 1312- ● ●
1 LAMP ASM; HEAD
(A) TYPE 1 24V 70W 		1-82110-484-0 01 1 1307-1311 ●
1 LAMP ASM; HEAD
(A) TYPE 1 24V 70W 		1-82110-484-0 01 1 1312- ● ●
1 LAMP ASM; HEAD
(A) TYPE 2 24V 75/70W 		1-82110-485-0 01 1 1307-1311 ●
1 LAMP ASM; HEAD
(A) TYPE 2 24V 75/70W 		1-82110-485-0 01 1 1312- ● ●
4 HEADLAMP UNIT
(A) TYPE 1 24V 70W 		1-82191-032-0 02 1 1307-1311 ●
4 HEADLAMP UNIT
(A) TYPE 1 24V 70W 		1-82191-032-0 02 1 1312- ● ●
4 HEADLAMP UNIT
(B) TYPE 2 24V 75/70W 		1-82191-037-0 02 1 1307-1311 ●
4 HEADLAMP UNIT
(B) TYPE 2 24V 75/70W 		1-82191-037-0 02 1 1312- ● ●
5 BULB; HEADLAMP
(B) 24V 75/70W 		1-82193-006-0 02 1 1307-1311 ●
5 BULB; HEADLAMP
(B) 24V 75/70W 		1-82193-006-0 02 1 1312- ● ●
5 BULB; HEADLAMP
(A) 24V 70W 		1-82193-007-0 02 1 1307-1311 ●
5 BULB; HEADLAMP
(A) 24V 70W 		1-82193-007-0 02 1 1312- ● ●
6 RIM; HEADLAMP
(A) 24V 70W 		1-82114-018-0 02 1 1307-1311 ●
6 RIM; HEADLAMP
(A) 24V 70W 		1-82114-018-0 02 1 1312- ● ●
6 RIM; HEADLAMP
(B) 24V 75/70W 		1-82114-019-0 02 1 1307-1311 ●
6 RIM; HEADLAMP
(B) 24V 75/70W 		1-82114-019-0 02 1 1312- ● ●
7 NUT; FRT COMB LAMP
M5 		1-09984-124-0 08 1 1307-1311 ●
7 NUT; FRT COMB LAMP
M5 		1-09984-124-0 08 1 1312- ● ●
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		1-82194-106-0 02 1 1307-1311 ●
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		1-82194-106-0 02 1 1312- ● ●
16 BRACKET; HEADLAMP
(A) 		1-53456-310-0 02 1 1307-1311 ●
16 BRACKET; HEADLAMP
(A) 		1-53456-310-0 02 1 1312- ● ●
16 BRACKET; HEADLAMP
(B) 		9-82615-154-2 04 1 1307-1311 ●
16 BRACKET; HEADLAMP
(B) 		9-82615-154-2 04 1 1312- ● ●
19 NUT; HEADLAMP
(A) M6 FLANGE 		0-91180-106-0 08 1 1307-1311 ●
19 NUT; HEADLAMP
(A) M6 FLANGE 		0-91180-106-0 08 1 1312- ● ●
19 NUT; HEADLAMP
(B) 		1-82119-056-0 08 1 1307-1311 ●
19 NUT; HEADLAMP
(B) 		1-82119-056-0 08 1 1312- ● ●
20 SCREW; HEADLAMP 1-82119-023-0 16 1 1307-1311 ●
20 SCREW; HEADLAMP 1-82119-023-0 16 1 1312- ● ●
21 SPRING; ADJ HEADLAMP 1-82119-105-0 04 1 1307-1311 ●
21 SPRING; ADJ HEADLAMP 1-82119-105-0 04 1 1312- ● ●
22 SCREW; ADJ,HEADLAMP 1-82119-095-0 08 1 1307-1311 ●
22 SCREW; ADJ,HEADLAMP 1-82119-095-0 08 1 1312- ● ●
25 SCREW; LAMP
M5X20 W/LK&PL WASHER 		0-36230-520-0 16 1 1307-1311 ●
25 SCREW; LAMP
M5X20 W/LK&PL WASHER 		0-36230-520-0 16 1 1312- ● ●
26 BRACKET ASM; HEADLAMP 1-82117-188-0 04 1 1307-1311 ●
26 BRACKET ASM; HEADLAMP 1-82117-188-0 04 1 1312- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-064-1 01 1 1307-1311 ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-064-1 01 1 1312- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-065-1 01 1 1307-1311 ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-065-1 01 1 1312- ● ●
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-015-0 01 1 1307-1311 ●
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-015-0 01 1 1312- ● ●
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-016-0 01 1 1307-1311 ●
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-016-0 01 1 1312- ● ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 		8-98217-430-0 02 1 1307-1311 ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 		8-98217-430-0 02 1 1312- ● ●
47 WASHER; PL,FOG LAMP
FOG LAMP<T96> 		8-98217-429-0 02 1 1307-1311 ●
47 WASHER; PL,FOG LAMP
FOG LAMP<T96> 		8-98217-429-0 02 1 1312- ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-437-0 01 1 1307-1311 ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-437-0 01 1 1312- ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-438-0 01 1 1307-1311 ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-438-0 01 1 1312- ● ●
60 LAMP ASM; FRT COMB 8-98020-167-1 01 1 1307-1311 ●
60 LAMP ASM; FRT COMB 8-98020-167-1 01 1 1312- ● ●
60 LAMP ASM; FRT COMB 8-98020-168-1 01 1 1307-1311 ●
60 LAMP ASM; FRT COMB 8-98020-168-1 01 1 1312- ● ●
67 GASKET; FRT COMB LAMP 8-98056-334-0 01 1 1307-1311 ●
67 GASKET; FRT COMB LAMP 8-98056-334-0 01 1 1312- ● ●
67 GASKET; FRT COMB LAMP 8-98056-335-0 01 1 1307-1311 ●
67 GASKET; FRT COMB LAMP 8-98056-335-0 01 1 1312- ● ●
68 BULB; FRT COMB LAMP
(B) 24V 10W 		1-82194-037-0 02 1 1307-1311 ●
68 BULB; FRT COMB LAMP
(B) 24V 10W 		1-82194-037-0 02 1 1312- ● ●
68 BULB; FRT COMB LAMP
(A) 24V 21W 		1-82194-104-0 04 1 1307-1311 ●
68 BULB; FRT COMB LAMP
(A) 24V 21W 		1-82194-104-0 04 1 1312- ● ●
73 BOLT; BRKT,HEADLAMP
(B) M10X30 FLANGE 		0-28651-030-0 12 1 1307-1311 ●
73 BOLT; BRKT,HEADLAMP
(B) M10X30 FLANGE 		0-28651-030-0 12 1 1312- ● ●
73 BOLT; BRKT,HEADLAMP
(A) M6X20 FLANGE 		0-28650-620-0 08 1 1307-1311 ●
73 BOLT; BRKT,HEADLAMP
(A) M6X20 FLANGE 		0-28650-620-0 08 1 1312- ● ●
75 SCREW; FRT COMB LAMP
(C) M5X20 W/LK&PL WASHER 		0-36230-520-0 08 1 1307-1311 ●
75 SCREW; FRT COMB LAMP
(C) M5X20 W/LK&PL WASHER 		0-36230-520-0 08 1 1312- ● ●
75 SCREW; FRT COMB LAMP
(A) M4X50 		1-09106-004-0 04 1 1307-1311 ●
75 SCREW; FRT COMB LAMP
(A) M4X50 		1-09106-004-0 04 1 1312- ● ●
75 SCREW; FRT COMB LAMP
(B) M4X16 		1-09106-005-0 04 1 1307-1311 ●
75 SCREW; FRT COMB LAMP
(B) M4X16 		1-09106-005-0 04 1 1312- ● ●
77 SHADE; FRT TURN SIGNAL LAMP
(A) 		1-82219-020-0 01 1 1307-1311 ●
77 SHADE; FRT TURN SIGNAL LAMP
(A) 		1-82219-020-0 01 1 1312- ● ●
77 SHADE; FRT TURN SIGNAL LAMP
(B) 		1-82219-021-0 01 1 1307-1311 ●
77 SHADE; FRT TURN SIGNAL LAMP
(B) 		1-82219-021-0 01 1 1312- ● ●
77 SHADE; FRT TURN SIGNAL LAMP
(A) 		1-82219-027-0 01 1 1307-1311 ●
77 SHADE; FRT TURN SIGNAL LAMP
(A) 		1-82219-027-0 01 1 1312- ● ●
77 SHADE; FRT TURN SIGNAL LAMP
(B) 		1-82219-028-0 01 1 1307-1311 ●
77 SHADE; FRT TURN SIGNAL LAMP
(B) 		1-82219-028-0 01 1 1312- ● ●
78 LENS ASM; FRT COMB 8-98252-895-0 01 1 1307-1311 ●
78 LENS ASM; FRT COMB 8-98252-895-0 01 1 1312- ● ●
78 LENS ASM; FRT COMB 8-98252-896-0 01 1 1307-1311 ●
78 LENS ASM; FRT COMB 8-98252-896-0 01 1 1312- ● ●
131 NUT; BRKT,HEADLAMP
M10 FLANGE 		0-91180-210-0 12 1 1307-1311 ●
131 NUT; BRKT,HEADLAMP
M10 FLANGE 		0-91180-210-0 12 1 1312- ● ●
140 NUT
M5 		1-09984-124-0 12 1 1307-1311 ●
140 NUT
M5 		1-09984-124-0 12 1 1312- ● ●
227 SEAT; SET SCREW,FRT COMB LAMP 1-09503-132-0 08 1 1307-1311 ●
227 SEAT; SET SCREW,FRT COMB LAMP 1-09503-132-0 08 1 1312- ● ●
448 CAP ASM; LAMP
FOG LAMP<T96> 		8-97378-874-0 02 1 1307-1311 ●
448 CAP ASM; LAMP
FOG LAMP<T96> 		8-97378-874-0 02 1 1312- ● ●
