◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11523 - LV152/452(LHD) EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#123954) — 16 parça

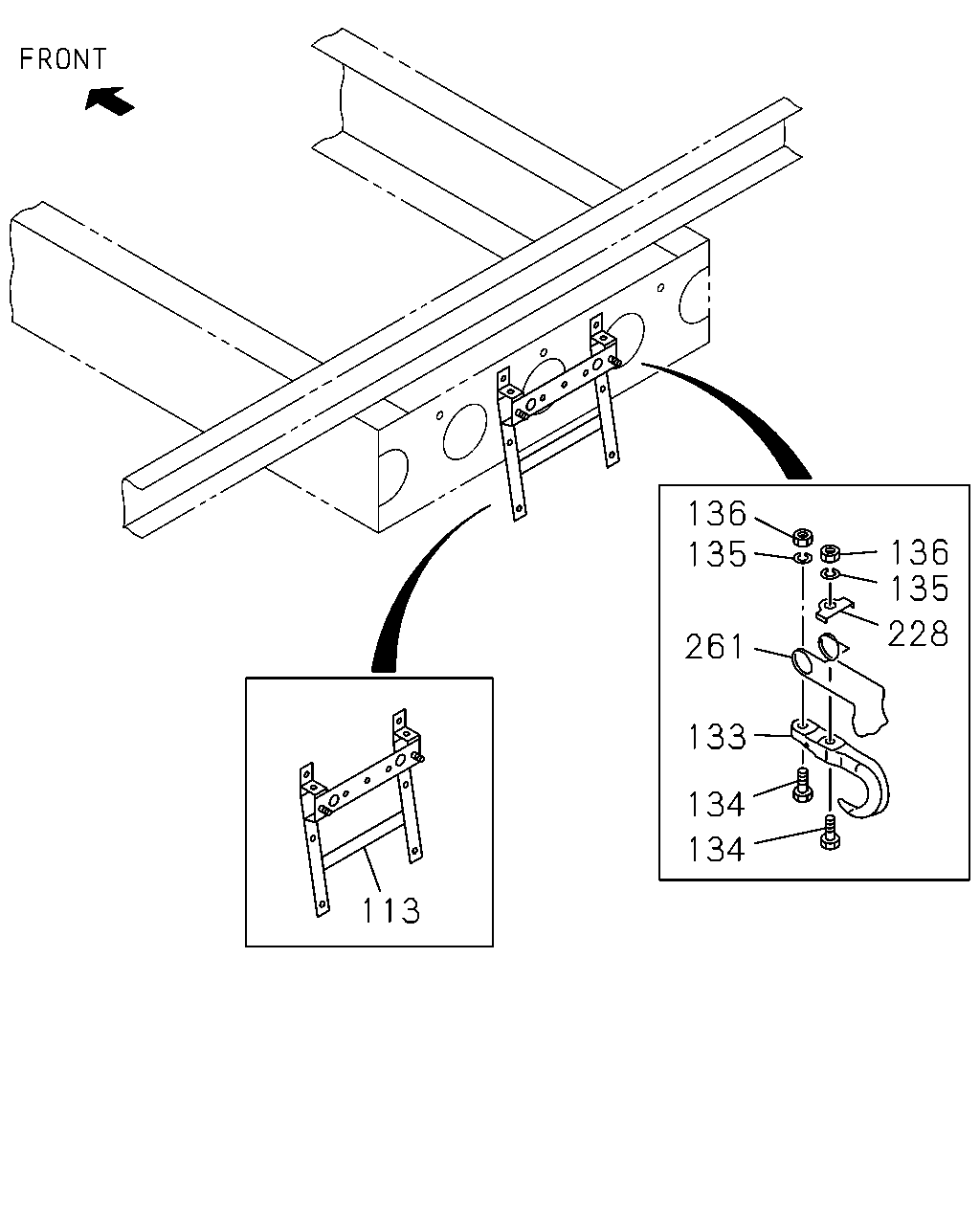

çizim 367026
113 134 133 261 135 136 134 228 135 136
BalonParca AdiParca NoAdetTipApplied Date A B
113 BRACKET; LICENSE PLATE 8-98163-444-1 01 1 1307-1311 ●
113 BRACKET; LICENSE PLATE 8-98163-444-1 01 1 1312- ● ●
133 HOOK
TOW HOOK<V76> 		1-57181-027-1 01 1 1307-1311 ●
133 HOOK
TOW HOOK<V76> 		1-57181-027-1 01 1 1312- ● ●
134 BOLT; HOOK
TOW HOOK<V76> M16X60 		0-10861-660-0 01 1 1307-1311 ●
134 BOLT; HOOK
TOW HOOK<V76> M16X60 		0-10861-660-0 01 1 1312- ● ●
134 BOLT; HOOK
TOW HOOK<V76> M16X50 		0-20851-650-0 01 1 1307-1311 ●
134 BOLT; HOOK
TOW HOOK<V76> M16X50 		0-20851-650-0 01 1 1312- ● ●
135 WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2 		0-91510-516-0 02 1 1307-1311 ●
135 WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2 		0-91510-516-0 02 1 1312- ● ●
136 NUT; HOOK
TOW HOOK<V76> M16 		0-91110-516-0 02 1 1307-1311 ●
136 NUT; HOOK
TOW HOOK<V76> M16 		0-91110-516-0 02 1 1312- ● ●
228 STOPPER; SPR RR HOOK
TOW HOOK<V76> 		9-53519-006-0 01 1 1307-1311 ●
228 STOPPER; SPR RR HOOK
TOW HOOK<V76> 		9-53519-006-0 01 1 1312- ● ●
261 SPRING; RR HOOK
TOW HOOK<V76> 		9-53519-003-0 01 1 1307-1311 ●
261 SPRING; RR HOOK
TOW HOOK<V76> 		9-53519-003-0 01 1 1312- ● ●
