5-30 — SPARE TIRE CARRIER AND COVER (#123950) — 30 parça

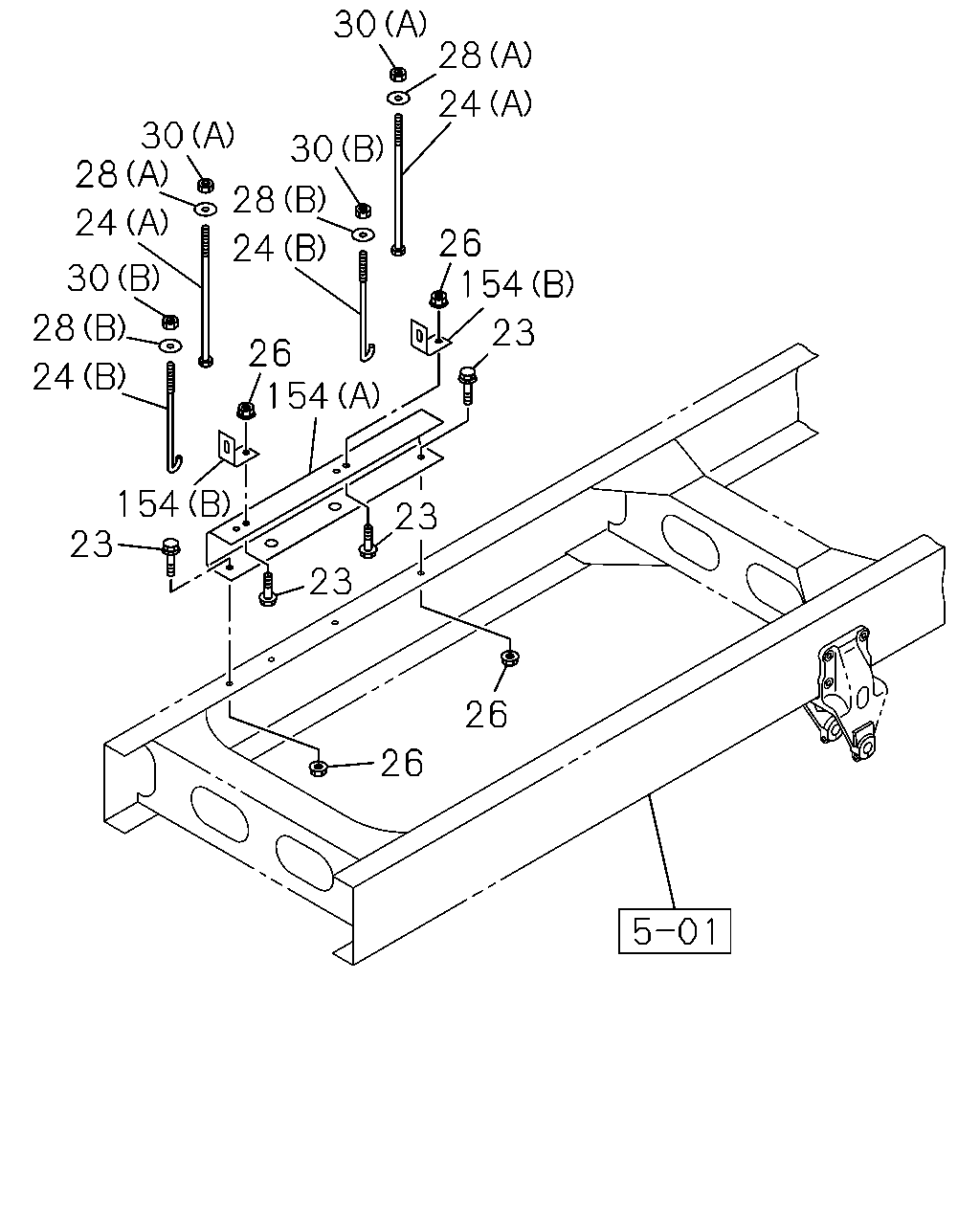

çizim 364849
26 26 23 23 23 154 154 26 24 28 30 24 28 30 24 28 30 30 28 24 26 154 23
BalonParca AdiParca NoAdetTipApplied Date A B
23 BOLT; BRKT,SPARE TIRE
M10X35 FLANGE 		0-28651-035-0 06 1 1307-1311 ●
23 BOLT; BRKT,SPARE TIRE
M10X35 FLANGE 		0-28651-035-0 06 1 1312- ● ●
24 BOLT; SPARE TIRE
(A) 		1-09000-217-0 02 1 1307-1311 ●
24 BOLT; SPARE TIRE
(A) 		1-09000-217-0 02 1 1312- ● ●
24 BOLT; SPARE TIRE
(B) M12X305 		8-94441-189-0 02 1 1307-1311 ●
24 BOLT; SPARE TIRE
(B) M12X305 		8-94441-189-0 02 1 1312- ● ●
26 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 06 1 1307-1311 ●
26 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 06 1 1312- ● ●
28 WASHER; LK,SPARE TIRE
(A) 		0-91614-814-0 14 1 1307-1311 ●
28 WASHER; LK,SPARE TIRE
(A) 		0-91614-814-0 14 1 1312- ● ●
28 WASHER; LK,SPARE TIRE
(B) ID=12.5 OD=54 		8-94466-483-0 02 1 1307-1311 ●
28 WASHER; LK,SPARE TIRE
(B) ID=12.5 OD=54 		8-94466-483-0 02 1 1312- ● ●
30 NUT; SPARE TIRE
(B) M12 		0-91110-512-0 02 1 1307-1311 ●
30 NUT; SPARE TIRE
(B) M12 		0-91110-512-0 02 1 1312- ● ●
30 NUT; SPARE TIRE
(A) M14 		0-91110-514-0 02 1 1307-1311 ●
30 NUT; SPARE TIRE
(A) M14 		0-91110-514-0 02 1 1312- ● ●
154 BRACKET ASM; S/TIRE
(A) 		8-98212-539-0 01 1 1307-1311 ●
154 BRACKET ASM; S/TIRE
(A) 		8-98212-539-0 01 1 1312- ● ●
154 BRACKET ASM; S/TIRE
(B) 		8-98212-540-0 02 1 1307-1311 ●
154 BRACKET ASM; S/TIRE
(B) 		8-98212-540-0 02 1 1312- ● ●

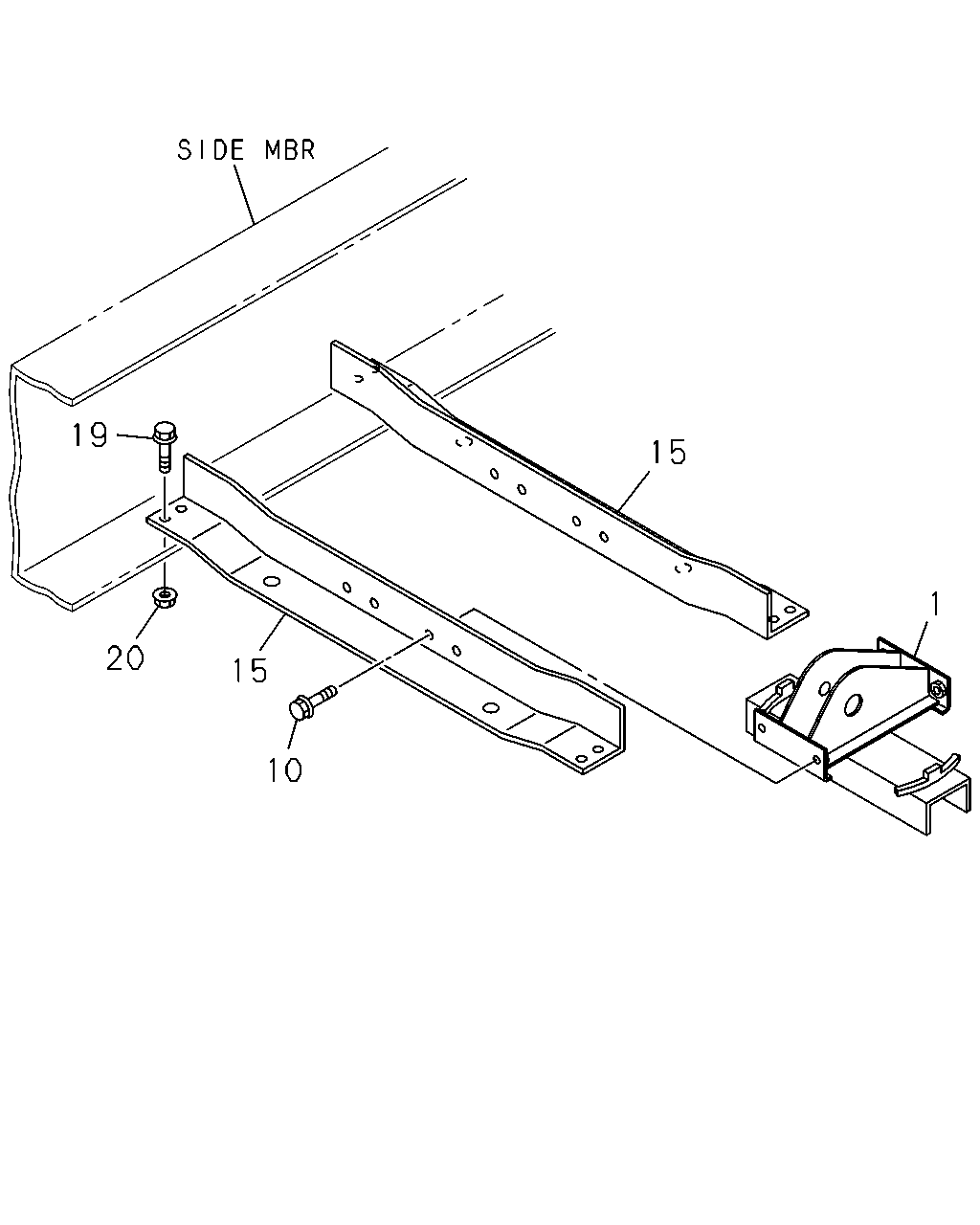

çizim 365933
1 15 19 20 15 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT 1-53630-210-4 01 1 1307-1311 ●
1 HANGER ASM; TIRE FT 1-53630-210-4 01 1 1312- ● ●
10 BOLT; TIRE HANGER
M12X30 FLANGE 		0-28651-230-0 04 1 1307-1311 ●
10 BOLT; TIRE HANGER
M12X30 FLANGE 		0-28651-230-0 04 1 1312- ● ●
15 MEMBER; CROSS,SPARE TIRE 1-53631-395-1 02 1 1307-1311 ●
15 MEMBER; CROSS,SPARE TIRE 1-53631-395-1 02 1 1312- ● ●
19 BOLT; C/MBR
M12X40 FLANGE 		0-28651-240-0 08 1 1307-1311 ●
19 BOLT; C/MBR
M12X40 FLANGE 		0-28651-240-0 08 1 1312- ● ●
20 NUT; C/MBR
M12 FLANGE 		0-91180-212-0 08 1 1307-1311 ●
20 NUT; C/MBR
M12 FLANGE 		0-91180-212-0 08 1 1312- ● ●
