Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#123948) — 261 parça

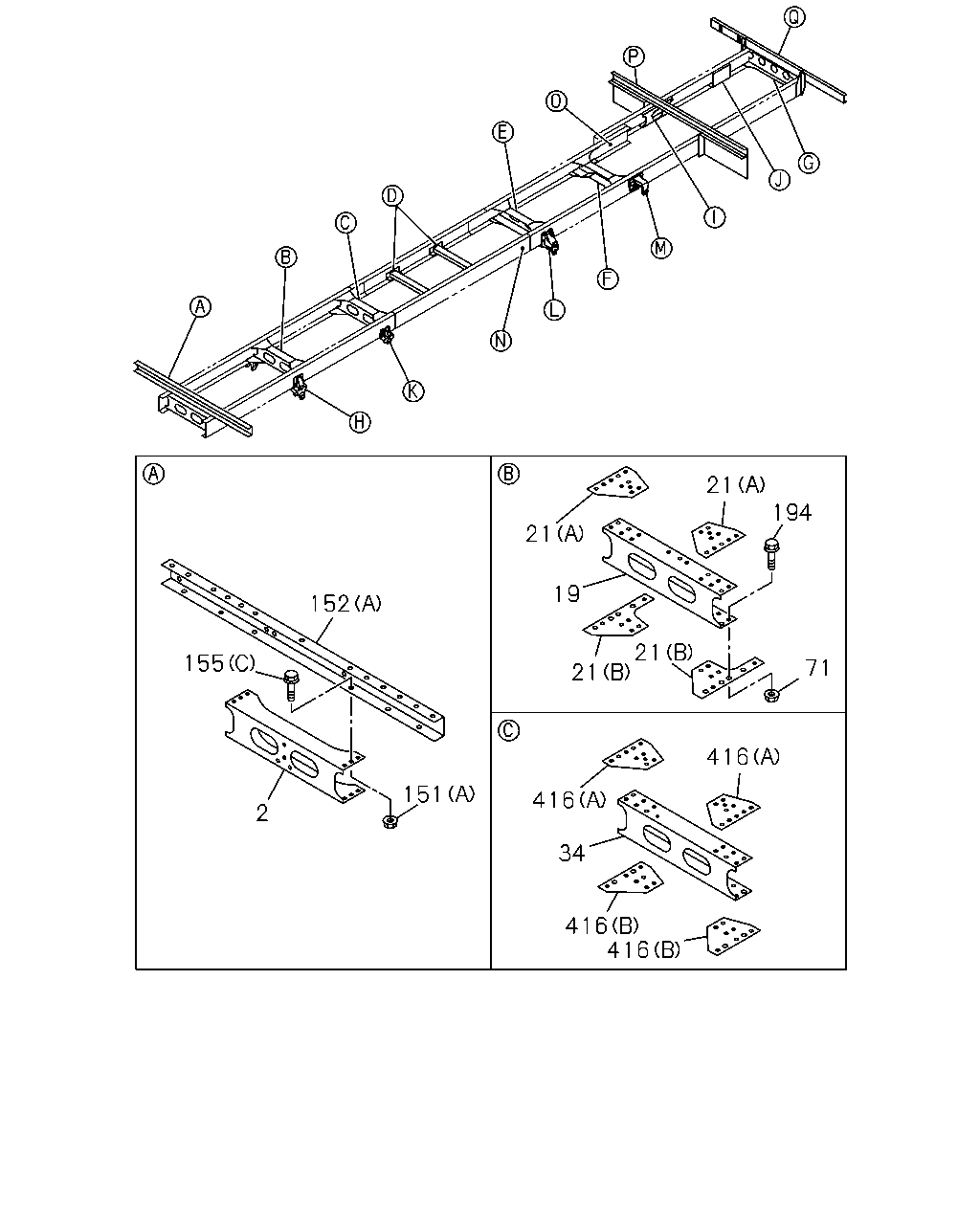

194 21 71 21 21 19 21 416 416 34 416 416 151 2 155 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MEMBER; CROSS,1ST	8-98191-211-0	01	1	1307-
19	MEMBER; CROSS,2ND RR ENG AIR SUSP(LVD0AA)	8-98197-749-0	01	1	1312-
19	MEMBER; CROSS,2ND RR ENG LEAF SUSP(LVR0AA)	8-98191-212-0	01	1	1307-
21	GUSSET; 2ND CROSS RR ENG AIR SUSP(LVD0AA) (A)	8-98191-203-0	04	1	1312-
21	GUSSET; 2ND CROSS RR ENG LEAF SUSP(LVR0AA) (A)	8-98191-203-0	02	1	1307-
21	GUSSET; 2ND CROSS RR ENG LEAF SUSP(LVR0AA) (B)	8-98191-204-0	02	1	1307-
34	MEMBER; CROSS,3RD RR ENG AIR SUSP(LVD0AA)	8-98197-749-0	01	1	1312-
34	MEMBER; CROSS,3RD RR ENG LEAF SUSP(LVR0AA)	8-98191-213-0	01	1	1307-
71	NUT; 2ND C/MBR RR ENG LEAF SUSP(LVR0AA) M14 FLANGE	0-91180-214-0	02	1	1307-
151	NUT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) (A) M12 FLANGE	0-91180-212-0	24	1	1312-
151	NUT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) (B) M14 FLANGE	0-91180-214-0	32	1	1312-
151	NUT; OUTRIGGER (A) M12 FLANGE	0-91180-212-0	29	1	1307-
152	OUTRIGGER RR ENG AIR SUSP(LVD0AA) (B)	8-98197-949-0	02	1	1312-
152	OUTRIGGER RR ENG AIR SUSP(LVD0AA) (B)	8-98197-950-0	02	1	1312-
152	OUTRIGGER (A)	1-53456-308-2	01	1	1307-
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) (G) M12X35 FLANGE	0-28061-235-0	16	1	1312-
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) (G) M12X45 FLANGE	0-28061-245-0	08	1	1312-
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) (F) M14X35 FLANGE	0-28861-435-0	32	1	1312-
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) (F) M14X50 FLANGE	0-28861-450-0	04	1	1312-
155	BOLT; OUTRIGGER (D) M12X25 FLANGE	0-28051-225-0	08	1	1307-
155	BOLT; OUTRIGGER (E) M12X35 FLANGE	0-28651-235-0	08	1	1307-
155	BOLT; OUTRIGGER (C) M12X40 FLANGE	0-28651-240-0	02	1	1307-
155	BOLT; OUTRIGGER (A) M12X30 FLANGE	0-28661-230-0	11	1	1307-
155	BOLT; OUTRIGGER (B) M14X30 FLANGE	0-28661-430-0	08	1	1307-
194	BOLT; 2ND C/MBR RR ENG LEAF SUSP(LVR0AA) M14X45 FLANGE	0-28861-445-0	02	1	1307-
416	GUSSET; 3RD C/MBR RR ENG AIR SUSP(LVD0AA) (A)	8-98191-203-0	04	1	1312-
416	GUSSET; 3RD C/MBR RR ENG LEAF SUSP(LVR0AA) (A)	8-98191-203-0	02	1	1307-
416	GUSSET; 3RD C/MBR RR ENG LEAF SUSP(LVR0AA) (B)	8-98191-205-0	02	1	1307-

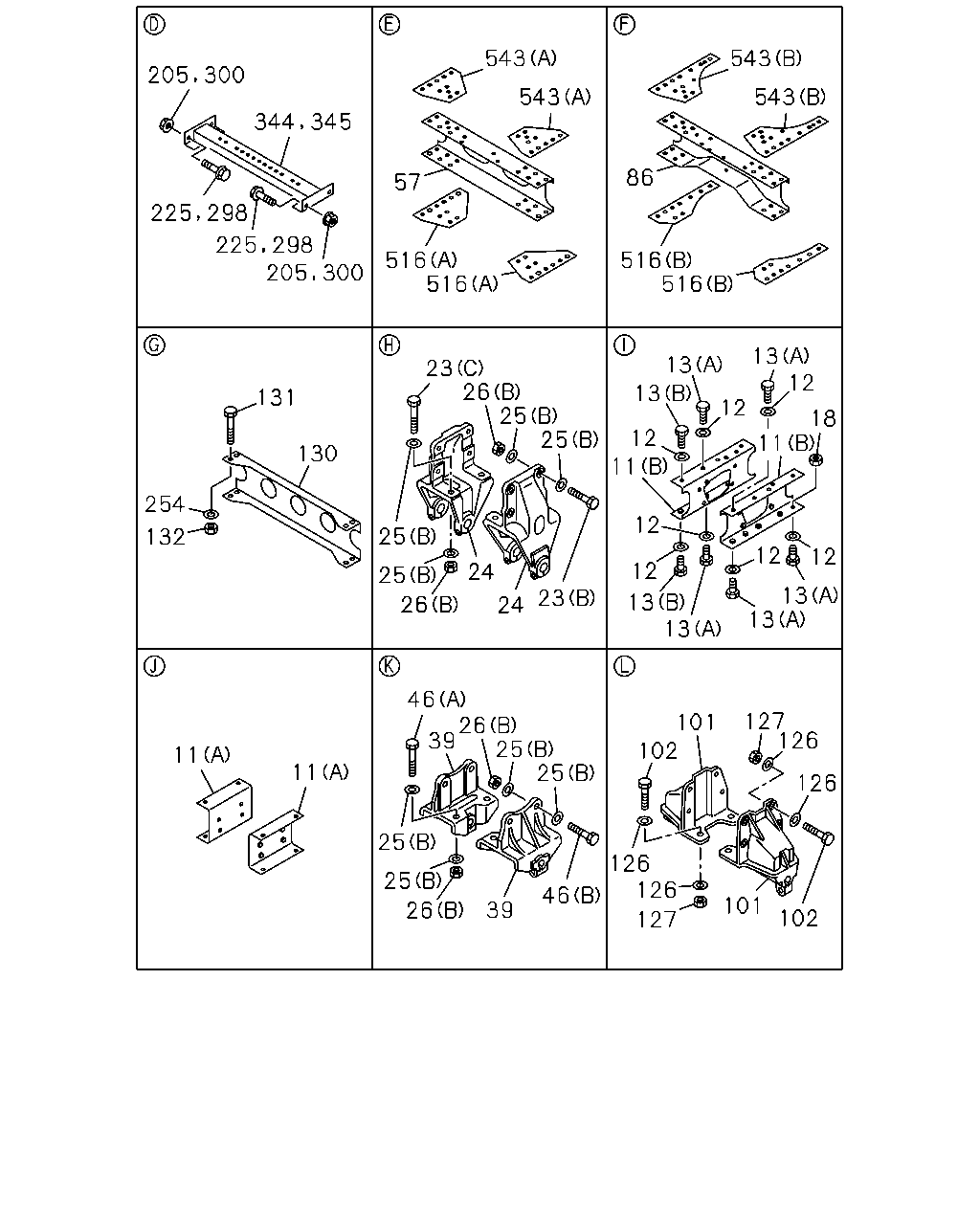

205 300 344 345 225 298 225 298 205 300 543 543 57 516 516 543 543 86 516 516 13 12 12 13 13 12 11 11 18 12 12 13 13 13 13 12 12 101 127 126 126 102 101 127 126 126 102 46 39 25 25 26 39 46 25 25 26 11 11 132 254 130 131 24 23 26 25 24 25 25 25 26 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BRACKET; ENG MTG BUS BODY REAR OVERHANG<YK4> (A)	8-98268-755-0	01	1	1404-
11	BRACKET; ENG MTG BUS BODY REAR OVERHANG<YK4> (A)	8-98268-756-0	01	1	1404-
11	BRACKET; ENG MTG BUS BODY REAR OVERHANG<YK4> (B)	8-98268-757-0	01	1	1404-
11	BRACKET; ENG MTG BUS BODY REAR OVERHANG<YK4> (B)	8-98268-758-0	01	1	1404-
11	BRACKET; ENG MTG (A)	8-98191-230-0	01	1	1307-1403
11	BRACKET; ENG MTG EXC. BUS BODY REAR OVERHANG<YK4> (A)	8-98191-230-0	01	1	1404-
11	BRACKET; ENG MTG (A)	8-98191-231-0	01	1	1307-1403
11	BRACKET; ENG MTG EXC. BUS BODY REAR OVERHANG<YK4> (A)	8-98191-231-0	01	1	1404-
11	BRACKET; ENG MTG (B)	8-98191-232-0	01	1	1307-1403
11	BRACKET; ENG MTG EXC. BUS BODY REAR OVERHANG<YK4> (B)	8-98191-232-0	01	1	1404-
11	BRACKET; ENG MTG (B)	8-98191-233-0	01	1	1307-1403
11	BRACKET; ENG MTG EXC. BUS BODY REAR OVERHANG<YK4> (B)	8-98191-233-0	01	1	1404-
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	20	1	1307-
13	BOLT; BRKT,ENG MTG (A) M14X35	0-20951-435-0	18	1	1307-
13	BOLT; BRKT,ENG MTG (B) M14X40	0-20951-440-0	02	1	1307-
18	NUT; BRKT,ENG MTG EXC. BUS BODY REAR OVERHANG<YK4> M14	0-91110-514-0	06	1	1404-
18	NUT; BRKT,ENG MTG M14	0-91110-514-0	06	1	1307-1403
18	NUT; BRKT,ENG MTG BUS BODY REAR OVERHANG<YK4> M14	0-91110-514-0	04	1	1404-
23	BOLT; BRKT,SPR EXC. BUS BODY REAR OVERHANG<YK4> (D) M14X45	0-20951-445-0	12	1	1404-
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR0AA) (C) M16X60	0-10956-660-0	04	1	1307-
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	44	1	1307-
23	BOLT; BRKT,SPR (D) M14X45	0-20951-445-0	12	1	1307-1403
23	BOLT; BRKT,SPR BUS BODY REAR OVERHANG<YK4> (D) M14X45	0-20951-445-0	10	1	1404-
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR0AA) (B) M16X50	0-20951-650-0	08	1	1307-
24	BRACKET; FRT SPR,FRT RR ENG LEAF SUSP(LVR0AA)	1-53351-254-0	02	1	1307-
25	WASHER; PL,BRKT EXC. BUS BODY REAR OVERHANG<YK4> (A) ID=15	8-98010-627-1	56	1	1404-
25	WASHER; PL,BRKT RR ENG LEAF SUSP(LVR0AA) (B) ID=16.2	1-09503-316-0	40	1	1307-
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	56	1	1307-1403
25	WASHER; PL,BRKT BUS BODY REAR OVERHANG<YK4> (A) ID=15	8-98010-627-1	54	1	1404-
26	NUT; BRKT,SPR EXC. BUS BODY REAR OVERHANG<YK4> (A) M14	0-91110-514-0	48	1	1404-
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	48	1	1307-1403
26	NUT; BRKT,SPR BUS BODY REAR OVERHANG<YK4> (A) M14	0-91110-514-0	46	1	1404-
26	NUT; BRKT,SPR RR ENG LEAF SUSP(LVR0AA) (B) M16	0-91110-516-0	20	1	1307-
39	BRACKET; FRT SPR,RR RR ENG LEAF SUSP(LVR0AA)	1-53352-181-0	02	1	1307-
46	BOLT; BRKT FIX RR ENG LEAF SUSP(LVR0AA) (A) M16X60	0-10956-660-0	04	1	1307-
46	BOLT; BRKT FIX RR ENG LEAF SUSP(LVR0AA) (B) M16X50	0-20951-650-0	04	1	1307-
57	MEMBER; CROSS,RR SUSP FRT RR ENG AIR SUSP(LVD0AA)	8-98197-751-1	01	1	1312-
57	MEMBER; CROSS,RR SUSP FRT RR ENG LEAF SUSP(LVR0AA)	8-98191-215-0	01	1	1307-
86	MEMBER; CROSS,RR SUSP RR	8-98191-216-0	01	1	1307-
101	BRACKET; RR SPR,FRT RR ENG LEAF SUSP(LVR0AA)	1-53353-124-0	02	1	1307-
102	BOLT; BRKT,RR SPR RR ENG LEAF SUSP(LVR0AA) M16X60	0-10956-660-0	12	1	1307-
126	WASHER; PL,BRKT RR ENG LEAF SUSP(LVR0AA) ID=16.2	1-09503-316-0	24	1	1307-
127	NUT; BRKT RR ENG LEAF SUSP(LVR0AA) M16	0-91110-516-0	24	1	1307-
130	MEMBER; CROSS,END	8-98191-217-0	01	1	1307-
131	BOLT; END C/MBR M14X30	0-20951-430-0	08	1	1307-
132	NUT; END C/MBR M14	0-91110-514-0	08	1	1307-
205	NUT; 4TH C/MBR M14 FLANGE	0-91180-214-0	04	1	1307-
225	BOLT; 5TH C/MBR M14X30 FLANGE	0-28861-430-0	04	1	1307-
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	08	1	1307-
298	BOLT; 4TH C/MBR M14X30 FLANGE	0-28861-430-0	04	1	1307-
300	NUT; 5TH C/MBR M14 FLANGE	0-91180-214-0	04	1	1307-
344	MEMBER; CROSS,4TH	8-98191-214-0	01	1	1307-
345	MEMBER; CROSS,5TH	8-98191-214-0	01	1	1307-
516	GUSSET; LWR RR ENG AIR SUSP(LVD0AA) (C)	1-53167-612-2	02	1	1312-
516	GUSSET; LWR RR ENG AIR SUSP(LVD0AA) (D)	8-98197-793-0	02	1	1312-
516	GUSSET; LWR RR ENG LEAF SUSP(LVR0AA) (A)	8-98191-206-0	02	1	1307-
516	GUSSET; LWR RR ENG LEAF SUSP(LVR0AA) (B)	8-98191-208-0	02	1	1307-
543	GUSSET; UPR RR ENG AIR SUSP(LVD0AA) (C)	8-98197-845-0	01	1	1312-
543	GUSSET; UPR RR ENG AIR SUSP(LVD0AA) (C)	8-98197-846-0	01	1	1312-
543	GUSSET; UPR RR ENG AIR SUSP(LVD0AA) (D)	8-98197-905-0	01	1	1312-
543	GUSSET; UPR RR ENG AIR SUSP(LVD0AA) (D)	8-98197-906-0	01	1	1312-
543	GUSSET; UPR RR ENG LEAF SUSP(LVR0AA) (A)	8-98191-203-0	02	1	1307-
543	GUSSET; UPR RR ENG LEAF SUSP(LVR0AA) (B)	8-98191-207-0	02	1	1307-
543	GUSSET; UPR RR ENG AIR SUSP(LVD0AA) (C)	8-98197-845-0	01	1	1312-
543	GUSSET; UPR RR ENG AIR SUSP(LVD0AA) (C)	8-98197-846-0	01	1	1312-
543	GUSSET; UPR RR ENG AIR SUSP(LVD0AA) (D)	8-98197-905-0	01	1	1312-
543	GUSSET; UPR RR ENG AIR SUSP(LVD0AA) (D)	8-98197-906-0	01	1	1312-

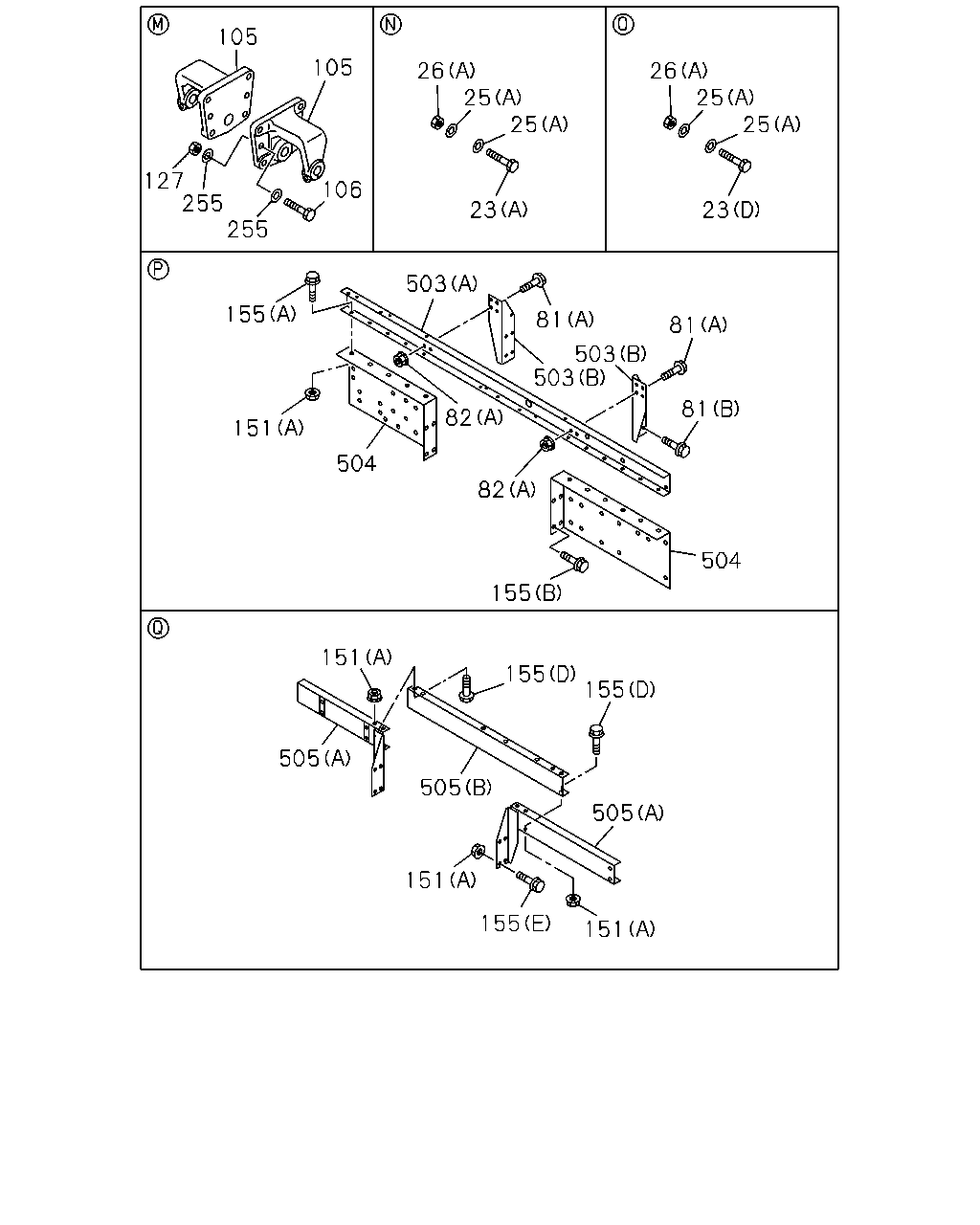

105 127 255 106 255 105 26 25 25 23 26 25 25 23 155 151 504 82 503 81 503 82 155 504 81 81 503 151 505 505 155 155 505 155 151 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	BOLT; BRKT,SPR EXC. BUS BODY REAR OVERHANG<YK4> (D) M14X45	0-20951-445-0	12	1	1404-
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR0AA) (C) M16X60	0-10956-660-0	04	1	1307-
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	44	1	1307-
23	BOLT; BRKT,SPR (D) M14X45	0-20951-445-0	12	1	1307-1403
23	BOLT; BRKT,SPR BUS BODY REAR OVERHANG<YK4> (D) M14X45	0-20951-445-0	10	1	1404-
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR0AA) (B) M16X50	0-20951-650-0	08	1	1307-
25	WASHER; PL,BRKT EXC. BUS BODY REAR OVERHANG<YK4> (A) ID=15	8-98010-627-1	56	1	1404-
25	WASHER; PL,BRKT RR ENG LEAF SUSP(LVR0AA) (B) ID=16.2	1-09503-316-0	40	1	1307-
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	56	1	1307-1403
25	WASHER; PL,BRKT BUS BODY REAR OVERHANG<YK4> (A) ID=15	8-98010-627-1	54	1	1404-
26	NUT; BRKT,SPR EXC. BUS BODY REAR OVERHANG<YK4> (A) M14	0-91110-514-0	48	1	1404-
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	48	1	1307-1403
26	NUT; BRKT,SPR BUS BODY REAR OVERHANG<YK4> (A) M14	0-91110-514-0	46	1	1404-
26	NUT; BRKT,SPR RR ENG LEAF SUSP(LVR0AA) (B) M16	0-91110-516-0	20	1	1307-
81	BOLT; BRKT (A) M10X25 FLANGE	0-28661-025-0	08	1	1307-
81	BOLT; BRKT (B) M12X30 FLANGE	0-28661-230-0	08	1	1307-
82	NUT; BRKT RR ENG AIR SUSP(LVD0AA) (B) M14	0-91110-514-0	12	1	1312-
82	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	08	1	1307-
105	BRACKET; RR SPR,RR RR ENG LEAF SUSP(LVR0AA)	1-53354-077-0	01	1	1307-1403
105	BRACKET; RR SPR,RR RR ENG LEAF SUSP(LVR0AA)	8-98257-402-0	02	1	1404-
105	BRACKET; RR SPR,RR RR ENG LEAF SUSP(LVR0AA)	1-53354-078-0	01	1	1307-1403
106	BOLT; BRKT RR ENG LEAF SUSP(LVR0AA) M16X60	0-10956-660-0	12	1	1307-
127	NUT; BRKT RR ENG LEAF SUSP(LVR0AA) M16	0-91110-516-0	24	1	1307-
151	NUT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) (A) M12 FLANGE	0-91180-212-0	24	1	1312-
151	NUT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) (B) M14 FLANGE	0-91180-214-0	32	1	1312-
151	NUT; OUTRIGGER (A) M12 FLANGE	0-91180-212-0	29	1	1307-
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) (G) M12X35 FLANGE	0-28061-235-0	16	1	1312-
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) (G) M12X45 FLANGE	0-28061-245-0	08	1	1312-
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) (F) M14X35 FLANGE	0-28861-435-0	32	1	1312-
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) (F) M14X50 FLANGE	0-28861-450-0	04	1	1312-
155	BOLT; OUTRIGGER (D) M12X25 FLANGE	0-28051-225-0	08	1	1307-
155	BOLT; OUTRIGGER (E) M12X35 FLANGE	0-28651-235-0	08	1	1307-
155	BOLT; OUTRIGGER (C) M12X40 FLANGE	0-28651-240-0	02	1	1307-
155	BOLT; OUTRIGGER (A) M12X30 FLANGE	0-28661-230-0	11	1	1307-
155	BOLT; OUTRIGGER (B) M14X30 FLANGE	0-28661-430-0	08	1	1307-
255	WASHER; PL,BRKT RR ENG LEAF SUSP(LVR0AA) ID=16.2	1-09503-316-0	24	1	1307-
503	OUTRIGGER; ENG RR BUS BODY REAR OVERHANG<YK4> (B)	8-98268-440-0	01	1	1404-
503	OUTRIGGER; ENG RR (B)	8-98191-482-0	01	1	1307-
503	OUTRIGGER; ENG RR (B)	8-98191-483-0	01	1	1307-1403
503	OUTRIGGER; ENG RR EXC. BUS BODY REAR OVERHANG<YK4> (B)	8-98191-483-0	01	1	1404-
503	OUTRIGGER; ENG RR (A)	8-98191-530-0	01	1	1307-
504	OUTRIGGER; LWR	8-98191-190-0	01	1	1307-
504	OUTRIGGER; LWR	8-98191-490-0	01	1	1307-
505	OUTRIGGER; END (B)	8-98191-346-0	01	1	1307-
505	OUTRIGGER; END (A)	8-98191-347-0	01	1	1307-
505	OUTRIGGER; END (A)	8-98191-348-0	01	1	1307-

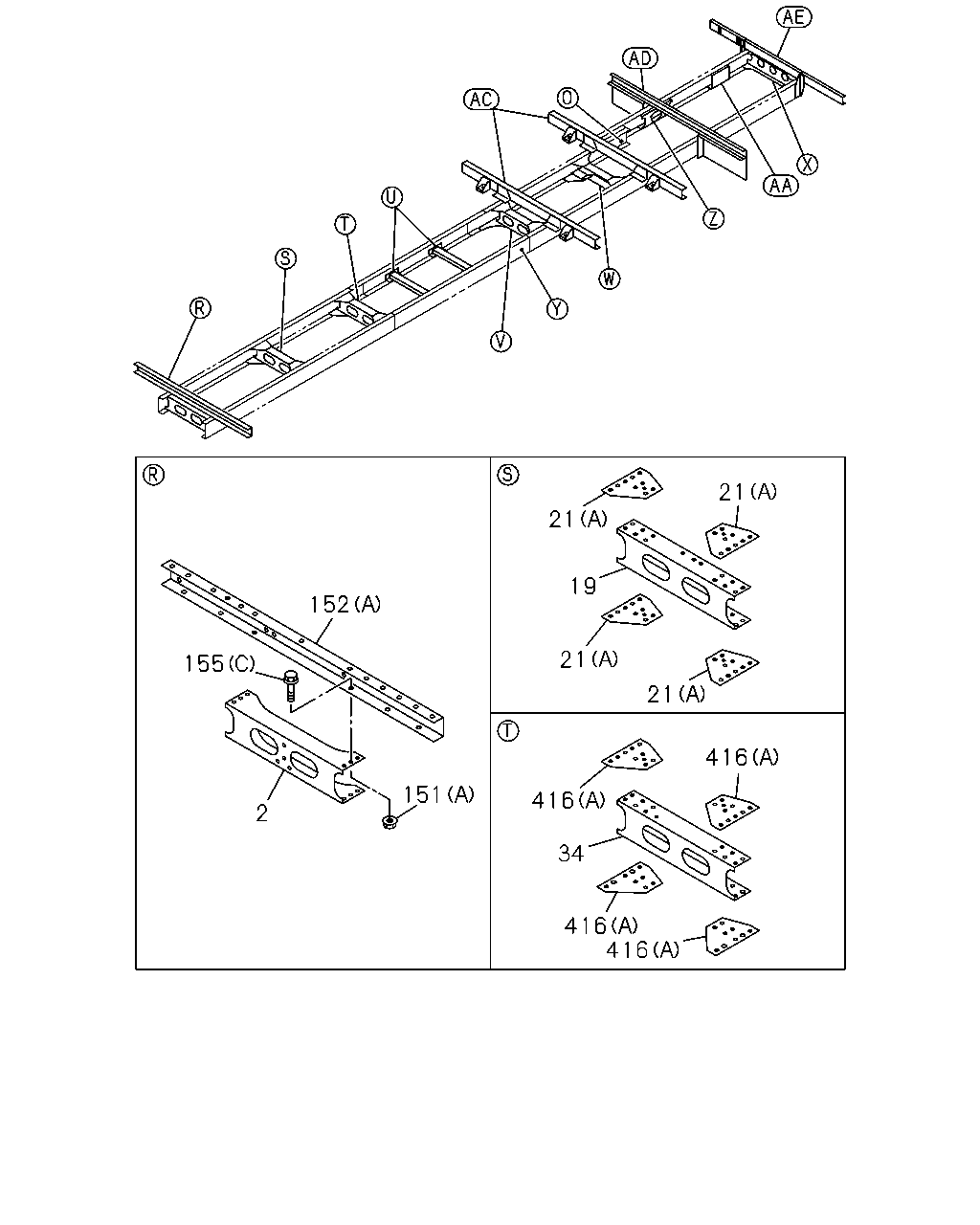

155 152 2 151 416 21 19 21 21 21 416 34 416 416

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MEMBER; CROSS,1ST	8-98191-211-0	01	1	1307-
19	MEMBER; CROSS,2ND RR ENG AIR SUSP(LVD0AA)	8-98197-749-0	01	1	1312-
19	MEMBER; CROSS,2ND RR ENG LEAF SUSP(LVR0AA)	8-98191-212-0	01	1	1307-
21	GUSSET; 2ND CROSS RR ENG AIR SUSP(LVD0AA) (A)	8-98191-203-0	04	1	1312-
21	GUSSET; 2ND CROSS RR ENG LEAF SUSP(LVR0AA) (A)	8-98191-203-0	02	1	1307-
21	GUSSET; 2ND CROSS RR ENG LEAF SUSP(LVR0AA) (B)	8-98191-204-0	02	1	1307-
34	MEMBER; CROSS,3RD RR ENG AIR SUSP(LVD0AA)	8-98197-749-0	01	1	1312-
34	MEMBER; CROSS,3RD RR ENG LEAF SUSP(LVR0AA)	8-98191-213-0	01	1	1307-
151	NUT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) (A) M12 FLANGE	0-91180-212-0	24	1	1312-
151	NUT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) (B) M14 FLANGE	0-91180-214-0	32	1	1312-
151	NUT; OUTRIGGER (A) M12 FLANGE	0-91180-212-0	29	1	1307-
152	OUTRIGGER RR ENG AIR SUSP(LVD0AA) (B)	8-98197-949-0	02	1	1312-
152	OUTRIGGER RR ENG AIR SUSP(LVD0AA) (B)	8-98197-950-0	02	1	1312-
152	OUTRIGGER (A)	1-53456-308-2	01	1	1307-
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) (G) M12X35 FLANGE	0-28061-235-0	16	1	1312-
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) (G) M12X45 FLANGE	0-28061-245-0	08	1	1312-
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) (F) M14X35 FLANGE	0-28861-435-0	32	1	1312-
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) (F) M14X50 FLANGE	0-28861-450-0	04	1	1312-
155	BOLT; OUTRIGGER (D) M12X25 FLANGE	0-28051-225-0	08	1	1307-
155	BOLT; OUTRIGGER (E) M12X35 FLANGE	0-28651-235-0	08	1	1307-
155	BOLT; OUTRIGGER (C) M12X40 FLANGE	0-28651-240-0	02	1	1307-
155	BOLT; OUTRIGGER (A) M12X30 FLANGE	0-28661-230-0	11	1	1307-
155	BOLT; OUTRIGGER (B) M14X30 FLANGE	0-28661-430-0	08	1	1307-
416	GUSSET; 3RD C/MBR RR ENG AIR SUSP(LVD0AA) (A)	8-98191-203-0	04	1	1312-
416	GUSSET; 3RD C/MBR RR ENG LEAF SUSP(LVR0AA) (A)	8-98191-203-0	02	1	1307-
416	GUSSET; 3RD C/MBR RR ENG LEAF SUSP(LVR0AA) (B)	8-98191-205-0	02	1	1307-

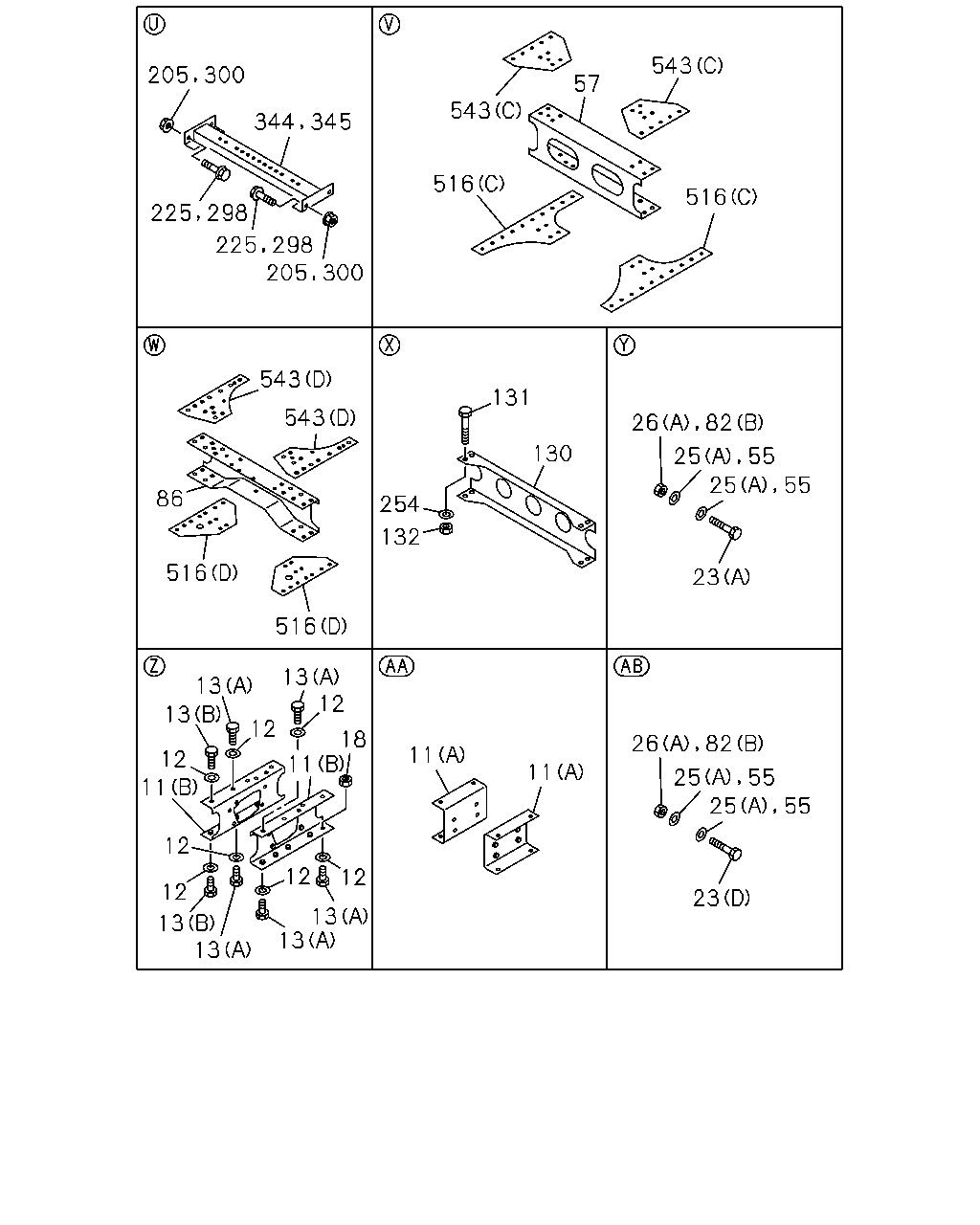

205 300 344 345 225 298 205 225 298 300 516 543 57 543 516 543 86 543 516 516 132 131 254 26 130 82 25 55 25 55 23 13 13 13 12 12 11 12 12 13 13 12 12 11 12 18 13 13 11 11 26 82 25 55 25 55 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BRACKET; ENG MTG BUS BODY REAR OVERHANG<YK4> (A)	8-98268-755-0	01	1	1404-
11	BRACKET; ENG MTG BUS BODY REAR OVERHANG<YK4> (A)	8-98268-756-0	01	1	1404-
11	BRACKET; ENG MTG BUS BODY REAR OVERHANG<YK4> (B)	8-98268-757-0	01	1	1404-
11	BRACKET; ENG MTG BUS BODY REAR OVERHANG<YK4> (B)	8-98268-758-0	01	1	1404-
11	BRACKET; ENG MTG (A)	8-98191-230-0	01	1	1307-1403
11	BRACKET; ENG MTG EXC. BUS BODY REAR OVERHANG<YK4> (A)	8-98191-230-0	01	1	1404-
11	BRACKET; ENG MTG (A)	8-98191-231-0	01	1	1307-1403
11	BRACKET; ENG MTG EXC. BUS BODY REAR OVERHANG<YK4> (A)	8-98191-231-0	01	1	1404-
11	BRACKET; ENG MTG (B)	8-98191-232-0	01	1	1307-1403
11	BRACKET; ENG MTG EXC. BUS BODY REAR OVERHANG<YK4> (B)	8-98191-232-0	01	1	1404-
11	BRACKET; ENG MTG (B)	8-98191-233-0	01	1	1307-1403
11	BRACKET; ENG MTG EXC. BUS BODY REAR OVERHANG<YK4> (B)	8-98191-233-0	01	1	1404-
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	20	1	1307-
13	BOLT; BRKT,ENG MTG (A) M14X35	0-20951-435-0	18	1	1307-
13	BOLT; BRKT,ENG MTG (B) M14X40	0-20951-440-0	02	1	1307-
18	NUT; BRKT,ENG MTG EXC. BUS BODY REAR OVERHANG<YK4> M14	0-91110-514-0	06	1	1404-
18	NUT; BRKT,ENG MTG M14	0-91110-514-0	06	1	1307-1403
18	NUT; BRKT,ENG MTG BUS BODY REAR OVERHANG<YK4> M14	0-91110-514-0	04	1	1404-
23	BOLT; BRKT,SPR EXC. BUS BODY REAR OVERHANG<YK4> (D) M14X45	0-20951-445-0	12	1	1404-
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR0AA) (C) M16X60	0-10956-660-0	04	1	1307-
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	44	1	1307-
23	BOLT; BRKT,SPR (D) M14X45	0-20951-445-0	12	1	1307-1403
23	BOLT; BRKT,SPR BUS BODY REAR OVERHANG<YK4> (D) M14X45	0-20951-445-0	10	1	1404-
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR0AA) (B) M16X50	0-20951-650-0	08	1	1307-
25	WASHER; PL,BRKT EXC. BUS BODY REAR OVERHANG<YK4> (A) ID=15	8-98010-627-1	56	1	1404-
25	WASHER; PL,BRKT RR ENG LEAF SUSP(LVR0AA) (B) ID=16.2	1-09503-316-0	40	1	1307-
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	56	1	1307-1403
25	WASHER; PL,BRKT BUS BODY REAR OVERHANG<YK4> (A) ID=15	8-98010-627-1	54	1	1404-
26	NUT; BRKT,SPR EXC. BUS BODY REAR OVERHANG<YK4> (A) M14	0-91110-514-0	48	1	1404-
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	48	1	1307-1403
26	NUT; BRKT,SPR BUS BODY REAR OVERHANG<YK4> (A) M14	0-91110-514-0	46	1	1404-
26	NUT; BRKT,SPR RR ENG LEAF SUSP(LVR0AA) (B) M16	0-91110-516-0	20	1	1307-
55	WASHER; PL RR ENG AIR SUSP(LVD0AA) ID=15	8-98010-627-1	12	1	1312-
57	MEMBER; CROSS,RR SUSP FRT RR ENG AIR SUSP(LVD0AA)	8-98197-751-1	01	1	1312-
57	MEMBER; CROSS,RR SUSP FRT RR ENG LEAF SUSP(LVR0AA)	8-98191-215-0	01	1	1307-
82	NUT; BRKT RR ENG AIR SUSP(LVD0AA) (B) M14	0-91110-514-0	12	1	1312-
82	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	08	1	1307-
86	MEMBER; CROSS,RR SUSP RR	8-98191-216-0	01	1	1307-
130	MEMBER; CROSS,END	8-98191-217-0	01	1	1307-
131	BOLT; END C/MBR M14X30	0-20951-430-0	08	1	1307-
132	NUT; END C/MBR M14	0-91110-514-0	08	1	1307-
205	NUT; 4TH C/MBR M14 FLANGE	0-91180-214-0	04	1	1307-
225	BOLT; 5TH C/MBR M14X30 FLANGE	0-28861-430-0	04	1	1307-
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	08	1	1307-
298	BOLT; 4TH C/MBR M14X30 FLANGE	0-28861-430-0	04	1	1307-
300	NUT; 5TH C/MBR M14 FLANGE	0-91180-214-0	04	1	1307-
344	MEMBER; CROSS,4TH	8-98191-214-0	01	1	1307-
345	MEMBER; CROSS,5TH	8-98191-214-0	01	1	1307-
516	GUSSET; LWR RR ENG AIR SUSP(LVD0AA) (C)	1-53167-612-2	02	1	1312-
516	GUSSET; LWR RR ENG AIR SUSP(LVD0AA) (D)	8-98197-793-0	02	1	1312-
516	GUSSET; LWR RR ENG LEAF SUSP(LVR0AA) (A)	8-98191-206-0	02	1	1307-
516	GUSSET; LWR RR ENG LEAF SUSP(LVR0AA) (B)	8-98191-208-0	02	1	1307-
543	GUSSET; UPR RR ENG AIR SUSP(LVD0AA) (C)	8-98197-845-0	01	1	1312-
543	GUSSET; UPR RR ENG AIR SUSP(LVD0AA) (C)	8-98197-846-0	01	1	1312-
543	GUSSET; UPR RR ENG AIR SUSP(LVD0AA) (D)	8-98197-905-0	01	1	1312-
543	GUSSET; UPR RR ENG AIR SUSP(LVD0AA) (D)	8-98197-906-0	01	1	1312-
543	GUSSET; UPR RR ENG LEAF SUSP(LVR0AA) (A)	8-98191-203-0	02	1	1307-
543	GUSSET; UPR RR ENG LEAF SUSP(LVR0AA) (B)	8-98191-207-0	02	1	1307-
543	GUSSET; UPR RR ENG AIR SUSP(LVD0AA) (C)	8-98197-845-0	01	1	1312-
543	GUSSET; UPR RR ENG AIR SUSP(LVD0AA) (C)	8-98197-846-0	01	1	1312-
543	GUSSET; UPR RR ENG AIR SUSP(LVD0AA) (D)	8-98197-905-0	01	1	1312-
543	GUSSET; UPR RR ENG AIR SUSP(LVD0AA) (D)	8-98197-906-0	01	1	1312-

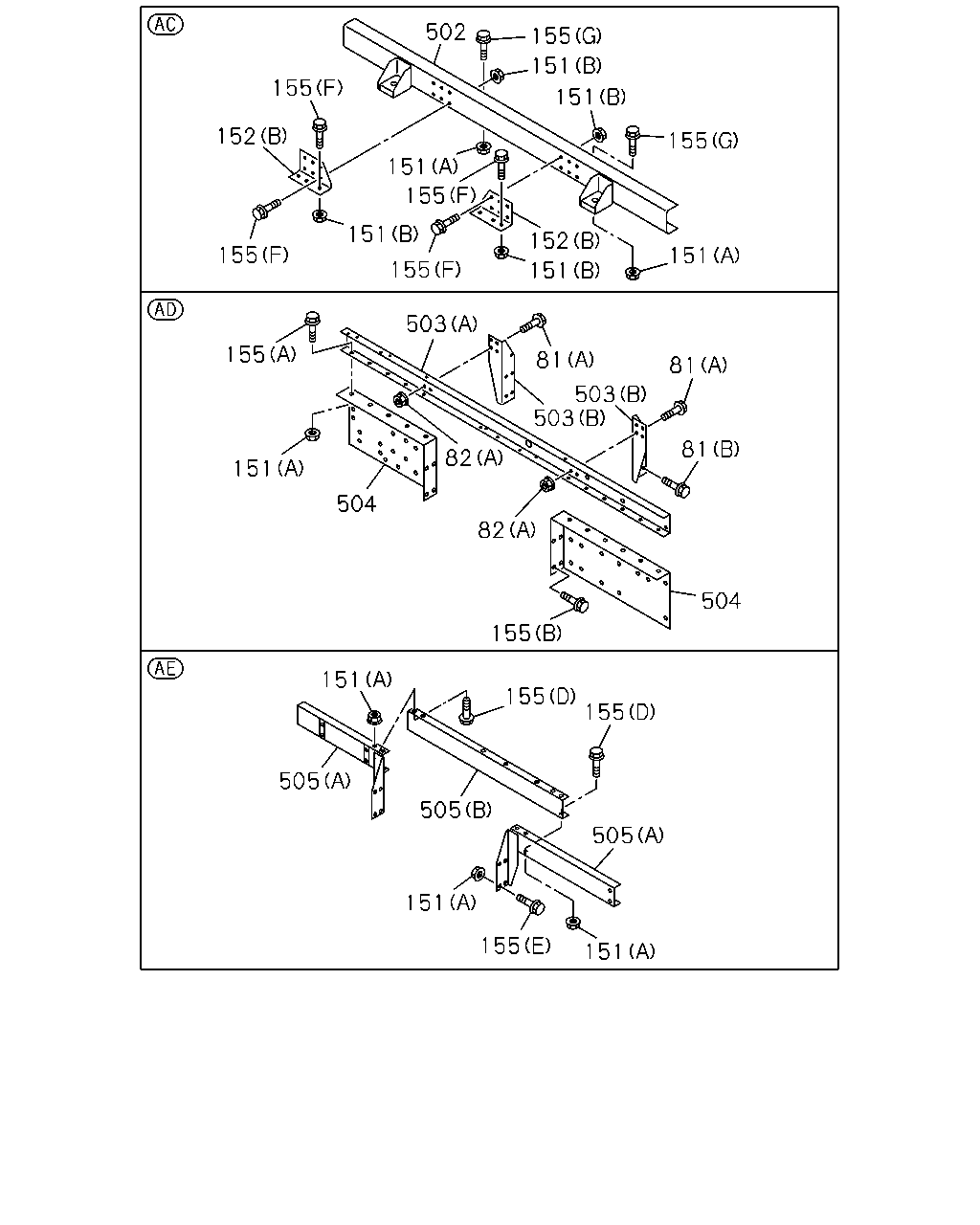

151 505 155 155 505 151 155 505 151 155 82 504 82 151 155 503 155 81 503 81 503 81 504 151 151 155 151 151 155 502 155 152 155 151 151 152 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	BOLT; BRKT (A) M10X25 FLANGE	0-28661-025-0	08	1	1307-
81	BOLT; BRKT (B) M12X30 FLANGE	0-28661-230-0	08	1	1307-
82	NUT; BRKT RR ENG AIR SUSP(LVD0AA) (B) M14	0-91110-514-0	12	1	1312-
82	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	08	1	1307-
151	NUT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) (A) M12 FLANGE	0-91180-212-0	24	1	1312-
151	NUT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) (B) M14 FLANGE	0-91180-214-0	32	1	1312-
151	NUT; OUTRIGGER (A) M12 FLANGE	0-91180-212-0	29	1	1307-
152	OUTRIGGER RR ENG AIR SUSP(LVD0AA) (B)	8-98197-949-0	02	1	1312-
152	OUTRIGGER RR ENG AIR SUSP(LVD0AA) (B)	8-98197-950-0	02	1	1312-
152	OUTRIGGER (A)	1-53456-308-2	01	1	1307-
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) (G) M12X35 FLANGE	0-28061-235-0	16	1	1312-
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) (G) M12X45 FLANGE	0-28061-245-0	08	1	1312-
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) (F) M14X35 FLANGE	0-28861-435-0	32	1	1312-
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD0AA) (F) M14X50 FLANGE	0-28861-450-0	04	1	1312-
155	BOLT; OUTRIGGER (D) M12X25 FLANGE	0-28051-225-0	08	1	1307-
155	BOLT; OUTRIGGER (E) M12X35 FLANGE	0-28651-235-0	08	1	1307-
155	BOLT; OUTRIGGER (C) M12X40 FLANGE	0-28651-240-0	02	1	1307-
155	BOLT; OUTRIGGER (A) M12X30 FLANGE	0-28661-230-0	11	1	1307-
155	BOLT; OUTRIGGER (B) M14X30 FLANGE	0-28661-430-0	08	1	1307-
502	OUTRIGGER; RR SUSP RR ENG AIR SUSP(LVD0AA)	8-98268-438-0	01	1	1404-
502	OUTRIGGER; RR SUSP RR ENG AIR SUSP(LVD0AA)	8-98197-965-0	02	1	1312-1403
502	OUTRIGGER; RR SUSP RR ENG AIR SUSP(LVD0AA)	8-98197-965-0	01	1	1404-
503	OUTRIGGER; ENG RR BUS BODY REAR OVERHANG<YK4> (B)	8-98268-440-0	01	1	1404-
503	OUTRIGGER; ENG RR (B)	8-98191-482-0	01	1	1307-
503	OUTRIGGER; ENG RR (B)	8-98191-483-0	01	1	1307-1403
503	OUTRIGGER; ENG RR EXC. BUS BODY REAR OVERHANG<YK4> (B)	8-98191-483-0	01	1	1404-
503	OUTRIGGER; ENG RR (A)	8-98191-530-0	01	1	1307-
504	OUTRIGGER; LWR	8-98191-190-0	01	1	1307-
504	OUTRIGGER; LWR	8-98191-490-0	01	1	1307-
505	OUTRIGGER; END (B)	8-98191-346-0	01	1	1307-
505	OUTRIGGER; END (A)	8-98191-347-0	01	1	1307-
505	OUTRIGGER; END (A)	8-98191-348-0	01	1	1307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
