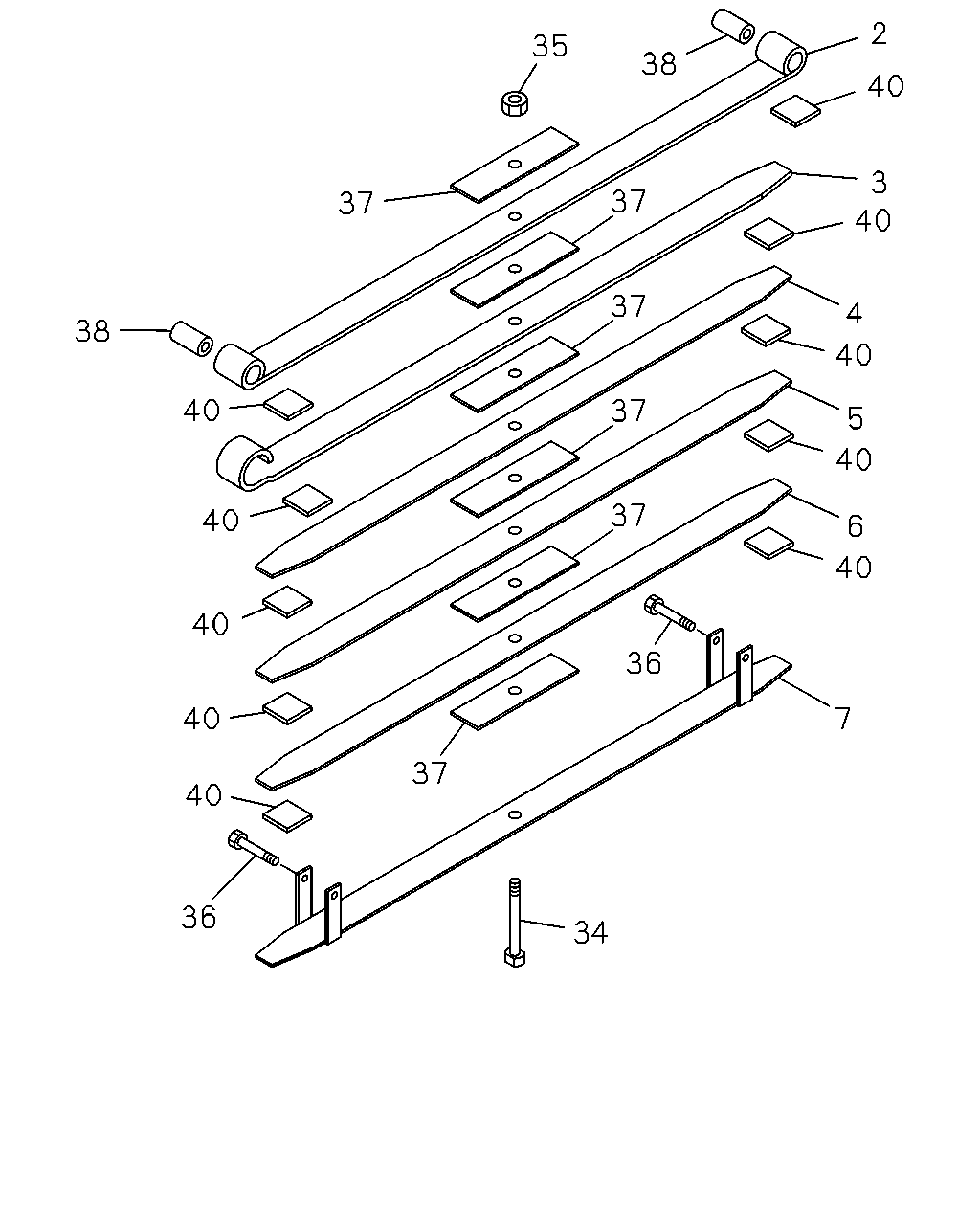

4-65 — REAR LEAF SPRING (#123946) — 18 parça

2 3 40 40 40 40 40 40 40 40 40 36 38 37 37 37 37 37 7 37 34 35 38 40 4 6 5 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98191-638-0	8-98228-607-0	01	1	-
2	SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-98270-824-0	8-98281-791-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-98191-638-0	8-98228-608-0	01	1	-
3	SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-98270-824-0	8-98281-792-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-98191-638-0	8-98228-609-0	01	1	-
4	SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-98270-824-0	8-98281-793-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-98191-638-0	8-98228-610-0	01	1	-
5	SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-98270-824-0	8-98281-794-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-98191-638-0	8-98228-611-0	01	1	-
6	SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 8-98270-824-0	8-98281-795-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: A = 8-98191-638-0	8-98228-612-0	01	1	-
7	SPRING; LEAF,NO 6,RR MAIN ASM PART: B = 8-98270-824-0	8-98281-796-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN L=150 ASM PART: A = 8-98191-638-0, B = 8-98270-824-0	1-51356-221-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M12 ASM PART: A = 8-98191-638-0, B = 8-98270-824-0	9-99110-512-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: A = 8-98191-638-0, B = 8-98270-824-0	8-98232-149-0	02	1	-
37	SPACER; CENTER,LEAF SPR,RR ASM PART: A = 8-98191-638-0, B = 8-98270-824-0	8-98232-148-0	06	1	-
38	BUSHING; LEAF SPR,RR ASM PART: A = 8-98191-638-0, B = 8-98270-824-0	1-51351-024-1	02	1	-
40	LINER; LEAF SPR,RR ASM PART: A = 8-98191-638-0, B = 8-98270-824-0	8-98202-886-1	10	1	-
