◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11523 - LV152/452(LHD) EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#123945) — 57 parça

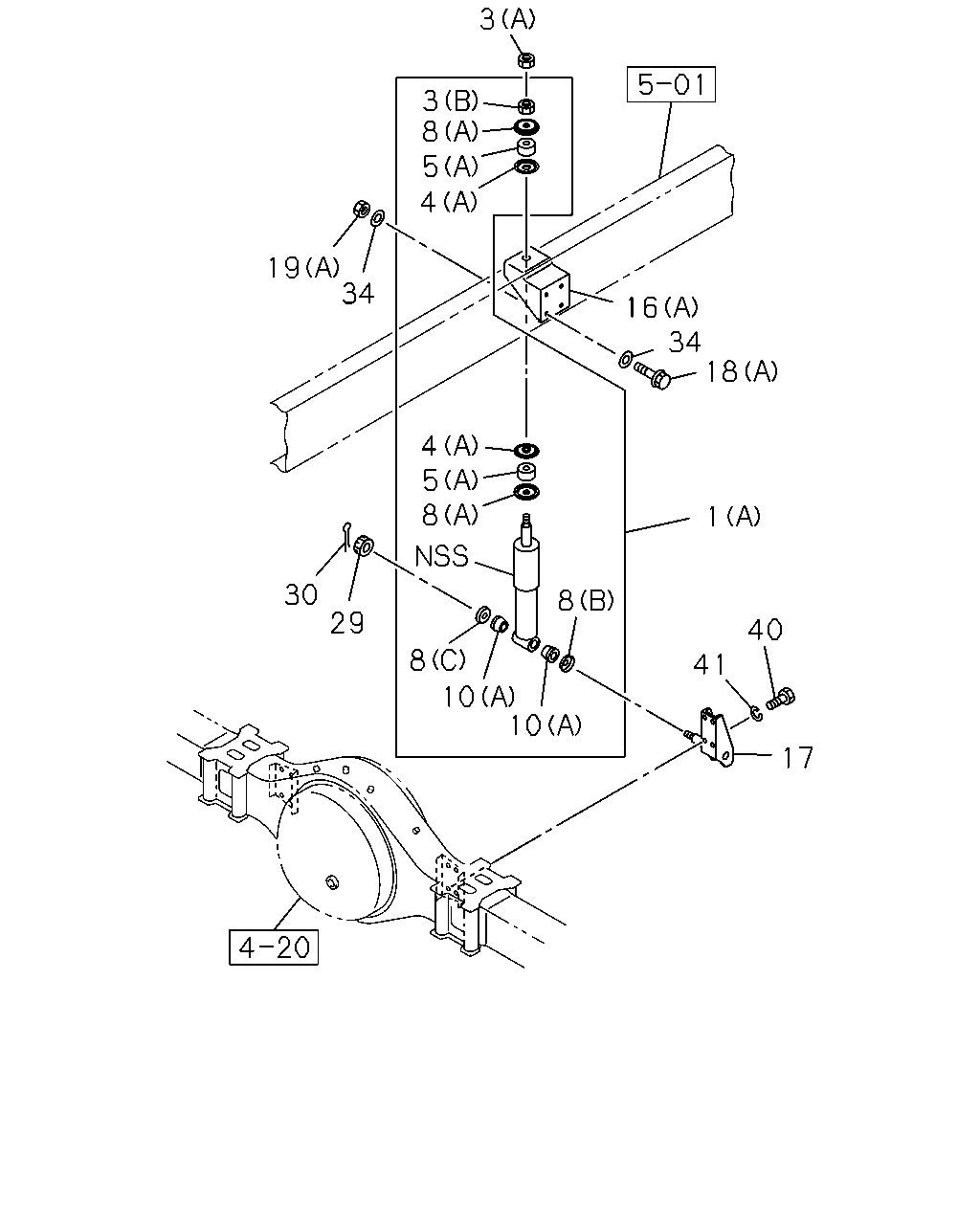

çizim 364756
3 3 34 8 5 4 19 30 29 8 10 10 4 5 8 41 17 8 1 40 18 34 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 ABSORBER ASM; SHOCK,RR
(B) 		1-51630-764-1 04 1 1312- ●
1 ABSORBER ASM; SHOCK,RR
(A) 		8-98221-184-0 02 1 1307- ●
3 NUT; S/ABS
(A) M18 		0-91111-518-0 08 1 1312- ●
3 NUT; S/ABS
(B) M18 		9-99111-418-0 04 1 1312- ●
3 NUT; S/ABS
(A) M18 		0-91111-518-0 02 1 1307- ●
3 NUT; S/ABS
(B) M18 		9-99111-418-0 02 1 1307- ●
4 WASHER; CENTER,S/ABS
(B) ID=24.4 OD=74 T=2.3 		9-51631-045-0 08 1 1312- ●
4 WASHER; CENTER,S/ABS
(A) 		1-51631-072-0 04 1 1307- ●
5 BUSHING; RUBBER,S/ABS,UPR
(B) 		9-51631-043-0 08 1 1312- ●
5 BUSHING; RUBBER,S/ABS,UPR
(A) 		1-51631-073-0 04 1 1307- ●
8 WASHER; S/ABS
(C) ID=20.5 OD=74 T=6 		9-51631-044-0 08 1 1312- ●
8 WASHER; S/ABS
(A) 		1-51631-071-0 04 1 1307- ●
8 WASHER; S/ABS
(B) 		1-51631-074-0 02 1 1307- ●
8 WASHER; S/ABS
(C) 		1-51631-075-0 02 1 1307- ●
10 BUSHING; RUBBER,S/ABS
(B) 		9-51631-043-0 08 1 1312- ●
10 BUSHING; RUBBER,S/ABS
(A) 		1-51631-076-0 04 1 1307- ●
16 BRACKET; S/ABS,RR
(B) 		1-52175-017-0 04 1 1312- ●
16 BRACKET; S/ABS,RR
(A) 		8-98191-247-0 02 1 1307- ●
17 BRACKET; S/ABS LWR 8-98226-234-0 01 1 1307- ●
17 BRACKET; S/ABS LWR 8-98226-233-0 01 1 1307- ●
18 BOLT; S/ABS BRKT
(C) M18X78 		1-09000-574-0 08 1 1312- ●
18 BOLT; S/ABS BRKT
(B) M18X75 		8-98012-872-0 08 1 1312- ●
18 BOLT; S/ABS BRKT
(A) M14X45 		0-20951-445-0 08 1 1307- ●
19 NUT; S/ABS BRKT
(B) M18 		0-91110-518-0 08 1 1312- ●
19 NUT; S/ABS BRKT
(A) M14 		0-91110-514-0 08 1 1307- ●
29 NUT; LK,S/ABS,RR SUSP
M24 		9-99116-424-0 02 1 1307- ●
30 PIN; SPLIT,S/ABS,RR SUSP
OD=4.6 L=45 		0-81125-045-0 02 1 1307- ●
34 WASHER; LK,S/ABS BRKT
ID=15 		8-98010-627-1 16 1 1307- ●
40 BOLT; LWR BRKT
M14X30 		0-20851-430-0 08 1 1307- ●
41 WASHER; LK
ID=14.2 		0-91510-614-0 08 1 1307- ●

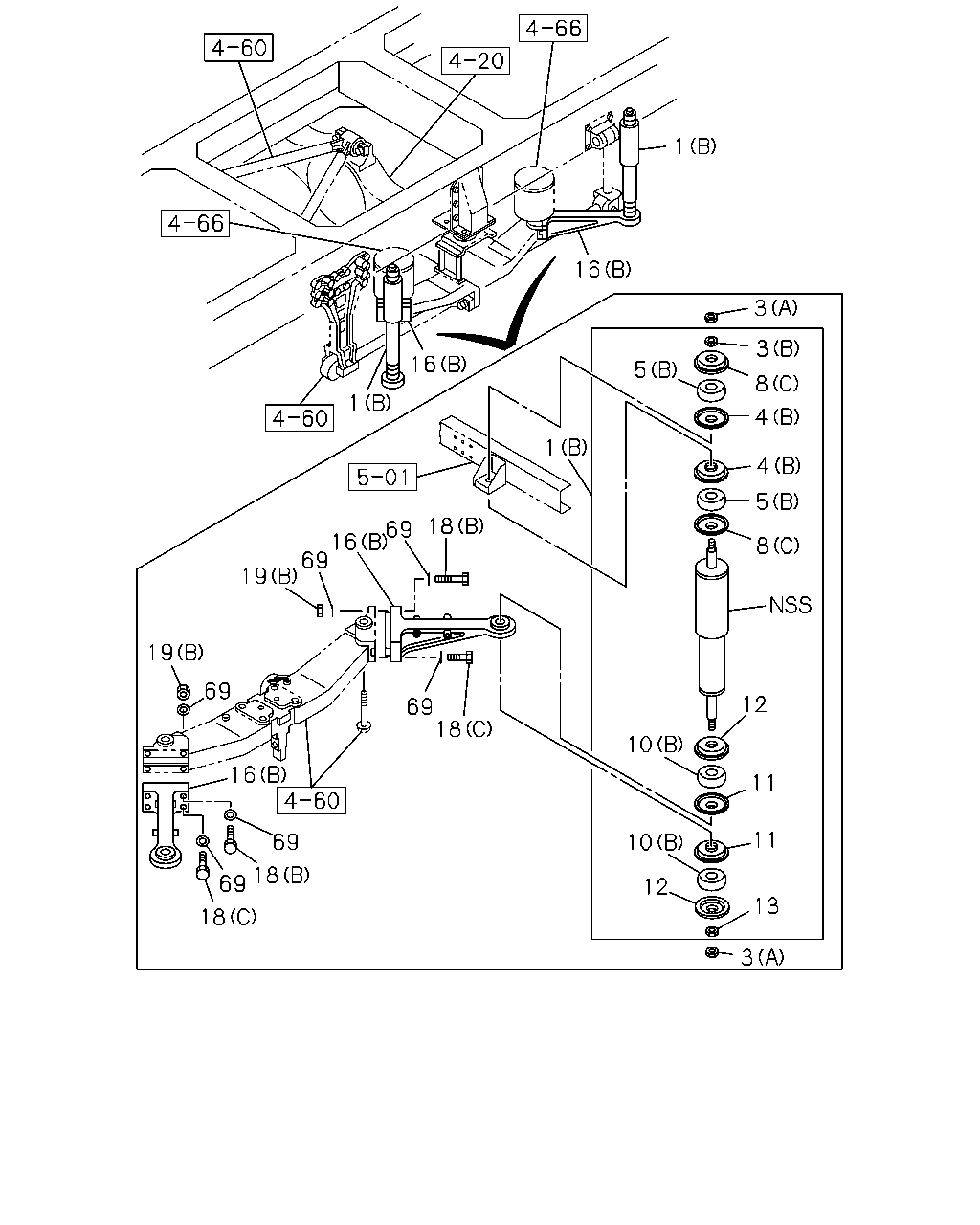

çizim 389220
11 11 13 3 12 10 10 12 8 5 4 4 8 3 3 1 16 5 1 16 1 18 69 16 69 19 19 69 69 18 69 16 18 69 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 ABSORBER ASM; SHOCK,RR
(B) 		1-51630-764-1 04 1 1312- ●
1 ABSORBER ASM; SHOCK,RR
(A) 		8-98221-184-0 02 1 1307- ●
3 NUT; S/ABS
(A) M18 		0-91111-518-0 08 1 1312- ●
3 NUT; S/ABS
(B) M18 		9-99111-418-0 04 1 1312- ●
3 NUT; S/ABS
(A) M18 		0-91111-518-0 02 1 1307- ●
3 NUT; S/ABS
(B) M18 		9-99111-418-0 02 1 1307- ●
4 WASHER; CENTER,S/ABS
(B) ID=24.4 OD=74 T=2.3 		9-51631-045-0 08 1 1312- ●
4 WASHER; CENTER,S/ABS
(A) 		1-51631-072-0 04 1 1307- ●
5 BUSHING; RUBBER,S/ABS,UPR
(B) 		9-51631-043-0 08 1 1312- ●
5 BUSHING; RUBBER,S/ABS,UPR
(A) 		1-51631-073-0 04 1 1307- ●
8 WASHER; S/ABS
(C) ID=20.5 OD=74 T=6 		9-51631-044-0 08 1 1312- ●
8 WASHER; S/ABS
(A) 		1-51631-071-0 04 1 1307- ●
8 WASHER; S/ABS
(B) 		1-51631-074-0 02 1 1307- ●
8 WASHER; S/ABS
(C) 		1-51631-075-0 02 1 1307- ●
10 BUSHING; RUBBER,S/ABS
(B) 		9-51631-043-0 08 1 1312- ●
10 BUSHING; RUBBER,S/ABS
(A) 		1-51631-076-0 04 1 1307- ●
11 WASHER; CENTER,LWR,RR S/ABS
ID=24.4 OD=74 T=2.3 		9-51631-045-0 08 1 1312- ●
12 WASHER; S/ABS TO RR AXLE
ID=20.5 OD=74 T=6 		9-51631-044-0 08 1 1312- ●
13 NUT; LWR,RR S/ABS
M18 		9-99111-418-0 04 1 1312- ●
16 BRACKET; S/ABS,RR
(B) 		1-52175-017-0 04 1 1312- ●
16 BRACKET; S/ABS,RR
(A) 		8-98191-247-0 02 1 1307- ●
18 BOLT; S/ABS BRKT
(C) M18X78 		1-09000-574-0 08 1 1312- ●
18 BOLT; S/ABS BRKT
(B) M18X75 		8-98012-872-0 08 1 1312- ●
18 BOLT; S/ABS BRKT
(A) M14X45 		0-20951-445-0 08 1 1307- ●
19 NUT; S/ABS BRKT
(B) M18 		0-91110-518-0 08 1 1312- ●
19 NUT; S/ABS BRKT
(A) M14 		0-91110-514-0 08 1 1307- ●
69 WASHER; PL
ID=18.5 OD=32 T=4 		1-09503-255-0 24 1 1312- ●
