4-55 — FRONT LEAF SPRING (#123943) — 15 parça

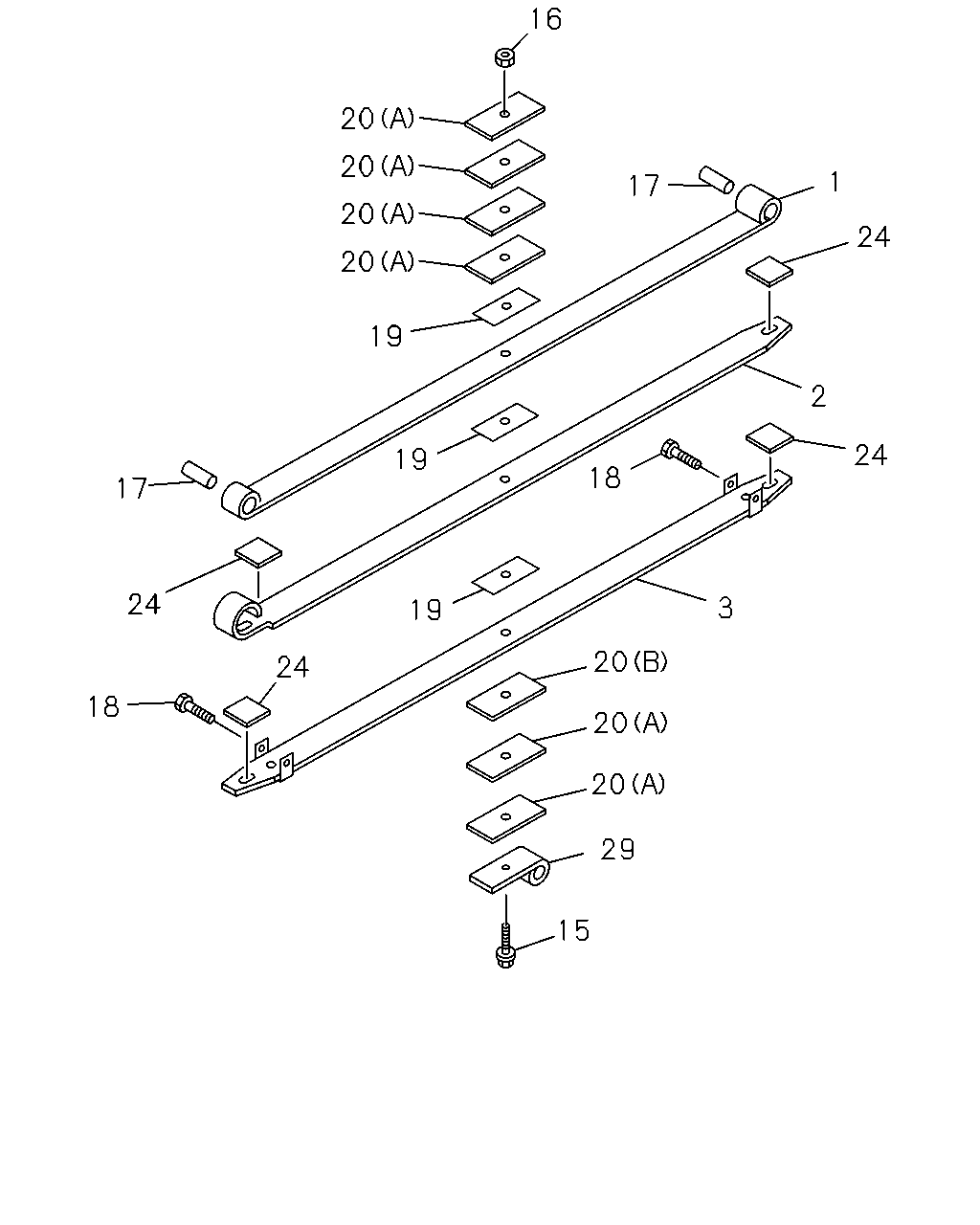

çizim 364727
20 20 20 20 19 19 18 20 20 20 29 15 19 24 24 17 18 24 2 3 17 1 24 16
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98221-145-0 		8-98229-421-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98270-823-0 		8-98281-768-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98221-145-0 		8-98229-422-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98270-823-0 		8-98281-769-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98221-145-0 		8-98229-423-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-98270-823-0 		8-98281-770-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=170 ASM PART: A = 8-98221-145-0, B = 8-98270-823-0 		8-98229-424-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 8-98221-145-0, B = 8-98270-823-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
ASM PART: A = 8-98221-145-0, B = 8-98270-823-0 		9-51351-018-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X103 ASM PART: A = 8-98221-145-0, B = 8-98270-823-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
ASM PART: A = 8-98221-145-0, B = 8-98270-823-0 		8-98229-425-0 03 1 -
20 SEAT; LEAF SPR,FRT
(A) ASM PART: A = 8-98221-145-0, B = 8-98270-823-0 		8-98229-426-0 06 1 -
20 SEAT; LEAF SPR,FRT
(B) ASM PART: A = 8-98221-145-0, B = 8-98270-823-0 		8-98229-427-0 01 1 -
24 LINER; LEAF SPR,FWD FRT
ASM PART: A = 8-98221-145-0, B = 8-98270-823-0 		8-98202-886-1 04 1 -
29 SUPPORTER; LEAF SPR,FRT
ASM PART: A = 8-98221-145-0, B = 8-98270-823-0 		1-51681-832-0 01 1 -
