4-36 — POWER STEERING CONTROL; ENGINE SIDE (#123939) — 47 parça

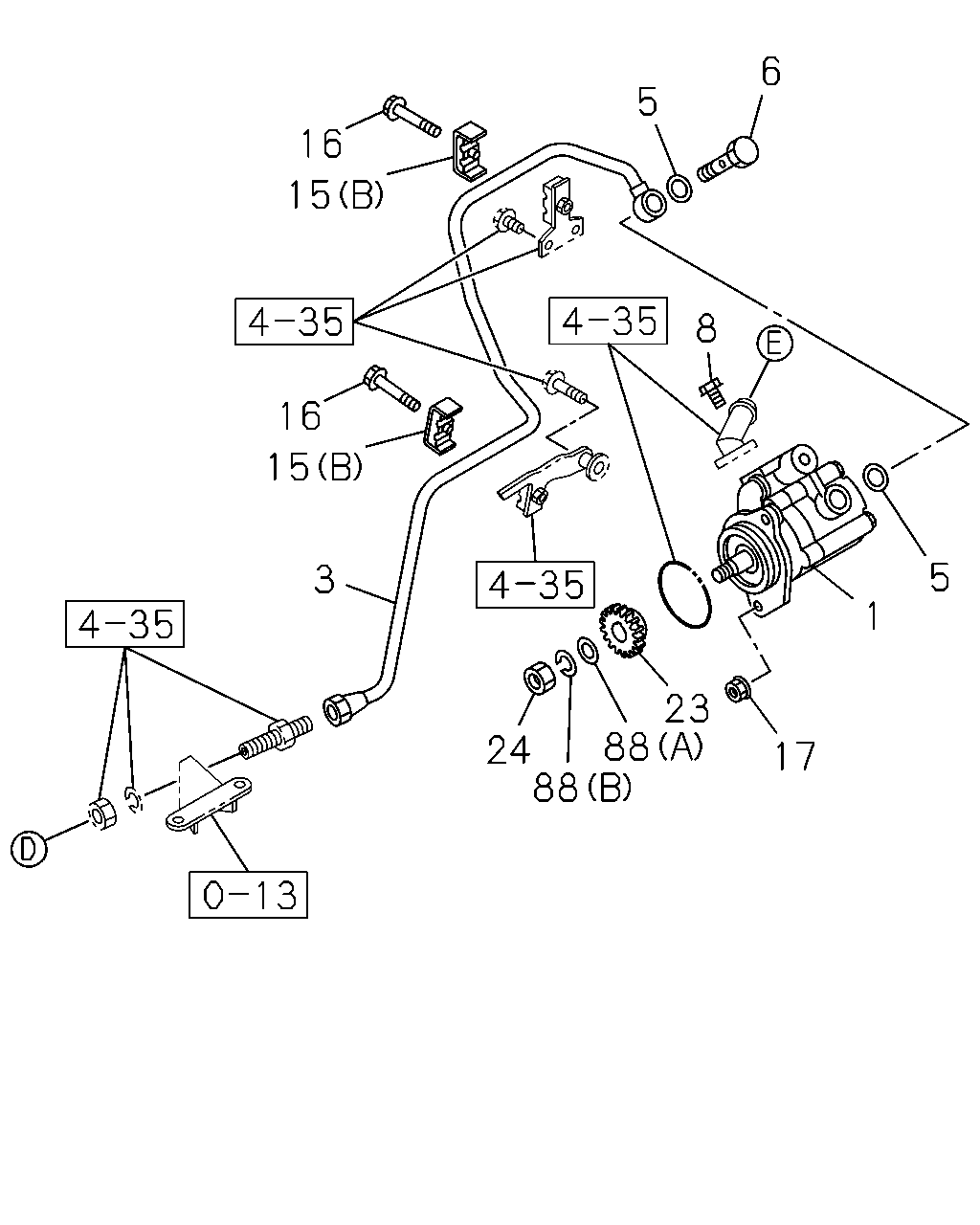

çizim 364570
17 1 5 8 5 6 15 16 16 3 24 88 23 88 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-447-3 01 1 1307-1311 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-447-3 01 1 1312-1402 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-447-3 01 1 1403- ● ●
3 PIPE; OIL,CHARGE,P/S 8-98195-247-0 01 1 1307-1311 ●
3 PIPE; OIL,CHARGE,P/S 8-98195-247-0 01 1 1312-1402 ● ●
3 PIPE; OIL,CHARGE,P/S 8-98195-247-0 01 1 1403- ● ●
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4 		1-09630-087-0 02 1 1307-1311 ●
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4 		1-09630-087-0 02 1 1312-1402 ● ●
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4 		1-09630-087-0 02 1 1403- ● ●
6 BOLT; EYE,P/S PIPE
M18X36 		1-09675-205-0 01 1 1307-1311 ●
6 BOLT; EYE,P/S PIPE
M18X36 		1-09675-205-0 01 1 1312-1402 ● ●
6 BOLT; EYE,P/S PIPE
M18X36 		1-09675-205-0 01 1 1403- ● ●
8 BOLT; OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1307-1311 ●
8 BOLT; OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1312-1402 ● ●
8 BOLT; OIL PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1403- ● ●
15 CLIP; OIL PIPE SUCTION
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 03 1 1307-1311 ●
15 CLIP; OIL PIPE SUCTION
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 03 1 1312- ● ●
15 CLIP; OIL PIPE SUCTION
(B) 		1-09701-195-3 02 1 1307-1311 ●
15 CLIP; OIL PIPE SUCTION
(B) 		1-09701-195-3 02 1 1312-1402 ● ●
15 CLIP; OIL PIPE SUCTION
(B) 		1-09701-195-3 02 1 1403- ● ●
16 BOLT; STAY,P/S OIL PUMP
M6X35 FLANGE 		0-28650-635-0 02 1 1307-1311 ●
16 BOLT; STAY,P/S OIL PUMP
M6X35 FLANGE 		0-28650-635-0 02 1 1312-1402 ● ●
16 BOLT; STAY,P/S OIL PUMP
M6X35 FLANGE 		0-28650-635-0 02 1 1403- ● ●
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91180-110-0 02 1 1307-1311 ●
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91180-110-0 02 1 1312-1402 ● ●
17 NUT; POWER STRG PUMP
M10 FLANGE 		0-91180-110-0 02 1 1403- ● ●
23 GEAR; OIL PUMP
Z=20 		1-19581-041-0 01 1 1307-1311 ●
23 GEAR; OIL PUMP
Z=20 		1-19581-041-0 01 1 1312-1402 ● ●
23 GEAR; OIL PUMP
Z=20 		1-19581-041-0 01 1 1403- ● ●
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 1307-1311 ●
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 1312-1402 ● ●
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 1403- ● ●
88 WASHER; GEAR,P/S PUMP
(A) 		1-19519-293-0 01 1 1307-1311 ●
88 WASHER; GEAR,P/S PUMP
(A) 		1-19519-293-0 01 1 1312-1402 ● ●
88 WASHER; GEAR,P/S PUMP
(A) 		1-19519-293-0 01 1 1403- ● ●
88 WASHER; GEAR,P/S PUMP
(B) 		9-09150-016-0 01 1 1307-1311 ●
88 WASHER; GEAR,P/S PUMP
(B) 		9-09150-016-0 01 1 1312-1402 ● ●
88 WASHER; GEAR,P/S PUMP
(B) 		9-09150-016-0 01 1 1403- ● ●

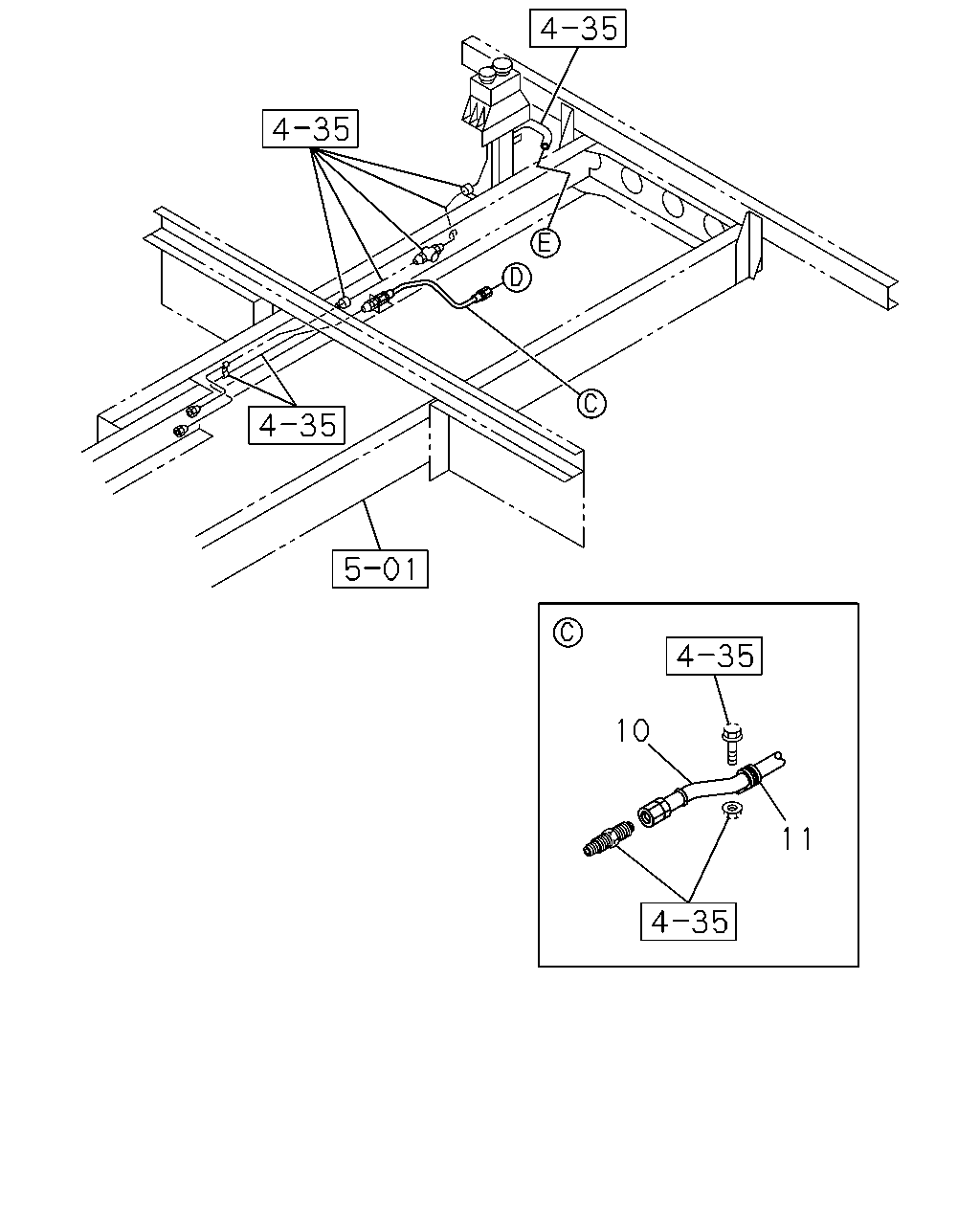

çizim 365846
11 10
BalonParca AdiParca NoAdetTipApplied Date A B
10 HOSE; FLEX,P/S OIL PUMP,INL
L=520 		8-98072-097-0 01 1 1307-1311 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=520 		8-98072-097-0 01 1 1312- ● ●
11 CLIP; FLEX HOSE
ID=25 H=30 L=35 		1-09700-875-0 01 1 1307-1311 ●
11 CLIP; FLEX HOSE
ID=25 H=30 L=35 		1-09700-875-0 01 1 1312- ● ●

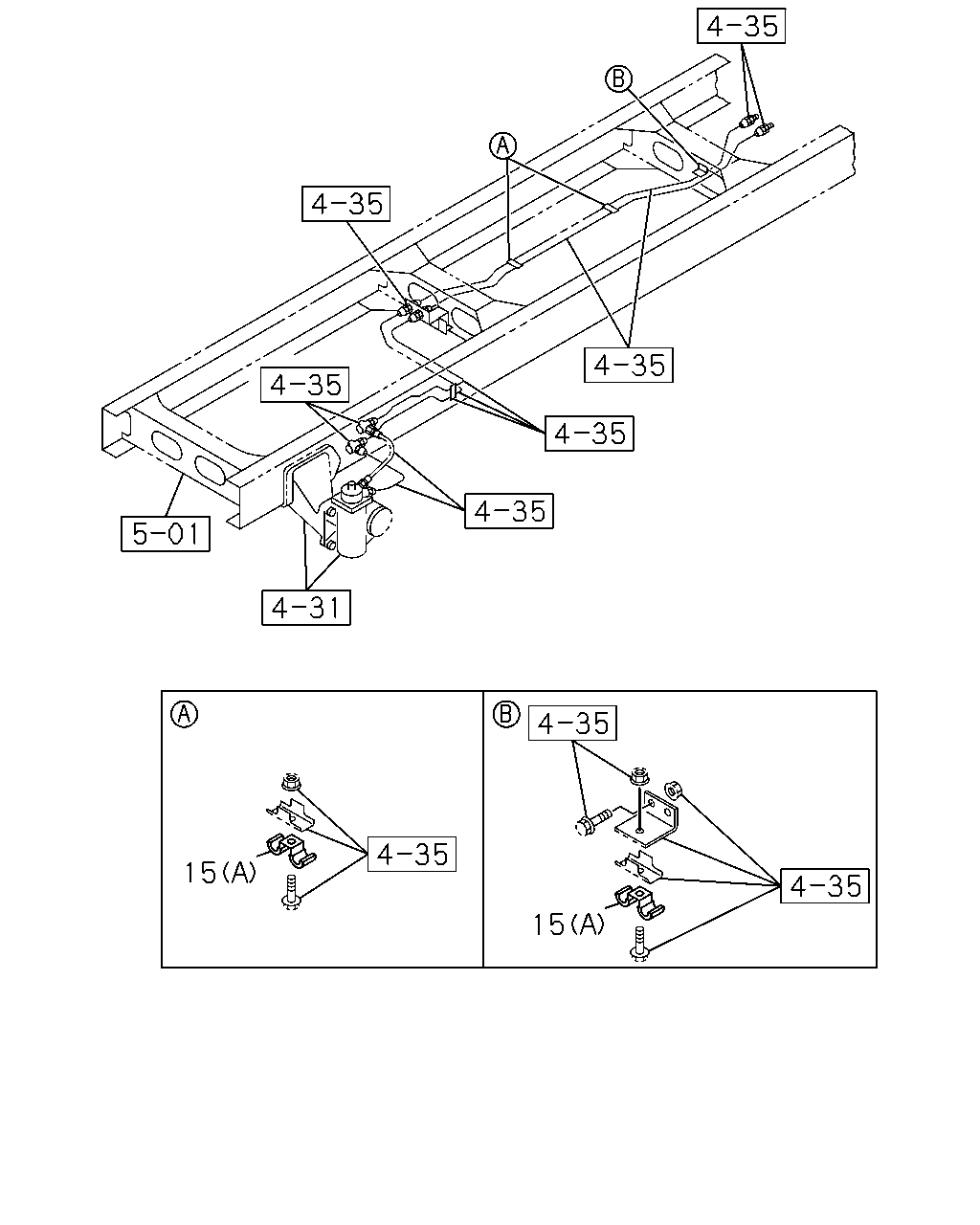

çizim 366742
15 15
BalonParca AdiParca NoAdetTipApplied Date A B
15 CLIP; OIL PIPE SUCTION
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 03 1 1307-1311 ●
15 CLIP; OIL PIPE SUCTION
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 03 1 1312- ● ●
15 CLIP; OIL PIPE SUCTION
(B) 		1-09701-195-3 02 1 1307-1311 ●
15 CLIP; OIL PIPE SUCTION
(B) 		1-09701-195-3 02 1 1312-1402 ● ●
15 CLIP; OIL PIPE SUCTION
(B) 		1-09701-195-3 02 1 1403- ● ●
