◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11523 - LV152/452(LHD) EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#123937) — 66 parça

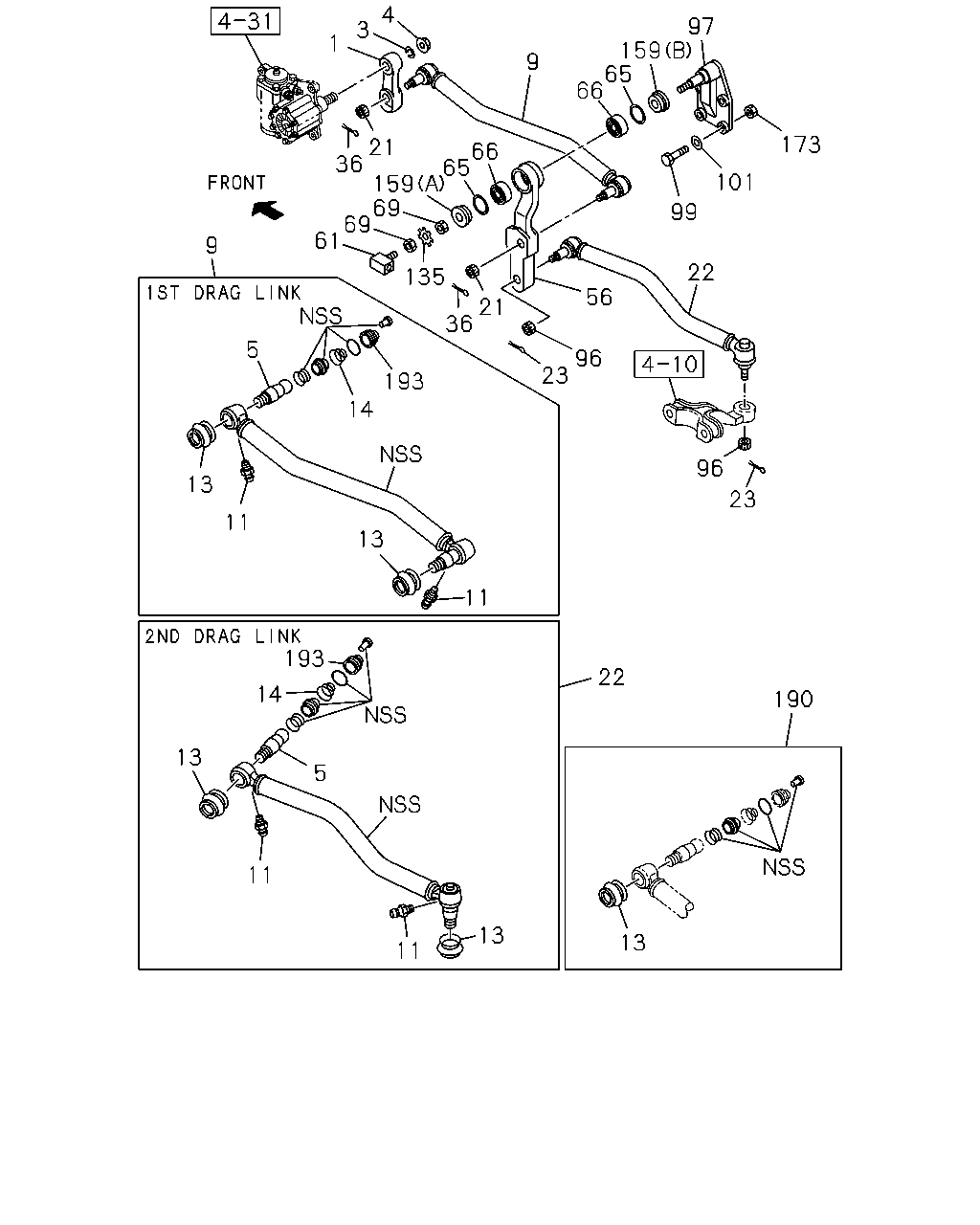

çizim 365757
4 3 1 21 36 9 5 13 11 13 11 14 193 193 14 13 11 5 11 13 13 190 22 23 96 23 96 56 22 99 101 173 97 159 65 66 9 66 65 159 69 69 61 135 36 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; PITMAN,STRG 8-98191-325-0 01 1 1307-1311 ●
1 ARM; PITMAN,STRG 8-98191-325-0 01 1 1312- ● ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 1307-1311 ●
3 WASHER; LK,PITMAN ARM
ID=36.5 		1-09500-021-0 01 1 1312- ● ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-098-0 01 1 1307-1311 ●
4 NUT; PITMAN ARM
M36 FLANGE 		1-09440-098-0 01 1 1312- ● ●
5 BALL; JOINT,DRAG LINK 1-44361-105-1 02 1 1307-1311 ●
5 BALL; JOINT,DRAG LINK 1-44361-105-1 02 1 1307-1311 ●
5 BALL; JOINT,DRAG LINK 1-44361-105-1 02 1 1312- ● ●
5 BALL; JOINT,DRAG LINK 1-44361-105-1 02 1 1312- ● ●
9 LINK; DRAG 8-98098-102-1 01 1 1307-1311 ●
9 LINK; DRAG 8-98098-102-1 01 1 1312- ● ●
11 NIPPLE; GREASE,DRAG LINK 1-43159-132-0 02 1 1307-1311 ●
11 NIPPLE; GREASE,DRAG LINK 1-43159-132-0 02 1 1307-1311 ●
11 NIPPLE; GREASE,DRAG LINK 1-43159-132-0 02 1 1312- ● ●
11 NIPPLE; GREASE,DRAG LINK 1-43159-132-0 02 1 1312- ● ●
13 BOOT; DRAG LINK 1-43159-131-0 02 1 1307-1311 ●
13 BOOT; DRAG LINK 1-43159-131-0 02 1 1312- ● ●
14 SPRING; COIL,DRAG LINK 1-43159-129-0 02 1 1307-1311 ●
14 SPRING; COIL,DRAG LINK 1-43159-129-0 02 1 1307-1311 ●
14 SPRING; COIL,DRAG LINK 1-43159-129-0 02 1 1312- ● ●
14 SPRING; COIL,DRAG LINK 1-43159-129-0 02 1 1312- ● ●
21 NUT; LK,JOINT BALL
M24 		1-09442-032-0 02 1 1307-1311 ●
21 NUT; LK,JOINT BALL
M24 		1-09442-032-0 02 1 1312- ● ●
22 LINK; DRAG,2ND
BUS BODY REAR OVERHANG<YK4> 		8-98276-826-0 01 1 1403- ●
22 LINK; DRAG,2ND 8-98197-993-0 01 1 1312- ●
22 LINK; DRAG,2ND 8-98191-262-0 01 1 1307-1402 ●
22 LINK; DRAG,2ND
EXC. BUS BODY REAR OVERHANG<YK4> 		8-98191-262-0 01 1 1403- ●
23 PIN; SPLIT DRAG LINK 3RD
OD=4.6 L=35 		0-81125-035-0 02 1 1307-1311 ●
23 PIN; SPLIT DRAG LINK 3RD
OD=4.6 L=35 		0-81125-035-0 02 1 1312- ● ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 02 1 1307-1311 ●
36 PIN; SPLIT,DRAG LINK
OD=4.6 L=35 		0-81125-035-0 02 1 1312- ● ●
56 ARM; LINK,FRT,W/JOINT BALL 8-98221-075-0 01 1 1307-1311 ●
56 ARM; LINK,FRT,W/JOINT BALL 8-98221-075-0 01 1 1312- ● ●
61 NIPPLE; PIN LINK ARM
PT1/8 ELBOW 		0-90301-610-0 01 1 1307-1311 ●
61 NIPPLE; PIN LINK ARM
PT1/8 ELBOW 		0-90301-610-0 01 1 1312- ● ●
65 SEAL; DUST,LINK ARM 9-44349-040-1 02 1 1307-1311 ●
65 SEAL; DUST,LINK ARM 9-44349-040-1 02 1 1312- ● ●
66 BEARING; LINK ARM 9-00030-207-0 02 1 1307-1311 ●
66 BEARING; LINK ARM 9-00030-207-0 02 1 1312- ● ●
69 NUT; LINK ARM
M24 		9-09840-264-0 02 1 1307-1311 ●
69 NUT; LINK ARM
M24 		9-09840-264-0 02 1 1312- ● ●
96 NUT; LINK ARM
M24 		1-09442-032-0 02 1 1307-1311 ●
96 NUT; LINK ARM
M24 		1-09442-032-0 02 1 1312- ● ●
97 BRACKET; LINK ARM 1-44348-078-1 01 1 1307-1311 ●
97 BRACKET; LINK ARM 1-44348-078-1 01 1 1312- ● ●
99 BOLT; BRKT
M14X55 		0-20951-455-0 04 1 1307-1311 ●
99 BOLT; BRKT
M14X55 		0-20951-455-0 04 1 1312- ● ●
101 WASHER; PL,BRKT
ID=14.2 		1-09503-050-0 08 1 1307-1311 ●
101 WASHER; PL,BRKT
ID=14.2 		1-09503-050-0 08 1 1312- ● ●
135 WASHER; LK,PIN SET,LINK ARM 9-09853-842-0 01 1 1307-1311 ●
135 WASHER; LK,PIN SET,LINK ARM 9-09853-842-0 01 1 1312- ● ●
159 WASHER; LINK ARM
(A) ID=24 T=8 		9-44349-039-0 01 1 1307-1311 ●
159 WASHER; LINK ARM
(A) ID=24 T=8 		9-44349-039-0 01 1 1312- ● ●
159 WASHER; LINK ARM
(B) ID=35 T=9 		9-44349-046-0 01 1 1307-1311 ●
159 WASHER; LINK ARM
(B) ID=35 T=9 		9-44349-046-0 01 1 1312- ● ●
173 NUT; BRKT,LINK ASM
M14 		0-91110-514-0 04 1 1307-1311 ●
173 NUT; BRKT,LINK ASM
M14 		0-91110-514-0 04 1 1312- ● ●
190 REPAIR KIT; DRAG LINK 1-85574-089-0 02 1 1307-1311 ●
190 REPAIR KIT; DRAG LINK 1-85574-089-0 02 1 1307-1311 ●
190 REPAIR KIT; DRAG LINK 1-85574-089-0 02 1 1312- ● ●
190 REPAIR KIT; DRAG LINK 1-85574-089-0 02 1 1312- ● ●
193 PLUG; END,DRAG LINK 1-43159-130-0 02 1 1307-1311 ●
193 PLUG; END,DRAG LINK 1-43159-130-0 02 1 1307-1311 ●
193 PLUG; END,DRAG LINK 1-43159-130-0 02 1 1312- ● ●
193 PLUG; END,DRAG LINK 1-43159-130-0 02 1 1312- ● ●
