◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11523 - LV152/452(LHD) EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#123936) — 64 parça

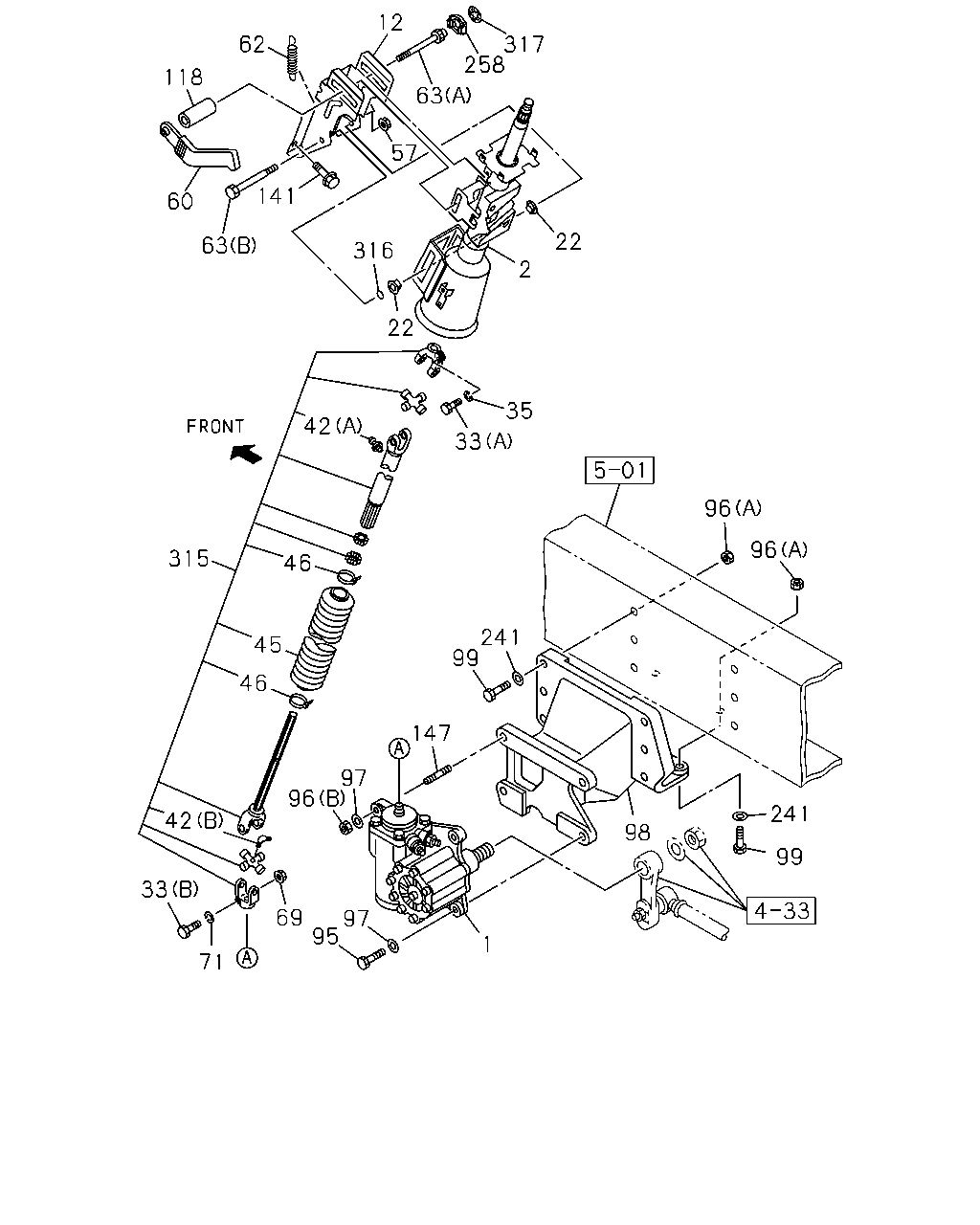

çizim 365721
12 317 258 63 57 62 118 60 63 141 316 22 2 22 42 35 33 46 45 315 46 42 33 71 69 95 97 1 96 97 147 99 241 96 96 241 99 98
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-98136-963-2 01 1 1307-1311 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-98136-963-2 01 1 1312- ● ●
2 SHAFT ASM; STRG 1-44130-689-1 01 1 1307-1311 ●
2 SHAFT ASM; STRG 1-44130-689-1 01 1 1312- ● ●
12 BRACKET; LWR,STRG COLUMN 1-44227-167-0 01 1 1307-1311 ●
12 BRACKET; LWR,STRG COLUMN 1-44227-167-0 01 1 1312- ● ●
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 1307-1311 ●
22 BUSHING; STRG COLUMN 1-44227-150-0 02 1 1312- ● ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-786-0 01 1 1307-1311 ●
33 BOLT; STRG SHAFT TO UNIT
(B) M10X50 		1-09000-786-0 01 1 1312- ● ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 1307-1311 ●
33 BOLT; STRG SHAFT TO UNIT
(A) 		1-44139-153-0 01 1 1312- ● ●
35 WASHER; LK,STRG SHAFT 1-44139-154-0 01 1 1307-1311 ●
35 WASHER; LK,STRG SHAFT 1-44139-154-0 01 1 1312- ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(A) 		1-44135-375-0 01 1 1307-1311 ●
42 NIPPLE; GREASE,SLEEVE YOKE
(A) 		1-44135-375-0 01 1 1312- ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) 		1-44135-376-0 01 1 1307-1311 ●
42 NIPPLE; GREASE,SLEEVE YOKE
(B) 		1-44135-376-0 01 1 1312- ● ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 1307-1311 ●
45 BOOT; STRG SHAFT 1-44139-155-0 01 1 1312- ● ●
46 CLIP; BOOT 1-44139-156-0 02 1 1307-1311 ●
46 CLIP; BOOT 1-44139-156-0 02 1 1312- ● ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 1307-1311 ●
57 NUT; ADJ BOLT 1-44227-151-0 01 1 1312- ● ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 1307-1311 ●
60 LEVER; ADJ,STRG COLUMN 1-44227-144-0 01 1 1312- ● ●
62 SPRING; LK,LEVER 1-44227-153-0 01 1 1307-1311 ●
62 SPRING; LK,LEVER 1-44227-153-0 01 1 1312- ● ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 1307-1311 ●
63 BOLT; ADJ LEVER,TILT STRG
(A) 		1-44227-145-0 01 1 1312- ● ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 1307-1311 ●
63 BOLT; ADJ LEVER,TILT STRG
(B) 		1-44227-149-0 01 1 1312- ● ●
69 NUT; TILT CENTER
M10 		0-91110-510-0 01 1 1307-1311 ●
69 NUT; TILT CENTER
M10 		0-91110-510-0 01 1 1312- ● ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 1307-1311 ●
71 WASHER; LK,SHAFT TO UNIT
ID=10.2 		0-91510-810-0 01 1 1312- ● ●
95 BOLT; STRG UNIT
M18X65 		1-09000-789-0 03 1 1307-1311 ●
95 BOLT; STRG UNIT
M18X65 		1-09000-789-0 03 1 1312- ● ●
96 NUT; STRG UNIT
(A) M16 		0-91110-516-0 08 1 1307-1311 ●
96 NUT; STRG UNIT
(A) M16 		0-91110-516-0 08 1 1312- ● ●
96 NUT; STRG UNIT
(B) M18 		0-91110-518-0 01 1 1307-1311 ●
96 NUT; STRG UNIT
(B) M18 		0-91110-518-0 01 1 1312- ● ●
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 1307-1311 ●
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 1312- ● ●
98 BRACKET; STRG GEAR BOX 1-44226-172-1 01 1 1307-1311 ●
98 BRACKET; STRG GEAR BOX 1-44226-172-1 01 1 1312- ● ●
99 BOLT; BRKT TO FRAME
M16X55 		1-09000-480-0 08 1 1307-1311 ●
99 BOLT; BRKT TO FRAME
M16X55 		1-09000-480-0 08 1 1312- ● ●
118 NUT; LEVER,TILT BOLT 1-44227-163-0 01 1 1307-1311 ●
118 NUT; LEVER,TILT BOLT 1-44227-163-0 01 1 1312- ● ●
141 BOLT; BRKT TO STRG COLUMN
M8X16 FLANGE 		0-28050-816-0 04 1 1307-1311 ●
141 BOLT; BRKT TO STRG COLUMN
M8X16 FLANGE 		0-28050-816-0 04 1 1312- ● ●
147 STUD; STRG UNIT
M18X49 L=76 		1-09300-107-0 01 1 1307-1311 ●
147 STUD; STRG UNIT
M18X49 L=76 		1-09300-107-0 01 1 1312- ● ●
241 WASHER; PL
ID=16.2 		1-09503-316-0 16 1 1307-1311 ●
241 WASHER; PL
ID=16.2 		1-09503-316-0 16 1 1312- ● ●
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 1307-1311 ●
258 STOPPER; STRG COLUMN,TILT & TELESCOPIC 1-44227-147-0 01 1 1312- ● ●
315 JOINT; SPLINE 1-44135-377-0 01 1 1307-1311 ●
315 JOINT; SPLINE 1-44135-377-0 01 1 1312- ● ●
316 RING 1-44227-152-0 01 1 1307-1311 ●
316 RING 1-44227-152-0 01 1 1312- ● ●
317 NUT; PUSH 1-44227-148-0 01 1 1307-1311 ●
317 NUT; PUSH 1-44227-148-0 01 1 1312- ● ●
