4-30 — STEERING WHEEL AND COWL (#123935) — 40 parça

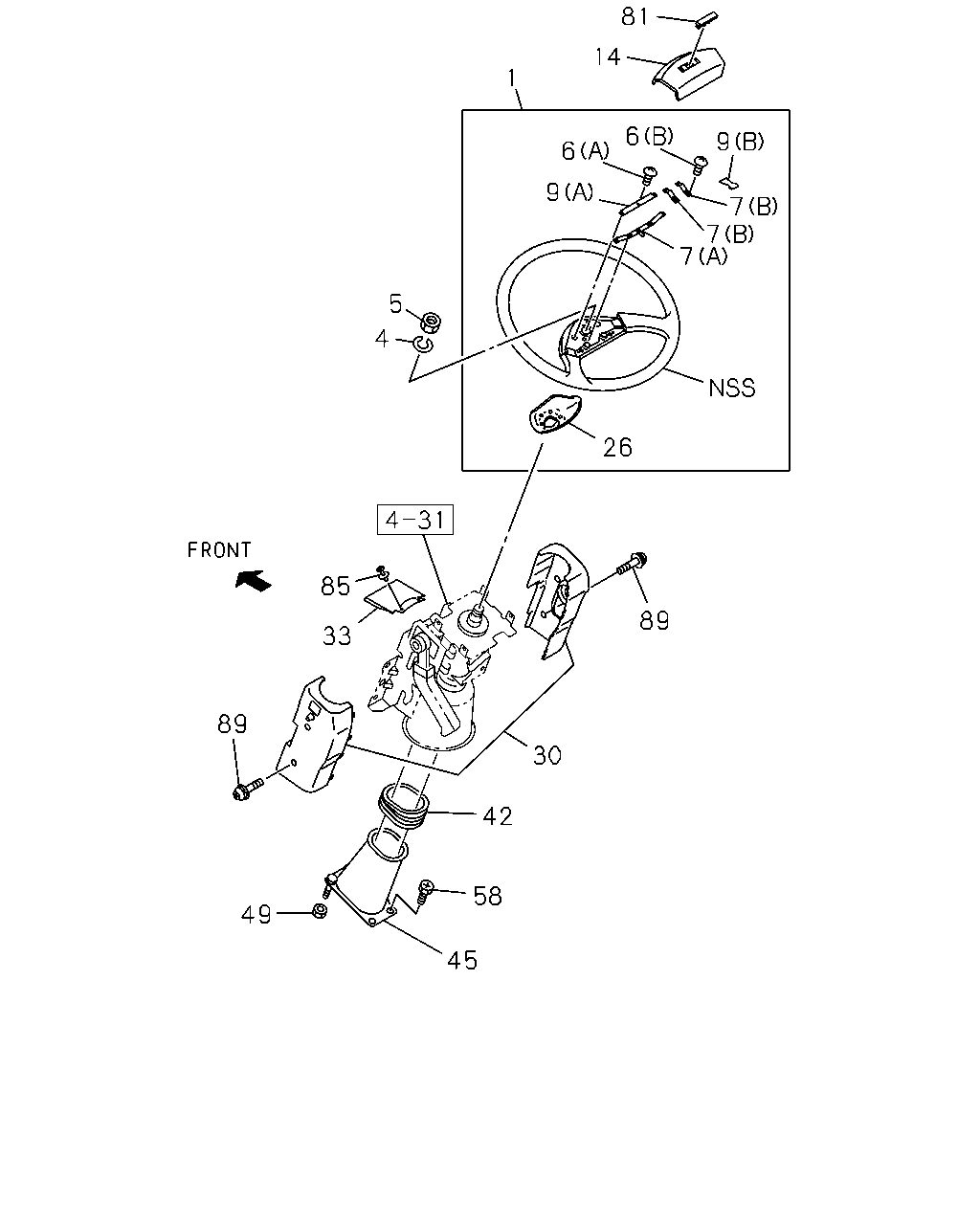

çizim 364555
81 1 6 9 14 6 9 7 7 7 5 4 26 85 33 30 42 58 45 49 89 89
BalonParca AdiParca NoAdetTipApplied Date A B
1 WHEEL; STRG 1-44110-156-1 01 1 1307-1311 ●
1 WHEEL; STRG 1-44110-156-1 01 1 1312- ● ●
4 WASHER; LK,STRG WHEEL
ID=20.2 		0-91510-620-0 01 1 1307-1311 ●
4 WASHER; LK,STRG WHEEL
ID=20.2 		0-91510-620-0 01 1 1312- ● ●
5 NUT; STRG WHEEL TO SHAFT
M20 		0-91111-520-0 01 1 1307-1311 ●
5 NUT; STRG WHEEL TO SHAFT
M20 		0-91111-520-0 01 1 1312- ● ●
6 SCREW; HORN SPR CONTACT
(B) M4X16 		1-44129-036-0 04 1 1307-1311 ●
6 SCREW; HORN SPR CONTACT
(B) M4X16 		1-44129-036-0 04 1 1312- ● ●
6 SCREW; HORN SPR CONTACT
(A) M5X10 		1-44129-049-0 01 1 1307-1311 ●
6 SCREW; HORN SPR CONTACT
(A) M5X10 		1-44129-049-0 01 1 1312- ● ●
7 SPRING; HORN CONTACT
(B) 		1-44129-033-0 02 1 1307-1311 ●
7 SPRING; HORN CONTACT
(B) 		1-44129-033-0 02 1 1312- ● ●
7 SPRING; HORN CONTACT
(A) 		1-44129-060-0 01 1 1307-1311 ●
7 SPRING; HORN CONTACT
(A) 		1-44129-060-0 01 1 1312- ● ●
9 PLATE; HORN CONTACT
(B) 		1-44129-048-0 02 1 1307-1311 ●
9 PLATE; HORN CONTACT
(B) 		1-44129-048-0 02 1 1312- ● ●
9 PLATE; HORN CONTACT
(A) 		1-44129-059-0 01 1 1307-1311 ●
9 PLATE; HORN CONTACT
(A) 		1-44129-059-0 01 1 1312- ● ●
14 BUTTON; HORN,STRG WHEEL 1-44120-045-2 01 1 1307-1311 ●
14 BUTTON; HORN,STRG WHEEL 1-44120-045-2 01 1 1312- ● ●
26 COVER; STRG WHEEL,LWR 1-44129-050-0 01 1 1307-1311 ●
26 COVER; STRG WHEEL,LWR 1-44129-050-0 01 1 1312- ● ●
30 COWL; STEERING 1-79997-342-3 01 1 1307-1311 ●
30 COWL; STEERING 1-79997-342-3 01 1 1312- ● ●
33 COVER; STRG COWL 1-72438-121-3 01 1 1307-1311 ●
33 COVER; STRG COWL 1-72438-121-3 01 1 1312- ● ●
42 BOOT; STEERING COLUMN 1-79996-385-1 01 1 1307-1311 ●
42 BOOT; STEERING COLUMN 1-79996-385-1 01 1 1312- ● ●
45 BOOT; STRG SHAFT 1-79998-738-2 01 1 1307-1311 ●
45 BOOT; STRG SHAFT 1-79998-738-2 01 1 1312- ● ●
49 NUT; BOOT,STRG SHAFT
M6 FLANGE 		0-91180-106-0 02 1 1307-1311 ●
49 NUT; BOOT,STRG SHAFT
M6 FLANGE 		0-91180-106-0 02 1 1312- ● ●
58 SCREW; SET
M6X30 		9-03494-630-0 02 1 1307-1311 ●
58 SCREW; SET
M6X30 		9-03494-630-0 02 1 1312- ● ●
81 EMBLEM; STRG WHEEL 1-76210-638-1 01 1 1307-1311 ●
81 EMBLEM; STRG WHEEL 1-76210-638-1 01 1 1312- ● ●
85 CLIP; STRG COWL
D6X12.5 		8-94146-425-0 02 1 1307-1311 ●
85 CLIP; STRG COWL
D6X12.5 		8-94146-425-0 02 1 1312- ● ●
89 SCREW; COWL
M6X16 W/LK&PL WASHER 		8-94279-402-0 04 1 1307-1311 ●
89 SCREW; COWL
M6X16 W/LK&PL WASHER 		8-94279-402-0 04 1 1312- ● ●
