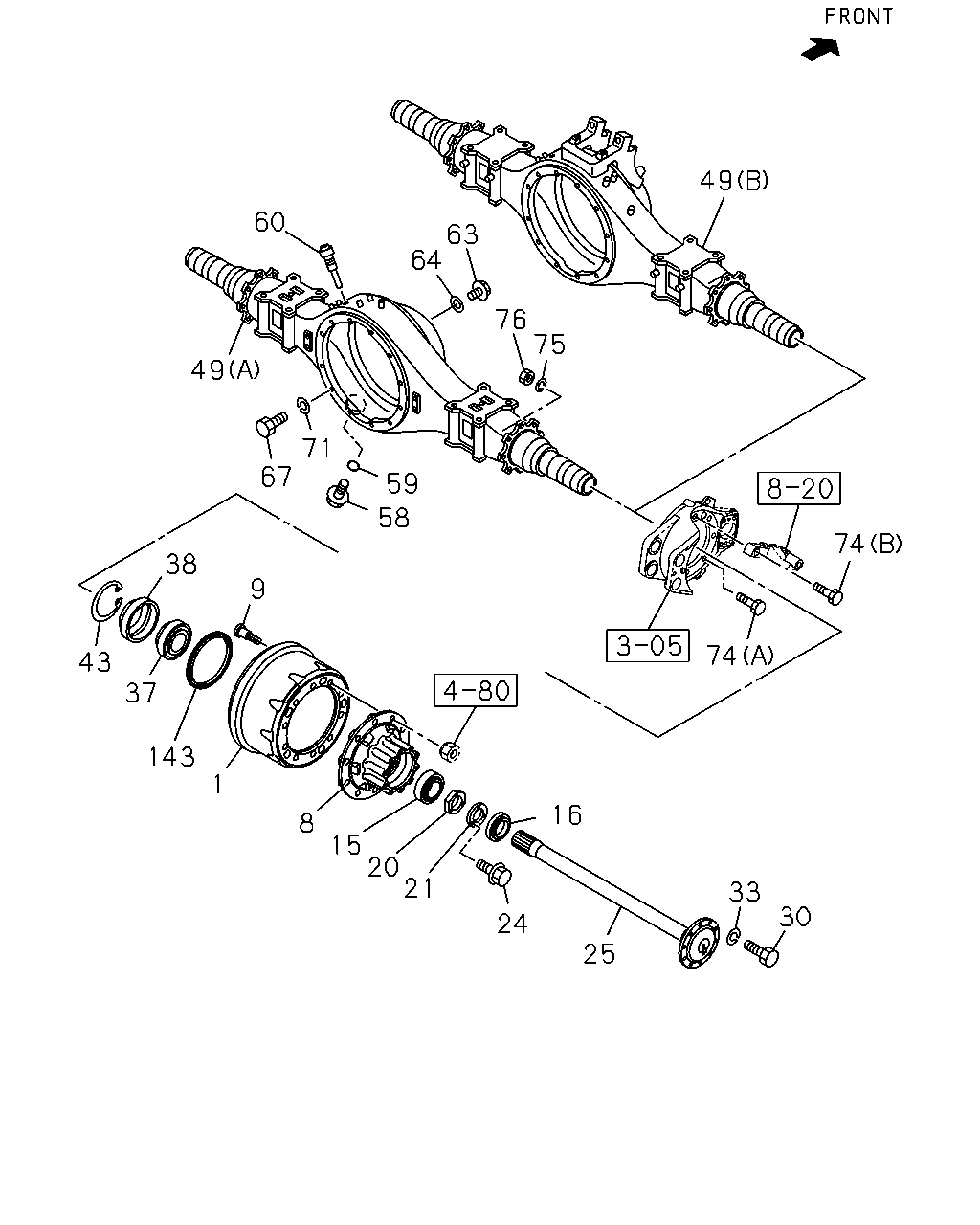

4-20 — REAR AXLE CASE AND SHAFT (#123933) — 129 parça

74 30 33 25 24 21 20 15 8 1 143 37 43 49 67 71 59 58 16 74 75 76 63 64 49 60 38 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	8-98085-728-1	02	1	1307-1311	●
1	DRUM; BRK,RR	8-98085-728-1	02	1	1312-1402	●	●
1	DRUM; BRK,RR P115 PROP SHAFT<C5X>	8-98085-728-1	02	1	1403-1403	●
1	DRUM; BRK,RR	8-98085-728-1	02	1	1404-	●	●
8	HUB; RR AXLE ANTILOCK BRAKE SYSTEM<BFA>	8-98128-136-1	02	1	1307-1311	●
8	HUB; RR AXLE ANTILOCK BRAKE SYSTEM<BFA>	8-98128-136-1	02	1	1312-1402	●	●
8	HUB; RR AXLE ANTILOCK BRAKE SYSTEM<BFA>	8-98128-136-1	02	1	1403-1403	●
8	HUB; RR AXLE ANTILOCK BRAKE SYSTEM<BFA>	8-98128-136-1	02	1	1404-	●	●
8	HUB; RR AXLE EXC. ANTILOCK BRAKE SYSTEM<BFA>	8-98128-135-1	02	1	1307-1311	●
8	HUB; RR AXLE EXC. ANTILOCK BRAKE SYSTEM<BFA>	8-98128-135-1	02	1	1312-1402	●	●
8	HUB; RR AXLE EXC. ANTILOCK BRAKE SYSTEM<BFA>	8-98128-135-1	02	1	1403-1403	●
8	HUB; RR AXLE EXC. ANTILOCK BRAKE SYSTEM<BFA>	8-98128-135-1	02	1	1404-	●	●
9	PIN; WHEEL,RR AXLE M22X98 RH THREAD	1-42337-095-1	20	1	1307-1311	●
9	PIN; WHEEL,RR AXLE M22X98 RH THREAD	1-42337-095-1	20	1	1312-1402	●	●
9	PIN; WHEEL,RR AXLE P115 PROP SHAFT<C5X> M22X98 RH THREAD	1-42337-095-1	20	1	1403-1403	●
9	PIN; WHEEL,RR AXLE M22X98 RH THREAD	1-42337-095-1	20	1	1404-	●	●
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1410-	●	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	1307-1311	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	1312-1402	●	●
15	BEARING; HUB OUTER,RR AXLE P115 PROP SHAFT<C5X> JTEKT	1-09812-232-0	02	1	1403-1403	●
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	1404-	●	●
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1410-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	1307-1311	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	1312-1402	●	●
16	SEAL; OIL,RR HUB,OUTER P115 PROP SHAFT<C5X> TKK	1-09625-444-0	02	1	1403-1403	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	1404-	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	1307-1311	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	1312-1402	●	●
20	NUT; BRG,RR HUB P115 PROP SHAFT<C5X> M88	9-09843-062-2	02	1	1403-1403	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	02	1	1404-	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	1307-1311	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	1312-1402	●	●
21	WASHER; LK,BRG NUT P115 PROP SHAFT<C5X> ID=88	9-09854-112-0	02	1	1403-1403	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	1404-	●	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	1307-1311	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	1312-1402	●	●
24	BOLT; LK WASHER P115 PROP SHAFT<C5X> M6X16 FLANGE	0-28650-616-0	06	1	1403-1403	●
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	1404-	●	●
25	SHAFT; AXLE,RR L=1050	8-98146-164-0	02	1	1307-1311	●
25	SHAFT; AXLE,RR L=1050	8-98146-164-0	02	1	1312-1402	●	●
25	SHAFT; AXLE,RR P115 PROP SHAFT<C5X> L=1050	8-98146-164-0	02	1	1403-1403	●
25	SHAFT; AXLE,RR L=1050	8-98146-164-0	02	1	1404-	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	1307-1311	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	1312-1402	●	●
30	BOLT; HUB TO AXLE SHAFT P115 PROP SHAFT<C5X> M14X58	1-09000-582-0	20	1	1403-1403	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	1404-	●	●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	1307-1311	●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	1312-1402	●	●
33	WASHER; AXLE SHAFT P115 PROP SHAFT<C5X> ID=14.2	0-91510-814-0	20	1	1403-1403	●
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	1404-	●	●
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1410-	●	●
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1410-	●	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	1307-1311	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	1312-1402	●	●
37	BEARING; HUB INNER,RR AXLE P115 PROP SHAFT<C5X> JTEKT	1-09812-233-0	02	1	1403-1403	●
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	1404-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	1307-1311	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	1312-1402	●	●
38	SEAL; OIL,RR HUB,INNER P115 PROP SHAFT<C5X> NOK	1-09625-265-0	02	1	1403-1403	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	1404-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	1307-1311	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	1312-1402	●	●
38	SEAL; OIL,RR HUB,INNER P115 PROP SHAFT<C5X> TKK	1-09625-350-0	02	1	1403-1403	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	1404-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	1307-1311	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	1312-1402	●	●
43	RING; SNAP,HUB SEAL,RR AXLE P115 PROP SHAFT<C5X> OD=179	1-09587-057-0	02	1	1403-1403	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	1404-	●	●
49	CASE; RR AXLE ANTILOCK BRAKE SYSTEM<BFA> (B)	8-98190-635-0	01	1	1404-		●
49	CASE; RR AXLE EXC. ANTILOCK BRAKE SYSTEM<BFA> (B)	8-98190-634-0	01	1	1404-		●
49	CASE; RR AXLE ANTILOCK BRAKE SYSTEM<BFA> (B)	8-98190-635-0	01	1	1312-1402		●
49	CASE; RR AXLE EXC. ANTILOCK BRAKE SYSTEM<BFA> (B)	8-98190-634-0	01	1	1312-1402		●
49	CASE; RR AXLE ANTILOCK BRAKE SYSTEM<BFA> (A)	8-98190-633-0	01	1	1307-	●
49	CASE; RR AXLE EXC. ANTILOCK BRAKE SYSTEM<BFA> (A)	8-98190-632-0	01	1	1307-	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1307-1311	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1312-1402	●	●
58	PLUG; DRAIN,AXLE CASE P115 PROP SHAFT<C5X> M24X17 FLANGE	1-09604-023-0	01	1	1403-1403	●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1404-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1307-1311	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1312-1402	●	●
59	GASKET; DRAIN PLUG P115 PROP SHAFT<C5X> ID=26.8	9-09920-605-0	01	1	1403-1403	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1404-	●	●
60	BREATHER; RR AXLE CASE	9-36122-015-1	01	1	1307-1311	●
60	BREATHER; RR AXLE CASE	9-36122-015-1	01	1	1312-	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1307-1311	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1312-1402	●	●
63	PLUG; OIL FILLER,AXLE CASE P115 PROP SHAFT<C5X> M24X17 FLANGE	1-09604-022-0	01	1	1403-1403	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1404-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1307-1311	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1312-1402	●	●
64	GASKET; OIL FILLER,AXLE CASE P115 PROP SHAFT<C5X> ID=26.8	9-09920-605-0	01	1	1403-1403	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1404-	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	04	1	1307-1311	●
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	04	1	1312-1402	●	●
67	BOLT; FINAL DRIVE SETTING P115 PROP SHAFT<C5X> M16X70	0-10956-670-0	04	1	1403-1403	●
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	04	1	1404-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	08	1	1307-1311	●
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	08	1	1312-1402	●	●
67	BOLT; FINAL DRIVE SETTING P115 PROP SHAFT<C5X> M16X40	0-20951-640-0	08	1	1403-1403	●
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	08	1	1404-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	1307-1311	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	1312-1402	●	●
71	WASHER; LK,FINAL DRIVE SETTING P115 PROP SHAFT<C5X> ID=16.2	0-91510-816-0	12	1	1403-1403	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	1404-	●	●
74	BOLT; RR BRK ASM SETTING ANTILOCK BRAKE SYSTEM<BFA> (A) M14X50	1-09040-066-0	12	1	1307-1311	●
74	BOLT; RR BRK ASM SETTING ANTILOCK BRAKE SYSTEM<BFA> (A) M14X50	1-09040-066-0	12	1	1312-1402	●	●
74	BOLT; RR BRK ASM SETTING ANTILOCK BRAKE SYSTEM<BFA> (A) M14X50	1-09040-066-0	12	1	1403-1403	●
74	BOLT; RR BRK ASM SETTING ANTILOCK BRAKE SYSTEM<BFA> (A) M14X50	1-09040-066-0	12	1	1404-	●	●
74	BOLT; RR BRK ASM SETTING ANTILOCK BRAKE SYSTEM<BFA> (B) M14X80	9-92621-480-0	04	1	1307-1311	●
74	BOLT; RR BRK ASM SETTING ANTILOCK BRAKE SYSTEM<BFA> (B) M14X80	9-92621-480-0	04	1	1312-1402	●	●
74	BOLT; RR BRK ASM SETTING ANTILOCK BRAKE SYSTEM<BFA> (B) M14X80	9-92621-480-0	04	1	1403-1403	●
74	BOLT; RR BRK ASM SETTING ANTILOCK BRAKE SYSTEM<BFA> (B) M14X80	9-92621-480-0	04	1	1404-1504	●	●
74	BOLT; RR BRK ASM SETTING ANTILOCK BRAKE SYSTEM<BFA> (B) M14X60	1-09040-084-0	04	1	1505-	●	●
74	BOLT; RR BRK ASM SETTING EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) M14X50	1-09040-066-0	16	1	1307-1311	●
74	BOLT; RR BRK ASM SETTING EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) M14X50	1-09040-066-0	16	1	1312-1402	●	●
74	BOLT; RR BRK ASM SETTING EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) M14X50	1-09040-066-0	16	1	1403-1403	●
74	BOLT; RR BRK ASM SETTING EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) M14X50	1-09040-066-0	16	1	1404-	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	1307-1311	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	1312-1402	●	●
75	WASHER; LK,RR BRK ASM SETTING P115 PROP SHAFT<C5X> ID=14.2	0-91510-814-0	16	1	1403-1403	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	1404-	●	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	1307-1311	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	1312-1402	●	●
76	NUT; RR BRK ASM SETTING P115 PROP SHAFT<C5X> M14	0-91110-514-0	16	1	1403-1403	●
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	1404-	●	●
143	RING; EXCITER ANTILOCK BRAKE SYSTEM<BFA>	1-42319-173-0	02	1	1307-1311	●
143	RING; EXCITER ANTILOCK BRAKE SYSTEM<BFA>	1-42319-173-0	02	1	1312-1402	●	●
143	RING; EXCITER ANTILOCK BRAKE SYSTEM<BFA>	1-42319-173-0	02	1	1403-1403	●
143	RING; EXCITER ANTILOCK BRAKE SYSTEM<BFA>	1-42319-173-0	02	1	1404-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
