◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11523 - LV152/452(LHD) EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#123932) — 88 parça

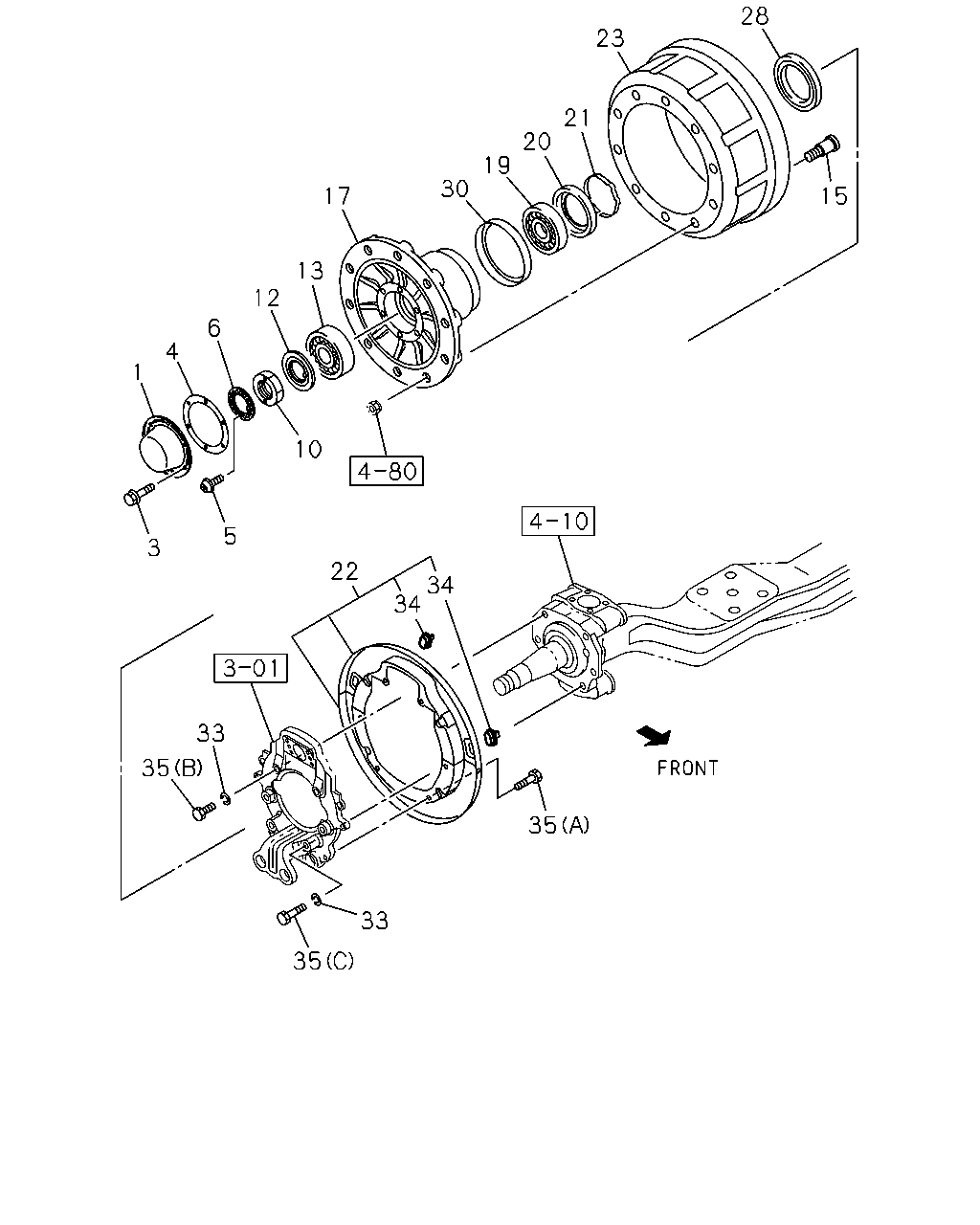

çizim 364503
1 4 6 12 13 17 3 5 10 30 19 20 21 23 28 15 22 34 34 35 33 35 35 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 1307-1311 ●
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 1312-1402 ● ●
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 1403-1403 ●
1 CAP; HUB,FRT AXLE
OD=156 		9-42313-123-2 02 1 1404- ● ●
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28050-812-0 12 1 1307-1311 ●
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28050-812-0 12 1 1312-1402 ● ●
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28050-812-0 12 1 1403-1403 ●
3 BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE 		0-28050-812-0 12 1 1404- ● ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-2 02 1 1307-1311 ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-2 02 1 1312-1402 ● ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-2 02 1 1403-1403 ●
4 GASKET; HUB CAP,FRT WHEEL 1-42319-185-2 02 1 1404- ● ●
5 BOLT; LK WASHER
M6X16 HEX SOCKET 		8-98200-943-0 04 1 1307-1311 ●
5 BOLT; LK WASHER
M6X16 HEX SOCKET 		8-98200-943-0 04 1 1312-1402 ● ●
5 BOLT; LK WASHER
M6X16 HEX SOCKET 		8-98200-943-0 04 1 1403-1403 ●
5 BOLT; LK WASHER
M6X16 HEX SOCKET 		8-98200-943-0 04 1 1404- ● ●
6 WASHER; LK,FRT HUB
ID=48 		8-98084-561-0 02 1 1307-1311 ●
6 WASHER; LK,FRT HUB
ID=48 		8-98084-561-0 02 1 1312-1402 ● ●
6 WASHER; LK,FRT HUB
ID=48 		8-98084-561-0 02 1 1403-1403 ●
6 WASHER; LK,FRT HUB
ID=48 		8-98084-561-0 02 1 1404- ● ●
10 NUT; FRT HUB BRG
M48 		1-09840-012-5 02 1 1307-1311 ●
10 NUT; FRT HUB BRG
M48 		1-09840-012-5 02 1 1312-1402 ● ●
10 NUT; FRT HUB BRG
M48 		1-09840-012-5 02 1 1403-1403 ●
10 NUT; FRT HUB BRG
M48 		1-09840-012-5 02 1 1404- ● ●
12 WASHER; LK,FRT HUB BRG
ID=48 		8-98156-755-0 02 1 1307-1311 ●
12 WASHER; LK,FRT HUB BRG
ID=48 		8-98156-755-0 02 1 1312-1402 ● ●
12 WASHER; LK,FRT HUB BRG
ID=48 		8-98156-755-0 02 1 1403-1403 ●
12 WASHER; LK,FRT HUB BRG
ID=48 		8-98156-755-0 02 1 1404- ● ●
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-234-0 02 1 1307-1311 ●
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-234-0 02 1 1312-1402 ● ●
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-234-0 02 1 1403-1403 ●
13 BEARING; HUB OUTER,FRT AXLE
JTEKT 		1-09812-234-0 02 1 1404- ● ●
15 PIN; WHEEL,FRT AXLE
M22X82 RH THREAD 		1-42337-093-1 20 1 1307-1311 ●
15 PIN; WHEEL,FRT AXLE
M22X82 RH THREAD 		1-42337-093-1 20 1 1312-1402 ● ●
15 PIN; WHEEL,FRT AXLE
M22X82 RH THREAD 		1-42337-093-1 20 1 1403-1403 ●
15 PIN; WHEEL,FRT AXLE
M22X82 RH THREAD 		1-42337-093-1 20 1 1404- ● ●
17 HUB; FRT AXLE 8-98132-507-2 02 1 1307-1311 ●
17 HUB; FRT AXLE 8-98132-507-2 02 1 1312-1402 ● ●
17 HUB; FRT AXLE 8-98132-507-2 02 1 1403-1403 ●
17 HUB; FRT AXLE 8-98132-507-2 02 1 1404- ● ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		1-09812-231-0 02 1 1307-1311 ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		1-09812-231-0 02 1 1312-1402 ● ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		1-09812-231-0 02 1 1403-1403 ●
19 BEARING; HUB INNER,FRT AXLE
JTEKT 		1-09812-231-0 02 1 1404- ● ●
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 1307-1311 ●
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 1312-1402 ● ●
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 1403-1403 ●
20 COVER; HUB BRG INNER 1-42319-039-0 02 1 1404- ● ●
21 RING; SNAP,HUB 1-09587-017-0 02 1 1307-1311 ●
21 RING; SNAP,HUB 1-09587-017-0 02 1 1312-1402 ● ●
21 RING; SNAP,HUB 1-09587-017-0 02 1 1403-1403 ●
21 RING; SNAP,HUB 1-09587-017-0 02 1 1404- ● ●
22 COVER SET; FRT BRK DRUM 1-87831-225-0 02 1 1307-1311 ●
22 COVER SET; FRT BRK DRUM 1-87831-225-0 02 1 1312-1402 ● ●
22 COVER SET; FRT BRK DRUM 1-87831-225-0 02 1 1403-1403 ●
22 COVER SET; FRT BRK DRUM 1-87831-225-0 02 1 1404- ● ●
23 DRUM; BRK,FRT 8-98119-482-1 02 1 1307-1311 ●
23 DRUM; BRK,FRT 8-98119-482-1 02 1 1312-1402 ● ●
23 DRUM; BRK,FRT 8-98119-482-1 02 1 1403-1403 ●
23 DRUM; BRK,FRT 8-98119-482-1 02 1 1404- ● ●
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 1307-1311 ●
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 1312-1402 ● ●
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 1403-1403 ●
28 SEAL; OIL,FRT HUB
OD=140 		1-09625-041-0 02 1 1404- ● ●
30 RING; EXCITER,FRT HUB
ANTILOCK BRAKE SYSTEM<BFA> 		1-42319-203-0 02 1 1307-1311 ●
30 RING; EXCITER,FRT HUB
ANTILOCK BRAKE SYSTEM<BFA> 		1-42319-203-0 02 1 1312-1402 ● ●
30 RING; EXCITER,FRT HUB
ANTILOCK BRAKE SYSTEM<BFA> 		1-42319-203-0 02 1 1403-1403 ●
30 RING; EXCITER,FRT HUB
ANTILOCK BRAKE SYSTEM<BFA> 		1-42319-203-0 02 1 1404- ● ●
33 WASHER; LK,DRUM COVER
ID=18.2 		0-91510-818-0 12 1 1307-1311 ●
33 WASHER; LK,DRUM COVER
ID=18.2 		0-91510-818-0 12 1 1312-1402 ● ●
33 WASHER; LK,DRUM COVER
ID=18.2 		0-91510-818-0 12 1 1403-1403 ●
33 WASHER; LK,DRUM COVER
ID=18.2 		0-91510-818-0 12 1 1404- ● ●
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1307-1311 ●
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1312-1402 ● ●
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1403-1403 ●
34 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1404- ● ●
35 BOLT; DRUM COVER
(C) M18X65 		1-09000-789-0 04 1 1307-1311 ●
35 BOLT; DRUM COVER
(C) M18X65 		1-09000-789-0 04 1 1312-1402 ● ●
35 BOLT; DRUM COVER
(C) M18X65 		1-09000-789-0 04 1 1403-1403 ●
35 BOLT; DRUM COVER
(C) M18X65 		1-09000-789-0 04 1 1404- ● ●
35 BOLT; DRUM COVER
(B) M18X45 		1-09000-790-0 08 1 1307-1311 ●
35 BOLT; DRUM COVER
(B) M18X45 		1-09000-790-0 08 1 1312-1402 ● ●
35 BOLT; DRUM COVER
(B) M18X45 		1-09000-790-0 08 1 1403-1403 ●
35 BOLT; DRUM COVER
(B) M18X45 		1-09000-790-0 08 1 1404- ● ●
35 BOLT; DRUM COVER
(A) M10X12 		1-47159-187-0 12 1 1307-1311 ●
35 BOLT; DRUM COVER
(A) M10X12 		1-47159-187-0 12 1 1312-1402 ● ●
35 BOLT; DRUM COVER
(A) M10X12 		1-47159-187-0 12 1 1403-1403 ●
35 BOLT; DRUM COVER
(A) M10X12 		1-47159-187-0 12 1 1404- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
